Thank you for buying a MITSUBISHI ECLIPSE CROSS. We are confident you will enjoy your vehicle. It has been engineered for optimum performance, durabi
lity and comfort. By thoroughly
reading this Owner’s Manual, you
will gain an understanding of the
many features that are included in the ECLIPSE CROSS. The Owner’sManual contains descriptions and illus
trations that will assist in the
operation and maintenance of your vehicle. Your Authorized Mitsubishi Motors
Dealer will be happy to assist you
with any further questions you may have regarding the operation ofyour vehicle. Please note that this manual app
lies to all ECLIPSE CROSS models
and explains all features including
options. Some features explained in
this manual may not be installed on your vehicle. Please leave this Owner’s Manual in th
e vehicle at the time of resale.
The next owner will appreciate having access to the information con- tained here. This manual includes instructions fo
r standard and optional equipment
available at the time of printing
. Mitsubishi Motors Corporation
reserves the right to make changes in design and specifications and to make additions or improvements in
its product without assuming any
obligation to install these on previously manufactured products.Introduction
Throughout this manual the words
WARNING
and
CAUTION
appear. These are reminders to be especia
lly careful. Failure to follow the
instructions could result in persona
l injury or damage to your vehi-
cle. Indicates a strong possibility of se
vere personal injury or death if
instructions are not followed. Points out hazards or unsafe pr
actices that could cause minor
personal injury or damage to your vehicle. You will see another important symbol: Gives helpful information. As with other vehicles of this type, failure to operate this vehicle cor- rectly may result in loss of control or an accident. Be sure to read “on-pavement” and “off-road” driving guidelines in the “Drivingsafety” and “Features and controls” sections.©2019 Mitsubishi Motors Corp
oration Printed in Japan
BK0277700US.bo
ok 1 ページ ２０１９年３月８日　金曜日　午前９時２３分

N09349100057
BK0277700US.bo
ok 1 ページ ２０１９年３月８日　金曜日　午前９時２３分

Table of contents
123456789101112
Overview Quick indexGeneral information Seat and restraint systems Features and controlsDriving safetyComfort controlsFor emergenciesVehicle care and maintenance Customer assistance/
Reporting Safety Defects
Specifications Alphabetical index
BK0277700US.bo
ok 1 ページ ２０１９年３月８日　金曜日　午前９時２３分

Instruments and controls 1-1
1
Overview
N00100202951
Instruments and controls
Combination headlights an
d dimmer switch P.5-191
Automatic High Beam (AHB) sw
itch (if so equipped) P.5-194
Turn signal lever P.5-199 Front fog light switch P.5-201
Steering wheel audio remote control switches [For DISPLAY AUDIO and Smartphone Link Display Audio, refer to the separate owner’s manual.]
Active stability control (ASC) OFF switch P.5-85
Supplemental Restraint System (SRS) - driver’s airbag P.4-30, 4-36Horn switch P.5-209
Instrument cluster P.5-142
Windshield wiper and washer switch P.5-201 Rear window wiper and
washer switch P.5-206
Cruise control switches P.5-87, 5-92
Steering wheel height and reach adjustment lever P.5-53
Engine switch (if so equipped) P.5-19
Sportronic steering wheel paddle
shifter (if so equipped) P.5-67
Lane Departure Warning (LDW) switch (if so equipped) P.5-123
Forward Collision Mitigation
system (FCM) ON/OFF switch
(if so equipped) P.5-108
Supplemental Restraint System (SRS) - driver’s knee airbag P.4-36
Ignition switch (if so equipped) P.5-60
Head Up Display (HUD) switches (if so equipped) P.5-187
Headlight leveling switch
(if so equipped) P.5-199
Camera switch P.5-137
Hands free switches (if so equipped)
Multi-information display switches P.5-145
Head Up Display (HUD)
(if so equipped) P.5-187
BK0277700US.bo
ok 1 ページ ２０１９年３月８日　金曜日　午前９時２３分

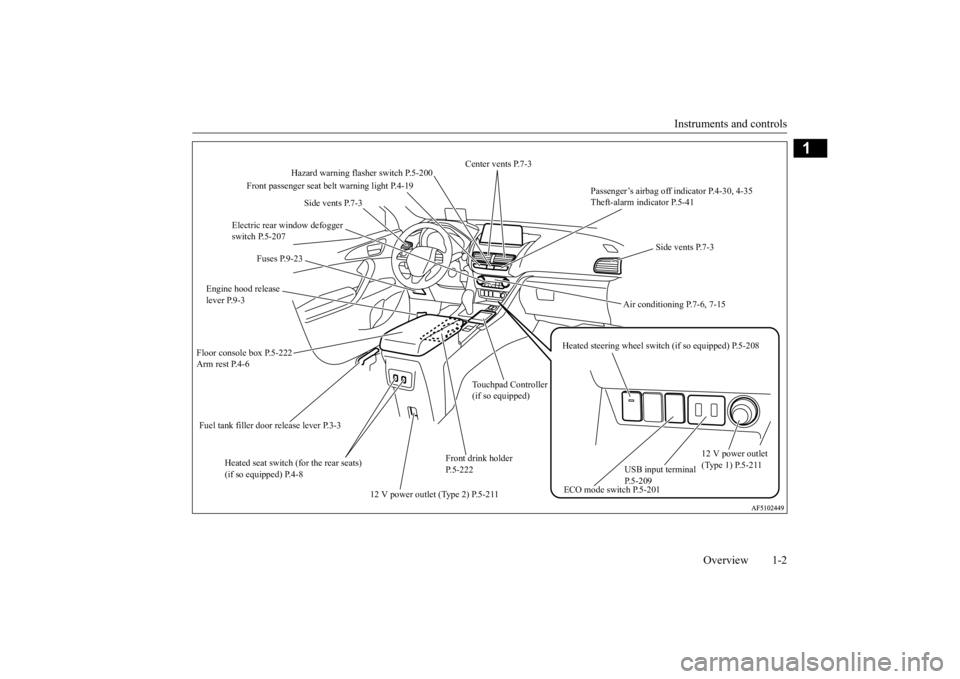

Instruments and controls
Overview 1-2
1
Hazard warning flasher switch P.5-200
Electric rear window defogger switch P.5-207
Fuel tank filler door release lever P.3-3 Engine hood release lever P.9-3 Floor console box P.5-222 Arm rest P.4-6
12 V power outlet (Type 1) P.5-211
Air conditioning P.7-6, 7-15
Passenger’s airbag off indicator P.4-30, 4-35 Theft-alarm indicator P.5-41
Front passenger seat belt warning light P.4-19
Heated steering wheel switc
h (if so equipped) P.5-208
Heated seat switch (for the rear seats) (if so equipped) P.4-8
Side vents P.7-3
ECO mode switch P.5-201
USB input terminal P.5-209
Center vents P.7-3
Fuses P.9-23
Front drink holder P.5-222
Side vents P.7-3
12 V power outlet (Type 2) P.5-211
Touchpad Controller (if so equipped)
BK0277700US.bo
ok 2 ページ ２０１９年３月８日　金曜日　午前９時２３分

Instruments and controls 1-3 Overview
1
Supplemental Restraint System (SRS) - front passenger’s airbag P. 4-30, 4-36
Glove compartment P.5-221 Card holder P.5-221
S-AWC drive mode-selec
tor (if so equipped)
P.5-71
Parking brake lever P.5-50
Heated seat switches (for the front seats) P.4-8
Selector lever P.5-63
Brake auto hold switch P.5-77
S-AWC drive mode selector (if so equipped)P.5-71
Electric parking brake type
Parking brake lever type
Heated seat switches (for the front seats) (if so equipped) P.4-8
Electric parking brake switch P.5-50
Selector lever P.5-63
Multi Around Monitor (if
so equipped) P.5-133
Audio (if so equipped) [For DISPLAY AUDIO and Smartphone Link Display Audio, refer to the sepa
rate owner’s manuals.]
BK0277700US.bo
ok 3 ページ ２０１９年３月８日　金曜日　午前９時２３分

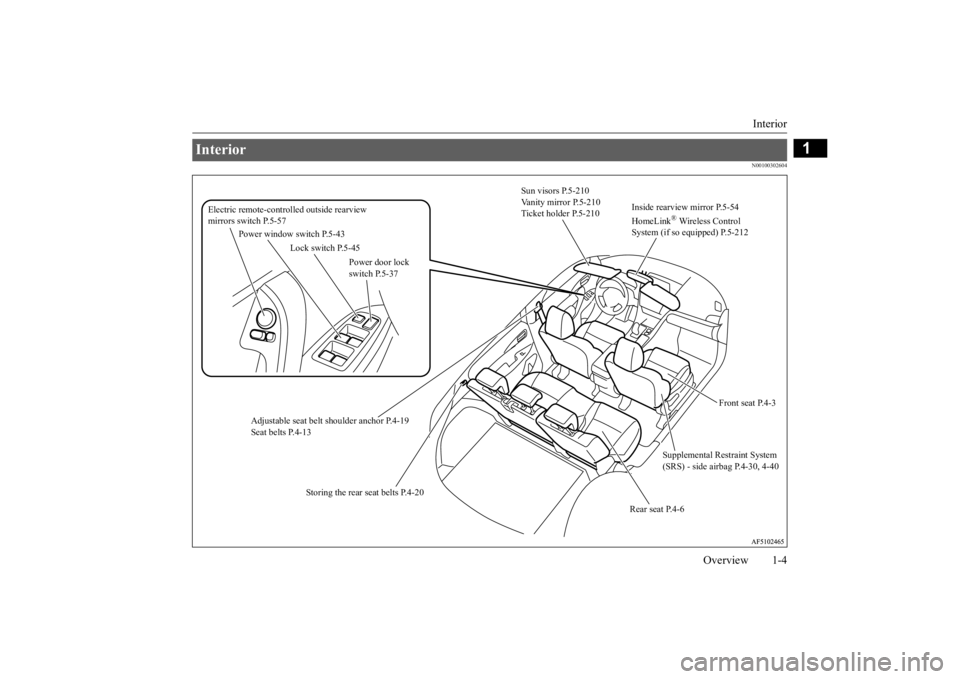

Interior
Overview 1-4
1
N00100302604
Interior
Sun visors P.5-210 Vanity mirror P.5-210 Ticket holder P.5-210
Supplemental Restraint System (SRS) - side airbag P.4-30, 4-40
Adjustable seat belt
shoulder anchor P.4-19
Seat belts P.4-13
Electric remote-controlled outside rearview mirrors switch P.5-57
Lock switch P.5-45
Power door lock switch P.5-37
Power window switch P.5-43
Rear seat P.4-6
Front seat P.4-3
Inside rearview mirror P.5-54 HomeLink
® Wireless Control
System (if so equipped) P.5-212
Storing the rear seat belts P.4-20
BK0277700US.bo
ok 4 ページ ２０１９年３月８日　金曜日　午前９時２３分

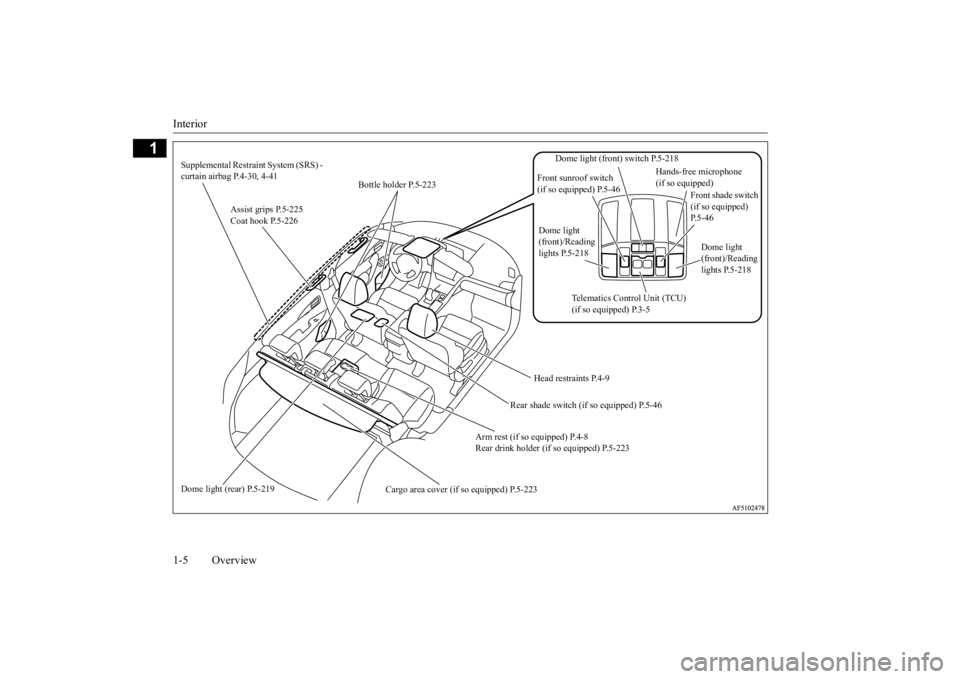

Interior 1-5 Overview
1
Assist grips P.5-225 Coat hook P.5-226
Bottle holder P.5-223
Head restraints P.4-9
Arm rest (if so equipped) P.4-8 Rear drink holder (if so equipped) P.5-223
Cargo area cover (if so equipped) P.5-223
Supplemental Restraint System (SRS) - curtain airbag P.4-30, 4-41 Dome light (rear) P.5-219
Front shade switch (if so equipped) P.5-46
Dome light (front) switch P.5-218
Front sunroof switch (if so equipped) P.5-46
Dome light (front)/Reading lights P.5-218
Hands-free microphone (if so equipped)
Dome light (front)/Reading lights P.5-218
Telematics Control Unit (TCU) (if so equipped) P.3-5
Rear shade switch (if
so equipped) P.5-46
BK0277700US.bo
ok 5 ページ ２０１９年３月８日　金曜日　午前９時２３分

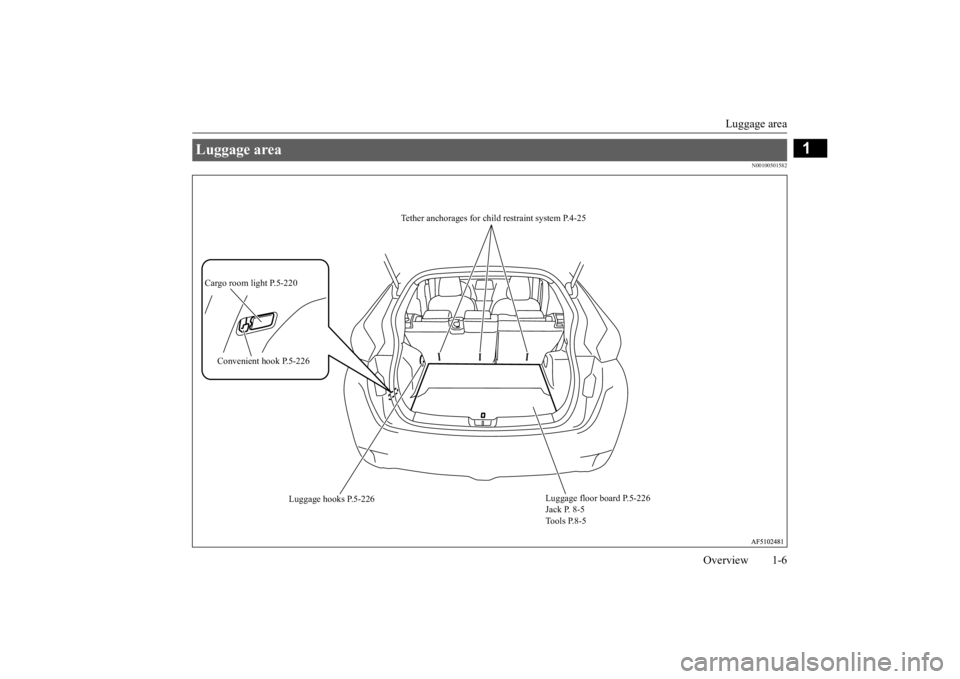

Luggage area
Overview 1-6
1
N00100501582
Luggage area
Luggage floor board P.5-226 Jack P. 8-5 Tools P.8-5
Luggage hooks P.5-226
Tether anchorages for child
restraint system P.4-25
Cargo room light P.5-220
Convenient hook P.5-226
