MITSUBISHI ENDEAVOR 2004 Service Repair Manual

Fig. 15: Connecting Scan Tool (MB991958) To Data Link Connector

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

2. Turn the ignition switch to "ON" position.
3. Diagnose the CAN bus line. Q: Is the check result satisfactory?

YES:
Go to Step 2.
NO:
Repair the CAN bus lines (Refer to
CAN BUS DIAGNOSTICS
TABLE
). Then go to Step 7 .

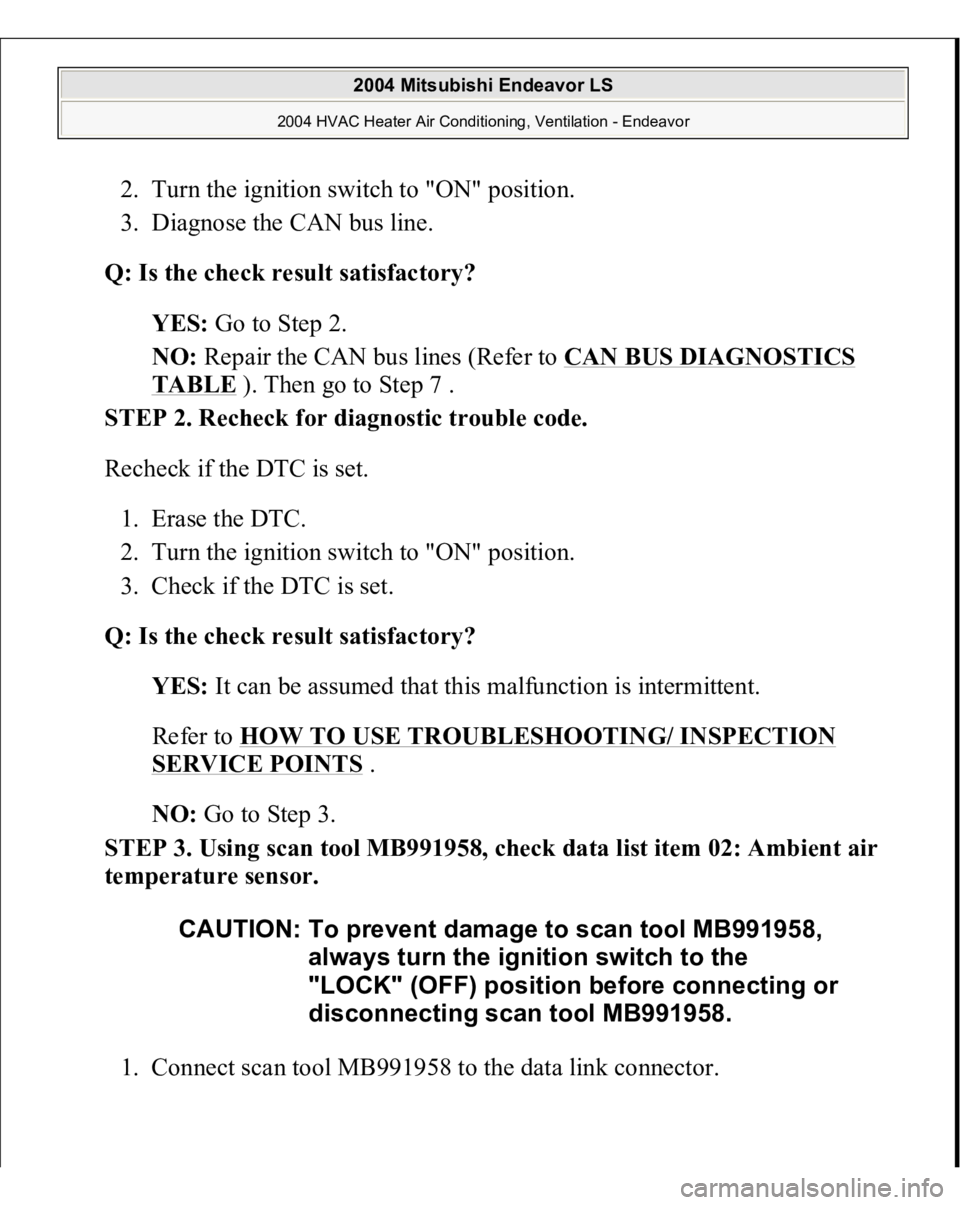

STEP 2. Recheck for diagnostic trouble code.

Recheck if the DTC is set.
1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.
Q: Is the check result satisfactory?

YES:
It can be assumed that this malfunction is intermittent.
Refer to
HOW TO USE TROUBLESHOOTING/ INSPECTION
SERVICE POINTS
.
NO:
Go to Step 3.
STEP 3. Using scan tool MB991958, check data list item 02: Ambient air
temperature sensor.

1. Connect scan tool MB991958 to the data link connec
tor.
CAUTION: To prevent damage to scan tool MB991958,
always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Fig. 16: Connecting Scan Tool (MB991958) To Data Link Connector

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

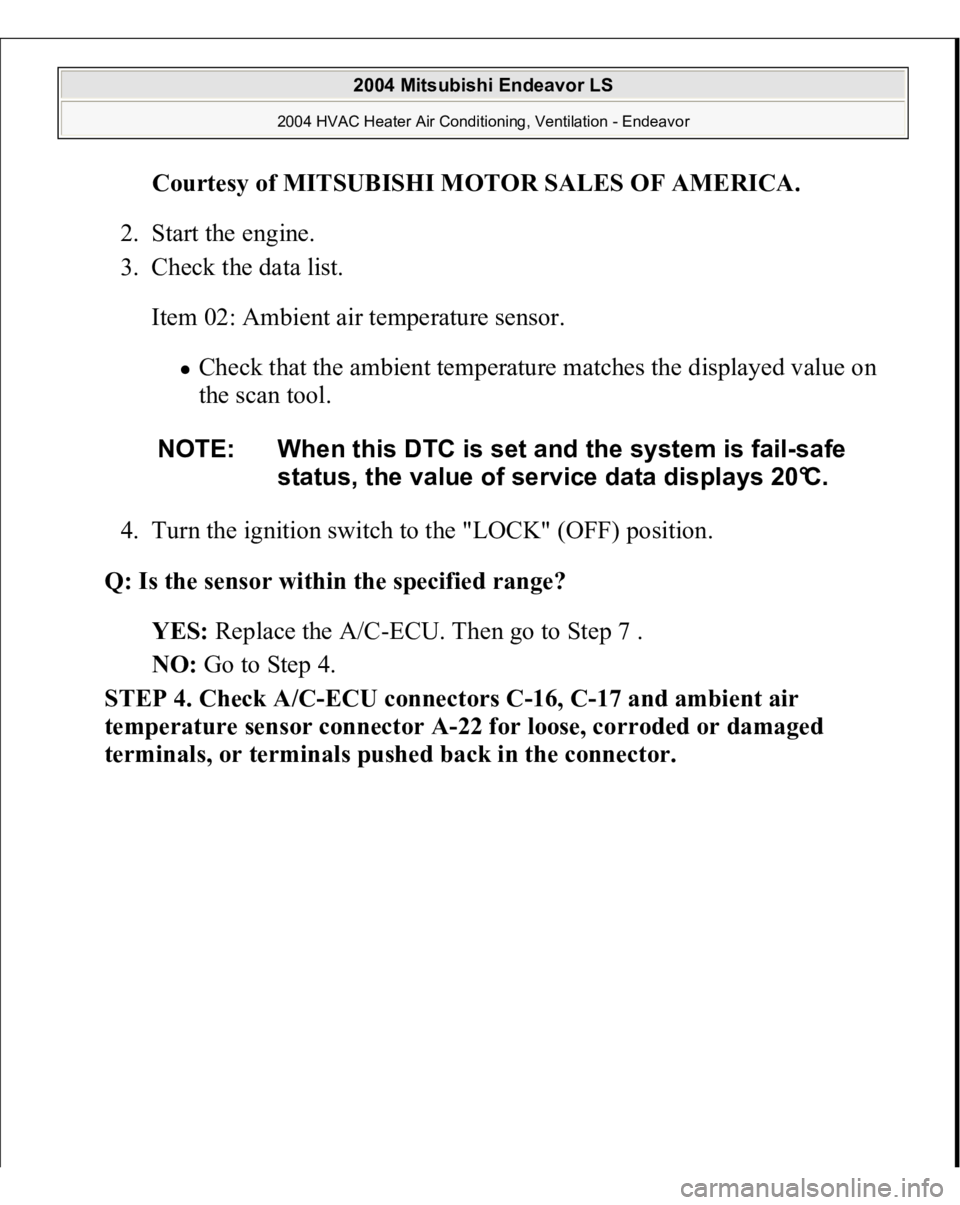

2. Start the engine.
3. Check the data list.
Item 02: Ambient air temperature sensor.
Check that the ambient temperature matches the displayed value on
the scan tool.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor within the specified range?

YES:
Replace the A/C-ECU. Then go to Step 7 .
NO:
Go to Step 4.
STEP 4. Check A/C-ECU connectors C-16, C-17 and ambient air
temperature sensor connector A-22 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.NOTE: When this DTC is set and the system is fail-safe
status, the value of service data displays 20°C.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

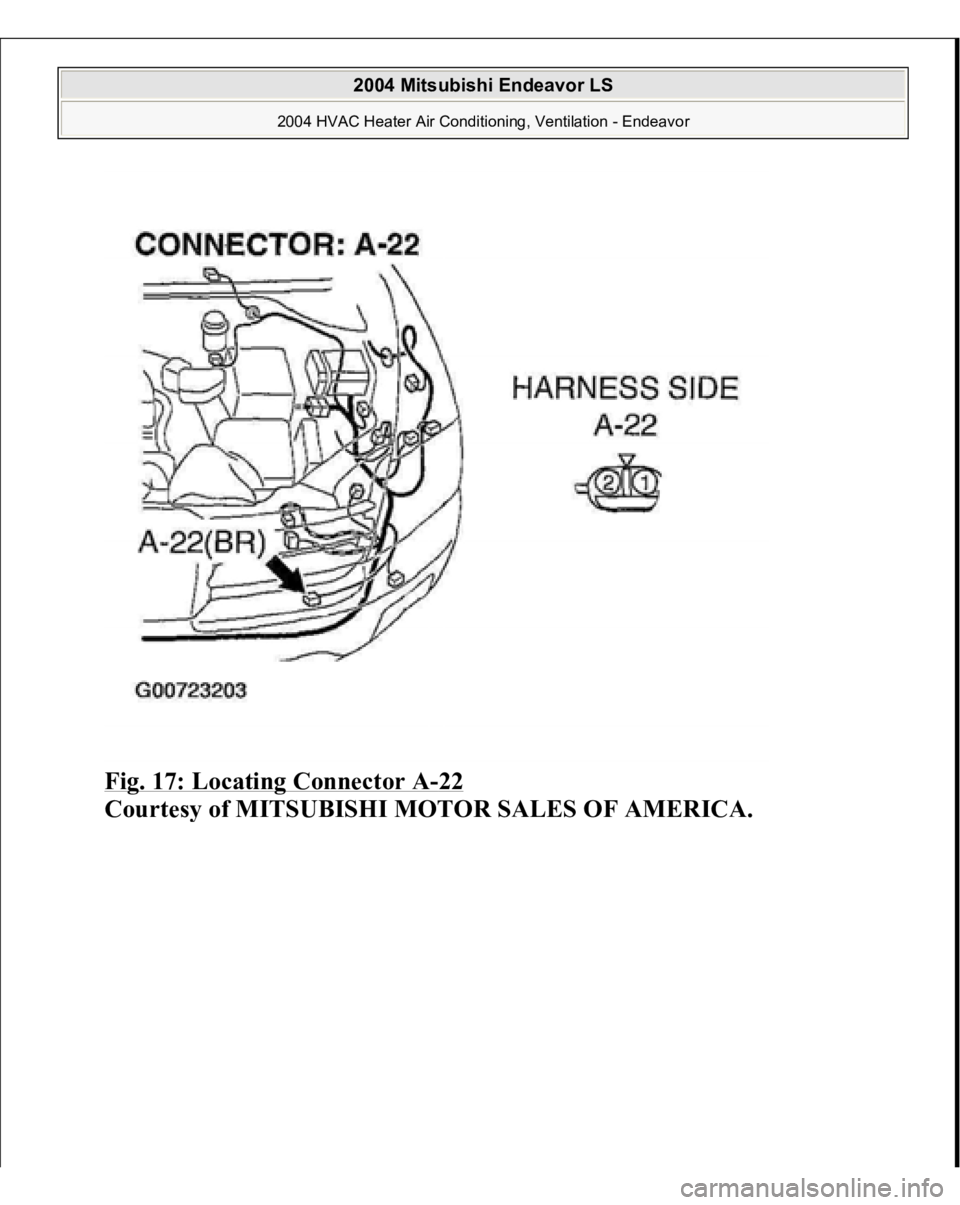

Fig. 17: Locating Connector A
-22
Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

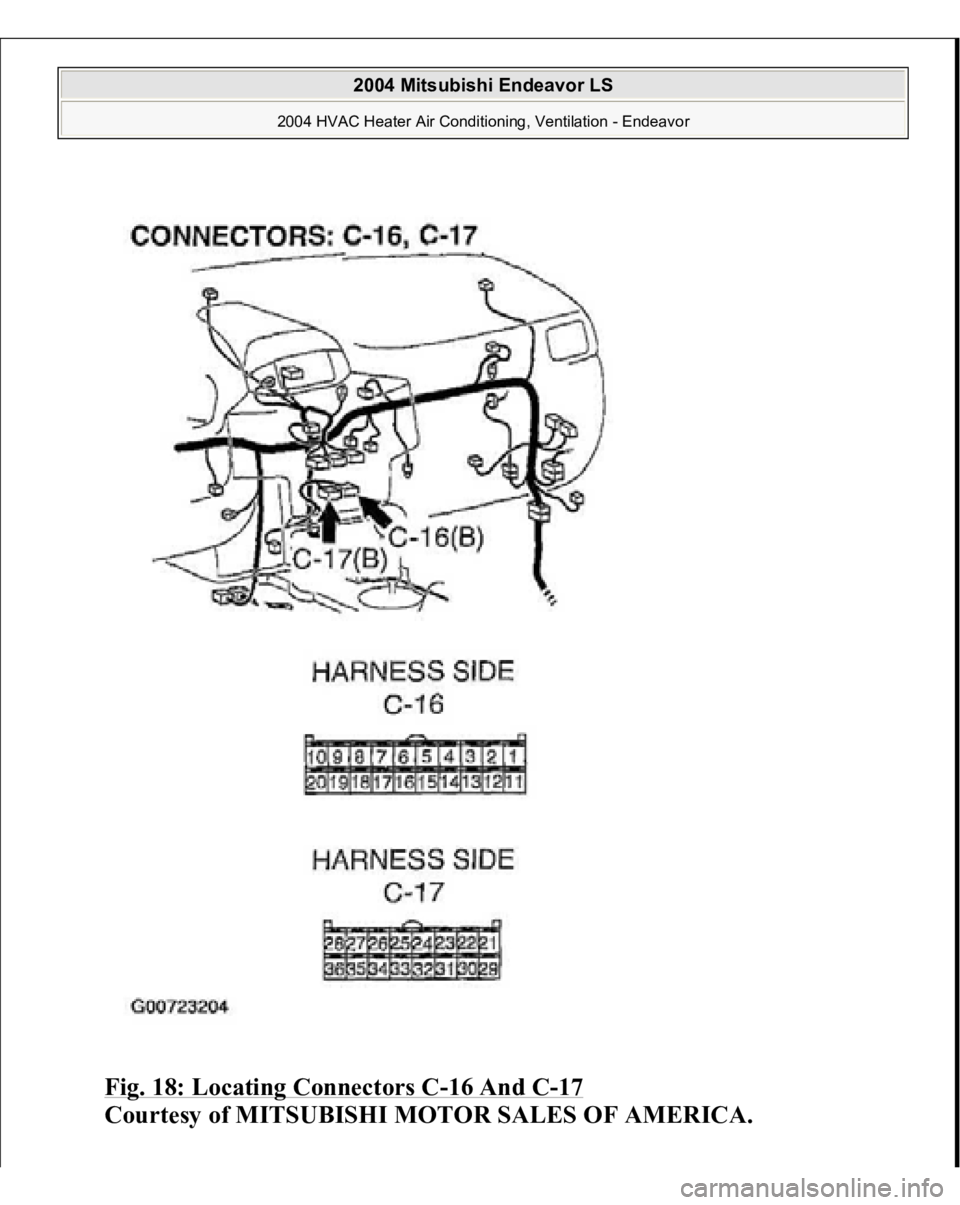

Fig. 18: Locating Connectors C
-16 And C
-17
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Q: Are A/C-ECU connectors C-16, C-17 and ambient air temperature
sensor connector A-22 in good condition?

YES:
Go to Step 5.
NO:
Repair or replace the connector. Refer to
HARNESS
CONNECTOR INSPECTION
. Then go to Step 7 .
STEP 5. Check the wiring harness between A/C-ECU connector C-16
(terminal 20), C-17 (terminal 23) and ambient air temperature sensor
connector A-22 (terminals 1 and 2).

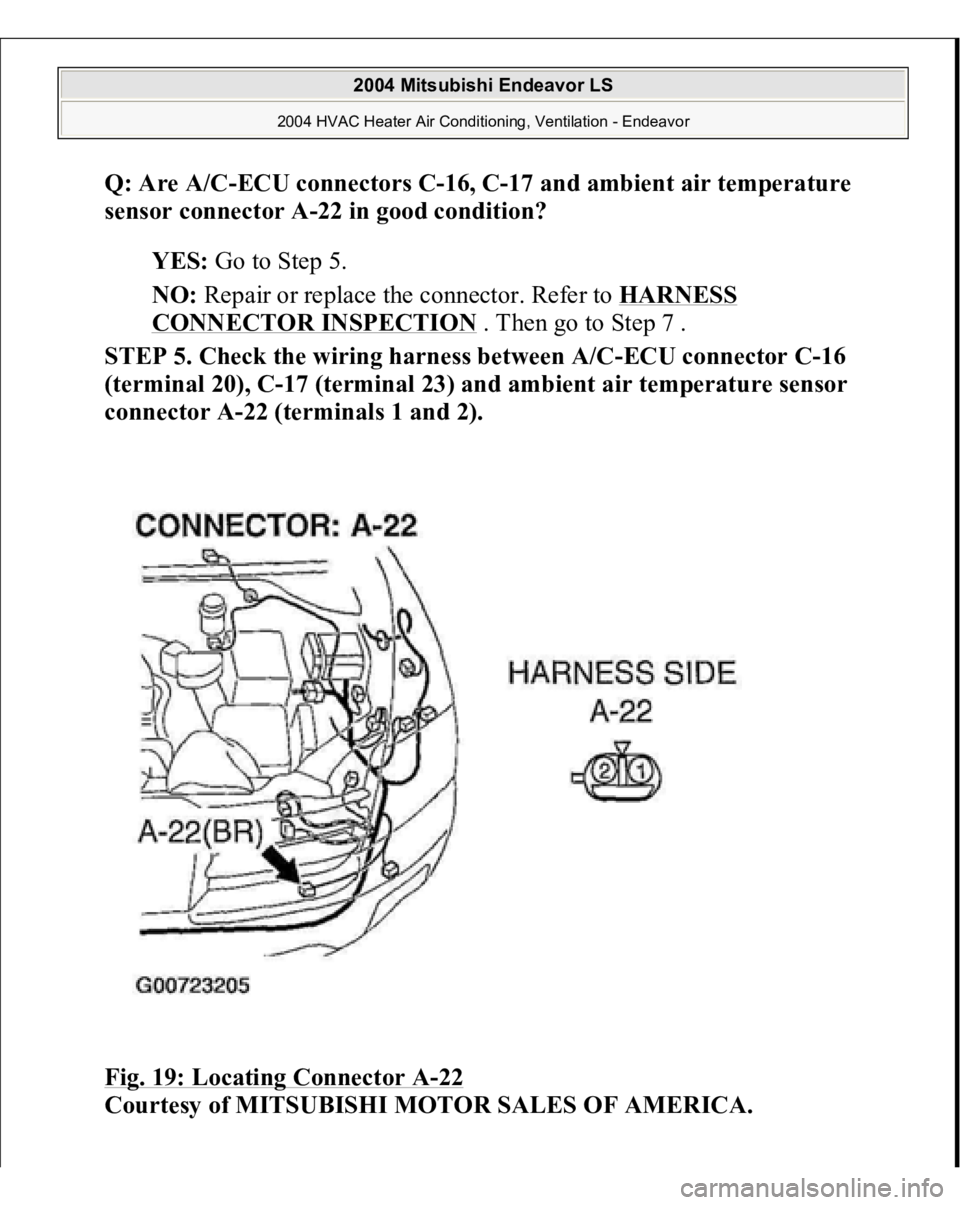

Fig. 19: Locating Connector A
-22
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

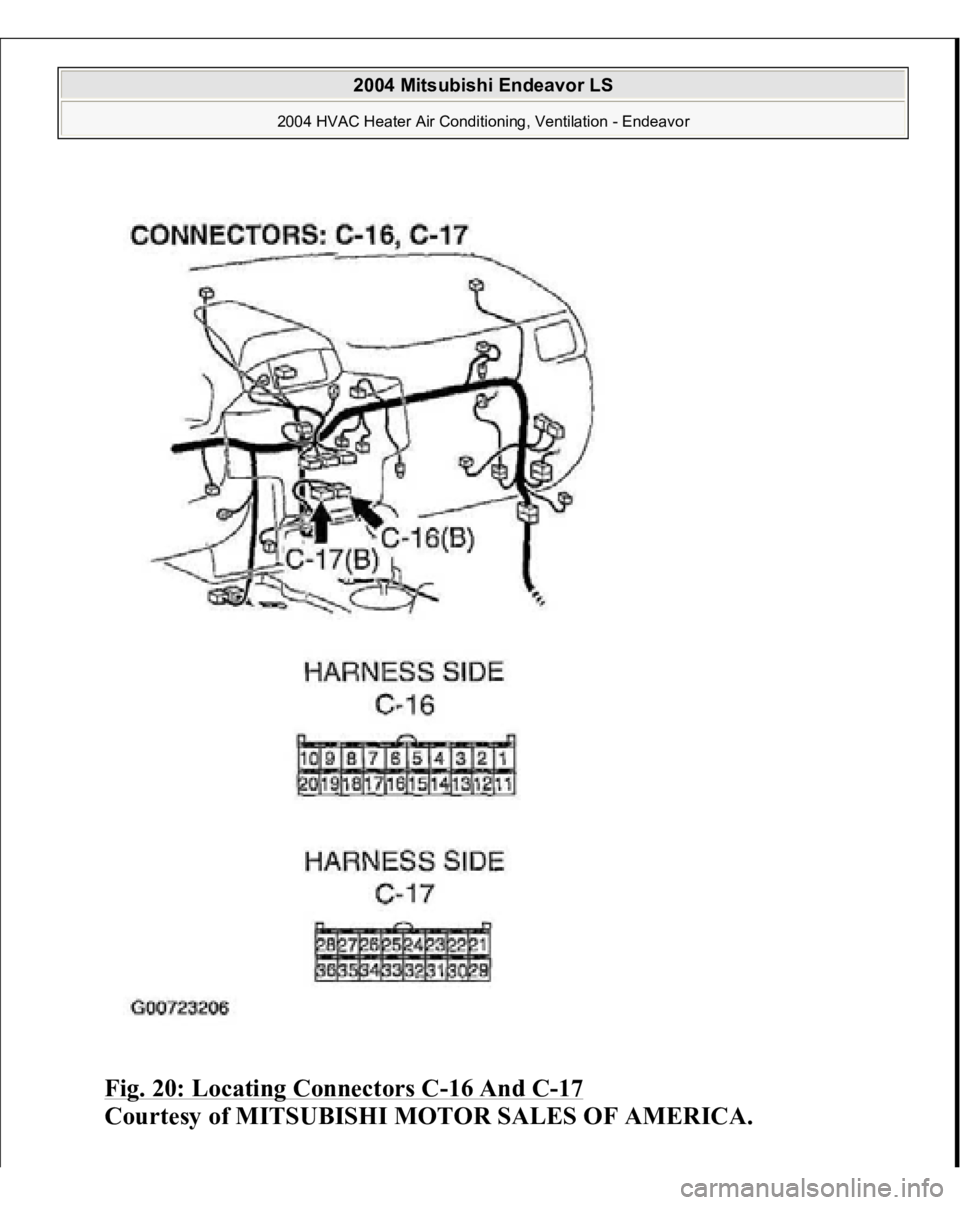

Fig. 20: Locating Connectors C
-16 And C
-17
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.


2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

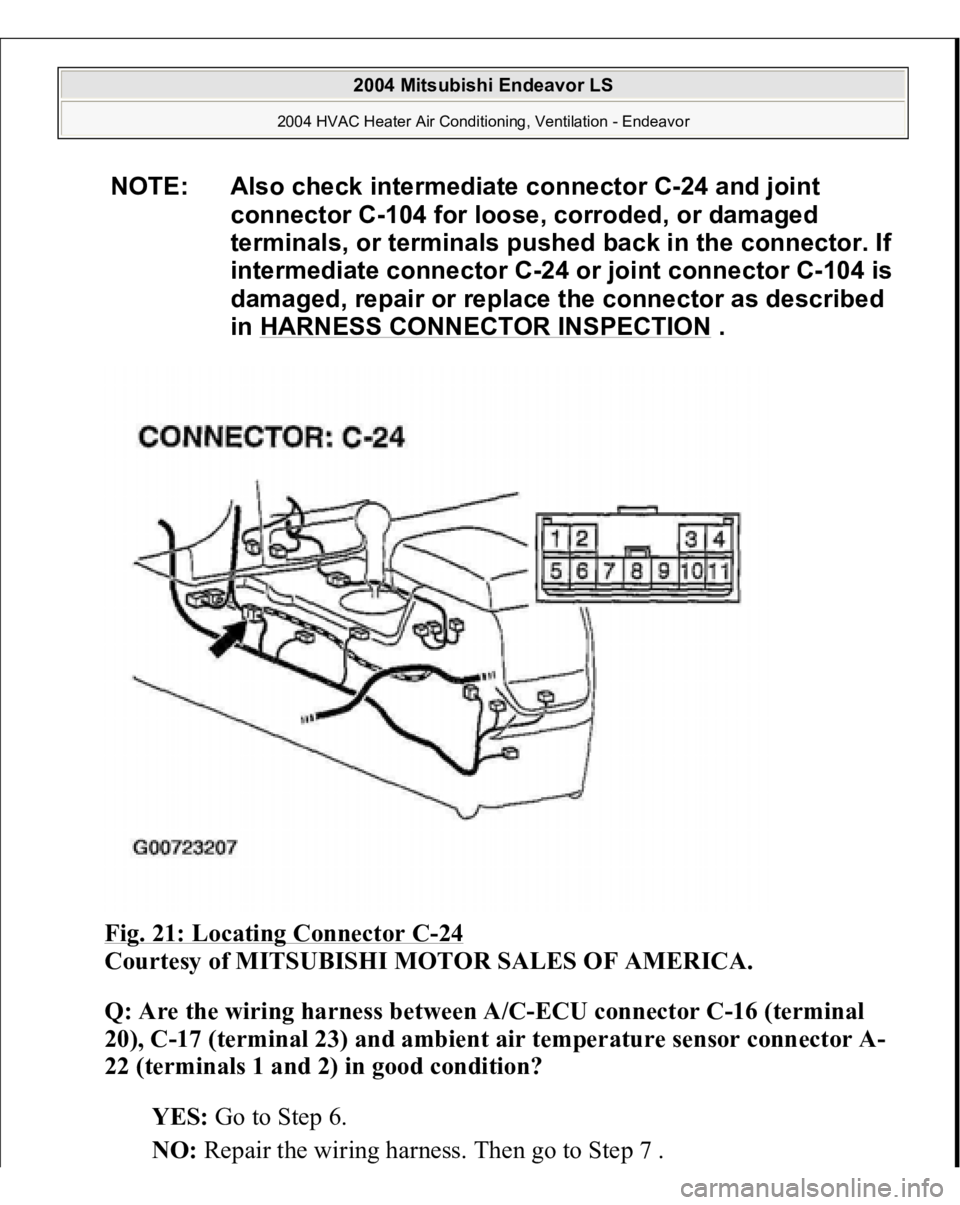

Fig. 21: Locating Connector C
-24
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Q: Are the wiring harness between A/C-ECU connector C-16 (terminal
20), C-17 (terminal 23) and ambient air temperature sensor connector A-
22 (terminals 1 and 2) in good condition?

YES:
Go to Step 6.
NO:
Re
pair the wirin
g harness. Then
go to Ste
p 7 .
NOTE: Also check intermediate connector C-24 and joint
connector C-104 for loose, corroded, or damaged
terminals, or terminals pushed back in the connector. If
intermediate connector C-24 or joint connector C-104 is
damaged, repair or replace the connector as described
in HARNESS CONNECTOR INSPECTION
.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

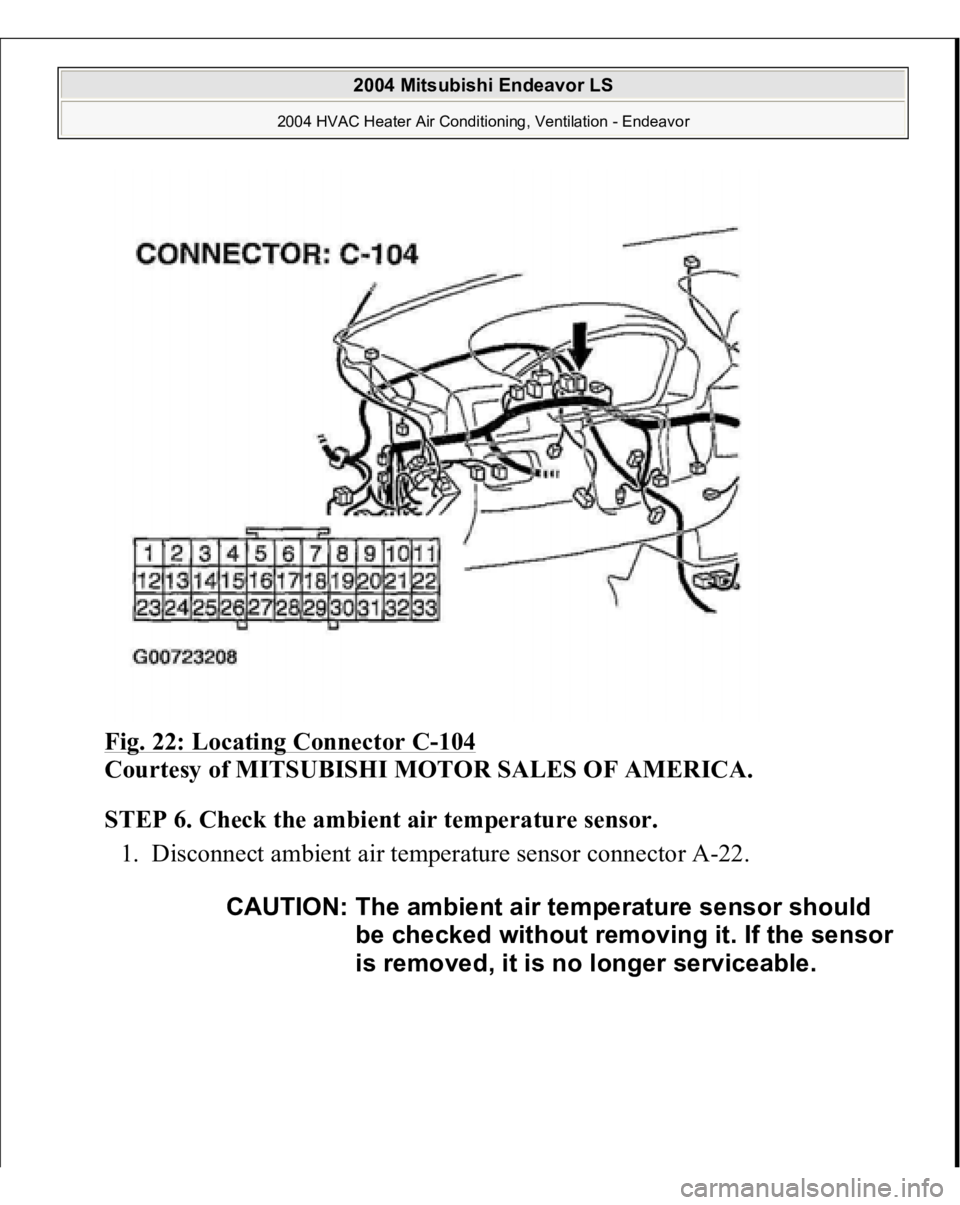

Fig. 22: Locating Connector C
-104

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

STEP 6. Check the ambient air temperature sensor.

1. Disconnect ambient air temperature sensor connector A-22.
CAUTION: The ambient air temperature sensor should
be checked without removing it. If the sensor
is removed, it is no longer serviceable.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor
