2004 HVAC
Heater Air Conditioning, Ventilation - Endeavor
GENERAL DESCRIPTION The heater and cooling units are combined in a single unit, which, with the mode
film damper and flow rate control valve in the heater unit, reduces ventilation
resistance, increases fan power, and decreases noise.
GENERAL SPECIFICATION SAFETY PRECAUTIONS Because R-134a refrigerant is a hydro fluorocarbon (HFC) which contains
hydrogen atoms in place of chlorine atoms, it will not cause damage to the ozone
layer.
Ozone filters out harmful radiation from the sun. To assist in protecting the ozone
layer, Mitsubishi Motors Corporation recommends an R-134a refrigerant recycling
device.
Refrigerant R-134a is transparent and colorless in both the liquid and vapor state.
Since it has a boiling point of -29.8°C (-21.64°F) at atmospheric pressure, it will be
a vapor at all normal temperatures and pressures. The vapor is heavier than air, non-
flammable, and non-explosive. The following precautions must be observed when
handlin
g R-134a.
ITEM
SPECIFICATION
Heater control assembly
Dial type
Compressor
MSC105CA
Compressor Model
Scroll type
Refrigerant and quantity g
(oz)
R-134a (HFC-134a), Approximately 560 - 600
(19.75 - 21.16)
WARNING:Wear safety goggles and gloves when servicing the
refrigeration system to prevent severe damage to
eyes and hands.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor


2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

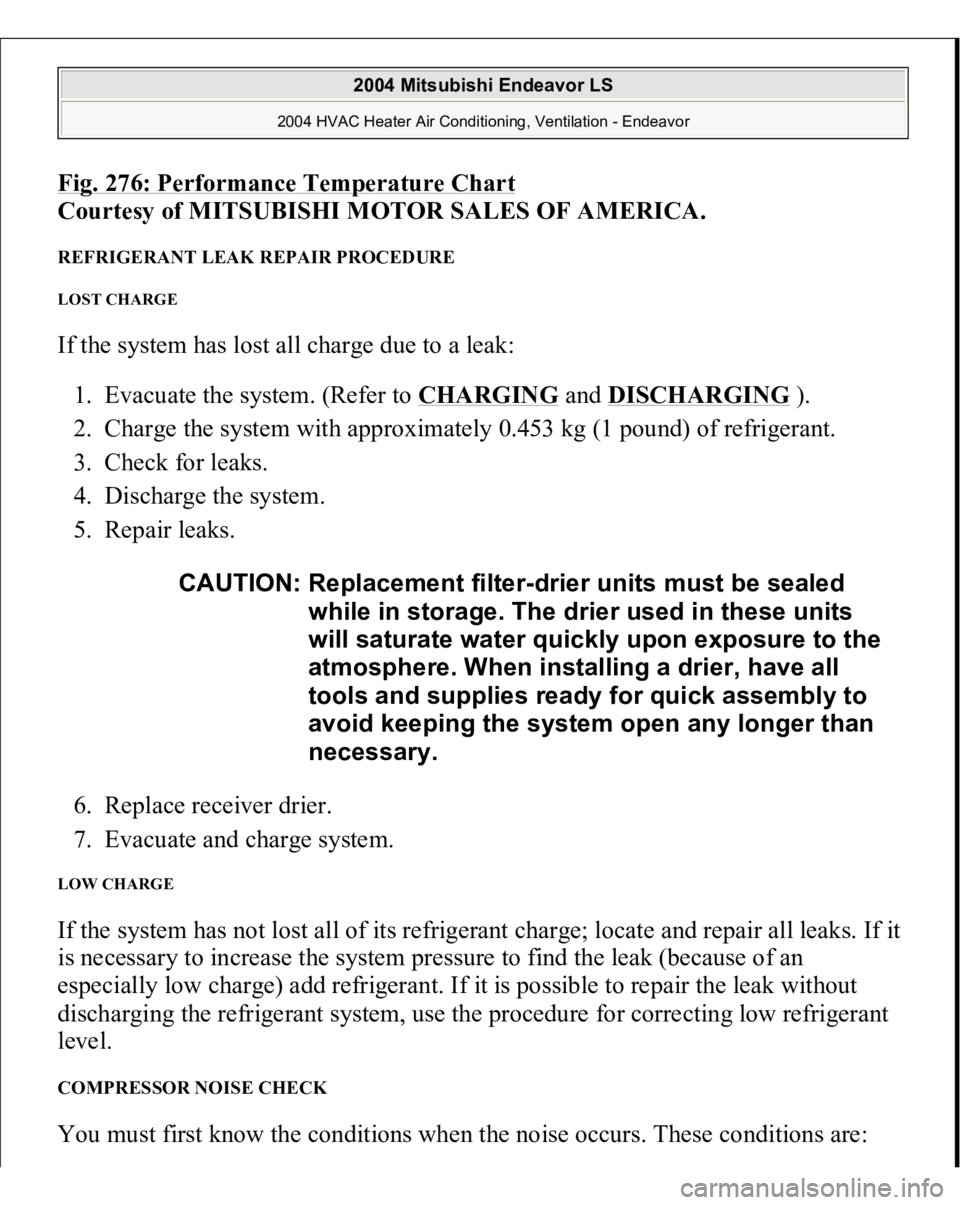

Fig. 276: Performance Temperature Char
t
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

REFRIGERANT LEAK REPAIR PROCEDURE LOST CHARGE If the system has lost all charge due to a leak:
1. Evacuate the system. (Refer to
CHARGING
and
DISCHARGING
).
2. Charge the system with approximately 0.453 kg (1 pound) of refrigerant.
3. Check for leaks.
4. Discharge the system.
5. Repair leaks.
6. Replace receiver drier.
7. Evacuate and charge system.
LOW CHARGE If the system has not lost all of its refrigerant charge; locate and repair all leaks. If it
is necessary to increase the system pressure to find the leak (because of an
especially low charge) add refrigerant. If it is possible to repair the leak without
discharging the refrigerant system, use the procedure for correcting low refrigerant
level. COMPRESSOR NOISE CHECK You must first know the conditions when the noise occurs. These conditions are:
CAUTION: Replacement filter-drier units must be sealed
while in storage. The drier used in these units
will saturate water quickly upon exposure to the
atmosphere. When installing a drier, have all
tools and supplies ready for quick assembly to
avoid keeping the system open any longer than
necessary.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

2004 HVAC
Automatic Air Conditioning - Endeavor
GENERAL DESCRIPTION For the heater and air conditioning system, the heater and cooling units are
combined in a single unit, which, with the a mode film damper and flow rate control
valve in the heater unit, reduces ventilation resistance, increases fan power, and
decreases noise. AUTOMATIC AIR CONDITIONING GENERAL DESCRIPTION

SAFETY PRECAUTIONS Because R-134a refrigerant is a hydro fluorocarbon (HFC) which contains
hydrogen atoms in place of chlorine atoms, it will not cause damage to the ozone
layer.
Ozone filters out harmful radiation from the sun. To assist in protecting the ozone
layer, Mitsubishi Motors Corporation recommends an R-134a refrigerant recycling
device.
Refrigerant R-134a is transparent and colorless in both the liquid and vapor state.
Since it has a boiling point of -29.8°C (-21.64°F) at atmospheric pressure, it will be
a vapor at all normal temperatures and pressures. The vapor is heavier than air, non-
flammable, and no
n-ex
plosive. The followin
g precautions must be observed when
ITEM
SPECIFICATION
Heater control assembly
dial type
Compressor
MSC105CA
Compressor Model
Scroll type
Refrigerant and quantity g
(oz)
R-134a (HFC-134a), Approximately 560 - 600
(19.75 - 21.16)
WARNING:Wear safety goggles and gloves when servicing the
refrigeration system to prevent severe damage to
eyes and hands.

2004 Mitsubishi Endeavor LS
2004 HVAC Automatic Air Conditioning - Endeavor


2004 Mitsubishi Endeavor LS
2004 HVAC Automatic Air Conditioning - Endeavor
