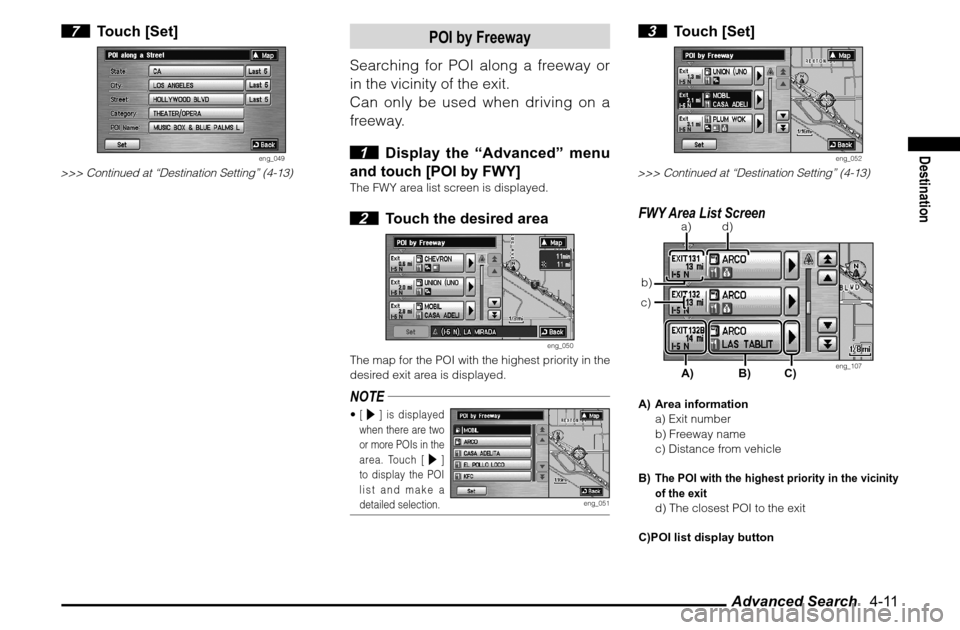

Advanced Search 4-11
Destination
7 Touch [Set]
eng_049
>>> Continued at “Destination Setting” (4-13)
POI by Freeway
Searching for POI along a freeway or
in the vicinity of the exit.
Can only be used when driving on a
freeway.
1 Display the “Advanced” menu
and touch [POI by FWY]
The FWY area list screen is displayed. 2 Touch the desired area
eng_050
The map for the POI with the highest priority in the
desired exit area is displayed.NOTE [ ] is displayed
when there are two
or more POIs in the
area. Touch [ ]
to display the POI
list and make a
detailed selection.
eng_051
3 Touch [Set]
eng_052
>>> Continued at “Destination Setting” (4-13)FWY Area List Screen
eng_107
A) Area information
a) Exit number
b) Freeway name
c) Distance from vehicle
B) The POI with the highest priority in the vicinity
of the exit d) The closest POI to the exit
C)POI list display button
a)
c)b)
d)
A) B)
C)

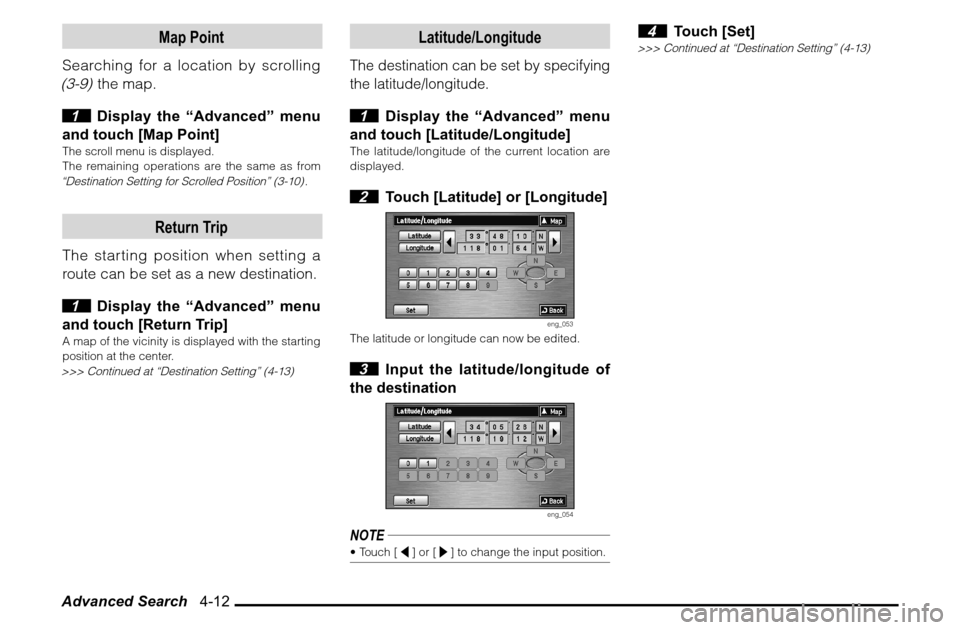

Advanced Search 4-12
Latitude/Longitude
The destination can be set by specifying
the latitude/longitude. 1 Display the “Advanced” menu
and touch [Latitude/Longitude]
The latitude/longitude of the current location are
displayed. 2 Touch [Latitude] or [Longitude]
eng_053
The latitude or longitude can now be edited. 3 Input the latitude/longitude of
the destination
eng_054
NOTE Touch [ ] or [
] to change the input position.
4 Touch [Set]
>>> Continued at “Destination Setting” (4-13)
Map Point
Searching for a location by scrolling (3-9)
the map.

1 Display the “Advanced” menu
and touch [Map Point]
The scroll menu is displayed.
The remaining operations are the same as from “Destination Setting for Scrolled Position” (3-10)
.
Return Trip
The starting position when setting a
route can be set as a new destination.
1 Display the “Advanced” menu
and touch [Return Trip]
A map of the vicinity is displayed with the starting
position at the center.>>> Continued at “Destination Setting” (4-13)

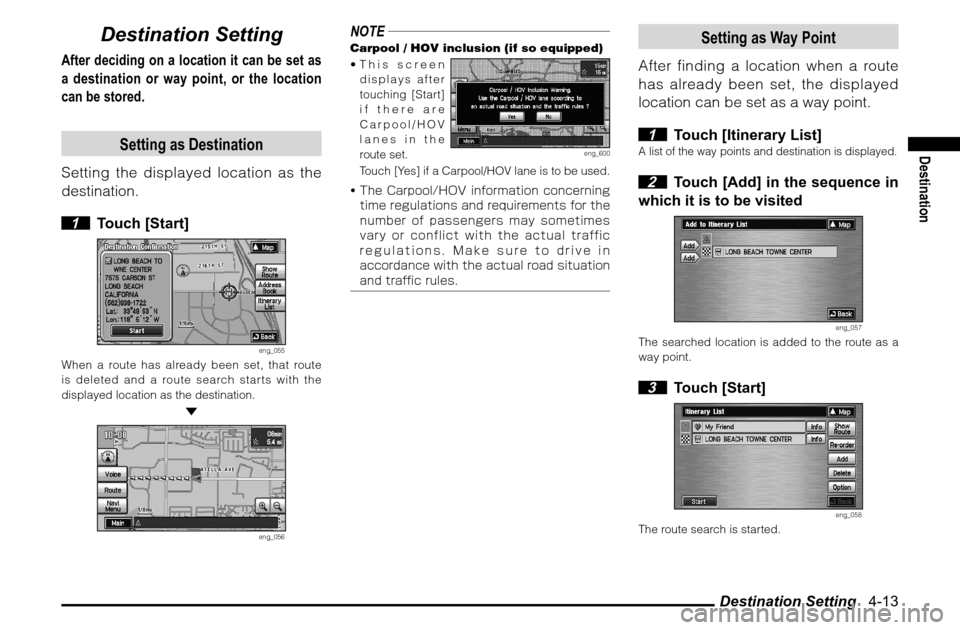

Destination Setting 4-13
Destination
Destination Setting
After deciding on a location it can be set as
a destination or way point, or the location
can be stored.
Setting as Destination
Setting the displayed location as the
destination.
1 Touch [Start]
eng_055
When a route has already been set, that route
is deleted and a route search starts with the
displayed location as the destination.

eng_056
NOTECarpool / HOV inclusion (if so equipped)
 This screen
displays after
touching [Start]
if there are
Carpool/HOV
lanes in the
route set.
eng_600
Touch [Yes] if a Carpool/HOV lane is to be used.
w
5IF
$BSQPPM)07
JOGPSNBUJPO
DPODFSOJOH

UJNF
SFHVMBUJPOT
BOE
SFRVJSFNFOUT
GPS
UIF

OVNCFS
PG
QBTTFOHFST
NBZ
TPNFUJNFT

WBSZ
PS
DPOGMJDU
XJUI
UIF
BDUVBM
USBGGJD

SFHVMBUJPOT
.BLF
TVSF
UP
ESJWF
JO

BDDPSEBODF
XJUI
UIF
BDUVBM
SPBE
TJUVBUJPO

BOE
USBGp
D
SVMFT
Setting as Way Point
After finding a location when a route
has already been set, the displayed
location can be set as a way point.
1 Touch [Itinerary List]
A list of the way points and destination is displayed. 2 Touch [Add] in the sequence in
which it is to be visited
eng_057
The searched location is added to the route as a
way point. 3 Touch [Start]
eng_058
The route search is started.

Destination Setting 4-14NOTE Touch [Info] to
display a map of
the vicinity and
corresponding
information.
eng_059
 Touch [Show Route] to display the entire
route, view 3 different routes and change the
calculation conditions in the same way as “Showing the Route” (5-5)
.
 Touch [Re-order] to change the sequence for
visiting each location in the same way as
“Re-
ordering” (5-6)
.
 Touch [Add] to add a way point in the same way
as
“Adding a Way Point” (5-7)
.
 Touch [Delete] to delete a destination or way
point in the same way as
“Deleting” (5-7)
.
 Touch [Option] to perform settings related to the
route in the same way as
“Route Options” (7-6)
.
Storing the Location
Storing the displayed location and
adding it to the address book.
1 Touch [Address Book]
The information screen for the location to be
stored is displayed. 2 Touch [Done]
eng_060
The displayed location is stored in the address
book.NOTE Touch “Icon” or “Name” to edit information
about the stored location. When editing an icon
or name, perform in the same way as
“Editing a
Location” (6-4)
.

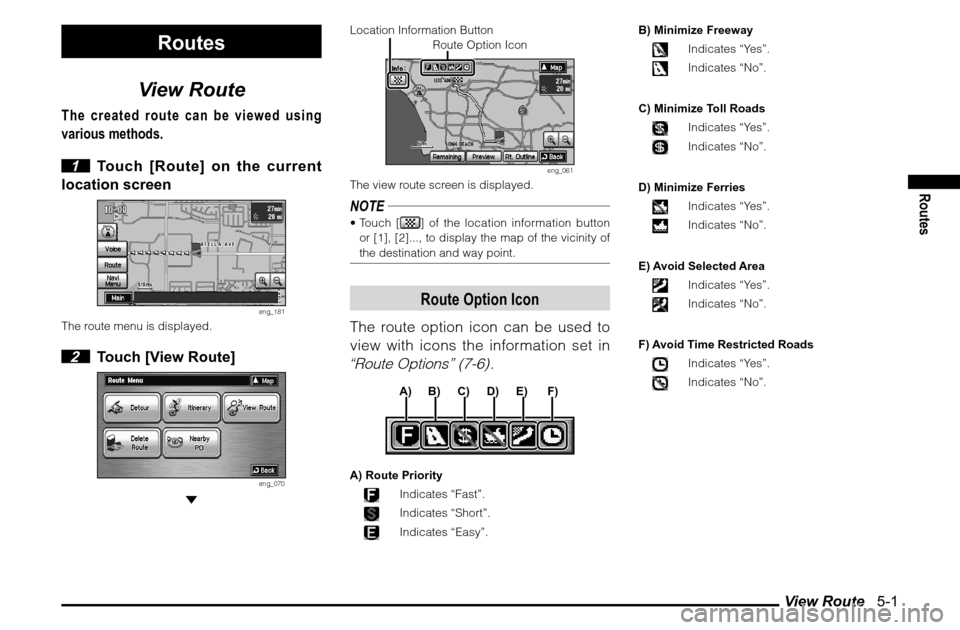

View Route 5-1
Routes
Routes
View Route
The created route can be viewed using
various methods.
1 Touch [Route] on the current
location screen
eng_181
The route menu is displayed. 2 Touch [View Route]
eng_070

Location Information Button
Route Option Icon
eng_061
The view route screen is displayed.NOTE Touch [
] of the location information button
or [1], [2]..., to display the map of the vicinity of
the destination and way point.Route Option Icon
The route option icon can be used to
view with icons the information set in “Route Options” (7-6)
.
A) Route Priority
Indicates “Fast”.Indicates “Short”.Indicates “Easy”.B) Minimize Freeway
Indicates “Yes”.Indicates “No”.
C) Minimize Toll RoadsIndicates “Yes”.Indicates “No”.
D) Minimize FerriesIndicates “Yes”.Indicates “No”.
E) Avoid Selected AreaIndicates “Yes”.Indicates “No”.
F) Avoid Time Restricted RoadsIndicates “Yes”.Indicates “No”.
A) B) C) D) E) F)

View Route 5-2
Preview Route
The map can be scrolled along the
route. The type of route taken to the
destination can be viewed.
1 Touch [Preview] in the view
route screen
(5-1)
The preview screen is displayed. 2 Touch [Backward], [Stop] or
[Forward]
eng_062
NOTE Touch [Backward] to scroll towards the starting
position.
 Touch [Stop] to stop the scrolling.
 Touch [Forward] to scroll towards the
destination.
Remaining Route
Displaying a map of the entire
remaining route, in a scale where it
can all be displayed.
1 Touch [Remaining] in the view
route screen
(5-1)

eng_063
Displays a map of the entire remaining route, in a
scale where it can all be displayed.
Route Outline
A list of the intersections up to the
destination where turns are required is
displayed.
1 Touch [Rt. Outline] in the view
route screen
(5-1)

eng_064
A list of the intersections where turns are required
is displayed.NOTE Touch an inter-section on the list
to display a map of its vicinity.
eng_065

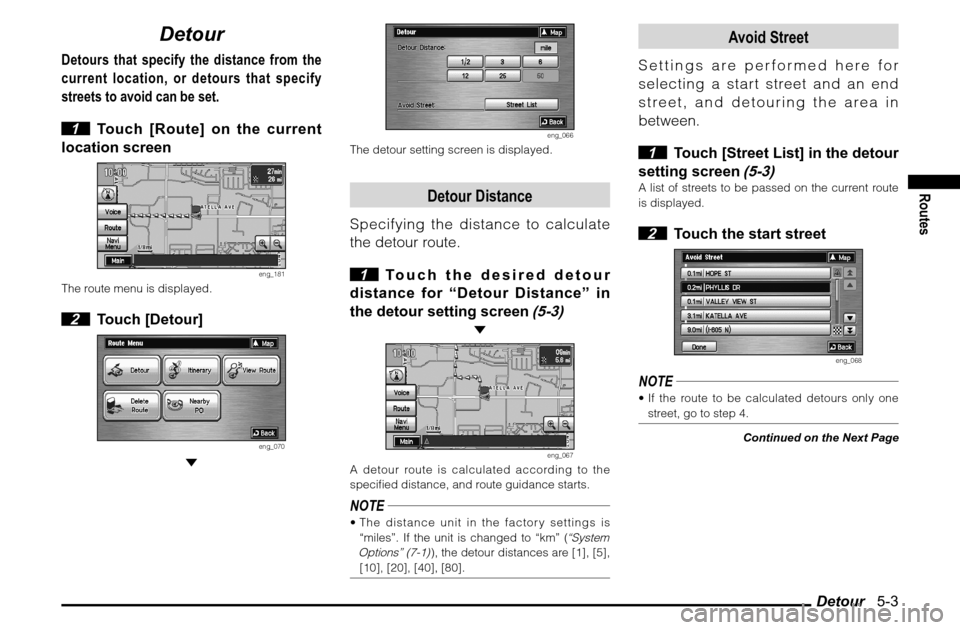

Detour 5-3
Routes
Detour
Detours that specify the distance from the
current location, or detours that specify
streets to avoid can be set.
1 Touch [Route] on the current
location screen
eng_181
The route menu is displayed. 2 Touch [Detour]
eng_070

eng_066
The detour setting screen is displayed.
Detour Distance
Specifying the distance to calculate
the detour route.
1 Touch the desired detour
distance for “Detour Distance” in
the detour setting screen
(5-3)

eng_067
A detour route is calculated according to the
speci ed distance, and route guidance starts.NOTE The distance unit in the factory settings is
“miles”. If the unit is changed to “km” (
“System
Options” (7-1)
), the detour distances are [1], [5],
[10], [20], [40], [80].
Avoid Street
Settings are performed here for
selecting a start street and an end
street, and detouring the area in
between.
1 Touch [Street List] in the detour
setting screen
(5-3)
A list of streets to be passed on the current route
is displayed. 2 Touch the start street
eng_068
NOTE If the route to be calculated detours only one
street, go to step 4.
Continued on the Next Page

Editing the Route (Itinerary) 5-5
Routes
Editing the Route (Itinerary)The destination position can be changed,
a way point can be added, and the route
calculation conditions can be changed.
1 Touch [Route] on the current
location screen
eng_181
The route menu is displayed.
2 Touch [Itinerary]
eng_070

eng_071
The itinerary list screen is displayed.NOTE Touch [Info] to display a map of the vicinity and
corresponding information.
 Touch [Start] to calculate the route with the
current settings and start route guidance.
Showing the Route (3 Routes)
The entire route can be displayed, 3
different routes can be viewed, and
the calculation conditions can be
changed.
1 Touch [Show Route] in the
itinerary list screen
(5-5)
Location Information Button
Route Option Icon
eng_072
The show route screen is displayed.NOTE Touch [
] of the location information button
or [1], [2]..., to display the map of the vicinity of
the destination and way point.
 The route option icon can be used to view with
icons the information set in
“Route Options”
(7-6)
. Refer to
“Route Option Icon” (5-1)
for the
meanings of the icons.
 Touch [Option] to perform settings related to the
route in the same way as from
“Route Options”
(7-6)
.
Continued on the Next Page

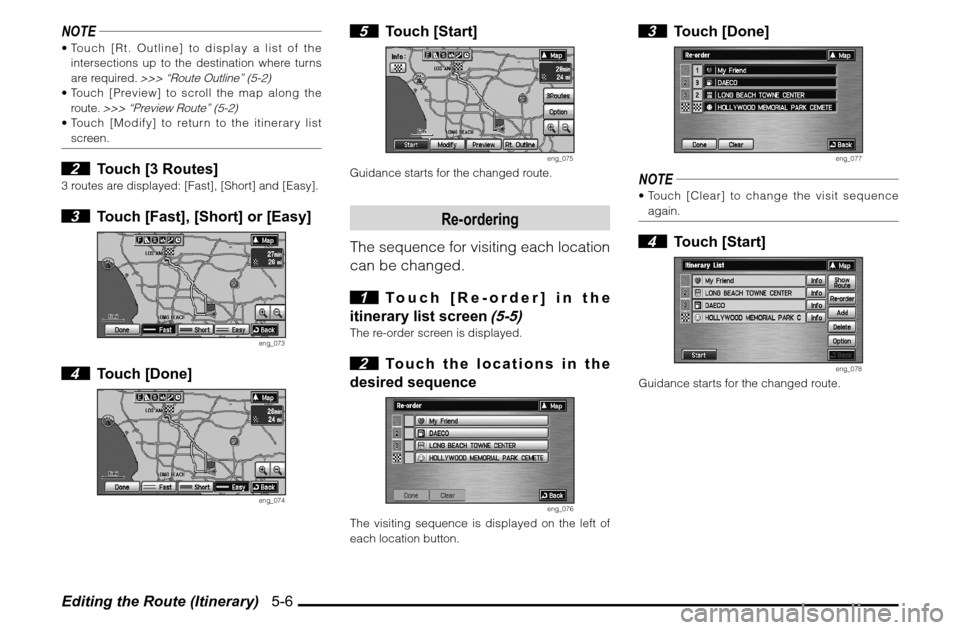

Editing the Route (Itinerary) 5-6NOTE Touch [Rt. Outline] to display a list of the
intersections up to the destination where turns
are required.
>>> “Route Outline” (5-2)
 Touch [Preview] to scroll the map along the
route.
>>> “Preview Route” (5-2)
 Touch [Modify] to return to the itinerary list
screen. 2 Touch [3 Routes]
3 routes are displayed: [Fast], [Short] and [Easy]. 3 Touch [Fast], [Short] or [Easy]
eng_073
4 Touch [Done]
eng_074
5 Touch [Start]
eng_075
Guidance starts for the changed route.
Re-ordering
The sequence for visiting each location
can be changed.
1 Touch [Re-order] in the
itinerary list screen
(5-5)
The re-order screen is displayed. 2 Touch the locations in the
desired sequence
eng_076
The visiting sequence is displayed on the left of
each location button.
3 Touch [Done]
eng_077
NOTE Touch [Clear] to change the visit sequence
again. 4 Touch [Start]
eng_078
Guidance starts for the changed route.

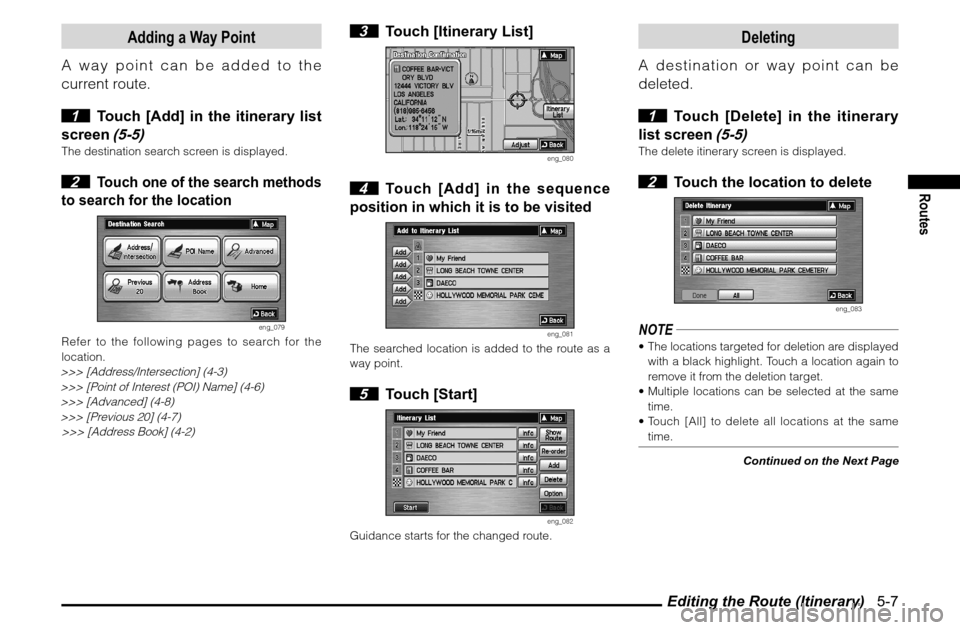

Editing the Route (Itinerary) 5-7
Routes
Adding a Way Point
A way point can be added to the
current route.
1 Touch [Add] in the itinerary list
screen
(5-5)
The destination search screen is displayed. 2
Touch one of the search methods
to search for the location
eng_079
Refer to the following pages to search for the
location.>>> [Address/Intersection] (4-3)
>>> [Point of Interest (POI) Name] (4-6)
>>> [Advanced] (4-8)
>>> [Previous 20] (4-7)
>>> [Address Book] (4-2)
3 Touch [Itinerary List]
eng_080
4
Touch [Add] in the sequence
position in which it is to be visited
eng_081
The searched location is added to the route as a
way point. 5 Touch [Start]
eng_082
Guidance starts for the changed route.
Deleting
A destination or way point can be
deleted.
1 Touch [Delete] in the itinerary
list screen
(5-5)
The delete itinerary screen is displayed. 2 Touch the location to delete
eng_083
NOTE The locations targeted for deletion are displayed
with a black highlight. Touch a location again to
remove it from the deletion target.
 Multiple locations can be selected at the same
time.
 Touch [All] to delete all locations at the same
time.
