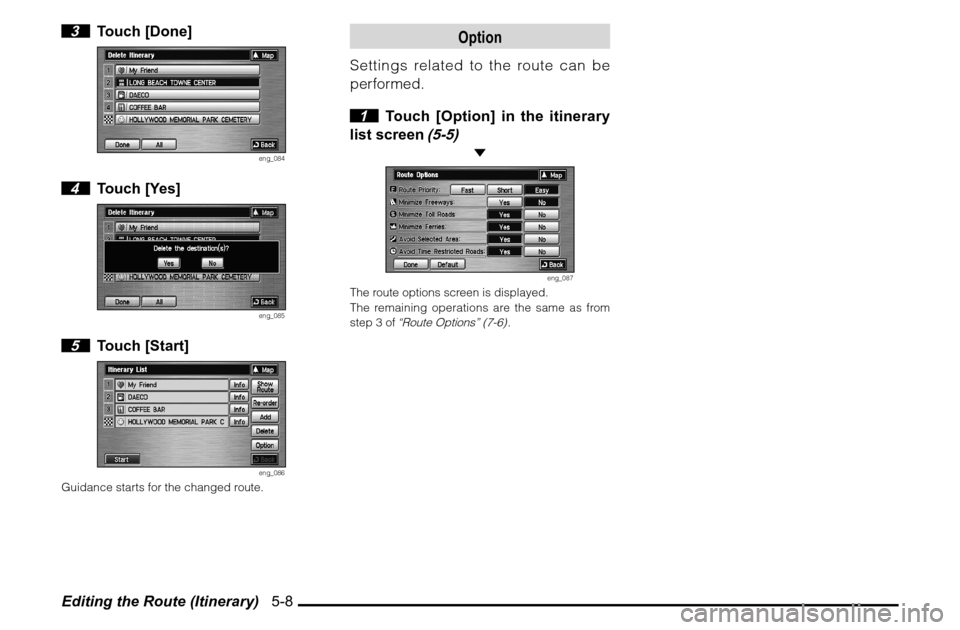

Editing the Route (Itinerary) 5-8 3 Touch [Done]
eng_084
4 Touch [Yes]
eng_085
5 Touch [Start]
eng_086
Guidance starts for the changed route.
Option
Settings related to the route can be
performed.
1 Touch [Option] in the itinerary
list screen
(5-5)

eng_087
The route options screen is displayed.
The remaining operations are the same as from
step 3 of
“Route Options” (7-6)
.

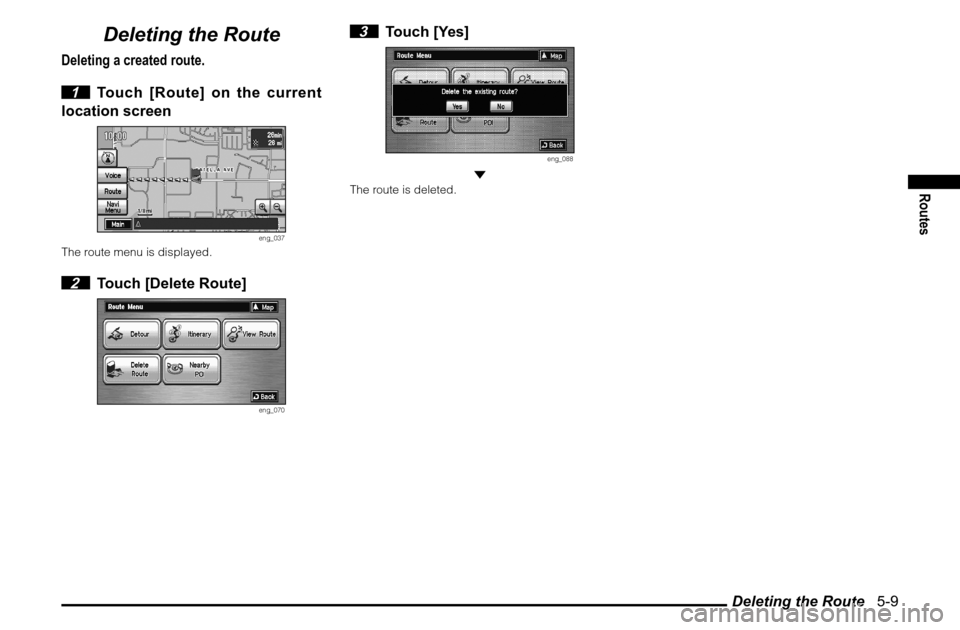

Deleting the Route 5-9
Routes
Deleting the Route
Deleting a created route.
1 Touch [Route] on the current
location screen
eng_037
The route menu is displayed. 2 Touch [Delete Route]
eng_070
3 Touch [Yes]
eng_088

The route is deleted.

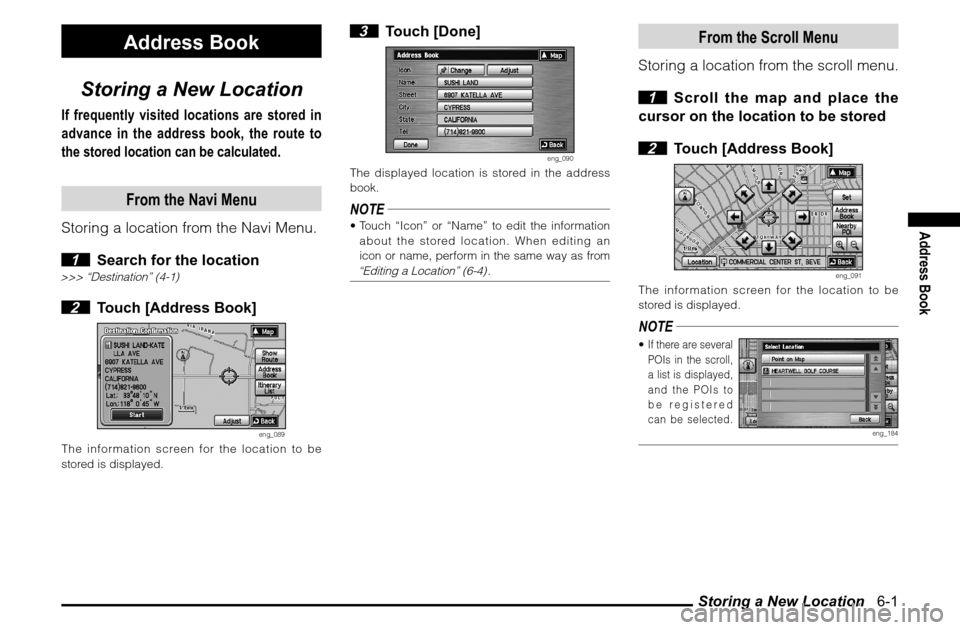

Storing a New Location 6-1
Address Book
Address Book
Storing a New Location
If frequently visited locations are stored in
advance in the address book, the route to
the stored location can be calculated.
From the Navi Menu
Storing a location from the Navi Menu.
1 Search for the location
>>> “Destination” (4-1) 2 Touch [Address Book]
eng_089
The information screen for the location to be
stored is displayed.
3 Touch [Done]
eng_090
The displayed location is stored in the address
book.NOTE Touch “Icon” or “Name” to edit the information
about the stored location. When editing an
icon or name, perform in the same way as from “Editing a Location” (6-4)
.
From the Scroll Menu
Storing a location from the scroll menu.
1 Scroll the map and place the
cursor on the location to be stored
2 Touch [Address Book]
eng_091
The information screen for the location to be
stored is displayed.NOTE If there are several
POIs in the scroll,
a list is displayed,
and the POIs to
be registered
can be selected.
eng_184

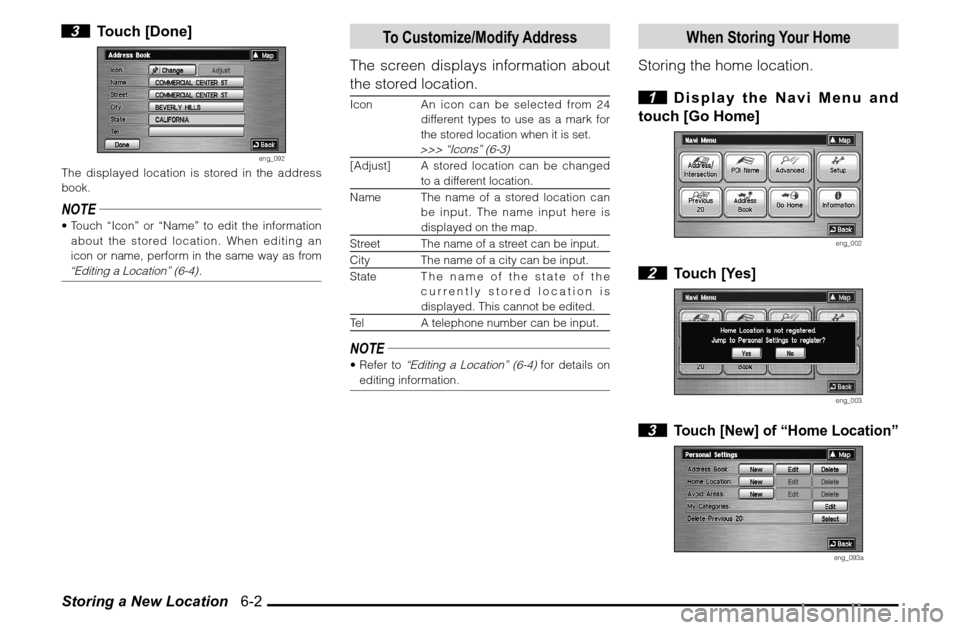

Storing a New Location 6-2 3 Touch [Done]
eng_092
The displayed location is stored in the address
book.NOTE Touch “Icon” or “Name” to edit the information
about the stored location. When editing an
icon or name, perform in the same way as from “Editing a Location” (6-4)
.
To Customize/Modify Address
The screen displays information about
the stored location.Icon An icon can be selected from 24
different types to use as a mark for
the stored location when it is set.
>>> “Icons” (6-3)
[Adjust] A stored location can be changed
to a different location.
NameThe name of a stored location can
be input. The name input here is
displayed on the map.
Street The name of a street can be input.
City The name of a city can be input.
StateThe name of the state of the
currently stored location is
displayed. This cannot be edited.
Tel A telephone number can be input.NOTE Refer to
“Editing a Location” (6-4)
for details on
editing information.
When Storing Your Home
Storing the home location.
1 Display the Navi Menu and
touch [Go Home]
eng_002
2
Touch [Yes]
eng_003
3
Touch [New] of “Home Location”
eng_093a

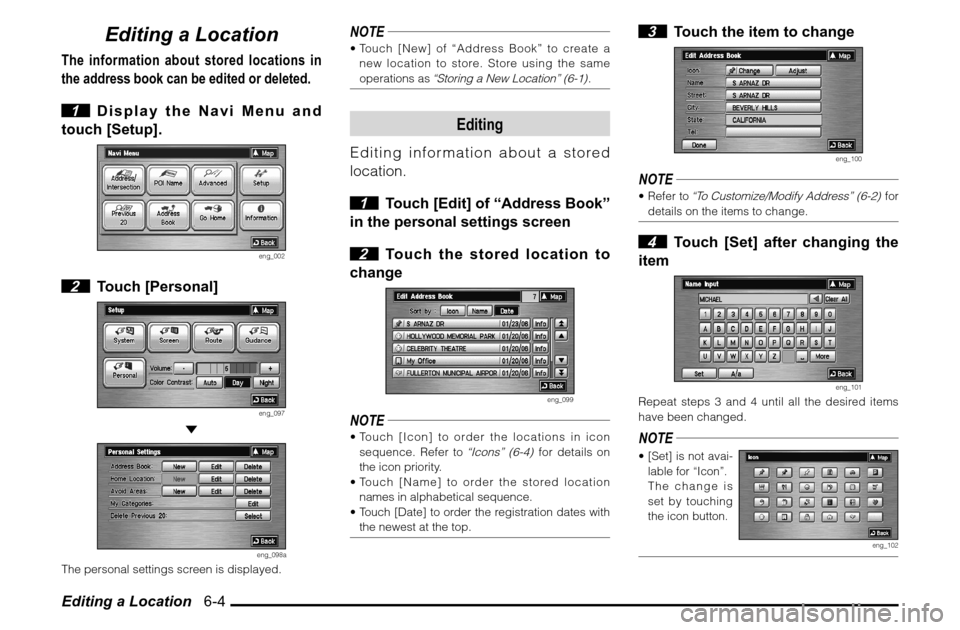

Editing a Location 6-4
Editing a Location
The information about stored locations in
the address book can be edited or deleted.
1 Display the Navi Menu and
touch [Setup].
eng_002
2 Touch [Personal]
eng_097

eng_098a
The personal settings screen is displayed.
NOTE Touch [New] of “Address Book” to create a
new location to store. Store using the same
operations as
“Storing a New Location” (6-1)
.
Editing
Editing information about a stored
location.
1 Touch [Edit] of “Address Book”
in the personal settings screen
2 Touch the stored location to
change
eng_099
NOTE Touch [Icon] to order the locations in icon
sequence. Refer to
“Icons” (6-4)
for details on
the icon priority.
 Touch [Name] to order the stored location
names in alphabetical sequence.
 Touch [Date] to order the registration dates with
the newest at the top.
3 Touch the item to change
eng_100
NOTE Refer to
“To Customize/Modify Address” (6-2)
for
details on the items to change.
4 Touch [Set] after changing the
item
eng_101
Repeat steps 3 and 4 until all the desired items
have been changed.NOTE [Set] is not avai-
lable for “Icon”.
The change is
set by touching
the icon button.
eng_102

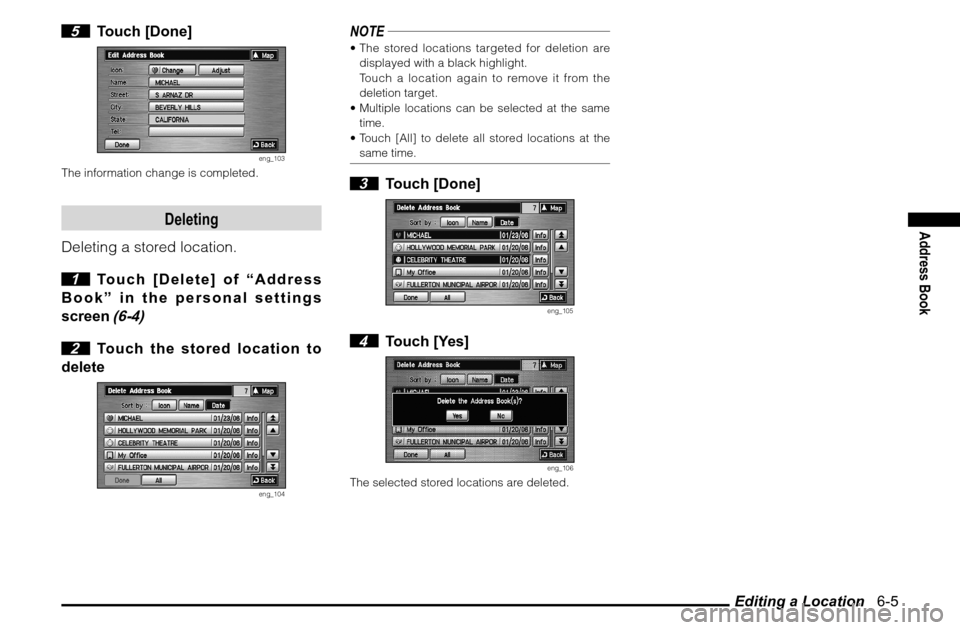

Editing a Location 6-5
Address Book
5 Touch [Done]
eng_103
The information change is completed.
Deleting
Deleting a stored location.
1 Touch [Delete] of “Address
Book” in the personal settings
screen
(6-4)
2 Touch the stored location to
delete
eng_104
NOTE The stored locations targeted for deletion are
displayed with a black highlight.
Touch a location again to remove it from the
deletion target.
 Multiple locations can be selected at the same
time.
 Touch [All] to delete all stored locations at the
same time. 3 Touch [Done]
eng_105
4 Touch [Yes]
eng_106
The selected stored locations are deleted.

System Options 7-1
Setup
Setup
System Options
The basic settings required by the
navigation function can be performed here.
1 Display the Navi Menu and
touch [Setup].
eng_002
2 Touch [System]
eng_097

eng_125
The system options screen is displayed. 3 Touch each item to change the
setting
4 Touch [Done]
eng_126
The setting change is completed.NOTE Touch [Default] to return to the factory settings.
Language
Changing the language used by the
system.[English] Change to English.
[Français] Change to French.
[Español] Change to Spanish.
Guidance Voice
Changing the settings for the guidance
voice.[Female] Guidance in a female voice.
[Male] Guidance in a male voice.
Unit Distance
Changing the units of the distance
display.[mile] Displays in miles.
[km] Displays in kilometres.

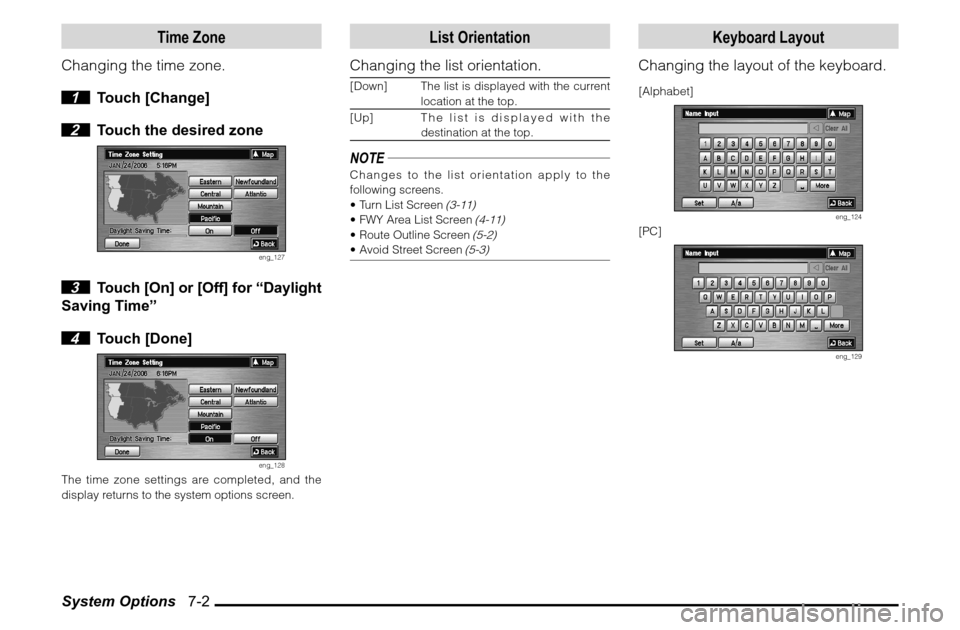

System Options 7-2
Time Zone
Changing the time zone.
1 Touch [Change]
2 Touch the desired zone
eng_127
3 Touch [On] or [Off] for “Daylight
Saving Time”
4 Touch [Done]
eng_128
The time zone settings are completed, and the
display returns to the system options screen.
List Orientation
Changing the list orientation.[Down] The list is displayed with the current
location at the top.
[Up]The list is displayed with the
destination at the top.NOTEChanges to the list orientation apply to the
following screens.
 Turn List Screen
(3-11)
 FWY Area List Screen
(4-11)
 Route Outline Screen
(5-2)
 Avoid Street Screen
(5-3)
Keyboard Layout
Changing the layout of the keyboard.[Alphabet]
eng_124
[PC]
eng_129

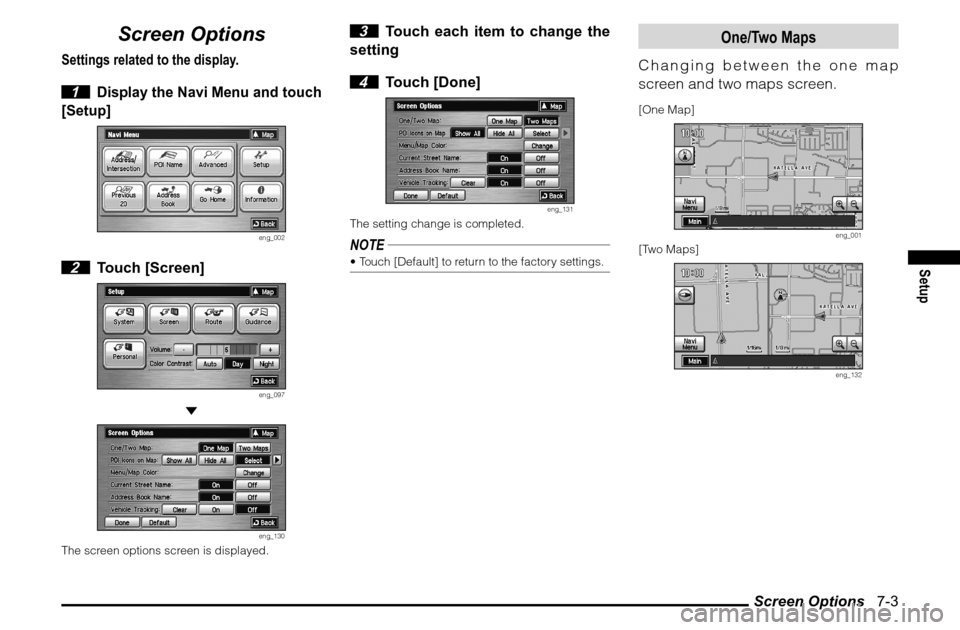

Screen Options 7-3
Setup
Screen Options
Settings related to the display.
1
Display the Navi Menu and touch
[Setup]
eng_002
2 Touch [Screen]
eng_097

eng_130
The screen options screen is displayed.
3 Touch each item to change the
setting
4 Touch [Done]
eng_131
The setting change is completed.NOTE Touch [Default] to return to the factory settings.
One/Two Maps
Changing between the one map
screen and two maps screen.[One Map]
eng_001
[Two Maps]
eng_132

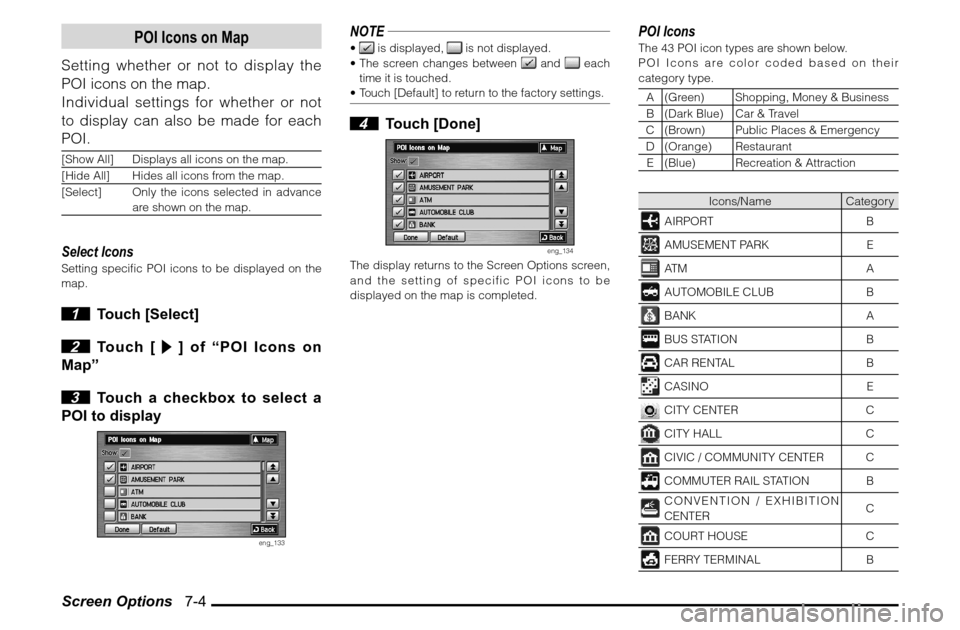

Screen Options 7-4
POI Icons on Map
Setting whether or not to display the
POI icons on the map.
Individual settings for whether or not
to display can also be made for each
POI.[Show All] Displays all icons on the map.
[Hide All] Hides all icons from the map.
[Select] Only the icons selected in advance
are shown on the map.Select IconsSetting speci c POI icons to be displayed on the
map. 1 Touch [Select]
2 Touch [
] of “POI Icons on
Map”

3 Touch a checkbox to select a
POI to display
eng_133
NOTE
is displayed,
is not displayed.
 The screen changes between
and
each
time it is touched.
 Touch [Default] to return to the factory settings.
4 Touch [Done]
eng_134
The display returns to the Screen Options screen,
and the setting of specific POI icons to be
displayed on the map is completed.
POI IconsThe 43 POI icon types are shown below.
POI Icons are color coded based on their
category type.
A (Green) Shopping, Money & Business
B (Dark Blue) Car & Travel
C (Brown) Public Places & Emergency
D (Orange) Restaurant
E (Blue) Recreation & Attraction
Icons/Name Category
AIRPORT BAMUSEMENT PARK EAT M AAUTOMOBILE CLUB BBANK ABUS STATION BCAR RENTAL BCASINO ECITY CENTER CCITY HALL CCIVIC / COMMUNITY CENTER CCOMMUTER RAIL STATION BCONVENTION / EXHIBITION
CENTERCCOURT HOUSE CFERRY TERMINAL B
