3-92 Features and controls
3
Outside temperature
N00522300079
This value (A) shows the temperature of outside the vehicle.NOTEThe outside temperature is not shown with the calendar
and digital clock display or with the digital clock display.
The unit for the outside temperature can be set to °F or to
°C. Refer to “Outside temperature unit” on page 3-121.
The outside temperature can be displayed from -40 °F
(-40°C) to 122 °F (50 °C).
When the outside temperature is over 122 °F (50 °C) or
below -40 °F (-40 °C), the display will remain 122 °F
(50°C) or -40 °F (-40 °C).
The outside temperature displayed may differ from the
actual temperature on account of surrounding conditions,
driving conditions, etc.
Road surface freeze warning
N00535300086
When the outside temperature indication drops to 37 °F (3 °C)
or lower, the road surface freeze warning symbol (B) flashes
for approximately 30 seconds then comes on steadily.
When the outside temperature indication subsequently rises to
43 °F (6 °C) or higher, the symbol goes off.
CAUTION
!There is a danger the road might be icy, even when
this symbol is not illuminated, so please take care
when driving.
BK0121600US.book 92 ページ ２０１０年４月１２日 月曜日 午前１０時３９分
Page 182 of 514
Features and controls
3-93
3
NOTEIf the condition for illumination of the road surface freeze
warning symbol is satisfied while the monitor is set to not
give a display, the symbol just flashes for approximately
30 seconds then goes off.Electronic compass
N00522400113

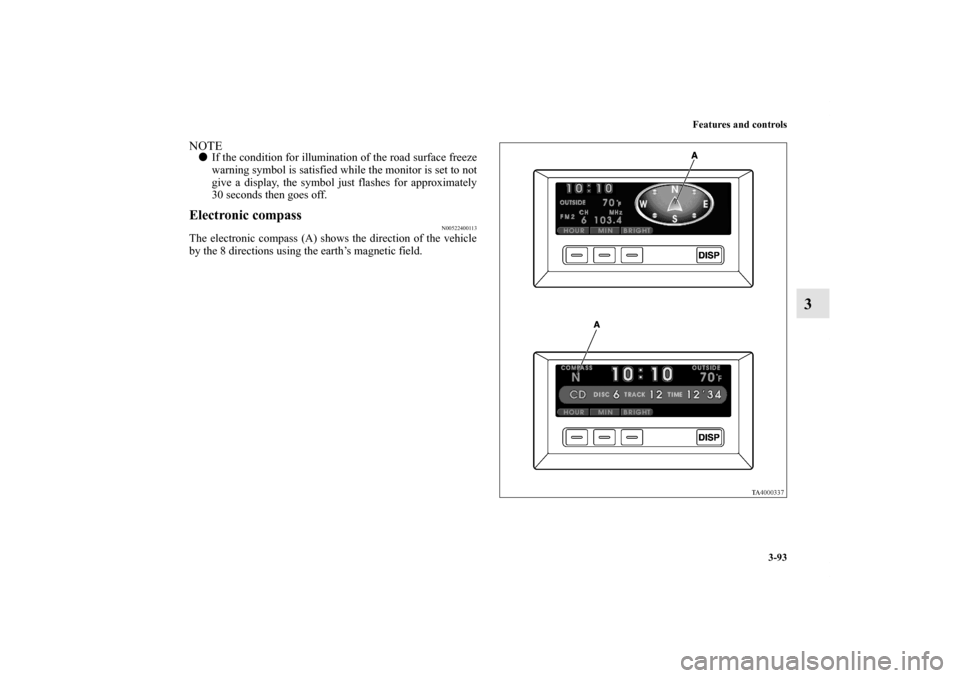

The electronic compass (A) shows the direction of the vehicle
by the 8 directions using the earth’s magnetic field.
BK0121600US.book 93 ページ ２０１０年４月１２日 月曜日 午前１０時３９分
Page 183 of 514
3-94 Features and controls
3

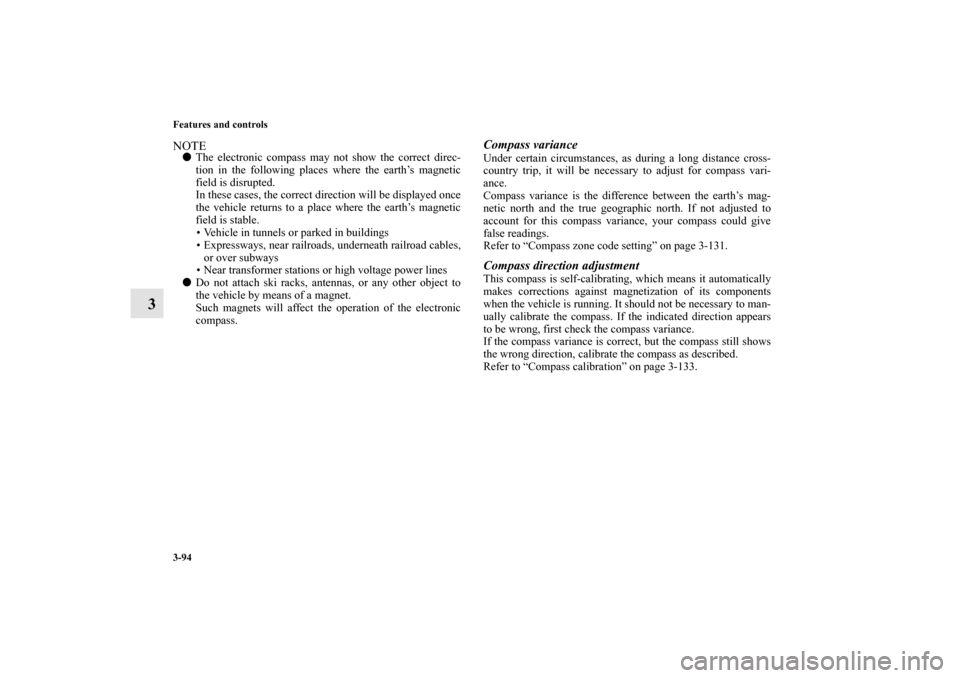

NOTEThe electronic compass may not show the correct direc-
tion in the following places where the earth’s magnetic
field is disrupted.
In these cases, the correct direction will be displayed once
the vehicle returns to a place where the earth’s magnetic
field is stable.
• Vehicle in tunnels or parked in buildings
• Expressways, near railroads, underneath railroad cables,
or over subways
• Near transformer stations or high voltage power lines
Do not attach ski racks, antennas, or any other object to
the vehicle by means of a magnet.
Such magnets will affect the operation of the electronic
compass.
Compass varianceUnder certain circumstances, as during a long distance cross-
country trip, it will be necessary to adjust for compass vari-
ance.
Compass variance is the difference between the earth’s mag-
netic north and the true geographic north. If not adjusted to
account for this compass variance, your compass could give
false readings.
Refer to “Compass zone code setting” on page 3-131.Compass direction adjustmentThis compass is self-calibrating, which means it automatically
makes corrections against magnetization of its components
when the vehicle is running. It should not be necessary to man-
ually calibrate the compass. If the indicated direction appears
to be wrong, first check the compass variance.
If the compass variance is correct, but the compass still shows
the wrong direction, calibrate the compass as described.
Refer to “Compass calibration” on page 3-133.
BK0121600US.book 94 ページ ２０１０年４月１２日 月曜日 午前１０時３９分
Page 184 of 514
Features and controls
3-95
3
Air conditioning (For vehicles with automatic air
conditioning)
N00533300082
This display shows the current status of the air conditioning.
For instruction on how to use the air conditioning, refer to
“Automatic air conditioning” on page 5-14.NOTEIf an air conditioning system adjustment is made when an
indication other than that for the air conditioning is
shown, the display gives the air conditioning indication
momentarily then returns to its previous display.1- Front defroster indicator
This illuminates when the vent is switched to (defroster).
2- Blower speed indicator
This display shows the level of air flow by the number of bar
lines.
3- Mode selection indicator
This indicates which mode has been selected.
4- AUTO mode indicator
This illuminates when the air conditioning is working in the
automatic mode (when both the blower switch and the mode
selection dial are switched to “AUTO”).
5- Rear window defogger indicator
This illuminates when the rear window defogger is switched
on. Refer to “Electric rear window defogger switch” on page
3-163.
6- Air selection indicator
This display indicates whether the air conditioning is taking
in air from outside or recirculating air from inside the pas-
senger compartment.
7- Preset temperature display
This display shows the preset temperature.
8- Air conditioning indicator
This illuminates when the air conditioning is operating.
BK0121600US.book 95 ページ ２０１０年４月１２日 月曜日 午前１０時３９分
Page 185 of 514
3-96 Features and controls
3
Audio (For vehicles with AM/FM electronically
tuned radio with CD autochanger)
N00533400100
This display shows the condition of the audio. For instruction
on how to use the audio, refer to “Audio system” on page 5-43.NOTEIf an audio system adjustment is made when an indication
other than that for the audio is shown, the display gives
the audio indication momentarily then returns to previous
display.
Trip computer
N00500200010
The trip computer shows driving information and environmen-
tal information. It can also be used as a stopwatch and as a
timer.Change of trip computer display
N00500400025
Every time the “NEXT” function button is pressed lightly, the
display can be changed.
Combined display → Average speed → Average fuel economy
→ Stopwatch → Countdown timer → Elevation/Barometer →
Outside temperature
BK0121600US.book 96 ページ ２０１０年４月１２日 月曜日 午前１０時３９分
Page 186 of 514
Features and controls
3-97
3

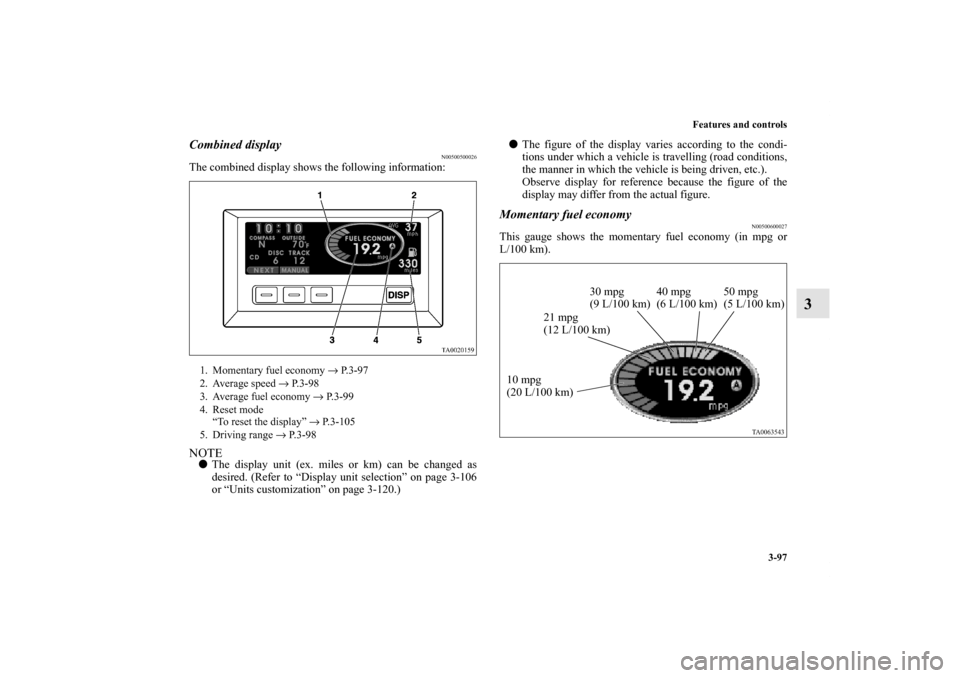

Combined display
N00500500026
The combined display shows the following information:NOTEThe display unit (ex. miles or km) can be changed as
desired. (Refer to “Display unit selection” on page 3-106
or “Units customization” on page 3-120.)The figure of the display varies according to the condi-
tions under which a vehicle is travelling (road conditions,
the manner in which the vehicle is being driven, etc.).
Observe display for reference because the figure of the
display may differ from the actual figure.
Momentary fuel economy
N00500600027
This gauge shows the momentary fuel economy (in mpg or
L/100 km).
1. Momentary fuel economy → P. 3 - 9 7
2. Average speed → P.3-98
3. Average fuel economy → P.3-99
4. Reset mode
“To reset the display” → P.3-105
5. Driving range → P.3-98
10 mpg
(20 L/100 km)21 mpg
(12 L/100 km)30 mpg
(9 L/100 km)40 mpg
(6 L/100 km)50 mpg
(5 L/100 km)
BK0121600US.book 97 ページ ２０１０年４月１２日 月曜日 午前１０時３９分
Page 187 of 514
3-98 Features and controls
3
Driving range
N00500700028
This value shows the distance (in miles or km) that can be
driven on the fuel remaining in the fuel tank.NOTEIf the driving range drops below 30 miles (50 km) while
the driving range is displayed, the display shows “--”.
When this occurs, replenish the fuel tank as soon as possi-
ble.
When the system cannot provide a definite value for the
driving range, the display shows “---”.
The driving range varies depending on road conditions,
the manner of driving and other related factors. Conse-
quently, the display should be used only as a guide. It is
recommended to add fuel as soon as the low-fuel warning
light in the instrument cluster illuminates.
(Refer to “Low-fuel warning light” on page 3-80.)
Refueling will update the driving range indication.
The driving range displayed is based on previous fuel
economy data. Disconnecting the battery cable will result
in the deletion of existing fuel consumption data, which
will affect the unit’s calculations.
The driving range figure can occasionally increase if the
vehicle is stopped on an incline. This is normal, as the fuel
has moved in the tank because of the incline.
Average speed
N00500800029
The average speed (B) from the time when the display was last
reset to the present moment is shown with a graph. For instruc-
tions on resetting the display, refer to “To reset the display” on
page 3-105.NOTEThe range (A) for which historical data are shown in the
graph can be changed. Refer to “Graph indication” on
page 3-106.
The unit for the average speed can be set to mph or km/h.
Refer to “Display unit selection” on page 3-106 or “Units
customization” on page 3-120.
When the system cannot provide a definite value for aver-
age speed, it is displayed as “--”.
BK0121600US.book 98 ページ ２０１０年４月１２日 月曜日 午前１０時３９分
Page 188 of 514
Features and controls
3-99
3
When the ignition switch is turned on, the average speed
which was being displayed when the ignition switch was
previously turned off will be displayed once again. Average fuel economy
N00500900033

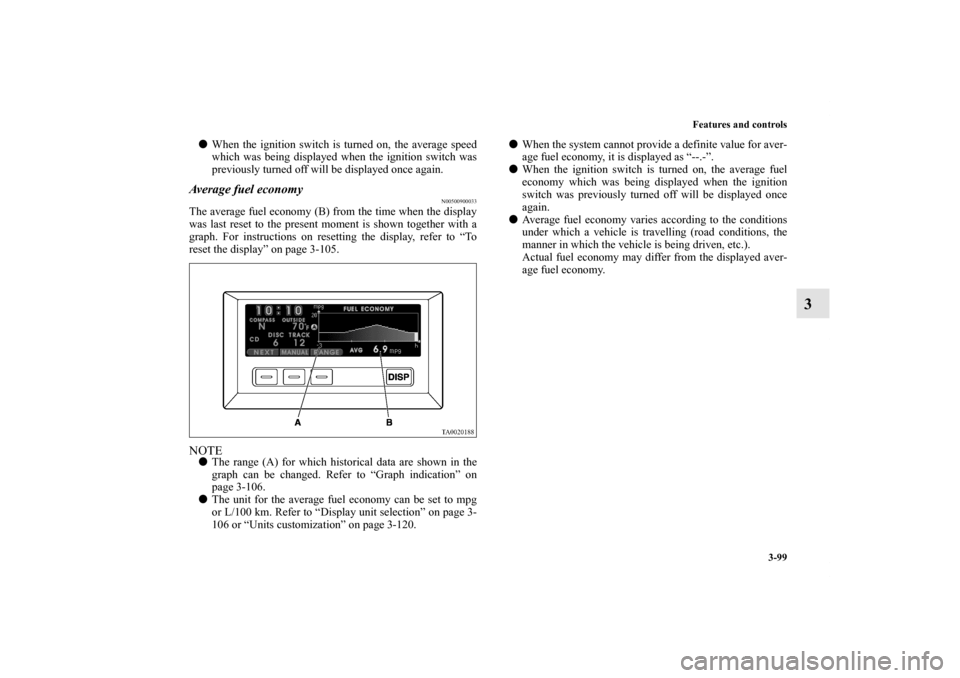

The average fuel economy (B) from the time when the display
was last reset to the present moment is shown together with a
graph. For instructions on resetting the display, refer to “To
reset the display” on page 3-105.NOTEThe range (A) for which historical data are shown in the
graph can be changed. Refer to “Graph indication” on
page 3-106.
The unit for the average fuel economy can be set to mpg
or L/100 km. Refer to “Display unit selection” on page 3-
106 or “Units customization” on page 3-120.When the system cannot provide a definite value for aver-
age fuel economy, it is displayed as “--.-”.
When the ignition switch is turned on, the average fuel
economy which was being displayed when the ignition
switch was previously turned off will be displayed once
again.
Average fuel economy varies according to the conditions
under which a vehicle is travelling (road conditions, the
manner in which the vehicle is being driven, etc.).
Actual fuel economy may differ from the displayed aver-
age fuel economy.
BK0121600US.book 99 ページ ２０１０年４月１２日 月曜日 午前１０時３９分
Page 189 of 514
3-100 Features and controls
3
Stopwatch
N00501100029
It is possible to measure the time taken for a journey.

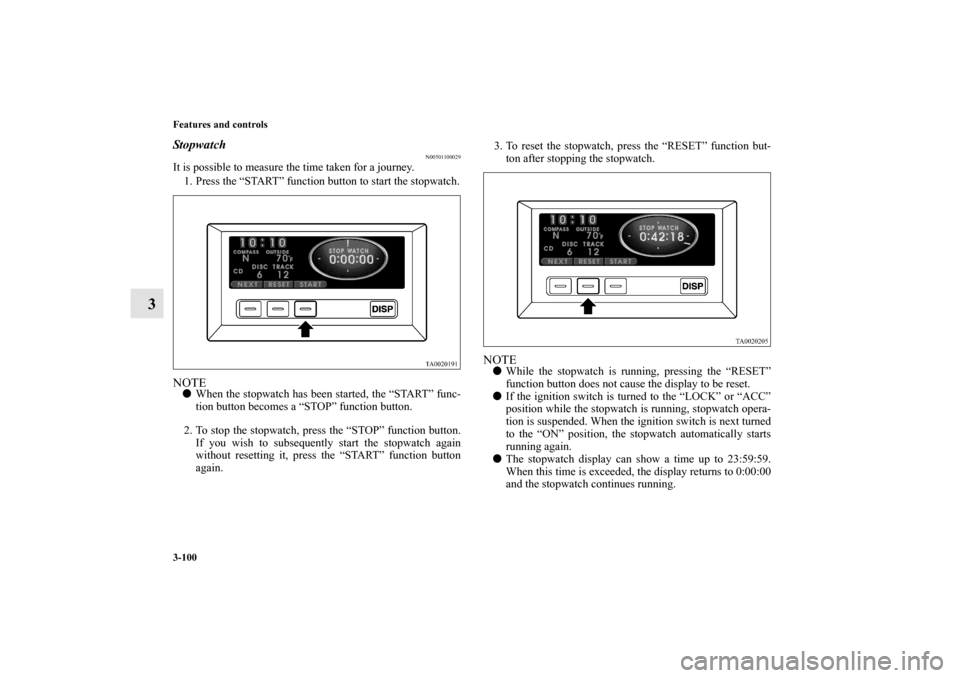

1. Press the “START” function button to start the stopwatch.NOTEWhen the stopwatch has been started, the “START” func-
tion button becomes a “STOP” function button.
2. To stop the stopwatch, press the “STOP” function button.
If you wish to subsequently start the stopwatch again
without resetting it, press the “START” function button
again.3. To reset the stopwatch, press the “RESET” function but-
ton after stopping the stopwatch.
NOTEWhile the stopwatch is running, pressing the “RESET”
function button does not cause the display to be reset.
If the ignition switch is turned to the “LOCK” or “ACC”
position while the stopwatch is running, stopwatch opera-
tion is suspended. When the ignition switch is next turned
to the “ON” position, the stopwatch automatically starts
running again.
The stopwatch display can show a time up to 23:59:59.
When this time is exceeded, the display returns to 0:00:00
and the stopwatch continues running.
BK0121600US.book 100 ページ ２０１０年４月１２日 月曜日 午前１０時３９分
Page 190 of 514
Features and controls
3-101
3
Countdown timer
N00501200020
It is possible to set a duration (up to 24 hours) and then view
the remaining time as the timer counts down to zero.

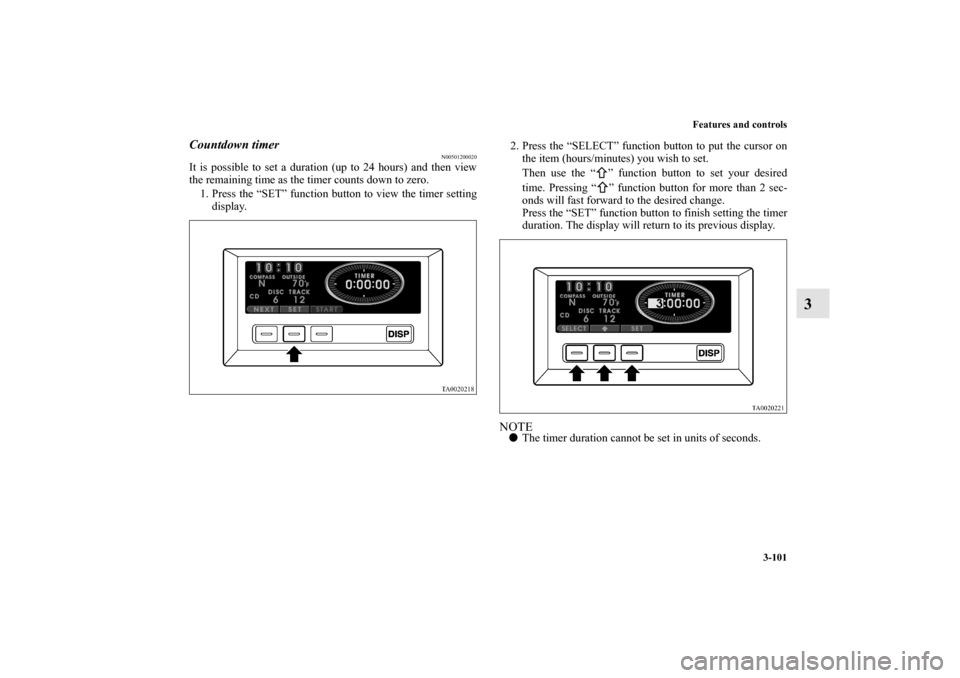

1. Press the “SET” function button to view the timer setting
display.2. Press the “SELECT” function button to put the cursor on
the item (hours/minutes) you wish to set.
Then use the “ ” function button to set your desired
time. Pressing “ ” function button for more than 2 sec-
onds will fast forward to the desired change.
Press the “SET” function button to finish setting the timer
duration. The display will return to its previous display.
NOTEThe timer duration cannot be set in units of seconds.
BK0121600US.book 101 ページ ２０１０年４月１２日 月曜日 午前１０時３９分
