MITSUBISHI ENDEAVOR 2011 1.G Owners Manual

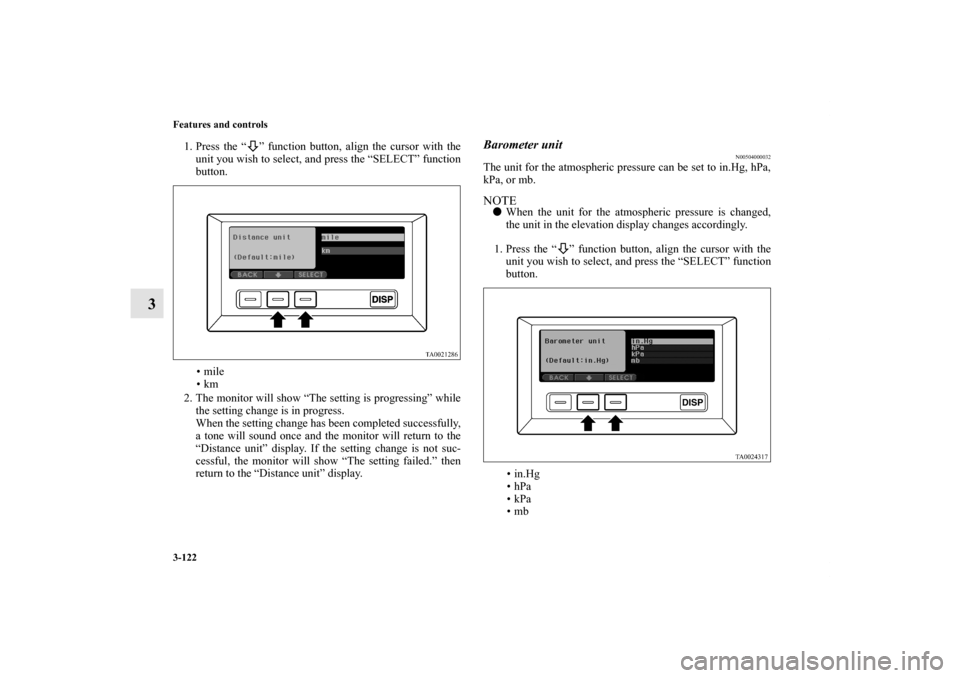

3-122 Features and controls
3
1. Press the “ ” function button, align the cursor with the
unit you wish to select, and press the “SELECT” function
button.
•mile
•km
2. The monitor will show “The setting is progressing” while
the setting change is in progress.
When the setting change has been completed successfully,
a tone will sound once and the monitor will return to the
“Distance unit” display. If the setting change is not suc-
cessful, the monitor will show “The setting failed.” then
return to the “Distance unit” display.
Barometer unit
N00504000032
The unit for the atmospheric pressure can be set to in.Hg, hPa,
kPa, or mb. NOTE
When the unit for the atmospheric pressure is changed,
the unit in the elevation display changes accordingly.
1. Press the “ ” function button, align the cursor with the
unit you wish to select, and press the “SELECT” function
button.
•in.Hg
•hPa
•kPa
•mb
BK0121600US.book 122 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

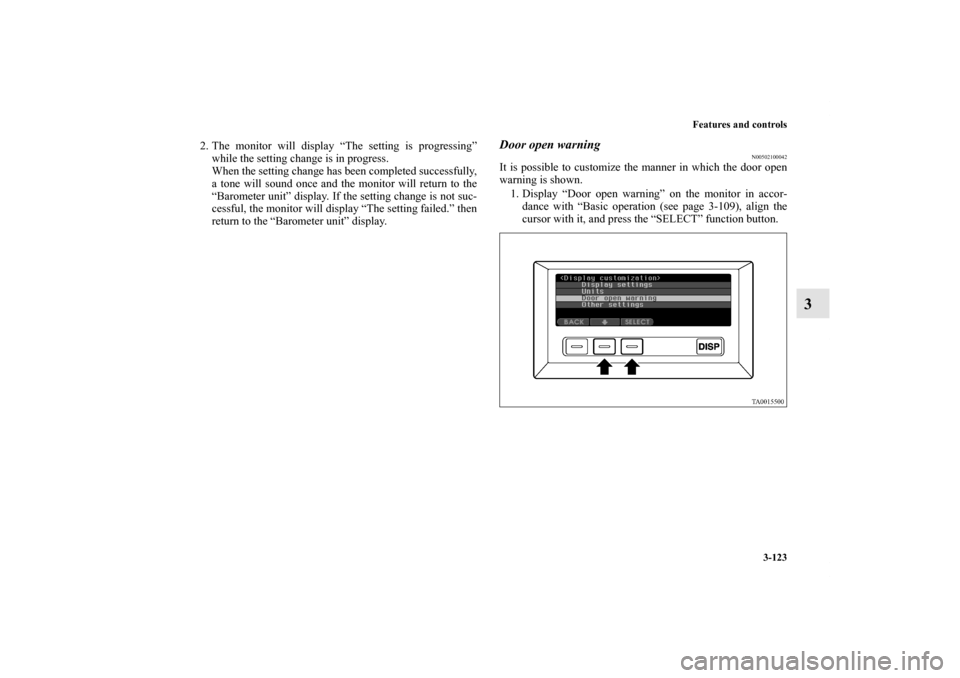

Features and controls
3-123
3
2. The monitor will display “The setting is progressing”
while the setting change is in progress.
When the setting change has been completed successfully,
a tone will sound once and the monitor will return to the
“Barometer unit” display. If the setting change is not suc-
cessful, the monitor will display “The setting failed.” then
return to the “Barometer unit” display.
Door open warning
N00502100042
It is possible to customize the manner in which the door open
warning is shown.
1. Display “Door open warning” on the monitor in accor-
dance with “Basic operation (see page 3-109), align the
cursor with it, and press the “SELECT” function button.
BK0121600US.book 123 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

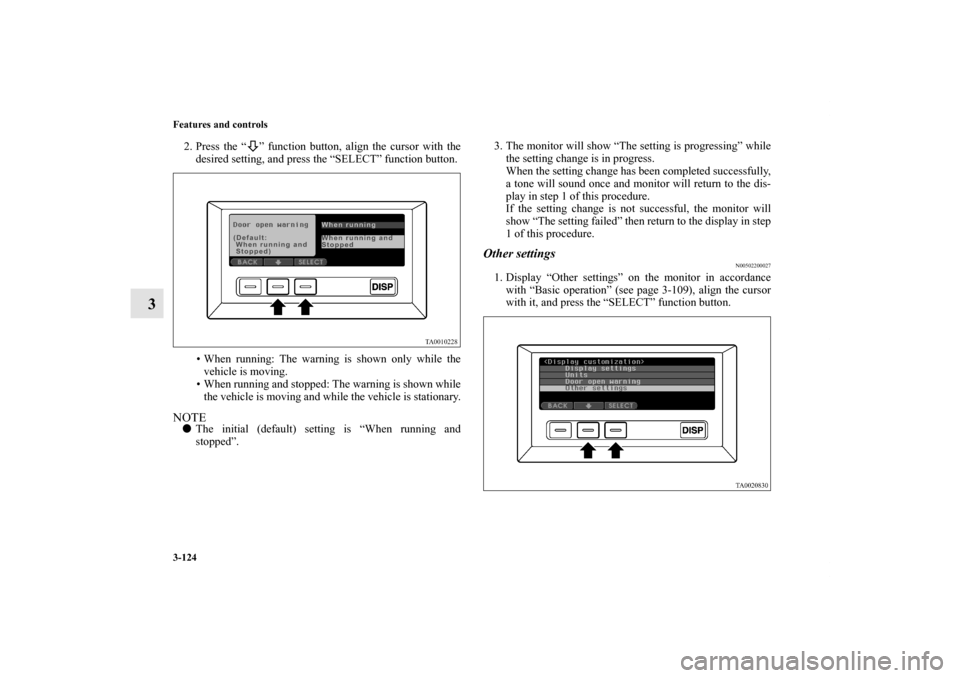

3-124 Features and controls
3
2. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.
• When running: The warning is shown only while the
vehicle is moving.
• When running and stopped: The warning is shown while
the vehicle is moving and while the vehicle is stationary.NOTE
The initial (default) setting is “When running and
stopped”.3. The monitor will show “The setting is progressing” while
the setting change is in progress.
When the setting change has been completed successfully,
a tone will sound once and monitor will return to the dis-
play in step 1 of this procedure.
If the setting change is not successful, the monitor will
show “The setting failed” then return to the display in step
1 of this procedure.
Other settings
N00502200027
1. Display “Other settings” on the monitor in accordance
with “Basic operation” (see page 3-109), align the cursor
with it, and press the “SELECT” function button.
BK0121600US.book 124 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

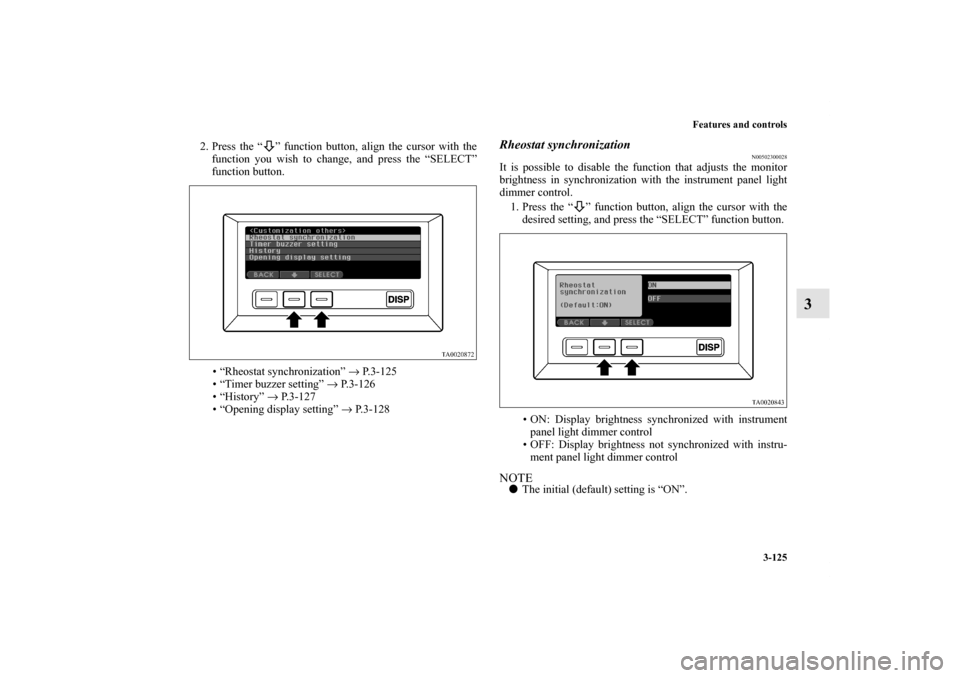

Features and controls
3-125
3
2. Press the “ ” function button, align the cursor with the
function you wish to change, and press the “SELECT”
function button.
• “Rheostat synchronization” → P. 3 - 1 2 5
• “Timer buzzer setting” → P. 3 - 1 2 6
•“History” → P.3-127
• “Opening display setting” → P.3-128
Rheostat synchronization
N00502300028
It is possible to disable the function that adjusts the monitor
brightness in synchronization with the instrument panel light
dimmer control.
1. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.
• ON: Display brightness synchronized with instrument
panel light dimmer control
• OFF: Display brightness not synchronized with instru-
ment panel light dimmer controlNOTE
The initial (default) setting is “ON”.
BK0121600US.book 125 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

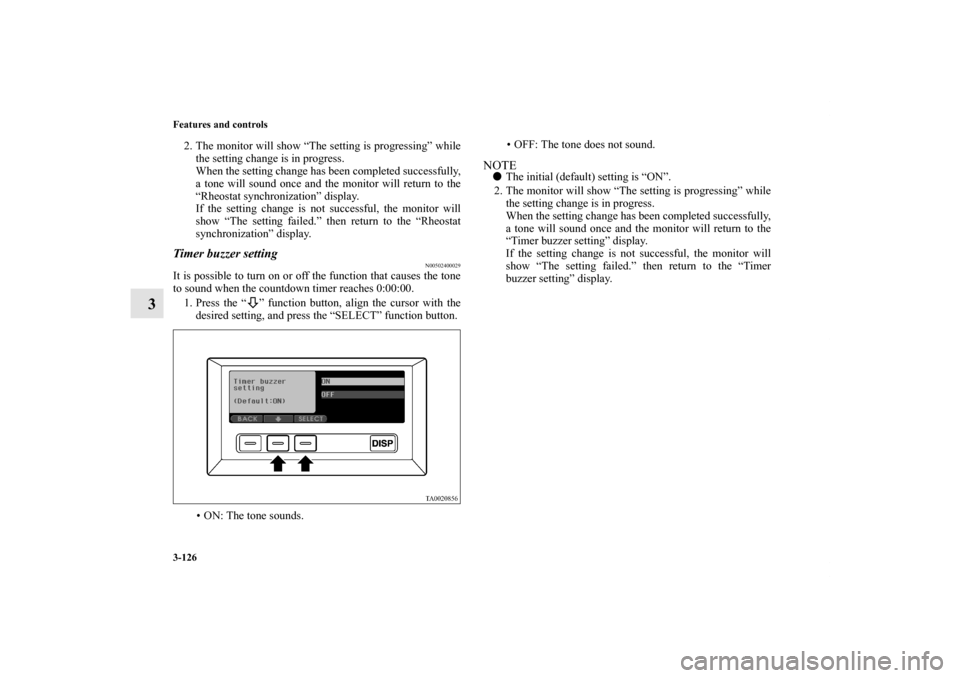

3-126 Features and controls
3
2. The monitor will show “The setting is progressing” while
the setting change is in progress.
When the setting change has been completed successfully,
a tone will sound once and the monitor will return to the
“Rheostat synchronization” display.
If the setting change is not successful, the monitor will
show “The setting failed.” then return to the “Rheostat
synchronization” display.Timer buzzer setting
N00502400029
It is possible to turn on or off the function that causes the tone
to sound when the countdown timer reaches 0:00:00.
1. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.
• ON: The tone sounds.• OFF: The tone does not sound.
NOTE
The initial (default) setting is “ON”.
2. The monitor will show “The setting is progressing” while
the setting change is in progress.
When the setting change has been completed successfully,
a tone will sound once and the monitor will return to the
“Timer buzzer setting” display.
If the setting change is not successful, the monitor will
show “The setting failed.” then return to the “Timer
buzzer setting” display.
BK0121600US.book 126 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

Features and controls
3-127
3
History
N00502500033
It is possible to change the range for which historical data are
shown in the graphs.
1. Press the “ ” function button, align the cursor with the
desired setting, and press the “SELECT” function button.
• 3 hours: The average value is added to the graph every 6
minutes. Data for a maximum of 3 hours are shown in
the graph.
• 12 hours: The average value is added to the graph every
24 minutes. Data for a maximum of 12 hours are shown
in the graph.NOTE
The initial (default) setting is “3 hours”.2. The monitor will show “The setting is progressing” while
the setting change is in progress.
When the setting change has been completed successfully,
a tone will sound once and the monitor will return to the
“History” display.
If the setting change is not successful, the monitor will
show “The setting failed.” then return to the “History”
display.
BK0121600US.book 127 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

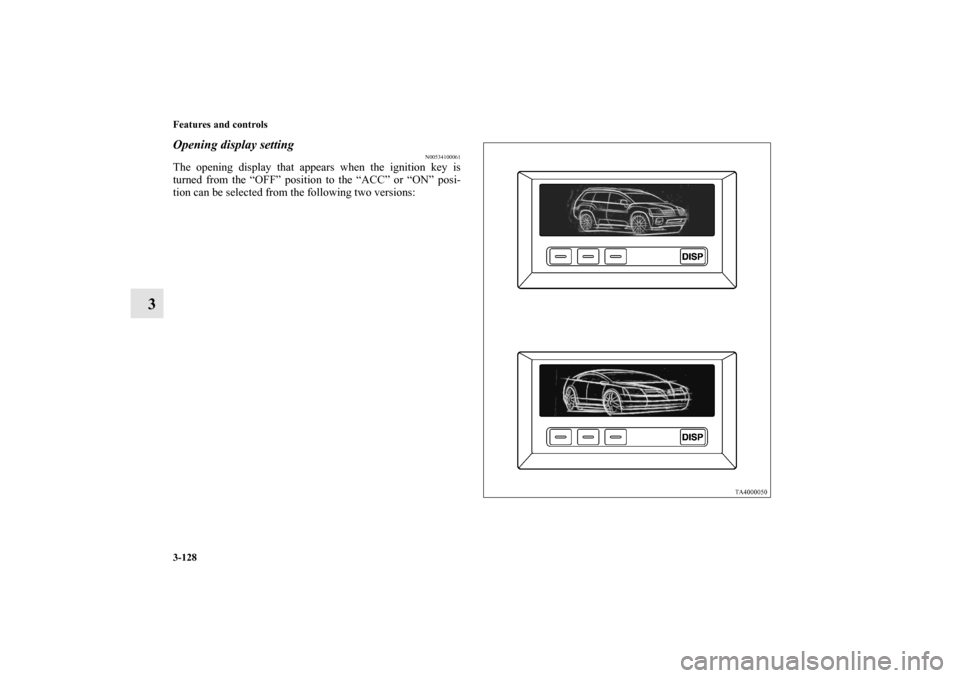

3-128 Features and controls
3
Opening display setting
N00534100061
The opening display that appears when the ignition key is
turned from the “OFF” position to the “ACC” or “ON” posi-
tion can be selected from the following two versions:BK0121600US.book 128 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

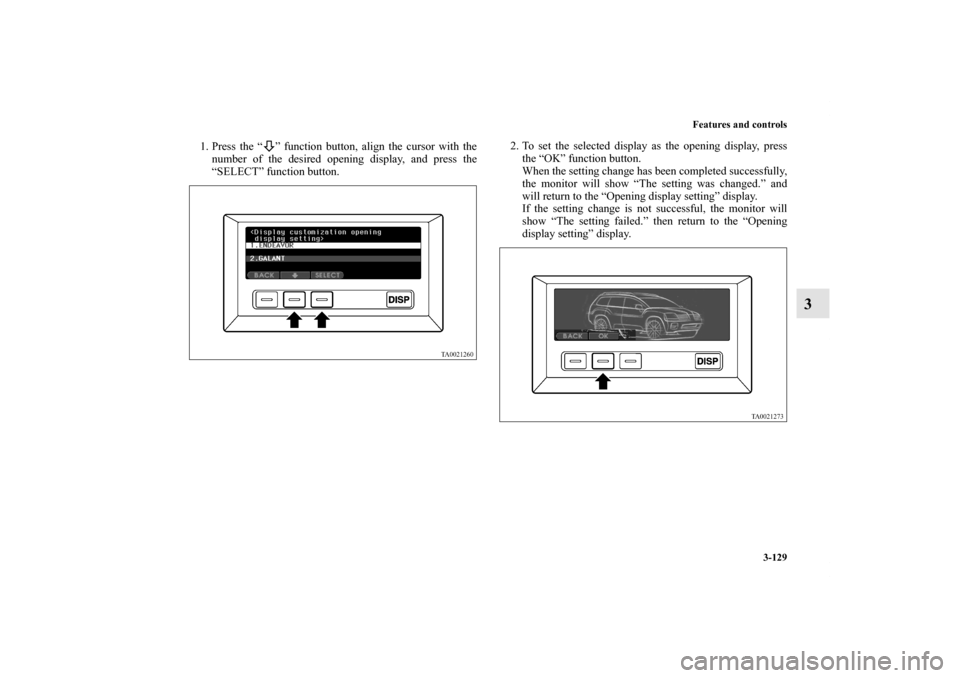

Features and controls
3-129
3
1. Press the “ ” function button, align the cursor with the
number of the desired opening display, and press the
“SELECT” function button.2. To set the selected display as the opening display, press
the “OK” function button.
When the setting change has been completed successfully,
the monitor will show “The setting was changed.” and
will return to the “Opening display setting” display.
If the setting change is not successful, the monitor will
show “The setting failed.” then return to the “Opening
display setting” display.
BK0121600US.book 129 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

3-130 Features and controls
3
NOTE
For vehicles with satellite radio, if the ignition switch is
turned “OFF” while the display is showing an indication
other than the audio display, the SIRIUS™ logo will not
appear when the ignition switch is next turned “ON”. If
you wish to have the SIRIUS logo shown in the display
again, switch to the audio display and then turn the igni-
tion switch to the “OFF” position.
“SIRIUS”, the SIRIUS dog logo and channel names and logos
are trademarks of SIRIUS Satellite Radio, Inc.
Date setting
N00534200075
1. Display “Date setting” on the monitor in accordance with
“Basic operation” (see page 3-109), align the cursor with
it, and press the “SELECT” function button.
BK0121600US.book 130 ページ ２０１０年４月１２日　月曜日　午前１０時３９分

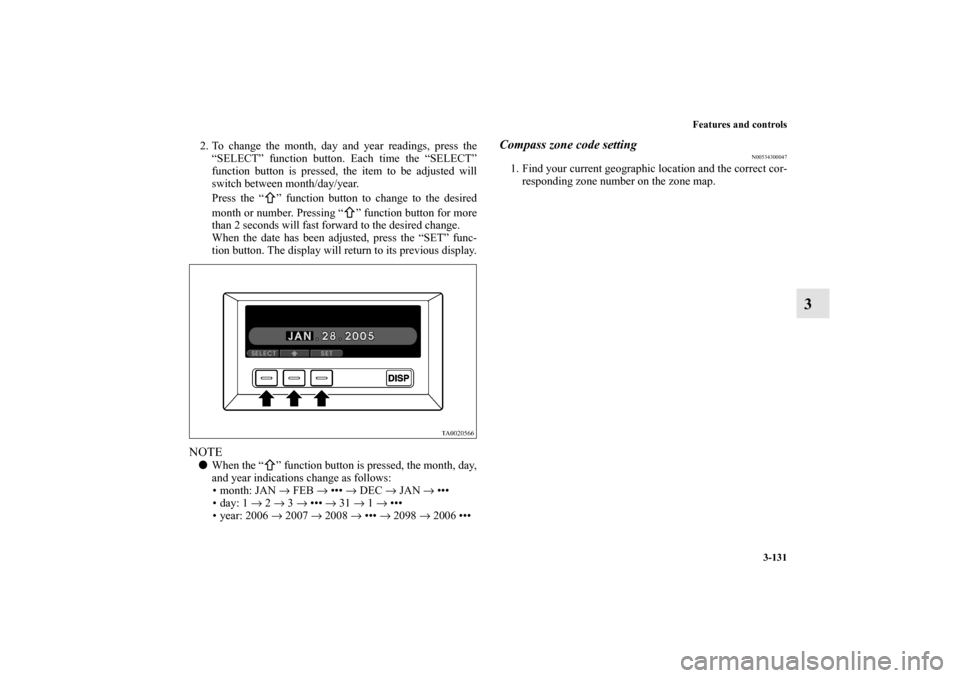

Features and controls
3-131
3
2. To change the month, day and year readings, press the
“SELECT” function button. Each time the “SELECT”
function button is pressed, the item to be adjusted will
switch between month/day/year.
Press the “ ” function button to change to the desired
month or number. Pressing “ ” function button for more
than 2 seconds will fast forward to the desired change.
When the date has been adjusted, press the “SET” func-
tion button. The display will return to its previous display.NOTE
When the “ ” function button is pressed, the month, day,
and year indications change as follows:
• month: JAN → FEB → ••• → DEC → JAN → •••
•day: 1 → 2 → 3 → ••• → 31 → 1 → •••
• year: 2006 → 2007 → 2008 → ••• → 2098 → 2006 •••
Compass zone code setting
N00534300047
1. Find your current geographic location and the correct cor-
responding zone number on the zone map.
BK0121600US.book 131 ページ ２０１０年４月１２日　月曜日　午前１０時３９分
