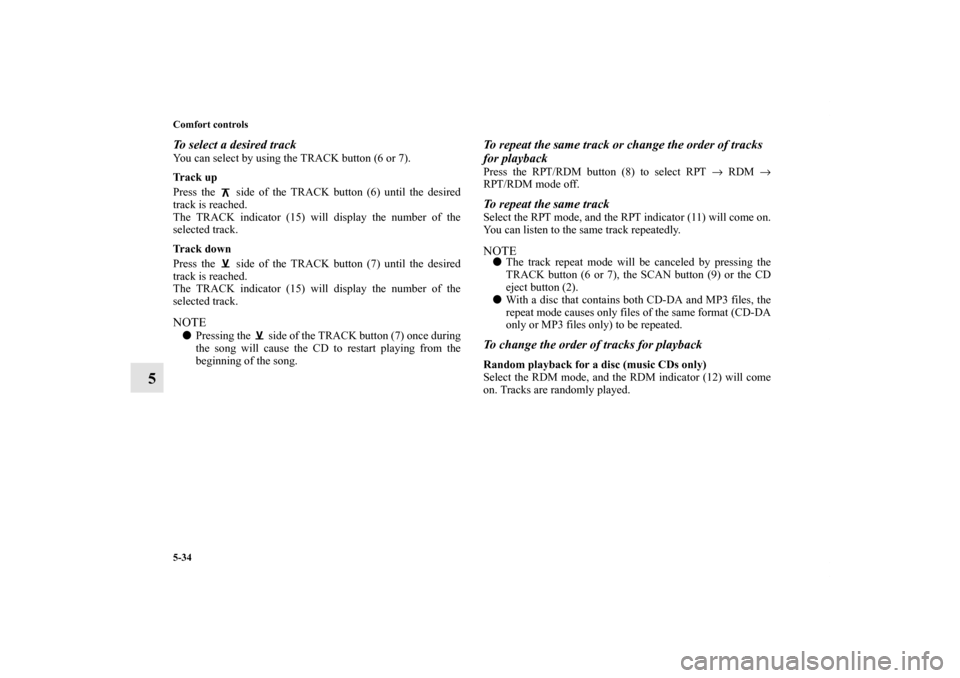

5-34 Comfort controls
5
To select a desired trackYou can select by using the TRACK button (6 or 7).
Track up
Press the side of the TRACK button (6) until the desired
track is reached.
The TRACK indicator (15) will display the number of the
selected track.
Track down
Press the side of the TRACK button (7) until the desired
track is reached.
The TRACK indicator (15) will display the number of the
selected track.NOTE
Pressing the side of the TRACK button (7) once during
the song will cause the CD to restart playing from the
beginning of the song.
To repeat the same track or change the order of tracks
for playback Press the RPT/RDM button (8) to select RPT → RDM →
RPT/RDM mode off.To repeat the same track Select the RPT mode, and the RPT indicator (11) will come on.
You can listen to the same track repeatedly. NOTE
The track repeat mode will be canceled by pressing the
TRACK button (6 or 7), the SCAN button (9) or the CD
eject button (2).

With a disc that contains both CD-DA and MP3 files, the
repeat mode causes only files of the same format (CD-DA
only or MP3 files only) to be repeated. To change the order of tracks for playbackRandom playback for a disc (music CDs only)
Select the RDM mode, and the RDM indicator (12) will come
on. Tracks are randomly played.
BK0121200US.book 34 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

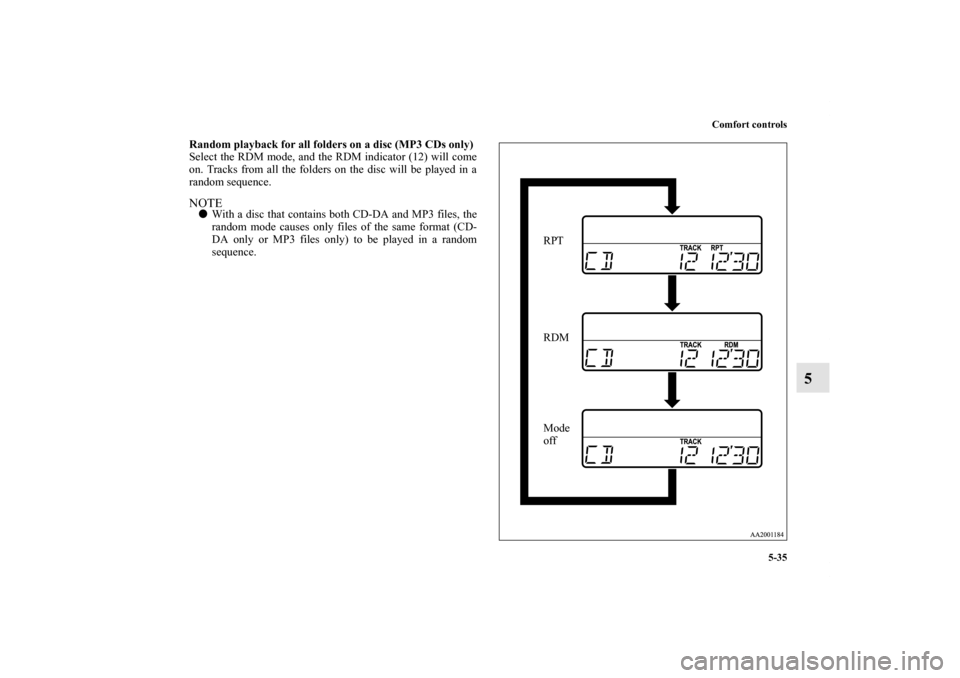

Comfort controls
5-35
5
Random playback for all folders on a disc (MP3 CDs only)
Select the RDM mode, and the RDM indicator (12) will come
on. Tracks from all the folders on the disc will be played in a
random sequence.NOTE
With a disc that contains both CD-DA and MP3 files, the
random mode causes only files of the same format (CD-
DA only or MP3 files only) to be played in a random
sequence.
RPT
RDM
Mode
off
BK0121200US.book 35 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

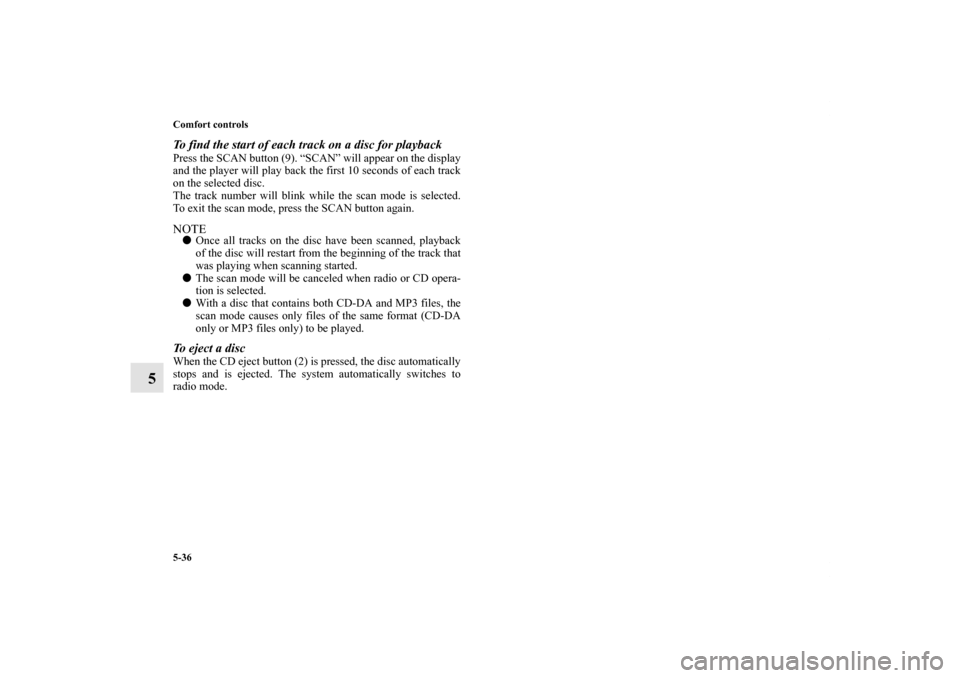

5-36 Comfort controls
5
To find the start of each track on a disc for playbackPress the SCAN button (9). “SCAN” will appear on the display
and the player will play back the first 10 seconds of each track
on the selected disc.
The track number will blink while the scan mode is selected.
To exit the scan mode, press the SCAN button again.NOTE
Once all tracks on the disc have been scanned, playback
of the disc will restart from the beginning of the track that
was playing when scanning started.

The scan mode will be canceled when radio or CD opera-
tion is selected.

With a disc that contains both CD-DA and MP3 files, the
scan mode causes only files of the same format (CD-DA
only or MP3 files only) to be played.To eject a discWhen the CD eject button (2) is pressed, the disc automatically
stops and is ejected. The system automatically switches to
radio mode.BK0121200US.book 36 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Comfort controls
5-37

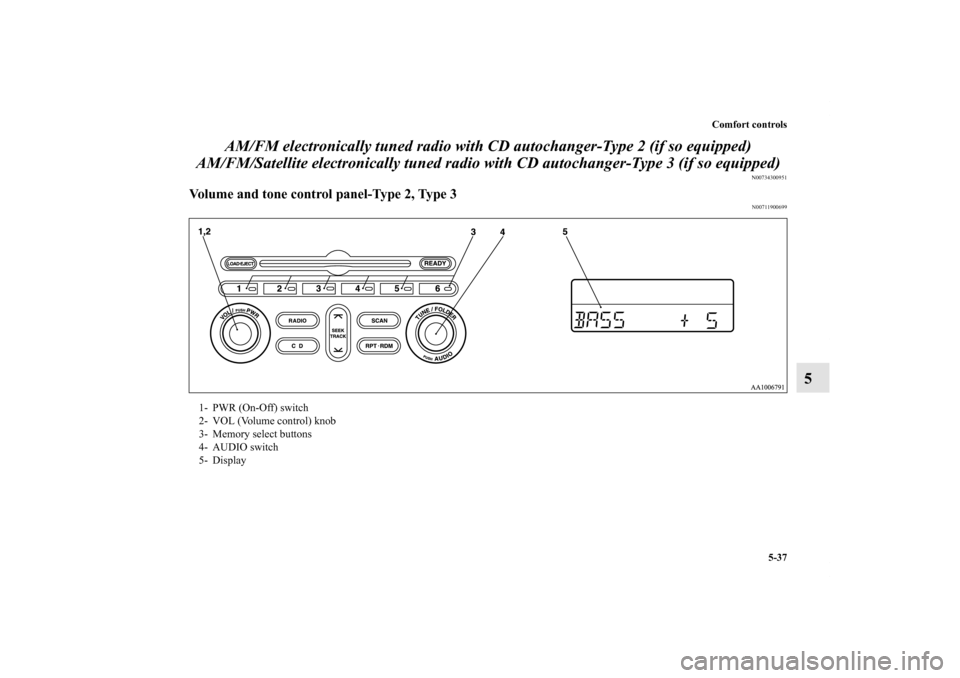

5 AM/FM electronically tuned radio with CD autochanger-Type 2 (if so equipped)
AM/FM/Satellite electronically tuned radio with CD autochanger-Type 3 (if so equipped)
N00734300951
Volume and tone control panel-Type 2, Type 3
N00711900699
1- PWR (On-Off) switch
2- VOL (Volume control) knob
3- Memory select buttons
4- AUDIO switch
5- Display
BK0121200US.book 37 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

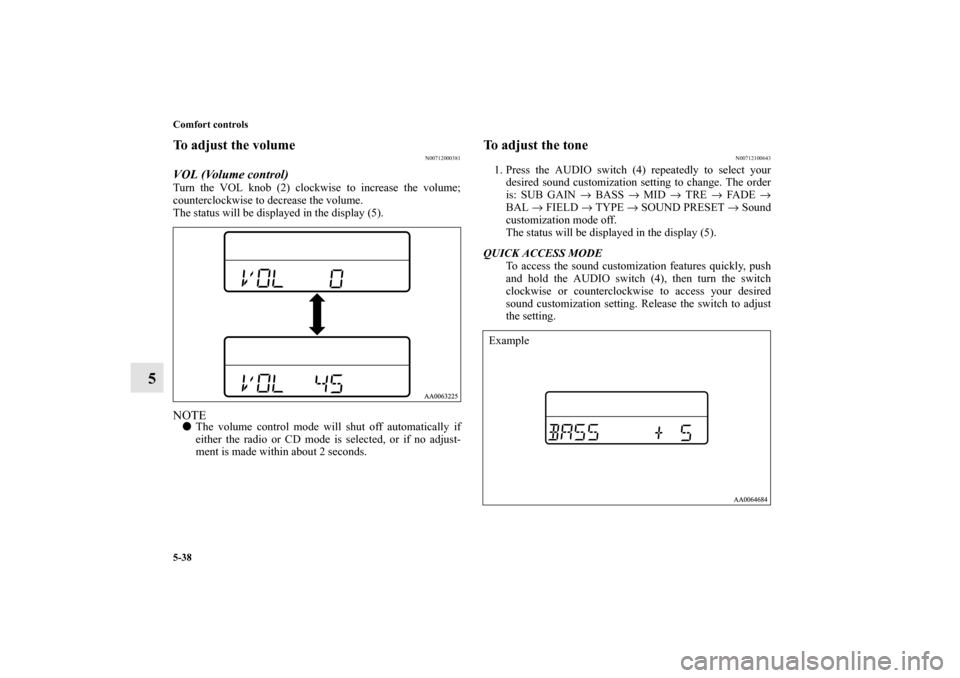

5-38 Comfort controls
5
To adjust the volume
N00712000381
VOL (Volume control) Turn the VOL knob (2) clockwise to increase the volume;
counterclockwise to decrease the volume.
The status will be displayed in the display (5).NOTE
The volume control mode will shut off automatically if
either the radio or CD mode is selected, or if no adjust-
ment is made within about 2 seconds.
To adjust the tone
N00712100643
1. Press the AUDIO switch (4) repeatedly to select your
desired sound customization setting to change. The order
is: SUB GAIN → BASS → MID → TRE → FADE →
BAL → FIELD → TYPE → SOUND PRESET → Sound
customization mode off.
The status will be displayed in the display (5).
QUICK ACCESS MODE
To access the sound customization features quickly, push
and hold the AUDIO switch (4), then turn the switch
clockwise or counterclockwise to access your desired
sound customization setting. Release the switch to adjust
the setting.Example
BK0121200US.book 38 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

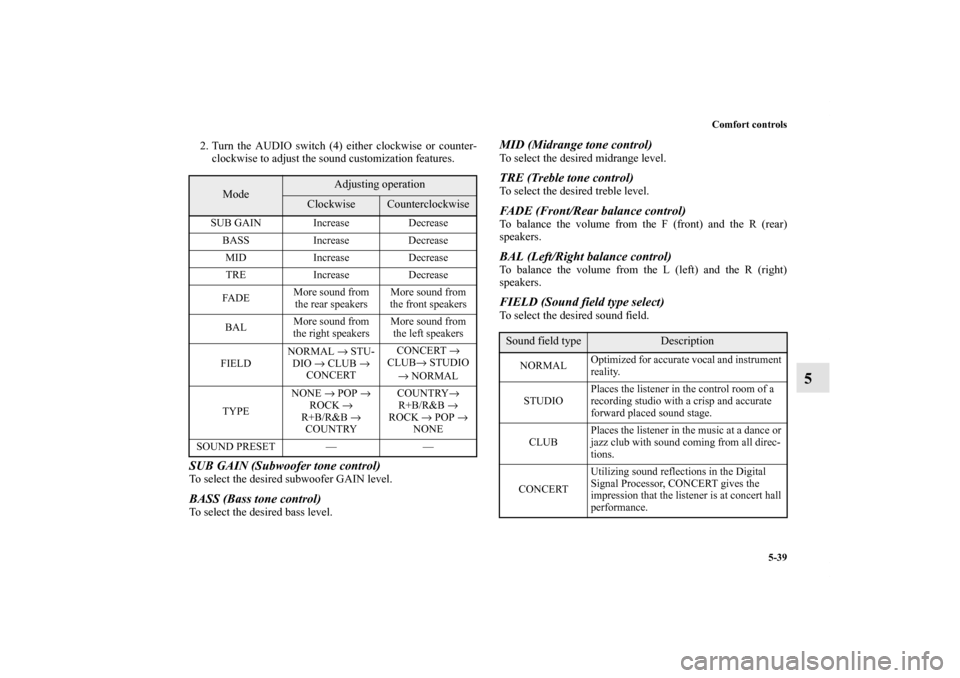

Comfort controls
5-39
5
2. Turn the AUDIO switch (4) either clockwise or counter-
clockwise to adjust the sound customization features.SUB GAIN (Subwoofer tone control) To select the desired subwoofer GAIN level. BASS (Bass tone control) To select the desired bass level.
MID (Midrange tone control) To select the desired midrange level. TRE (Treble tone control) To select the desired treble level. FADE (Front/Rear balance control) To balance the volume from the F (front) and the R (rear)
speakers. BAL (Left/Right balance control) To balance the volume from the L (left) and the R (right)
speakers.FIELD (Sound field type select)To select the desired sound field.
Mode
Adjusting operation
Clockwise
Counterclockwise
SUB GAIN Increase Decrease
BASS Increase Decrease
MID Increase Decrease
TRE Increase Decrease
FA D EMore sound from
the rear speakers More sound from
the front speakers
BALMore sound from
the right speakers More sound from
the left speakers
FIELDNORMAL → STU-
DIO → CLUB →
CONCERTCONCERT →
CLUB→ STUDIO
→ NORMAL
TYPENONE → POP →
ROCK →
R+B/R&B →
COUNTRYCOUNTRY→
R+B/R&B →
ROCK → POP →
NONE
SOUND PRESET — —
Sound field type
Description
NORMALOptimized for accurate vocal and instrument
reality.
STUDIOPlaces the listener in the control room of a
recording studio with a crisp and accurate
forward placed sound stage.
CLUBPlaces the listener in the music at a dance or
jazz club with sound coming from all direc-
tions.
CONCERTUtilizing sound reflections in the Digital
Signal Processor, CONCERT gives the
impression that the listener is at concert hall
performance.
BK0121200US.book 39 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

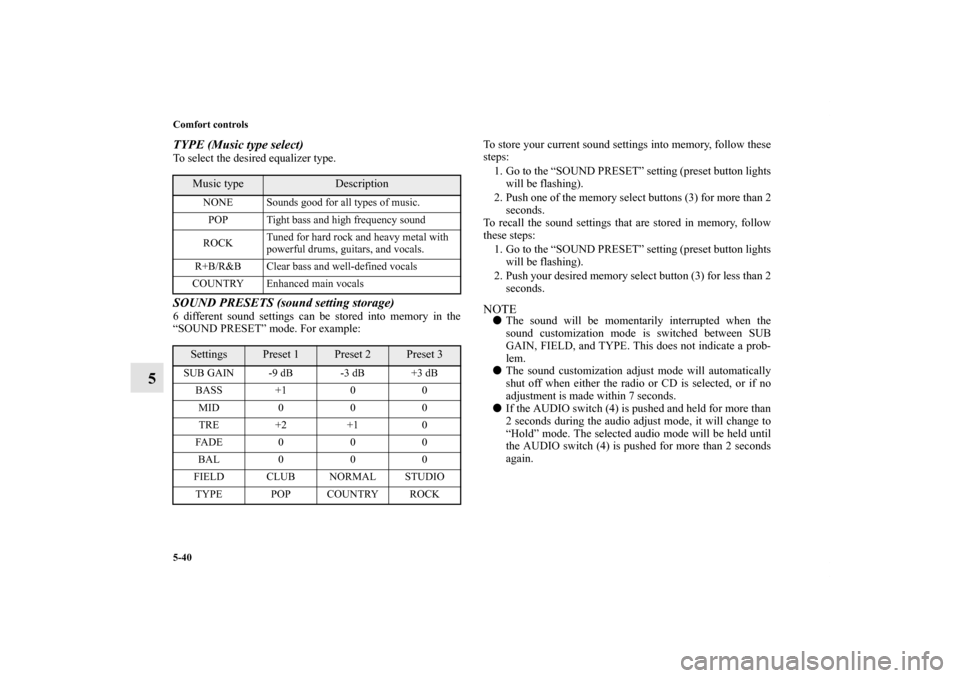

5-40 Comfort controls
5
TYPE (Music type select)To select the desired equalizer type.SOUND PRESETS (sound setting storage)6 different sound settings can be stored into memory in the
“SOUND PRESET” mode. For example:To store your current sound settings into memory, follow these
steps:
1. Go to the “SOUND PRESET” setting (preset button lights
will be flashing).
2. Push one of the memory select buttons (3) for more than 2
seconds.
To recall the sound settings that are stored in memory, follow
these steps:
1. Go to the “SOUND PRESET” setting (preset button lights
will be flashing).
2. Push your desired memory select button (3) for less than 2
seconds.
NOTE
The sound will be momentarily interrupted when the
sound customization mode is switched between SUB
GAIN, FIELD, and TYPE. This does not indicate a prob-
lem.

The sound customization adjust mode will automatically
shut off when either the radio or CD is selected, or if no
adjustment is made within 7 seconds.

If the AUDIO switch (4) is pushed and held for more than
2 seconds during the audio adjust mode, it will change to
“Hold” mode. The selected audio mode will be held until
the AUDIO switch (4) is pushed for more than 2 seconds
again.
Music type
Description
NONE Sounds good for all types of music.
POP Tight bass and high frequency sound
ROCKTuned for hard rock and heavy metal with
powerful drums, guitars, and vocals.
R+B/R&B Clear bass and well-defined vocals
COUNTRY Enhanced main vocals
Settings
Preset 1
Preset 2
Preset 3
SUB GAIN -9 dB -3 dB +3 dB
BASS +1 0 0
MID 0 0 0
TRE +2 +1 0
FADE 0 0 0
BAL 0 0 0
FIELD CLUB NORMAL STUDIO
TYPE POP COUNTRY ROCK
BK0121200US.book 40 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

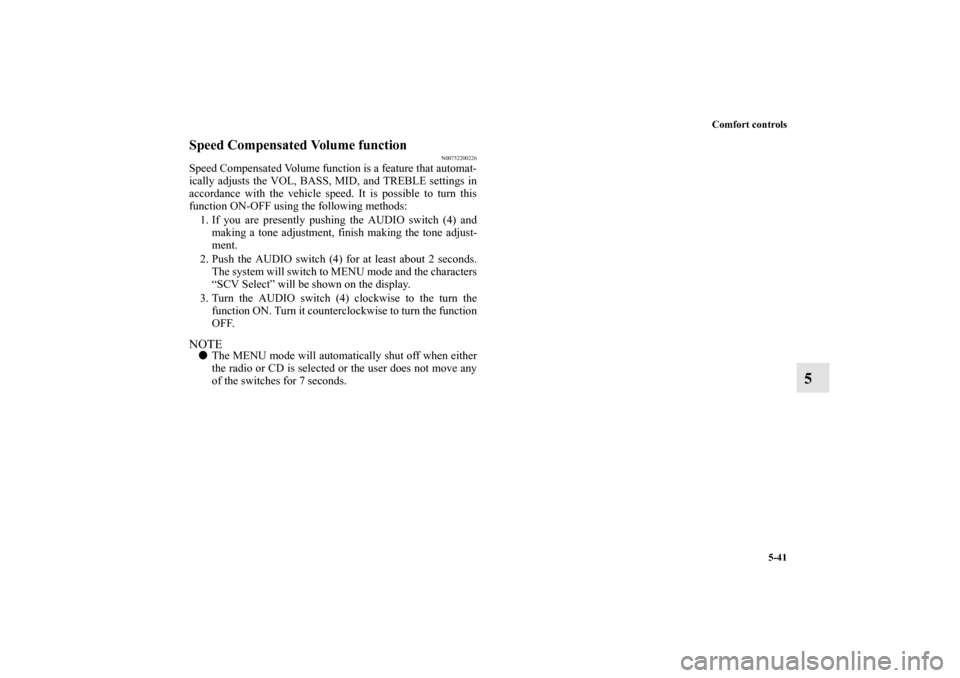

Comfort controls
5-41
5
Speed Compensated Volume function
N00752200226
Speed Compensated Volume function is a feature that automat-
ically adjusts the VOL, BASS, MID, and TREBLE settings in
accordance with the vehicle speed. It is possible to turn this
function ON-OFF using the following methods:
1. If you are presently pushing the AUDIO switch (4) and
making a tone adjustment, finish making the tone adjust-
ment.
2. Push the AUDIO switch (4) for at least about 2 seconds.
The system will switch to MENU mode and the characters
“SCV Select” will be shown on the display.
3. Turn the AUDIO switch (4) clockwise to the turn the
function ON. Turn it counterclockwise to turn the function
OFF.NOTE
The MENU mode will automatically shut off when either
the radio or CD is selected or the user does not move any
of the switches for 7 seconds.
BK0121200US.book 41 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

5-42 Comfort controls
5

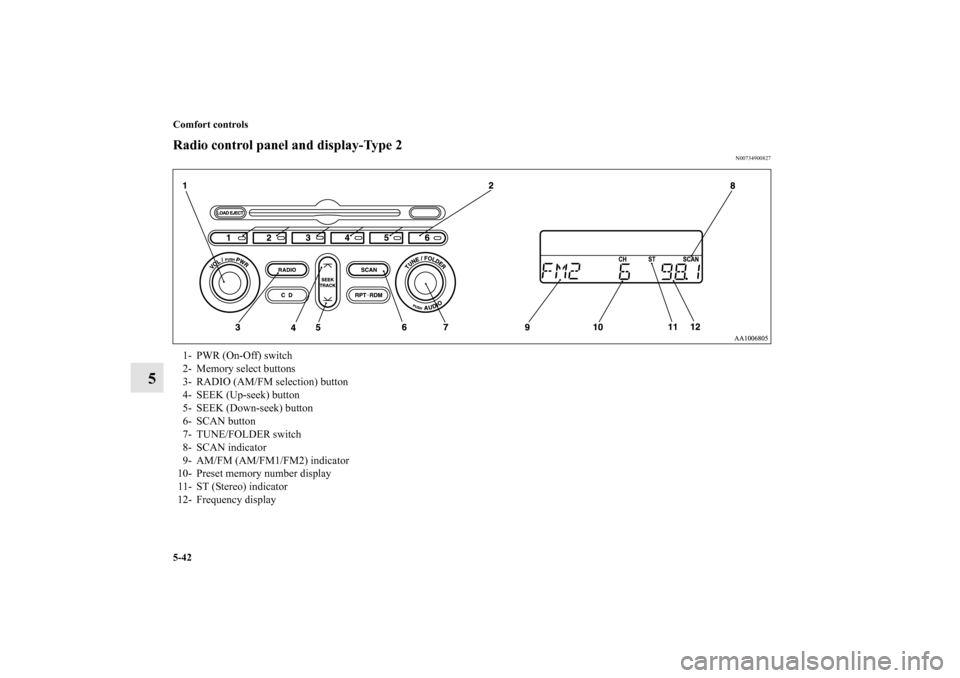

Radio control panel and display-Type 2
N00734900827
1- PWR (On-Off) switch
2- Memory select buttons
3- RADIO (AM/FM selection) button
4- SEEK (Up-seek) button
5- SEEK (Down-seek) button
6- SCAN button
7- TUNE/FOLDER switch
8- SCAN indicator
9- AM/FM (AM/FM1/FM2) indicator
10- Preset memory number display
11- ST (Stereo) indicator
12- Frequency display
BK0121200US.book 42 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

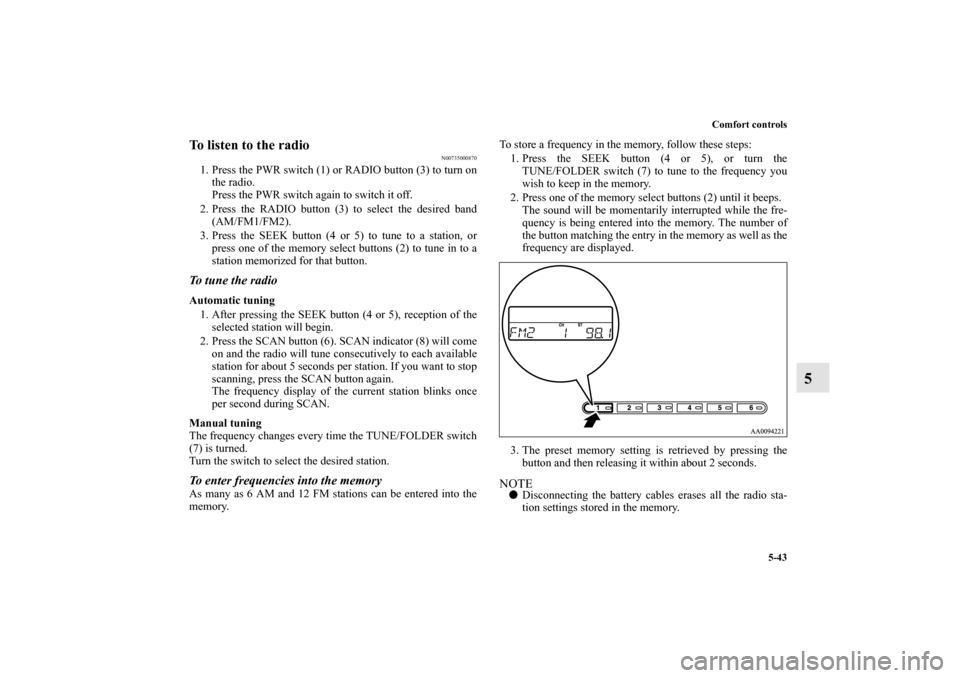

Comfort controls
5-43
5
To listen to the radio
N00735000870
1. Press the PWR switch (1) or RADIO button (3) to turn on
the radio.
Press the PWR switch again to switch it off.
2. Press the RADIO button (3) to select the desired band
(AM/FM1/FM2).
3. Press the SEEK button (4 or 5) to tune to a station, or
press one of the memory select buttons (2) to tune in to a
station memorized for that button.To tune the radioAutomatic tuning
1. After pressing the SEEK button (4 or 5), reception of the
selected station will begin.
2. Press the SCAN button (6). SCAN indicator (8) will come
on and the radio will tune consecutively to each available
station for about 5 seconds per station. If you want to stop
scanning, press the SCAN button again.
The frequency display of the current station blinks once
per second during SCAN.
Manual tuning
The frequency changes every time the TUNE/FOLDER switch
(7) is turned.
Turn the switch to select the desired station. To enter frequencies into the memoryAs many as 6 AM and 12 FM stations can be entered into the
memory.To store a frequency in the memory, follow these steps:
1. Press the SEEK button (4 or 5), or turn the
TUNE/FOLDER switch (7) to tune to the frequency you
wish to keep in the memory.
2. Press one of the memory select buttons (2) until it beeps.
The sound will be momentarily interrupted while the fre-
quency is being entered into the memory. The number of
the button matching the entry in the memory as well as the
frequency are displayed.
3. The preset memory setting is retrieved by pressing the
button and then releasing it within about 2 seconds.
NOTE
Disconnecting the battery cables erases all the radio sta-
tion settings stored in the memory.
