MITSUBISHI GALANT 2011 9.G Owners Manual

5-44 Comfort controls
5

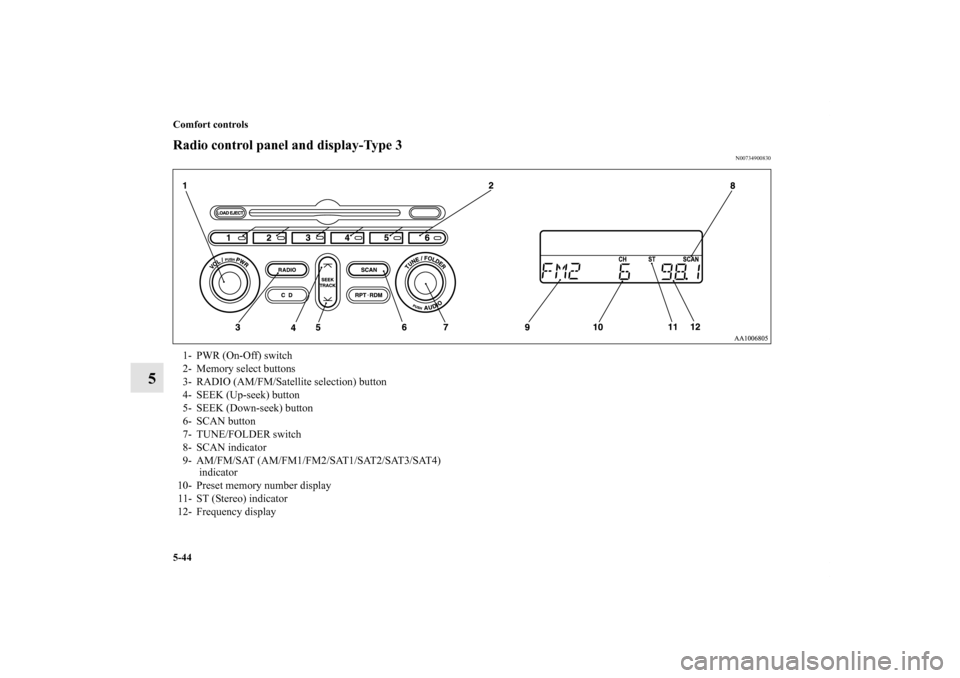

Radio control panel and display-Type 3
N00734900830
1- PWR (On-Off) switch
2- Memory select buttons
3- RADIO (AM/FM/Satellite selection) button
4- SEEK (Up-seek) button
5- SEEK (Down-seek) button
6- SCAN button
7- TUNE/FOLDER switch
8- SCAN indicator
9- AM/FM/SAT (AM/FM1/FM2/SAT1/SAT2/SAT3/SAT4)
indicator
10- Preset memory number display
11- ST (Stereo) indicator
12- Frequency display
BK0121200US.book 44 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Comfort controls
5-45
5

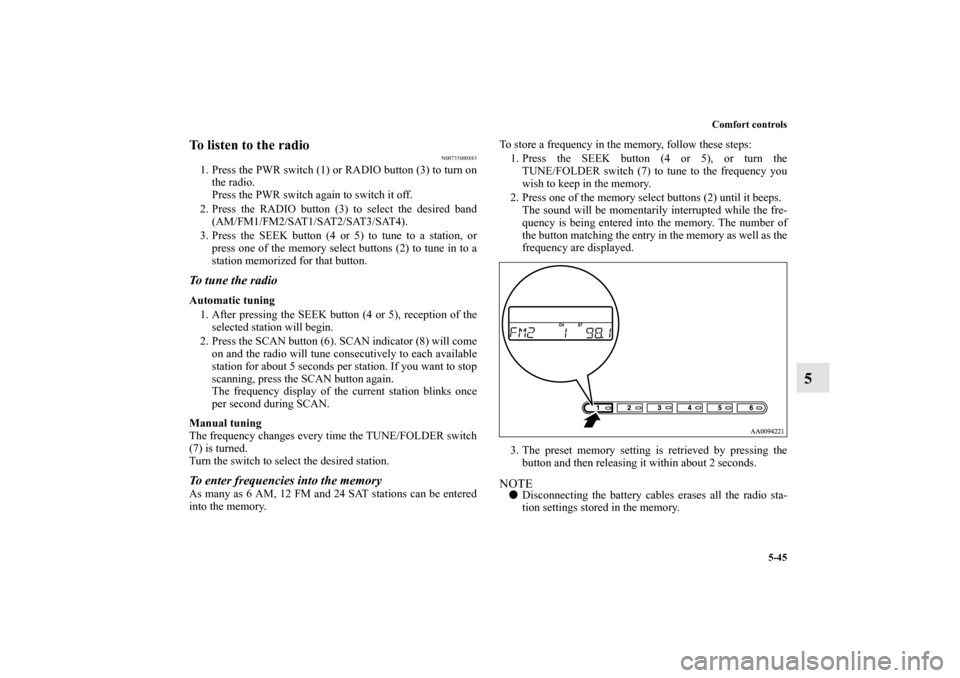

To listen to the radio
N00735000883
1. Press the PWR switch (1) or RADIO button (3) to turn on
the radio.
Press the PWR switch again to switch it off.
2. Press the RADIO button (3) to select the desired band
(AM/FM1/FM2/SAT1/SAT2/SAT3/SAT4).
3. Press the SEEK button (4 or 5) to tune to a station, or
press one of the memory select buttons (2) to tune in to a
station memorized for that button.To tune the radioAutomatic tuning
1. After pressing the SEEK button (4 or 5), reception of the
selected station will begin.
2. Press the SCAN button (6). SCAN indicator (8) will come
on and the radio will tune consecutively to each available
station for about 5 seconds per station. If you want to stop
scanning, press the SCAN button again.
The frequency display of the current station blinks once
per second during SCAN.
Manual tuning
The frequency changes every time the TUNE/FOLDER switch
(7) is turned.
Turn the switch to select the desired station. To enter frequencies into the memoryAs many as 6 AM, 12 FM and 24 SAT stations can be entered
into the memory.To store a frequency in the memory, follow these steps:
1. Press the SEEK button (4 or 5), or turn the
TUNE/FOLDER switch (7) to tune to the frequency you
wish to keep in the memory.
2. Press one of the memory select buttons (2) until it beeps.
The sound will be momentarily interrupted while the fre-
quency is being entered into the memory. The number of
the button matching the entry in the memory as well as the
frequency are displayed.
3. The preset memory setting is retrieved by pressing the
button and then releasing it within about 2 seconds.
NOTE
Disconnecting the battery cables erases all the radio sta-
tion settings stored in the memory.
BK0121200US.book 45 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

5-46 Comfort controls
5

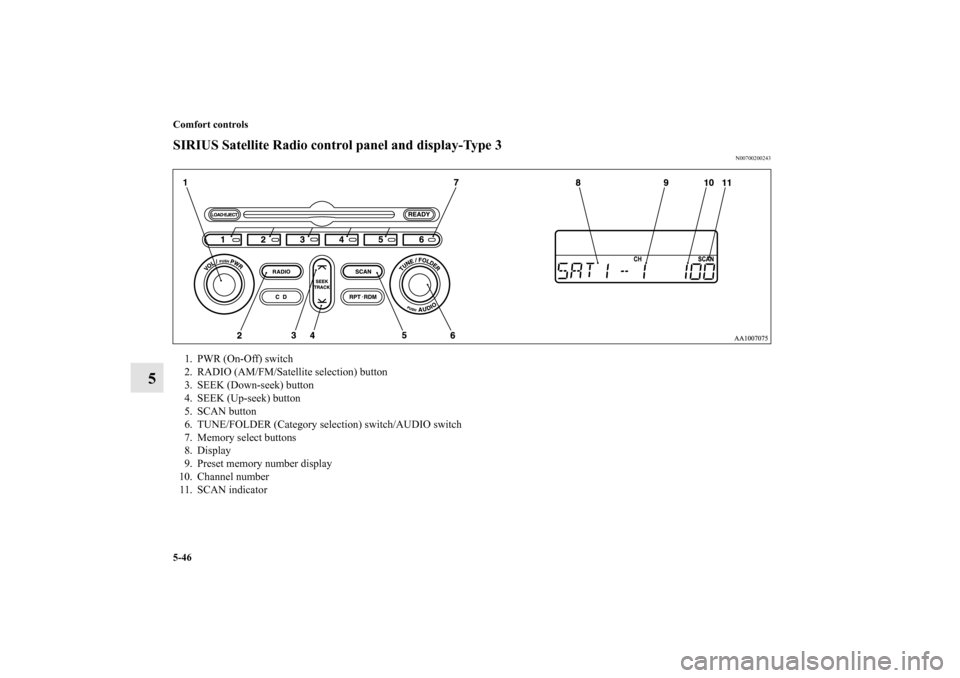

SIRIUS Satellite Radio control panel and display-Type 3
N00700200243
1. PWR (On-Off) switch
2. RADIO (AM/FM/Satellite selection) button
3. SEEK (Down-seek) button
4. SEEK (Up-seek) button
5. SCAN button
6. TUNE/FOLDER (Category selection) switch/AUDIO switch
7. Memory select buttons
8. Display
9. Preset memory number display
10. Channel number
11. SCAN indicator
BK0121200US.book 46 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Comfort controls
5-47
5

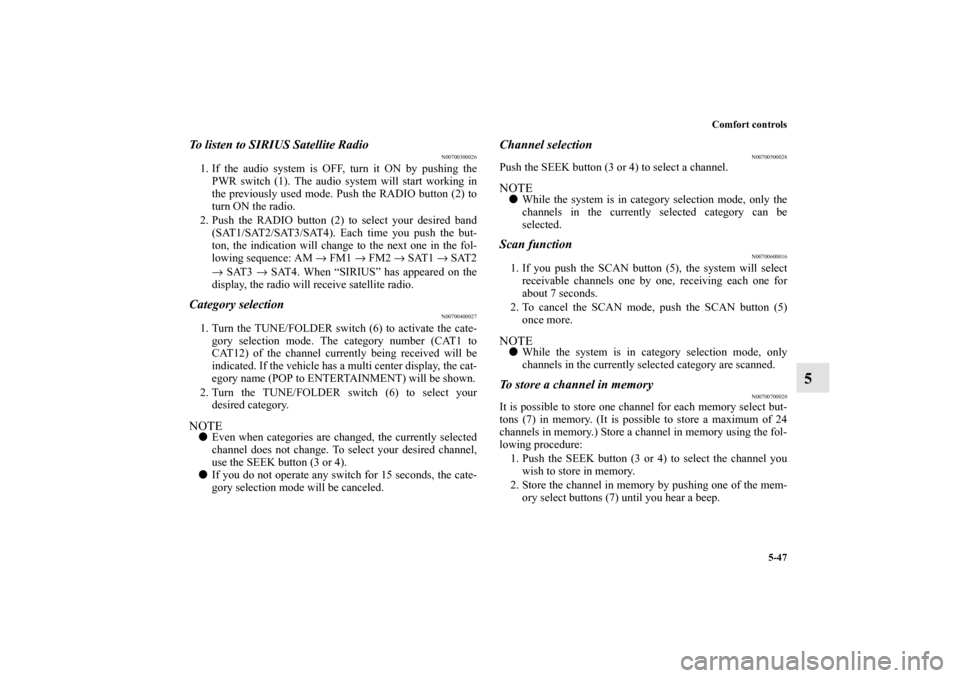

To listen to SIRIUS Satellite Radio
N00700300026
1. If the audio system is OFF, turn it ON by pushing the
PWR switch (1). The audio system will start working in
the previously used mode. Push the RADIO button (2) to
turn ON the radio.
2. Push the RADIO button (2) to select your desired band
(SAT1/SAT2/SAT3/SAT4). Each time you push the but-
ton, the indication will change to the next one in the fol-
lowing sequence: AM → FM1 → FM2 → SAT1 → SAT2
→ SAT3 → SAT4. When “SIRIUS” has appeared on the
display, the radio will receive satellite radio.Category selection
N00700400027
1. Turn the TUNE/FOLDER switch (6) to activate the cate-
gory selection mode. The category number (CAT1 to
CAT12) of the channel currently being received will be
indicated. If the vehicle has a multi center display, the cat-
egory name (POP to ENTERTAINMENT) will be shown.
2. Turn the TUNE/FOLDER switch (6) to select your
desired category.NOTE
Even when categories are changed, the currently selected
channel does not change. To select your desired channel,
use the SEEK button (3 or 4).

If you do not operate any switch for 15 seconds, the cate-
gory selection mode will be canceled.
Channel selection
N00700500028
Push the SEEK button (3 or 4) to select a channel.NOTE
While the system is in category selection mode, only the
channels in the currently selected category can be
selected.Scan function
N00700600016
1. If you push the SCAN button (5), the system will select
receivable channels one by one, receiving each one for
about 7 seconds.
2. To cancel the SCAN mode, push the SCAN button (5)
once more.NOTE
While the system is in category selection mode, only
channels in the currently selected category are scanned.To store a channel in memory
N00700700020
It is possible to store one channel for each memory select but-
tons (7) in memory. (It is possible to store a maximum of 24
channels in memory.) Store a channel in memory using the fol-
lowing procedure:
1. Push the SEEK button (3 or 4) to select the channel you
wish to store in memory.
2. Store the channel in memory by pushing one of the mem-
ory select buttons (7) until you hear a beep.
BK0121200US.book 47 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

5-48 Comfort controls
5
NOTE
Once you have stored channels in memory, you can
instantly call up a desired channel by just pushing the cor-

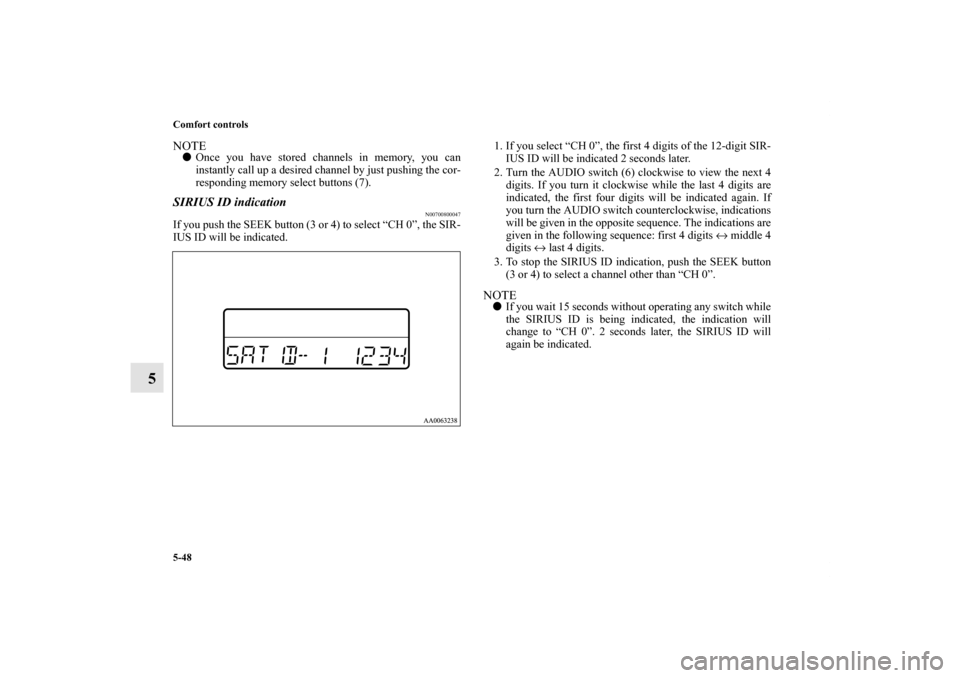

responding memory select buttons (7).SIRIUS ID indication
N00700800047
If you push the SEEK button (3 or 4) to select “CH 0”, the SIR-
IUS ID will be indicated.1. If you select “CH 0”, the first 4 digits of the 12-digit SIR-
IUS ID will be indicated 2 seconds later.
2. Turn the AUDIO switch (6) clockwise to view the next 4
digits. If you turn it clockwise while the last 4 digits are
indicated, the first four digits will be indicated again. If
you turn the AUDIO switch counterclockwise, indications
will be given in the opposite sequence. The indications are
given in the following sequence: first 4 digits ↔ middle 4
digits ↔ last 4 digits.
3. To stop the SIRIUS ID indication, push the SEEK button
(3 or 4) to select a channel other than “CH 0”.
NOTE
If you wait 15 seconds without operating any switch while
the SIRIUS ID is being indicated, the indication will
change to “CH 0”. 2 seconds later, the SIRIUS ID will
again be indicated.
BK0121200US.book 48 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Comfort controls
5-49
5

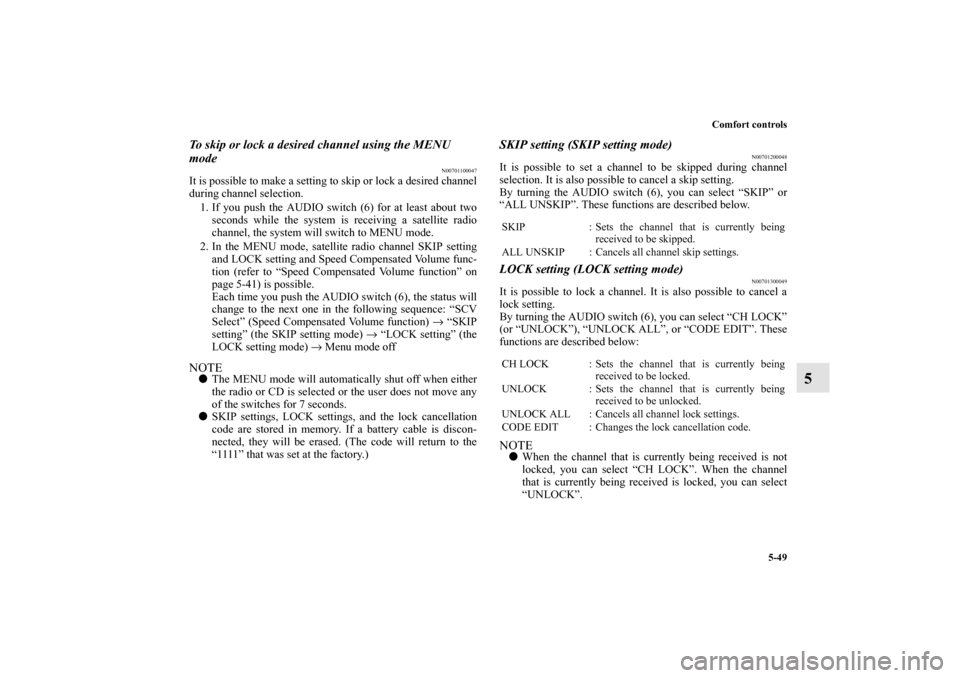

To skip or lock a desired channel using the MENU
mode
N00701100047
It is possible to make a setting to skip or lock a desired channel
during channel selection.
1. If you push the AUDIO switch (6) for at least about two
seconds while the system is receiving a satellite radio
channel, the system will switch to MENU mode.
2. In the MENU mode, satellite radio channel SKIP setting
and LOCK setting and Speed Compensated Volume func-
tion (refer to “Speed Compensated Volume function” on
page 5-41) is possible.
Each time you push the AUDIO switch (6), the status will
change to the next one in the following sequence: “SCV
Select” (Speed Compensated Volume function) → “SKIP
setting” (the SKIP setting mode) → “LOCK setting” (the
LOCK setting mode) → Menu mode offNOTE
The MENU mode will automatically shut off when either
the radio or CD is selected or the user does not move any
of the switches for 7 seconds.

SKIP settings, LOCK settings, and the lock cancellation
code are stored in memory. If a battery cable is discon-
nected, they will be erased. (The code will return to the
“1111” that was set at the factory.)
SKIP setting (SKIP setting mode)
N00701200048
It is possible to set a channel to be skipped during channel
selection. It is also possible to cancel a skip setting.
By turning the AUDIO switch (6), you can select “SKIP” or
“ALL UNSKIP”. These functions are described below.LOCK setting (LOCK setting mode)
N00701300049
It is possible to lock a channel. It is also possible to cancel a
lock setting.
By turning the AUDIO switch (6), you can select “CH LOCK”
(or “UNLOCK”), “UNLOCK ALL”, or “CODE EDIT”. These
functions are described below:NOTE
When the channel that is currently being received is not
locked, you can select “CH LOCK”. When the channel
that is currently being received is locked, you can select
“UNLOCK”.SKIP : Sets the channel that is currently being
received to be skipped.
ALL UNSKIP : Cancels all channel skip settings.
CH LOCK : Sets the channel that is currently being
received to be locked.
UNLOCK : Sets the channel that is currently being
received to be unlocked.
UNLOCK ALL : Cancels all channel lock settings.
CODE EDIT : Changes the lock cancellation code.
BK0121200US.book 49 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

5-50 Comfort controls
5
To skip a desired channel
N00701400040
It is possible to set a channel to not be received during channel
selection.
1. Select the channel you wish to be skipped.
2. Push the AUDIO switch (6) for at least about 2 seconds to
select the MENU mode. Then select the SKIP setting
mode.
3. In the SKIP setting mode, turn the AUDIO switch (6) to
select “SKIP”.
4. Push the AUDIO switch (6) to set the channel that is cur-
rently being received to be skipped. When you have made
the setting, the system will return to the SKIP setting
mode. (The display will show “SKIP setting” after show-
ing “STORED”.)NOTE
Any channel for which a skip setting has been made is
automatically skipped during channel selection.

A channel that is stored in the preset memory is also
skipped during channel selection. If you push the corre-
sponding memory select buttons (7) to call up the channel,
the display will show “SKIPD” and the audio will be
muted.
To cancel skip settings
N00701500041
It is possible to cancel channel skip settings.
1. Push the AUDIO switch (6) for at least about 2 seconds to
select the MENU mode. Then select the SKIP setting
mode.
2. In the SKIP setting mode, turn the AUDIO switch (6) to
select “ALL UNSKIP”.
3. Push the AUDIO switch (6). All channel skip settings will
be cancelled. Then, the system will return to the SKIP set-
ting mode. (The display will show “SKIP setting” after
showing “STORED”.)To lock a desired channel
N00701600042
It is possible to lock a desired channel so that it cannot be
selected.
1. Select the channel you wish to lock.
2. Push the AUDIO switch (6) for at least about 2 seconds to
select the MENU mode. Then select the LOCK setting
mode.
3. In the LOCK setting mode, turn the AUDIO switch (6) to
select “CH LOCK”.
4. Push the AUDIO switch (6). The channel currently being
received will be locked. Then, the system will return to
the LOCK setting mode.NOTE
If you attempt to select a locked channel, the display will
show “LOCKED”.

Channels stored in the preset memory are also locked.
BK0121200US.book 50 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Comfort controls
5-51
5

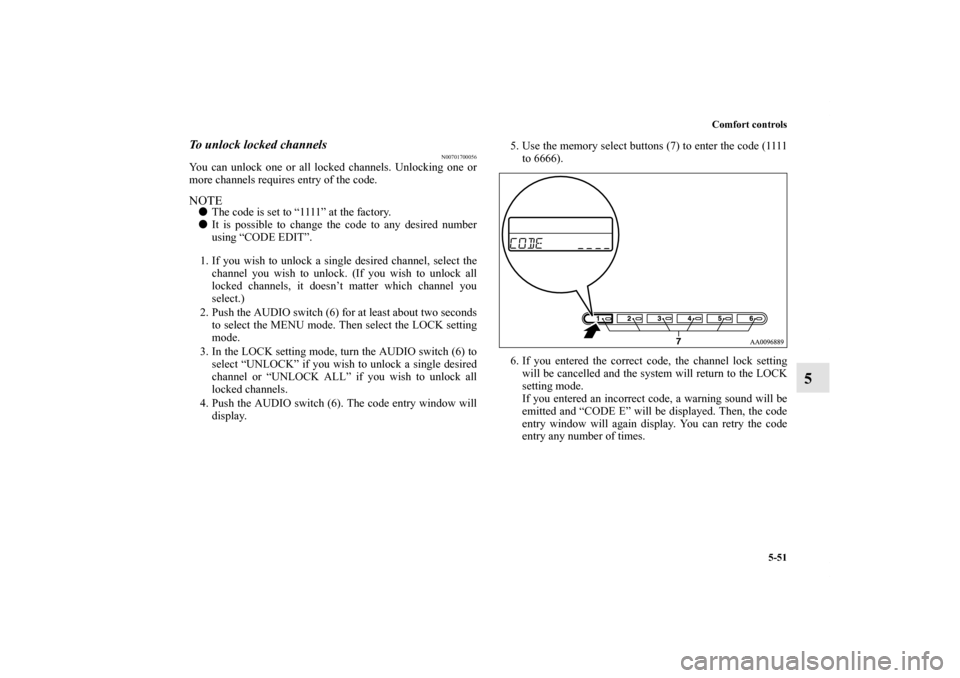

To unlock locked channels
N00701700056
You can unlock one or all locked channels. Unlocking one or
more channels requires entry of the code.NOTE
The code is set to “1111” at the factory.

It is possible to change the code to any desired number
using “CODE EDIT”.
1. If you wish to unlock a single desired channel, select the
channel you wish to unlock. (If you wish to unlock all
locked channels, it doesn’t matter which channel you
select.)
2. Push the AUDIO switch (6) for at least about two seconds
to select the MENU mode. Then select the LOCK setting
mode.
3. In the LOCK setting mode, turn the AUDIO switch (6) to
select “UNLOCK” if you wish to unlock a single desired
channel or “UNLOCK ALL” if you wish to unlock all
locked channels.
4. Push the AUDIO switch (6). The code entry window will
display.5. Use the memory select buttons (7) to enter the code (1111
to 6666).
6. If you entered the correct code, the channel lock setting
will be cancelled and the system will return to the LOCK
setting mode.
If you entered an incorrect code, a warning sound will be
emitted and “CODE E” will be displayed. Then, the code
entry window will again display. You can retry the code
entry any number of times.
BK0121200US.book 51 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

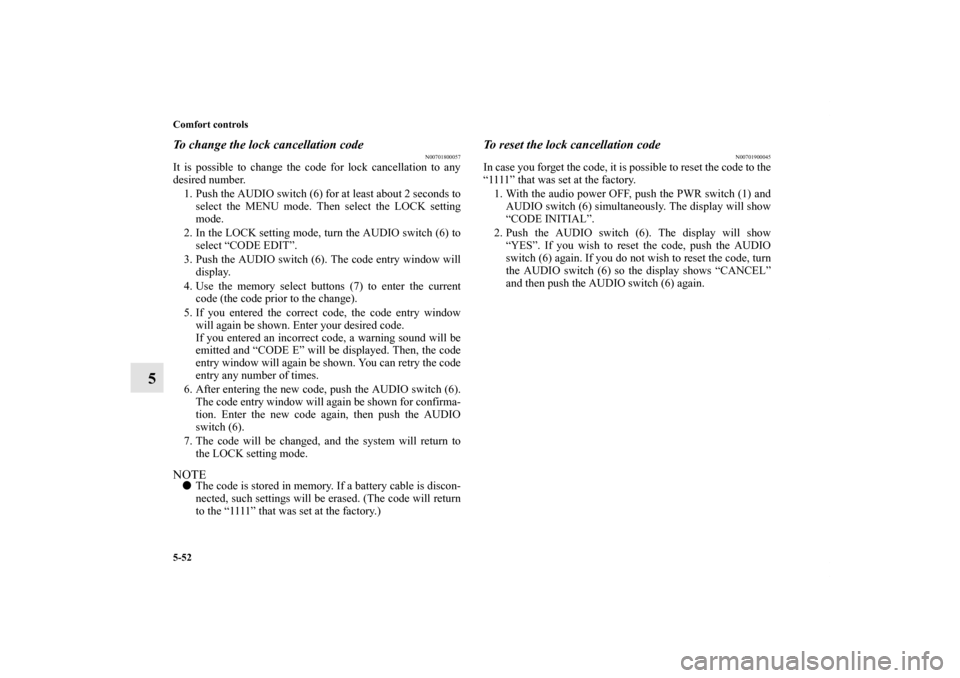

5-52 Comfort controls
5
To change the lock cancellation code
N00701800057
It is possible to change the code for lock cancellation to any
desired number.
1. Push the AUDIO switch (6) for at least about 2 seconds to
select the MENU mode. Then select the LOCK setting
mode.
2. In the LOCK setting mode, turn the AUDIO switch (6) to
select “CODE EDIT”.
3. Push the AUDIO switch (6). The code entry window will
display.
4. Use the memory select buttons (7) to enter the current
code (the code prior to the change).
5. If you entered the correct code, the code entry window
will again be shown. Enter your desired code.
If you entered an incorrect code, a warning sound will be
emitted and “CODE E” will be displayed. Then, the code
entry window will again be shown. You can retry the code
entry any number of times.
6. After entering the new code, push the AUDIO switch (6).
The code entry window will again be shown for confirma-
tion. Enter the new code again, then push the AUDIO
switch (6).
7. The code will be changed, and the system will return to
the LOCK setting mode.NOTE
The code is stored in memory. If a battery cable is discon-
nected, such settings will be erased. (The code will return
to the “1111” that was set at the factory.)
To reset the lock cancellation code
N00701900045
In case you forget the code, it is possible to reset the code to the
“1111” that was set at the factory.
1. With the audio power OFF, push the PWR switch (1) and
AUDIO switch (6) simultaneously. The display will show
“CODE INITIAL”.
2. Push the AUDIO switch (6). The display will show
“YES”. If you wish to reset the code, push the AUDIO
switch (6) again. If you do not wish to reset the code, turn
the AUDIO switch (6) so the display shows “CANCEL”
and then push the AUDIO switch (6) again.
BK0121200US.book 52 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Comfort controls
5-53
5

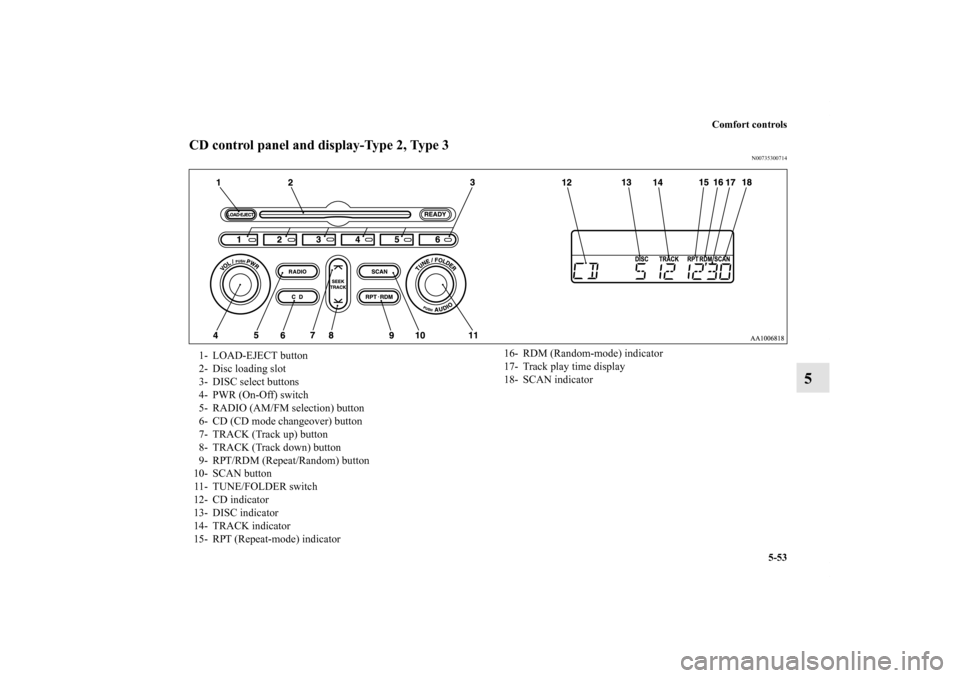

CD control panel and display-Type 2, Type 3
N00735300714
1- LOAD-EJECT button
2- Disc loading slot
3- DISC select buttons
4- PWR (On-Off) switch
5- RADIO (AM/FM selection) button
6- CD (CD mode changeover) button
7- TRACK (Track up) button
8- TRACK (Track down) button
9- RPT/RDM (Repeat/Random) button
10- SCAN button
11- TUNE/FOLDER switch
12- CD indicator
13- DISC indicator
14- TRACK indicator
15- RPT (Repeat-mode) indicator16- RDM (Random-mode) indicator
17- Track play time display
18- SCAN indicator
BK0121200US.book 53 ページ ２０１０年４月１４日　水曜日　午前１１時２４分
