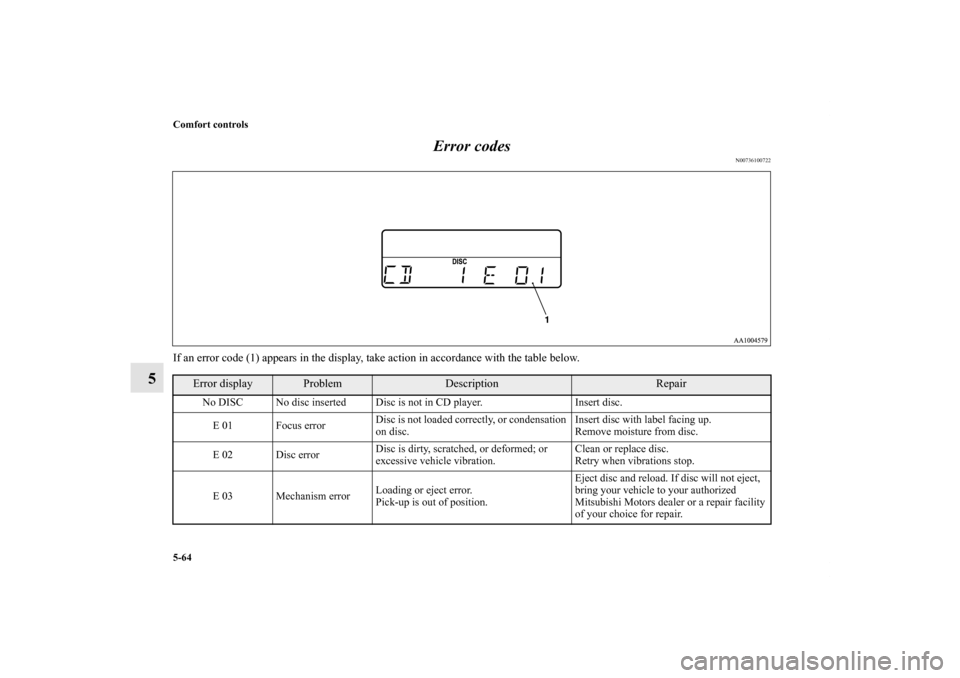

5-64 Comfort controls
5Error codes
N00736100722
If an error code (1) appears in the display, take action in accordance with the table below.
Error display
Problem
Description
Repair
No DISC No disc inserted Disc is not in CD player. Insert disc.
E 01 Focus errorDisc is not loaded correctly, or condensation
on disc.Insert disc with label facing up.
Remove moisture from disc.
E 02 Disc errorDisc is dirty, scratched, or deformed; or
excessive vehicle vibration.Clean or replace disc.
Retry when vibrations stop.
E 03 Mechanism errorLoading or eject error.
Pick-up is out of position.Eject disc and reload. If disc will not eject,
bring your vehicle to your authorized
Mitsubishi Motors dealer or a repair facility
of your choice for repair.
BK0121200US.book 64 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

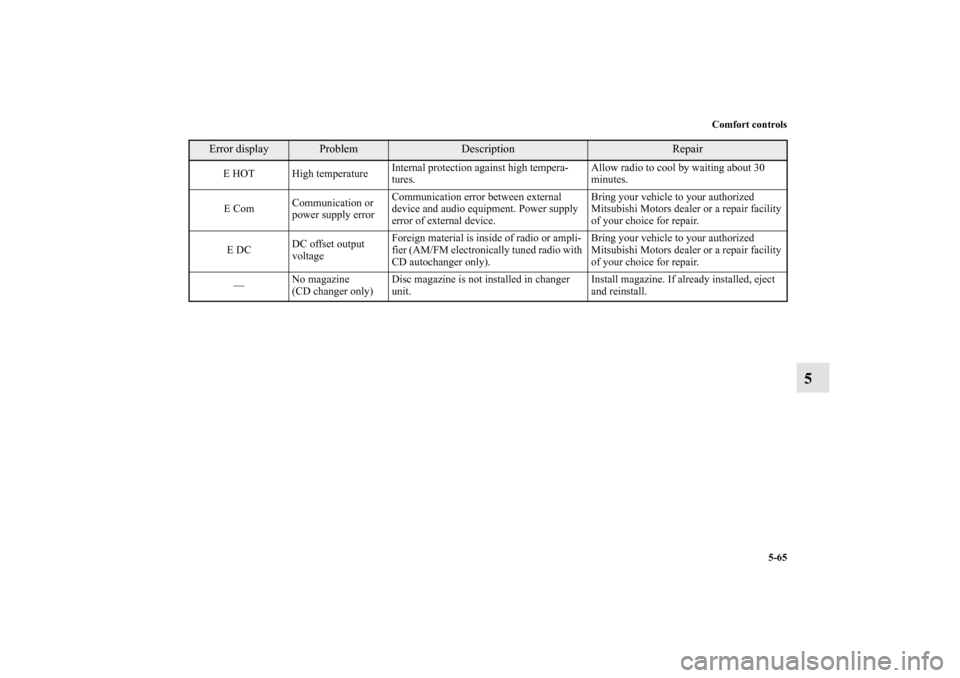

Comfort controls
5-65
5
E HOT High temperatureInternal protection against high tempera-
tures.Allow radio to cool by waiting about 30
minutes.
E ComCommunication or
power supply errorCommunication error between external
device and audio equipment. Power supply
error of external device.Bring your vehicle to your authorized
Mitsubishi Motors dealer or a repair facility
of your choice for repair.
E DCDC offset output
voltageForeign material is inside of radio or ampli-
fier (AM/FM electronically tuned radio with
CD autochanger only).Bring your vehicle to your authorized
Mitsubishi Motors dealer or a repair facility
of your choice for repair.
—No magazine
(CD changer only)Disc magazine is not installed in changer
unit.Install magazine. If already installed, eject
and reinstall.
Error display
Problem
Description
Repair
BK0121200US.book 65 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

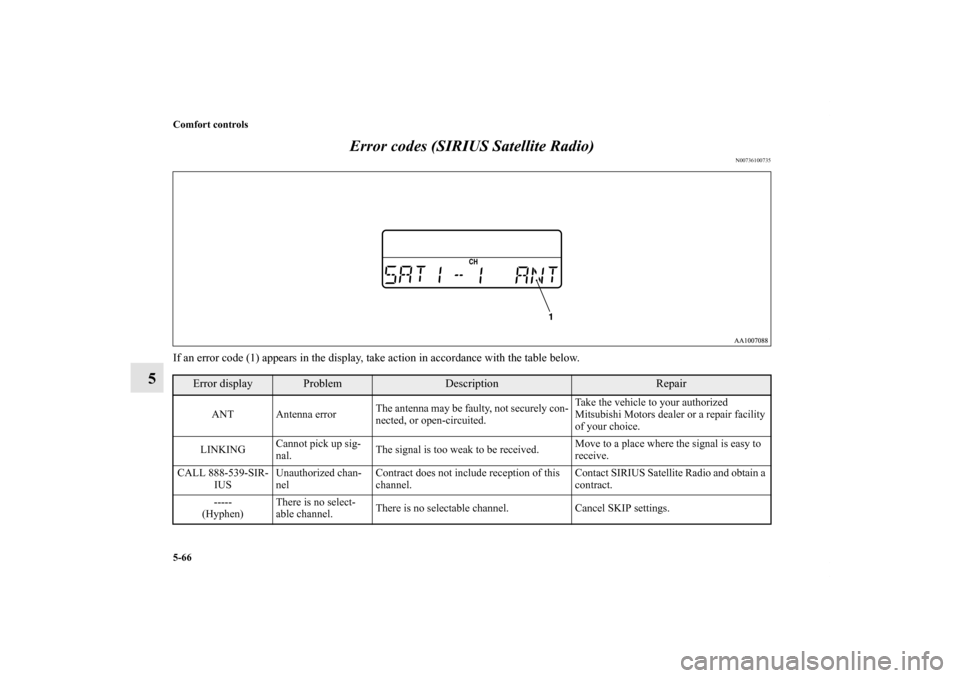

5-66 Comfort controls
5Error codes (SIRIUS Satellite Radio)
N00736100735
If an error code (1) appears in the display, take action in accordance with the table below.
Error display
Problem
Description
Repair
ANT Antenna errorThe antenna may be faulty, not securely con-
nected, or open-circuited.Take the vehicle to your authorized
Mitsubishi Motors dealer or a repair facility
of your choice.
LINKINGCannot pick up sig-
nal.The signal is too weak to be received.Move to a place where the signal is easy to
receive.
CALL 888-539-SIR-
IUSUnauthorized chan-
nelContract does not include reception of this
channel.Contact SIRIUS Satellite Radio and obtain a
contract.
-----
(Hyphen)There is no select-
able channel.There is no selectable channel. Cancel SKIP settings.
BK0121200US.book 66 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

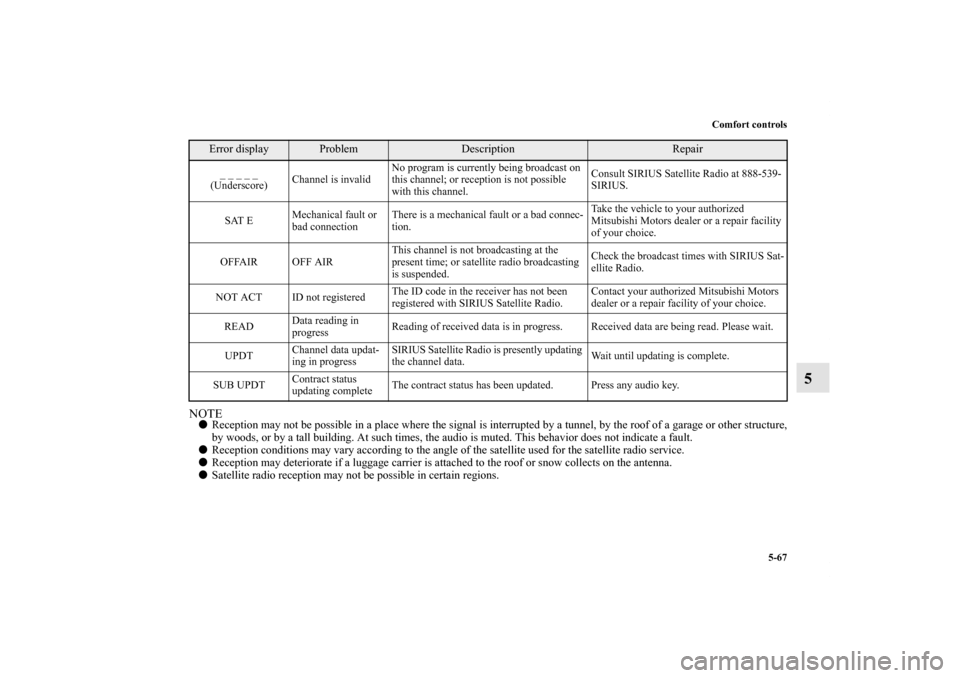

Comfort controls
5-67
5
NOTE
Reception may not be possible in a place where the signal is interrupted by a tunnel, by the roof of a garage or other structure,
by woods, or by a tall building. At such times, the audio is muted. This behavior does not indicate a fault.

Reception conditions may vary according to the angle of the satellite used for the satellite radio service.

Reception may deteriorate if a luggage carrier is attached to the roof or snow collects on the antenna.

Satellite radio reception may not be possible in certain regions.
_ _ _ _ _
(Underscore)Channel is invalidNo program is currently being broadcast on
this channel; or reception is not possible
with this channel.Consult SIRIUS Satellite Radio at 888-539-
SIRIUS.
SAT EMechanical fault or
bad connectionThere is a mechanical fault or a bad connec-
tion.Take the vehicle to your authorized
Mitsubishi Motors dealer or a repair facility
of your choice.
OFFAIR OFF AIRThis channel is not broadcasting at the
present time; or satellite radio broadcasting
is suspended.Check the broadcast times with SIRIUS Sat-
ellite Radio.
NOT ACT ID not registeredThe ID code in the receiver has not been
registered with SIRIUS Satellite Radio.Contact your authorized Mitsubishi Motors
dealer or a repair facility of your choice.
READData reading in
progressReading of received data is in progress. Received data are being read. Please wait.
UPDTChannel data updat-
ing in progressSIRIUS Satellite Radio is presently updating
the channel data.Wait until updating is complete.
SUB UPDTContract status
updating completeThe contract status has been updated. Press any audio key.Error display
Problem
Description
Repair
BK0121200US.book 67 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

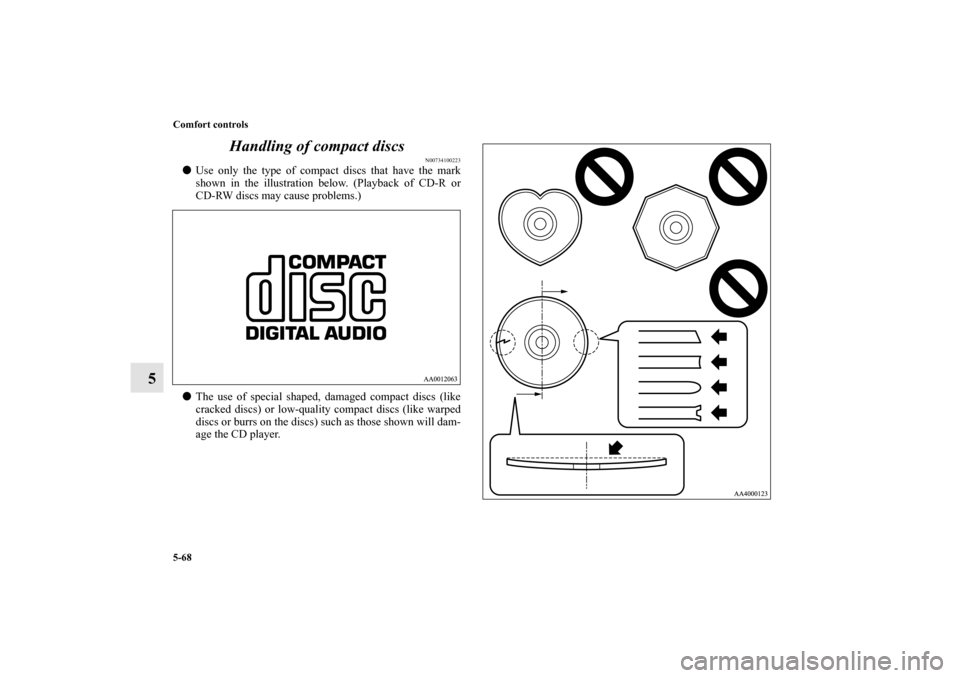

5-68 Comfort controls
5Handling of compact discs
N00734100223

Use only the type of compact discs that have the mark
shown in the illustration below. (Playback of CD-R or
CD-RW discs may cause problems.)

The use of special shaped, damaged compact discs (like
cracked discs) or low-quality compact discs (like warped
discs or burrs on the discs) such as those shown will dam-
age the CD player.
BK0121200US.book 68 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

Comfort controls
5-69
5

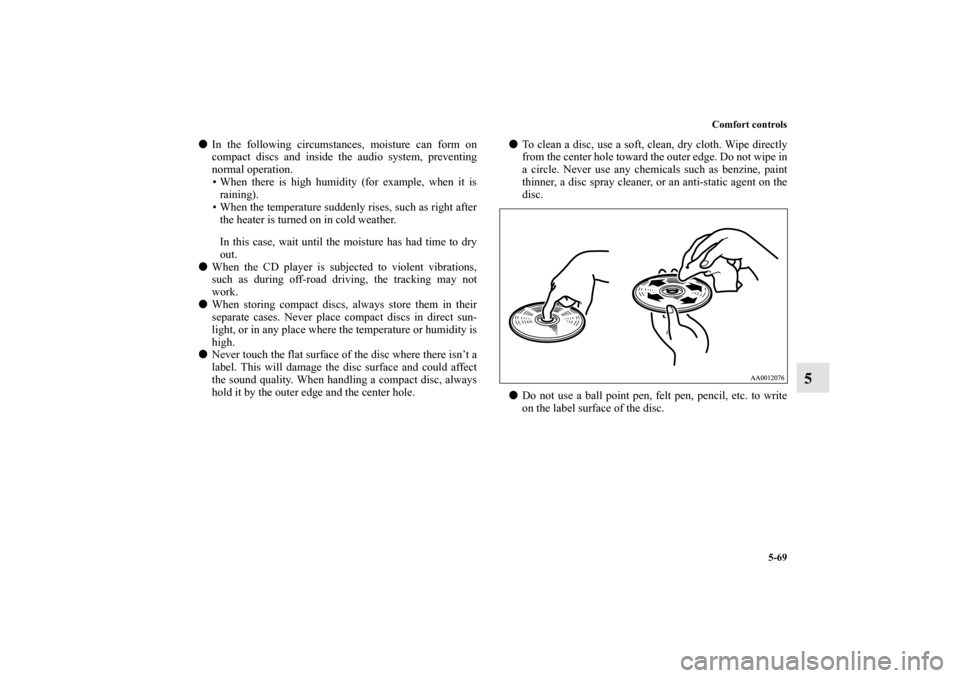

In the following circumstances, moisture can form on
compact discs and inside the audio system, preventing
normal operation.
• When there is high humidity (for example, when it is
raining).
• When the temperature suddenly rises, such as right after
the heater is turned on in cold weather.
In this case, wait until the moisture has had time to dry
out.

When the CD player is subjected to violent vibrations,
such as during off-road driving, the tracking may not
work.

When storing compact discs, always store them in their
separate cases. Never place compact discs in direct sun-
light, or in any place where the temperature or humidity is
high.

Never touch the flat surface of the disc where there isn’t a
label. This will damage the disc surface and could affect
the sound quality. When handling a compact disc, always
hold it by the outer edge and the center hole.
To clean a disc, use a soft, clean, dry cloth. Wipe directly
from the center hole toward the outer edge. Do not wipe in
a circle. Never use any chemicals such as benzine, paint
thinner, a disc spray cleaner, or an anti-static agent on the
disc.

Do not use a ball point pen, felt pen, pencil, etc. to write
on the label surface of the disc.
BK0121200US.book 69 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

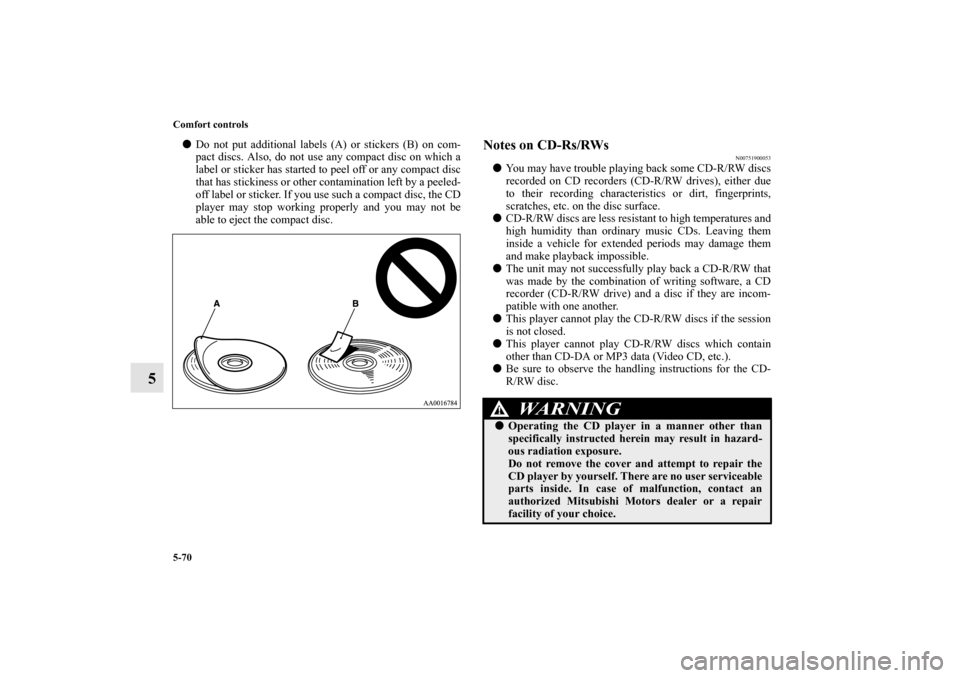

5-70 Comfort controls
5

Do not put additional labels (A) or stickers (B) on com-
pact discs. Also, do not use any compact disc on which a
label or sticker has started to peel off or any compact disc
that has stickiness or other contamination left by a peeled-
off label or sticker. If you use such a compact disc, the CD
player may stop working properly and you may not be
able to eject the compact disc.
Notes on CD-Rs/RWs
N00751900053

You may have trouble playing back some CD-R/RW discs
recorded on CD recorders (CD-R/RW drives), either due
to their recording characteristics or dirt, fingerprints,
scratches, etc. on the disc surface.

CD-R/RW discs are less resistant to high temperatures and
high humidity than ordinary music CDs. Leaving them
inside a vehicle for extended periods may damage them
and make playback impossible.

The unit may not successfully play back a CD-R/RW that
was made by the combination of writing software, a CD
recorder (CD-R/RW drive) and a disc if they are incom-
patible with one another.

This player cannot play the CD-R/RW discs if the session
is not closed.

This player cannot play CD-R/RW discs which contain
other than CD-DA or MP3 data (Video CD, etc.).

Be sure to observe the handling instructions for the CD-
R/RW disc.
WA R N I N G
!
Operating the CD player in a manner other than
specifically instructed herein may result in hazard-
ous radiation exposure.
Do not remove the cover and attempt to repair the
CD player by yourself. There are no user serviceable
parts inside. In case of malfunction, contact an
authorized Mitsubishi Motors dealer or a repair
facility of your choice.
BK0121200US.book 70 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

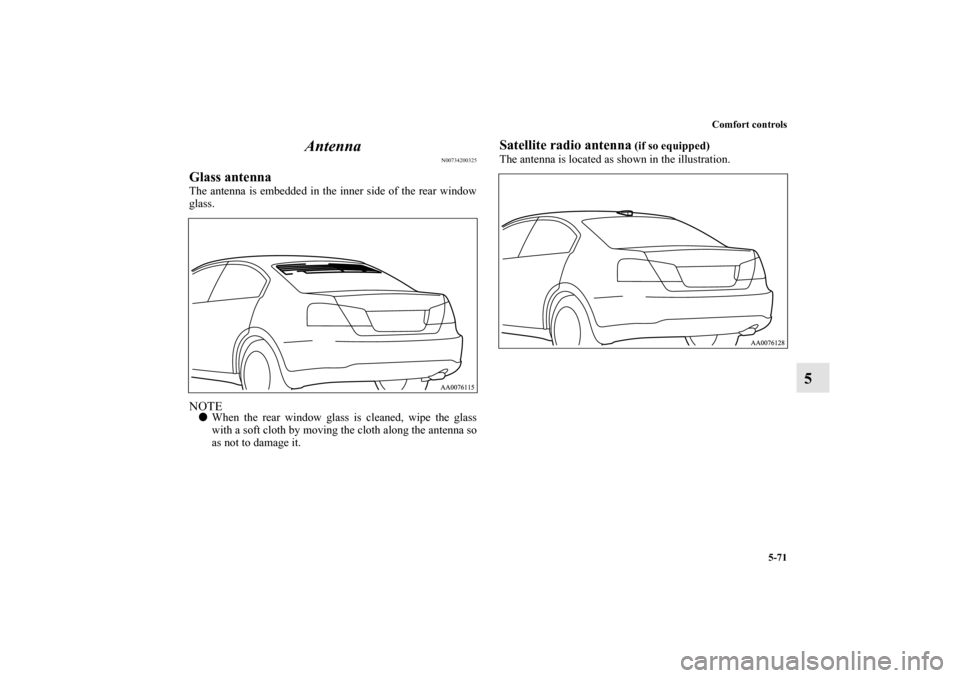

Comfort controls
5-71
5 Antenna
N00734200325
Glass antennaThe antenna is embedded in the inner side of the rear window
glass.NOTE
When the rear window glass is cleaned, wipe the glass
with a soft cloth by moving the cloth along the antenna so
as not to damage it.
Satellite radio antenna
(if so equipped)
The antenna is located as shown in the illustration.
BK0121200US.book 71 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

5-72 Comfort controls

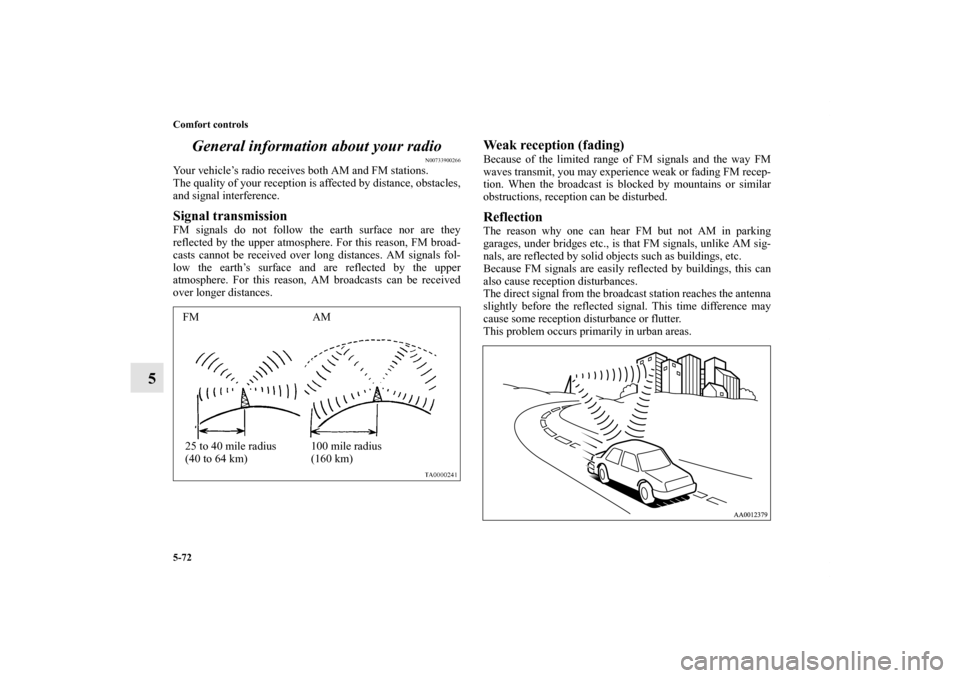

5General information about your radio
N00733900266
Your vehicle’s radio receives both AM and FM stations.
The quality of your reception is affected by distance, obstacles,
and signal interference. Signal transmission FM signals do not follow the earth surface nor are they
reflected by the upper atmosphere. For this reason, FM broad-
casts cannot be received over long distances. AM signals fol-
low the earth’s surface and are reflected by the upper
atmosphere. For this reason, AM broadcasts can be received
over longer distances.
Weak reception (fading) Because of the limited range of FM signals and the way FM
waves transmit, you may experience weak or fading FM recep-
tion. When the broadcast is blocked by mountains or similar
obstructions, reception can be disturbed. Reflection The reason why one can hear FM but not AM in parking
garages, under bridges etc., is that FM signals, unlike AM sig-
nals, are reflected by solid objects such as buildings, etc.
Because FM signals are easily reflected by buildings, this can
also cause reception disturbances.
The direct signal from the broadcast station reaches the antenna
slightly before the reflected signal. This time difference may
cause some reception disturbance or flutter.
This problem occurs primarily in urban areas.
FM AM
25 to 40 mile radius
(40 to 64 km)100 mile radius
(160 km)
BK0121200US.book 72 ページ ２０１０年４月１４日　水曜日　午前１１時２４分

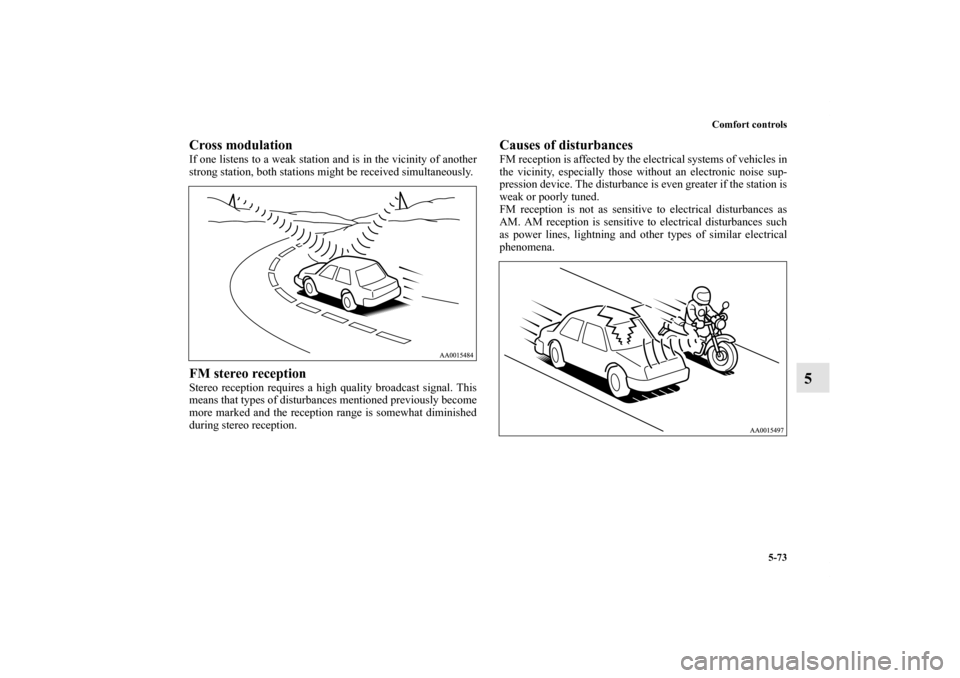

Comfort controls
5-73
5
Cross modulation If one listens to a weak station and is in the vicinity of another
strong station, both stations might be received simultaneously. FM stereo reception Stereo reception requires a high quality broadcast signal. This
means that types of disturbances mentioned previously become
more marked and the reception range is somewhat diminished
during stereo reception.
Causes of disturbancesFM reception is affected by the electrical systems of vehicles in
the vicinity, especially those without an electronic noise sup-
pression device. The disturbance is even greater if the station is
weak or poorly tuned.
FM reception is not as sensitive to electrical disturbances as
AM. AM reception is sensitive to electrical disturbances such
as power lines, lightning and other types of similar electrical
phenomena.
