2-14 Seat and restraint systems
2
To removePress the lock knob (A) in the direction shown by the arrow.
Then pull the head restraint up and out of the seatback.To installFirst check that the head restraint is facing in the right direction
as shown in the previous illustration, and then insert it into the
seatback. Push the head restraint down while pressing the lock
knob (A) until the restraint locks into place.
WA R N I N G
!To help minimize the risk of neck injury in the event
of an accident, the head restraints must be properly
installed and positioned to proper height before
vehicle operation.
CAUTION
!Check that the lock knob (A) is extended out as
shown in the illustration. Then pull the head
restraint up to make sure that it is locked in place
and will not come out of the seatback.
BK0139500US.book 14 ページ 2011年4月19日 火曜日 午後1時48分
Page 42 of 424
Seat and restraint systems
2-15

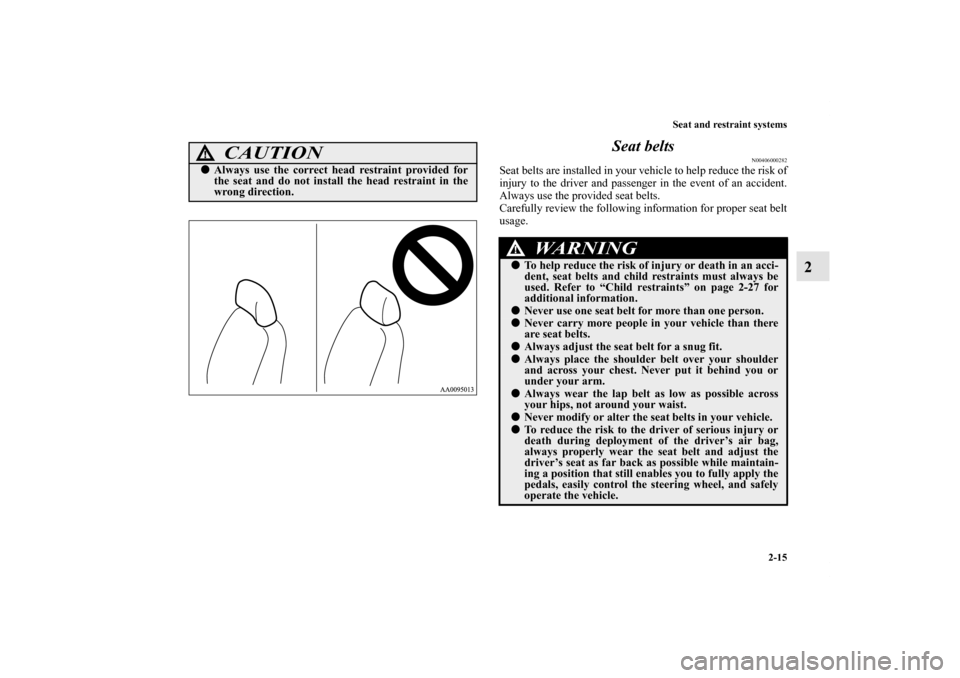

2 Seat belts
N00406000282
Seat belts are installed in your vehicle to help reduce the risk of
injury to the driver and passenger in the event of an accident.
Always use the provided seat belts.
Carefully review the following information for proper seat belt
usage.
CAUTION
!Always use the correct head restraint provided for
the seat and do not install the head restraint in the
wrong direction.
WA R N I N G
!To help reduce the risk of injury or death in an acci-
dent, seat belts and child restraints must always be
used. Refer to “Child restraints” on page 2-27 for
additional information.Never use one seat belt for more than one person. Never carry more people in your vehicle than there
are seat belts. Always adjust the seat belt for a snug fit.Always place the shoulder belt over your shoulder
and across your chest. Never put it behind you or
under your arm. Always wear the lap belt as low as possible across
your hips, not around your waist.Never modify or alter the seat belts in your vehicle.To reduce the risk to the driver of serious injury or
death during deployment of the driver’s air bag,
always properly wear the seat belt and adjust the
driver’s seat as far back as possible while maintain-
ing a position that still enables you to fully apply the
pedals, easily control the steering wheel, and safely
operate the vehicle.
BK0139500US.book 15 ページ 2011年4月19日 火曜日 午後1時48分
Page 43 of 424
2-16 Seat and restraint systems
2

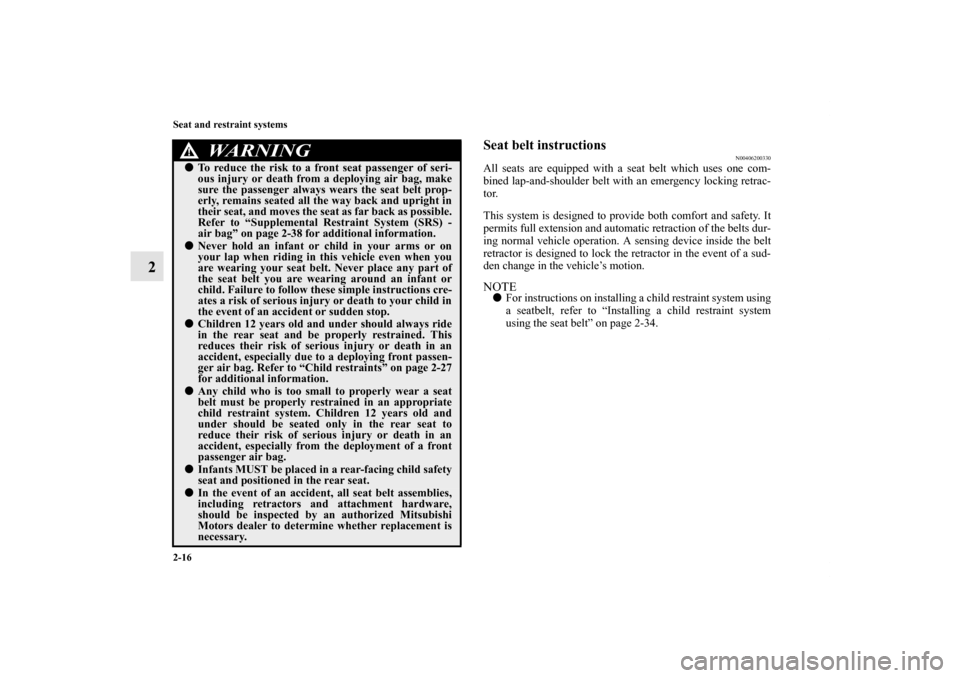

Seat belt instructions
N00406200330
All seats are equipped with a seat belt which uses one com-
bined lap-and-shoulder belt with an emergency locking retrac-
tor.
This system is designed to provide both comfort and safety. It
permits full extension and automatic retraction of the belts dur-
ing normal vehicle operation. A sensing device inside the belt
retractor is designed to lock the retractor in the event of a sud-
den change in the vehicle’s motion. NOTEFor instructions on installing a child restraint system using
a seatbelt, refer to “Installing a child restraint system
using the seat belt” on page 2-34.
To reduce the risk to a front seat passenger of seri-
ous injury or death from a deploying air bag, make
sure the passenger always wears the seat belt prop-
erly, remains seated all the way back and upright in
their seat, and moves the seat as far back as possible.
Refer to “Supplemental Restraint System (SRS) -
air bag” on page 2-38 for additional information.Never hold an infant or child in your arms or on
your lap when riding in this vehicle even when you
are wearing your seat belt. Never place any part of
the seat belt you are wearing around an infant or
child. Failure to follow these simple instructions cre-
ates a risk of serious injury or death to your child in
the event of an accident or sudden stop.Children 12 years old and under should always ride
in the rear seat and be properly restrained. This
reduces their risk of serious injury or death in an
accident, especially due to a deploying front passen-
ger air bag. Refer to “Child restraints” on page 2-27
for additional information.Any child who is too small to properly wear a seat
belt must be properly restrained in an appropriate
child restraint system. Children 12 years old and
under should be seated only in the rear seat to
reduce their risk of serious injury or death in an
accident, especially from the deployment of a front
passenger air bag.Infants MUST be placed in a rear-facing child safety
seat and positioned in the rear seat.In the event of an accident, all seat belt assemblies,
including retractors and attachment hardware,
should be inspected by an authorized Mitsubishi
Motors dealer to determine whether replacement is
necessary.
WA R N I N G
!
BK0139500US.book 16 ページ 2011年4月19日 火曜日 午後1時48分
Page 44 of 424
Seat and restraint systems
2-17
2

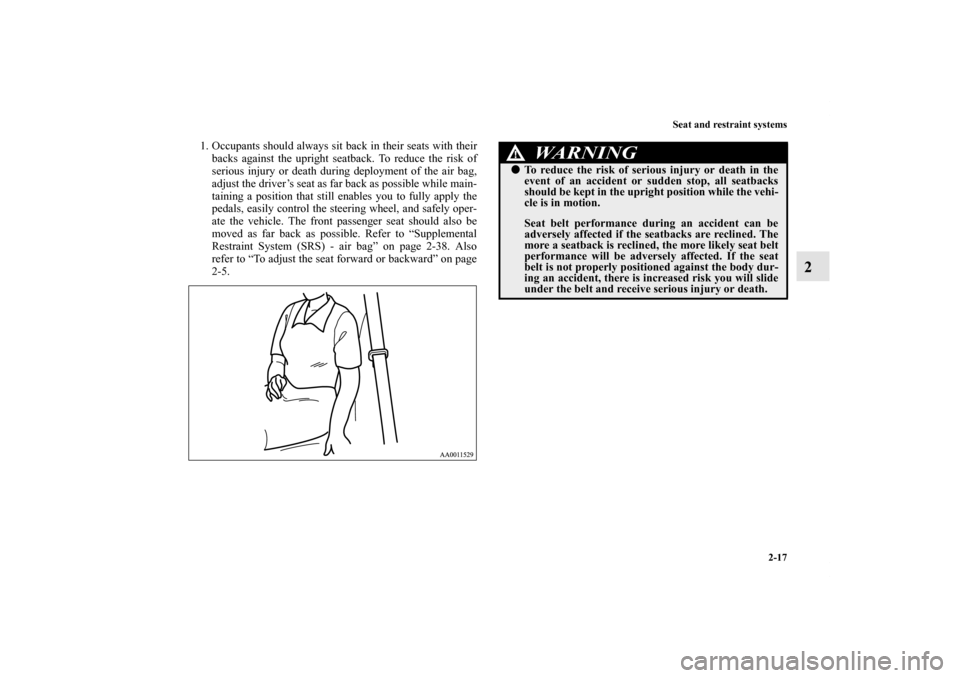

1. Occupants should always sit back in their seats with their
backs against the upright seatback. To reduce the risk of
serious injury or death during deployment of the air bag,
adjust the driver’s seat as far back as possible while main-
taining a position that still enables you to fully apply the
pedals, easily control the steering wheel, and safely oper-
ate the vehicle. The front passenger seat should also be
moved as far back as possible. Refer to “Supplemental
Restraint System (SRS) - air bag” on page 2-38. Also
refer to “To adjust the seat forward or backward” on page
2-5.
WA R N I N G
!To reduce the risk of serious injury or death in the
event of an accident or sudden stop, all seatbacks
should be kept in the upright position while the vehi-
cle is in motion.
Seat belt performance during an accident can be
adversely affected if the seatbacks are reclined. The
more a seatback is reclined, the more likely seat belt
performance will be adversely affected. If the seat
belt is not properly positioned against the body dur-
ing an accident, there is increased risk you will slide
under the belt and receive serious injury or death.
BK0139500US.book 17 ページ 2011年4月19日 火曜日 午後1時48分
Page 45 of 424
2-18 Seat and restraint systems
2

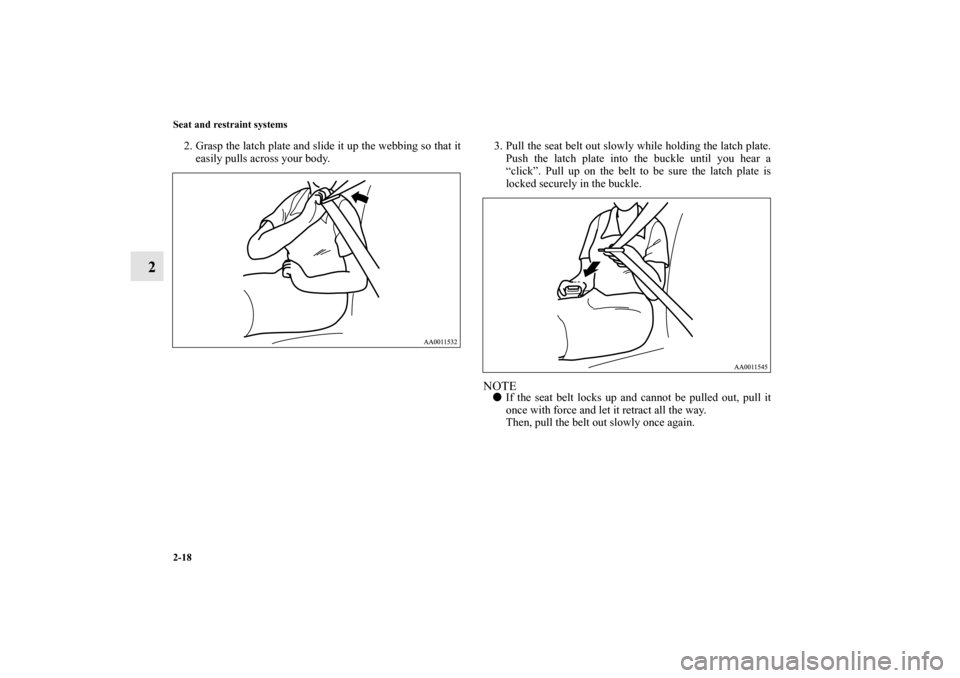

2. Grasp the latch plate and slide it up the webbing so that it
easily pulls across your body.3. Pull the seat belt out slowly while holding the latch plate.
Push the latch plate into the buckle until you hear a
“click”. Pull up on the belt to be sure the latch plate is
locked securely in the buckle.
NOTEIf the seat belt locks up and cannot be pulled out, pull it
once with force and let it retract all the way.
Then, pull the belt out slowly once again.
BK0139500US.book 18 ページ 2011年4月19日 火曜日 午後1時48分
Page 46 of 424
Seat and restraint systems
2-19
2

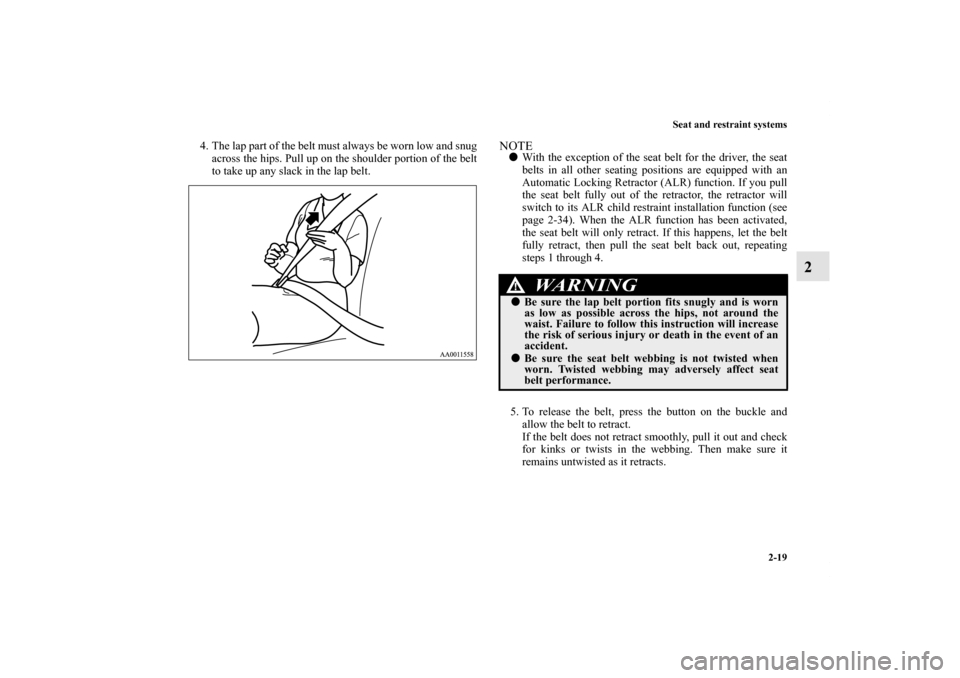

4. The lap part of the belt must always be worn low and snug
across the hips. Pull up on the shoulder portion of the belt
to take up any slack in the lap belt.
NOTEWith the exception of the seat belt for the driver, the seat
belts in all other seating positions are equipped with an
Automatic Locking Retractor (ALR) function. If you pull
the seat belt fully out of the retractor, the retractor will
switch to its ALR child restraint installation function (see
page 2-34). When the ALR function has been activated,
the seat belt will only retract. If this happens, let the belt
fully retract, then pull the seat belt back out, repeating
steps 1 through 4.
5. To release the belt, press the button on the buckle and
allow the belt to retract.
If the belt does not retract smoothly, pull it out and check
for kinks or twists in the webbing. Then make sure it
remains untwisted as it retracts.
WA R N I N G
!Be sure the lap belt portion fits snugly and is worn
as low as possible across the hips, not around the
waist. Failure to follow this instruction will increase
the risk of serious injury or death in the event of an
accident.Be sure the seat belt webbing is not twisted when
worn. Twisted webbing may adversely affect seat
belt performance.
BK0139500US.book 19 ページ 2011年4月19日 火曜日 午後1時48分
Page 47 of 424
2-20 Seat and restraint systems
2

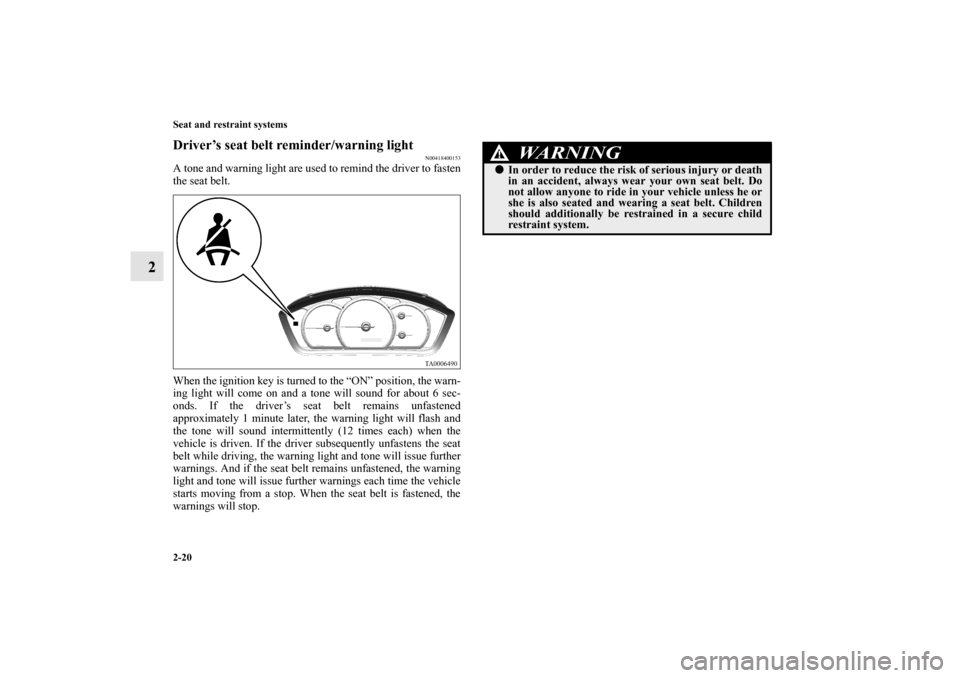

Driver’s seat belt reminder/warning light
N00418400153
A tone and warning light are used to remind the driver to fasten
the seat belt.
When the ignition key is turned to the “ON” position, the warn-
ing light will come on and a tone will sound for about 6 sec-
onds. If the driver’s seat belt remains unfastened
approximately 1 minute later, the warning light will flash and
the tone will sound intermittently (12 times each) when the
vehicle is driven. If the driver subsequently unfastens the seat
belt while driving, the warning light and tone will issue further
warnings. And if the seat belt remains unfastened, the warning
light and tone will issue further warnings each time the vehicle
starts moving from a stop. When the seat belt is fastened, the
warnings will stop.
WA R N I N G
!In order to reduce the risk of serious injury or death
in an accident, always wear your own seat belt. Do
not allow anyone to ride in your vehicle unless he or
she is also seated and wearing a seat belt. Children
should additionally be restrained in a secure child
restraint system.
BK0139500US.book 20 ページ 2011年4月19日 火曜日 午後1時48分
Page 48 of 424
Seat and restraint systems
2-21
2

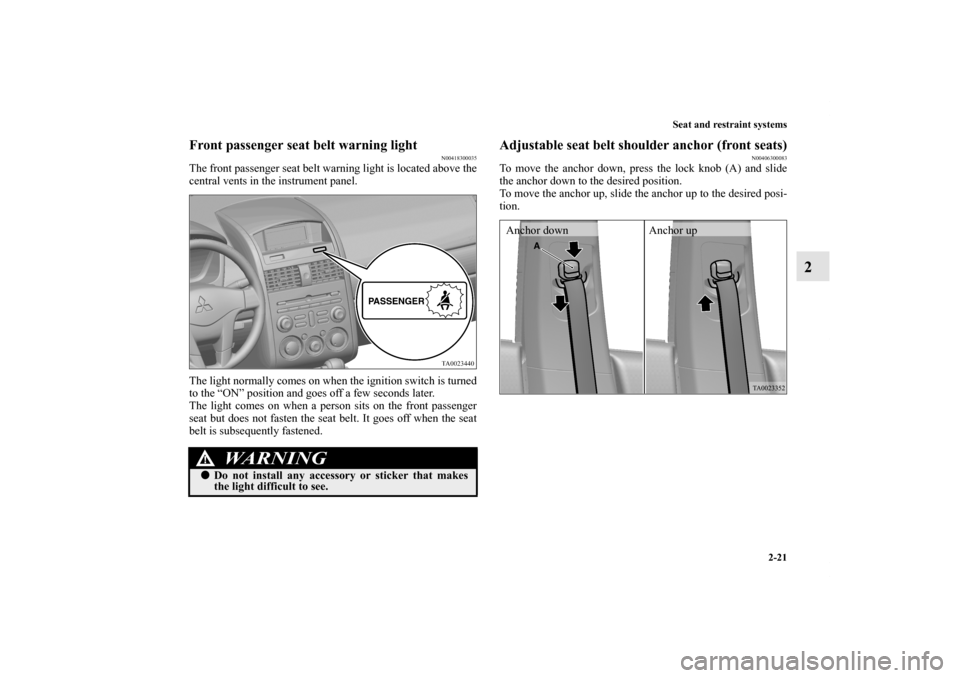

Front passenger seat belt warning light
N00418300035
The front passenger seat belt warning light is located above the
central vents in the instrument panel.
The light normally comes on when the ignition switch is turned
to the “ON” position and goes off a few seconds later.
The light comes on when a person sits on the front passenger
seat but does not fasten the seat belt. It goes off when the seat
belt is subsequently fastened.
Adjustable seat belt shoulder anchor (front seats)
N00406300083
To move the anchor down, press the lock knob (A) and slide
the anchor down to the desired position.
To move the anchor up, slide the anchor up to the desired posi-
tion.
WA R N I N G
!Do not install any accessory or sticker that makes
the light difficult to see.
Anchor down Anchor up
BK0139500US.book 21 ページ 2011年4月19日 火曜日 午後1時48分
Page 49 of 424
2-22 Seat and restraint systems
2

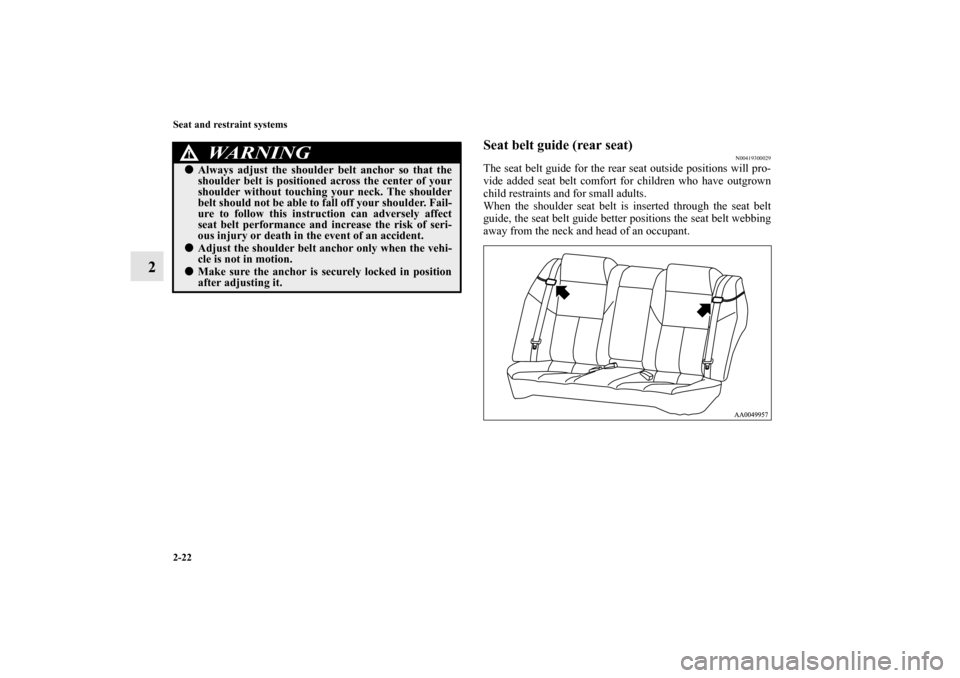

Seat belt guide (rear seat)
N00419300029
The seat belt guide for the rear seat outside positions will pro-
vide added seat belt comfort for children who have outgrown
child restraints and for small adults.
When the shoulder seat belt is inserted through the seat belt
guide, the seat belt guide better positions the seat belt webbing
away from the neck and head of an occupant.
WA R N I N G
!Always adjust the shoulder belt anchor so that the
shoulder belt is positioned across the center of your
shoulder without touching your neck. The shoulder
belt should not be able to fall off your shoulder. Fail-
ure to follow this instruction can adversely affect
seat belt performance and increase the risk of seri-
ous injury or death in the event of an accident.Adjust the shoulder belt anchor only when the vehi-
cle is not in motion.Make sure the anchor is securely locked in position
after adjusting it.
BK0139500US.book 22 ページ 2011年4月19日 火曜日 午後1時48分
Page 50 of 424
Seat and restraint systems
2-23
2

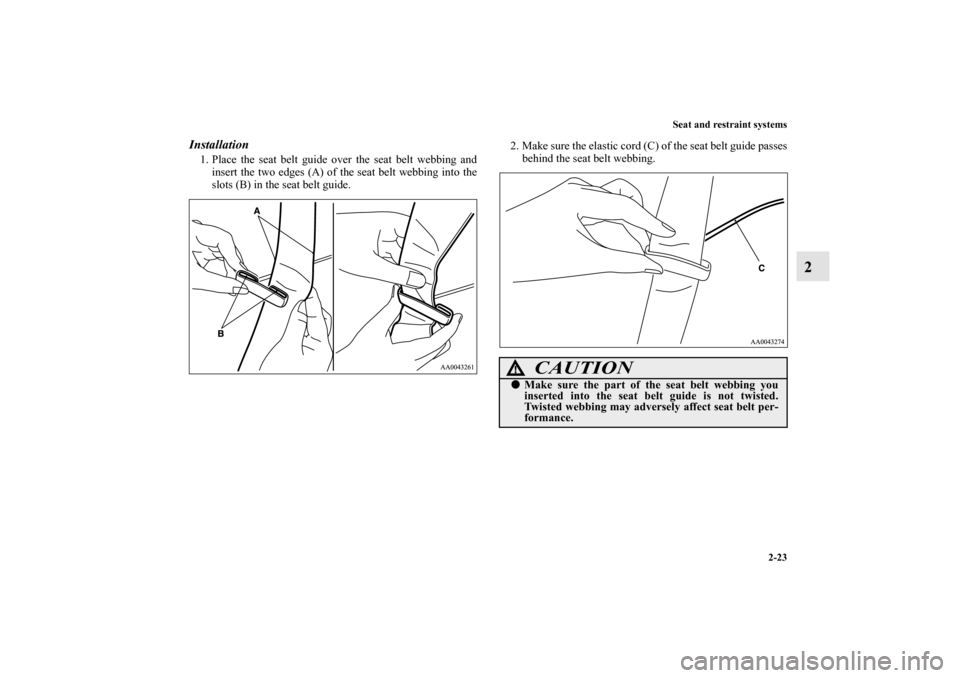

Installation1. Place the seat belt guide over the seat belt webbing and
insert the two edges (A) of the seat belt webbing into the
slots (B) in the seat belt guide.2. Make sure the elastic cord (C) of the seat belt guide passes
behind the seat belt webbing.
CAUTION
!Make sure the part of the seat belt webbing you
inserted into the seat belt guide is not twisted.
Twisted webbing may adversely affect seat belt per-
formance.
