Page 11 of 424

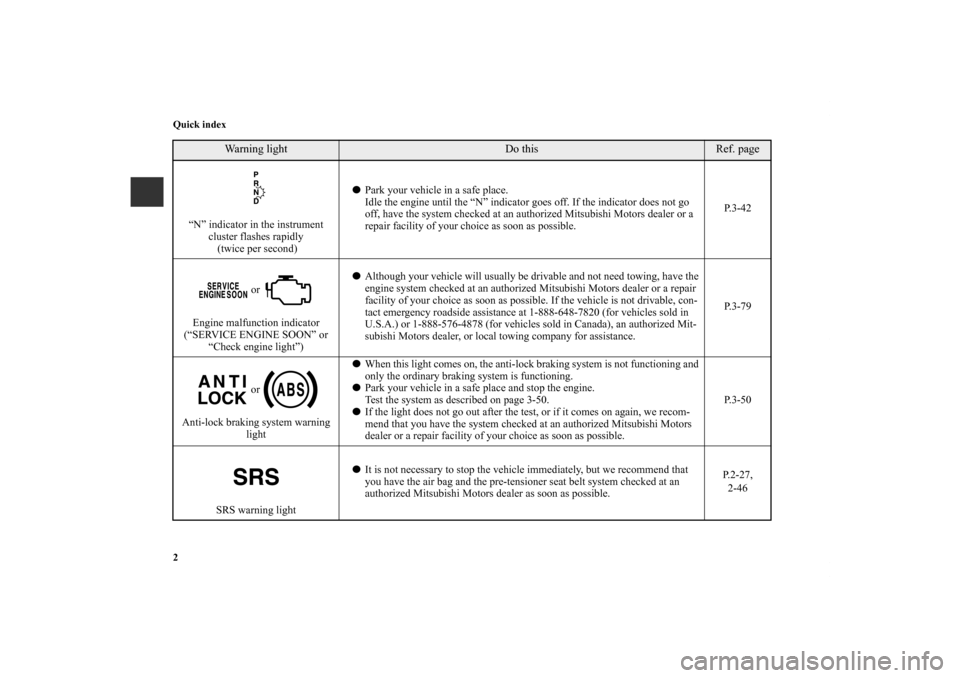

2 Quick index
“N” indicator in the instrument
cluster flashes rapidly
(twice per second)Park your vehicle in a safe place.
Idle the engine until the “N” indicator goes off. If the indicator does not go
off, have the system checked at an authorized Mitsubishi Motors dealer or a
repair facility of your choice as soon as possible.P. 3 - 4 2
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or
“Check engine light”)Although your vehicle will usually be drivable and not need towing, have the
engine system checked at an authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible. If the vehicle is not drivable, con-
tact emergency roadside assistance at 1-888-648-7820 (for vehicles sold in
U.S.A.) or 1-888-576-4878 (for vehicles sold in Canada), an authorized Mit-
subishi Motors dealer, or local towing company for assistance.P. 3 - 7 9
or
Anti-lock braking system warning
lightWhen this light comes on, the anti-lock braking system is not functioning and
only the ordinary braking system is functioning.
Park your vehicle in a safe place and stop the engine.
Test the system as described on page 3-50.
If the light does not go out after the test, or if it comes on again, we recom-
mend that you have the system checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.P. 3 - 5 0
SRS warning lightIt is not necessary to stop the vehicle immediately, but we recommend that
you have the air bag and the pre-tensioner seat belt system checked at an
authorized Mitsubishi Motors dealer as soon as possible.P.2-27,
2-46
Warning light
Do this
Ref. page
BK0139500US.book 2 ページ 2011年4月19日 火曜日 午後1時48分
Page 12 of 424

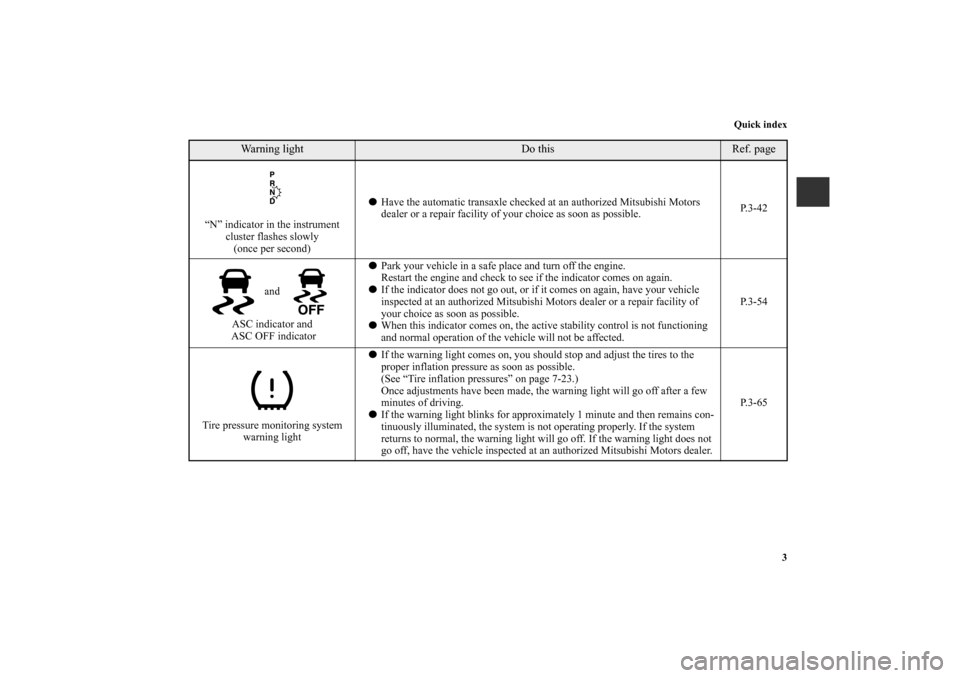

Quick index
3
“N” indicator in the instrument
cluster flashes slowly
(once per second)Have the automatic transaxle checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.P.3-42
and
ASC indicator and
ASC OFF indicatorPark your vehicle in a safe place and turn off the engine.
Restart the engine and check to see if the indicator comes on again.
If the indicator does not go out, or if it comes on again, have your vehicle
inspected at an authorized Mitsubishi Motors dealer or a repair facility of
your choice as soon as possible.
When this indicator comes on, the active stability control is not functioning
and normal operation of the vehicle will not be affected.P.3-54
Tire pressure monitoring system
warning lightIf the warning light comes on, you should stop and adjust the tires to the
proper inflation pressure as soon as possible.
(See “Tire inflation pressures” on page 7-23.)
Once adjustments have been made, the warning light will go off after a few
minutes of driving.
If the warning light blinks for approximately 1 minute and then remains con-
tinuously illuminated, the system is not operating properly. If the system
returns to normal, the warning light will go off. If the warning light does not
go off, have the vehicle inspected at an authorized Mitsubishi Motors dealer.P.3-65
Warning light
Do this
Ref. page
BK0139500US.book 3 ページ 2011年4月19日 火曜日 午後1時48分
Page 13 of 424

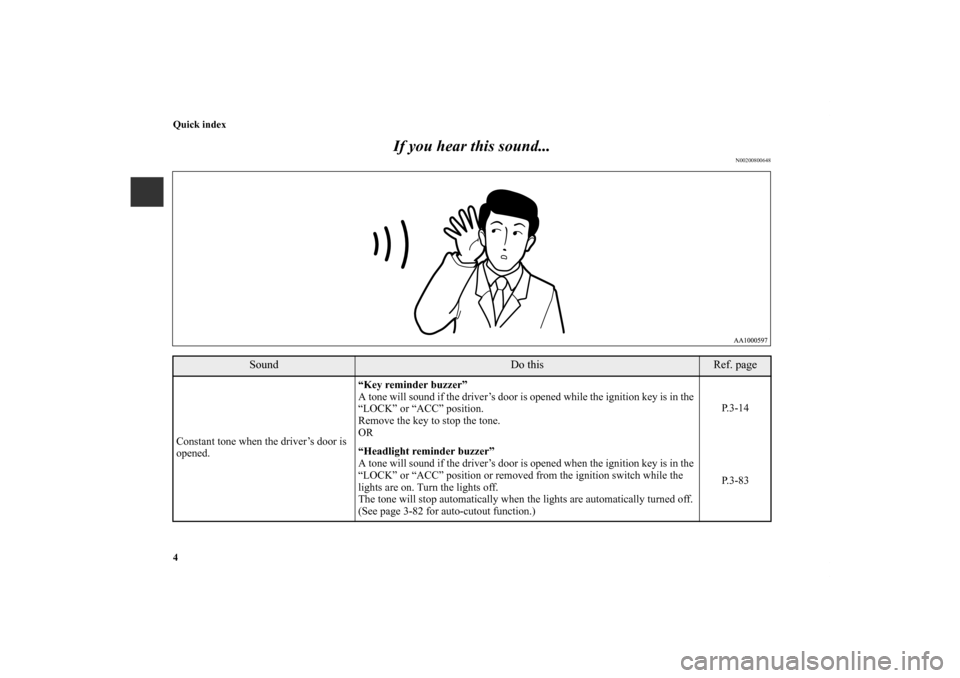

4 Quick index
If you hear this sound...
N00200800648
Sound
Do this
Ref. page
Constant tone when the driver’s door is
opened.“Key reminder buzzer”
A tone will sound if the driver’s door is opened while the ignition key is in the
“LOCK” or “ACC” position.
Remove the key to stop the tone.
ORP.3-14
“Headlight reminder buzzer”
A tone will sound if the driver’s door is opened when the ignition key is in the
“LOCK” or “ACC” position or removed from the ignition switch while the
lights are on. Turn the lights off.
The tone will stop automatically when the lights are automatically turned off.
(See page 3-82 for auto-cutout function.)P.3-83BK0139500US.book 4 ページ 2011年4月19日 火曜日 午後1時48分
Page 14 of 424

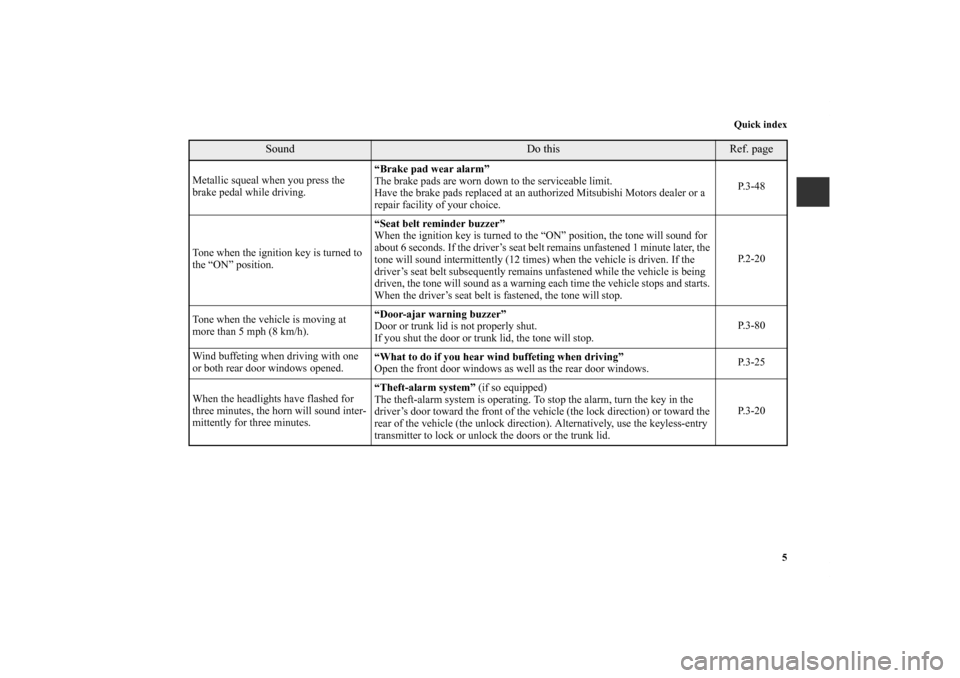

Quick index
5
Metallic squeal when you press the
brake pedal while driving.“Brake pad wear alarm”
The brake pads are worn down to the serviceable limit.
Have the brake pads replaced at an authorized Mitsubishi Motors dealer or a
repair facility of your choice.P.3-48
Tone when the ignition key is turned to
the “ON” position.“Seat belt reminder buzzer”
When the ignition key is turned to the “ON” position, the tone will sound for
about 6 seconds. If the driver’s seat belt remains unfastened 1 minute later, the
tone will sound intermittently (12 times) when the vehicle is driven. If the
driver’s seat belt subsequently remains unfastened while the vehicle is being
driven, the tone will sound as a warning each time the vehicle stops and starts.
When the driver’s seat belt is fastened, the tone will stop.P.2-20
Tone when the vehicle is moving at
more than 5 mph (8 km/h).“Door-ajar warning buzzer”
Door or trunk lid is not properly shut.
If you shut the door or trunk lid, the tone will stop.P.3-80
Wind buffeting when driving with one
or both rear door windows opened.“What to do if you hear wind buffeting when driving”
Open the front door windows as well as the rear door windows.P.3-25
When the headlights have flashed for
three minutes, the horn will sound inter-
mittently for three minutes.“Theft-alarm system” (if so equipped)
The theft-alarm system is operating. To stop the alarm, turn the key in the
driver’s door toward the front of the vehicle (the lock direction) or toward the
rear of the vehicle (the unlock direction). Alternatively, use the keyless-entry
transmitter to lock or unlock the doors or the trunk lid.P.3-20
Sound
Do this
Ref. page
BK0139500US.book 5 ページ 2011年4月19日 火曜日 午後1時48分
Page 15 of 424

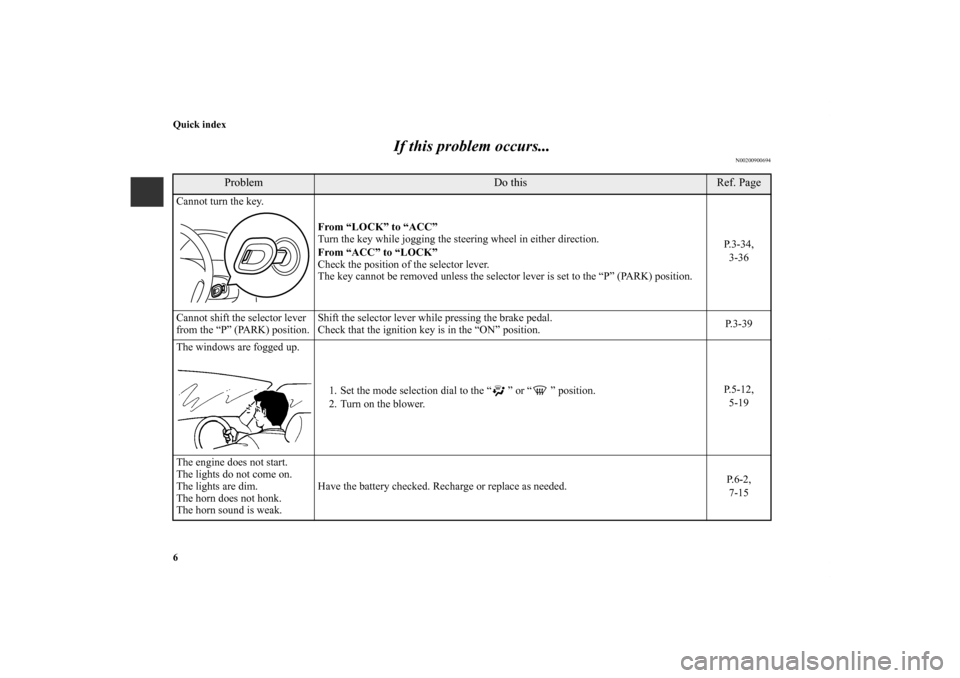

6 Quick index
If this problem occurs...
N00200900694
Problem
Do this
Ref. Page
Cannot turn the key.
From “LOCK” to “ACC”
Turn the key while jogging the steering wheel in either direction.
From “ACC” to “LOCK”
Check the position of the selector lever.
The key cannot be removed unless the selector lever is set to the “P” (PARK) position.P.3-34,
3-36
Cannot shift the selector lever
from the “P” (PARK) position.Shift the selector lever while pressing the brake pedal.
Check that the ignition key is in the “ON” position.P.3-39
The windows are fogged up.
1. Set the mode selection dial to the “ ” or “ ” position.
2. Turn on the blower.P.5-12,
5-19
The engine does not start.
The lights do not come on.
The lights are dim.
The horn does not honk.
The horn sound is weak.Have the battery checked. Recharge or replace as needed.P. 6 - 2 ,
7-15BK0139500US.book 6 ページ 2011年4月19日 火曜日 午後1時48分
Page 16 of 424

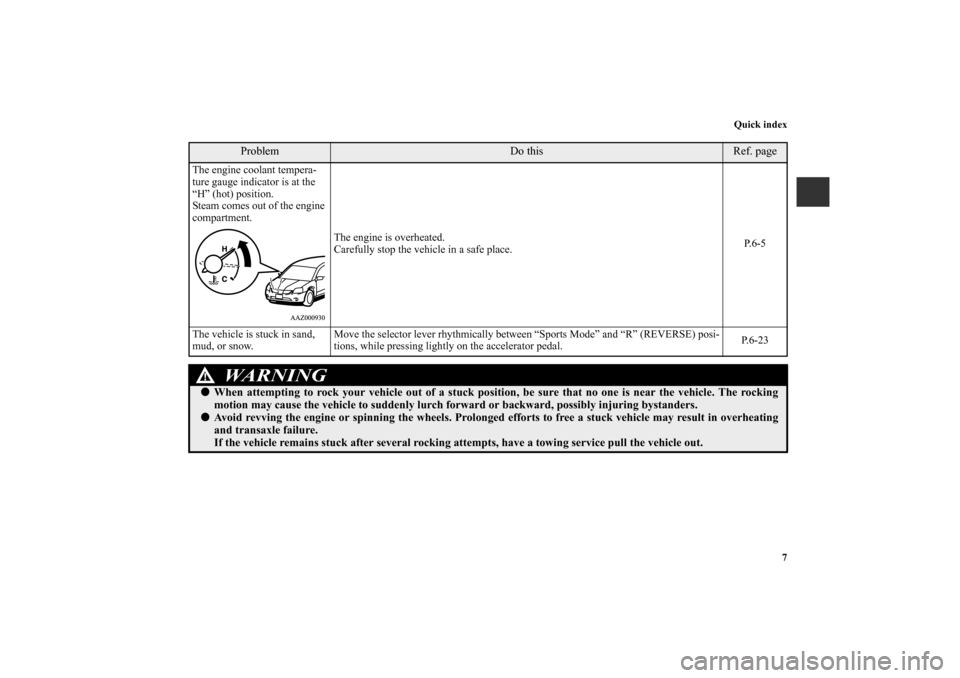

Quick index
7
Problem
Do this
Ref. page
The engine coolant tempera-
ture gauge indicator is at the
“H” (hot) position.
Steam comes out of the engine
compartment.
The engine is overheated.
Carefully stop the vehicle in a safe place.P. 6 - 5
The vehicle is stuck in sand,
mud, or snow.Move the selector lever rhythmically between “Sports Mode” and “R” (REVERSE) posi-
tions, while pressing lightly on the accelerator pedal.P.6-23
WA R N I N G
!When attempting to rock your vehicle out of a stuck position, be sure that no one is near the vehicle. The rocking
motion may cause the vehicle to suddenly lurch forward or backward, possibly injuring bystanders.Avoid revving the engine or spinning the wheels. Prolonged efforts to free a stuck vehicle may result in overheating
and transaxle failure.
If the vehicle remains stuck after several rocking attempts, have a towing service pull the vehicle out.
BK0139500US.book 7 ページ 2011年4月19日 火曜日 午後1時48分
Page 17 of 424

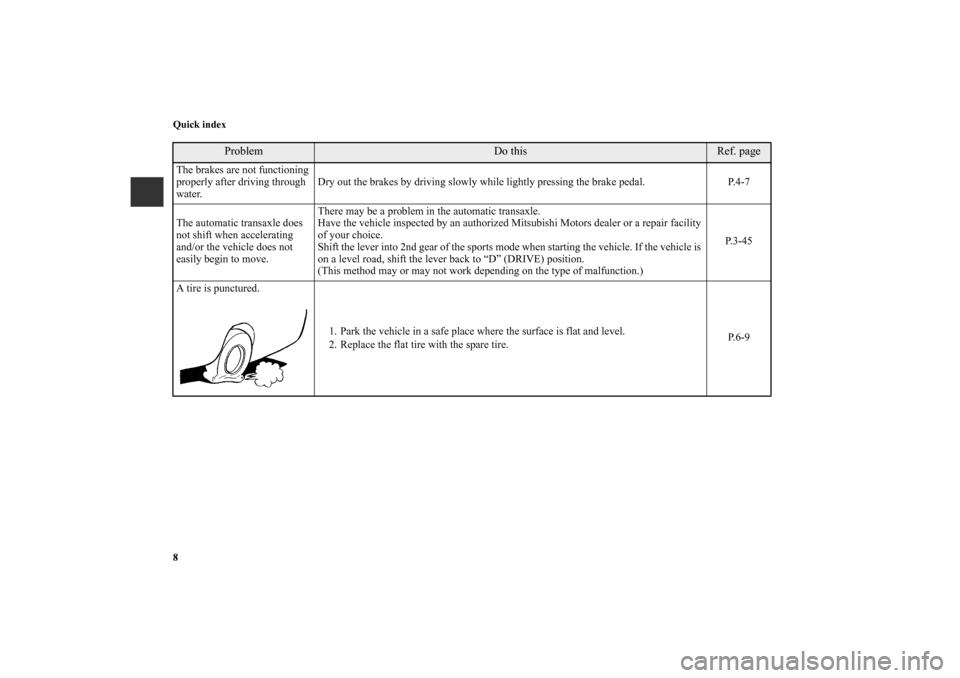

8 Quick index
Problem
Do this
Ref. page
The brakes are not functioning
properly after driving through
water. Dry out the brakes by driving slowly while lightly pressing the brake pedal. P.4-7
The automatic transaxle does
not shift when accelerating
and/or the vehicle does not
easily begin to move. There may be a problem in the automatic transaxle.
Have the vehicle inspected by an authorized Mitsubishi Motors dealer or a repair facility
of your choice.
Shift the lever into 2nd gear of the sports mode when starting the vehicle. If the vehicle is
on a level road, shift the lever back to “D” (DRIVE) position.
(This method may or may not work depending on the type of malfunction.)P.3-45
A tire is punctured.
1. Park the vehicle in a safe place where the surface is flat and level.
2. Replace the flat tire with the spare tire.P. 6 - 9BK0139500US.book 8 ページ 2011年4月19日 火曜日 午後1時48分
Page 18 of 424

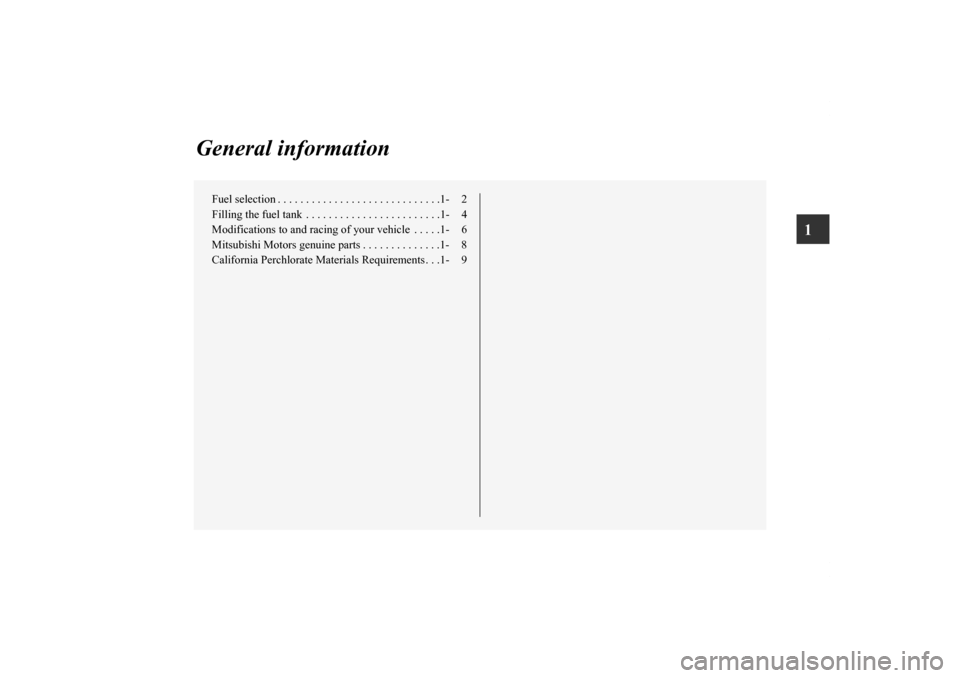

1
General information
Fuel selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1- 2
Filling the fuel tank . . . . . . . . . . . . . . . . . . . . . . . .1- 4
Modifications to and racing of your vehicle . . . . .1- 6
Mitsubishi Motors genuine parts . . . . . . . . . . . . . .1- 8
California Perchlorate Materials Requirements . . .1- 9
BK0139500US.book 1 ページ 2011年4月19日 火曜日 午後1時48分
Page 19 of 424

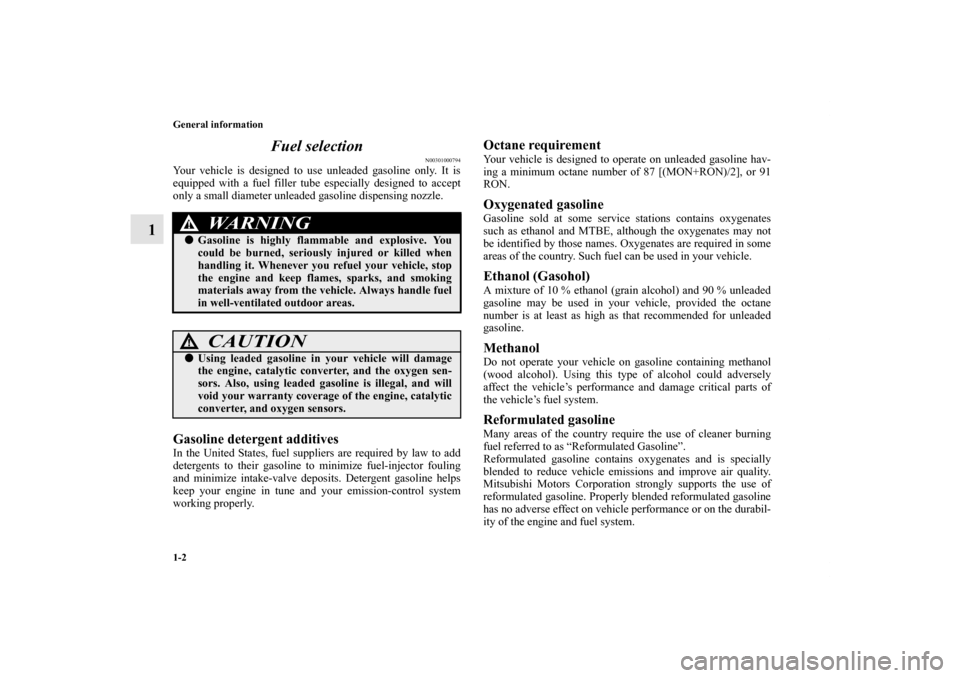

1-2 General information
1Fuel selection
N00301000794
Your vehicle is designed to use unleaded gasoline only. It is
equipped with a fuel filler tube especially designed to accept
only a small diameter unleaded gasoline dispensing nozzle. Gasoline detergent additivesIn the United States, fuel suppliers are required by law to add
detergents to their gasoline to minimize fuel-injector fouling
and minimize intake-valve deposits. Detergent gasoline helps
keep your engine in tune and your emission-control system
working properly.
Octane requirementYour vehicle is designed to operate on unleaded gasoline hav-
ing a minimum octane number of 87 [(MON+RON)/2], or 91
RON.Oxygenated gasoline Gasoline sold at some service stations contains oxygenates
such as ethanol and MTBE, although the oxygenates may not
be identified by those names. Oxygenates are required in some
areas of the country. Such fuel can be used in your vehicle.Ethanol (Gasohol) A mixture of 10 % ethanol (grain alcohol) and 90 % unleaded
gasoline may be used in your vehicle, provided the octane
number is at least as high as that recommended for unleaded
gasoline. Methanol Do not operate your vehicle on gasoline containing methanol
(wood alcohol). Using this type of alcohol could adversely
affect the vehicle’s performance and damage critical parts of
the vehicle’s fuel system. Reformulated gasoline Many areas of the country require the use of cleaner burning
fuel referred to as “Reformulated Gasoline”.
Reformulated gasoline contains oxygenates and is specially
blended to reduce vehicle emissions and improve air quality.
Mitsubishi Motors Corporation strongly supports the use of
reformulated gasoline. Properly blended reformulated gasoline
has no adverse effect on vehicle performance or on the durabil-
ity of the engine and fuel system.
WA R N I N G
!Gasoline is highly flammable and explosive. You
could be burned, seriously injured or killed when
handling it. Whenever you refuel your vehicle, stop
the engine and keep flames, sparks, and smoking
materials away from the vehicle. Always handle fuel
in well-ventilated outdoor areas.
CAUTION
!Using leaded gasoline in your vehicle will damage
the engine, catalytic converter, and the oxygen sen-
sors. Also, using leaded gasoline is illegal, and will
void your warranty coverage of the engine, catalytic
converter, and oxygen sensors.
BK0139500US.book 2 ページ 2011年4月19日 火曜日 午後1時48分
Page 20 of 424
General information
1-3
1
MMT (methylcyclopentadienyl manganese tri-
carbonyl)MMT is a manganese-containing metallic additive that is
blended into some gasolines to increase the octane number.
Mitsubishi Motors Corporation recommends using gasolines
without MMT.
Use of gasolines blended with MMT may adversely affect per-
formance, and cause the malfunction indicator on your instru-
ment panel to come on. If this happens, contact an authorized
Mitsubishi Motors dealer or a repair facility of your choice for
assistance.Sulfur in gasoline Your vehicle may have been designed to satisfy California’s
low-emission regulations based on clean-burning low-sulfur
gasoline. Gasoline sold in parts of the country other than Cali-
fornia is allowed to have a higher sulfur content. Using such
gasoline could adversely affect the vehicle's catalytic converter
and cause the engine malfunction indicator (“SERVICE
ENGINE SOON” or “CHECK ENGINE”) to come on. Illumi-
nation of this indicator while you are using high-sulfur gaso-
line does not necessarily mean the vehicle’s emission-control
system is malfunctioning. Your authorized Mitsubishi Motors
dealer may suggest you try using a different, lower-sulfur
brand of unleaded gasoline to determine whether the problem
is fuel-related.
NOTEPoor-quality gasoline can cause problems such as poor
starting, stalling during idling, abnormal engine noise, and
poor acceleration. If you experience any of these prob-
lems, try using a different brand of gasoline. If the engine
malfunction indicator (“SERVICE ENGINE SOON” or
“CHECK ENGINE”) flashes, have the vehicle inspected
as soon as possible by the nearest authorized Mitsubishi
Motors dealer or a repair facility of your choice.
Repeatedly driving short distances at low speeds can
cause deposits to form in the fuel system and engine,
resulting in poor starting and poor acceleration. If these
problems occur, you are advised to add a detergent addi-
tive to the gasoline when you refuel the vehicle. The addi-
tive will remove the deposits, thereby returning the engine
to a normal condition. Be sure to use a genuine Mitsubishi
FUEL SYSTEM CLEANER. Using an unsuitable addi-
tive could make the engine malfunction. For details,
please contact the nearest authorized Mitsubishi Motors
dealer.
BK0139500US.book 3 ページ 2011年4月19日 火曜日 午後1時48分
