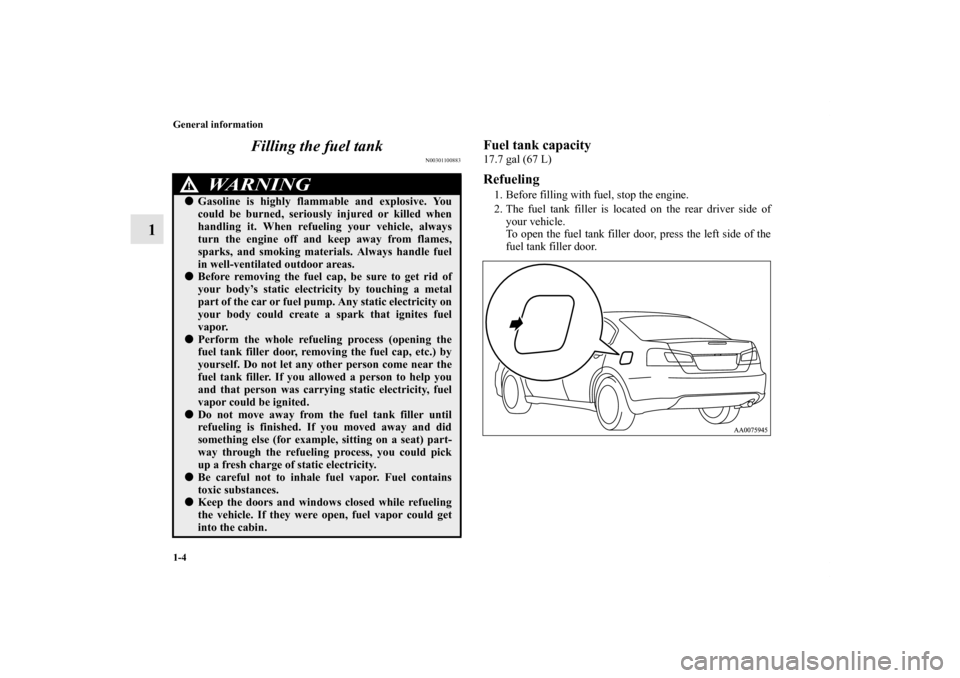

1-4 General information
1Filling the fuel tank
N00301100883
Fuel tank capacity17.7 gal (67 L)Refueling1. Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear driver side of
your vehicle.
To open the fuel tank filler door, press the left side of the
fuel tank filler door.
WA R N I N G
!Gasoline is highly flammable and explosive. You
could be burned, seriously injured or killed when
handling it. When refueling your vehicle, always
turn the engine off and keep away from flames,
sparks, and smoking materials. Always handle fuel
in well-ventilated outdoor areas.Before removing the fuel cap, be sure to get rid of
your body’s static electricity by touching a metal
part of the car or fuel pump. Any static electricity on
your body could create a spark that ignites fuel
vapor.Perform the whole refueling process (opening the
fuel tank filler door, removing the fuel cap, etc.) by
yourself. Do not let any other person come near the
fuel tank filler. If you allowed a person to help you
and that person was carrying static electricity, fuel
vapor could be ignited.Do not move away from the fuel tank filler until
refueling is finished. If you moved away and did
something else (for example, sitting on a seat) part-
way through the refueling process, you could pick
up a fresh charge of static electricity.Be careful not to inhale fuel vapor. Fuel contains
toxic substances.Keep the doors and windows closed while refueling
the vehicle. If they were open, fuel vapor could get
into the cabin.
BK0139500US.book 4 ページ 2011年4月19日 火曜日 午後1時48分
Page 22 of 424

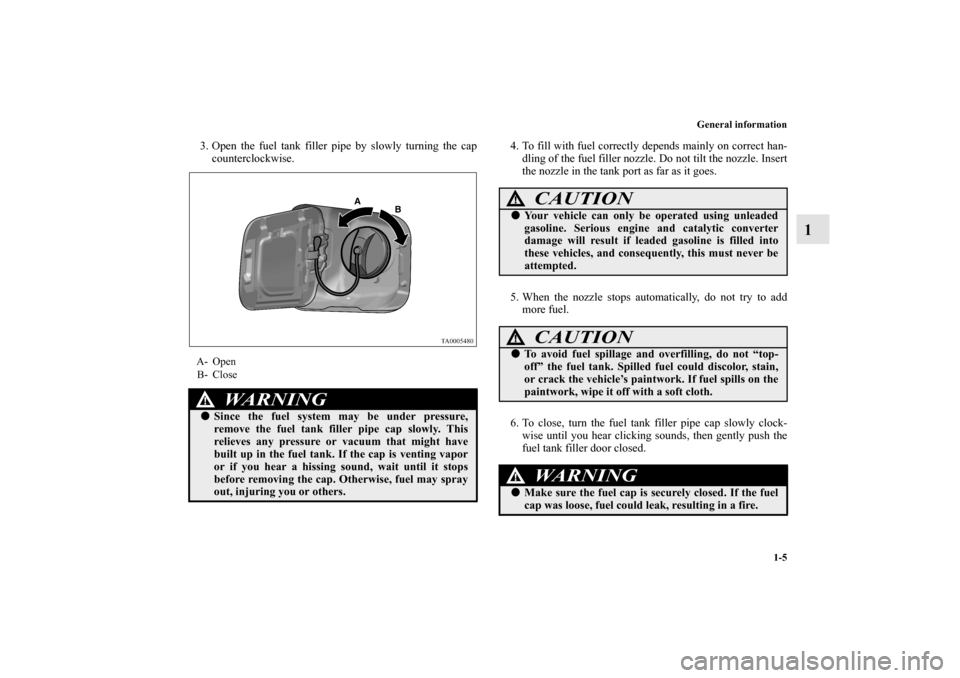

General information
1-5
1
3. Open the fuel tank filler pipe by slowly turning the cap
counterclockwise.4. To fill with fuel correctly depends mainly on correct han-
dling of the fuel filler nozzle. Do not tilt the nozzle. Insert
the nozzle in the tank port as far as it goes.
5. When the nozzle stops automatically, do not try to add
more fuel.
6. To close, turn the fuel tank filler pipe cap slowly clock-
wise until you hear clicking sounds, then gently push the
fuel tank filler door closed.A- Open
B- Close
WA R N I N G
!Since the fuel system may be under pressure,
remove the fuel tank filler pipe cap slowly. This
relieves any pressure or vacuum that might have
built up in the fuel tank. If the cap is venting vapor
or if you hear a hissing sound, wait until it stops
before removing the cap. Otherwise, fuel may spray
out, injuring you or others.
CAUTION
!Your vehicle can only be operated using unleaded
gasoline. Serious engine and catalytic converter
damage will result if leaded gasoline is filled into
these vehicles, and consequently, this must never be
attempted.
CAUTION
!To avoid fuel spillage and overfilling, do not “top-
off” the fuel tank. Spilled fuel could discolor, stain,
or crack the vehicle’s paintwork. If fuel spills on the
paintwork, wipe it off with a soft cloth.
WA R N I N G
!Make sure the fuel cap is securely closed. If the fuel
cap was loose, fuel could leak, resulting in a fire.
BK0139500US.book 5 ページ 2011年4月19日 火曜日 午後1時48分
Page 23 of 424

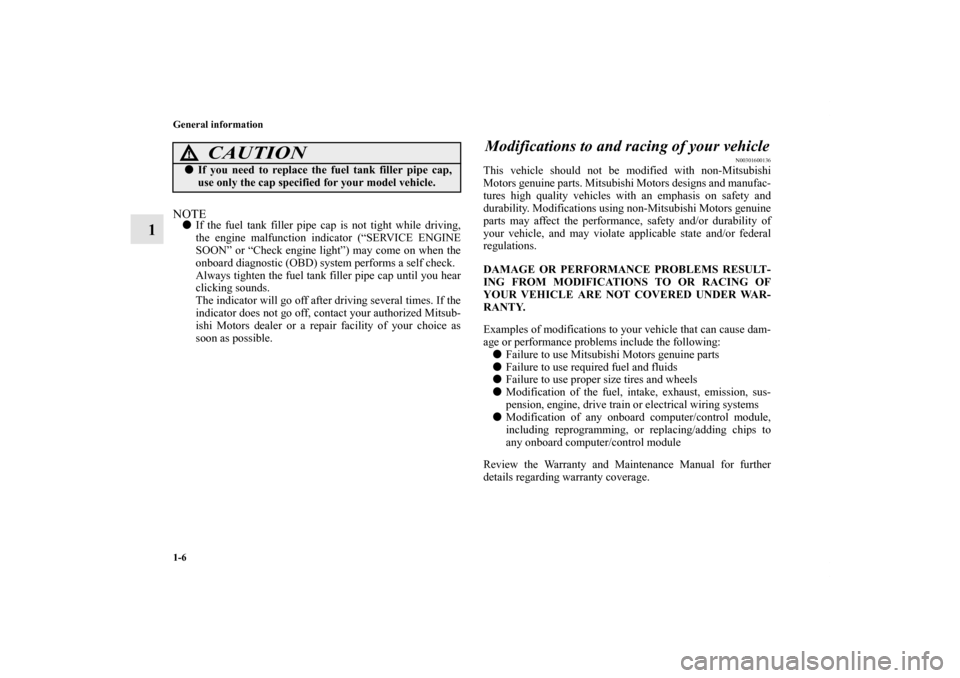

1-6 General information
1
NOTEIf the fuel tank filler pipe cap is not tight while driving,
the engine malfunction indicator (“SERVICE ENGINE
SOON” or “Check engine light”) may come on when the
onboard diagnostic (OBD) system performs a self check.
Always tighten the fuel tank filler pipe cap until you hear
clicking sounds.
The indicator will go off after driving several times. If the
indicator does not go off, contact your authorized Mitsub-
ishi Motors dealer or a repair facility of your choice as
soon as possible.
Modifications to and racing of your vehicle
N00301600136
This vehicle should not be modified with non-Mitsubishi
Motors genuine parts. Mitsubishi Motors designs and manufac-
tures high quality vehicles with an emphasis on safety and
durability. Modifications using non-Mitsubishi Motors genuine
parts may affect the performance, safety and/or durability of
your vehicle, and may violate applicable state and/or federal
regulations.
DAMAGE OR PERFORMANCE PROBLEMS RESULT-
ING FROM MODIFICATIONS TO OR RACING OF
YOUR VEHICLE ARE NOT COVERED UNDER WAR-
RANTY.
Examples of modifications to your vehicle that can cause dam-
age or performance problems include the following:
Failure to use Mitsubishi Motors genuine parts
Failure to use required fuel and fluids
Failure to use proper size tires and wheels
Modification of the fuel, intake, exhaust, emission, sus-
pension, engine, drive train or electrical wiring systems
Modification of any onboard computer/control module,
including reprogramming, or replacing/adding chips to
any onboard computer/control module
Review the Warranty and Maintenance Manual for further
details regarding warranty coverage.
CAUTION
!If you need to replace the fuel tank filler pipe cap,
use only the cap specified for your model vehicle.
BK0139500US.book 6 ページ 2011年4月19日 火曜日 午後1時48分
Page 24 of 424
General information
1-7
1

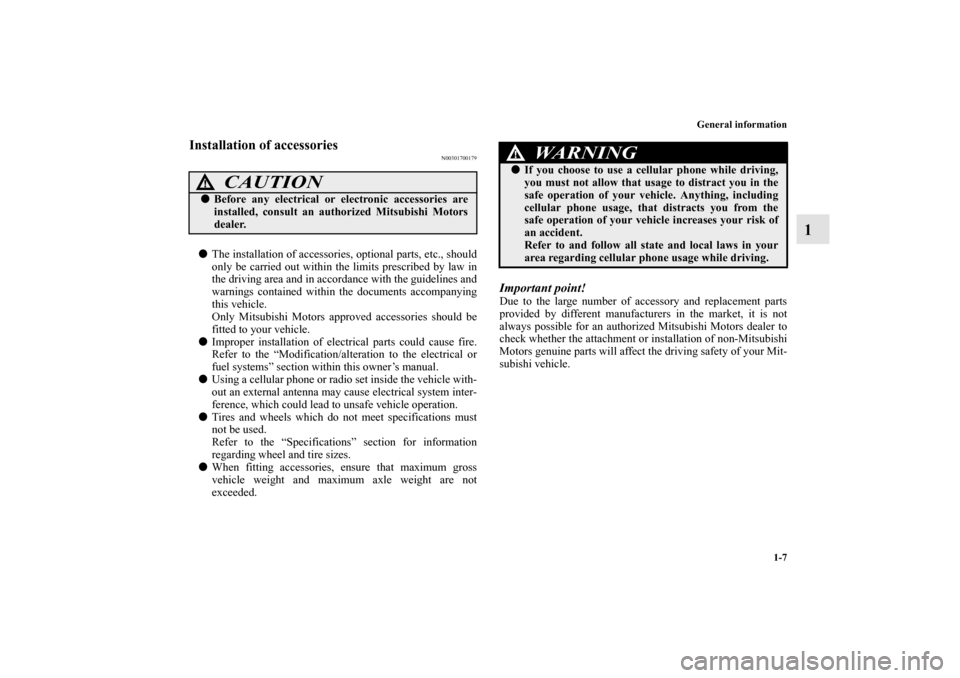

Installation of accessories
N00301700179
The installation of accessories, optional parts, etc., should
only be carried out within the limits prescribed by law in
the driving area and in accordance with the guidelines and
warnings contained within the documents accompanying
this vehicle.
Only Mitsubishi Motors approved accessories should be
fitted to your vehicle.
Improper installation of electrical parts could cause fire.
Refer to the “Modification/alteration to the electrical or
fuel systems” section within this owner’s manual.
Using a cellular phone or radio set inside the vehicle with-
out an external antenna may cause electrical system inter-
ference, which could lead to unsafe vehicle operation.
Tires and wheels which do not meet specifications must
not be used.
Refer to the “Specifications” section for information
regarding wheel and tire sizes.
When fitting accessories, ensure that maximum gross
vehicle weight and maximum axle weight are not
exceeded.
Important point!Due to the large number of accessory and replacement parts
provided by different manufacturers in the market, it is not
always possible for an authorized Mitsubishi Motors dealer to
check whether the attachment or installation of non-Mitsubishi
Motors genuine parts will affect the driving safety of your Mit-
subishi vehicle.
CAUTION
!Before any electrical or electronic accessories are
installed, consult an authorized Mitsubishi Motors
dealer.
WA R N I N G
!If you choose to use a cellular phone while driving,
you must not allow that usage to distract you in the
safe operation of your vehicle. Anything, including
cellular phone usage, that distracts you from the
safe operation of your vehicle increases your risk of
an accident.
Refer to and follow all state and local laws in your
area regarding cellular phone usage while driving.
BK0139500US.book 7 ページ 2011年4月19日 火曜日 午後1時48分
Page 25 of 424

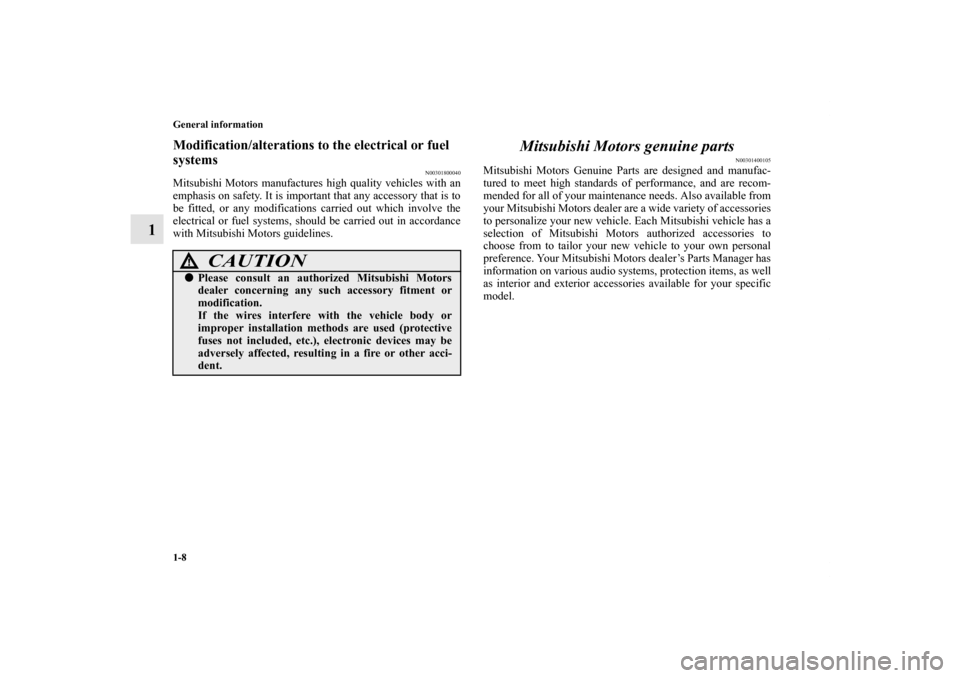

1-8 General information
1
Modification/alterations to the electrical or fuel
systems
N00301800040
Mitsubishi Motors manufactures high quality vehicles with an
emphasis on safety. It is important that any accessory that is to
be fitted, or any modifications carried out which involve the
electrical or fuel systems, should be carried out in accordance
with Mitsubishi Motors guidelines.
Mitsubishi Motors genuine parts
N00301400105
Mitsubishi Motors Genuine Parts are designed and manufac-
tured to meet high standards of performance, and are recom-
mended for all of your maintenance needs. Also available from
your Mitsubishi Motors dealer are a wide variety of accessories
to personalize your new vehicle. Each Mitsubishi vehicle has a
selection of Mitsubishi Motors authorized accessories to
choose from to tailor your new vehicle to your own personal
preference. Your Mitsubishi Motors dealer’s Parts Manager has
information on various audio systems, protection items, as well
as interior and exterior accessories available for your specific
model.
CAUTION
!Please consult an authorized Mitsubishi Motors
dealer concerning any such accessory fitment or
modification.
If the wires interfere with the vehicle body or
improper installation methods are used (protective
fuses not included, etc.), electronic devices may be
adversely affected, resulting in a fire or other acci-
dent.
BK0139500US.book 8 ページ 2011年4月19日 火曜日 午後1時48分
Page 26 of 424

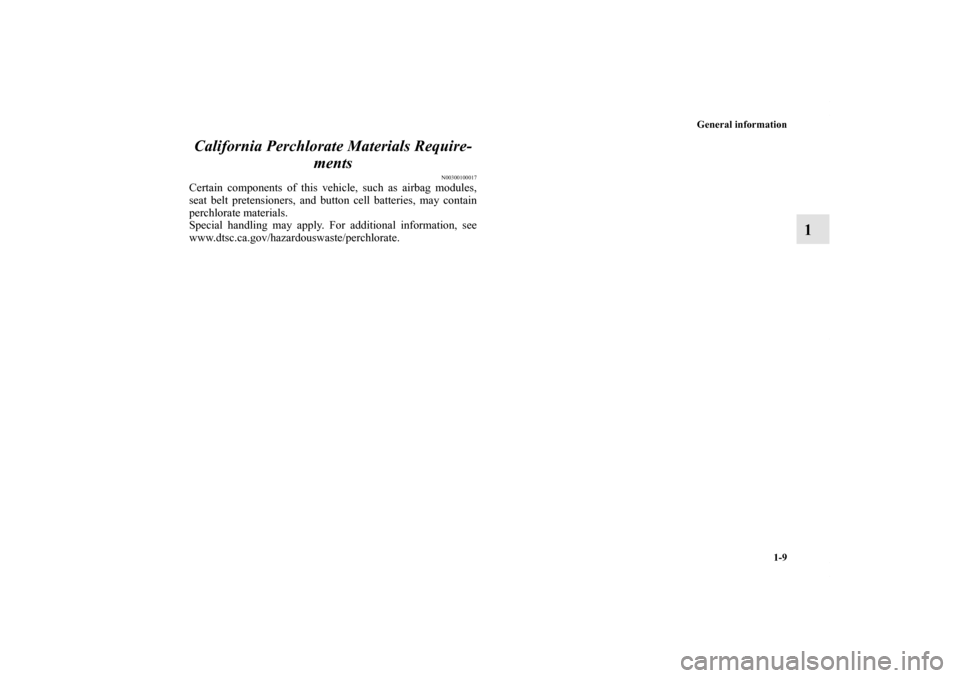

General information
1-9
1 California Perchlorate Materials Require-
ments
N00300100017
Certain components of this vehicle, such as airbag modules,
seat belt pretensioners, and button cell batteries, may contain
perchlorate materials.
Special handling may apply. For additional information, see
www.dtsc.ca.gov/hazardouswaste/perchlorate.
BK0139500US.book 9 ページ 2011年4月19日 火曜日 午後1時48分
Page 27 of 424
BK0139500US.book 10 ページ 2011年4月19日 火曜日 午後1時48分
Page 28 of 424

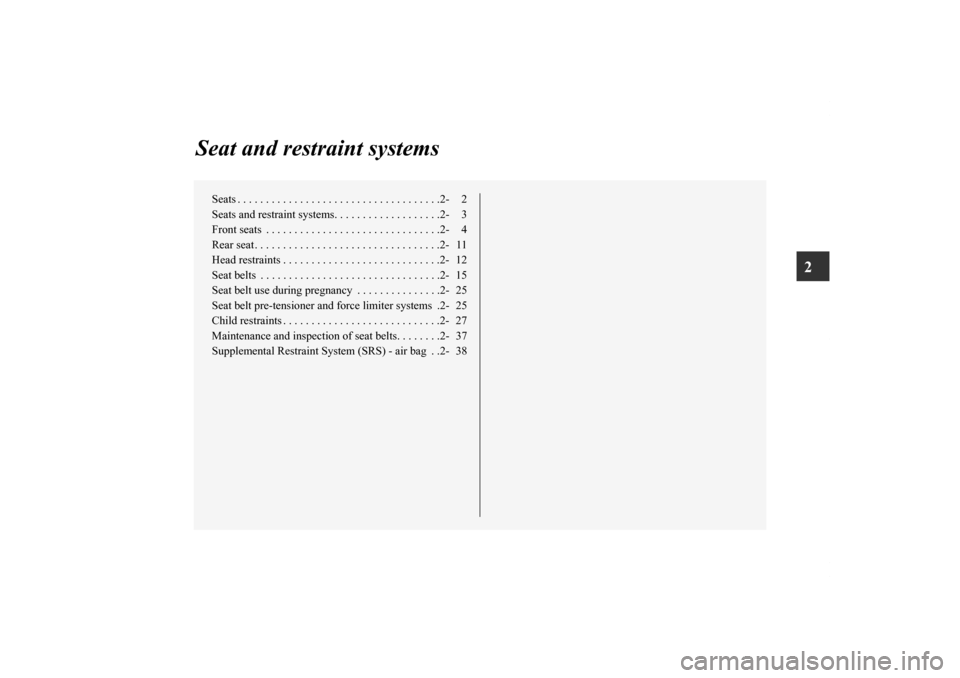

2
Seat and restraint systems
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 2
Seats and restraint systems. . . . . . . . . . . . . . . . . . .2- 3
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 4
Rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 11
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 12
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 15
Seat belt use during pregnancy . . . . . . . . . . . . . . .2- 25
Seat belt pre-tensioner and force limiter systems .2- 25
Child restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 27
Maintenance and inspection of seat belts. . . . . . . .2- 37
Supplemental Restraint System (SRS) - air bag . .2- 38
BK0139500US.book 1 ページ 2011年4月19日 火曜日 午後1時48分
Page 29 of 424

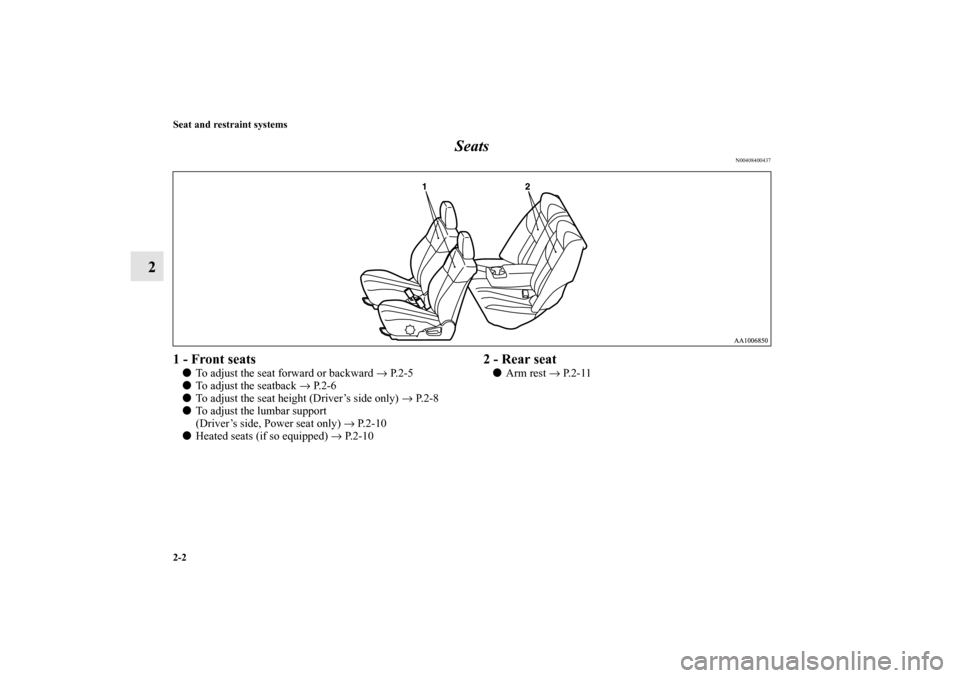

2-2 Seat and restraint systems
2Seats
N00408400437
1 - Front seatsTo adjust the seat forward or backward → P. 2 - 5
To adjust the seatback → P. 2 - 6
To adjust the seat height (Driver’s side only) → P. 2 - 8
To adjust the lumbar support
(Driver’s side, Power seat only) → P. 2 - 1 0
Heated seats (if so equipped) → P.2-10
2 - Rear seatArm rest → P. 2 - 1 1
BK0139500US.book 2 ページ 2011年4月19日 火曜日 午後1時48分
Page 30 of 424

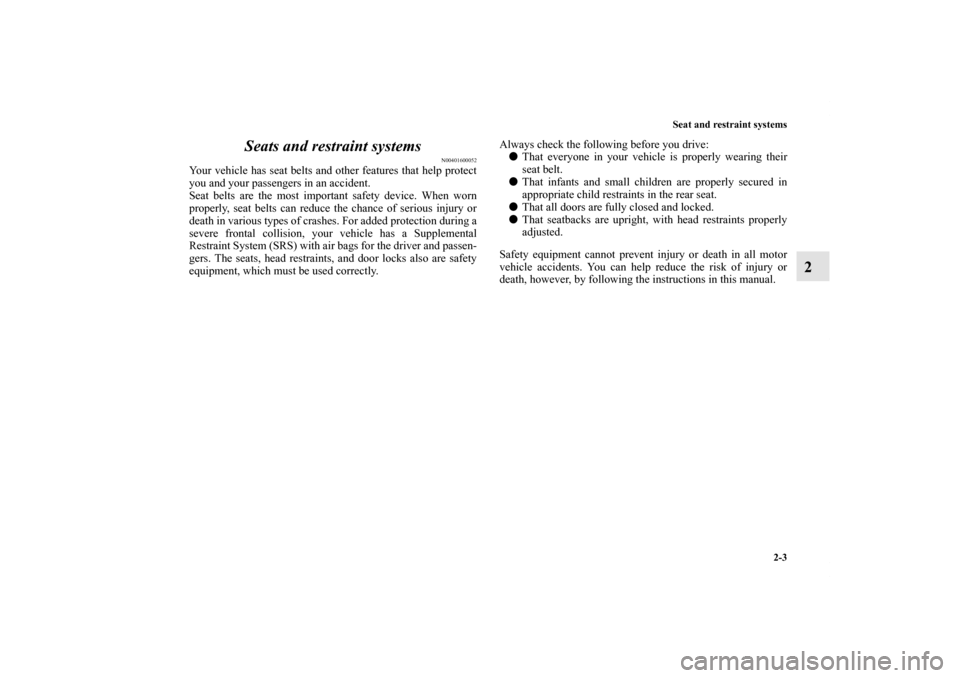

Seat and restraint systems
2-3
2 Seats and restraint systems
N00401600052
Your vehicle has seat belts and other features that help protect
you and your passengers in an accident.
Seat belts are the most important safety device. When worn
properly, seat belts can reduce the chance of serious injury or
death in various types of crashes. For added protection during a
severe frontal collision, your vehicle has a Supplemental
Restraint System (SRS) with air bags for the driver and passen-
gers. The seats, head restraints, and door locks also are safety
equipment, which must be used correctly.Always check the following before you drive:
That everyone in your vehicle is properly wearing their
seat belt.
That infants and small children are properly secured in
appropriate child restraints in the rear seat.
That all doors are fully closed and locked.
That seatbacks are upright, with head restraints properly
adjusted.
Safety equipment cannot prevent injury or death in all motor
vehicle accidents. You can help reduce the risk of injury or
death, however, by following the instructions in this manual.
BK0139500US.book 3 ページ 2011年4月19日 火曜日 午後1時48分
