Page 181 of 424

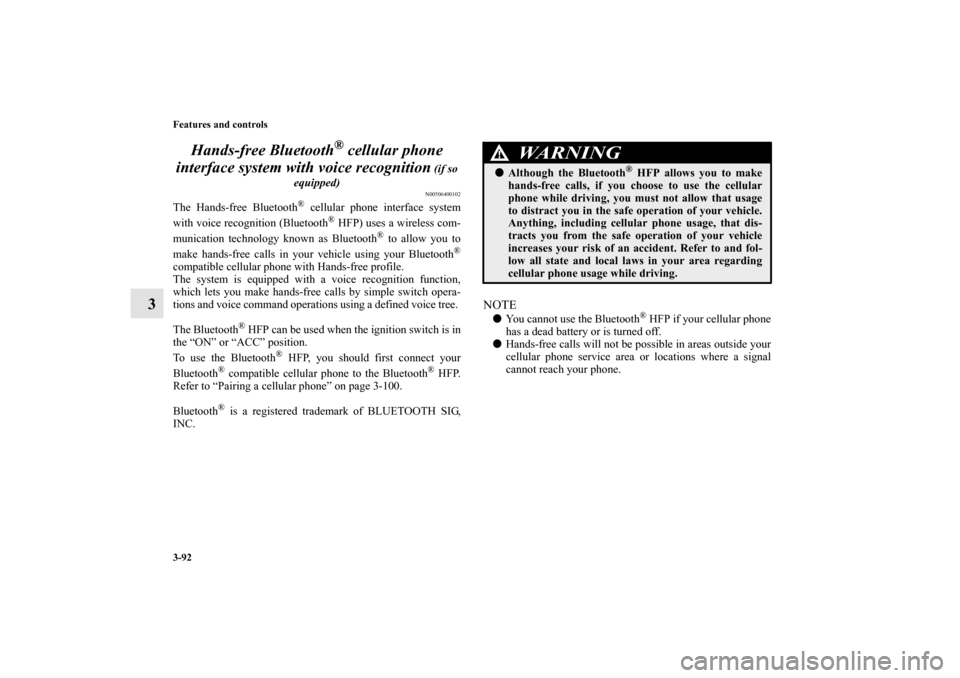

3-92 Features and controls
3Hands-free Bluetooth
® cellular phone
interface system with voice recognition
(if so
equipped)N00506400102
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition (Bluetooth
® HFP) uses a wireless com-
munication technology known as Bluetooth
® to allow you to
make hands-free calls in your vehicle using your Bluetooth
®
compatible cellular phone with Hands-free profile.
The system is equipped with a voice recognition function,
which lets you make hands-free calls by simple switch opera-
tions and voice command operations using a defined voice tree.
The Bluetooth
® HFP can be used when the ignition switch is in
the “ON” or “ACC” position.
To use the Bluetooth
® HFP, you should first connect your
Bluetooth
® compatible cellular phone to the Bluetooth
® HFP.
Refer to “Pairing a cellular phone” on page 3-100.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
NOTEYou cannot use the Bluetooth
® HFP if your cellular phone
has a dead battery or is turned off.
Hands-free calls will not be possible in areas outside your
cellular phone service area or locations where a signal
cannot reach your phone.
WA R N I N G
!Although the Bluetooth
® HFP allows you to make
hands-free calls, if you choose to use the cellular
phone while driving, you must not allow that usage
to distract you in the safe operation of your vehicle.
Anything, including cellular phone usage, that dis-
tracts you from the safe operation of your vehicle
increases your risk of an accident. Refer to and fol-
low all state and local laws in your area regarding
cellular phone usage while driving.
BK0139500US.book 92 ページ 2011年4月19日 火曜日 午後1時48分
Page 183 of 424
3-94 Features and controls
3
NOTEWhen you press the SPEECH button to enter voice recog-
nition mode with a cellular phone paired to the system,
current information on the cellular phone, such as
“remaining battery life,” “signal strength” or “roaming,”
will be displayed on the audio display.* (Refer to “Pairing
a cellular phone” on page 3-100.)
*: Some cellular phones will not send this information to
the Bluetooth
® HFP.
Call waiting and three-way calls can be used by the Blue-
tooth
® HFP, only when those services can be used with
your cellular phone.
Users may experience a delay in vehicle audio when plac-
ing a call from the handset. Users may experience a delay
in vehicle audio when answering an incoming call on the
handset. To reduce delays users should place calls and
receive calls through the Hands-free System.
Voice recognition function
N00506600133
The Bluetooth
® HFP is equipped with a voice recognition
function. Your voice will be recognized by a microphone in the
overhead console, allowing you to make hands-free calls with
voice commands.
Voice recognition is possible in US English, North American
Spanish and Canadian French. The factory setting is US
English.
Some of the voice commands indicated below have a number
of alternative commands. For a table showing the voice com-
mands in each language and the corresponding alternative
commands, refer to “Commands and Alternatives” on page 3-
114.
NOTEIf the voice command that you say differs from the pre-
defined command or cannot be recognized due to ambient
noise or some other reason, the Bluetooth
® HFP will ask
you for the voice command again up to 3 times.
For best performance and further reduction of ambient
noise, the vehicle windows should be closed while engag-
ing the voice recognition function.
Selecting the LanguageThere are two ways to change the language. NOTEThe more entries that are registered in the phonebook, the
longer it will take to change the language.
BK0139500US.book 94 ページ 2011年4月19日 火曜日 午後1時48分
Page 189 of 424

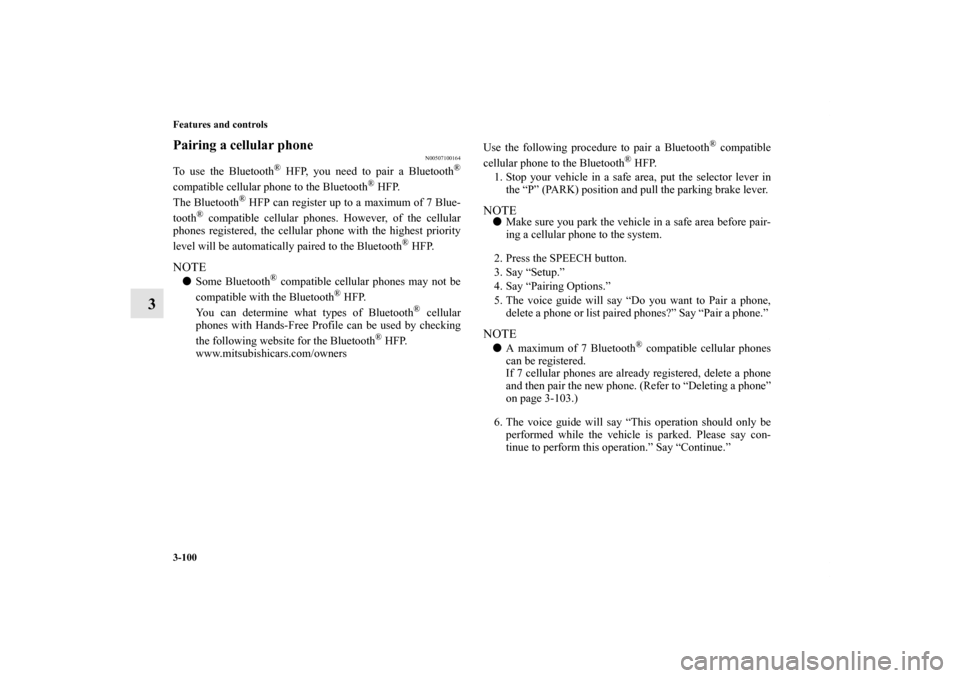

3-100 Features and controls
3
Pairing a cellular phone
N00507100164
To use the Bluetooth
® HFP, you need to pair a Bluetooth
®
compatible cellular phone to the Bluetooth
® HFP.
The Bluetooth
® HFP can register up to a maximum of 7 Blue-
tooth
® compatible cellular phones. However, of the cellular
phones registered, the cellular phone with the highest priority
level will be automatically paired to the Bluetooth
® HFP.
NOTESome Bluetooth
® compatible cellular phones may not be
compatible with the Bluetooth
® HFP.
You can determine what types of Bluetooth
® cellular
phones with Hands-Free Profile can be used by checking
the following website for the Bluetooth
® HFP.
www.mitsubishicars.com/ownersUse the following procedure to pair a Bluetooth
® compatible
cellular phone to the Bluetooth
® HFP.
1. Stop your vehicle in a safe area, put the selector lever in
the “P” (PARK) position and pull the parking brake lever.
NOTEMake sure you park the vehicle in a safe area before pair-
ing a cellular phone to the system.
2. Press the SPEECH button.
3. Say “Setup.”
4. Say “Pairing Options.”
5. The voice guide will say “Do you want to Pair a phone,
delete a phone or list paired phones?” Say “Pair a phone.” NOTEA maximum of 7 Bluetooth
® compatible cellular phones
can be registered.
If 7 cellular phones are already registered, delete a phone
and then pair the new phone. (Refer to “Deleting a phone”
on page 3-103.)
6. The voice guide will say “This operation should only be
performed while the vehicle is parked. Please say con-
tinue to perform this operation.” Say “Continue.”
BK0139500US.book 100 ページ 2011年4月19日 火曜日 午後1時48分
Page 190 of 424

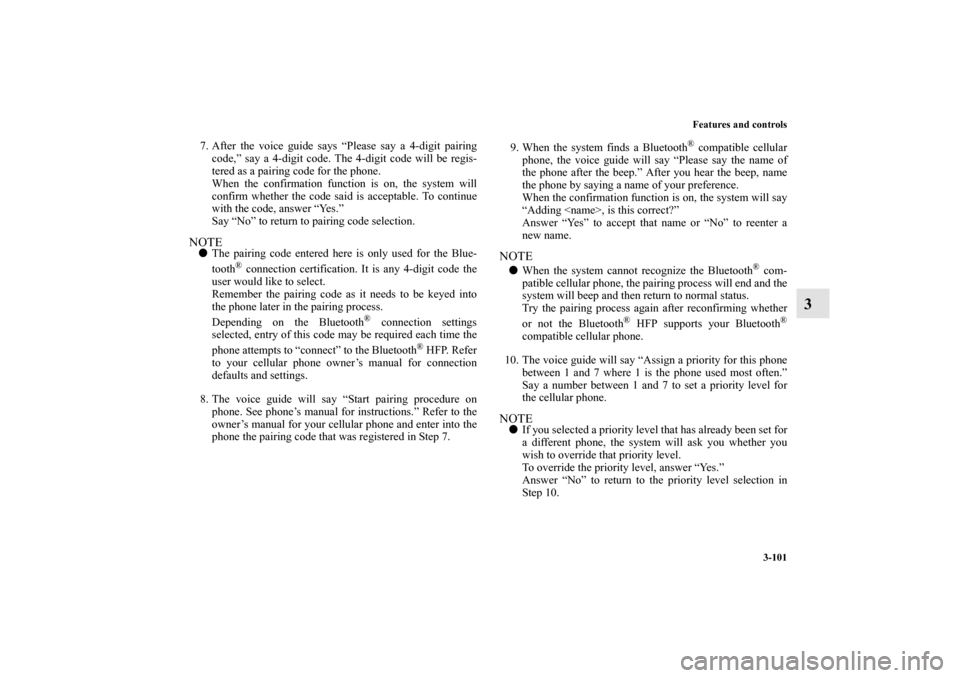

Features and controls
3-101
3
7. After the voice guide says “Please say a 4-digit pairing
code,” say a 4-digit code. The 4-digit code will be regis-
tered as a pairing code for the phone.
When the confirmation function is on, the system will
confirm whether the code said is acceptable. To continue
with the code, answer “Yes.”
Say “No” to return to pairing code selection.NOTEThe pairing code entered here is only used for the Blue-
tooth
® connection certification. It is any 4-digit code the
user would like to select.
Remember the pairing code as it needs to be keyed into
the phone later in the pairing process.
Depending on the Bluetooth
® connection settings
selected, entry of this code may be required each time the
phone attempts to “connect” to the Bluetooth
® HFP. Refer
to your cellular phone owner’s manual for connection
defaults and settings.
8. The voice guide will say “Start pairing procedure on
phone. See phone’s manual for instructions.” Refer to the
owner’s manual for your cellular phone and enter into the
phone the pairing code that was registered in Step 7.9. When the system finds a Bluetooth
® compatible cellular
phone, the voice guide will say “Please say the name of
the phone after the beep.” After you hear the beep, name
the phone by saying a name of your preference.
When the confirmation function is on, the system will say
“Adding
Answer “Yes” to accept that name or “No” to reenter a
new name.
NOTEWhen the system cannot recognize the Bluetooth
® com-
patible cellular phone, the pairing process will end and the
system will beep and then return to normal status.
Try the pairing process again after reconfirming whether
or not the Bluetooth
® HFP supports your Bluetooth
®
compatible cellular phone.
10. The voice guide will say “Assign a priority for this phone
between 1 and 7 where 1 is the phone used most often.”
Say a number between 1 and 7 to set a priority level for
the cellular phone.
NOTEIf you selected a priority level that has already been set for
a different phone, the system will ask you whether you
wish to override that priority level.
To override the priority level, answer “Yes.”
Answer “No” to return to the priority level selection in
Step 10.
BK0139500US.book 101 ページ 2011年4月19日 火曜日 午後1時48分
Page 191 of 424
3-102 Features and controls
3
11. After the voice guide says “
a moment for the pairing process to complete.
When the confirmation function is on, the system will
confirm the assigned phone name and priority again.
Answer “Yes.”
Answer “No” to return to the priority level selection in
Step 10.
12. When the pairing process is completed, the voice guide
will say “Pairing Complete.” The system will then beep
and the voice recognition mode will be exited.NOTEIf you are having difficulty pairing the phone, assistance
can be obtained by calling Mitsubishi hands free con-
sumer support line 1-888-702-4100.Selecting the phone
N00507200035
When multiple paired phones are present in range of the Blue-
tooth
® HFP, the phone with the highest priority (set during the
paring process) will be connected to the system.
Use the following procedure to connect to another paired
phone with lower priority.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Select phone.”4. After the voice guide says “Please say,” it will read out
each priority number and phone name pair in order, start-
ing with the phone that has the highest priority level (from
1 to 7).
Say the priority number of the phone that you want to con-
nect to.
NOTEYou can connect to a phone at any time by pressing the
SPEECH button and saying the priority number, even
before all of the priority number and phone name pairs are
read out by the system.
5. After the voice guide says “
system will reconnect to the cellular phone. Wait a
moment for the process to complete.
When the confirmation prompts are on, the system will
ask you again whether the phone that you want to recon-
nect to is correct. Answer “Yes” to continue and reconnect
to the cellular phone. If you answer “No,” the system will
ask “Which phone please?” Select the priority of the
phone that you want to connect to.
6. When the reconnection of the cellular phone is completed,
the voice guide will say “
override phone priorities” and then the system will return
to the main menu.NOTETo change the priority level of a specific phone, redo the
pairing process for that phone. (Refer to “Pairing a cellu-
lar phone” on page 3-100.)
BK0139500US.book 102 ページ 2011年4月19日 火曜日 午後1時48分
Page 192 of 424
Features and controls
3-103
3

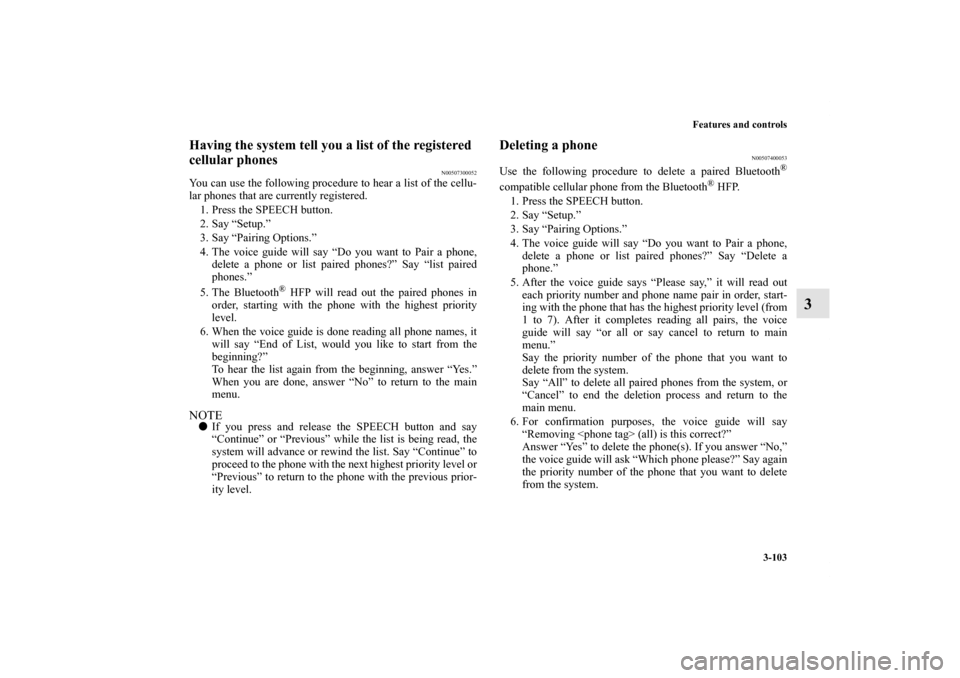

Having the system tell you a list of the registered
cellular phones
N00507300052
You can use the following procedure to hear a list of the cellu-
lar phones that are currently registered.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Pairing Options.”
4. The voice guide will say “Do you want to Pair a phone,
delete a phone or list paired phones?” Say “list paired
phones.”
5. The Bluetooth
® HFP will read out the paired phones in
order, starting with the phone with the highest priority
level.
6. When the voice guide is done reading all phone names, it
will say “End of List, would you like to start from the
beginning?”
To hear the list again from the beginning, answer “Yes.”
When you are done, answer “No” to return to the main
menu.
NOTEIf you press and release the SPEECH button and say
“Continue” or “Previous” while the list is being read, the
system will advance or rewind the list. Say “Continue” to
proceed to the phone with the next highest priority level or
“Previous” to return to the phone with the previous prior-
ity level.
Deleting a phone
N00507400053
Use the following procedure to delete a paired Bluetooth
®
compatible cellular phone from the Bluetooth
® HFP.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Pairing Options.”
4. The voice guide will say “Do you want to Pair a phone,
delete a phone or list paired phones?” Say “Delete a
phone.”
5. After the voice guide says “Please say,” it will read out
each priority number and phone name pair in order, start-
ing with the phone that has the highest priority level (from
1 to 7). After it completes reading all pairs, the voice
guide will say “or all or say cancel to return to main
menu.”
Say the priority number of the phone that you want to
delete from the system.
Say “All” to delete all paired phones from the system, or
“Cancel” to end the deletion process and return to the
main menu.
6. For confirmation purposes, the voice guide will say
“Removing
Answer “Yes” to delete the phone(s). If you answer “No,”
the voice guide will ask “Which phone please?” Say again
the priority number of the phone that you want to delete
from the system.
BK0139500US.book 103 ページ 2011年4月19日 火曜日 午後1時48分
Page 193 of 424

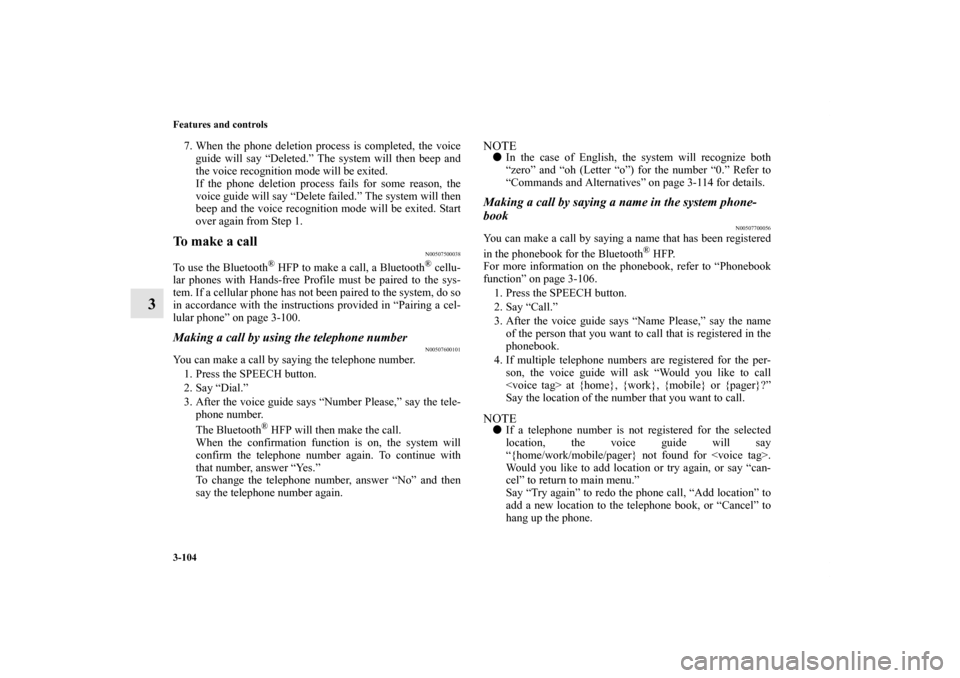

3-104 Features and controls
3
7. When the phone deletion process is completed, the voice
guide will say “Deleted.” The system will then beep and
the voice recognition mode will be exited.
If the phone deletion process fails for some reason, the
voice guide will say “Delete failed.” The system will then
beep and the voice recognition mode will be exited. Start
over again from Step 1. To make a call
N00507500038
To use the Bluetooth
® HFP to make a call, a Bluetooth
® cellu-
lar phones with Hands-free Profile must be paired to the sys-
tem. If a cellular phone has not been paired to the system, do so
in accordance with the instructions provided in “Pairing a cel-
lular phone” on page 3-100.
Making a call by using the telephone number
N00507600101
You can make a call by saying the telephone number.
1. Press the SPEECH button.
2. Say “Dial.”
3. After the voice guide says “Number Please,” say the tele-
phone number.
The Bluetooth
® HFP will then make the call.
When the confirmation function is on, the system will
confirm the telephone number again. To continue with
that number, answer “Yes.”
To change the telephone number, answer “No” and then
say the telephone number again.
NOTEIn the case of English, the system will recognize both
“zero” and “oh (Letter “o”) for the number “0.” Refer to
“Commands and Alternatives” on page 3-114 for details.Making a call by saying a name in the system phone-
book
N00507700056
You can make a call by saying a name that has been registered
in the phonebook for the Bluetooth
® HFP.
For more information on the phonebook, refer to “Phonebook
function” on page 3-106.
1. Press the SPEECH button.
2. Say “Call.”
3. After the voice guide says “Name Please,” say the name
of the person that you want to call that is registered in the
phonebook.
4. If multiple telephone numbers are registered for the per-
son, the voice guide will ask “Would you like to call
Say the location of the number that you want to call.
NOTEIf a telephone number is not registered for the selected
location, the voice guide will say
“{home/work/mobile/pager} not found for
Would you like to add location or try again, or say “can-
cel” to return to main menu.”
Say “Try again” to redo the phone call, “Add location” to
add a new location to the telephone book, or “Cancel” to
hang up the phone.
BK0139500US.book 104 ページ 2011年4月19日 火曜日 午後1時48分
Page 203 of 424
3-114 Features and controls
3
Commands and Alternatives
N00513300073
Command
Lan-
guage
Primary Command
Alternative
Commands
SETUPEnglish Setup -
Spanish Configuración -
French Configurer -
PHONE-
BOOKEnglish Phonebook -
Spanish Agenda -
French Répertoire -
DIALEnglish Dial -
Spanish Marcar -
French Composer -
CALLEnglish Call -
Spanish Llamar -
French Appeler -
REDIALEnglish Redial -
Spanish Volver A Marcar -
French Recomposer -
PA I R I N G
OPTIONSEnglish Pairing Options Pairing
SpanishOpciones De Empa-
rejamientoEmparejamiento
FrenchOptions De Jume-
lageJumelage
PA I REnglish Pair -
Spanish Emparejar -
French Jumeler -
DELETE A
PHONEEnglish Delete A Phone Delete
SpanishEliminar Un Telé-
fonoEliminar
FrenchSupprimer Un Télé-
phoneSupprimer
LISTEnglish List List Phones
Spanish Listar Listar Teléfonos
French ListerListe Des Télé-
phones
SELECT
PHONEEnglish Select Phone -
SpanishSeleccionar Telé-
fono-
FrenchSélectionner Un
Téléphone-
PREVIOUSEnglish Previous -
Spanish Anterior -
French Précédent -
TRANS-
FER CALLEnglish Transfer Call -
Spanish Transferir Llamada -
French Transférer L’appel -Command
Lan-
guage
Primary Command
Alternative
Commands
BK0139500US.book 114 ページ 2011年4月19日 火曜日 午後1時48分
