buttons MITSUBISHI iMiEV 2012 1.G MMCS Manual

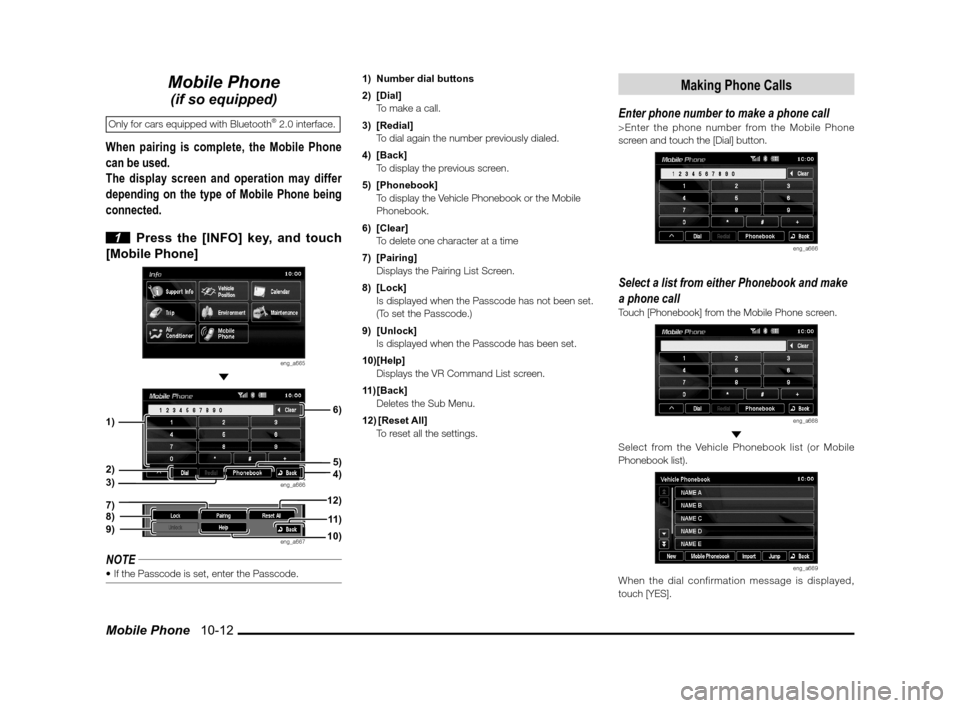

Mobile Phone 10-12
Mobile Phone
(if so equipped)
Only for cars equipped with Bluetooth® 2.0 interface.
When pairing is complete, the Mobile Phone
can be used.
The display screen and operation may differ
depending on the type of Mobile Phone being
connected.

1 Press the [INFO] key, and touch
[Mobile Phone]
eng_a665
eng_a666
eng_a667
NOTE 1) Number dial buttons
2) [Dial]
To make a call.
3) [Redial]
To dial again the number previously dialed.
4) [Back]
To display the previous screen.
5) [Phonebook]
To display the Vehicle Phonebook or the Mobile
Phonebook.
6) [Clear]
To delete one character at a time
7) [Pairing]
Displays the Pairing List Screen.
8) [Lock]
Is displayed when the Passcode has not been set. (To set the Passcode.)
9) [Unlock]
Is displayed when the Passcode has been set.
10) [Help]
Displays the VR Command List screen.
11) [Back]
Deletes the Sub Menu.
12) [Reset All]
To reset all the settings.
Making Phone Calls
Enter phone number to make a phone call>Enter the phone number from the Mobile Phone
screen and touch the [Dial] button.
eng_a666
Select a list from either Phonebook and make
a phone call
Touch [Phonebook] from the Mobile Phone screen.
eng_a668
Select from the Vehicle Phonebook list (or Mobile
Phonebook list).
eng_a669When the dial confirmation message is displayed,
touch [YES].
3)
5)
1)2)
4)
6)
7)8)9)10)11 )
12)
\b \b
\f \



 \b \b

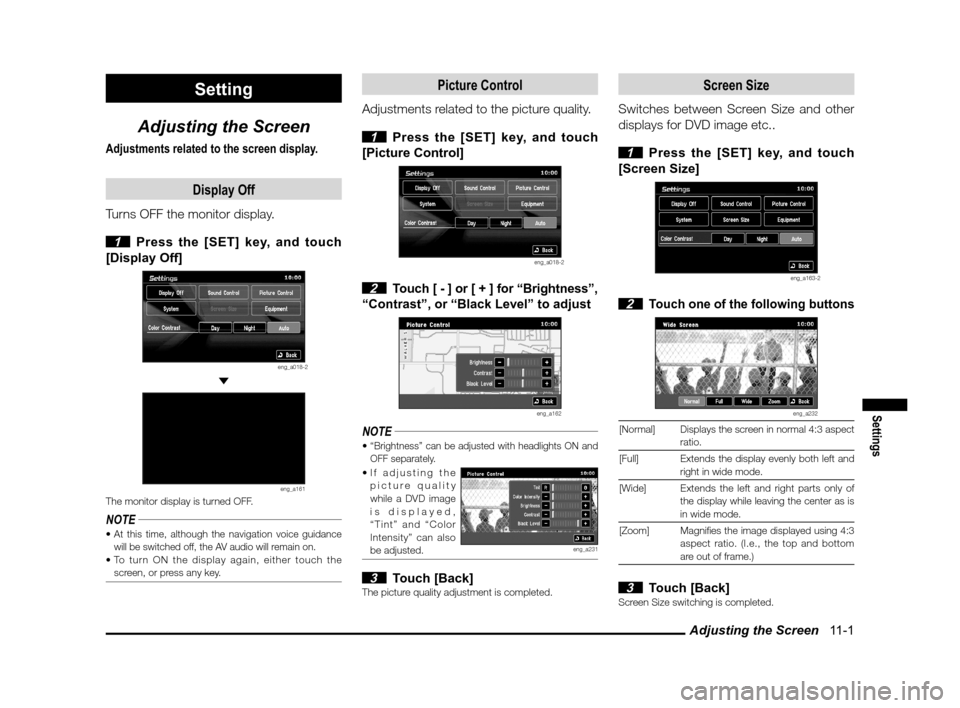

Adjusting the Screen 11-1
Settings
Setting
Adjusting the Screen
Adjustments related to the screen display.
Display Off
Turns OFF the monitor display.

1 Press the [SET] key, and touch
[Display Off]
eng_a018-2
eng_a161The monitor display is turned OFF.
NOTEAt this time, although the navigation voice guidance
will be switched off, the AV audio will remain on.

screen, or press any key.
Picture Control
Adjustments related to the picture quality.

1 Press the [SET] key, and touch
[Picture Control]
eng_a018-2
2 Touch [ - ] or [ + ] for “Brightness”,
“Contrast”, or “Black Level” to adjust
eng_a162
NOTE“Brightness” can be adjusted with headlights ON and
OFF separately.

picture quality
while a DVD image
is displayed,
“Tint” and “Color
Intensity” can also
be adjusted.
eng_a231
3 Touch [Back]The picture quality adjustment is completed.
Screen Size
Switches between Screen Size and other
displays for DVD image etc..

1 Press the [SET] key, and touch
[Screen Size]
eng_a163-2
2 Touch one of the following buttons
eng_a232
[Normal] Displays the screen in normal 4:3 aspect
ratio.
[Full] Extends the display evenly both left and right in wide mode.
[Wide] Extends the left and right parts only of
the display while leaving the center as is
in wide mode.
[Zoom] Magni es the image displayed using 4:3 aspect ratio. (I.e., the top and bottom
are out of frame.)
3 Touch [Back]Screen Size switching is completed.
