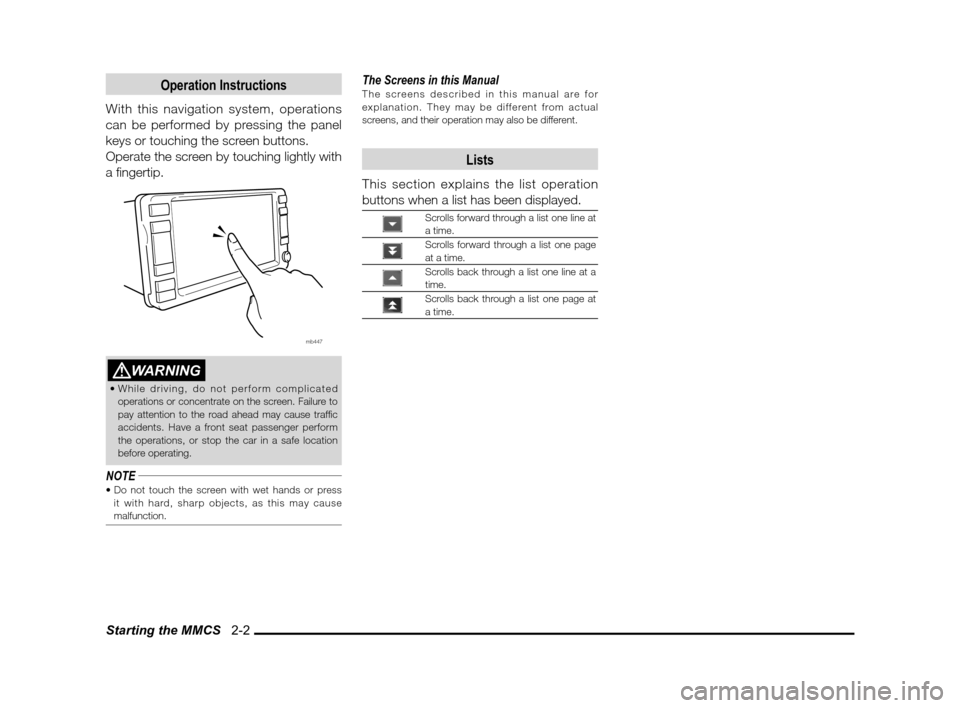

Starting the MMCS 2-2
Operation Instructions
With this navigation system, operations
can be performed by pressing the panel
keys or touching the screen buttons.
Operate the screen by touching lightly with
a ngertip.
mb447
WARNING

operations or concentrate on the screen. Failure to
pay attention to the road ahead may cause traf c
accidents. Have a front seat passenger perform
the operations, or stop the car in a safe location
before operating.
NOTEit with hard, sharp objects, as this may cause
malfunction.
The Screens in this ManualThe screens described in this manual are for
explanation. They may be different from actual
screens, and their operation may also be different.
Lists
This section explains the list operation
buttons when a list has been displayed.
Scrolls forward through a list one line at
a time.
Scrolls forward through a list one page
at a time.
Scrolls back through a list one line at a
time.
Scrolls back through a list one page at
a time.
\b \b
\f \

  \b
\b \f

Listening to SIRIUS 7-12
9) [Text]
This switches the text display.
10) [
Channel], [Channel ]
Moves up and down one channel each time.
Touch and hold one of these buttons to
continuously change the channel. Release the
button to stop on a channel.
11) Incoming Category Name
The name of the category being received is displayed.
12) Playback Mode

The currently selected playback mode is displayed.
13) Incoming Channel and Incoming Channel
Name
The channel and the name of the channel being
received is displayed.
Category List and Channel List
eng_a439
eng_a438
1) Category List This displays the category button. Touch the button to display the channel list.
2) Channel List This displays the channel button. Touch the button to start receiving the relevant channel.
3) [CAT-Scan]
This scans the channels in the currently selected category.
SIRIUS Satellite Radio Inc. “SIRIUS” and related marks
are trademarks of SIRIUS Satellite Radio Inc.
1)
2)
3)
Listening to SIRIUS
Only for vehicles equipped with satellite radio (SIRIUS) tuner
(if so equipped) Display Contents
Normal Reception Screen
eng_a437
1) Preset Number
If the channel being received has been preset, the preset number is displayed.
2) Band

Displays the band which is currently being listened to.
3) Band Switching Button
Touch this button to switch bands.
4) TEXT Display

Information about the current channel is displayed.
5) Preset Button
The preset number, channel number and channel name is displayed.
6) [ ]
Touch this button to display the Sub Menu.
7) [Direct]
The channel number entered to the screen directly is displayed.
8) [Category]
The category screen is displayed.
2)
3)
4)
5)
6) 7) 8) 9) 10)
12) 13)
1)
11 )
\b \b
\f \


 \b
\b
 \f

Listening to SIRIUS 7-13
Audio
Selecting Stations

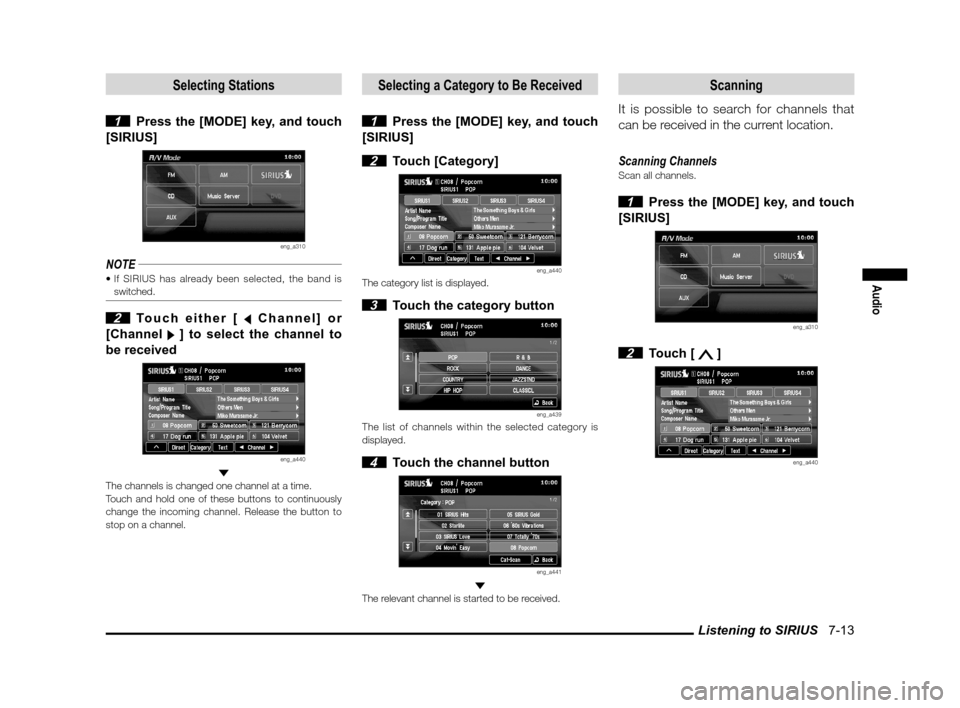

1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
NOTE
switched.
2 Touch either [ Channel] or
[Channel
] to select the channel to
be received
eng_a440
The channels is changed one channel at a time.
Touch and hold one of these buttons to continuously
change the incoming channel. Release the button to
stop on a channel.
Selecting a Category to Be Received
1 Press the [MODE] key, and touch
[SIRIUS]

2 Touch [Category]
eng_a440The category list is displayed.
3 Touch the category button
eng_a439The list of channels within the selected category is
displayed.
4 Touch the channel button
eng_a441
The relevant channel is started to be received.
Scanning
It is possible to search for channels that
can be received in the current location.
Scanning Channels
Scan all channels.
1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
2 Touch [ ]
eng_a440
\b \b
\f \


 \b
\b
 \f

Listening to SIRIUS 7-15
Audio

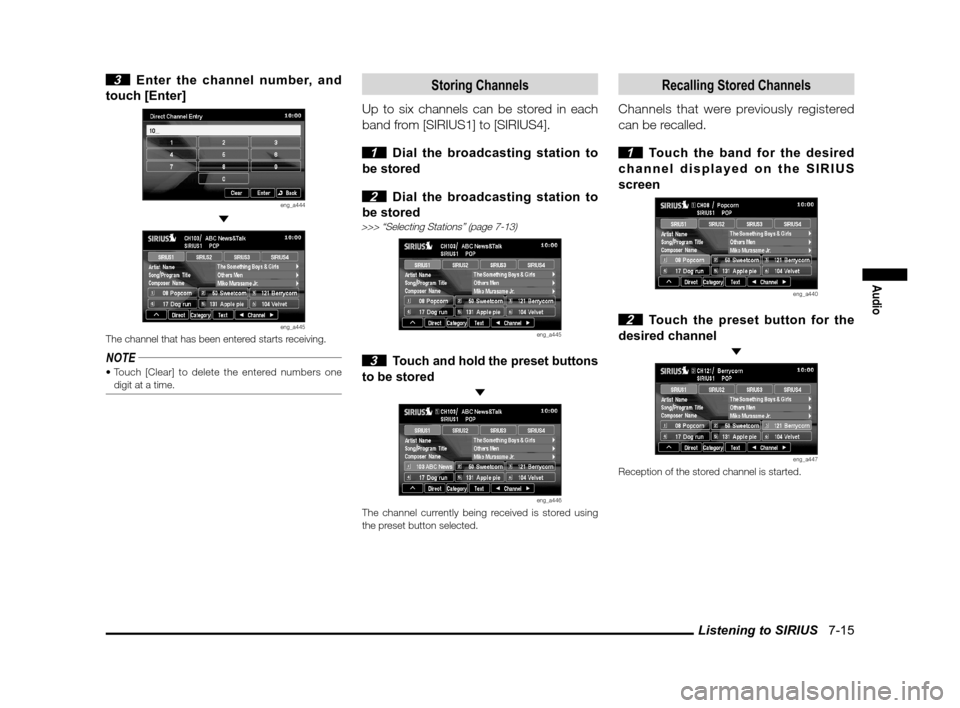

3 Enter the channel number, and
touch [Enter]
eng_a444
eng_a445The channel that has been entered starts receiving.
NOTE
digit at a time.
Storing Channels
Up to six channels can be stored in each
band from [SIRIUS1] to [SIRIUS4].

1 Dial the broadcasting station to
be stored

2 Dial the broadcasting station to
be stored
>>> “Selecting Stations” (page 7-13)
eng_a445
3 Touch and hold the preset buttons
to be stored

eng_a446The channel currently being received is stored using
the preset button selected.
Recalling Stored Channels
Channels that were previously registered
can be recalled.

1 Touch the band for the desired
channel displayed on the SIRIUS
screen
eng_a440
2 Touch the preset button for the
desired channel

eng_a447Reception of the stored channel is started.
\b \b
\f \


 \b
\b
 \f

Listening to Music CDs 7-19
Audio
Listening to Music CDs
If a music CD is inserted into the device, the tracks will
be played automatically, and the track can be recorded
to the system's hard drive device (HDD) if set initially to
do so.
Simultaneously, Gracenote Music Recognition Service
on the HDD is accessed, and the title information
obtained.
NOTE
the database or with CD-TEXT, the disk title, track
title currently being played, and the artist name is
displayed on the source plate. The track title list is
displayed in the audio screen.
be obtained.
>>>”Obtaining Title Information” (page
7-25)
soundless parts) between the tracks, a brief silence
between the tracks is still stored to the music server,
but this is not a malfunction.

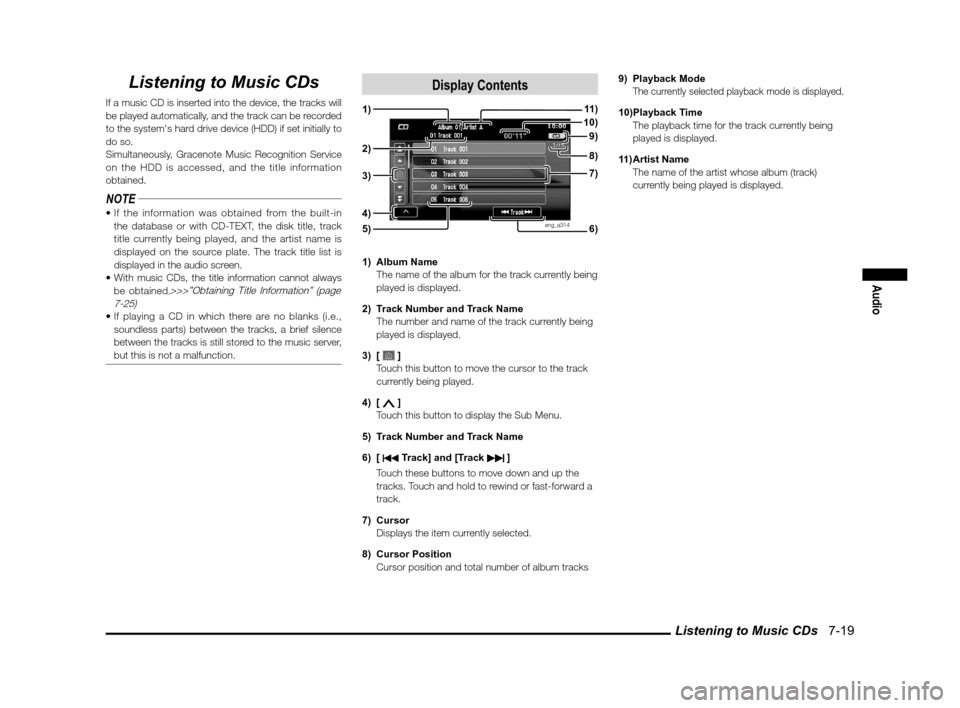

Display Contents
eng_a314
1) Album Name
The name of the album for the track currently being played is displayed.
2) Track Number and Track Name
The number and name of the track currently being played is displayed.
3) [
]
T
ouch this button to move the cursor to the track
currently being played.
4) [
]
Touch this button to display the Sub Menu.
5) Track Number and Track Name
6) [
Track] and [Track ]
T
ouch these buttons to move down and up the
tracks. Touch and hold to rewind or fast-forward a
track.
7) Cursor
Displays the item currently selected.
8) Cursor Position
Cursor position and total number of album tracks 9) Playback Mode

The currently selected playback mode is displayed.
10) Playback Time
The playback time for the track currently being
played is displayed.
11) Artist Name
The name of the artist whose album (track) currently being played is displayed.
1)
3)
4) 2)
5)6)
7)
8)
9)10)11 )
\b \b
\f \


 \b \b


Listening to MP3/WMA Disks 7-27
Audio
Listening to MP3/WMA Disks
If an MP3/WMA disk is inserted into the device,
the display is switched automatically to the CD
screen, and track playback is started.
NOTE

playback, however, is a similar operation.
music server.
album title, etc., the ID3 Tag or WMA Tag information
must be included in the MP3/WMA le on the disk.
>>> “MP3/WMA Files” (page 7-7)

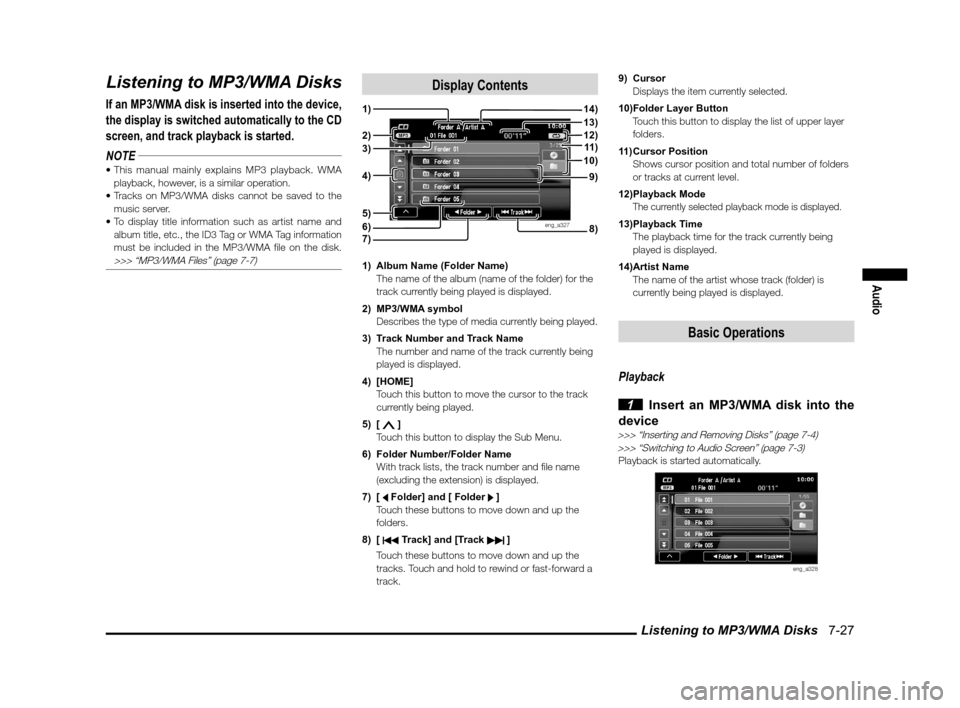

Display Contents
eng_a327
1) Album Name (Folder Name)
The name of the album (name of the folder) for the track currently being played is displayed.
2) MP3/WMA symbol
Describes the type of media currently being played.
3) Track Number and Track Name
The number and name of the track currently being played is displayed.
4) [HOME]
Touch this button to move the cursor to the track currently being played.
5) [ ]
Touch this button to display the Sub Menu.
6) Folder Number/Folder Name
With track lists, the track number and le name (excluding the extension) is displayed.
7) [
Folder] and [ Folder ]
T
ouch these buttons to move down and up the
folders.
8) [
Track] and [Track ]
T
ouch these buttons to move down and up the
tracks. Touch and hold to rewind or fast-forward a
track.
9) Cursor
Displays the item currently selected.
10) Folder Layer Button
Touch this button to display the list of upper layer folders.
11) Cursor Position
Shows cursor position and total number of folders or tracks at current level.
12) Playback Mode

The currently selected playback mode is displayed.
13) Playback Time
The playback time for the track currently being played is displayed.
14) Artist Name
The name of the artist whose track (folder) is currently being played is displayed.
Basic Operations
Playback

1 Insert an MP3/WMA disk into the
device
>>> “Inserting and Removing Disks” (page 7-4)
>>> “Switching to Audio Screen” (page 7-3)
Playback is started automatically.
eng_a328
1)
4)
5) 3)6)8)
9)
12)13)14)
2)
7)
10)11 )
\b \b
\f \

  \b \b


Setting up Bluetooth Connection 7-34
To play from a Bluetooth AUDIO
When pairing is complete, the Bluetooth
AUDIO can be used.

1 Press the [MODE] key, and touch
[Bluetooth AUDIO]
eng_a662

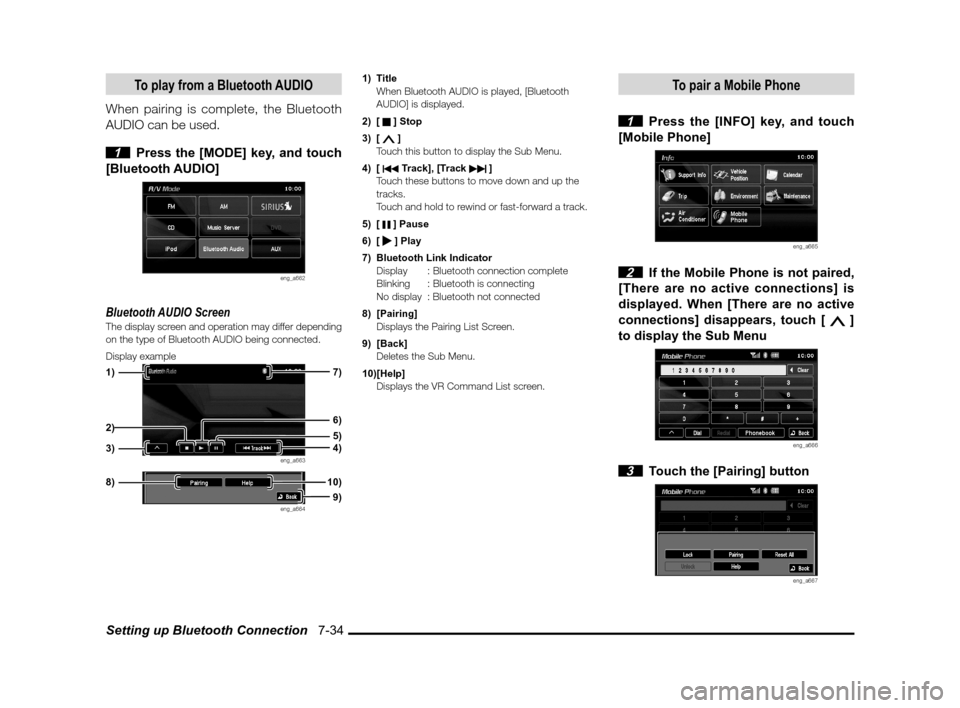

Bluetooth AUDIO ScreenThe display screen and operation may differ depending
on the type of Bluetooth AUDIO being connected.
Display example
eng_a663
eng_a664
1) Title
When Bluetooth AUDIO is played, [Bluetooth
AUDIO] is displayed.
2) [ ] Stop
3) [ ]
Touch this button to display the Sub Menu.
4) [
Track], [Track ]
Touch these buttons to move down and up the
tracks.
Touch and hold to rewind or fast-forward a track.
5) [ ] Pause
6) [
] Play
7) Bluetooth Link Indicator
Display : Bluetooth connection complete
Blinking : Bluetooth is connecting
No display : Bluetooth not connected
8) [Pairing]
Displays the Pairing List Screen.
9) [Back]
Deletes the Sub Menu.
10) [Help]
Displays the VR Command List screen.
To pair a Mobile Phone
1 Press the [INFO] key, and touch
[Mobile Phone]
eng_a665
2 If the Mobile Phone is not paired,
[There are no active connections] is
displayed. When [There are no active
connections] disappears, touch [
]
to display the Sub Menu
eng_a666
3 Touch the [Pairing] button
eng_a667
7)
1)
3) 6)
2)5)
4)
8)
9)
10)
\b \b
\f \

 \b \b \b
\f

Music Server 8-1
Music Server
Music Server
Music Server
The music server can play and record CD
tracks. It is part of the MMCS hard drive device
(HDD).
NOTE
another vehicle's navigation/audio system, and the
HDD itself cannot be replaced.

Tracks that have been recorded to the HDD cannot
be reproduced in another medium (CD-R, MD, etc.)

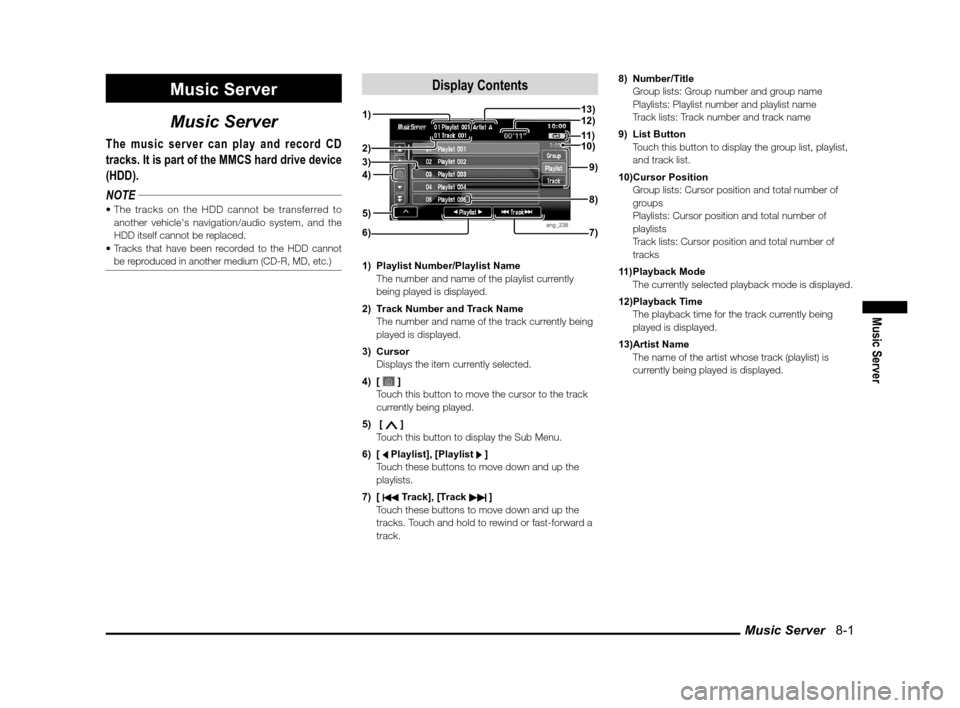

Display Contents
eng_338
1) Playlist Number/Playlist Name
The number and name of the playlist currently being played is displayed.
2) Track Number and Track Name
The number and name of the track currently being played is displayed.
3) Cursor
Displays the item currently selected.
4) [
]
T
ouch this button to move the cursor to the track
currently being played.
5) [
]
Touch this button to display the Sub Menu.
6) [ Playlist], [Playlist ]
Touch these buttons to move down and up the
playlists.
7) [
Track], [Track ]
Touch these buttons to move down and up the
tracks. Touch and hold to rewind or fast-forward a
track. 8) Number/Title
Group lists: Group number and group name
Playlists: Playlist number and playlist name
Track lists: Track number and track name
9) List Button
Touch this button to display the group list, playlist,
and track list.
10) Cursor Position
Group lists: Cursor position and total number of groups
Playlists: Cursor position and total number of playlists
Track lists: Cursor position and total number of tracks
11) Playback Mode
The currently selected playback mode is displayed.
12) Playback Time
The playback time for the track currently being played is displayed.
13) Artist Name
The name of the artist whose track (playlist) is currently being played is displayed.
4) 2)
1)
3)
6) 7) 8) 9)
10) 11 ) 13)
12)
5)
\b \b
\f \


 \b \b


Watching DVDs 9-1
Visual
Visual

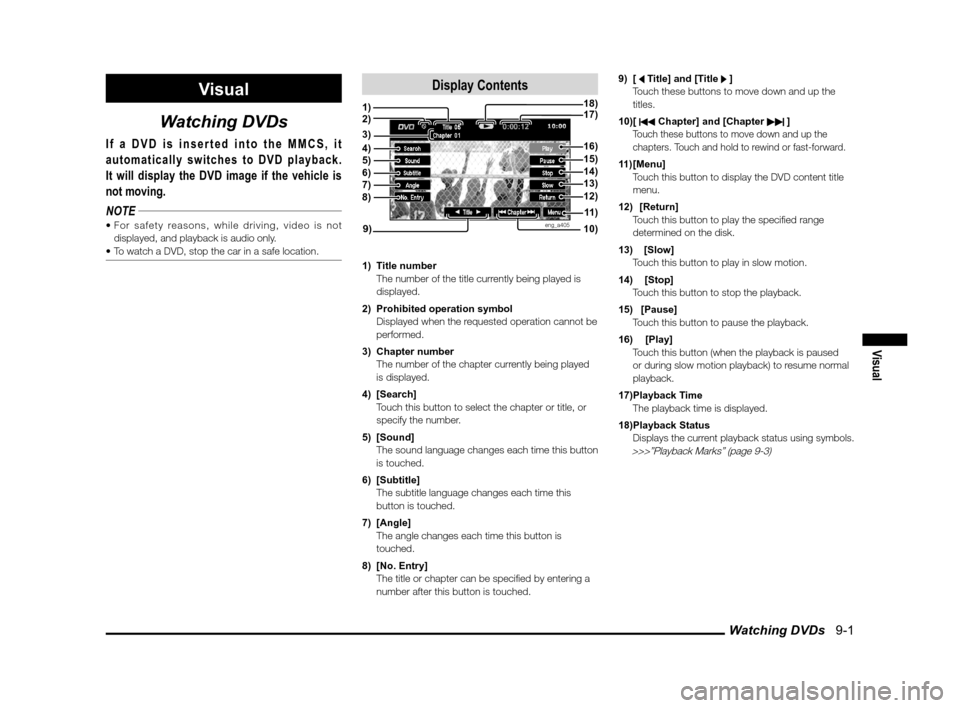

Watching DVDs
If a DVD is inserted into the MMCS, it
automatically switches to DVD playback.
It will display the DVD image if the vehicle is
not moving.
NOTE
displayed, and playback is audio only.

Display Contents
eng_a405
1) Title number
The number of the title currently being played is displayed.
2) Prohibited operation symbol
Displayed when the requested operation cannot be performed.
3) Chapter number
The number of the chapter currently being played is displayed.
4) [Search]
Touch this button to select the chapter or title, or specify the number.
5) [Sound]
The sound language changes each time this button is touched.
6) [Subtitle]
The subtitle language changes each time this button is touched.
7) [Angle]
The angle changes each time this button is touched.
8) [No. Entry]
The title or chapter can be speci ed by entering a number after this button is touched. 9) [ Title] and [Title ]
Touch these buttons to move down and up the
titles.
10) [
Chapter] and [Chapter ] Touch these buttons to move down and up the chapters. Touch and hold to rewind or fast-forward.
11) [Menu]
Touch this button to display the DVD content title menu.
12) [Return]
Touch this button to play the speci ed range determined on the disk.
13) [Slow]
Touch this button to play in slow motion.
14) [Stop]
Touch this button to stop the playback.
15) [Pause]
Touch this button to pause the playback.
16) [Play]
Touch this button (when the playback is paused or during slow motion playback) to resume normal
playback.
17) Playback Time
The playback time is displayed.
18) Playback Status
Displays the current playback status using symbols.

>>>”Playback Marks” (page 9-3)
1)
10)
17)18)
9)
4)5)6)7)8)12)
11 )
3)
13)14)15)16)
2)
\b \b
\f \


 \b \b
\f

AUX / Video Entertainment System 9-12

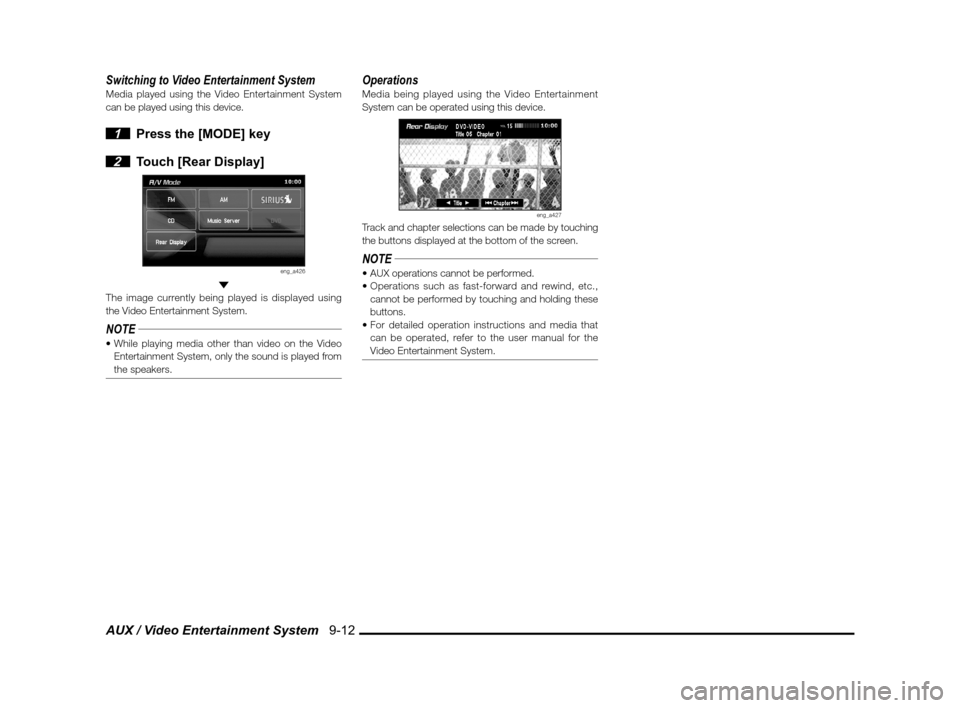

Switching to Video Entertainment SystemMedia played using the Video Entertainment System
can be played using this device.
1 Press the [MODE] key

2 Touch [Rear Display]
eng_a426
The image currently being played is displayed using
the Video Entertainment System.
NOTE Entertainment System, only the sound is played from
the speakers.
OperationsMedia being played using the Video Entertainment
System can be operated using this device.
eng_a427Track and chapter selections can be made by touching
the buttons displayed at the bottom of the screen.
NOTE
cannot be performed by touching and holding these
buttons.
can be operated, refer to the user manual for the
Video Entertainment System.
\b \b
\f \


 \b \b
