MITSUBISHI iMiEV 2012 1.G Owner's Manual

1-6 General information/Charging
1

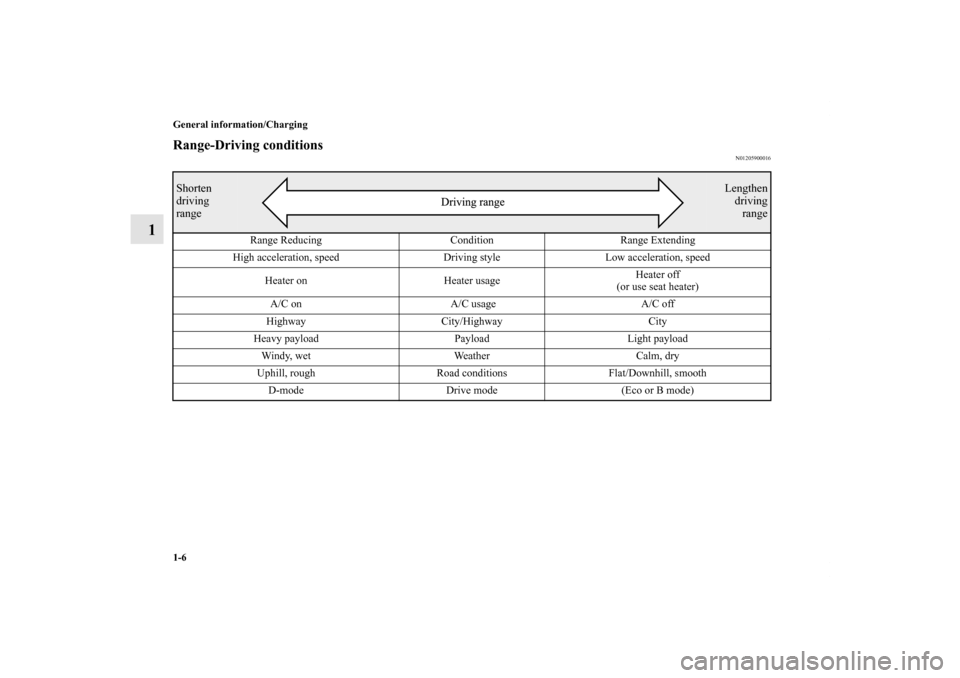

Range-Driving conditions
N01205900016
Shorten
driving
range

Lengthen
driving
range
Range Reducing Condition Range Extending
High acceleration, speed Driving style Low acceleration, speed
Heater on Heater usageHeater off
(or use seat heater)
A/C on A/C usage A/C off
Highway City/Highway City
Heavy payload Payload Light payload
Windy, wet Weather Calm, dry
Uphill, rough Road conditions Flat/Downhill, smooth
D-mode Drive mode (Eco or B mode)
BK0140800US.book 6 ページ ２０１１年９月２９日　木曜日　午後３時２８分

General information/Charging
1-7

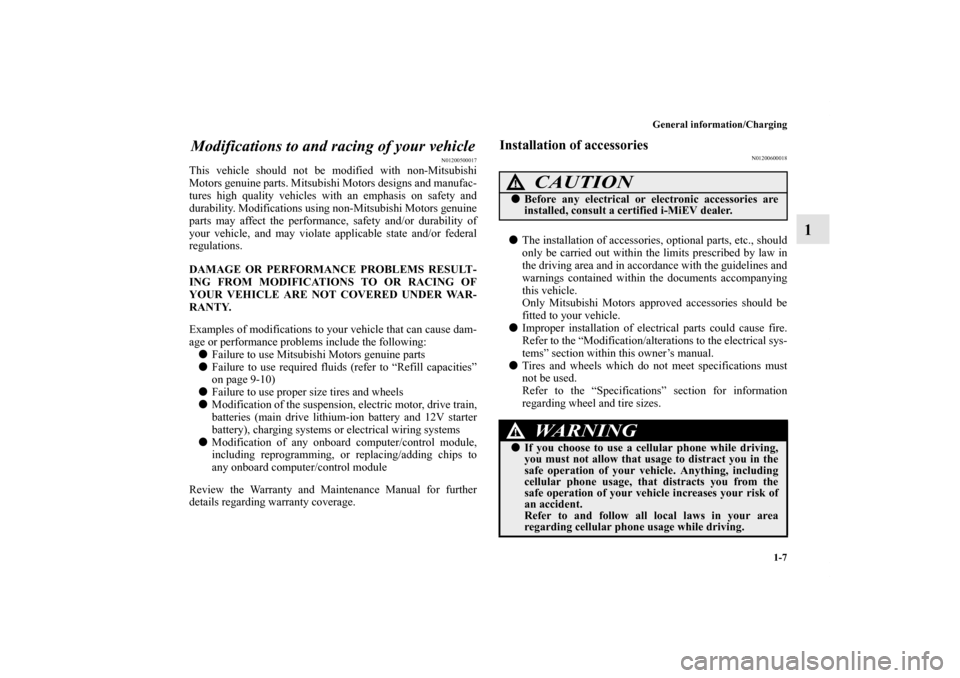

1 Modifications to and racing of your vehicle
N01200500017
This vehicle should not be modified with non-Mitsubishi
Motors genuine parts. Mitsubishi Motors designs and manufac-
tures high quality vehicles with an emphasis on safety and
durability. Modifications using non-Mitsubishi Motors genuine
parts may affect the performance, safety and/or durability of
your vehicle, and may violate applicable state and/or federal
regulations.
DAMAGE OR PERFORMANCE PROBLEMS RESULT-
ING FROM MODIFICATIONS TO OR RACING OF
YOUR VEHICLE ARE NOT COVERED UNDER WAR-
RANTY.
Examples of modifications to your vehicle that can cause dam-
age or performance problems include the following:

Failure to use Mitsubishi Motors genuine parts

Failure to use required fluids (refer to “Refill capacities”
on page 9-10)

Failure to use proper size tires and wheels

Modification of the suspension, electric motor, drive train,
batteries (main drive lithium-ion battery and 12V starter
battery), charging systems or electrical wiring systems

Modification of any onboard computer/control module,
including reprogramming, or replacing/adding chips to
any onboard computer/control module
Review the Warranty and Maintenance Manual for further
details regarding warranty coverage.
Installation of accessories
N01200600018

The installation of accessories, optional parts, etc., should
only be carried out within the limits prescribed by law in
the driving area and in accordance with the guidelines and
warnings contained within the documents accompanying
this vehicle.
Only Mitsubishi Motors approved accessories should be
fitted to your vehicle.

Improper installation of electrical parts could cause fire.
Refer to the “Modification/alterations to the electrical sys-
tems” section within this owner’s manual.

Tires and wheels which do not meet specifications must
not be used.
Refer to the “Specifications” section for information
regarding wheel and tire sizes.
CAUTION
!
Before any electrical or electronic accessories are
installed, consult a certified i-MiEV dealer.
WA R N I N G
!
If you choose to use a cellular phone while driving,
you must not allow that usage to distract you in the
safe operation of your vehicle. Anything, including
cellular phone usage, that distracts you from the
safe operation of your vehicle increases your risk of
an accident.
Refer to and follow all local laws in your area
regarding cellular phone usage while driving.
BK0140800US.book 7 ページ ２０１１年９月２９日　木曜日　午後３時２８分

1-8 General information/Charging
1

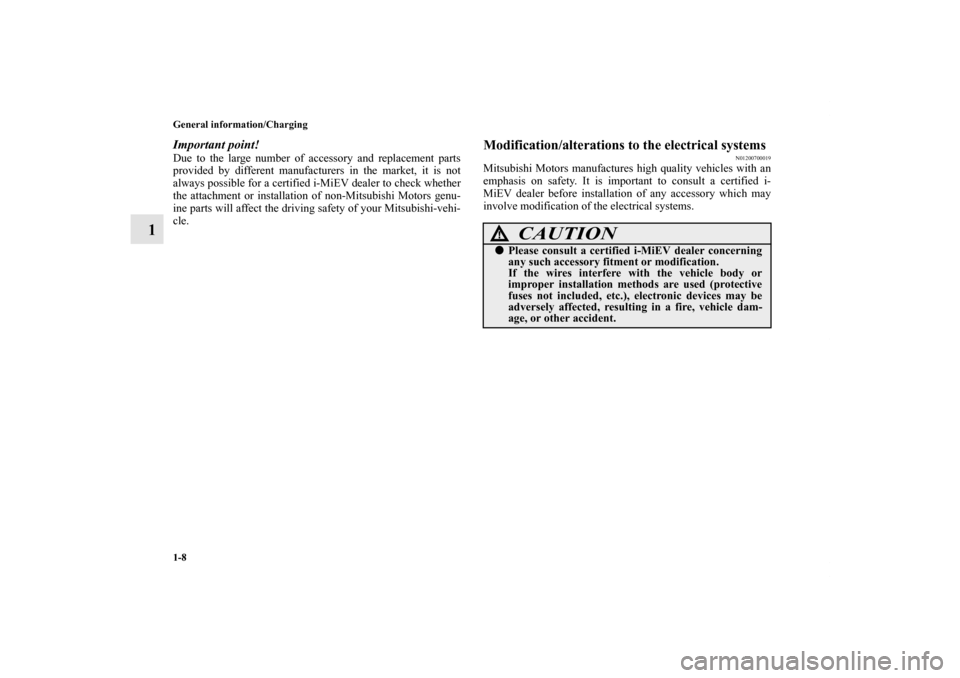

Important point!Due to the large number of accessory and replacement parts
provided by different manufacturers in the market, it is not
always possible for a certified i-MiEV dealer to check whether
the attachment or installation of non-Mitsubishi Motors genu-
ine parts will affect the driving safety of your Mitsubishi-vehi-
cle.
Modification/alterations to the electrical systems
N01200700019
Mitsubishi Motors manufactures high quality vehicles with an
emphasis on safety. It is important to consult a certified i-
MiEV dealer before installation of any accessory which may
involve modification of the electrical systems.
CAUTION
!
Please consult a certified i-MiEV dealer concerning
any such accessory fitment or modification.
If the wires interfere with the vehicle body or
improper installation methods are used (protective
fuses not included, etc.), electronic devices may be
adversely affected, resulting in a fire, vehicle dam-
age, or other accident.
BK0140800US.book 8 ページ ２０１１年９月２９日　木曜日　午後３時２８分

General information/Charging
1-9

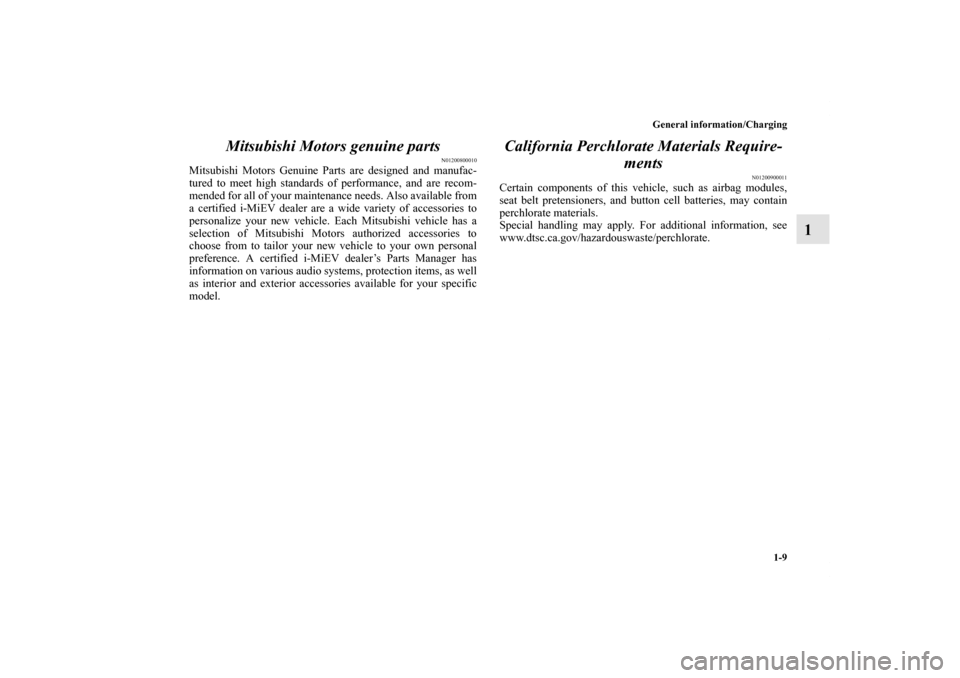

1 Mitsubishi Motors genuine parts
N01200800010
Mitsubishi Motors Genuine Parts are designed and manufac-
tured to meet high standards of performance, and are recom-
mended for all of your maintenance needs. Also available from
a certified i-MiEV dealer are a wide variety of accessories to
personalize your new vehicle. Each Mitsubishi vehicle has a
selection of Mitsubishi Motors authorized accessories to
choose from to tailor your new vehicle to your own personal
preference. A certified i-MiEV dealer’s Parts Manager has
information on various audio systems, protection items, as well
as interior and exterior accessories available for your specific
model.
California Perchlorate Materials Require-
ments
N01200900011
Certain components of this vehicle, such as airbag modules,
seat belt pretensioners, and button cell batteries, may contain
perchlorate materials.
Special handling may apply. For additional information, see
www.dtsc.ca.gov/hazardouswaste/perchlorate.
BK0140800US.book 9 ページ ２０１１年９月２９日　木曜日　午後３時２８分

1-10 General information/Charging

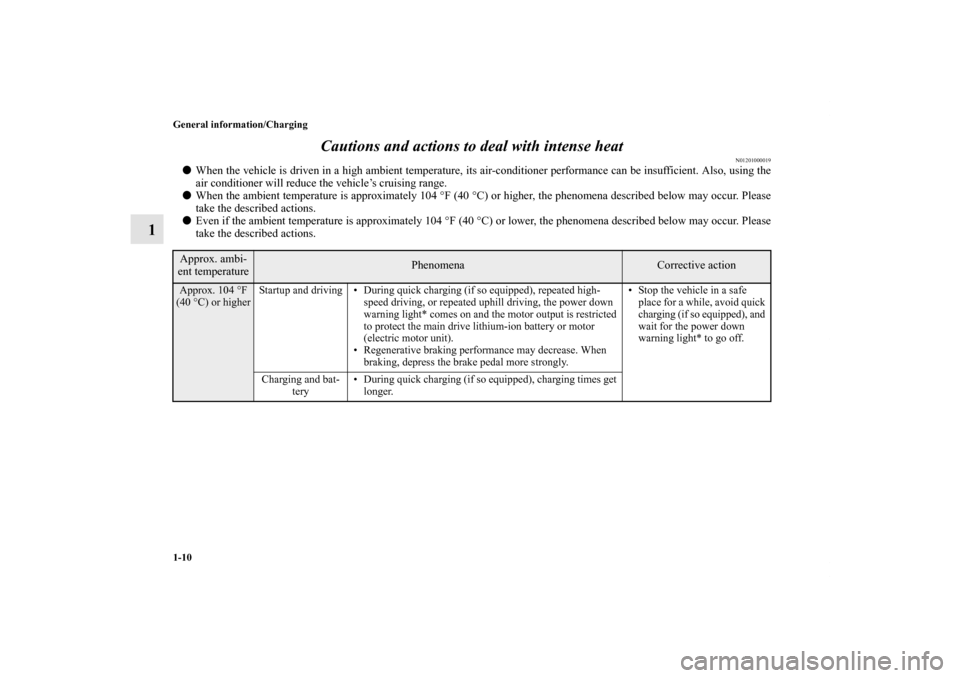

1Cautions and actions to deal with intense heat
N01201000019

When the vehicle is driven in a high ambient temperature, its air-conditioner performance can be insufficient. Also, using the
air conditioner will reduce the vehicle’s cruising range.

When the ambient temperature is approximately 104 °F (40 °C) or higher, the phenomena described below may occur. Please
take the described actions.

Even if the ambient temperature is approximately 104 °F (40 °C) or lower, the phenomena described below may occur. Please
take the described actions.Approx. ambi-
ent temperature
Phenomena
Corrective action
Approx. 104 °F
(40 °C) or higherStartup and driving •
•During quick charging (if so equipped), repeated high-
speed driving, or repeated uphill driving, the power down
warning light* comes on and the motor output is restricted
to protect the main drive lithium-ion battery or motor
(electric motor unit).
Regenerative braking performance may decrease. When
braking, depress the brake pedal more strongly.• Stop the vehicle in a safe
place for a while, avoid quick
charging (if so equipped), and
wait for the power down
warning light* to go off.
Charging and bat-
tery• During quick charging (if so equipped), charging times get
longer.
BK0140800US.book 10 ページ ２０１１年９月２９日　木曜日　午後３時２８分

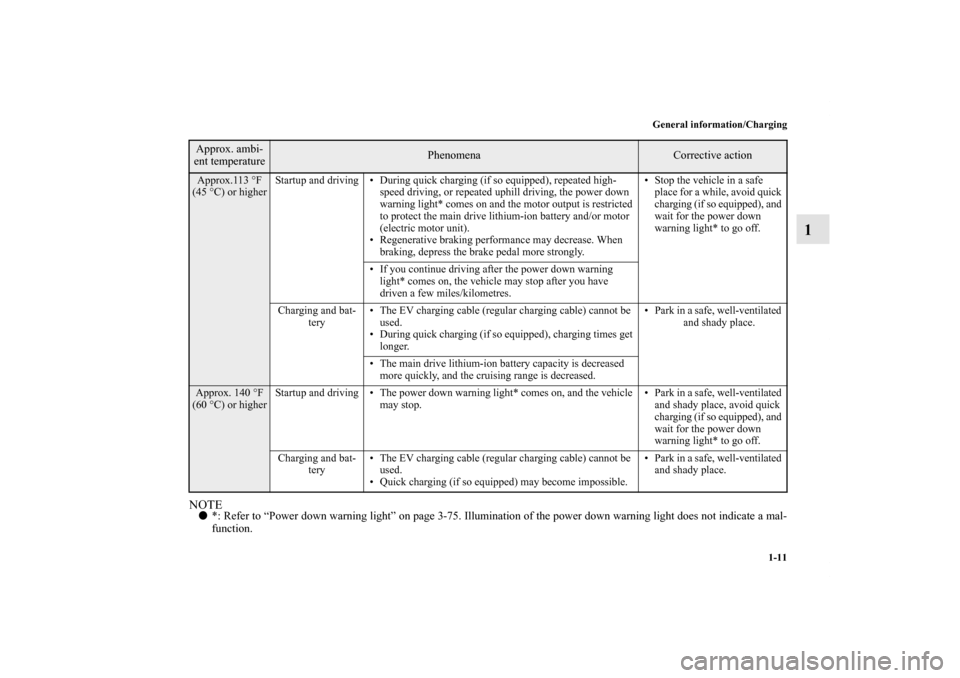

General information/Charging
1-11
1
NOTE
*: Refer to “Power down warning light” on page 3-75. Illumination of the power down warning light does not indicate a mal-
function.Approx.113 °F
(45 °C) or higherStartup and driving •
•During quick charging (if so equipped), repeated high-
speed driving, or repeated uphill driving, the power down
warning light* comes on and the motor output is restricted
to protect the main drive lithium-ion battery and/or motor
(electric motor unit).
Regenerative braking performance may decrease. When
braking, depress the brake pedal more strongly.• Stop the vehicle in a safe
place for a while, avoid quick
charging (if so equipped), and
wait for the power down
warning light* to go off.
• If you continue driving after the power down warning
light* comes on, the vehicle may stop after you have
driven a few miles/kilometres.
Charging and bat-
tery•
•The EV charging cable (regular charging cable) cannot be
used.
During quick charging (if so equipped), charging times get
longer.• Park in a safe, well-ventilated
and shady place.
• The main drive lithium-ion battery capacity is decreased
more quickly, and the cruising range is decreased.Approx. 140 °F
(60 °C) or higherStartup and driving • The power down warning light* comes on, and the vehicle
may stop.• Park in a safe, well-ventilated
and shady place, avoid quick
charging (if so equipped), and
wait for the power down
warning light* to go off.
Charging and bat-
tery•
•The EV charging cable (regular charging cable) cannot be
used.
Quick charging (if so equipped) may become impossible.• Park in a safe, well-ventilated
and shady place.Approx. ambi-
ent temperature
Phenomena
Corrective action
BK0140800US.book 11 ページ ２０１１年９月２９日　木曜日　午後３時２８分

1-12 General information/Charging

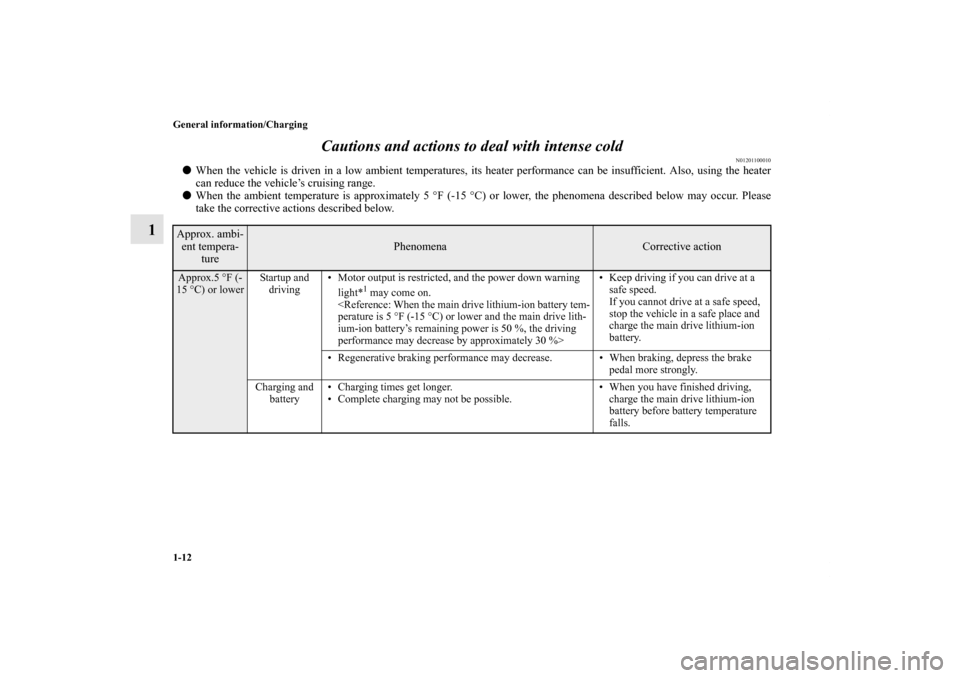

1Cautions and actions to deal with intense cold
N01201100010

When the vehicle is driven in a low ambient temperatures, its heater performance can be insufficient. Also, using the heater
can reduce the vehicle’s cruising range.

When the ambient temperature is approximately 5 °F (-15 °C) or lower, the phenomena described below may occur. Please
take the corrective actions described below.Approx. ambi-
ent tempera-
ture
Phenomena
Corrective action
Approx.5 °F (-
15 °C) or lowerStartup and
driving• Motor output is restricted, and the power down warning
light*
1 may come on.
perature is 5 °F (-15 °C) or lower and the main drive lith-
ium-ion battery’s remaining power is 50 %, the driving
performance may decrease by approximately 30 %>• Keep driving if you can drive at a
safe speed.
If you cannot drive at a safe speed,
stop the vehicle in a safe place and
charge the main drive lithium-ion
battery.
• Regenerative braking performance may decrease. • When braking, depress the brake
pedal more strongly.
Charging and
battery•
•Charging times get longer.
Complete charging may not be possible.• When you have finished driving,
charge the main drive lithium-ion
battery before battery temperature
falls.
BK0140800US.book 12 ページ ２０１１年９月２９日　木曜日　午後３時２８分

General information/Charging
1-13
1

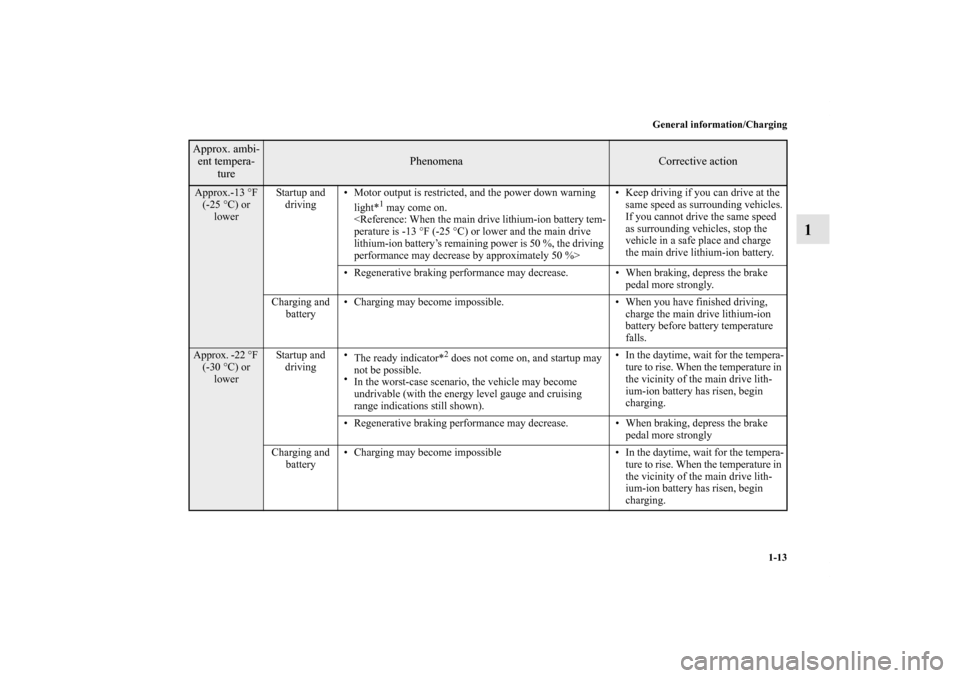

Approx.-13 °F
(-25 °C) or
lowerStartup and
driving• Motor output is restricted, and the power down warning
light*
1 may come on.
perature is -13 °F (-25 °C) or lower and the main drive
lithium-ion battery’s remaining power is 50 %, the driving
performance may decrease by approximately 50 %>• Keep driving if you can drive at the
same speed as surrounding vehicles.
If you cannot drive the same speed
as surrounding vehicles, stop the
vehicle in a safe place and charge
the main drive lithium-ion battery.
• Regenerative braking performance may decrease. • When braking, depress the brake
pedal more strongly.
Charging and
battery• Charging may become impossible. • When you have finished driving,
charge the main drive lithium-ion
battery before battery temperature
falls.
Approx. -22 °F
(-30 °C) or
lowerStartup and
driving•
•The ready indicator*
2 does not come on, and startup may
not be possible.
In the worst-case scenario, the vehicle may become
undrivable (with the energy level gauge and cruising
range indications still shown).• In the daytime, wait for the tempera-
ture to rise. When the temperature in
the vicinity of the main drive lith-
ium-ion battery has risen, begin
charging.
• Regenerative braking performance may decrease. • When braking, depress the brake
pedal more strongly
Charging and
battery• Charging may become impossible • In the daytime, wait for the tempera-
ture to rise. When the temperature in
the vicinity of the main drive lith-
ium-ion battery has risen, begin
charging.
Approx. ambi-
ent tempera-
ture
Phenomena
Corrective action
BK0140800US.book 13 ページ ２０１１年９月２９日　木曜日　午後３時２８分

1-14 General information/Charging
1

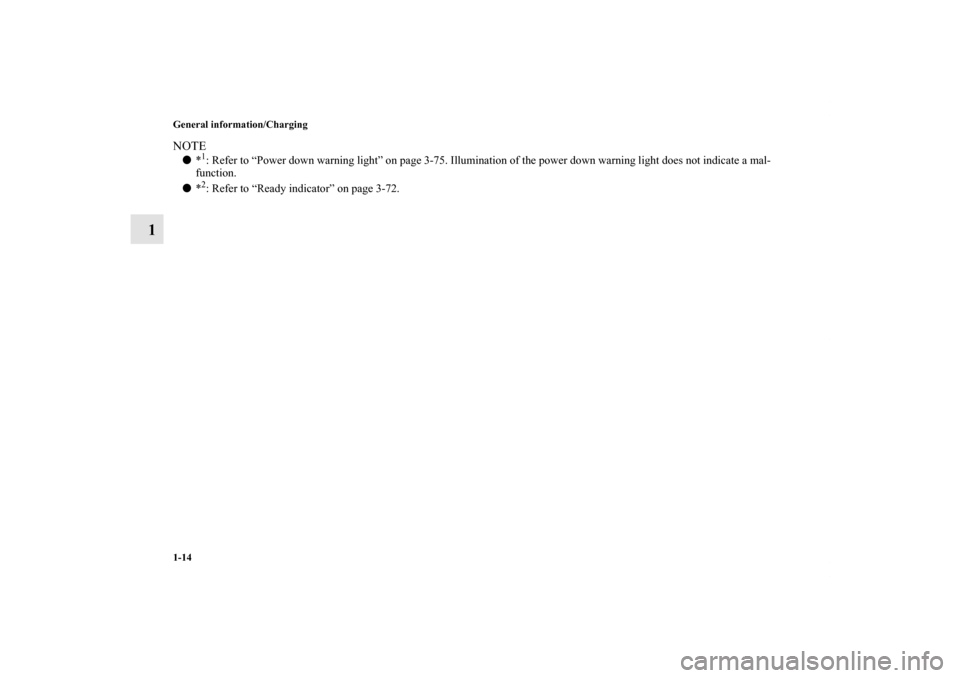

NOTE
*
1: Refer to “Power down warning light” on page 3-75. Illumination of the power down warning light does not indicate a mal-
function.

*2: Refer to “Ready indicator” on page 3-72.
BK0140800US.book 14 ページ ２０１１年９月２９日　木曜日　午後３時２８分

General information/Charging
1-15

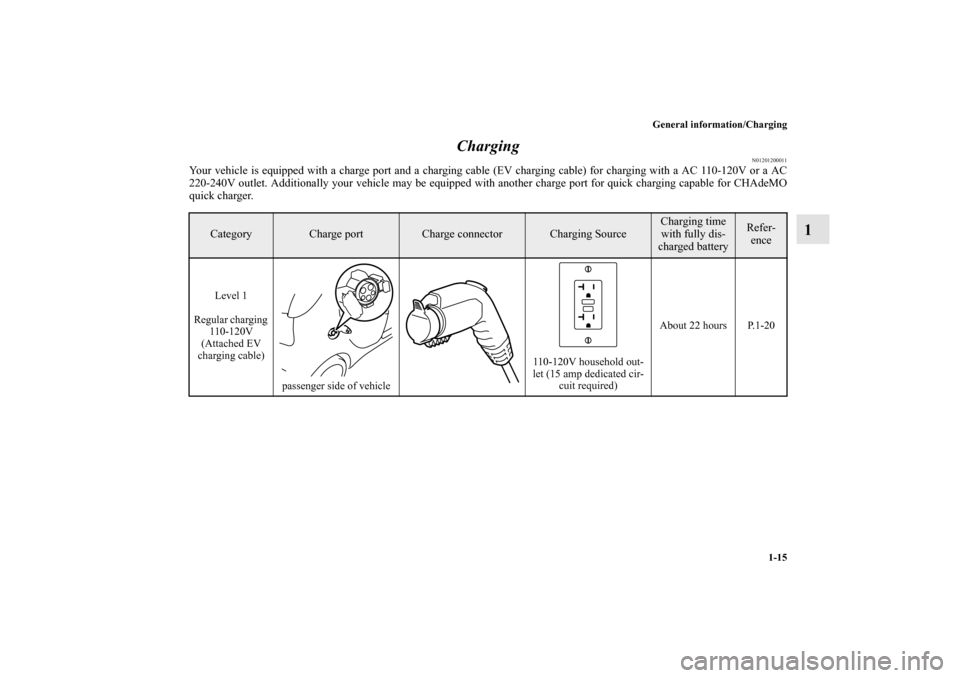

1 Charging
N01201200011
Your vehicle is equipped with a charge port and a charging cable (EV charging cable) for charging with a AC 110-120V or a AC
220-240V outlet. Additionally your vehicle may be equipped with another charge port for quick charging capable for CHAdeMO
quick charger.
Category
Charge port
Charge connector
Charging Source
Charging time
with fully dis-
charged battery
Refer-
ence
Level 1
Regular charging
110-120V
(Attached EV
charging cable)
passenger side of vehicle110-120V household out-
let (15 amp dedicated cir-
cuit required)About 22 hours P.1-20
BK0140800US.book 15 ページ ２０１１年９月２９日　木曜日　午後３時２８分
