2-12 Seat and restraint systems
2

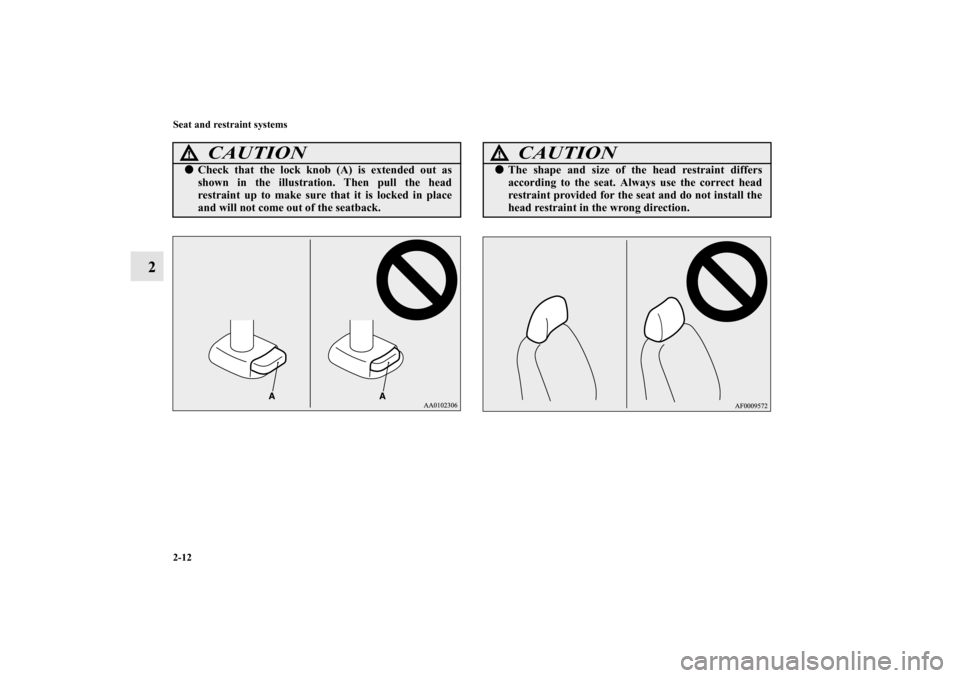

CAUTION
!
Check that the lock knob (A) is extended out as
shown in the illustration. Then pull the head
restraint up to make sure that it is locked in place
and will not come out of the seatback.
CAUTION
!
The shape and size of the head restraint differs
according to the seat. Always use the correct head
restraint provided for the seat and do not install the
head restraint in the wrong direction.
BK0140800US.book 12 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Seat and restraint systems
2-13

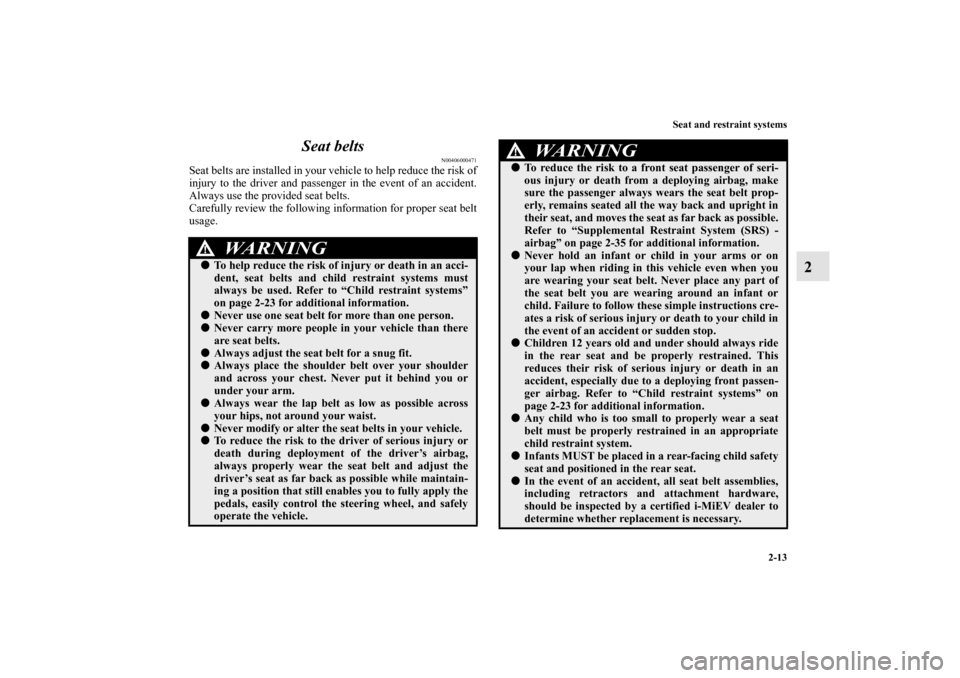

2 Seat belts
N00406000471
Seat belts are installed in your vehicle to help reduce the risk of
injury to the driver and passenger in the event of an accident.
Always use the provided seat belts.
Carefully review the following information for proper seat belt
usage.
WA R N I N G
!
To help reduce the risk of injury or death in an acci-
dent, seat belts and child restraint systems must
always be used. Refer to “Child restraint systems”
on page 2-23 for additional information.
Never use one seat belt for more than one person.
Never carry more people in your vehicle than there
are seat belts.
Always adjust the seat belt for a snug fit.
Always place the shoulder belt over your shoulder
and across your chest. Never put it behind you or
under your arm.
Always wear the lap belt as low as possible across
your hips, not around your waist.
Never modify or alter the seat belts in your vehicle.
To reduce the risk to the driver of serious injury or
death during deployment of the driver’s airbag,
always properly wear the seat belt and adjust the
driver’s seat as far back as possible while maintain-
ing a position that still enables you to fully apply the
pedals, easily control the steering wheel, and safely
operate the vehicle.

To reduce the risk to a front seat passenger of seri-
ous injury or death from a deploying airbag, make
sure the passenger always wears the seat belt prop-
erly, remains seated all the way back and upright in
their seat, and moves the seat as far back as possible.
Refer to “Supplemental Restraint System (SRS) -
airbag” on page 2-35 for additional information.
Never hold an infant or child in your arms or on
your lap when riding in this vehicle even when you
are wearing your seat belt. Never place any part of
the seat belt you are wearing around an infant or
child. Failure to follow these simple instructions cre-
ates a risk of serious injury or death to your child in
the event of an accident or sudden stop.
Children 12 years old and under should always ride
in the rear seat and be properly restrained. This
reduces their risk of serious injury or death in an
accident, especially due to a deploying front passen-
ger airbag. Refer to “Child restraint systems” on
page 2-23 for additional information.
Any child who is too small to properly wear a seat
belt must be properly restrained in an appropriate
child restraint system.
Infants MUST be placed in a rear-facing child safety
seat and positioned in the rear seat.
In the event of an accident, all seat belt assemblies,
including retractors and attachment hardware,
should be inspected by a certified i-MiEV dealer to
determine whether replacement is necessary.
WA R N I N G
!
BK0140800US.book 13 ページ ２０１１年９月２９日　木曜日　午後３時２８分

2-14 Seat and restraint systems
2

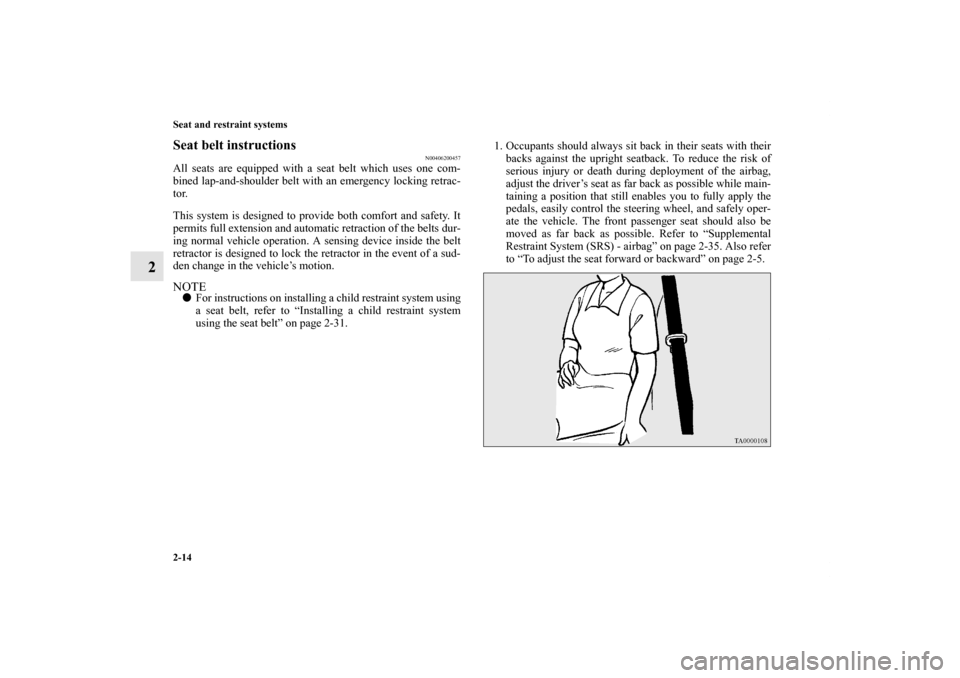

Seat belt instructions
N00406200457
All seats are equipped with a seat belt which uses one com-
bined lap-and-shoulder belt with an emergency locking retrac-
tor.
This system is designed to provide both comfort and safety. It
permits full extension and automatic retraction of the belts dur-
ing normal vehicle operation. A sensing device inside the belt
retractor is designed to lock the retractor in the event of a sud-
den change in the vehicle’s motion.NOTE
For instructions on installing a child restraint system using
a seat belt, refer to “Installing a child restraint system
using the seat belt” on page 2-31.1. Occupants should always sit back in their seats with their
backs against the upright seatback. To reduce the risk of
serious injury or death during deployment of the airbag,
adjust the driver’s seat as far back as possible while main-
taining a position that still enables you to fully apply the
pedals, easily control the steering wheel, and safely oper-
ate the vehicle. The front passenger seat should also be
moved as far back as possible. Refer to “Supplemental
Restraint System (SRS) - airbag” on page 2-35. Also refer
to “To adjust the seat forward or backward” on page 2-5.
BK0140800US.book 14 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Seat and restraint systems
2-15
2

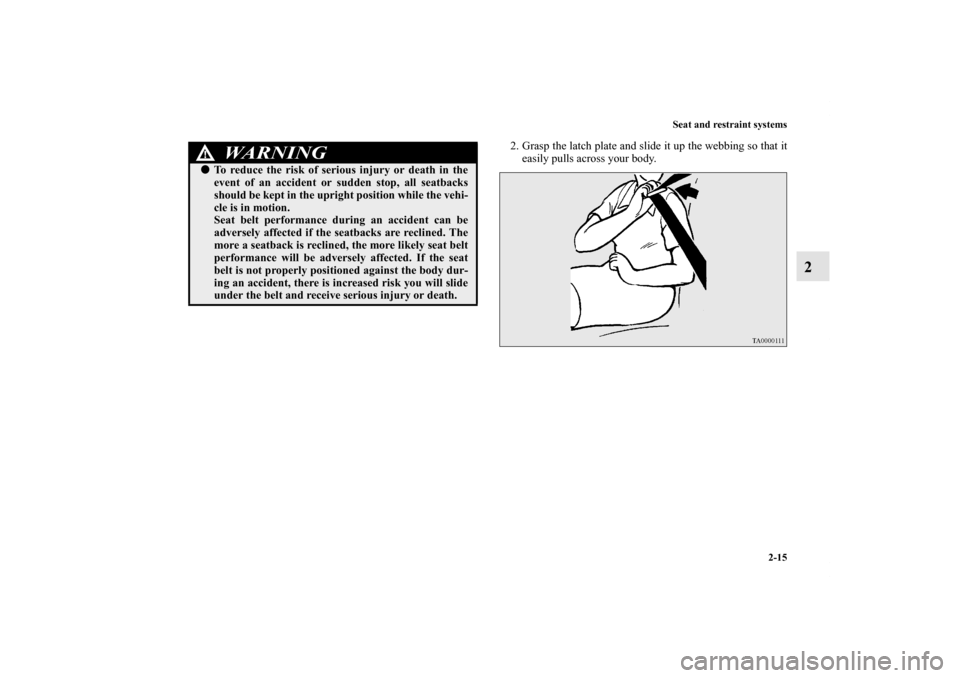

2. Grasp the latch plate and slide it up the webbing so that it
easily pulls across your body.
WA R N I N G
!
To reduce the risk of serious injury or death in the
event of an accident or sudden stop, all seatbacks
should be kept in the upright position while the vehi-
cle is in motion.
Seat belt performance during an accident can be
adversely affected if the seatbacks are reclined. The
more a seatback is reclined, the more likely seat belt
performance will be adversely affected. If the seat
belt is not properly positioned against the body dur-
ing an accident, there is increased risk you will slide
under the belt and receive serious injury or death.
BK0140800US.book 15 ページ ２０１１年９月２９日　木曜日　午後３時２８分

2-16 Seat and restraint systems
2

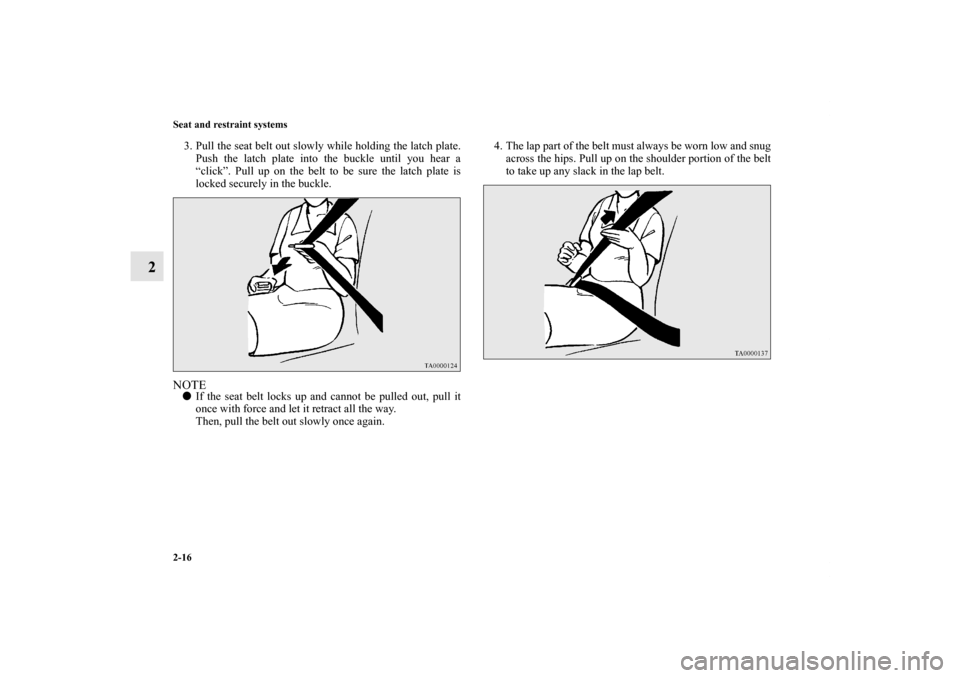

3. Pull the seat belt out slowly while holding the latch plate.
Push the latch plate into the buckle until you hear a
“click”. Pull up on the belt to be sure the latch plate is
locked securely in the buckle.NOTE
If the seat belt locks up and cannot be pulled out, pull it
once with force and let it retract all the way.
Then, pull the belt out slowly once again.4. The lap part of the belt must always be worn low and snug
across the hips. Pull up on the shoulder portion of the belt
to take up any slack in the lap belt.
BK0140800US.book 16 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Seat and restraint systems
2-17
2

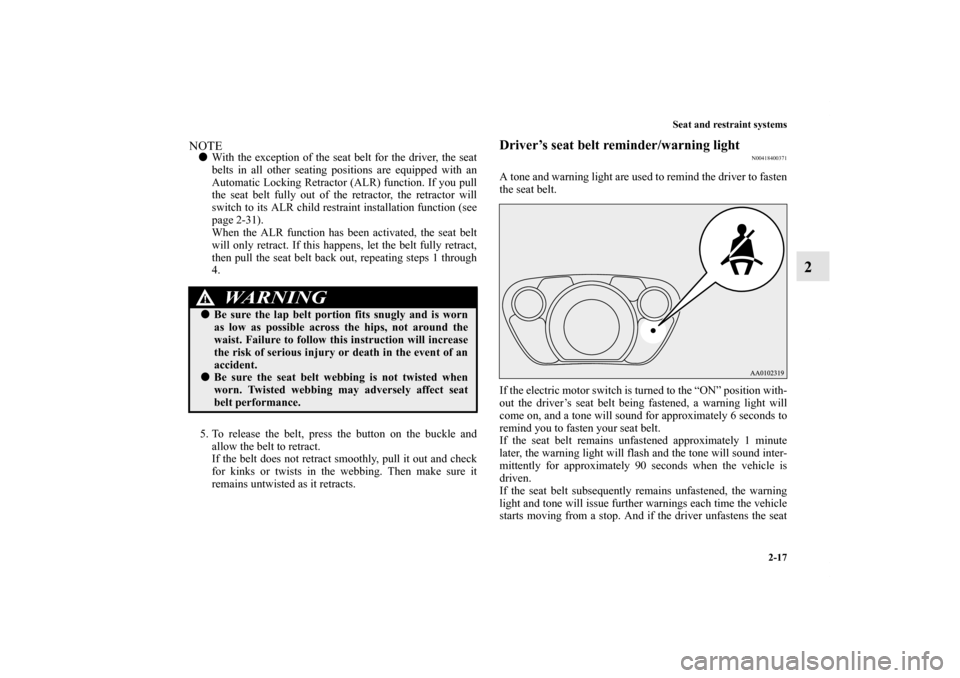

NOTE
With the exception of the seat belt for the driver, the seat
belts in all other seating positions are equipped with an
Automatic Locking Retractor (ALR) function. If you pull
the seat belt fully out of the retractor, the retractor will
switch to its ALR child restraint installation function (see
page 2-31).
When the ALR function has been activated, the seat belt
will only retract. If this happens, let the belt fully retract,
then pull the seat belt back out, repeating steps 1 through
4.
5. To release the belt, press the button on the buckle and
allow the belt to retract.
If the belt does not retract smoothly, pull it out and check
for kinks or twists in the webbing. Then make sure it
remains untwisted as it retracts.
Driver’s seat belt reminder/warning light
N00418400371
A tone and warning light are used to remind the driver to fasten
the seat belt.
If the electric motor switch is turned to the “ON” position with-
out the driver’s seat belt being fastened, a warning light will
come on, and a tone will sound for approximately 6 seconds to
remind you to fasten your seat belt.
If the seat belt remains unfastened approximately 1 minute
later, the warning light will flash and the tone will sound inter-
mittently for approximately 90 seconds when the vehicle is
driven.
If the seat belt subsequently remains unfastened, the warning
light and tone will issue further warnings each time the vehicle
starts moving from a stop. And if the driver unfastens the seat
WA R N I N G
!
Be sure the lap belt portion fits snugly and is worn
as low as possible across the hips, not around the
waist. Failure to follow this instruction will increase
the risk of serious injury or death in the event of an
accident.
Be sure the seat belt webbing is not twisted when
worn. Twisted webbing may adversely affect seat
belt performance.
BK0140800US.book 17 ページ ２０１１年９月２９日　木曜日　午後３時２８分

2-18 Seat and restraint systems
2
belt while driving, the warning will operate in the same way.
When the seat belt is fastened, the warnings will stop.

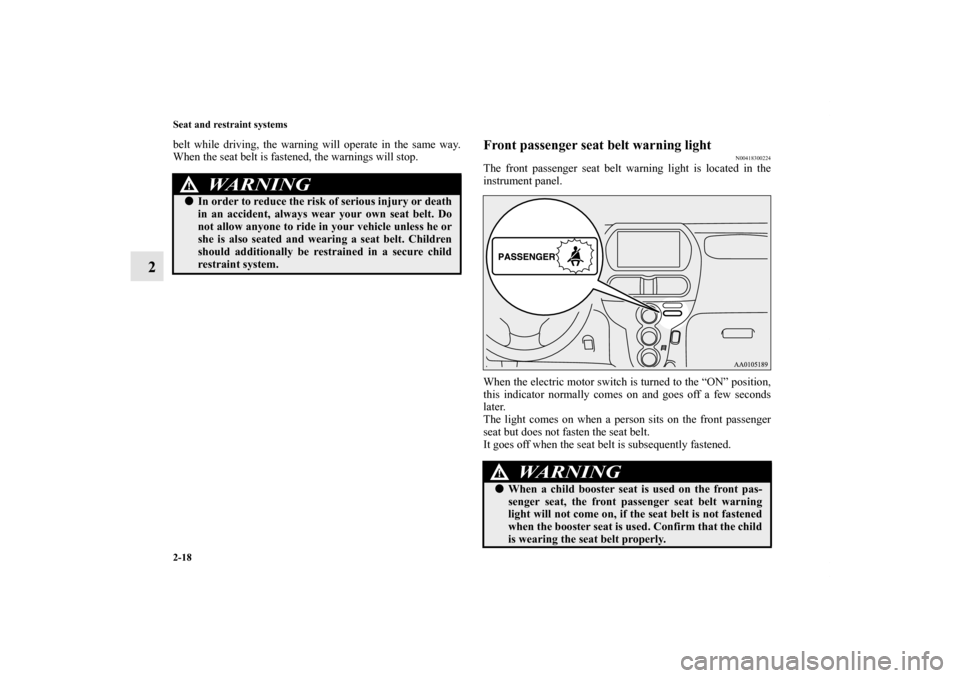

Front passenger seat belt warning light
N00418300224
The front passenger seat belt warning light is located in the
instrument panel.
When the electric motor switch is turned to the “ON” position,
this indicator normally comes on and goes off a few seconds
later.
The light comes on when a person sits on the front passenger
seat but does not fasten the seat belt.
It goes off when the seat belt is subsequently fastened.
WA R N I N G
!
In order to reduce the risk of serious injury or death
in an accident, always wear your own seat belt. Do
not allow anyone to ride in your vehicle unless he or
she is also seated and wearing a seat belt. Children
should additionally be restrained in a secure child
restraint system.
WA R N I N G
!
When a child booster seat is used on the front pas-
senger seat, the front passenger seat belt warning
light will not come on, if the seat belt is not fastened
when the booster seat is used. Confirm that the child
is wearing the seat belt properly.
BK0140800US.book 18 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Seat and restraint systems
2-19
2

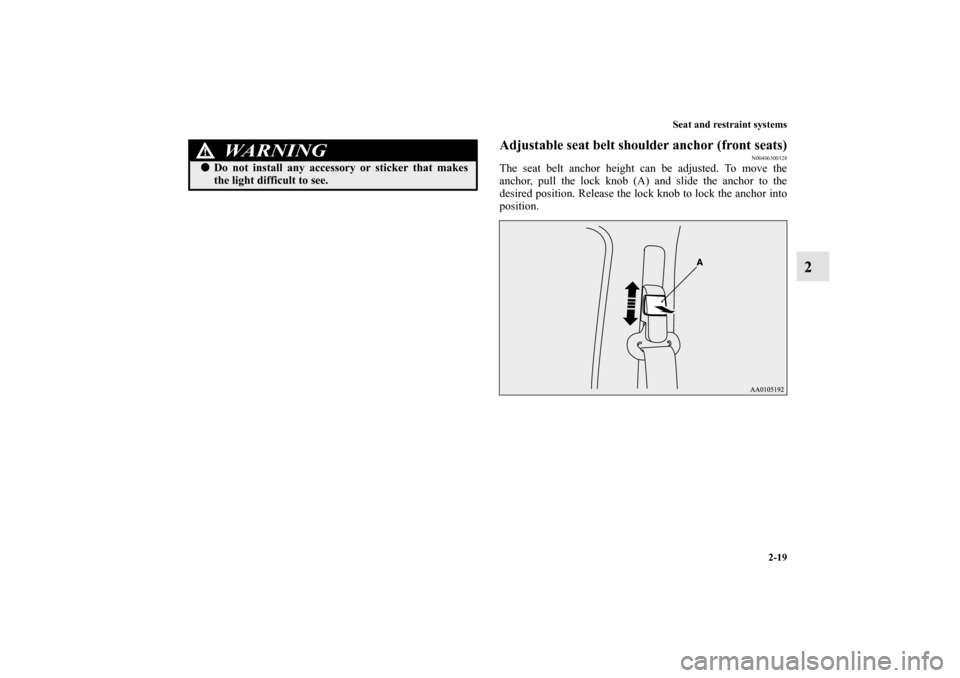

Adjustable seat belt shoulder anchor (front seats)
N00406300328
The seat belt anchor height can be adjusted. To move the
anchor, pull the lock knob (A) and slide the anchor to the
desired position. Release the lock knob to lock the anchor into
position.

Do not install any accessory or sticker that makes
the light difficult to see.
WA R N I N G
!
BK0140800US.book 19 ページ ２０１１年９月２９日　木曜日　午後３時２８分

2-20 Seat and restraint systems
2

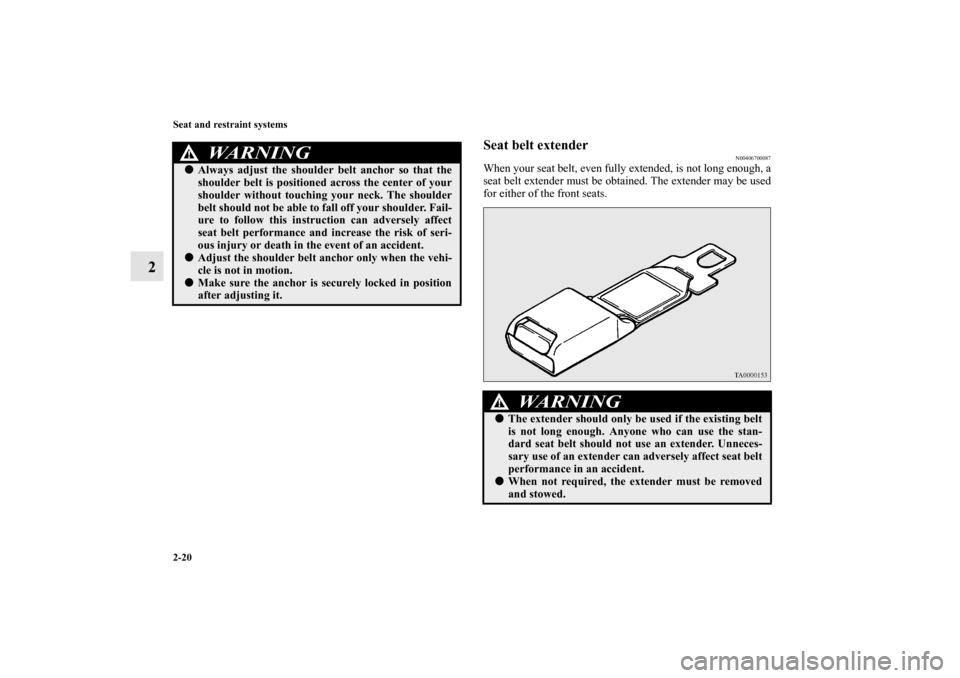

Seat belt extender
N00406700087
When your seat belt, even fully extended, is not long enough, a
seat belt extender must be obtained. The extender may be used
for either of the front seats.
WA R N I N G
!
Always adjust the shoulder belt anchor so that the
shoulder belt is positioned across the center of your
shoulder without touching your neck. The shoulder
belt should not be able to fall off your shoulder. Fail-
ure to follow this instruction can adversely affect
seat belt performance and increase the risk of seri-
ous injury or death in the event of an accident.
Adjust the shoulder belt anchor only when the vehi-
cle is not in motion.
Make sure the anchor is securely locked in position
after adjusting it.
WA R N I N G
!
The extender should only be used if the existing belt
is not long enough. Anyone who can use the stan-
dard seat belt should not use an extender. Unneces-
sary use of an extender can adversely affect seat belt
performance in an accident.
When not required, the extender must be removed
and stowed.
BK0140800US.book 20 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Seat and restraint systems
2-21

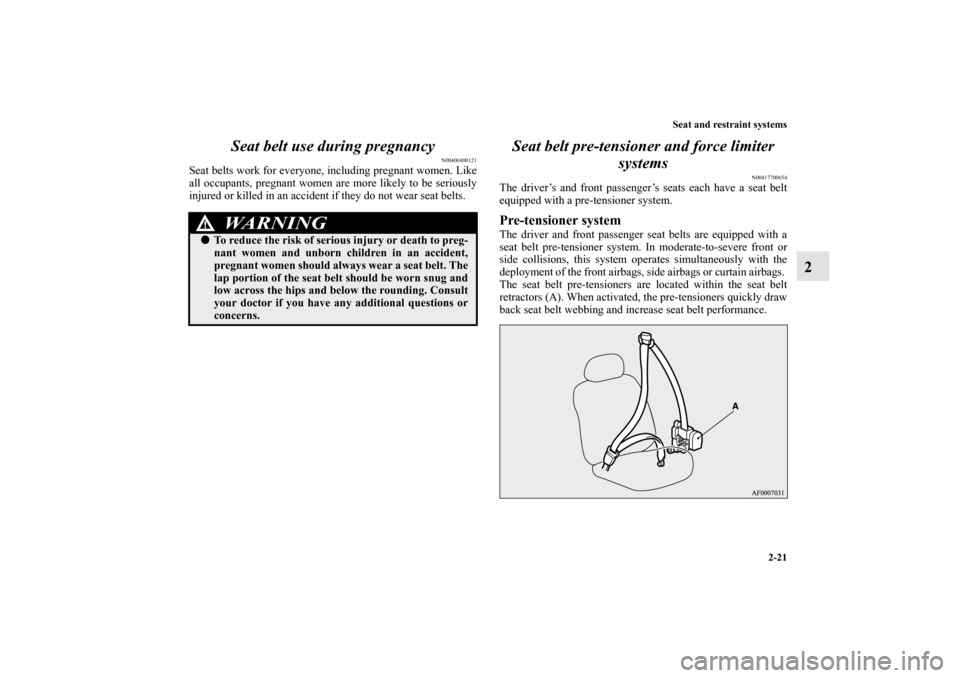

2 Seat belt use during pregnancy
N00406800121
Seat belts work for everyone, including pregnant women. Like
all occupants, pregnant women are more likely to be seriously
injured or killed in an accident if they do not wear seat belts.
Seat belt pre-tensioner and force limiter
systems
N00417700654
The driver’s and front passenger’s seats each have a seat belt
equipped with a pre-tensioner system.Pre-tensioner system The driver and front passenger seat belts are equipped with a
seat belt pre-tensioner system. In moderate-to-severe front or
side collisions, this system operates simultaneously with the
deployment of the front airbags, side airbags or curtain airbags.
The seat belt pre-tensioners are located within the seat belt
retractors (A). When activated, the pre-tensioners quickly draw
back seat belt webbing and increase seat belt performance.
WA R N I N G
!
To reduce the risk of serious injury or death to preg-
nant women and unborn children in an accident,
pregnant women should always wear a seat belt. The
lap portion of the seat belt should be worn snug and
low across the hips and below the rounding. Consult
your doctor if you have any additional questions or
concerns.
BK0140800US.book 21 ページ ２０１１年９月２９日　木曜日　午後３時２８分
