2-42 Seat and restraint systems
2

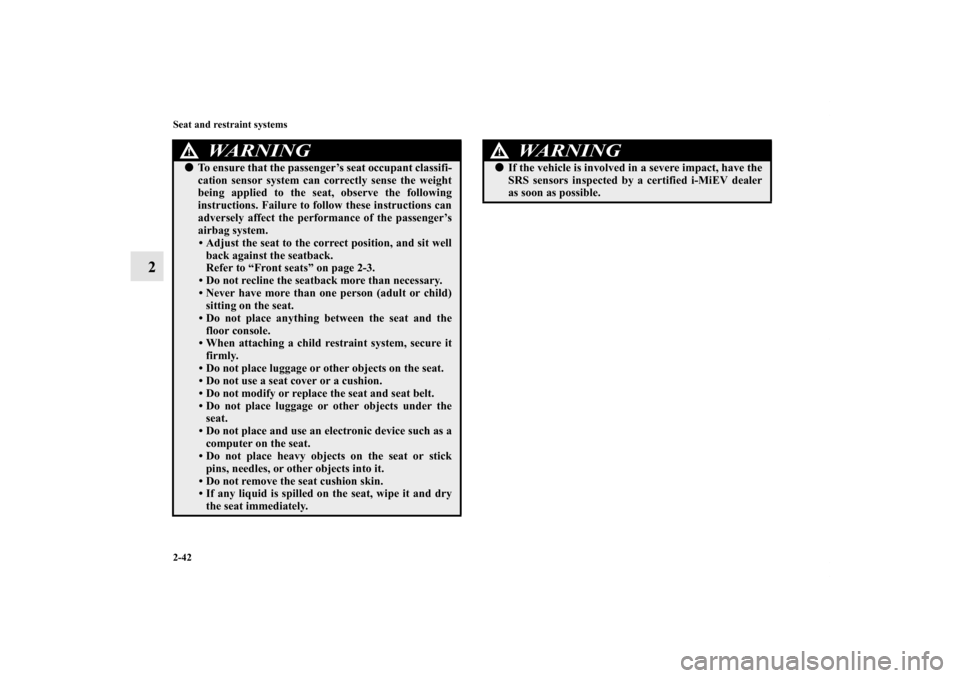

To ensure that the passenger’s seat occupant classifi-
cation sensor system can correctly sense the weight
being applied to the seat, observe the following
instructions. Failure to follow these instructions can
adversely affect the performance of the passenger’s
airbag system.
• Adjust the seat to the correct position, and sit well
back against the seatback.
Refer to “Front seats” on page 2-3.
• Do not recline the seatback more than necessary.
• Never have more than one person (adult or child)
sitting on the seat.
• Do not place anything between the seat and the
floor console.
• When attaching a child restraint system, secure it
firmly.
• Do not place luggage or other objects on the seat.
• Do not use a seat cover or a cushion.
• Do not modify or replace the seat and seat belt.
• Do not place luggage or other objects under the
seat.
• Do not place and use an electronic device such as a
computer on the seat.
• Do not place heavy objects on the seat or stick
pins, needles, or other objects into it.
• Do not remove the seat cushion skin.
• If any liquid is spilled on the seat, wipe it and dry
the seat immediately.WA R N I N G
!

If the vehicle is involved in a severe impact, have the
SRS sensors inspected by a certified i-MiEV dealer
as soon as possible.
WA R N I N G
!
BK0140800US.book 42 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Seat and restraint systems
2-43
2

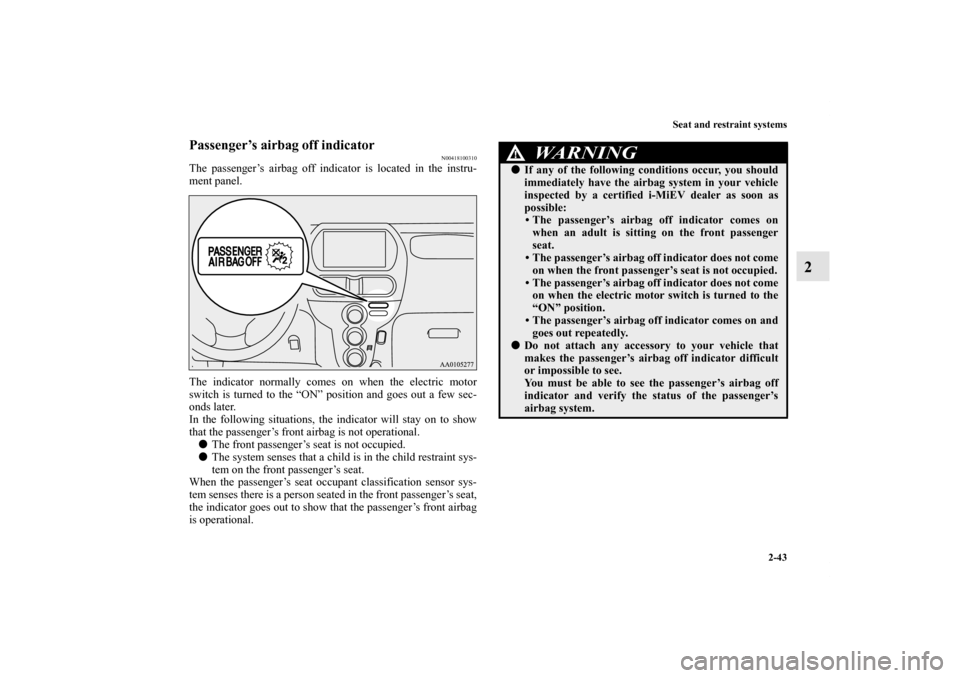

Passenger’s airbag off indicator
N00418100310
The passenger’s airbag off indicator is located in the instru-
ment panel.
The indicator normally comes on when the electric motor
switch is turned to the “ON” position and goes out a few sec-
onds later.
In the following situations, the indicator will stay on to show
that the passenger’s front airbag is not operational.

The front passenger’s seat is not occupied.

The system senses that a child is in the child restraint sys-
tem on the front passenger’s seat.
When the passenger’s seat occupant classification sensor sys-
tem senses there is a person seated in the front passenger’s seat,
the indicator goes out to show that the passenger’s front airbag
is operational.
WA R N I N G
!
If any of the following conditions occur, you should
immediately have the airbag system in your vehicle
inspected by a certified i-MiEV dealer as soon as
possible:
• The passenger’s airbag off indicator comes on
when an adult is sitting on the front passenger
seat.
• The passenger’s airbag off indicator does not come
on when the front passenger’s seat is not occupied.
• The passenger’s airbag off indicator does not come
on when the electric motor switch is turned to the
“ON” position.
• The passenger’s airbag off indicator comes on and
goes out repeatedly.

Do not attach any accessory to your vehicle that
makes the passenger’s airbag off indicator difficult
or impossible to see.
You must be able to see the passenger’s airbag off
indicator and verify the status of the passenger’s
airbag system.
BK0140800US.book 43 ページ ２０１１年９月２９日　木曜日　午後３時２８分

2-44 Seat and restraint systems
2

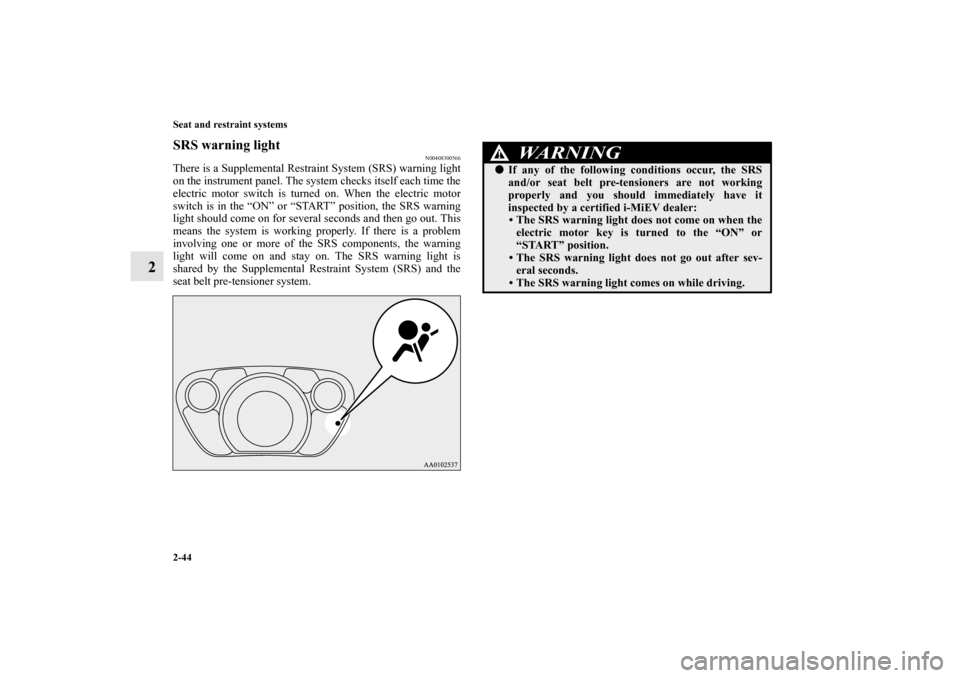

SRS warning light
N00408300566
There is a Supplemental Restraint System (SRS) warning light
on the instrument panel. The system checks itself each time the
electric motor switch is turned on. When the electric motor
switch is in the “ON” or “START” position, the SRS warning
light should come on for several seconds and then go out. This
means the system is working properly. If there is a problem
involving one or more of the SRS components, the warning
light will come on and stay on. The SRS warning light is
shared by the Supplemental Restraint System (SRS) and the
seat belt pre-tensioner system.
WA R N I N G
!
If any of the following conditions occur, the SRS
and/or seat belt pre-tensioners are not working
properly and you should immediately have it
inspected by a certified i-MiEV dealer:
• The SRS warning light does not come on when the
electric motor key is turned to the “ON” or
“START” position.
• The SRS warning light does not go out after sev-
eral seconds.
• The SRS warning light comes on while driving.
BK0140800US.book 44 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Seat and restraint systems
2-45
2

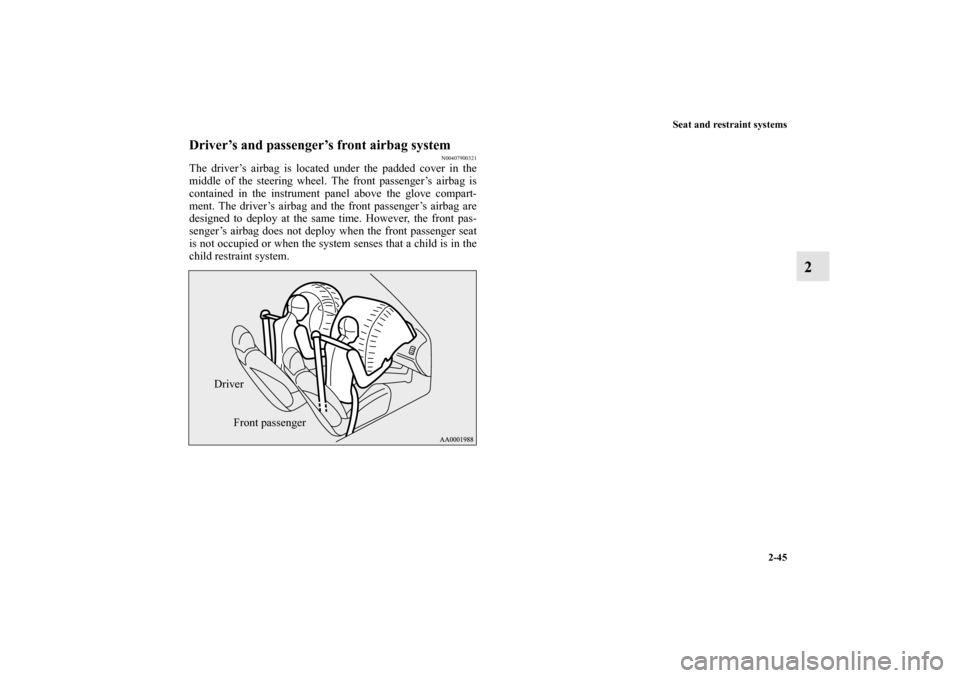

Driver’s and passenger’s front airbag system
N00407900321
The driver’s airbag is located under the padded cover in the
middle of the steering wheel. The front passenger’s airbag is
contained in the instrument panel above the glove compart-
ment. The driver’s airbag and the front passenger’s airbag are
designed to deploy at the same time. However, the front pas-
senger’s airbag does not deploy when the front passenger seat
is not occupied or when the system senses that a child is in the
child restraint system.
Driver
Front passenger
BK0140800US.book 45 ページ ２０１１年９月２９日　木曜日　午後３時２８分

2-46 Seat and restraint systems
2

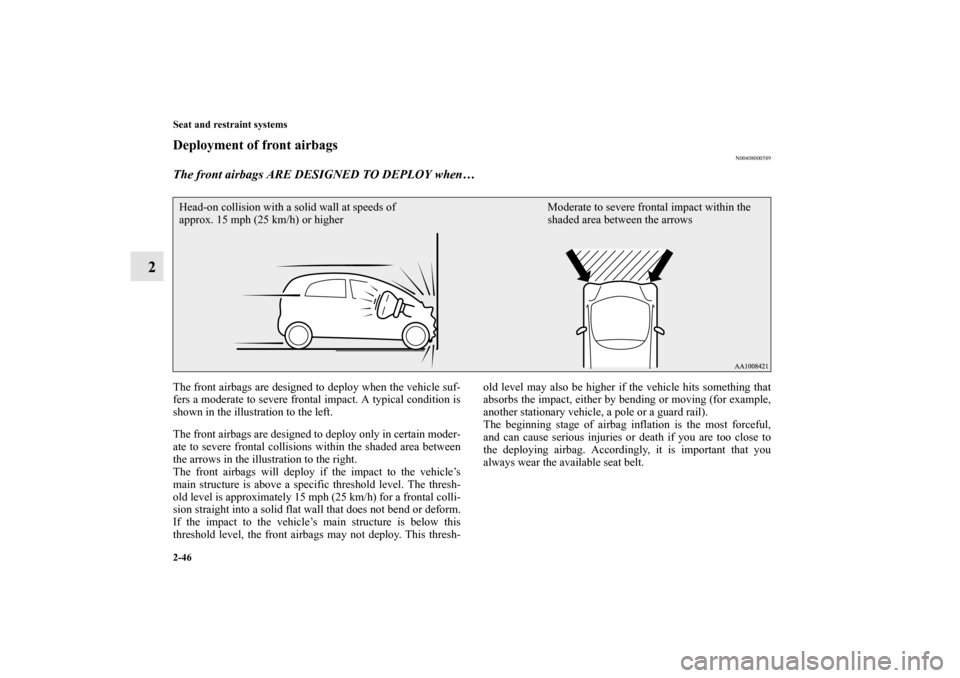

Deployment of front airbags
N00408000589
The front airbags ARE DESIGNED TO DEPLOY when… The front airbags are designed to deploy when the vehicle suf-
fers a moderate to severe frontal impact. A typical condition is
shown in the illustration to the left.
The front airbags are designed to deploy only in certain moder-
ate to severe frontal collisions within the shaded area between
the arrows in the illustration to the right.
The front airbags will deploy if the impact to the vehicle’s
main structure is above a specific threshold level. The thresh-
old level is approximately 15 mph (25 km/h) for a frontal colli-
sion straight into a solid flat wall that does not bend or deform.
If the impact to the vehicle’s main structure is below this
threshold level, the front airbags may not deploy. This thresh-old level may also be higher if the vehicle hits something that
absorbs the impact, either by bending or moving (for example,
another stationary vehicle, a pole or a guard rail).
The beginning stage of airbag inflation is the most forceful,
and can cause serious injuries or death if you are too close to
the deploying airbag. Accordingly, it is important that you
always wear the available seat belt. Head-on collision with a solid wall at speeds of
approx. 15 mph (25 km/h) or higherModerate to severe frontal impact within the
shaded area between the arrowsBK0140800US.book 46 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Seat and restraint systems
2-47
2

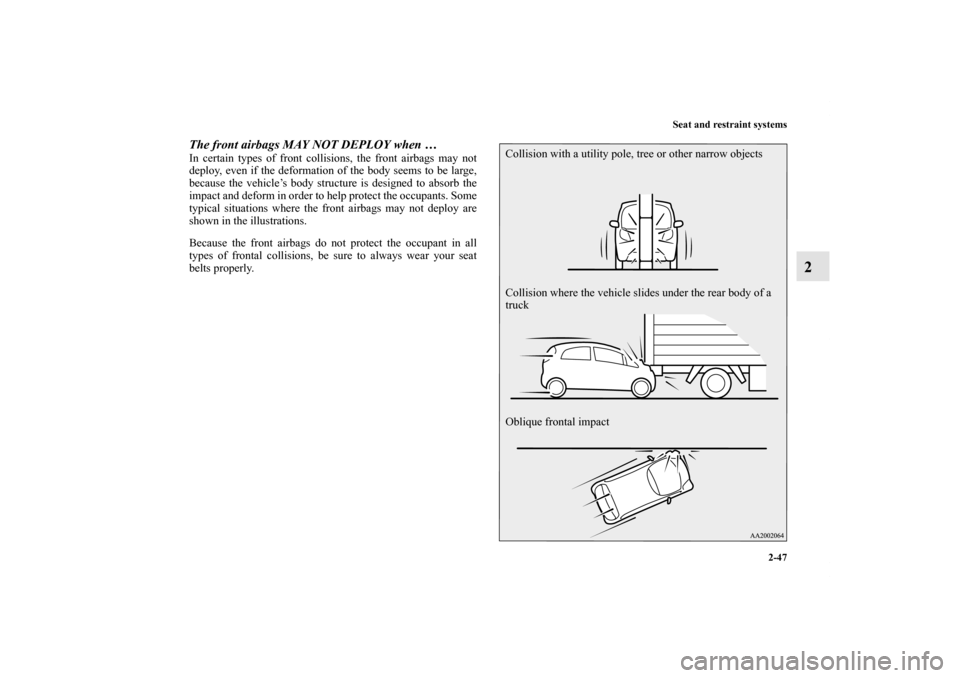

The front airbags MAY NOT DEPLOY when … In certain types of front collisions, the front airbags may not
deploy, even if the deformation of the body seems to be large,
because the vehicle’s body structure is designed to absorb the
impact and deform in order to help protect the occupants. Some
typical situations where the front airbags may not deploy are
shown in the illustrations.
Because the front airbags do not protect the occupant in all
types of frontal collisions, be sure to always wear your seat
belts properly.
Collision with a utility pole, tree or other narrow objects
Collision where the vehicle slides under the rear body of a
truck
Oblique frontal impact
BK0140800US.book 47 ページ ２０１１年９月２９日　木曜日　午後３時２８分

2-48 Seat and restraint systems
2

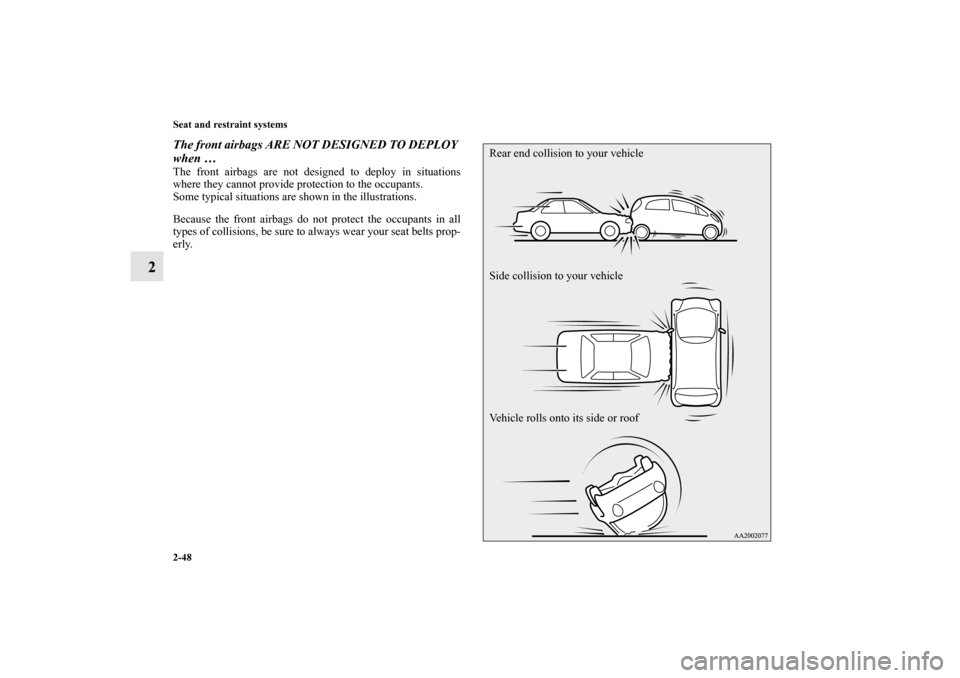

The front airbags ARE NOT DESIGNED TO DEPLOY
when …The front airbags are not designed to deploy in situations
where they cannot provide protection to the occupants.
Some typical situations are shown in the illustrations.
Because the front airbags do not protect the occupants in all
types of collisions, be sure to always wear your seat belts prop-
erly.
Rear end collision to your vehicle
Side collision to your vehicle
Vehicle rolls onto its side or roof
BK0140800US.book 48 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Seat and restraint systems
2-49
2

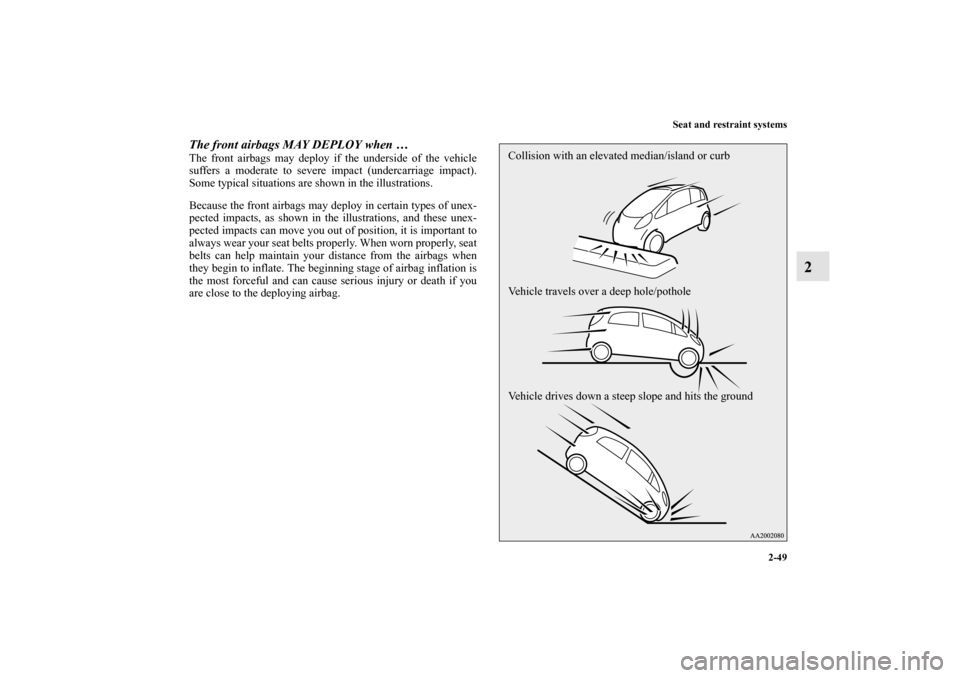

The front airbags MAY DEPLOY when … The front airbags may deploy if the underside of the vehicle
suffers a moderate to severe impact (undercarriage impact).
Some typical situations are shown in the illustrations.
Because the front airbags may deploy in certain types of unex-
pected impacts, as shown in the illustrations, and these unex-
pected impacts can move you out of position, it is important to
always wear your seat belts properly. When worn properly, seat
belts can help maintain your distance from the airbags when
they begin to inflate. The beginning stage of airbag inflation is
the most forceful and can cause serious injury or death if you
are close to the deploying airbag.
Collision with an elevated median/island or curb
Vehicle travels over a deep hole/pothole
Vehicle drives down a steep slope and hits the ground
BK0140800US.book 49 ページ ２０１１年９月２９日　木曜日　午後３時２８分

2-50 Seat and restraint systems
2

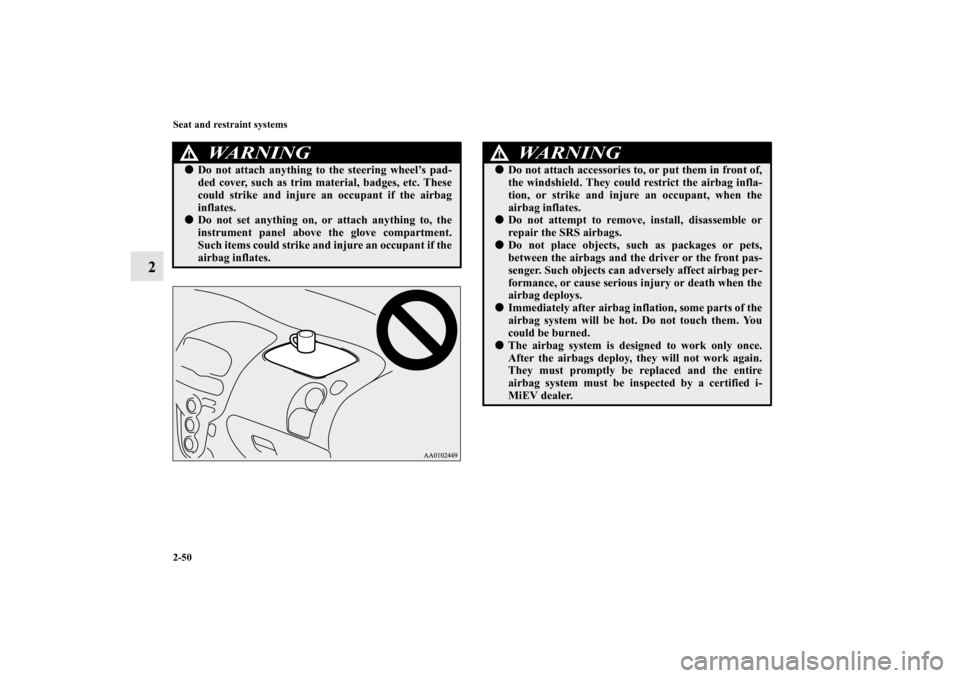

WA R N I N G
!
Do not attach anything to the steering wheel’s pad-
ded cover, such as trim material, badges, etc. These
could strike and injure an occupant if the airbag
inflates.
Do not set anything on, or attach anything to, the
instrument panel above the glove compartment.
Such items could strike and injure an occupant if the
airbag inflates.
WA R N I N G
!
Do not attach accessories to, or put them in front of,
the windshield. They could restrict the airbag infla-
tion, or strike and injure an occupant, when the
airbag inflates.
Do not attempt to remove, install, disassemble or
repair the SRS airbags.
Do not place objects, such as packages or pets,
between the airbags and the driver or the front pas-
senger. Such objects can adversely affect airbag per-
formance, or cause serious injury or death when the
airbag deploys.
Immediately after airbag inflation, some parts of the
airbag system will be hot. Do not touch them. You
could be burned.
The airbag system is designed to work only once.
After the airbags deploy, they will not work again.
They must promptly be replaced and the entire
airbag system must be inspected by a certified i-
MiEV dealer.
BK0140800US.book 50 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Seat and restraint systems
2-51
2

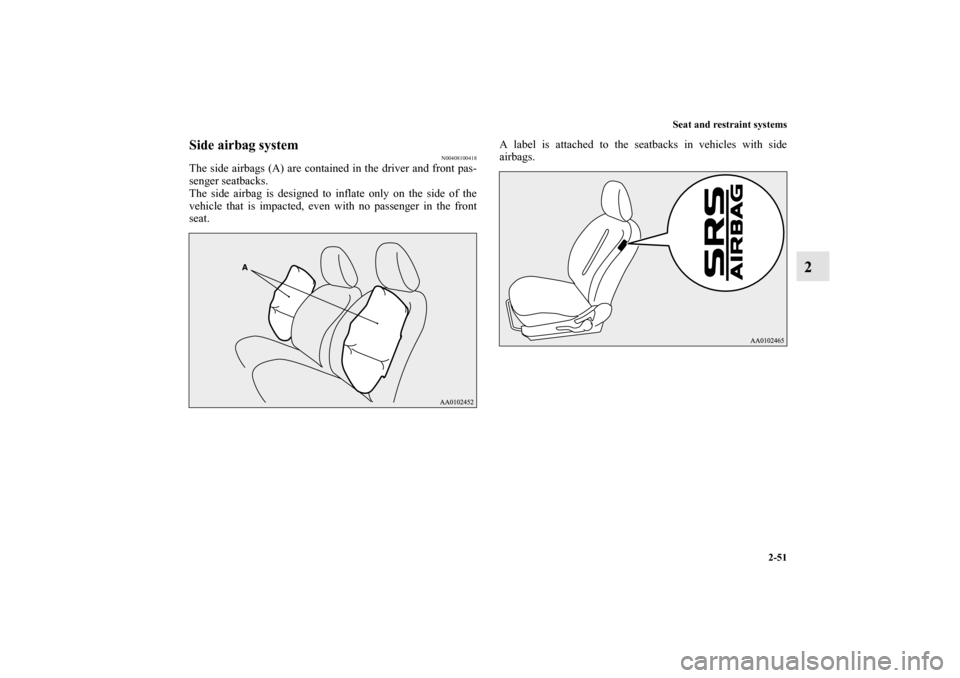

Side airbag system
N00408100418
The side airbags (A) are contained in the driver and front pas-
senger seatbacks.
The side airbag is designed to inflate only on the side of the
vehicle that is impacted, even with no passenger in the front
seat.A label is attached to the seatbacks in vehicles with side
airbags.
BK0140800US.book 51 ページ ２０１１年９月２９日　木曜日　午後３時２８分
