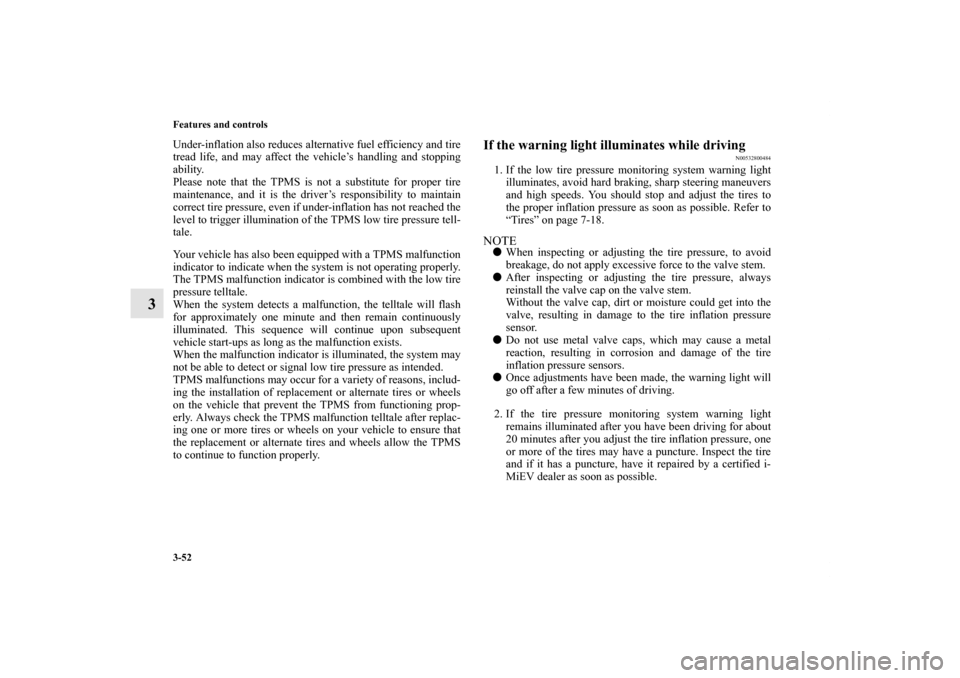

3-52 Features and controls
3
Under-inflation also reduces alternative fuel efficiency and tire
tread life, and may affect the vehicle’s handling and stopping
ability.
Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver’s responsibility to maintain
correct tire pressure, even if under-inflation has not reached the
level to trigger illumination of the TPMS low tire pressure tell-
tale.
Your vehicle has also been equipped with a TPMS malfunction
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale.
When the system detects a malfunction, the telltale will flash
for approximately one minute and then remain continuously
illuminated. This sequence will continue upon subsequent
vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, includ-
ing the installation of replacement or alternate tires or wheels
on the vehicle that prevent the TPMS from functioning prop-
erly. Always check the TPMS malfunction telltale after replac-
ing one or more tires or wheels on your vehicle to ensure that
the replacement or alternate tires and wheels allow the TPMS
to continue to function properly.
If the warning light illuminates while driving
N00532800484
1. If the low tire pressure monitoring system warning light
illuminates, avoid hard braking, sharp steering maneuvers
and high speeds. You should stop and adjust the tires to
the proper inflation pressure as soon as possible. Refer to
“Tires” on page 7-18.NOTE
When inspecting or adjusting the tire pressure, to avoid
breakage, do not apply excessive force to the valve stem.

After inspecting or adjusting the tire pressure, always
reinstall the valve cap on the valve stem.
Without the valve cap, dirt or moisture could get into the
valve, resulting in damage to the tire inflation pressure
sensor.

Do not use metal valve caps, which may cause a metal
reaction, resulting in corrosion and damage of the tire
inflation pressure sensors.

Once adjustments have been made, the warning light will
go off after a few minutes of driving.
2. If the tire pressure monitoring system warning light
remains illuminated after you have been driving for about
20 minutes after you adjust the tire inflation pressure, one
or more of the tires may have a puncture. Inspect the tire
and if it has a puncture, have it repaired by a certified i-
MiEV dealer as soon as possible.
BK0140800US.book 52 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Features and controls
3-53
3
NOTE
To avoid the risk of damage to the tire inflation pressure
sensors, have any punctured tire repaired by a certified i-
MiEV dealer. If the tire repair is not done by a certified i-
MiEV dealer, it is not covered by your warranty.

Do not use an aerosol puncture-repair spray on any tire.
Such a spray could damage the tire inflation pressure sen-
sors.

Using the tire repair kit may damage the tire inflation
pressure sensor. The vehicle must promptly be inspected
and repaired by a certified i-MiEV dealer after using the
tire repair kit.The tire pressure monitoring system may not work normally in
the following circumstances:

A wireless facility or device using the same frequency is
near the vehicle.

Snow or ice is stuck inside the fenders and/or on the
wheels.

The tire inflation pressure sensors’ battery is exhausted.

Wheels other than Mitsubishi Motors genuine wheels are
being used.

Wheels that are not fitted with tire inflation pressure sen-
sors are being used.

Wheels whose ID codes are not memorized by the vehicle
are used.

A window tint that affects the radio wave signals is
installed.
NOTE
Tire inflation pressures vary with the ambient tempera-
ture. If the vehicle is subjected to large variations in ambi-
ent temperature, the tire inflation pressures may be under-
inflated (causing the warning light to come on) when the
ambient temperature is relatively low. If the warning light
comes on, adjust the tire inflation pressure.
WA R N I N G
!
If the tire pressure monitoring system warning light
illuminates while you are driving, avoid hard brak-
ing, sharp steering maneuvers and high speeds.
Driving with an under-inflated tire adversely affects
vehicle performance and can result in an accident.
CAUTION
!
The tire pressure monitoring system warning light
may not illuminate immediately in the event of a tire
blowout or rapid leak.
BK0140800US.book 53 ページ ２０１１年９月２９日　木曜日　午後３時２８分

3-54 Features and controls
3
Whenever the tires and wheels are replaced with
new ones
N00532900182
If you use new wheels with new tire inflation pressure sensors,
their ID codes must be programmed into the tire pressure mon-
itoring system. Have tire and wheel replacement performed by
a certified i-MiEV dealer to avoid the risk of damaging the tire
inflation pressure sensors.
General information
N00533000207
Your tire pressure monitoring system operates on a radio fre-
quency subject to Federal Communications Commission
(FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada
Rules (For vehicles sold in Canada). This device complies with
Part 15 of the FCC Rules and RSS- Gen of the Industry Canada
Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
CAUTION
!
The use of non-genuine wheels will prevent the
proper fit of the tire inflation pressure sensors,
resulting air leakage or damage of the sensors.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0140800US.book 54 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Features and controls
3-55

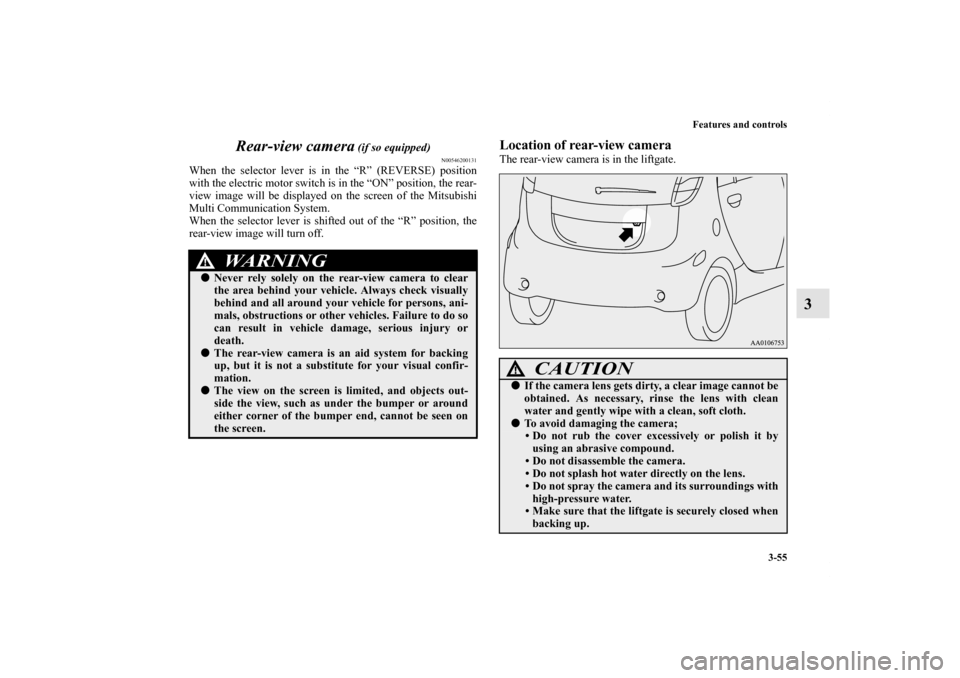

3 Rear-view camera
(if so equipped)
N00546200131
When the selector lever is in the “R” (REVERSE) position
with the electric motor switch is in the “ON” position, the rear-
view image will be displayed on the screen of the Mitsubishi
Multi Communication System.
When the selector lever is shifted out of the “R” position, the
rear-view image will turn off.
Location of rear-view cameraThe rear-view camera is in the liftgate.
WA R N I N G
!
Never rely solely on the rear-view camera to clear
the area behind your vehicle. Always check visually
behind and all around your vehicle for persons, ani-
mals, obstructions or other vehicles. Failure to do so
can result in vehicle damage, serious injury or
death.
The rear-view camera is an aid system for backing
up, but it is not a substitute for your visual confir-
mation.
The view on the screen is limited, and objects out-
side the view, such as under the bumper or around
either corner of the bumper end, cannot be seen on
the screen.
CAUTION
!
If the camera lens gets dirty, a clear image cannot be
obtained. As necessary, rinse the lens with clean
water and gently wipe with a clean, soft cloth.
To avoid damaging the camera;
• Do not rub the cover excessively or polish it by
using an abrasive compound.
• Do not disassemble the camera.
• Do not splash hot water directly on the lens.
• Do not spray the camera and its surroundings with
high-pressure water.
• Make sure that the liftgate is securely closed when
backing up.
BK0140800US.book 55 ページ ２０１１年９月２９日　木曜日　午後３時２８分

3-56 Features and controls
3

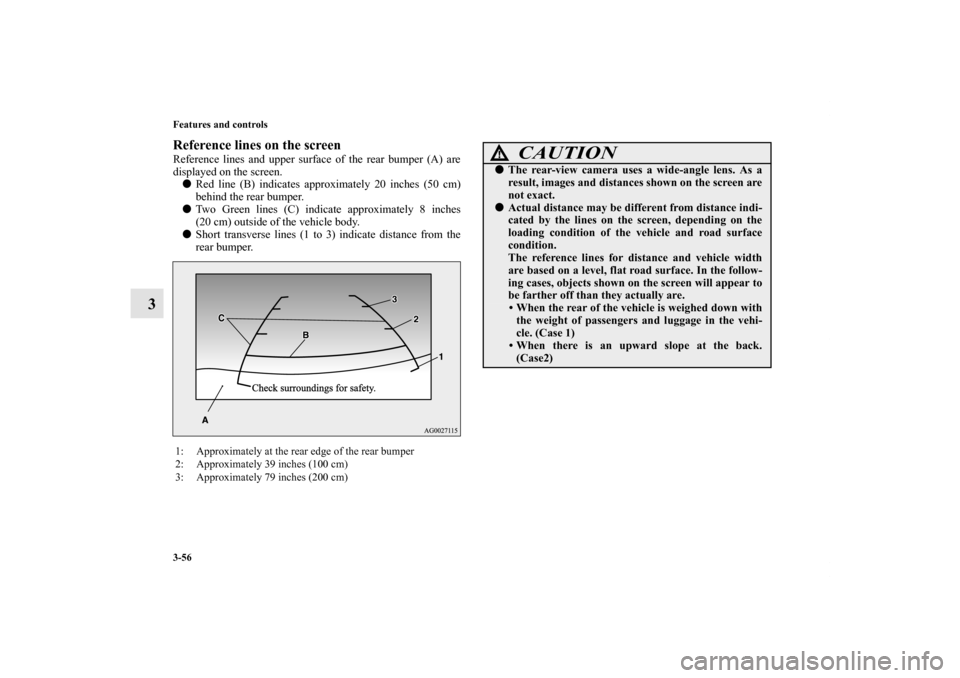

Reference lines on the screenReference lines and upper surface of the rear bumper (A) are
displayed on the screen.

Red line (B) indicates approximately 20 inches (50 cm)
behind the rear bumper.

Two Green lines (C) indicate approximately 8 inches
(20 cm) outside of the vehicle body.

Short transverse lines (1 to 3) indicate distance from the
rear bumper.1: Approximately at the rear edge of the rear bumper
2: Approximately 39 inches (100 cm)
3: Approximately 79 inches (200 cm)
CAUTION
!
The rear-view camera uses a wide-angle lens. As a
result, images and distances shown on the screen are
not exact.
Actual distance may be different from distance indi-
cated by the lines on the screen, depending on the
loading condition of the vehicle and road surface
condition.
The reference lines for distance and vehicle width
are based on a level, flat road surface. In the follow-
ing cases, objects shown on the screen will appear to
be farther off than they actually are.
• When the rear of the vehicle is weighed down with
the weight of passengers and luggage in the vehi-
cle. (Case 1)
• When there is an upward slope at the back.
(Case2)
BK0140800US.book 56 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Features and controls
3-57
3

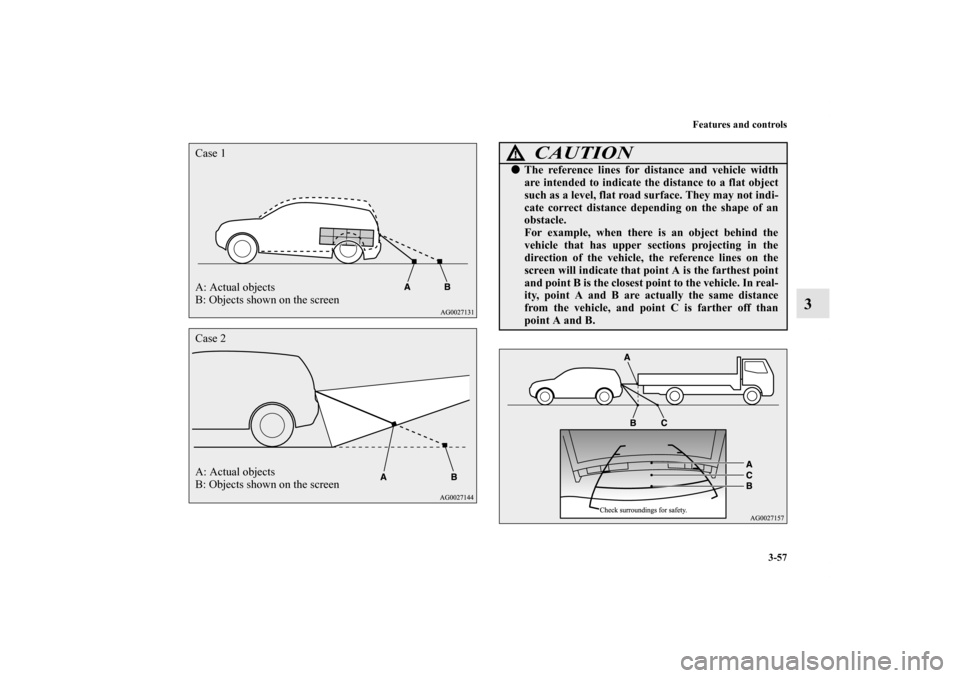

A: Actual objects
B: Objects shown on the screen Case 1Case 2
A: Actual objects
B: Objects shown on the screen
CAUTION
!
The reference lines for distance and vehicle width
are intended to indicate the distance to a flat object
such as a level, flat road surface. They may not indi-
cate correct distance depending on the shape of an
obstacle.
For example, when there is an object behind the
vehicle that has upper sections projecting in the
direction of the vehicle, the reference lines on the
screen will indicate that point A is the farthest point
and point B is the closest point to the vehicle. In real-
ity, point A and B are actually the same distance
from the vehicle, and point C is farther off than
point A and B.
BK0140800US.book 57 ページ ２０１１年９月２９日　木曜日　午後３時２８分

3-58 Features and controls
3

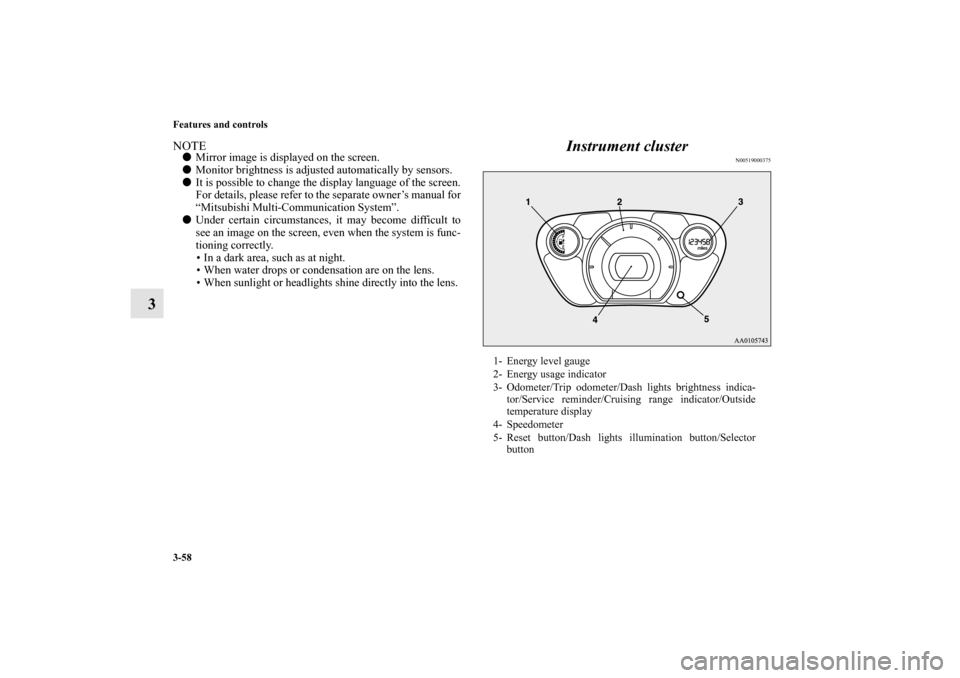

NOTE
Mirror image is displayed on the screen.

Monitor brightness is adjusted automatically by sensors.

It is possible to change the display language of the screen.
For details, please refer to the separate owner’s manual for
“Mitsubishi Multi-Communication System”.

Under certain circumstances, it may become difficult to
see an image on the screen, even when the system is func-
tioning correctly.
• In a dark area, such as at night.
• When water drops or condensation are on the lens.
• When sunlight or headlights shine directly into the lens.
Instrument cluster
N00519000375
1- Energy level gauge
2- Energy usage indicator
3- Odometer/Trip odometer/Dash lights brightness indica-
tor/Service reminder/Cruising range indicator/Outside
temperature display
4- Speedometer
5- Reset button/Dash lights illumination button/Selector
button
BK0140800US.book 58 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Features and controls
3-59
3

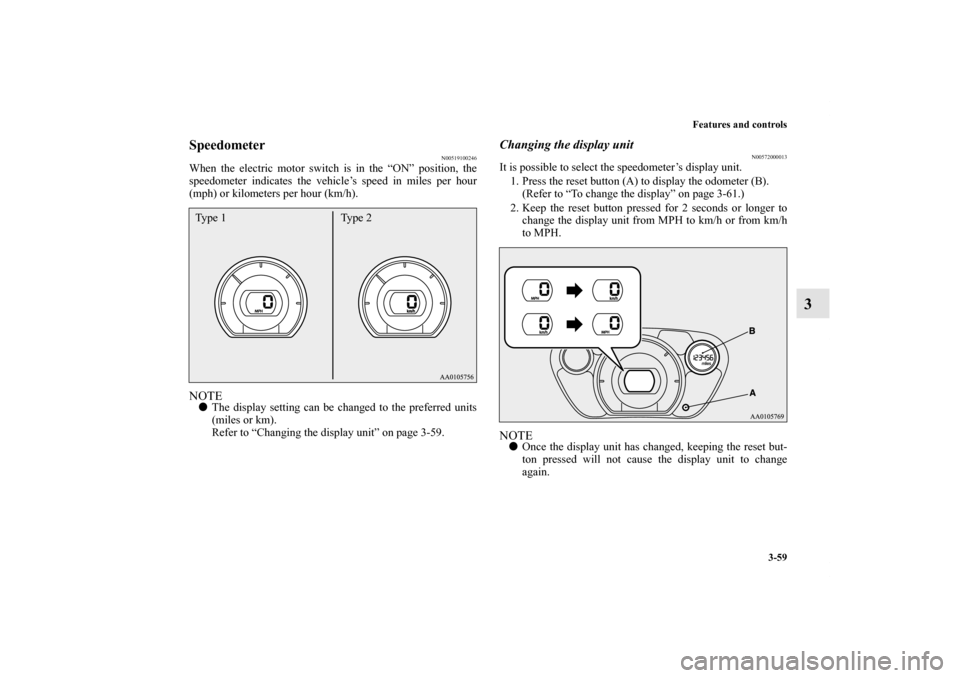

Speedometer
N00519100246
When the electric motor switch is in the “ON” position, the
speedometer indicates the vehicle’s speed in miles per hour
(mph) or kilometers per hour (km/h).NOTE
The display setting can be changed to the preferred units
(miles or km).
Refer to “Changing the display unit” on page 3-59.
Changing the display unit
N00572000013
It is possible to select the speedometer’s display unit.
1. Press the reset button (A) to display the odometer (B).

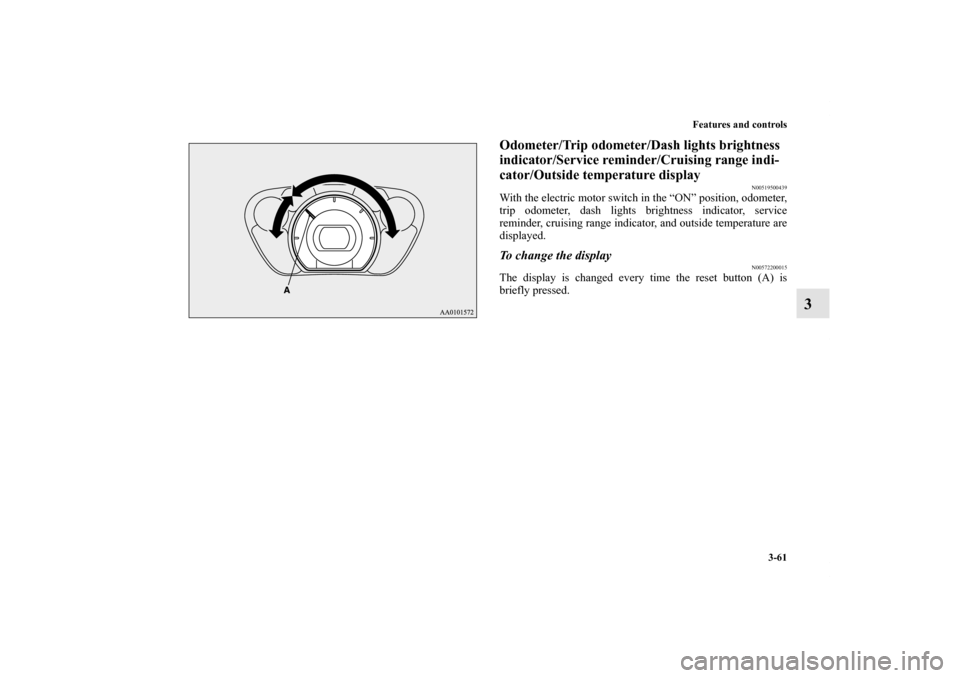

(Refer to “To change the display” on page 3-61.)
2. Keep the reset button pressed for 2 seconds or longer to
change the display unit from MPH to km/h or from km/h
to MPH.NOTE
Once the display unit has changed, keeping the reset but-
ton pressed will not cause the display unit to change
again.
Ty p e 1 Ty p e 2
BK0140800US.book 59 ページ ２０１１年９月２９日　木曜日　午後３時２８分

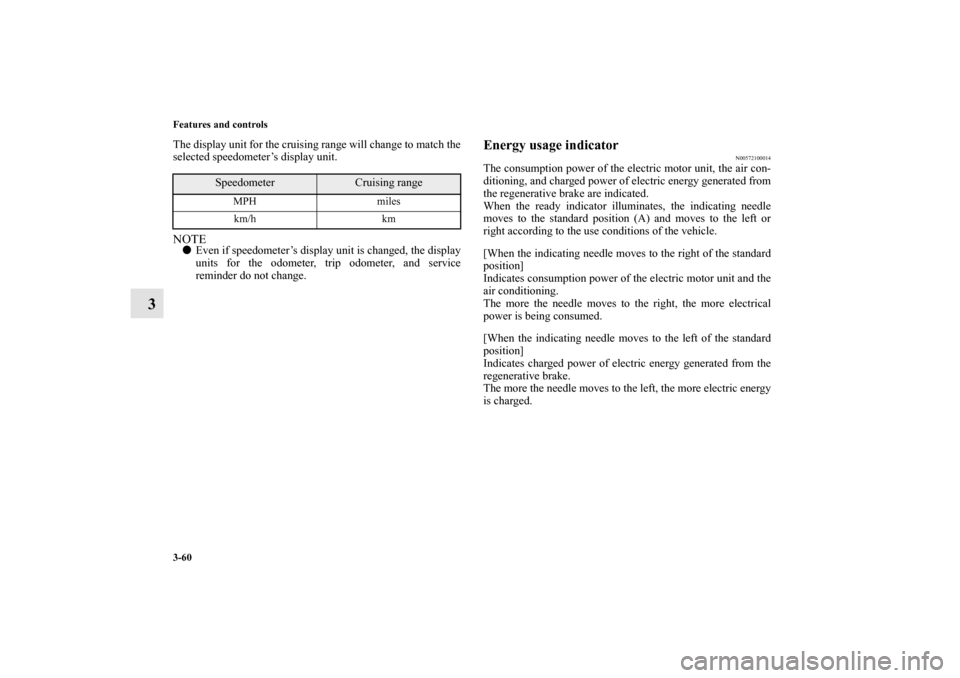

3-60 Features and controls
3
The display unit for the cruising range will change to match the
selected speedometer’s display unit.NOTE
Even if speedometer’s display unit is changed, the display
units for the odometer, trip odometer, and service
reminder do not change.
Energy usage indicator
N00572100014
The consumption power of the electric motor unit, the air con-
ditioning, and charged power of electric energy generated from
the regenerative brake are indicated.
When the ready indicator illuminates, the indicating needle
moves to the standard position (A) and moves to the left or
right according to the use conditions of the vehicle.
[When the indicating needle moves to the right of the standard
position]
Indicates consumption power of the electric motor unit and the
air conditioning.
The more the needle moves to the right, the more electrical
power is being consumed.
[When the indicating needle moves to the left of the standard
position]
Indicates charged power of electric energy generated from the
regenerative brake.
The more the needle moves to the left, the more electric energy
is charged.
Speedometer
Cruising range
MPH miles
km/h km
BK0140800US.book 60 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Features and controls
3-61
3
Odometer/Trip odometer/Dash lights brightness
indicator/Service reminder/Cruising range indi-
cator/Outside temperature display
N00519500439
With the electric motor switch in the “ON” position, odometer,
trip odometer, dash lights brightness indicator, service
reminder, cruising range indicator, and outside temperature are
displayed.To change the display
N00572200015
The display is changed every time the reset button (A) is
briefly pressed.
BK0140800US.book 61 ページ ２０１１年９月２９日　木曜日　午後３時２８分
