MITSUBISHI iMiEV 2012 1.G Owners Manual

3-62 Features and controls
3

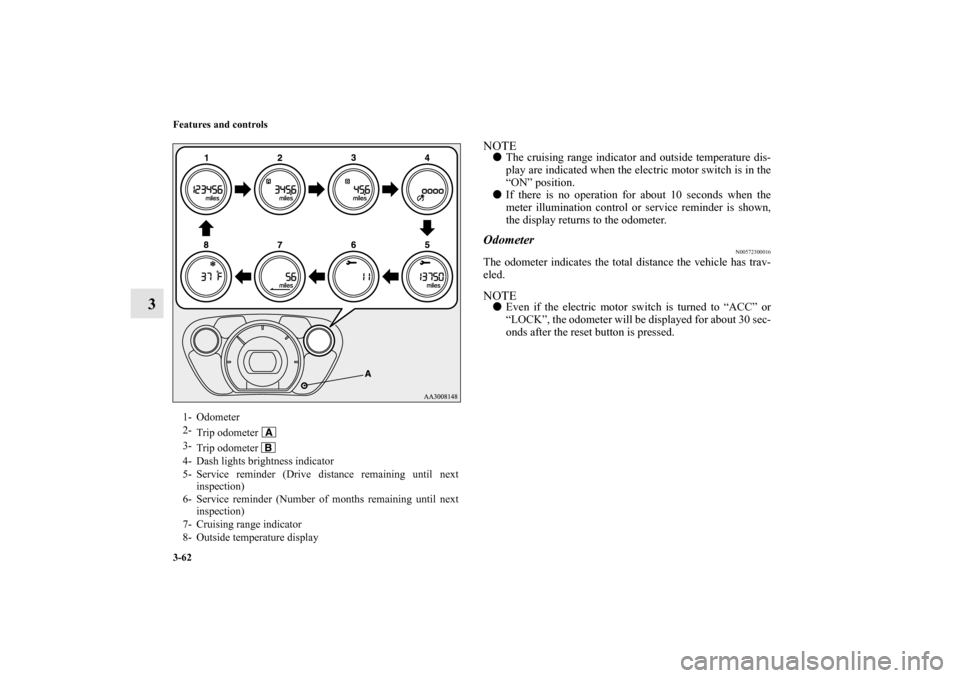

NOTE
The cruising range indicator and outside temperature dis-
play are indicated when the electric motor switch is in the
“ON” position.

If there is no operation for about 10 seconds when the
meter illumination control or service reminder is shown,
the display returns to the odometer.Odometer
N00572300016
The odometer indicates the total distance the vehicle has trav-
eled.NOTE
Even if the electric motor switch is turned to “ACC” or
“LOCK”, the odometer will be displayed for about 30 sec-
onds after the reset button is pressed.
1- Odometer
2-
Trip odometer
3-
Trip odometer
4- Dash lights brightness indicator
5- Service reminder (Drive distance remaining until next
inspection)
6- Service reminder (Number of months remaining until next
inspection)
7- Cruising range indicator
8- Outside temperature display
BK0140800US.book 62 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Features and controls
3-63
3

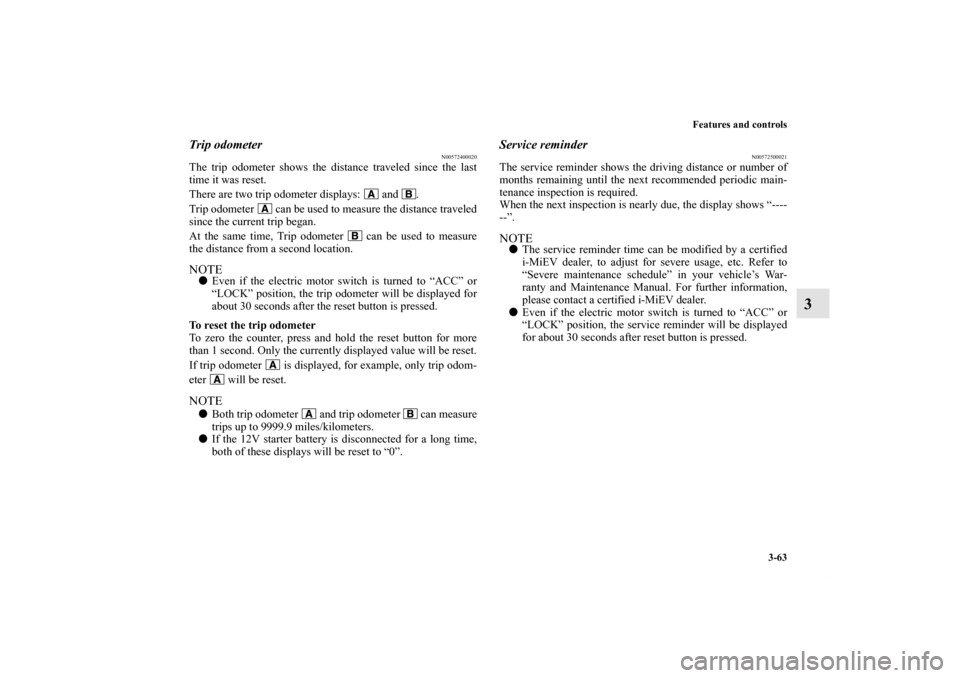

Trip odometer
N00572400020
The trip odometer shows the distance traveled since the last
time it was reset.
There are two trip odometer displays: and .
Trip odometer can be used to measure the distance traveled
since the current trip began.
At the same time, Trip odometer can be used to measure
the distance from a second location.NOTE
Even if the electric motor switch is turned to “ACC” or
“LOCK” position, the trip odometer will be displayed for
about 30 seconds after the reset button is pressed.
To reset the trip odometer
To zero the counter, press and hold the reset button for more
than 1 second. Only the currently displayed value will be reset.
If trip odometer is displayed, for example, only trip odom-
eter will be reset. NOTE
Both trip odometer and trip odometer can measure
trips up to 9999.9 miles/kilometers.

If the 12V starter battery is disconnected for a long time,
both of these displays will be reset to “0”.
Service reminder
N00572500021
The service reminder shows the driving distance or number of
months remaining until the next recommended periodic main-
tenance inspection is required.
When the next inspection is nearly due, the display shows “----
--”.NOTE
The service reminder time can be modified by a certified
i-MiEV dealer, to adjust for severe usage, etc. Refer to
“Severe maintenance schedule” in your vehicle’s War-
ranty and Maintenance Manual. For further information,
please contact a certified i-MiEV dealer.

Even if the electric motor switch is turned to “ACC” or
“LOCK” position, the service reminder will be displayed
for about 30 seconds after reset button is pressed.
BK0140800US.book 63 ページ ２０１１年９月２９日　木曜日　午後３時２８分

3-64 Features and controls
3

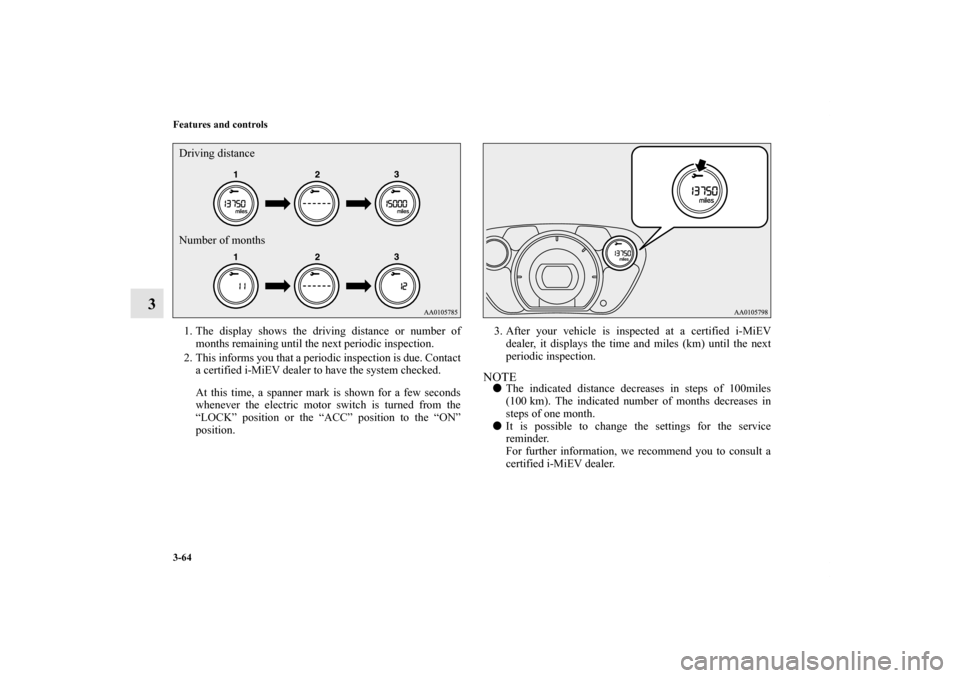

1. The display shows the driving distance or number of
months remaining until the next periodic inspection.
2. This informs you that a periodic inspection is due. Contact
a certified i-MiEV dealer to have the system checked.
At this time, a spanner mark is shown for a few seconds
whenever the electric motor switch is turned from the
“LOCK” position or the “ACC” position to the “ON”
position.3. After your vehicle is inspected at a certified i-MiEV
dealer, it displays the time and miles (km) until the next
periodic inspection.
NOTE
The indicated distance decreases in steps of 100miles
(100 km). The indicated number of months decreases in
steps of one month.

It is possible to change the settings for the service
reminder.
For further information, we recommend you to consult a
certified i-MiEV dealer.
Driving distance
Number of monthsBK0140800US.book 64 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Features and controls
3-65
3

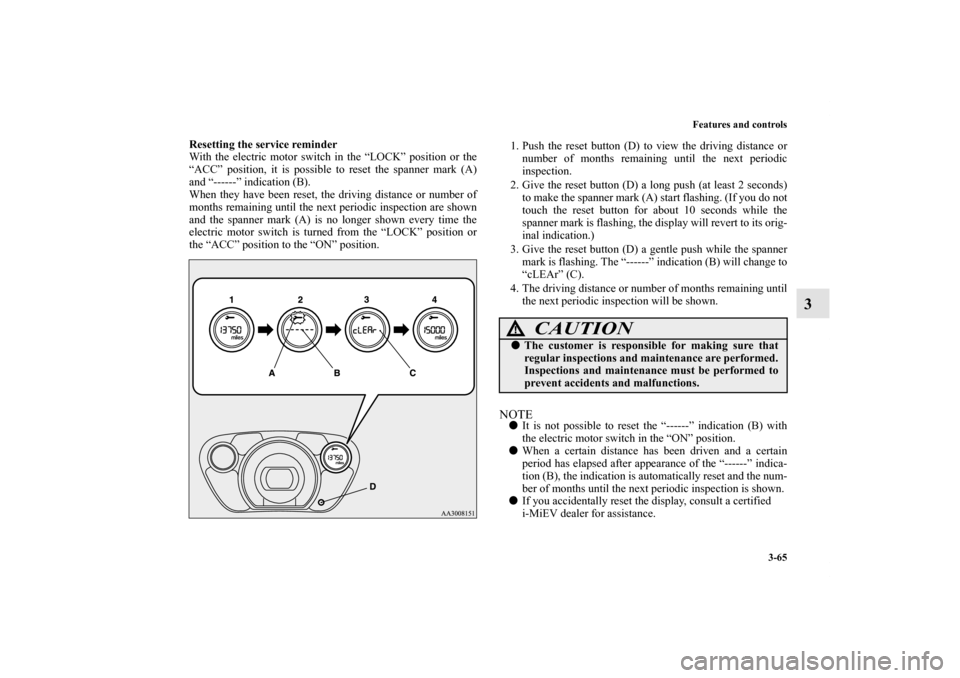

Resetting the service reminder
With the electric motor switch in the “LOCK” position or the
“ACC” position, it is possible to reset the spanner mark (A)
and “------” indication (B).
When they have been reset, the driving distance or number of
months remaining until the next periodic inspection are shown
and the spanner mark (A) is no longer shown every time the
electric motor switch is turned from the “LOCK” position or
the “ACC” position to the “ON” position.1. Push the reset button (D) to view the driving distance or
number of months remaining until the next periodic
inspection.
2. Give the reset button (D) a long push (at least 2 seconds)
to make the spanner mark (A) start flashing. (If you do not
touch the reset button for about 10 seconds while the
spanner mark is flashing, the display will revert to its orig-
inal indication.)
3. Give the reset button (D) a gentle push while the spanner
mark is flashing. The “------” indication (B) will change to
“cLEAr” (C).
4. The driving distance or number of months remaining until
the next periodic inspection will be shown.
NOTE
It is not possible to reset the “------” indication (B) with
the electric motor switch in the “ON” position.

When a certain distance has been driven and a certain
period has elapsed after appearance of the “------” indica-
tion (B), the indication is automatically reset and the num-
ber of months until the next periodic inspection is shown.

If you accidentally reset the display, consult a certified
i-MiEV dealer for assistance.
CAUTION
!
The customer is responsible for making sure that
regular inspections and maintenance are performed.
Inspections and maintenance must be performed to
prevent accidents and malfunctions.
BK0140800US.book 65 ページ ２０１１年９月２９日　木曜日　午後３時２８分

3-66 Features and controls
3

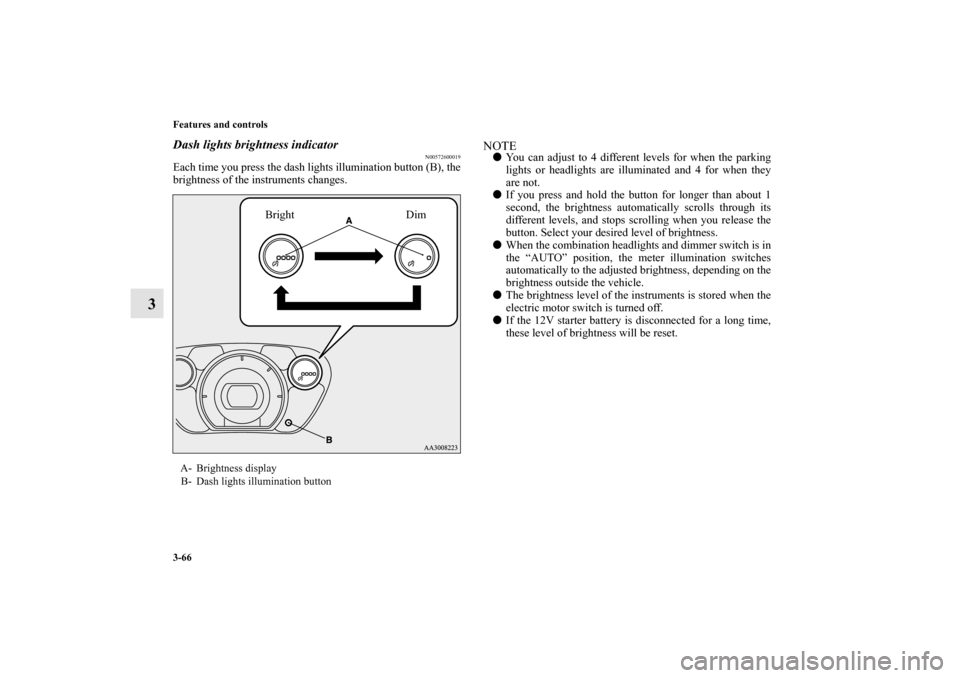

Dash lights brightness indicator
N00572600019
Each time you press the dash lights illumination button (B), the
brightness of the instruments changes.
NOTE
You can adjust to 4 different levels for when the parking
lights or headlights are illuminated and 4 for when they
are not.

If you press and hold the button for longer than about 1
second, the brightness automatically scrolls through its
different levels, and stops scrolling when you release the
button. Select your desired level of brightness.

When the combination headlights and dimmer switch is in
the “AUTO” position, the meter illumination switches
automatically to the adjusted brightness, depending on the
brightness outside the vehicle.

The brightness level of the instruments is stored when the
electric motor switch is turned off.

If the 12V starter battery is disconnected for a long time,
these level of brightness will be reset.
A- Brightness display
B- Dash lights illumination button
Bright Dim
BK0140800US.book 66 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Features and controls
3-67
3

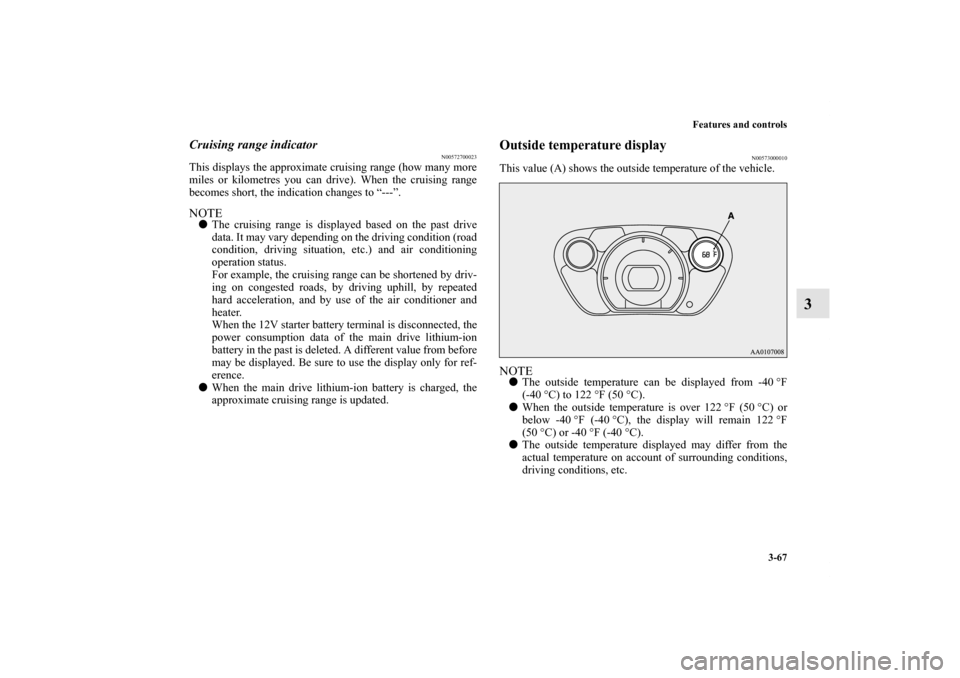

Cruising range indicator
N00572700023
This displays the approximate cruising range (how many more
miles or kilometres you can drive). When the cruising range
becomes short, the indication changes to “---”.NOTE
The cruising range is displayed based on the past drive
data. It may vary depending on the driving condition (road
condition, driving situation, etc.) and air conditioning
operation status.
For example, the cruising range can be shortened by driv-
ing on congested roads, by driving uphill, by repeated
hard acceleration, and by use of the air conditioner and
heater.
When the 12V starter battery terminal is disconnected, the
power consumption data of the main drive lithium-ion
battery in the past is deleted. A different value from before
may be displayed. Be sure to use the display only for ref-
erence.

When the main drive lithium-ion battery is charged, the
approximate cruising range is updated.
Outside temperature display
N00573000010
This value (A) shows the outside temperature of the vehicle.NOTE
The outside temperature can be displayed from -40°F
(-40°C) to 122°F (50°C).

When the outside temperature is over 122°F (50°C) or
below -40°F (-40°C), the display will remain 122°F
(50°C) or -40°F (-40°C).

The outside temperature displayed may differ from the
actual temperature on account of surrounding conditions,
driving conditions, etc.
BK0140800US.book 67 ページ ２０１１年９月２９日　木曜日　午後３時２８分

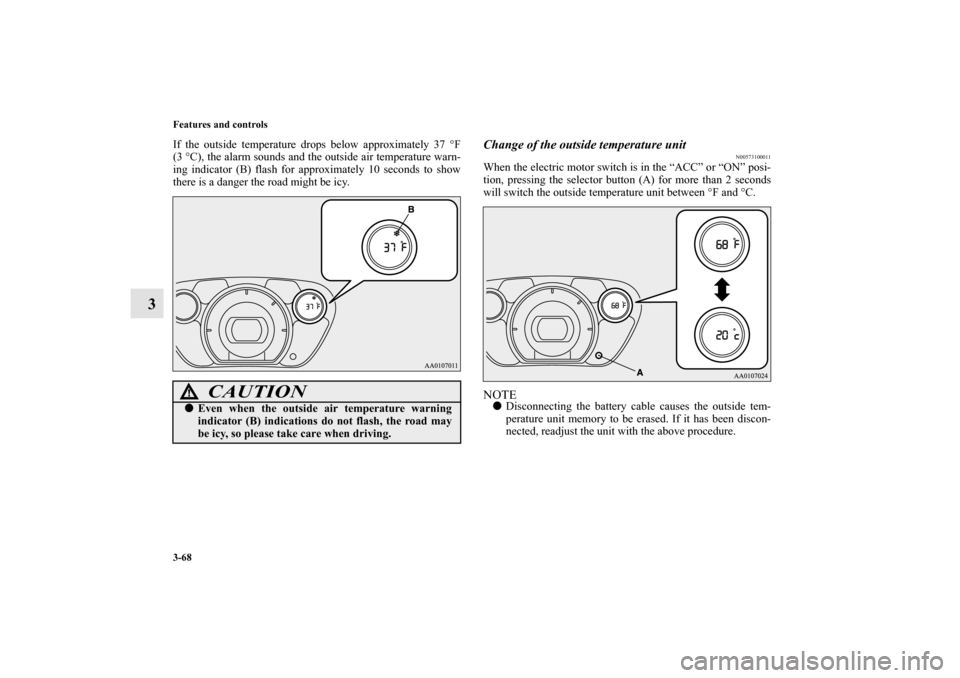

3-68 Features and controls
3
If the outside temperature drops below approximately 37 °F
(3°C), the alarm sounds and the outside air temperature warn-
ing indicator (B) flash for approximately 10 seconds to show
there is a danger the road might be icy.
Change of the outside temperature unit
N00573100011
When the electric motor switch is in the “ACC” or “ON” posi-
tion, pressing the selector button (A) for more than 2 seconds
will switch the outside temperature unit between °F and °C.NOTE
Disconnecting the battery cable causes the outside tem-
perature unit memory to be erased. If it has been discon-
nected, readjust the unit with the above procedure.
CAUTION
!
Even when the outside air temperature warning
indicator (B) indications do not flash, the road may
be icy, so please take care when driving.
BK0140800US.book 68 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Features and controls
3-69
3

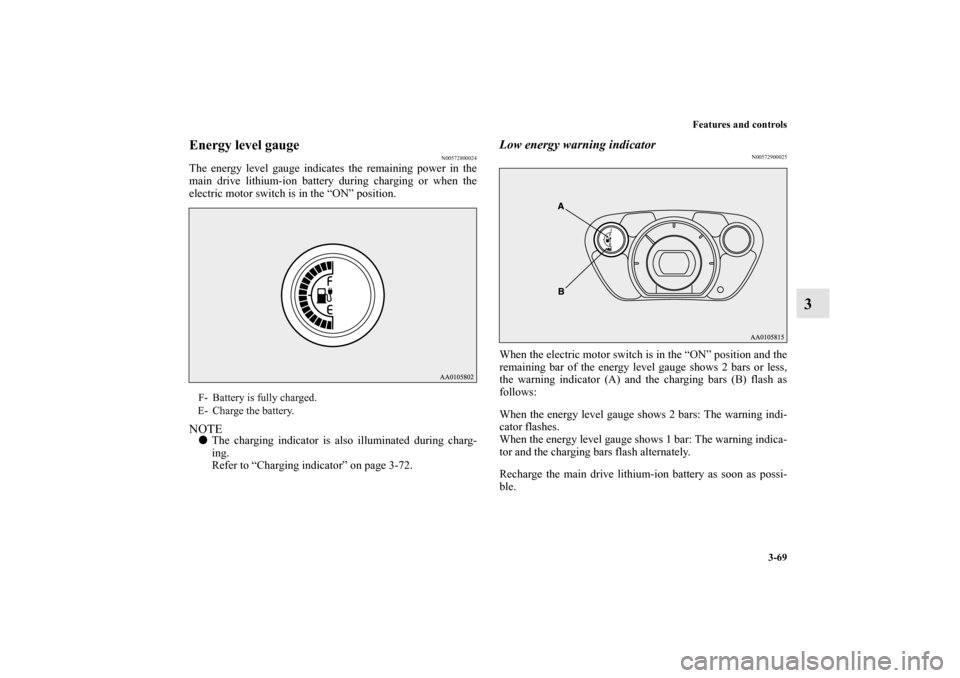

Energy level gauge
N00572800024
The energy level gauge indicates the remaining power in the
main drive lithium-ion battery during charging or when the
electric motor switch is in the “ON” position.NOTE
The charging indicator is also illuminated during charg-
ing.
Refer to “Charging indicator” on page 3-72.
Low energy warning indicator
N00572900025
When the electric motor switch is in the “ON” position and the
remaining bar of the energy level gauge shows 2 bars or less,
the warning indicator (A) and the charging bars (B) flash as
follows:
When the energy level gauge shows 2 bars: The warning indi-
cator flashes.
When the energy level gauge shows 1 bar: The warning indica-
tor and the charging bars flash alternately.
Recharge the main drive lithium-ion battery as soon as possi-
ble.
F- Battery is fully charged.
E- Charge the battery.
BK0140800US.book 69 ページ ２０１１年９月２９日　木曜日　午後３時２８分

3-70 Features and controls
3

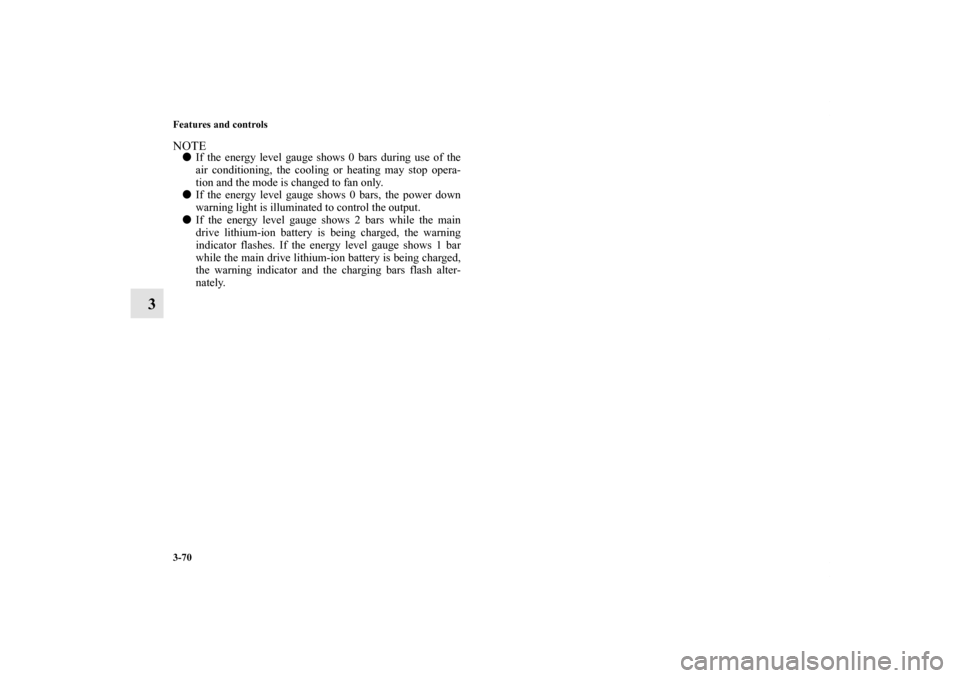

NOTE
If the energy level gauge shows 0 bars during use of the
air conditioning, the cooling or heating may stop opera-
tion and the mode is changed to fan only.

If the energy level gauge shows 0 bars, the power down
warning light is illuminated to control the output.

If the energy level gauge shows 2 bars while the main
drive lithium-ion battery is being charged, the warning
indicator flashes. If the energy level gauge shows 1 bar
while the main drive lithium-ion battery is being charged,
the warning indicator and the charging bars flash alter-
nately.
BK0140800US.book 70 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Features and controls
3-71
3 Indicator and warning light package
N00519800836
1- Low energy warning indicator → P.3-69
2- Selector lever position indicator → P.3-34
3- Acoustic Vehicle Alerting System (AVAS) indicator
→ P.3-38
4- High-beam indicator → P.3-72
5- Turn-signal indicators/Hazard warning lights → P.3-72
6- Position indicator → P.3-72
7- Front fog light indicator (if so equipped) → P.3-72
8- Service reminder → P.3-63
9- Outside air temperature warning indicator → P.3-67
10- Regenerative brake system indicator → P.3-72
11- Ready indicator → P. 3 - 7 2
12- Tire pressure monitoring system warning light → P.3-50
13- 12V starter battery charging system warning light → P.3-7414- Electric power steering system warning light → P.3-45
15- Electric motor unit warning light → P.3-75
16- Brake warning light → P.3-73
17- Anti-lock braking system warning light → P.3-42
18- Power down warning light → P.3-75
19- Active stability control (ASC) indicator → P.3-48
20- Active stability control (ASC) OFF indicator → P.3-48
21- Charging indicator → P.3-72
22- Theft-alarm indicator → P.3-18
23- Door-ajar warning light → P.3-74
24- Driver ’s seat belt reminder/warning light → P.2-17
25- Supplemental Restraint System (SRS) warning light
→ P. 2 - 2 2
BK0140800US.book 71 ページ ２０１１年９月２９日　木曜日　午後３時２８分
