MITSUBISHI iMiEV 2012 1.G Owners Manual

5-36 Comfort controls
5

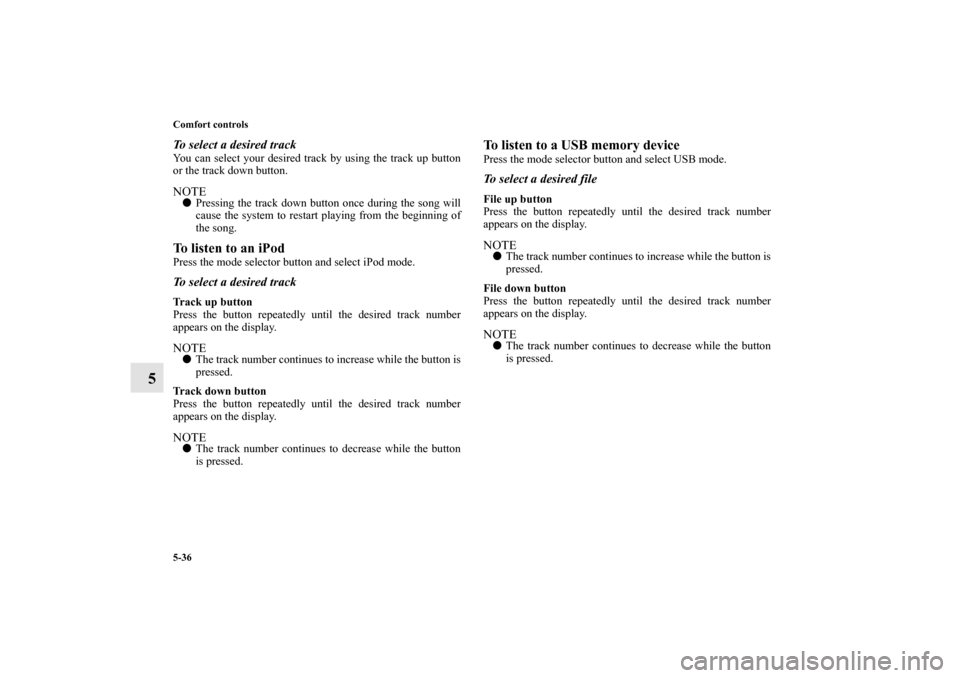

To select a desired trackYou can select your desired track by using the track up button
or the track down button.NOTE
Pressing the track down button once during the song will
cause the system to restart playing from the beginning of
the song.To listen to an iPodPress the mode selector button and select iPod mode.To select a desired trackTrack up button
Press the button repeatedly until the desired track number
appears on the display.NOTE
The track number continues to increase while the button is
pressed.
Track down button
Press the button repeatedly until the desired track number
appears on the display.NOTE
The track number continues to decrease while the button
is pressed.
To listen to a USB memory devicePress the mode selector button and select USB mode.To select a desired fileFile up button
Press the button repeatedly until the desired track number
appears on the display.NOTE
The track number continues to increase while the button is
pressed.
File down button
Press the button repeatedly until the desired track number
appears on the display.NOTE
The track number continues to decrease while the button
is pressed.
BK0140800US.book 36 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Comfort controls
5-37

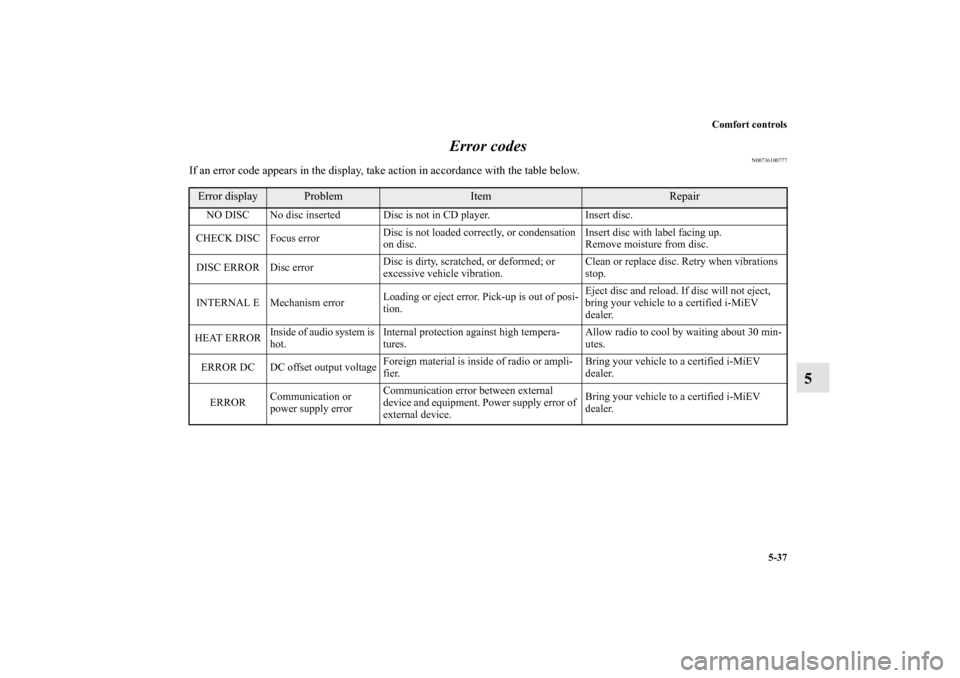

5 Error codes
N00736100777
If an error code appears in the display, take action in accordance with the table below.Error display
Problem
Item
Repair
NO DISC No disc inserted Disc is not in CD player. Insert disc.
CHECK DISC Focus errorDisc is not loaded correctly, or condensation
on disc.Insert disc with label facing up.
Remove moisture from disc.
DISC ERROR Disc errorDisc is dirty, scratched, or deformed; or
excessive vehicle vibration.Clean or replace disc. Retry when vibrations
stop.
INTERNAL E Mechanism errorLoading or eject error. Pick-up is out of posi-
tion.Eject disc and reload. If disc will not eject,
bring your vehicle to a certified i-MiEV
dealer.
HEAT ERRORInside of audio system is
hot.Internal protection against high tempera-
tures.Allow radio to cool by waiting about 30 min-
utes.
ERROR DC DC offset output voltageForeign material is inside of radio or ampli-
fier.Bring your vehicle to a certified i-MiEV
dealer.
ERRORCommunication or
power supply errorCommunication error between external
device and equipment. Power supply error of
external device.Bring your vehicle to a certified i-MiEV
dealer.
BK0140800US.book 37 ページ ２０１１年９月２９日　木曜日　午後３時２８分

5-38 Comfort controls

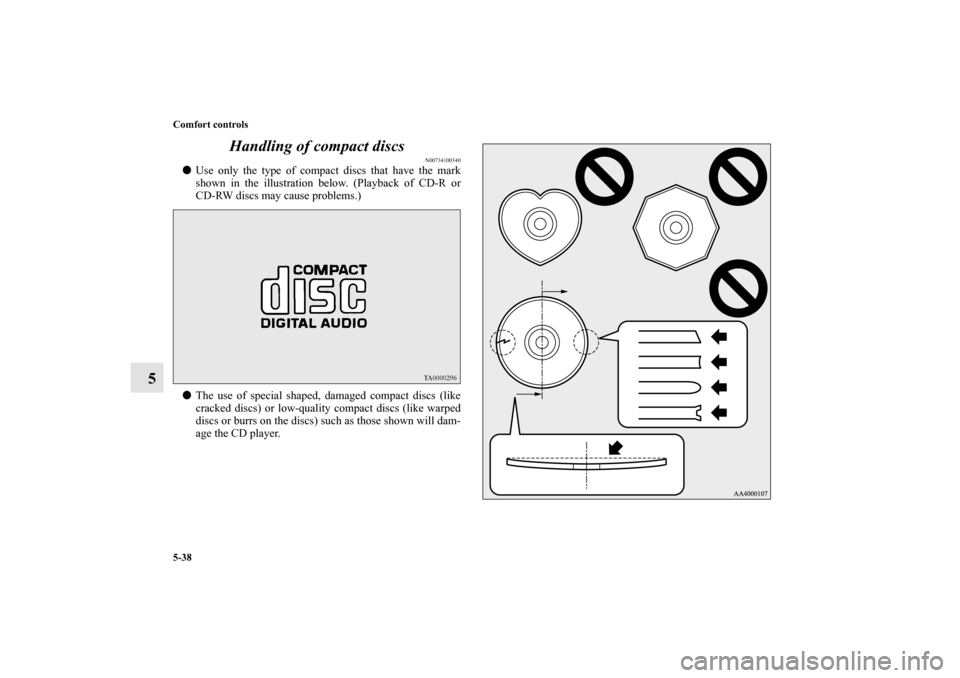

5Handling of compact discs
N00734100340

Use only the type of compact discs that have the mark
shown in the illustration below. (Playback of CD-R or
CD-RW discs may cause problems.)

The use of special shaped, damaged compact discs (like
cracked discs) or low-quality compact discs (like warped
discs or burrs on the discs) such as those shown will dam-
age the CD player.
BK0140800US.book 38 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Comfort controls
5-39
5

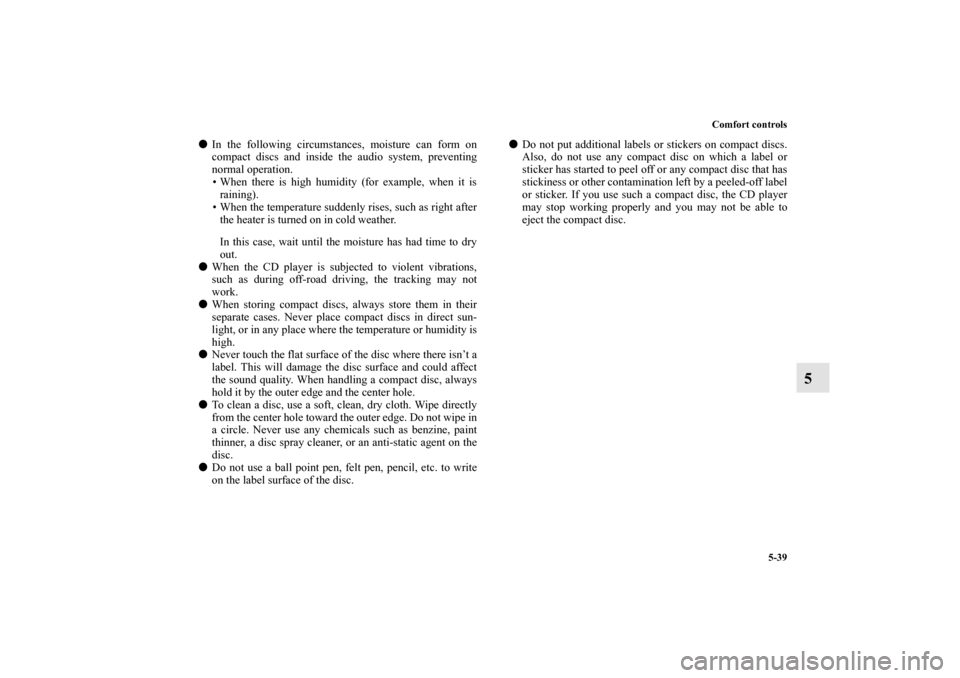

In the following circumstances, moisture can form on
compact discs and inside the audio system, preventing
normal operation.
• When there is high humidity (for example, when it is
raining).
• When the temperature suddenly rises, such as right after
the heater is turned on in cold weather.
In this case, wait until the moisture has had time to dry
out.

When the CD player is subjected to violent vibrations,
such as during off-road driving, the tracking may not
work.

When storing compact discs, always store them in their
separate cases. Never place compact discs in direct sun-
light, or in any place where the temperature or humidity is
high.

Never touch the flat surface of the disc where there isn’t a
label. This will damage the disc surface and could affect
the sound quality. When handling a compact disc, always
hold it by the outer edge and the center hole.

To clean a disc, use a soft, clean, dry cloth. Wipe directly
from the center hole toward the outer edge. Do not wipe in
a circle. Never use any chemicals such as benzine, paint
thinner, a disc spray cleaner, or an anti-static agent on the
disc.

Do not use a ball point pen, felt pen, pencil, etc. to write
on the label surface of the disc.
Do not put additional labels or stickers on compact discs.
Also, do not use any compact disc on which a label or
sticker has started to peel off or any compact disc that has
stickiness or other contamination left by a peeled-off label
or sticker. If you use such a compact disc, the CD player
may stop working properly and you may not be able to
eject the compact disc.
BK0140800US.book 39 ページ ２０１１年９月２９日　木曜日　午後３時２８分

5-40 Comfort controls
5

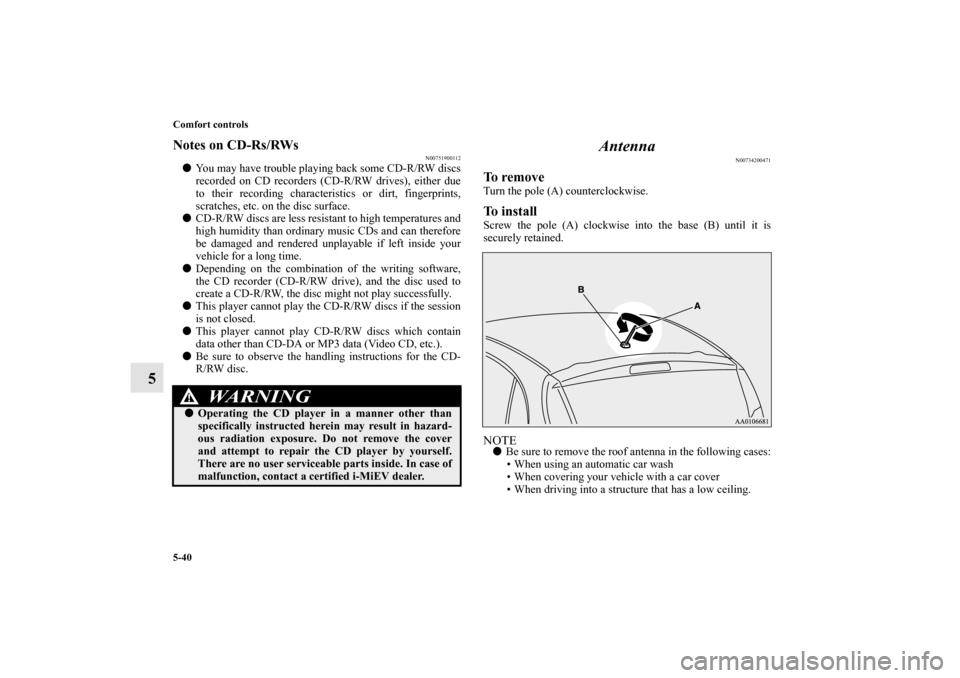

Notes on CD-Rs/RWs
N00751900112

You may have trouble playing back some CD-R/RW discs
recorded on CD recorders (CD-R/RW drives), either due
to their recording characteristics or dirt, fingerprints,
scratches, etc. on the disc surface.

CD-R/RW discs are less resistant to high temperatures and
high humidity than ordinary music CDs and can therefore
be damaged and rendered unplayable if left inside your
vehicle for a long time.

Depending on the combination of the writing software,
the CD recorder (CD-R/RW drive), and the disc used to
create a CD-R/RW, the disc might not play successfully.

This player cannot play the CD-R/RW discs if the session
is not closed.

This player cannot play CD-R/RW discs which contain
data other than CD-DA or MP3 data (Video CD, etc.).

Be sure to observe the handling instructions for the CD-
R/RW disc.
Antenna
N00734200471
To removeTurn the pole (A) counterclockwise.To installScrew the pole (A) clockwise into the base (B) until it is
securely retained.NOTE
Be sure to remove the roof antenna in the following cases:
• When using an automatic car wash
• When covering your vehicle with a car cover
• When driving into a structure that has a low ceiling.
WA R N I N G
!
Operating the CD player in a manner other than
specifically instructed herein may result in hazard-
ous radiation exposure. Do not remove the cover
and attempt to repair the CD player by yourself.
There are no user serviceable parts inside. In case of
malfunction, contact a certified i-MiEV dealer.
BK0140800US.book 40 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Comfort controls
5-41

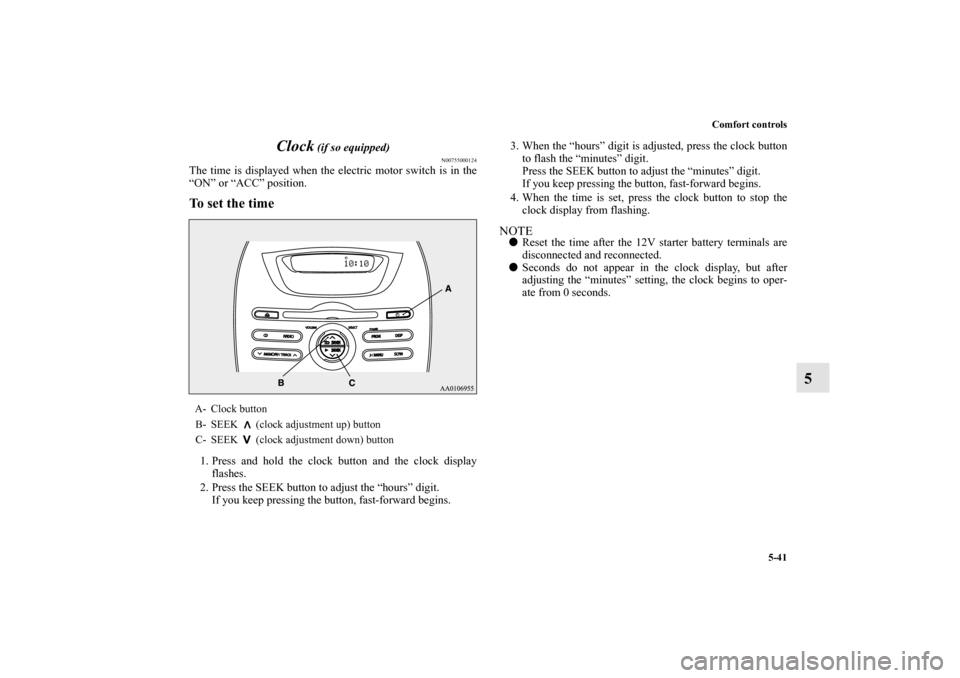

5 Clock
(if so equipped)
N00755000124
The time is displayed when the electric motor switch is in the
“ON” or “ACC” position.To set the time1. Press and hold the clock button and the clock display
flashes.
2. Press the SEEK button to adjust the “hours” digit.
If you keep pressing the button, fast-forward begins.3. When the “hours” digit is adjusted, press the clock button
to flash the “minutes” digit.
Press the SEEK button to adjust the “minutes” digit.
If you keep pressing the button, fast-forward begins.
4. When the time is set, press the clock button to stop the
clock display from flashing.
NOTE
Reset the time after the 12V starter battery terminals are
disconnected and reconnected.

Seconds do not appear in the clock display, but after
adjusting the “minutes” setting, the clock begins to oper-
ate from 0 seconds.
A- Clock button
B- SEEK (clock adjustment up) button
C- SEEK (clock adjustment down) button
BK0140800US.book 41 ページ ２０１１年９月２９日　木曜日　午後３時２８分

5-42 Comfort controls

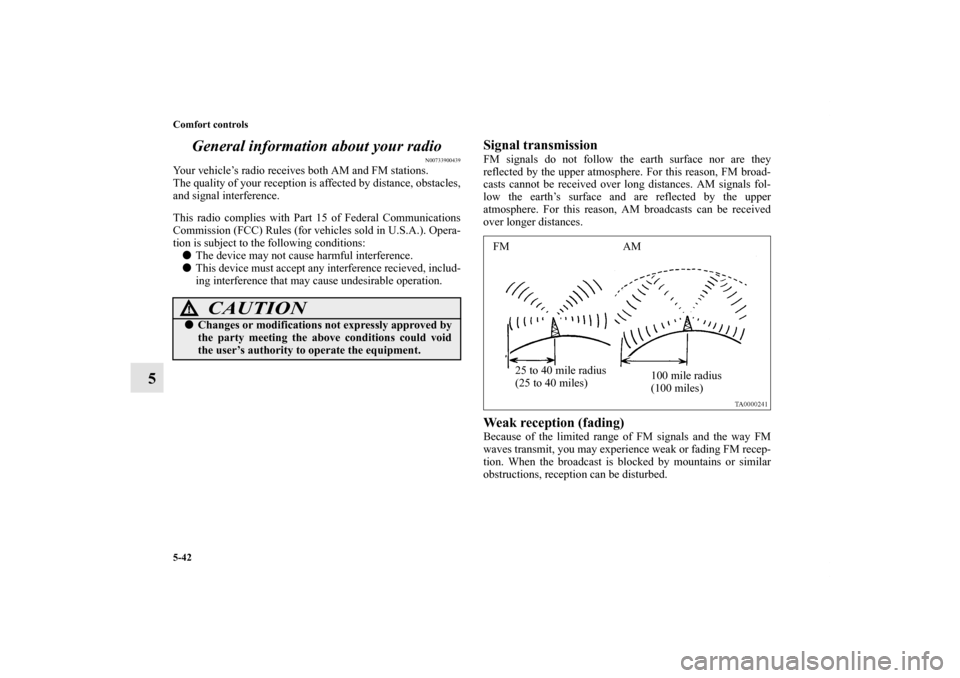

5General information about your radio
N00733900439
Your vehicle’s radio receives both AM and FM stations.
The quality of your reception is affected by distance, obstacles,
and signal interference.
This radio complies with Part 15 of Federal Communications
Commission (FCC) Rules (for vehicles sold in U.S.A.). Opera-
tion is subject to the following conditions:

The device may not cause harmful interference.

This device must accept any interference recieved, includ-
ing interference that may cause undesirable operation.
Signal transmissionFM signals do not follow the earth surface nor are they
reflected by the upper atmosphere. For this reason, FM broad-
casts cannot be received over long distances. AM signals fol-
low the earth’s surface and are reflected by the upper
atmosphere. For this reason, AM broadcasts can be received
over longer distances.Weak reception (fading)Because of the limited range of FM signals and the way FM
waves transmit, you may experience weak or fading FM recep-
tion. When the broadcast is blocked by mountains or similar
obstructions, reception can be disturbed.
CAUTION
!
Changes or modifications not expressly approved by
the party meeting the above conditions could void
the user’s authority to operate the equipment.
FM AM
25 to 40 mile radius
(25 to 40 miles)100 mile radius
(100 miles)
BK0140800US.book 42 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Comfort controls
5-43
5

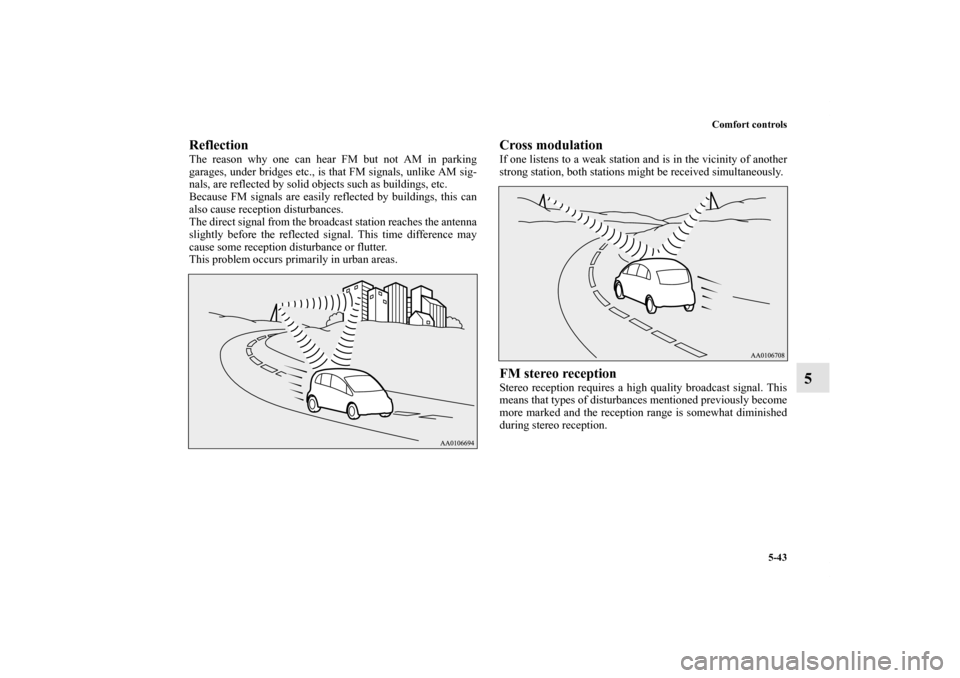

ReflectionThe reason why one can hear FM but not AM in parking
garages, under bridges etc., is that FM signals, unlike AM sig-
nals, are reflected by solid objects such as buildings, etc.
Because FM signals are easily reflected by buildings, this can
also cause reception disturbances.
The direct signal from the broadcast station reaches the antenna
slightly before the reflected signal. This time difference may
cause some reception disturbance or flutter.
This problem occurs primarily in urban areas.
Cross modulationIf one listens to a weak station and is in the vicinity of another
strong station, both stations might be received simultaneously.FM stereo receptionStereo reception requires a high quality broadcast signal. This
means that types of disturbances mentioned previously become
more marked and the reception range is somewhat diminished
during stereo reception.
BK0140800US.book 43 ページ ２０１１年９月２９日　木曜日　午後３時２８分

5-44 Comfort controls
5

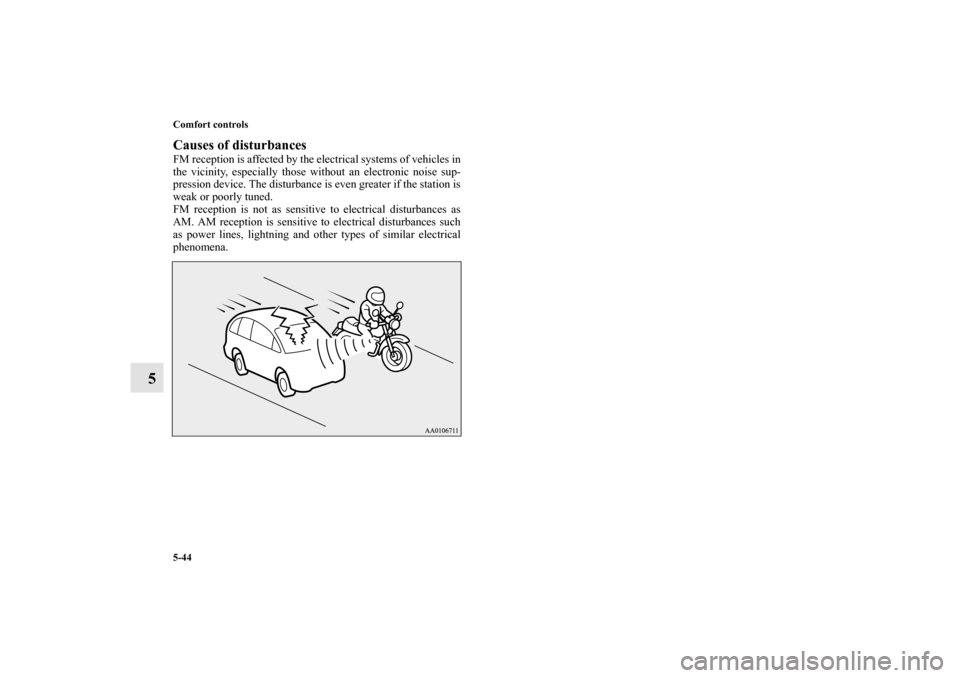

Causes of disturbancesFM reception is affected by the electrical systems of vehicles in
the vicinity, especially those without an electronic noise sup-
pression device. The disturbance is even greater if the station is
weak or poorly tuned.
FM reception is not as sensitive to electrical disturbances as
AM. AM reception is sensitive to electrical disturbances such
as power lines, lightning and other types of similar electrical
phenomena.BK0140800US.book 44 ページ ２０１１年９月２９日　木曜日　午後３時２８分

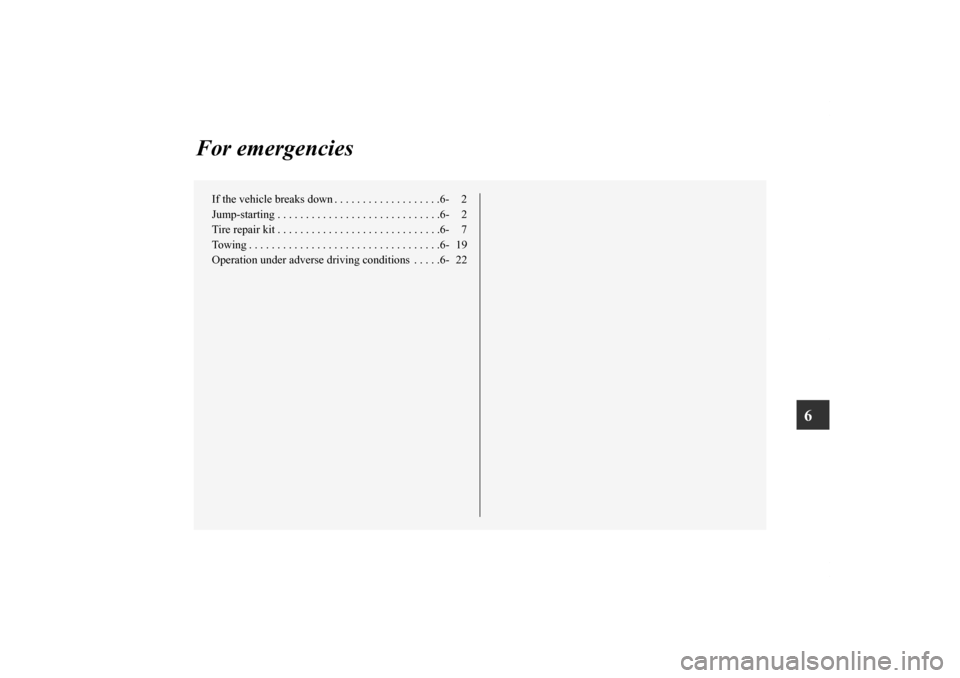

6
