MiEV Remote System 3-36 General information/Charging
3
N01203701020
The Charging Timer can be set as follows.  ON timer: Time from the present to when charging will begin.  OFF timer: Time from the start of charg- ing to the end of charging
To set the timer, the following conditions must be met.  Selector lever: “P” (PARK) position  Electric motor switch: “LOCK”position  EV charging cable (regular charger): Con- nected
Charging Timer
WA R N I N G Improper charging can result in a fire, property damage, and serious injury or death.Before Charging Timer, carefully read and follow the instructions in “Precaution on Charging the Main Drive Lithium-ionBattery” on page 3-14 and “Regular charging (charging me
thod with rated AC
120 V outlet)” on page 3-15.NOTE
 Charging Timer cannot be used with a quick charging system.
BK0209800US.book 36 ページ ２０１４年１月１４日　火曜日　午前９時２６分

MiEV Remote System
General information/Charging 3-37
3
N01205001030

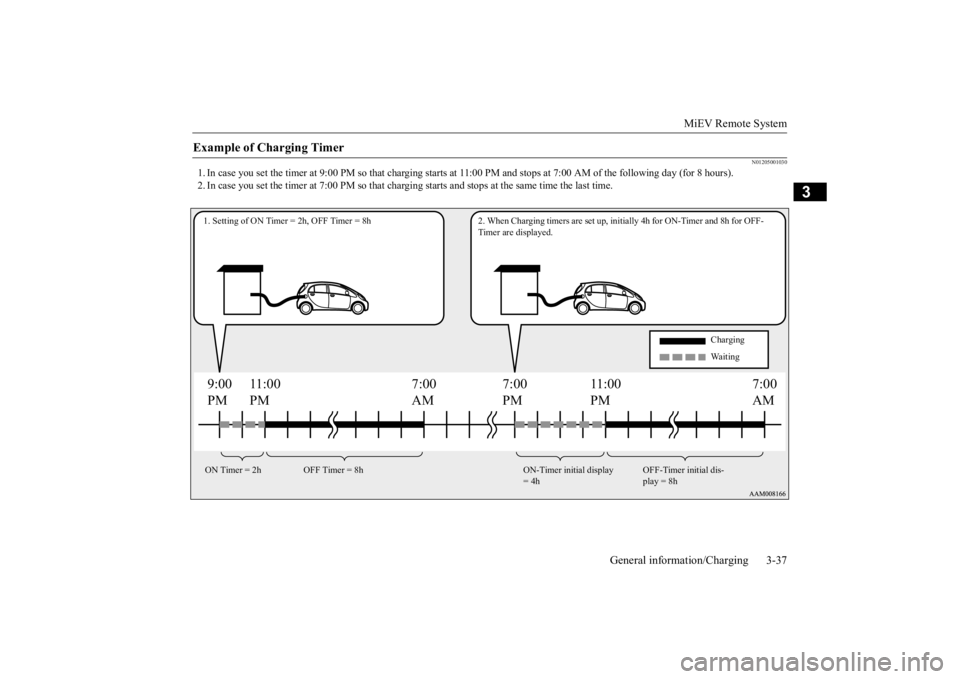

1. In case you set the timer at 9:00 PM so that charging starts
at 11:00 PM and stops at 7:00 AM of the following day (for 8 hou
rs).
2. In case you set the timer at 7:00 PM so that charging starts and stops at the same time the last time.Example of Charging Timer
9:00 PM
7:00 PM
7:00 AM
11:00 PM
11:00 PM
7:00AM
1. Setting of ON Timer = 2h, OFF Timer = 8h 2. When Charging
timers are set up, initially 4h
for ON-Timer and 8h for OFF-
Timer are displayed.
Charging Waiting
ON Timer = 2h OFF Timer = 8h ON-Timer initial display
= 4h
OFF-Timer initial dis- play = 8h
BK0209800US.book 37 ページ ２０１４年１月１４日　火曜日　午前９時２６分

MiEV Remote System 3-38 General information/Charging
3
N01205100018

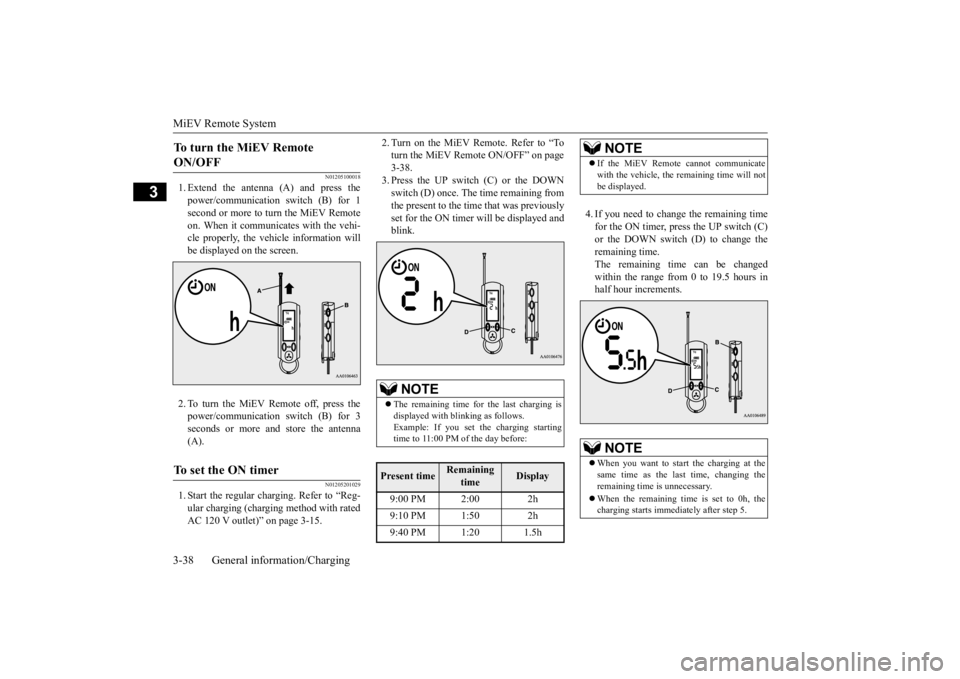

1. Extend the antenna (A) and press the power/communication switch (B) for 1 second or more to turn the MiEV Remote on. When it communicates with the vehi-cle properly, the vehicle information will be displayed on the screen. 2. To turn the MiEV Remote off, press the power/communication switch (B) for 3 seconds or more and store the antenna (A).
N01205201029
1. Start the regular charging. Refer to “Reg-ular charging (chargi
ng method with rated
AC 120 V outlet)” on page 3-15.
2. Turn on the MiEV Remote. Refer to “To turn the MiEV Remote ON/OFF” on page3-38. 3. Press the UP switch (C) or the DOWN switch (D) once. The time remaining fromthe present to the time that was previously set for the ON timer will be displayed and blink.
4. If you need to change the remaining time for the ON timer, press the UP switch (C) or the DOWN switch (D) to change the remaining time.The remaining time can be changed within the range from 0 to 19.5 hours in half hour increments.
To turn the MiEV Remote ON/OFF To set the ON timer
NOTE
 The remaining time for the last charging is displayed with blinking as follows. Example: If you set the charging starting time to 11:00 PM of the day before:
Present time
Remaining
time
Display
9:00 PM 2:00 2h 9:10 PM 1:50 2h 9:40 PM 1:20 1.5h
NOTE
 If the MiEV Remote
cannot communicate
with the vehicle, the remaining time will notbe displayed.NOTE
 When you want to start the charging at the same time as the last time, changing the remaining time is unnecessary.  When the remaining time is set to 0h, the charging starts immediately after step 5.
BK0209800US.book 38 ページ ２０１４年１月１４日　火曜日　午前９時２６分

MiEV Remote System
General information/Charging 3-39
3
5. Press the power/c
ommunication switch
(B) for less than 1 second to send the set-ting data to the vehicle. The MiEV Remote will sound melodies on transmission and reception.
6. To turn off the MiEV Remote, refer to “To turn the MiEV Remote ON/OFF” onpage 3-38.
N01206000014
1. Turn on the MiEV Remote. Refer to “To turn the MiEV Remote ON/OFF” on page 3-38.
NOTE
 The melodies can be turned off. Refer to “To turn on/off melody and buzzer” on page 3-45.  If a communication error occurs or the MiEV Remote System is not functioning properly,the buzzer will sound. Refer to “Display of MiEV Remote during communicating with vehicle” on page 3-41.  If the OFF Timer is unset when setting the ON timer, the OFF timer will be automati-cally set with “fully charged”.  To set OFF Timer, refer to “To set OFF Timer” on page 3-40.
NOTE

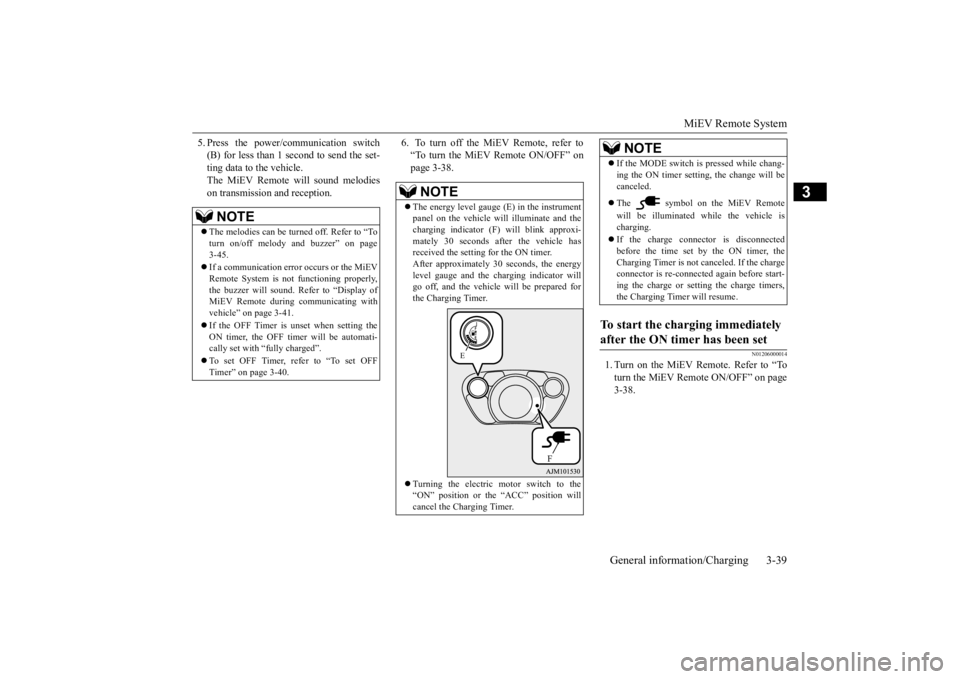

 The energy level gauge (E) in the instrument panel on the vehicle will
illuminate and the
charging indicator (F)
will blink approxi-
mately 30 seconds af
ter the vehicle has
received the setting for the ON timer. After approximately 30 seconds, the energy level gauge and the ch
arging indicator will
go off, and the vehicle will be prepared for the Charging Timer.  Turning the electric motor switch to the “ON” position or th
e “ACC” position will
cancel the Charging Timer.
E
F
 If the MODE switch is pressed while chang- ing the ON timer setting,
the change will be
canceled.  The symbol on the MiEV Remote will be illuminated while the vehicle is charging.  If the charge connector is disconnected before the time set by the ON timer, the Charging Timer is not canceled. If the charge connector is re-connected
again before start-
ing the charge or setting the charge timers,the Charging Timer will resume.
To start the charging immediately after the ON timer has been set
NOTE
BK0209800US.book 39 ページ ２０１４年１月１４日　火曜日　午前９時２６分

MiEV Remote System 3-40 General information/Charging
3

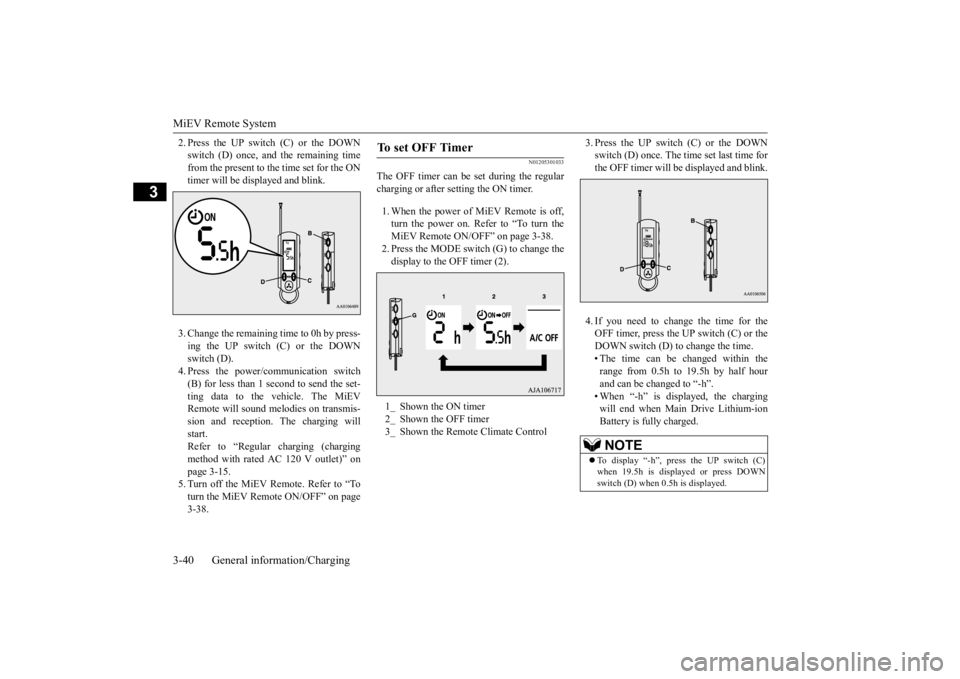

2. Press the UP switch (C) or the DOWN switch (D) once, and the remaining timefrom the present to the time set for the ON timer will be disp
layed and blink.
3. Change the remaining time to 0h by press- ing the UP switch (C) or the DOWN switch (D). 4. Press the power/communication switch(B) for less than 1 second to send the set- ting data to the vehicle. The MiEV Remote will sound mel
odies on transmis-
sion and reception. The charging will start. Refer to “Regular charging (chargingmethod with rated AC 120 V outlet)” on page 3-15. 5. Turn off the MiEV Remote. Refer to “Toturn the MiEV Remote ON/OFF” on page 3-38.
N01205301033
The OFF timer can be
set during the regular
charging or after setting the ON timer. 1. When the power of MiEV Remote is off, turn the power on. Refer to “To turn theMiEV Remote ON/OFF” on page 3-38. 2. Press the MODE switc
h (G) to change the
display to the OFF timer (2).
3. Press the UP switch (C) or the DOWN switch (D) once. The time set last time forthe OFF timer will be
displayed and blink.
4. If you need to change the time for the OFF timer, press the UP switch (C) or theDOWN switch (D) to change the time. • The time can be changed within the range from 0.5h to 19.5h by half hourand can be changed to “-h”. • When “-h” is displayed, the charging will end when Main Drive Lithium-ionBattery is fully charged.
To set OFF Timer 1_ Shown the ON timer2_ Shown the OFF timer3_ Shown the Remote Climate Control
NOTE
 To display “-h”, press the UP switch (C) when 19.5h is displayed or press DOWN switch (D) when 0.5h is displayed.
BK0209800US.book 40 ページ ２０１４年１月１４日　火曜日　午前９時２６分

MiEV Remote System
General information/Charging 3-41
3
5. Press the power/c
ommunication switch
(B) for less than 1 second to send the set-ting data to the vehicle. The MiEV Remote will sound melodies on transmission and reception. 6. Turn off the MiEV Remote. Refer to “To turn the MiEV Remote ON/OFF” on page 3-38.
N01203801021
It communicates with the vehicle when the power of the MiEV Remote is turned on with pressing the power supply/communicationswitch (B) for 1 second or more and if the power supply/communication switch (B) is pressed for less than 1 second while thepower of the MiEV Remote is on. If the normal reception
melody sounds after
the transmitting melody, it is set completion.Communication symbol
(H) blinks while

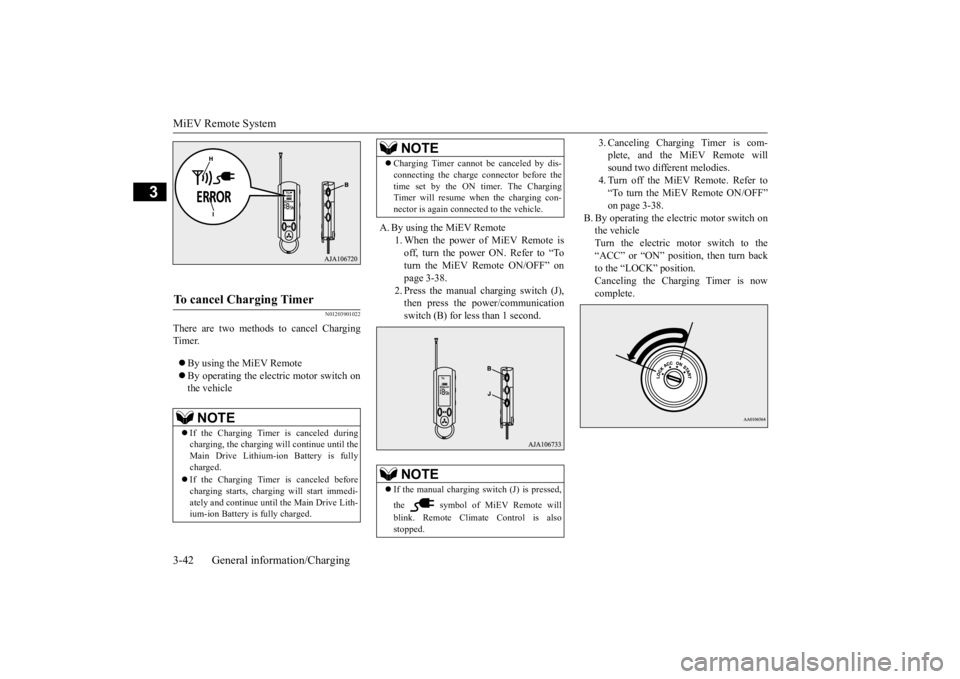

communicating with the vehicle. If the buzzer sounds with ERROR symbol (I)blinks, a problem is
detected. Refer to
“Actions to be taken when the MiEV Remote system does not operate correctly” on page3-48.
NOTE
 The melodies can be turned off. Refer to “To turn on/off melody and buzzer” on page 3-45.  If a communication error occurs or the MiEV Remote System is not functioning properly,the buzzer will sound. Refer to “Display of MiEV Remote during communicating with vehicle” on page 3-41.  If the ON timer is unset when setting the OFF timer, the ON timer will be automati-cally set with “0h”.
NOTE

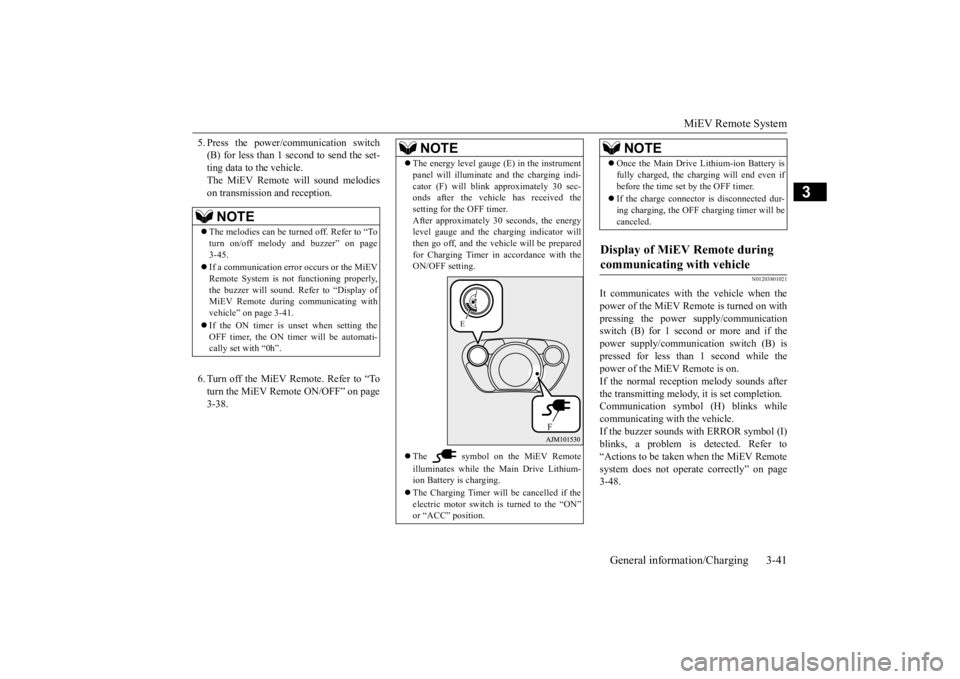

 The energy level gauge (E) in the instrument panel will illuminate
and the charging indi-
cator (F) will blink
approximately 30 sec-
onds after the vehicl
e has received the
setting for the OFF timer. After approximately 30 seconds, the energylevel gauge and the ch
arging indicator will
then go off, and the vehicle will be prepared for Charging Timer in accordance with theON/OFF setting.  The symbol on the MiEV Remote illuminates while the Main Drive Lithium- ion Battery is charging.  The Charging Timer will be cancelled if the electric motor switch is turned to the “ON” or “ACC” position.
E
F
 Once the Main Drive Lithium-ion Battery is fully charged, the charging will end even ifbefore the time set by the OFF timer.  If the charge connector is disconnected dur- ing charging, the OFF charging timer will becanceled.
Display of MiEV Remote during communicating with vehicle
NOTE
BK0209800US.book 41 ページ ２０１４年１月１４日　火曜日　午前９時２６分

MiEV Remote System 3-42 General information/Charging
3
N01203901022
There are two methods to cancel Charging Timer.  By using the MiEV Remote  By operating the electric motor switch on the vehicle
A. By using the MiEV Remote
1. When the power of MiEV Remote is off, turn the power ON. Refer to “To turn the MiEV Remote ON/OFF” onpage 3-38. 2. Press the manual charging switch (J), then press the power/communicationswitch (B) for less than 1 second.
3. Canceling Charging Timer is com- plete, and the MiEV Remote willsound two different melodies. 4. Turn off the MiEV Remote. Refer to “To turn the MiEV Remote ON/OFF”on page 3-38.
B. By operating the electric motor switch on the vehicleTurn the electric motor switch to the “ACC” or “ON” position, then turn back to the “LOCK” position. Canceling the Charging Timer is now complete.
To cancel Charging Timer
NOTE
 If the Charging Timer is canceled during charging, the charging wi
ll continue until the
Main Drive Lithium-ion Battery is fullycharged.  If the Charging Timer is canceled before charging starts, charging
will start immedi-
ately and continue until the Main Drive Lith- ium-ion Battery is fully charged.
 Charging Timer cannot be canceled by dis- connecting the charge
connector before the
time set by the ON timer. The ChargingTimer will resume when the charging con- nector is again connected to the vehicle.NOTE
 If the manual charging sw
itch (J) is pressed,
the symbol of MiEV Remote will blink. Remote Climate Control is also stopped.NOTE
BK0209800US.book 42 ページ ２０１４年１月１４日　火曜日　午前９時２６分

MiEV Remote System
General information/Charging 3-43
3
N01204201035
N01204301036

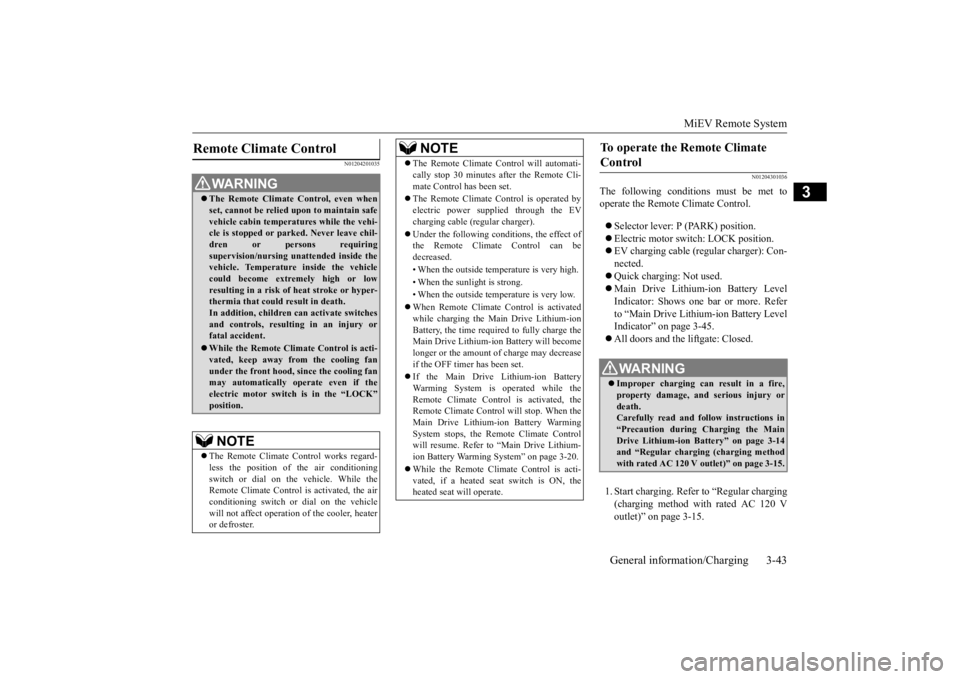

The following conditions must be met to operate the Remote Climate Control.  Selector lever:
P (PARK) position.
 Electric motor switch: LOCK position.  EV charging cable (re
gular charger): Con-
nected.  Quick charging: Not used.  Main Drive Lithium-ion Battery Level Indicator: Shows one bar or more. Refer to “Main Drive Lithium-ion Battery LevelIndicator” on page 3-45.  All doors and the liftgate: Closed. 1. Start charging. Refer to “Regular charging (charging method with rated AC 120 V outlet)” on page 3-15.
Remote Climate Control
WA R N I N G The Remote Climate Control, even when set, cannot be relied upon to maintain safevehicle cabin temperatures while the vehi- cle is stopped or park
ed. Never leave chil-
dren or persons requiringsupervision/nursing unattended inside the vehicle. Temperature inside the vehicle could become extremely high or lowresulting in a risk of
heat stroke or hyper-
thermia that could result in death. In addition, children
can activate switches
and controls, resulting in an injury or fatal accident. While the Remote Climate Control is acti- vated, keep away from
the cooling fan
under the front hood,
since the cooling fan
may automatically operate even if the electric motor switch is in the “LOCK” position.NOTE
 The Remote Climate Control works regard- less the position of the air conditioningswitch or dial on the vehicle. While the Remote Climate Control is activated, the air conditioning switch or di
al on the vehicle
will not affect operation
of the cooler, heater
or defroster.
 The Remote Climate Control will automati- cally stop 30 minutes after the Remote Cli-mate Control has been set.  The Remote Climate Control is operated by electric power s
upplied through the EV
charging cable (regular charger).  Under the following c
onditions, the effect of
the Remote Climate Control can be decreased. • When the outside temperature is very high. • When the sunlight is strong.• When the outside temperature is very low.  When Remote Climate Control is activated while charging the Main Drive Lithium-ion Battery, the time required to fully charge theMain Drive Lithium-ion Battery will become longer or the amount of charge may decrease if the OFF timer has been set.  If the Main Drive Lithium-ion Battery Warming System is operated while theRemote Climate Control is activated, the Remote Climate Control will stop. When the Main Drive Lithium-ion Battery WarmingSystem stops, the Remote Climate Control will resume. Refer to “Main Drive Lithium- ion Battery Warming System” on page 3-20.  While the Remote Climate Control is acti- vated, if a heated seat switch is ON, theheated seat will operate.NOTE
To operate the Remote Climate Control
WA R N I N G Improper charging can result in a fire, property damage, and serious injury ordeath. Carefully read and fo
llow instructions in
“Precaution during Charging the MainDrive Lithium-ion Battery” on page 3-14 and “Regular chargi
ng (charging method
with rated AC 120 V ou
tlet)” on page 3-15.
BK0209800US.book 43 ページ ２０１４年１月１４日　火曜日　午前９時２６分

MiEV Remote System 3-44 General information/Charging
3

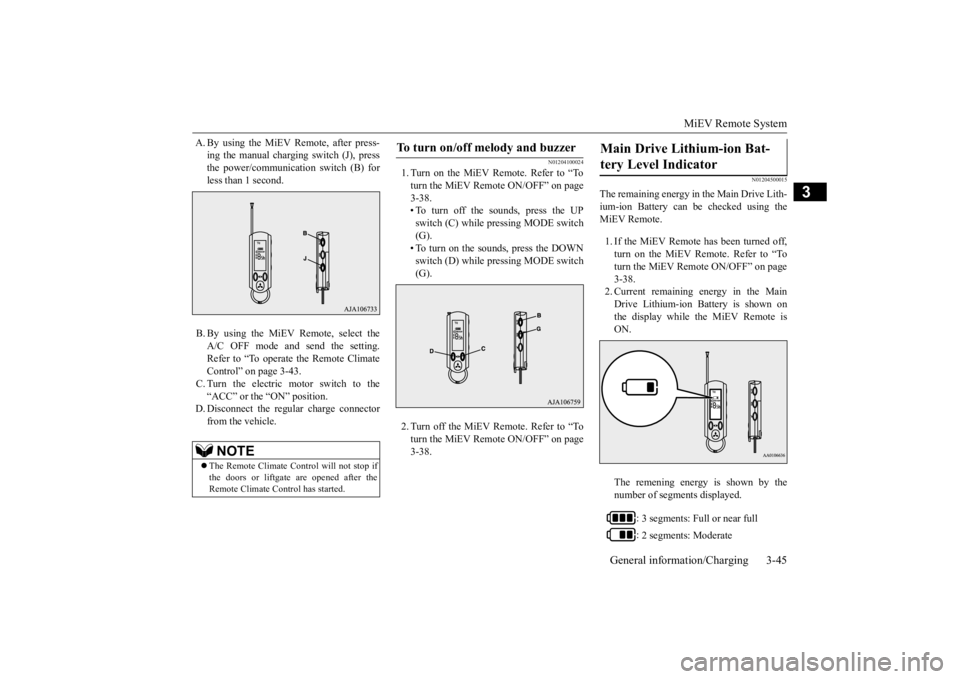

2. Turn on the MiEV Remote. Refer to “To turn the MiEV Remote ON/OFF” on page3-38. 3. Press the MODE switch (G) to change the mode to Remote Climate Control (3).

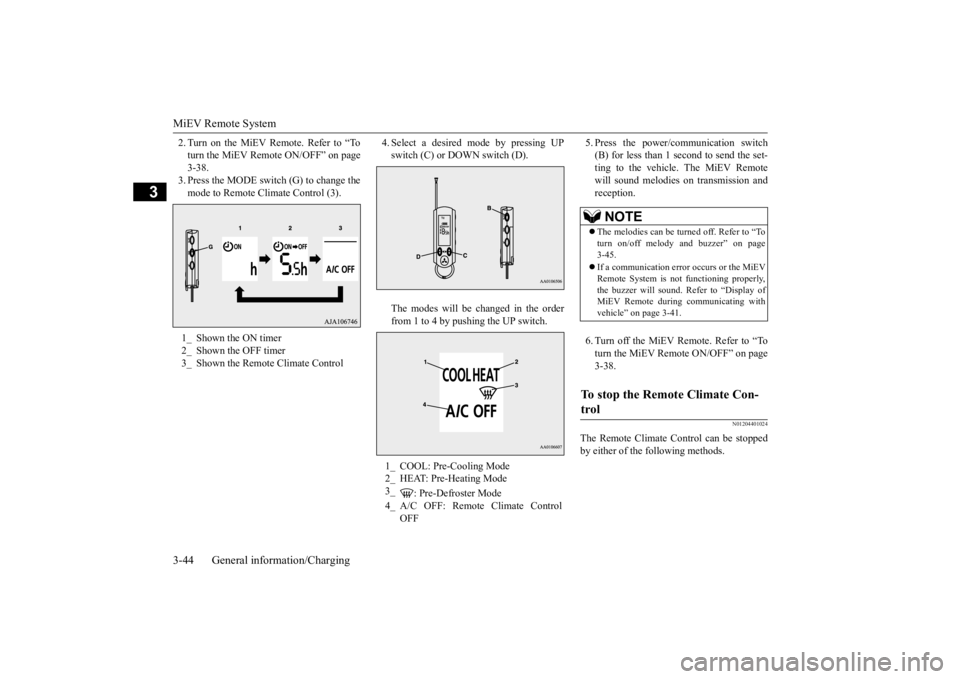

4. Select a desired
mode by pressing UP
switch (C) or DOWN switch (D). The modes will be changed in the order from 1 to 4 by pushing the UP switch.
5. Press the power/c
ommunication switch
(B) for less than 1 second to send the set-ting to the vehicle. The MiEV Remote will sound melodies on transmission and reception. 6. Turn off the MiEV Remote. Refer to “To turn the MiEV Remote ON/OFF” on page 3-38.
N01204401024
The Remote Climate C
ontrol can be stopped
by either of the following methods.
1_ Shown the ON timer 2_ Shown the OFF timer3_ Shown the Remote Climate Control
1_ COOL: Pre-Cooling Mode2_ HEAT: Pre-Heating Mode 3_
: Pre-Defroster Mode
4_ A/C OFF: Remote Climate Control
OFF
NOTE
 The melodies can be turned off. Refer to “To turn on/off melody
and buzzer” on page
3-45.  If a communication error occurs or the MiEV Remote System is not
functioning properly,
the buzzer will sound. Refer to “Display of MiEV Remote during communicating with vehicle” on page 3-41.
To stop the Remote Climate Con- trol
BK0209800US.book 44 ページ ２０１４年１月１４日　火曜日　午前９時２６分

MiEV Remote System
General information/Charging 3-45
3
A. By using the MiEV Remote, after press-
ing the manual charging switch (J), pressthe power/communica
tion switch (B) for
less than 1 second. B. By using the MiEV Remote, select the A/C OFF mode and send the setting. Refer to “To operate the Remote Climate Control” on page 3-43.C. Turn the electric motor switch to the “ACC” or the “ON” position.
D. Disconnect the regul
ar charge connector
from the vehicle.
N01204100024
1. Turn on the MiEV Remote. Refer to “To turn the MiEV Remote ON/OFF” on page 3-38.• To turn off the sounds, press the UP switch (C) while pressing MODE switch (G).• To turn on the sounds, press the DOWN switch (D) while pressing MODE switch (G).
2. Turn off the MiEV Remote. Refer to “To turn the MiEV Remote ON/OFF” on page 3-38.
N01204500015
The remaining energy in the Main Drive Lith-ium-ion Battery can be
checked using the
MiEV Remote. 1. If the MiEV Remote has been turned off, turn on the MiEV Remote. Refer to “To turn the MiEV Remote ON/OFF” on page 3-38. 2. Current remaining energy in the MainDrive Lithium-ion Battery is shown on the display while the MiEV Remote is ON. The remening energy is shown by the number of segments displayed.
NOTE
 The Remote Climate Control will not stop if the doors or liftgate are opened after the Remote Climate Control has started.
To turn on/off melody and buzzer
Main Drive Lithium-ion Bat- tery Level Indicator
: 3 segments: Full or near full : 2 segments: Moderate
