MITSUBISHI iMiEV 2016 1.G Workshop Manual

MiEV Remote System
General information/Charging 3-37
3
WA R N I N G Individuals who use
implantable pace-
makers or implanta
ble cardiovascular-
defibrillators
should keep away from the
external and internal
transmitters. The
electromagnetic waves used in the MiEVRemote System may affect the operation of implantable pacemakers and implant- able cardiovascular-defibrillators. Individuals using ot
her electro-medical
apparatus besides implantable pacemak-ers and implantable
cardiovascular-defi-
brillators should
check with the
manufacturer of the apparatus to confirmthe effect of the el
ectromagnetic waves
used by the MiEV Remote System. The electromagnetic waves may affect theoperations of the el
ectro-medical appara-
tus. Never use the MiEV Remote near medical equipment. Electrom
agnetic waves could
adversely affect th
e medical equipment.
MiEV Remote
Glass antenna
Keep the MiEV Remote in the place where children will not touch or play with theremote. When bringing the MiEV Remote on flights, do not press any switches on theMiEV Remote while on the plane. If a switch is pressed on the plane, the MiEV Remote emits electromagnetic waveswhich like cell phones and other wireless devices, could interfere with systems on the airplane.When carrying the MiEV Remote in a bag, be careful that no switches on the MiEV Remote can be pressed by mistake.CAUTION Never disassemble or modify the MiEV Remote. No user servic
eable parts are inside
except batteries. Disassembling or modifying the MiEV Remote or removing a label from the MiEV Remote may violate regulations. WA R N I N G
NOTE
 The MiEV Remote syst
em uses radio waves.
The MiEV Remote can operate withinapproximately 328 feet (100 m) from thevehicle. In the following environments or situations, the MiEV Remote may not transmit andreceive radio waves correctly. As a result, the remote may not
operate properly.
• When the vehicle a
nd the MiEV Remote
are separated by a
concrete wall.
• When there is a metal wall between the vehicle and the MiEV Remote. • When the vehicle is surrounded by other tall vehicles. • When the vehicle and/or the MiEV Remote is near a facility
emitting strong radio
waves, such as a television tower, a trans-former substation, a
broadcasting station or
an airport. • When other electrical equipment such as computers or cell-phones are placed near the MiEV Remote. • When the MiEV Remote touches some- thing metallic, or is
covered by a metal
object. • When batteries for the MiEV Remote are weak.
 Melody and buzzer from the MiEV Remote can be turned on or off. Refer to “To turn on/
off melody and buzzer”
on page 3-49.
BK0220401US.book 37 ページ ２０１５年６月３日　水曜日　午前７時４２分

MiEV Remote System 3-38 General information/Charging
3
N01203501044
 The transmitter signal will reach further when the antenna of the MiEV Remote isfully extended and held upright.  The onboard antenna is printed on the right side delta glass
of the vehicle.
 When the MiEV Remote is not used for more than 30 seconds, the MiEV Remote willautomatically turn off.  Some charge facilities
have a timer function
which turns the power supply on and off automatically. When using a charge facility with this timer function, please adjust thecharging time set by the MiEV Remote to be consistent with the timer used by the charg- ing facility.  When you need additi
onal MiEV Remotes,
please contact a certified i-MiEV dealer. Upto four MiEV Remotes
can be used per vehi-
cle.  You may hear operating sounds such as sounds from the cooli
ng fan and air condi-
tioning compressor when the Remote Cli-mate Control is activated even if the electric motor switch is in “LOCK” position during timer charging. This is normal.Refer to “Remote Climate Control” on page 3-47.NOTE

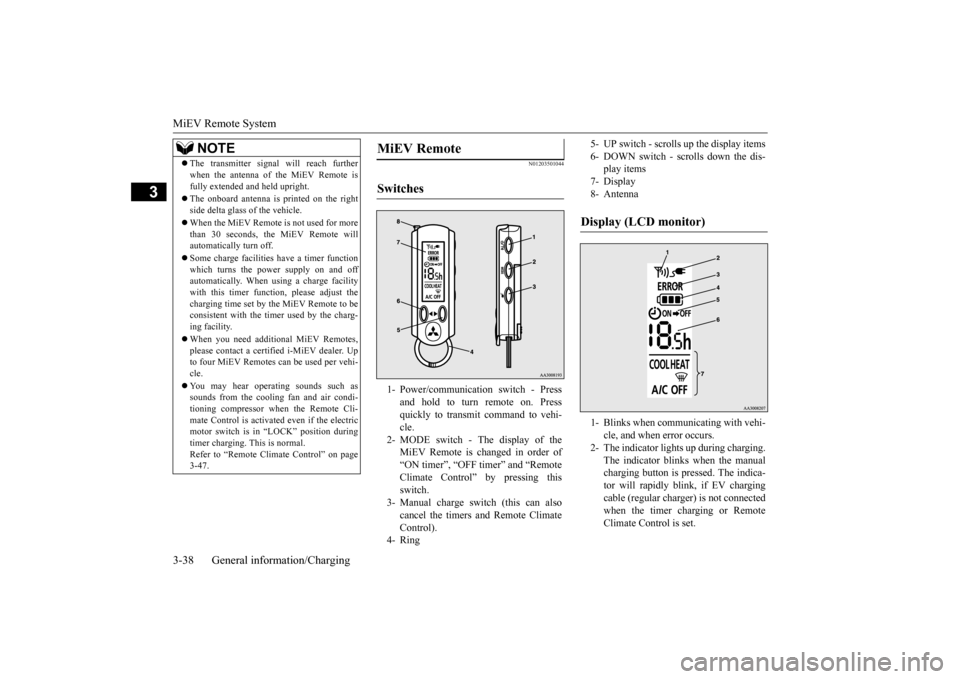

MiEV Remote Switches 1- Power/communication switch - Press
and hold to turn remote on. Pressquickly to transmit command to vehi- cle.
2- MODE switch - The display of the
MiEV Remote is changed in order of “ON timer”, “OFF timer” and “Remote Climate Control” by pressing thisswitch.
3- Manual charge switch (this can also
cancel the timers and Remote Climate Control).
4- Ring
5- UP switch - scrolls
up the display items
6- DOWN switch - scrolls down the dis-
play items
7- Display 8- AntennaDisplay (LCD monitor) 1- Blinks when communicating with vehi-
cle, and when error occurs.
2- The indicator lights up during charging.
The indicator blinks when the manualcharging button is pressed. The indica- tor will rapidly blink, if EV charging cable (regular charge
r) is not connected
when the timer charging or Remote Climate Control is set.
BK0220401US.book 38 ページ ２０１５年６月３日　水曜日　午前７時４２分

MiEV Remote System
General information/Charging 3-39
3
3- Blinks if there is an operation or com-
munication error.
4- Shows remaining charge of the Main
Drive Lithium-ion Battery. Blinks if battery has less than 20% charge.
5-
: Indicates ON timer is set
: Indicates OFF timer is set
6- Indicates amount of time until Charg-
ing Timer is complete.
7- When Remote Climate Control is set,
displays mode set to operate:COOL: Pre-Cooling Mode HEAT: Pre-Heating Mode
: Pre-Defroster Mode
A/C OFF: Remote Climate ControlOFFCAUTION Never leave the MiEV Remote in a place where it will be subject to high temperatures,such as in direct s
unlight, or subject to
extreme low temperatures. The MiEV Remote can
be damaged and may
not properly operate. Never drop or hit the MiEV Remote. Do not apply force to bend the antenna. These can cause damage to or failure of the remote. If the MiEV Remote gets wet, please wipe water off immediately.
Water entering the
MiEV Remote can cause a failure.
BK0220401US.book 39 ページ ２０１５年６月３日　水曜日　午前７時４２分

MiEV Remote System 3-40 General information/Charging
3
N01206100015
Basic operation of the MiEV Remote
Press the power/communication switch for 1 seco
nd or more to turn
the MiEV Remote on.
ON timer OFF timer Remote Climate
Control
Main Drive Lithium-ion Bat- tery Level Indicator
Press the MODE switch to show the ON timer display.
Press the MODE switch to show the OFF timer display.
Press the MODE switch to show the Remote Climate Control dis- play.
Main Drive Lithium-ion Battery Level Indicator
Repeat these steps to set other MODE.
Press the UP switch or DOWN switch to select desired setting. Press the power/communication switch
to send the data to the vehicle.
Press the power/communication switch for 3 seco
nds or more to turn the Mi
EV Remote off or the MiEV Remote will automatically tu
rn off 30 min-
utes after it has been sent the data to the vehicle.
BK0220401US.book 40 ページ ２０１５年６月３日　水曜日　午前７時４２分

MiEV Remote System
General information/Charging 3-41
3
N01203701020
The Charging Timer can be set as follows.  ON timer: Time from the present to when charging will begin.  OFF timer: Time from the start of charg- ing to the end of charging
To set the timer, th
e following conditions
must be met.  Selector lever: “P  Electric motor switch: “LOCK”position  EV charging cable (regular charger): Con- nected
Charging Timer
WA R N I N G Improper charging can result in a fire, property damage, and serious injury or death.Before Charging Timer, carefully read and follow the instructions in “Precaution on Charging the Main Drive Lithium-ionBattery” on page 3-15 and “Regular charging (charging method with rated AC 120 V outlet)” on page 3-16.NOTE
 Charging Timer cannot be
used with a quick
charging system.
BK0220401US.book 41 ページ ２０１５年６月３日　水曜日　午前７時４２分

MiEV Remote System 3-42 General information/Charging
3
N01205001030
1. In case you set the timer at 9:00 PM so
that charging starts at 11:0
0 PM and stops at 7:00 AM of the following day (for 8 hou
rs).
2. In case you set the timer at 7:00 PM so that char
ging starts and stops at th
e same time the last time.
Example of Charging Timer
9:00 PM
7:00 PM
7:00 AM
11:00 PM
11:00 PM
7:00AM
1. Setting of ON Timer = 2h, OFF Timer = 8h 2. When Charging
timers are set up, initially 4h
for ON-Timer and 8h for OFF-
Timer are displayed.
Charging Waiting
ON Timer = 2h OFF Timer = 8h ON-Timer initial display
= 4h
OFF-Timer initial dis- play = 8h
BK0220401US.book 42 ページ ２０１５年６月３日　水曜日　午前７時４２分

MiEV Remote System
General information/Charging 3-43
3
N01205100018
1. Extend the antenna (A) and press the power/communication switch (B) for 1 second or more to turn the MiEV Remote on. When it communicates with the vehi-cle properly, the vehi
cle information will
be displayed on the screen. 2. To turn the MiEV Remote off, press the power/communication switch (B) for 3 seconds or more and store the antenna (A).
N01205201029
1. Start the regular charging. Refer to “Reg-ular charging (charging method with ratedAC 120 V outlet)” on page 3-16.
2. Turn on the MiEV Remote. Refer to “To turn the MiEV Remote ON/OFF” on page3-43. 3. Press the UP switch (C) or the DOWN switch (D) once. The time remaining fromthe present to the time that was previously set for the ON timer will be displayed and blink.
4. If you need to change the remaining time for the ON timer, press the UP switch (C) or the DOWN switch (D) to change the remaining time.The remaining time can be changed within the range from 0 to 19.5 hours in half hour increments.
To turn the MiEV Remote ON/OFF To set the ON timer
NOTE
 The remaining time for the last charging is displayed with bli
nking as follows.
Example: If you set the charging starting time to 11:00 PM of the day before:
Present time
Remaining
time
Display
9:00 PM 2:00 2h 9:10 PM 1:50 2h 9:40 PM 1:20 1.5h
NOTE
 If the MiEV Remote cannot communicate with the vehicle, the
remaining time will not
be displayed.NOTE
 When you want to start the charging at the same time as the last time, changing the remaining time is unnecessary.  When the remaining time is set to 0h, the charging starts immedi
ately after step 5.
BK0220401US.book 43 ページ ２０１５年６月３日　水曜日　午前７時４２分

MiEV Remote System 3-44 General information/Charging
3
5. Press the power/communication switch (B) for less than 1 second to send the set-ting data to the vehicle. The MiEV Remote will sound melodies on transmission and reception. 6. To turn off the MiEV Remote, refer to “To turn the MiEV Remote ON/OFF” on page 3-43.
N01206000014
1. Turn on the MiEV Remote. Refer to “Toturn the MiEV Remote ON/OFF” on page3-43. 2. Press the UP switch (C) or the DOWN switch (D) once, and the remaining timefrom the present to the time set for the ON timer will be disp
layed and blink.
3. Change the remainin
g time to 0h by press-
ing the UP switch (C) or the DOWN switch (D).
NOTE
 The melodies can be turned off. Refer to “To turn on/off melody
and buzzer” on page
3-49.  If a communication error occurs or the MiEV Remote System is not
functioning properly,
the buzzer will sound. Refer to “Display of MiEV Remote during communicating with vehicle” on page 3-46.  If the OFF Timer is unset when setting the ON timer, the OFF timer will be automati-cally set with “f
ully charged”.
 To set OFF Timer, refer to “To set OFF Timer” on page 3-45.
NOTE
 The energy level gauge (E) in the instrument panel on the vehicle wi
ll illuminate and the
charging indicator (F
) will blink approxi-
mately 30 seconds af
ter the vehicle has
received the setting for the ON timer. After approximately 30 seconds, the energylevel gauge and the charging indicator will go off, and the vehicle will be prepared for the Charging Timer.  Turning the electric motor switch to the “ON” position or th
e “ACC” position will
cancel the Charging Timer.  If the MODE switch is pressed while chang- ing the ON timer setting,
the change will be
canceled.  The symbol on the MiEV Remote will be illuminated while the vehicle is charging.
E
F
 If the charge connect
or is disconnected
before the time set by the ON timer, theCharging Timer is not canceled. If the chargeconnector is re-connected
again before start-
ing the charge or setting the charge timers, the Charging Timer will resume.
To start the charging immediately after the ON timer has been set
NOTE
BK0220401US.book 44 ページ ２０１５年６月３日　水曜日　午前７時４２分

MiEV Remote System
General information/Charging 3-45
3
4. Press the power/c
ommunication switch
(B) for less than 1 second to send the set-ting data to the vehicle. The MiEV Remote will sound melodies on transmis- sion and reception. The charging willstart. Refer to “Regular charging (charging method with rated AC 120 V outlet)” onpage 3-16. 5. Turn off the MiEV Remote. Refer to “To turn the MiEV Remote ON/OFF” on page 3-43.
N01205301033
The OFF timer can be
set during the regular
charging or after setting the ON timer. 1. When the power of MiEV Remote is off, turn the power on. Refer to “To turn theMiEV Remote ON/OFF” on page 3-43. 2. Press the MODE switc
h (G) to change the
display to the OFF timer (2).
3. Press the UP switch (C) or the DOWN switch (D) once. The time set last time for the OFF timer will be
displayed and blink.
4. If you need to change the time for the OFF timer, press the UP switch (C) or the DOWN switch (D) to change the time.
• The time can be changed within the range from 0.5h to 19.5h by half hourand can be changed to “-h”. • When “-h” is displayed, the charging will end when Main Drive Lithium-ionBattery is fully charged.
5. Press the power/c
ommunication switch
(B) for less than 1 second to send the set- ting data to the vehicle.The MiEV Remote
will sound melodies
on transmission and reception.
To set OFF Timer
1_ Shown the ON timer 2_ Shown the OFF timer 3_ Shown the Remote Climate Control
NOTE
 To display “-h”, press the UP switch (C) when 19.5h is displayed or press DOWN switch (D) when 0.5h is displayed.NOTE
 The melodies can be turned off. Refer to “To turn on/off melody and buzzer” on page 3-49.  If a communication error occurs or the MiEV Remote System is not
functioning properly,
the buzzer will sound. Refer to “Display ofMiEV Remote during
communicating with
vehicle” on page 3-46.  If the ON timer is unset when setting the OFF timer, the ON timer will be automati- cally set with “0h”.
BK0220401US.book 45 ページ ２０１５年６月３日　水曜日　午前７時４２分

MiEV Remote System 3-46 General information/Charging
3
6. Turn off the MiEV Remote. Refer to “To turn the MiEV Remote ON/OFF” on page3-43.
N01203801021
It communicates with the vehicle when thepower of the MiEV Remote is turned on with pressing the power
supply/communication
switch (B) for 1 second or more and if thepower supply/communication switch (B) is pressed for less than 1 second while the power of the MiEV Remote is on.If the normal reception
melody sounds after
the transmitting melody, it is set completion. Communication symbol (H) blinks whilecommunicating with the vehicle. If the buzzer sounds with ERROR symbol (I) blinks, a problem is detected. Refer to“Actions to be taken when the MiEV Remote system does not operate correctly” on page 3-52.
N01203901022
There are two methods to cancel ChargingTimer.  By using the MiEV Remote  By operating the electric motor switch on the vehicle
NOTE
 The energy level gauge (E) in the instrument panel will illuminate
and the charging indi-
cator (F) will blink
approximately 30 sec-
onds after the vehicl
e has received the
setting for the OFF timer.After approximately 30 seconds, the energy level gauge and the ch
arging indicator will
then go off, and the vehicle will be preparedfor Charging Timer in accordance with the ON/OFF setting.  The symbol on the MiEV Remote illuminates while the Main Drive Lithium- ion Battery is charging.
E
F
 The Charging Timer will be cancelled if the electric motor switch is turned to the “ON”  Once the Main Drive Lithium-ion Battery is fully charged, the charging will end even ifbefore the time set by the OFF timer.  If the charge connector is disconnected dur- ing charging, the OFF charging timer will be canceled.
Display of MiEV Remote during communicating with vehicle
NOTE
To cancel Charging Timer
NOTE
 If the Charging Timer is canceled during charging, the charging will continue until the Main Drive Lithium-ion Battery is fullycharged.  If the Charging Timer is canceled before charging starts, charging
will start immedi-
ately and continue until the Main Drive Lith- ium-ion Battery is fully charged.
