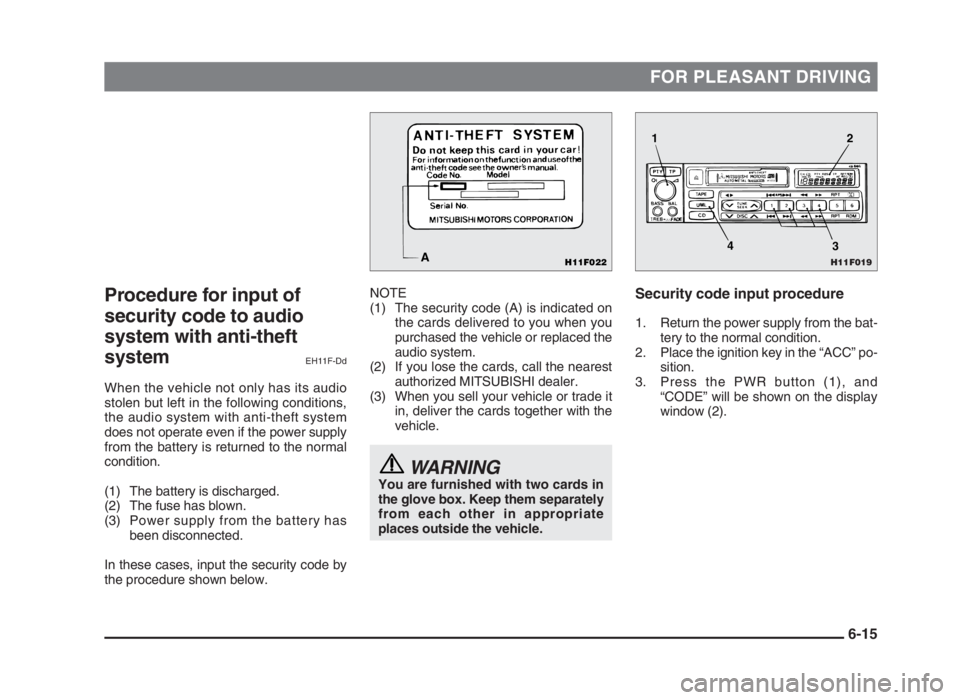

Page 141 of 264

FOR PLEASANT DRIVING
Procedure for input of
security code to audio
system with anti-theft
system
EH11F-Dd
When the vehicle not only has its audio
stolen but left in the following conditions,
the audio system with anti-theft system
does not operate even if the power supply
from the battery is returned to the normal
condition.
(1) The battery is discharged.
(2) The fuse has blown.
(3) Power supply from the battery has
been disconnected.
In these cases, input the security code by
the procedure shown below.
Security code input procedure
1. Return the power supply from the bat-
tery to the normal condition.
2. Place the ignition key in the “ACC” po-
sition.
3. Press the PWR button (1), and
“CODE” will be shown on the display
window (2). NOTE
(1) The security code (A) is indicated on
the cards delivered to you when you
purchased the vehicle or replaced the
audio system.
(2) If you lose the cards, call the nearest
authorized MITSUBISHI dealer.
(3) When you sell your vehicle or trade it
in, deliver the cards together with the
vehicle.
WARNINGYou are furnished with two cards in
the glove box. Keep them separately
from each other in appropriate
places outside the vehicle.
6-15
H11F022AH11F019
12
3 4
06engL2_240082_4 22-01-2004 13:07 Page 6-15

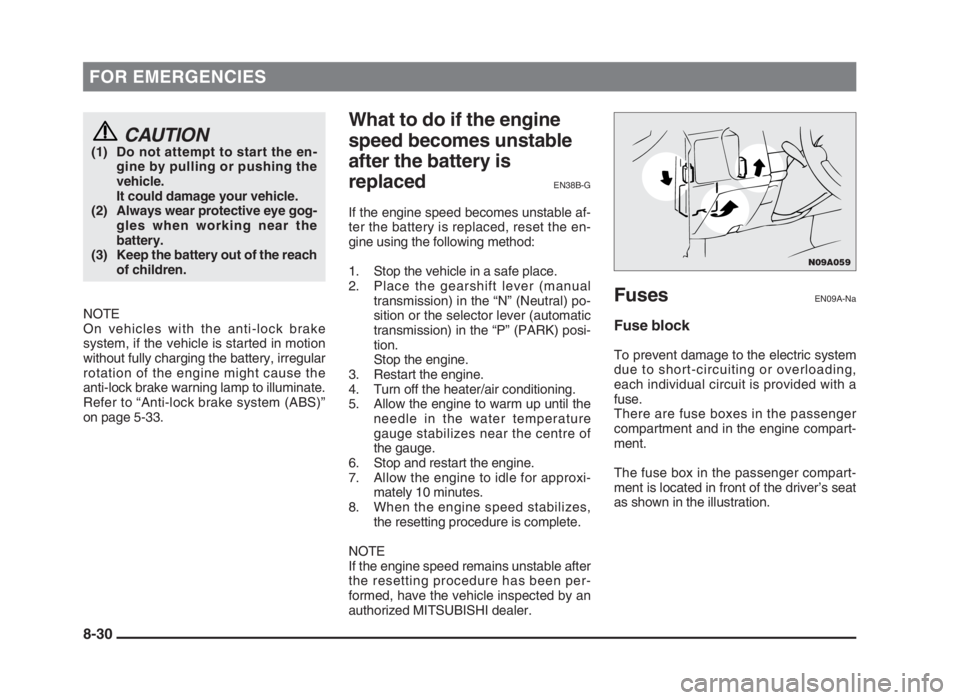

Page 204 of 264

FOR EMERGENCIES
CAUTION(1) Do not attempt to start the en-
gine by pulling or pushing the
vehicle.
It could damage your vehicle.
(2) Always wear protective eye gog-
gles when working near the
battery.
(3) Keep the battery out of the reach
of children.
NOTE
On vehicles with the anti-lock brake
system, if the vehicle is started in motion
without fully charging the battery, irregular
rotation of the engine might cause the
anti-lock brake warning lamp to illuminate.
Refer to “Anti-lock brake system (ABS)”
on page 5-33.
What to do if the engine
speed becomes unstable
after the battery is
replaced
EN38B-G
If the engine speed becomes unstable af-
ter the battery is replaced, reset the en-
gine using the following method:
1. Stop the vehicle in a safe place.
2. Place the gearshift lever (manual
transmission) in the “N” (Neutral) po-
sition or the selector lever (automatic
transmission) in the “P” (PARK) posi-
tion.
Stop the engine.
3. Restart the engine.
4. Turn off the heater/air conditioning.
5. Allow the engine to warm up until the
needle in the water temperature
gauge stabilizes near the centre of
the gauge.
6. Stop and restart the engine.
7. Allow the engine to idle for approxi-
mately 10 minutes.
8. When the engine speed stabilizes,
the resetting procedure is complete.
NOTE
If the engine speed remains unstable after
the resetting procedure has been per-
formed, have the vehicle inspected by an
authorized MITSUBISHI dealer.
FusesEN09A-Na
Fuse block
To prevent damage to the electric system
due to short-circuiting or overloading,
each individual circuit is provided with a
fuse.
There are fuse boxes in the passenger
compartment and in the engine compart-
ment.
The fuse box in the passenger compart-
ment is located in front of the driver’s seat
as shown in the illustration.
8-30
N09A059
08engL2_240082_4 22-01-2004 13:10 Page 8-30

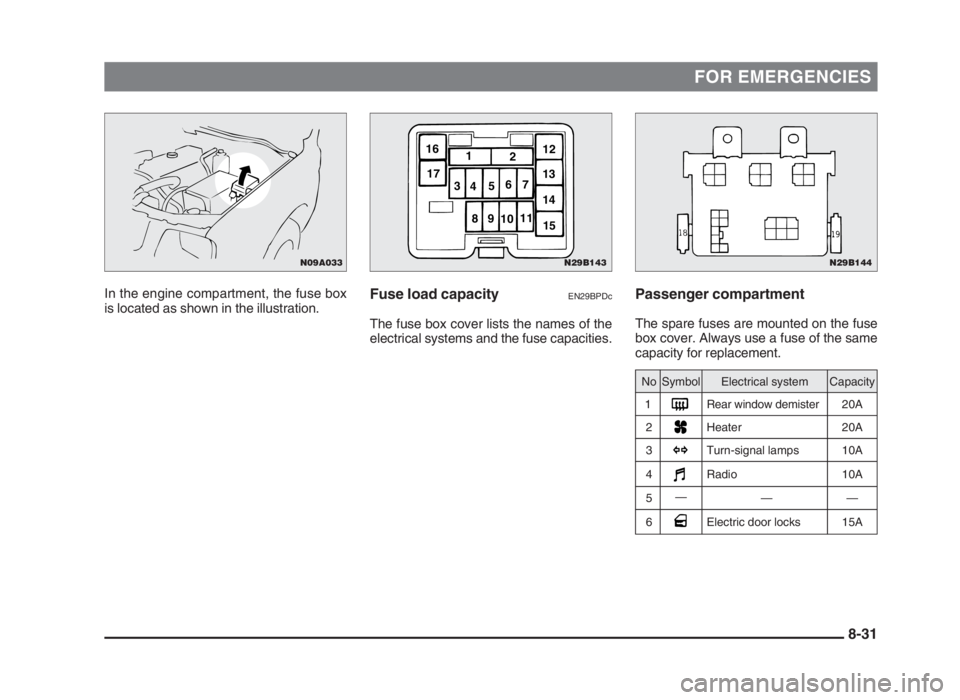

Page 205 of 264

FOR EMERGENCIES
In the engine compartment, the fuse box
is located as shown in the illustration.Passenger compartment
The spare fuses are mounted on the fuse
box cover. Always use a fuse of the same
capacity for replacement.
Fuse load capacityEN29BPDc
The fuse box cover lists the names of the
electrical systems and the fuse capacities.
8-31
NoElectrical systemCapacity
1Rear window demister20A
2Heater20A
3Turn-signal lamps10A
4Radio10A
5——
6Electric door locks15A
Symbol
—
N29B143
1
2
3
4567
8
9
101112
13
14
15 16
17
N29B144N09A033
08engL2_240082_4 22-01-2004 13:11 Page 8-31

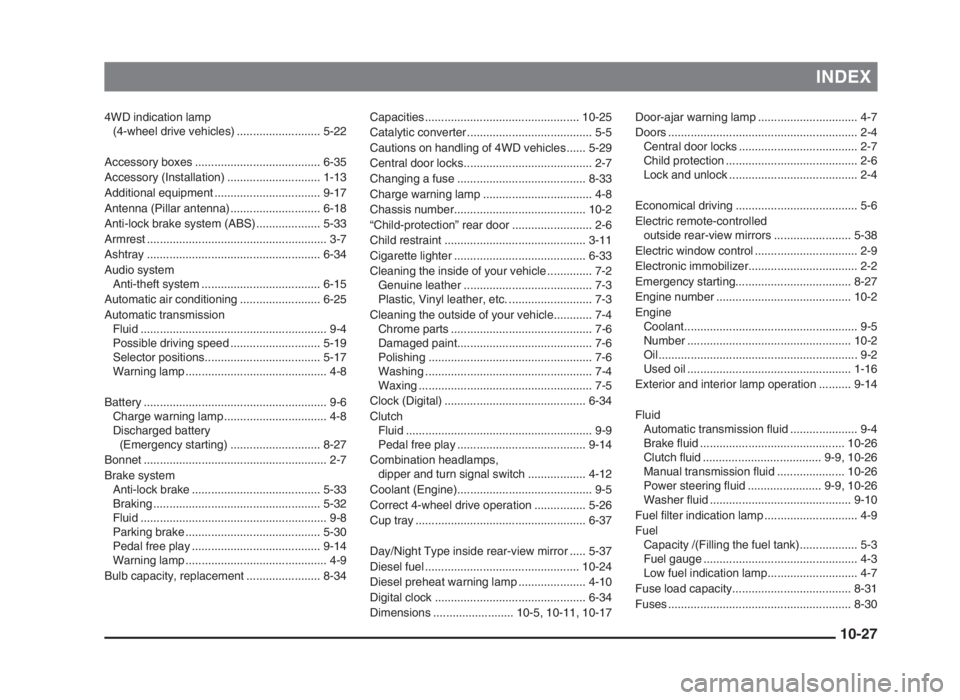

Page 259 of 264

INDEX
4WD indication lamp
(4-wheel drive vehicles) .......................... 5-22
Accessory boxes ....................................... 6-35
Accessory (Installation) ............................. 1-13
Additional equipment ................................. 9-17
Antenna (Pillar antenna) ............................ 6-18
Anti-lock brake system (ABS) .................... 5-33
Armrest ........................................................ 3-7
Ashtray ...................................................... 6-34
Audio system
Anti-theft system ..................................... 6-15
Automatic air conditioning ......................... 6-25
Automatic transmission
Fluid .......................................................... 9-4
Possible driving speed ............................ 5-19
Selector positions.................................... 5-17
Warning lamp ............................................ 4-8
Battery ......................................................... 9-6
Charge warning lamp ................................ 4-8
Discharged battery
(Emergency starting) ............................ 8-27
Bonnet ......................................................... 2-7
Brake system
Anti-lock brake ........................................ 5-33
Braking .................................................... 5-32
Fluid .......................................................... 9-8
Parking brake .......................................... 5-30
Pedal free play ........................................ 9-14
Warning lamp ............................................ 4-9
Bulb capacity, replacement ....................... 8-34Door-ajar warning lamp ............................... 4-7
Doors ........................................................... 2-4
Central door locks ..................................... 2-7
Child protection ......................................... 2-6
Lock and unlock ........................................ 2-4
Economical driving ...................................... 5-6
Electric remote-controlled
outside rear-view mirrors ........................ 5-38
Electric window control ................................ 2-9
Electronic immobilizer.................................. 2-2
Emergency starting.................................... 8-27
Engine number .......................................... 10-2
Engine
Coolant...................................................... 9-5
Number ................................................... 10-2
Oil .............................................................. 9-2
Used oil ................................................... 1-16
Exterior and interior lamp operation .......... 9-14
Fluid
Automatic transmission fluid ..................... 9-4
Brake fluid ............................................. 10-26
Clutch fluid ..................................... 9-9, 10-26
Manual transmission fluid ..................... 10-26
Power steering fluid ....................... 9-9, 10-26
Washer fluid ............................................ 9-10
Fuel filter indication lamp ............................. 4-9
Fuel
Capacity /(Filling the fuel tank).................. 5-3
Fuel gauge ................................................ 4-3
Low fuel indication lamp............................ 4-7
Fuse load capacity..................................... 8-31
Fuses ......................................................... 8-30 Capacities ................................................ 10-25
Catalytic converter ....................................... 5-5
Cautions on handling of 4WD vehicles...... 5-29
Central door locks........................................ 2-7
Changing a fuse ........................................ 8-33
Charge warning lamp .................................. 4-8
Chassis number......................................... 10-2
“Child-protection” rear door ......................... 2-6
Child restraint ............................................ 3-11
Cigarette lighter ......................................... 6-33
Cleaning the inside of your vehicle .............. 7-2
Genuine leather ........................................ 7-3
Plastic, Vinyl leather, etc. .......................... 7-3
Cleaning the outside of your vehicle............ 7-4
Chrome parts ............................................ 7-6
Damaged paint.......................................... 7-6
Polishing ................................................... 7-6
Washing .................................................... 7-4
Waxing ...................................................... 7-5
Clock (Digital) ............................................ 6-34
Clutch
Fluid .......................................................... 9-9
Pedal free play ........................................ 9-14
Combination headlamps,
dipper and turn signal switch .................. 4-12
Coolant (Engine).......................................... 9-5
Correct 4-wheel drive operation ................ 5-26
Cup tray ..................................................... 6-37
Day/Night Type inside rear-view mirror ..... 5-37
Diesel fuel ................................................ 10-24
Diesel preheat warning lamp ..................... 4-10
Digital clock ............................................... 6-34
Dimensions ......................... 10-5, 10-11, 10-17
10-27
10engL2_240082_4 22-01-2004 13:14 Page 10-27
