Overview -Instruments and ControlsEB21APDd

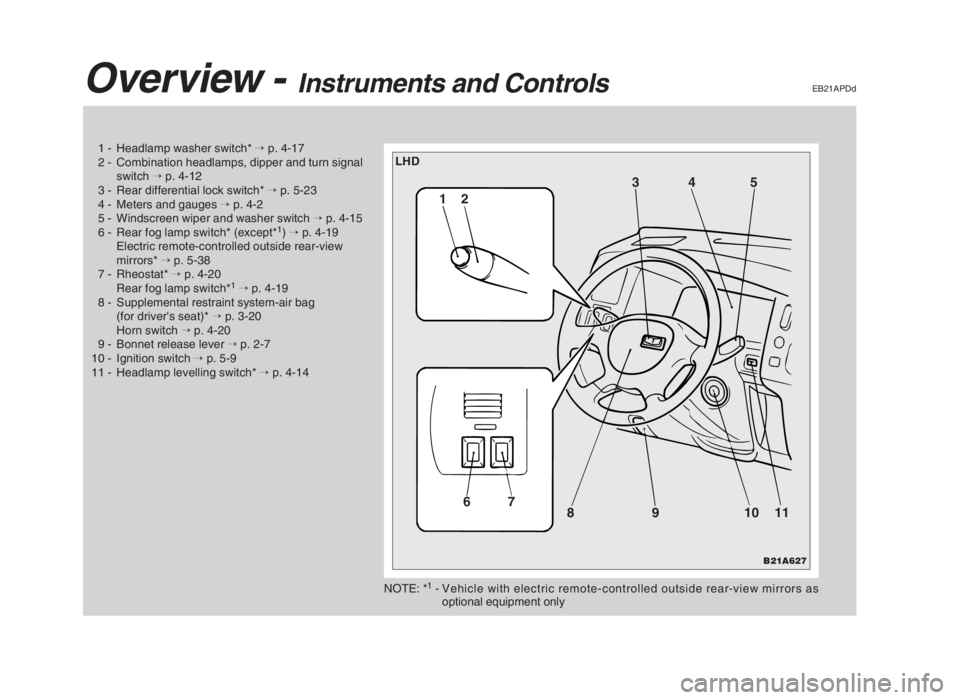

1 - Headlamp washer switch*→p. 4-17
2 - Combination headlamps, dipper and turn signal
switch→p. 4-12
3 - Rear differential lock switch*→p. 5-23
4 - Meters and gauges→p. 4-2
5 - Windscreen wiper and washer switch→p. 4-15
6 - Rear fog lamp switch* (except*
1)→p. 4-19
Electric remote-controlled outside rear-view
mirrors*→p. 5-38
7 - Rheostat*→p. 4-20
Rear fog lamp switch*
1→p. 4-19
8 - Supplemental restraint system-air bag
(for driver's seat)*→p. 3-20
Horn switch→p. 4-20
9 - Bonnet release lever→p. 2-7
10 - Ignition switch→p. 5-9
11 - Headlamp levelling switch*→p. 4-14
NOTE: *1- Vehicle with electric remote-controlled outside rear-view mirrors as
optional equipment only
B21A627
1234 5
67
8 9 10 11
LHD
01engL2_240082_4 22-01-2004 12:58 Page 1-2

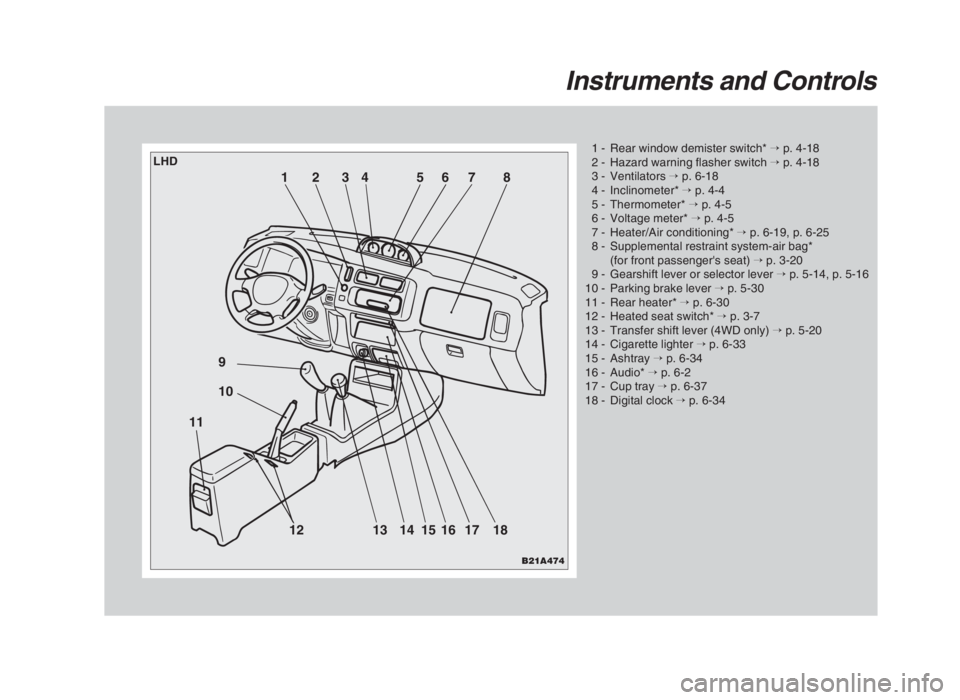

Instruments and Controls
1 - Rear window demister switch*→p. 4-18
2 - Hazard warning flasher switch→p. 4-18
3 - Ventilators→p. 6-18
4 - Inclinometer*→p. 4-4
5 - Thermometer*→p. 4-5
6 - Voltage meter*→p. 4-5
7 - Heater/Air conditioning*→p. 6-19, p. 6-25
8 - Supplemental restraint system-air bag*
(for front passenger's seat)→p. 3-20
9 - Gearshift lever or selector lever→p. 5-14, p. 5-16
10 - Parking brake lever→p. 5-30
11 - Rear heater*→p. 6-30
12 - Heated seat switch*→p. 3-7
13 - Transfer shift lever (4WD only)→p. 5-20
14 - Cigarette lighter→p. 6-33
15 - Ashtray→p. 6-34
16 - Audio*→p. 6-2
17 - Cup tray→p. 6-37
18 - Digital clock→p. 6-34
B21A474
12 9
10
11
13 14 15 16 17 18 2 1345678
LHD
01engL2_240082_4 22-01-2004 12:58 Page 1-3

Instruments and Controls

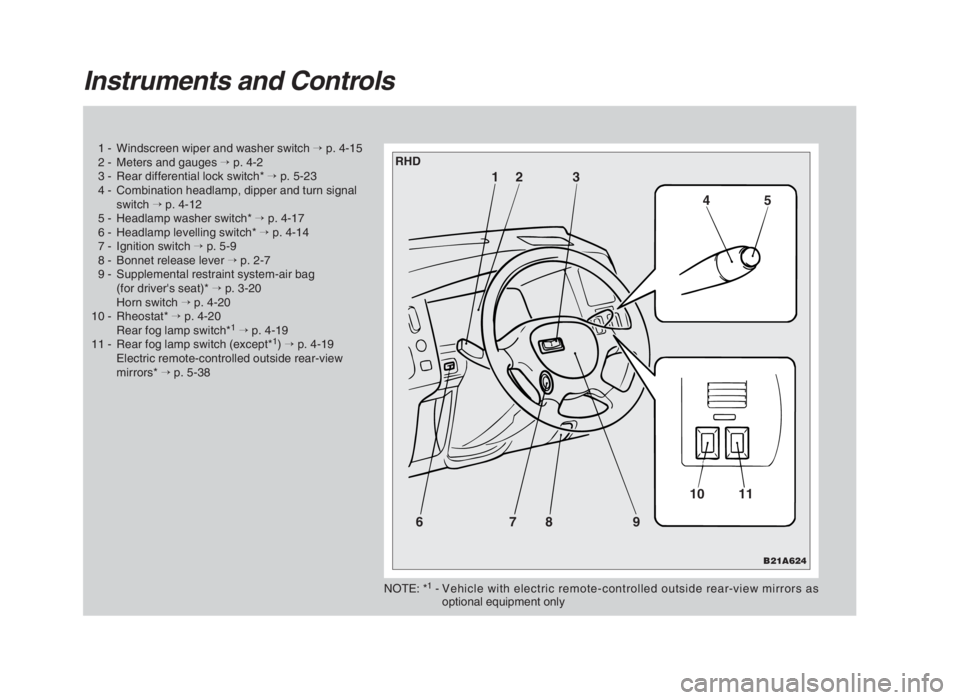

1 - Windscreen wiper and washer switch→p. 4-15
2 - Meters and gauges→p. 4-2
3 - Rear differential lock switch*→p. 5-23
4 - Combination headlamp, dipper and turn signal
switch→p. 4-12
5 - Headlamp washer switch*→p. 4-17
6 - Headlamp levelling switch*→p. 4-14
7 - Ignition switch→p. 5-9
8 - Bonnet release lever→p. 2-7
9 - Supplemental restraint system-air bag
(for driver's seat)*→p. 3-20
Horn switch→p. 4-20
10 - Rheostat*→p. 4-20
Rear fog lamp switch*
1→p. 4-19
11 - Rear fog lamp switch (except*1)→p. 4-19
Electric remote-controlled outside rear-view
mirrors*→p. 5-38
NOTE: *1- Vehicle with electric remote-controlled outside rear-view mirrors as
optional equipment only
B21A624
12 3
45
678910 11
RHD
01engL2_240082_4 22-01-2004 12:58 Page 1-4

Instruments and Controls

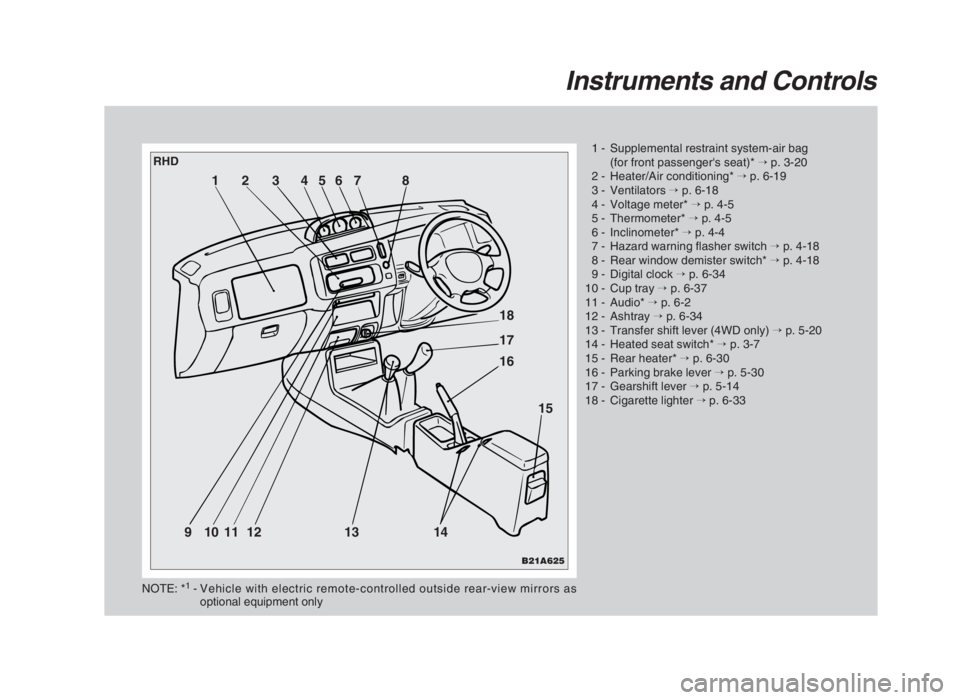

1 - Supplemental restraint system-air bag
(for front passenger's seat)*→p. 3-20
2 - Heater/Air conditioning*→p. 6-19
3 - Ventilators→p. 6-18
4 - Voltage meter*→p. 4-5
5 - Thermometer*→p. 4-5
6 - Inclinometer*→p. 4-4
7 - Hazard warning flasher switch→p. 4-18
8 - Rear window demister switch*→p. 4-18
9 - Digital clock→p. 6-34
10 - Cup tray→p. 6-37
11 - Audio*→p. 6-2
12 - Ashtray→p. 6-34
13 - Transfer shift lever (4WD only)→p. 5-20
14 - Heated seat switch*→p. 3-7
15 - Rear heater*→p. 6-30
16 - Parking brake lever→p. 5-30
17 - Gearshift lever→p. 5-14
18 - Cigarette lighter→p. 6-33
NOTE: *1- Vehicle with electric remote-controlled outside rear-view mirrors as
optional equipment only
B21A625
1234567 8
18
17
16
15
9101112 13 14
RHD
01engL2_240082_4 22-01-2004 12:58 Page 1-5

Interior (Single cab)EB21BPDe

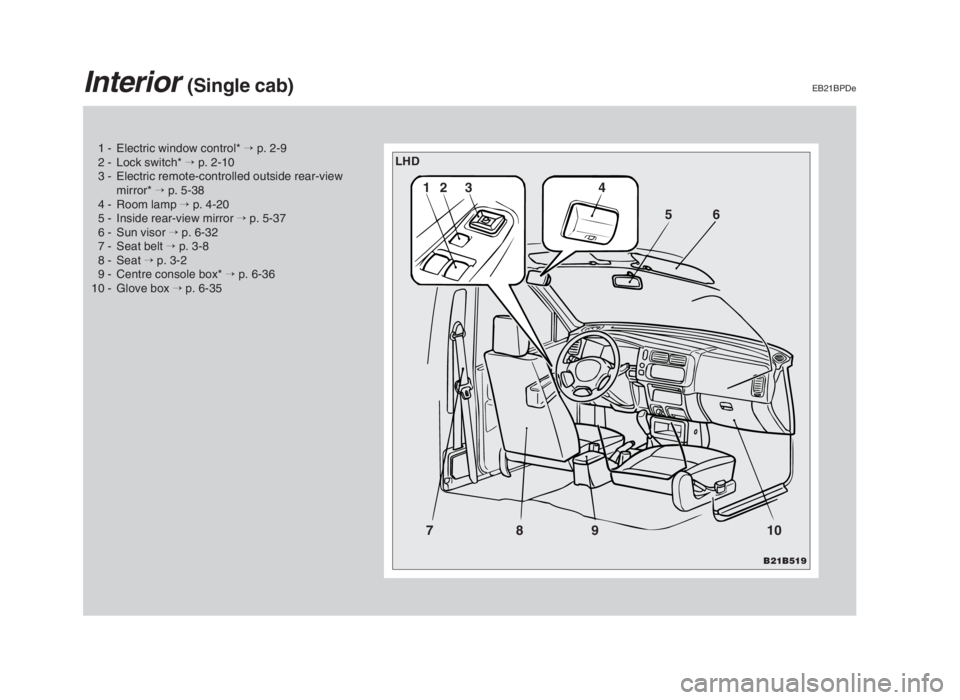

1 - Electric window control* →p. 2-9
2 - Lock switch* →p. 2-10
3 - Electric remote-controlled outside rear-view
mirror* →p. 5-38
4 - Room lamp →p. 4-20
5 - Inside rear-view mirror →p. 5-37
6 - Sun visor →p. 6-32
7 - Seat belt →p. 3-8
8 - Seat →p. 3-2
9 - Centre console box* →p. 6-36
10 - Glove box →p. 6-35
B21B519
12 3
4
56
789 10
LHD
01engL2_240082_4 22-01-2004 12:58 Page 1-6

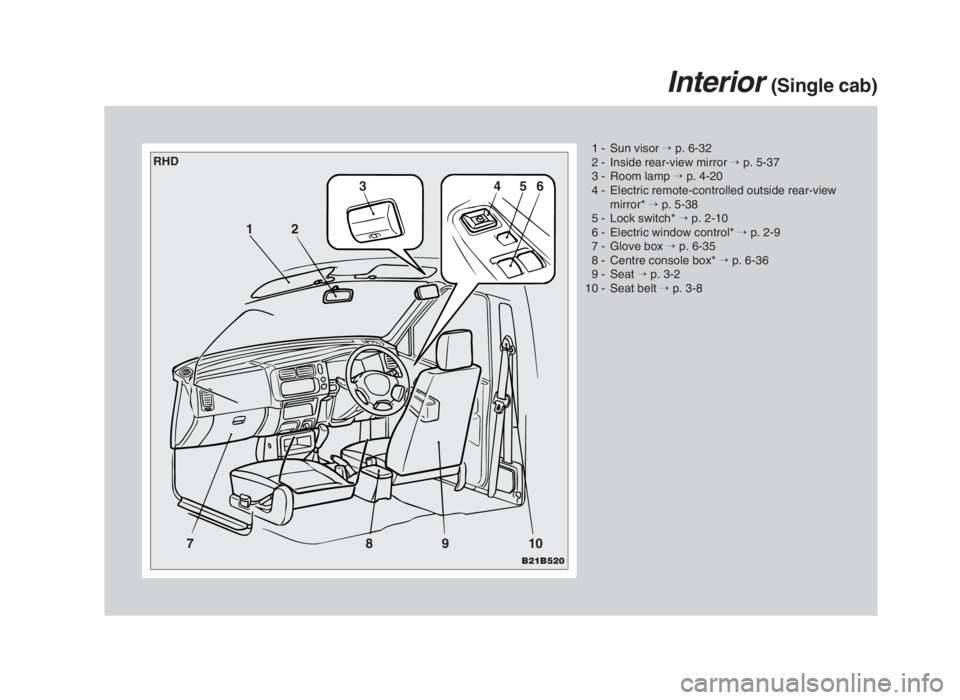

Interior (Single cab)
1 - Sun visor →p. 6-32
2 - Inside rear-view mirror →p. 5-37
3 - Room lamp →p. 4-20
4 - Electric remote-controlled outside rear-view
mirror* →p. 5-38
5 - Lock switch* →p. 2-10
6 - Electric window control* →p. 2-9
7 - Glove box →p. 6-35
8 - Centre console box* →p. 6-36
9 - Seat →p. 3-2
10 - Seat belt →p. 3-8
B21B520
123456
78910
RHD
01engL2_240082_4 22-01-2004 12:58 Page 1-7

Interior (Club cab)

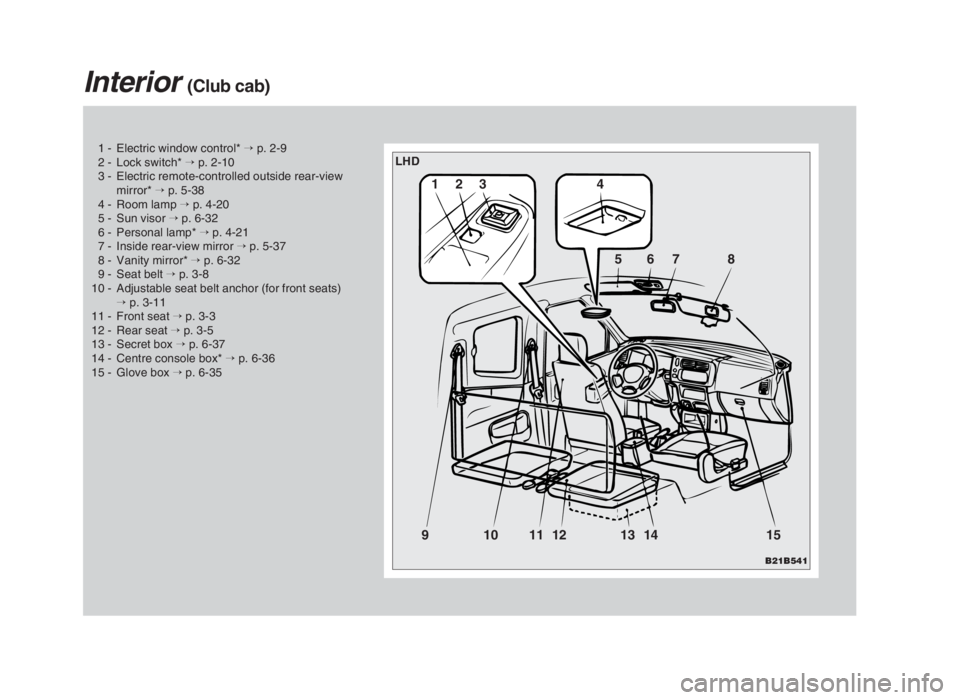

1 - Electric window control* →p. 2-9
2 - Lock switch* →p. 2-10
3 - Electric remote-controlled outside rear-view
mirror* →p. 5-38
4 - Room lamp →p. 4-20
5 - Sun visor →p. 6-32
6 - Personal lamp* →p. 4-21
7 - Inside rear-view mirror →p. 5-37
8 - Vanity mirror* →p. 6-32
9 - Seat belt →p. 3-8
10 - Adjustable seat belt anchor (for front seats)
→p. 3-11
11 - Front seat →p. 3-3
12 - Rear seat →p. 3-5
13 - Secret box →p. 6-37
14 - Centre console box* →p. 6-36
15 - Glove box →p. 6-35
B21B541
123 4
8 7 6 5
91011121314 15
LHD
01engL2_240082_4 22-01-2004 12:58 Page 1-8

B21A344B21B542
12345678
9101112131415
Interior (Club cab)

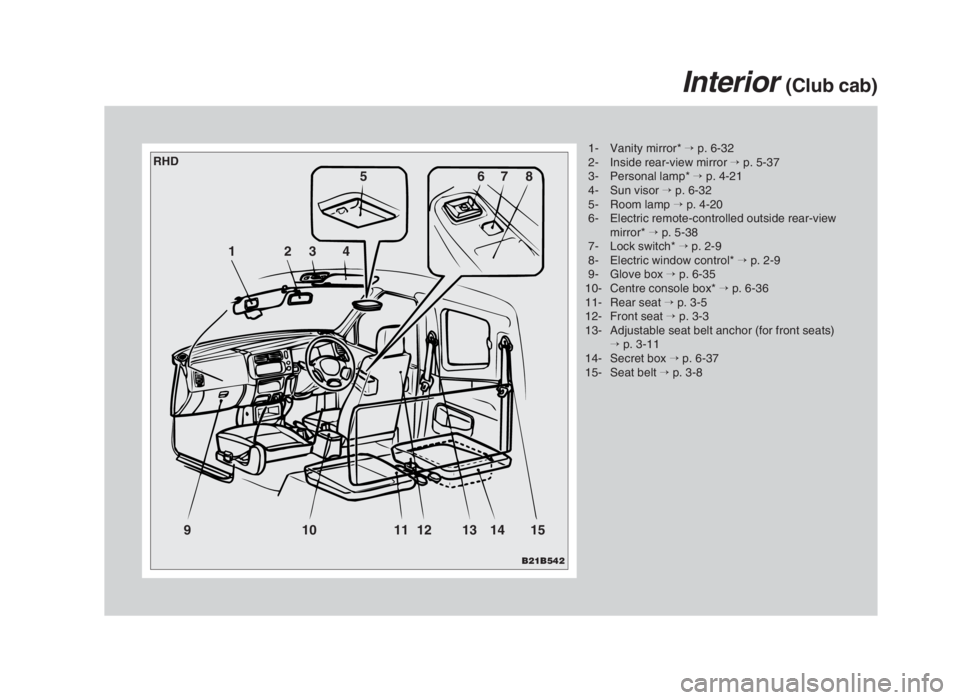

1- Vanity mirror* →p. 6-32
2- Inside rear-view mirror →p. 5-37
3- Personal lamp* →p. 4-21
4- Sun visor →p. 6-32
5- Room lamp →p. 4-20
6- Electric remote-controlled outside rear-view
mirror* →p. 5-38
7- Lock switch* →p. 2-9
8- Electric window control* →p. 2-9
9- Glove box →p. 6-35
10- Centre console box* →p. 6-36
11- Rear seat → p. 3-5
12- Front seat →p. 3-3
13- Adjustable seat belt anchor (for front seats)
→p. 3-11
14- Secret box →p. 6-37
15- Seat belt →p. 3-8 RHD
01engL2_240082_4 22-01-2004 12:58 Page 1-9

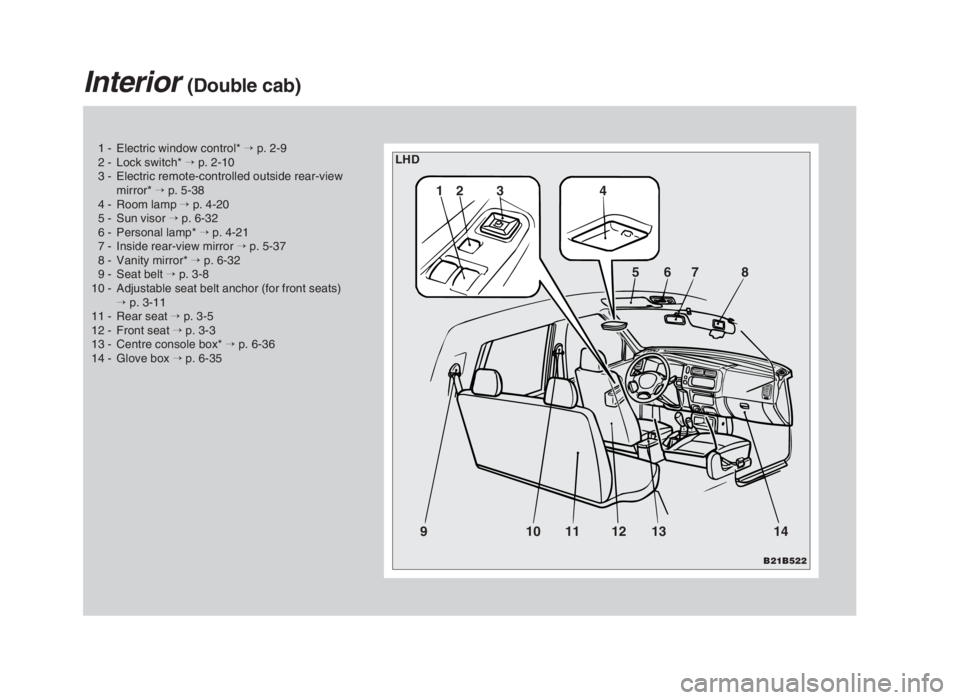

1 - Electric window control* →p. 2-9
2 - Lock switch* →p. 2-10
3 - Electric remote-controlled outside rear-view
mirror* →p. 5-38
4 - Room lamp →p. 4-20
5 - Sun visor →p. 6-32
6 - Personal lamp* →p. 4-21
7 - Inside rear-view mirror →p. 5-37
8 - Vanity mirror* →p. 6-32
9 - Seat belt →p. 3-8
10 - Adjustable seat belt anchor (for front seats)
→p. 3-11
11 - Rear seat →p. 3-5
12 - Front seat →p. 3-3
13 - Centre console box* →p. 6-36
14 - Glove box →p. 6-35
B21A342
Interior (Double cab)
B21B522
12 3 4
567 8
910111213 14
LHD
