Page 133 of 362

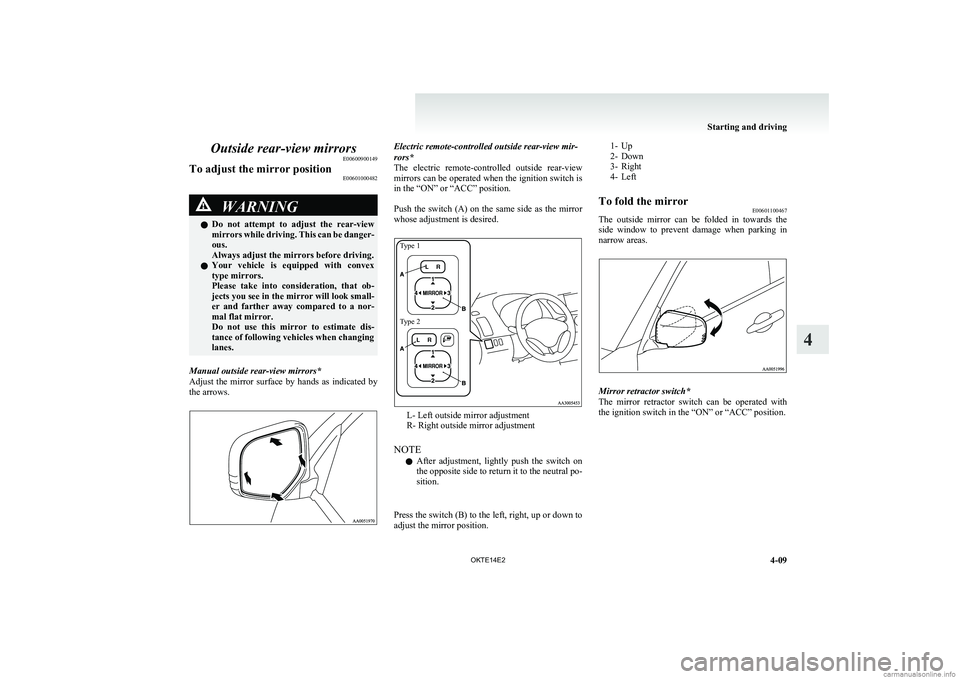

Outside rear-view mirrorsE00600900149To adjust the mirror position E00601000482WARNINGlDo not attempt to adjust the rear-view
mirrors while driving. This can be danger-
ous.
Always adjust the mirrors before driving.
l Your vehicle is equipped with convex
type mirrors.
Please take into consideration, that ob-
jects you see in the mirror will look small-
er and farther away compared to a nor-
mal flat mirror.
Do not use this mirror to estimate dis-
tance of following vehicles when changing
lanes.
Manual outside rear-view mirrors*
Adjust the mirror surface by hands as indicated by
the arrows.
Electric remote-controlled outside rear-view mir-
rors*
The electric remote-controlled outside rear-view
mirrors can be operated when the ignition switch is
in the “ON” or “ACC” position.
Push the switch (A) on the same side as the mirror
whose adjustment is desired.Type 1Type 2
L- Left outside mirror adjustment
R- Right outside mirror adjustment
NOTE l After adjustment, lightly push the switch on
the opposite side to return it to the neutral po-
sition.
Press the switch (B) to the left, right, up or down to
adjust the mirror position.
1- Up
2- Down
3- Right
4- LeftTo fold the mirror E00601100467
The outside mirror can be folded in towards the
side window to prevent damage when parking in
narrow areas.
Mirror retractor switch*
The mirror retractor switch can be operated with
the ignition switch in the “ON” or “ACC” position.
Starting and driving
4-09
OKTE14E2
4
Page 349 of 362
4
4-wheel drive operation 4-34
AAccessory (Installation) 04
Accessory socket 5-73
Active Stability & Traction Control (ASTC)
4-42
Additional equipment 8-19
Air conditioning
Automatic air conditioning 5-08
Important operation tips for the air condition-
ing 5-12
Manual air conditioning 5-03 Air purifier 5-12
Airbag 2-26
Antenna 5-51
Anti-lock brake system (ABS) 4-39
Warning lamp 4-40 Armrest (Double cab) 2-07
Ashtray 5-71
Audio
Audio system anti-theft feature 5-49
Error codes 5-43
Handling of compact discs 5-49
LW/MW/FM electronic tuning radio with CD play-
er 5-13
Steering wheel remote control switch 5-41 Automatic air conditioning 5-08
Automatic transmission Sports Mode 4A/T, 5A/
T 4-17
Fluid 8-07,9-21
Selector lever operation 4-17
Selector lever position indicator 4-18
Selector lever positions 4-18
Sports mode 4-19
Sports mode indicator 4-19 BBattery 8-10
Discharged battery (Emergency starting)
6-02
Specification 9-16 Bleeding the fuel system 6-05
Bluetooth® 2.0 interface 5-52
Bonnet 8-03
Bottle holder 5-80
Brake
Anti-lock brake 4-39
Brake assist system 4-39
Braking 4-38
Fluid 8-08,9-21
Parking brake 4-06
Parking brake lever stroke 8-16
Pedal free play 8-16
Warning lamp 3-08
C Cargo loads 4-49
Catalytic converter
8-02
Cautions on handling of 4-wheel drive vehi-
cles 4-36
Central door locks 1-07
Centre console downlight 5-76
Bulb capacity 8-24
Replacement 8-34 Centre information display 3-10
Changing a fuse 8-22
Changing gears 4-15
Check engine warning lamp 3-08
Child restraint 2-13
Child-protection rear doors 1-08
Cigarette lighter 5-72
Cleaning
Exterior of your vehicle 7-03 Genuine leather 7-02
Interior of your vehicle
7-02
Plastic, vinyl leather, etc 7-02
Sunroof 7-05
Waxing 7-04 Clock 3-19,5-74
Clutch
Fluid 8-09,9-21
Pedal free play 8-15 Coat hook 5-81
Combination headlamps and dipper switch 3-30
Convenient hook 5-80
Coolant (engine) 8-06,9-21
Cruise control 4-45
Switch 4-45 Cup holder 5-79
Curtain airbag system 2-34
D Demister (rear window) 3-39
Diesel particulate filter (DPF)
4-13
Differential oil 9-21
Digital clock 3-19,5-74
Dimensions 9-03
Dipper (High/Low beam change) 3-31
Door courtesy lamps 5-76
Replacement 8-33 Doors
Central door locks 1-07
Child-protection 1-08
Lock and unlock 1-06 Driving, alcohol and drugs 4-02
E Easy select 4WD 4-22
Economical driving
4-02
Electric window control 1-08 Alphabetical index
1OKTE14E2
Page 352 of 362
Heated seats 2-06
Rear seat 2-07
Secret box 5-78
Service precaution
8-02
Side airbag system 2-34
Side turn-signal lamps
Bulb capacity 8-24
Replacement 8-28 Snow tyres 8-14
Spare wheel 6-16
Spark plug 9-16
Specifications 9-02
Speedometer 3-03
Starting 4-12
Steering
Power steering fluid 8-09,9-21
Power steering system 4-42
Steering wheel height adjustment 4-08
Steering wheel lock 4-12
Steering wheel remote control switch 5-41 Stop lamps
Bulb capacity 8-23
Replacement 8-30 Storage spaces 5-76
Sun visors 5-70
Sunglasses holder 5-78
Sunroof 1-13
Safety mechanism 1-14
Sunshade 1-14
Switch 1-13 Super select 4WD 4-26
Supplemental restraint system 2-26
How the Supplemental Restraint System
works 2-28
Servicing 2-38
Warning lamp 2-37 TTachometer 3-03
Tail lamps
Bulb capacity
8-24
Replacement 8-30 Tank capacity 02
Ticket holder 5-70
Tools 6-09
Storage 6-07 Towing 6-20
Trailer towing 4-49
Transfer oil 9-21
Transmission
Automatic transmission Sports Mode 4A/T, 5A/
T 4-17
Fluid 8-07,9-21
Manual transmission 4-14
Specifications 9-15 Tripmeter 3-03
Turn-signal indication lamps 3-07
Turn-signals lever 3-33
Tyres 8-11
How to change a tyre 6-17
Inflation pressures 8-12
Rotation 8-13
Size (tyre and wheel) 9-17
Snow tyres 8-14
Tyre chains 8-14
Wheel condition 8-13
U USB input terminal 5-68
How to connect an iPod 5-68 USB input terminal
How to connect a USB memory device
5-68Used engine oils safety instructions and disposal
information 05
Utility box 5-78
V Vanity mirror 5-71
Vehicle care precautions
7-02
Vehicle dimensions 9-03
Vehicle identification number 9-02
Vehicle identification number plate 9-02
Vehicle information code plate 9-02
Vehicle labeling 9-02
Vehicle performance 9-09
Vehicle weight 9-10
Ventilators 5-02
W Warning lamps 3-08
Washer
Fluid 8-08,9-21
Switch 3-36,3-39 Washing 7-03
Water temperature gauge
3-05
Waxing 7-04
Weatherstripping 8-19
Weight 9-10
Wheel condition 8-13
Wheel
Specification 9-17 Wiper
Switch 3-36
Wiper blade rubber replacement 8-17
Wiper blades 8-17 Alphabetical index
4 OKTE14E2
