WARNINGlBe sure to apply chocks or blocks to the
correct tyre when jacking up the vehicle.If the vehicle moves while jacked up, the
jack could slip out of position, leading to
an accident.NOTEl The chocks shown in the illustration do not
come with your vehicle. It is recommended
that you keep one in the vehicle for use if needed.
l If chocks are not available, use stones or any
other objects that are large enough to hold the wheel in position.
6. Get the spare wheel, jack and jack han-
dle ready.

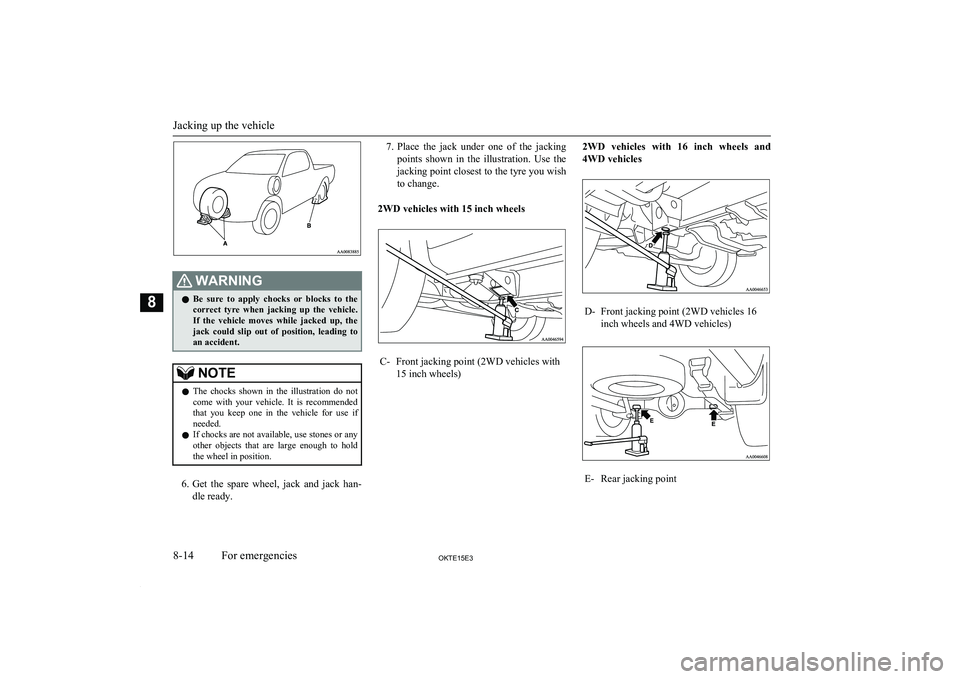

7. Place the jack under one of the jacking
points shown in the illustration. Use the jacking point closest to the tyre you wish
to change.
2WD vehicles with 15 inch wheelsC-Front jacking point (2WD vehicles with
15 inch wheels)2WD vehicles with 16 inch wheels and
4WD vehiclesD-Front jacking point (2WD vehicles 16
inch wheels and 4WD vehicles)E-Rear jacking point
Jacking up the vehicle
8-14OKTE15E3For emergencies8
