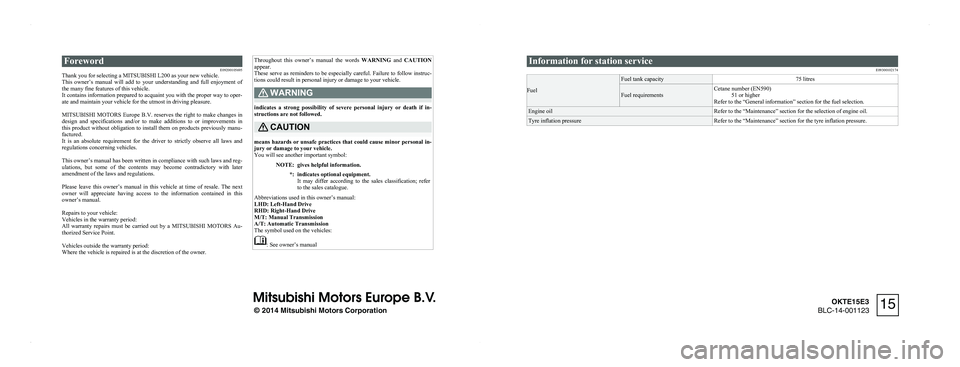

ForewordE09200105695
Thank you for selecting a MITSUBISHI L200 as your new vehicle.
This owner’s manual will add to your understanding and full enjoyment of
the many fine features of this vehicle.
It contains information prepared to acquaint you with the proper way to oper-
ate and maintain your vehicle for the utmost in driving pleasure.
MITSUBISHI MOTORS Europe B.V. reserves the right to make changes in
design and specifications and/or to make additions to or improvements in
this product without obligation to install them on products previously manu- factured.
It is an absolute requirement for the driver to strictly observe all laws and
regulations concerning vehicles.
This owner’s manual has been written in compliance with such laws and reg- ulations, but some of the contents may become contradictory with later amendment of the laws and regulations.
Please leave this owner’s manual in this vehicle at time of resale. The next
owner will appreciate having access to the information contained in this
owner’s manual.
Repairs to your vehicle:
Vehicles in the warranty period:
All warranty repairs must be carried out by a MITSUBISHI MOTORS Au-
thorized Service Point.
Vehicles outside the warranty period:
Where the vehicle is repaired is at the discretion of the owner.
Throughout this owner’s manual the words WARNING and CAUTION
appear.
These serve as reminders to be especially careful. Failure to follow instruc-
tions could result in personal injury or damage to your vehicle.WARNING
indicates a strong possibility of severe personal injury or death if in- structions are not followed.
CAUTION
means hazards or unsafe practices that could cause minor personal in-
jury or damage to your vehicle.
You will see another important symbol:
NOTE:gives helpful information.*:indicates optional equipment.
It may differ according to the sales classification; refer to the sales catalogue.
Abbreviations used in this owner’s manual:
LHD: Left-Hand Drive
RHD: Right-Hand Drive
M/T: Manual Transmission
A/T: Automatic Transmission
The symbol used on the vehicles:
: See owner’s manual
Information for station service
E09300102174
Fuel
Fuel tank capacity75 litresFuel requirementsCetane number (EN590)51 or higher
Refer to the “General information” section for the fuel selection.Engine oilRefer to the “Maintenance” section for the selection of engine oil.Tyre inflation pressureRefer to the “Maintenance” section for the tyre inflation pressure.
© 2014 Mitsubishi Motors Corporation
15
OKTE15E3
BLC-14-001123
Page 3 of 418

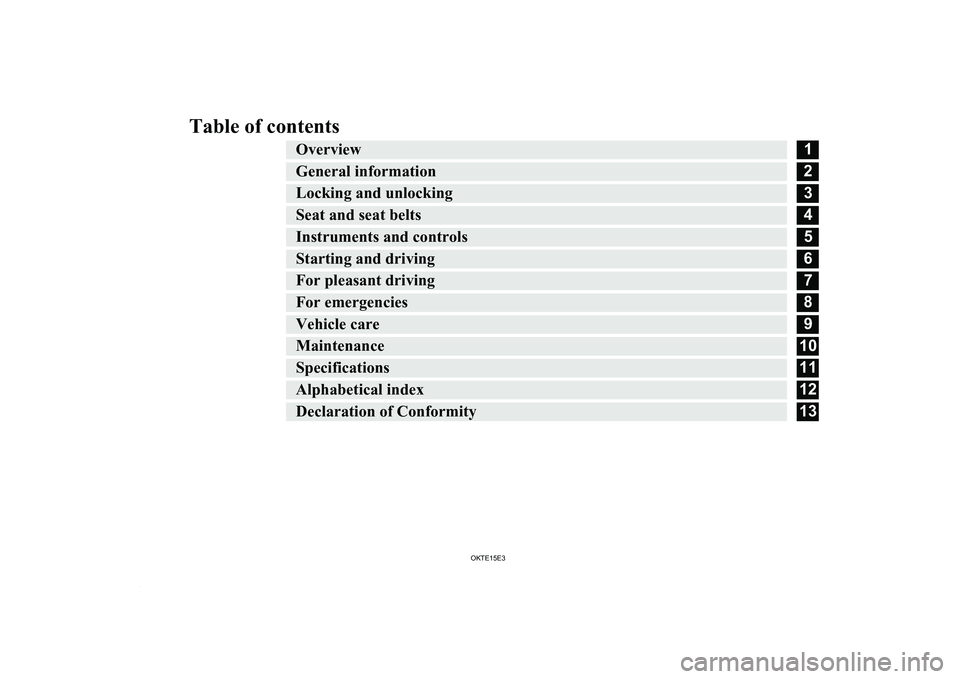

Table of contentsOverview1General information2Locking and unlocking3Seat and seat belts4Instruments and controls5Starting and driving6For pleasant driving7For emergencies8Vehicle care9Maintenance10Specifications11Alphabetical index12Declaration of Conformity13
OKTE15E3
Page 4 of 418

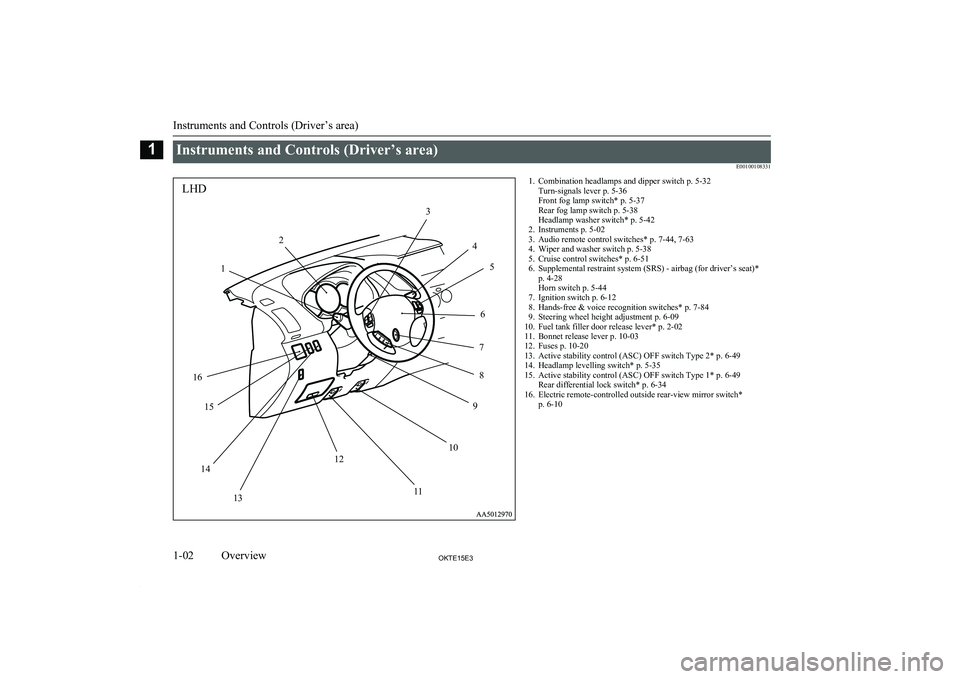

Instruments and Controls (Driver’s area)E00100108331
1LHD23456789101112131415161. Combination headlamps and dipper switch p. 5-32Turn-signals lever p. 5-36
Front fog lamp switch* p. 5-37
Rear fog lamp switch p. 5-38
Headlamp washer switch* p. 5-42
2. Instruments p. 5-02
3. Audio remote control switches* p. 7-44, 7-63
4. Wiper and washer switch p. 5-38
5. Cruise control switches* p. 6-51
6. Supplemental restraint system (SRS) - airbag (for driver’s seat)* p. 4-28
Horn switch p. 5-44
7. Ignition switch p. 6-12
8. Hands-free & voice recognition switches* p. 7-84
9. Steering wheel height adjustment p. 6-09
10. Fuel tank filler door release lever* p. 2-02
11. Bonnet release lever p. 10-03
12. Fuses p. 10-20
13. Active stability control (ASC) OFF switch Type 2* p. 6-49
14. Headlamp levelling switch* p. 5-35
15. Active stability control (ASC) OFF switch Type 1* p. 6-49 Rear differential lock switch* p. 6-34
16. Electric remote-controlled outside rear-view mirror switch* p. 6-10
Instruments and Controls (Driver’s area)
1-02OKTE15E3Overview1
Page 5 of 418

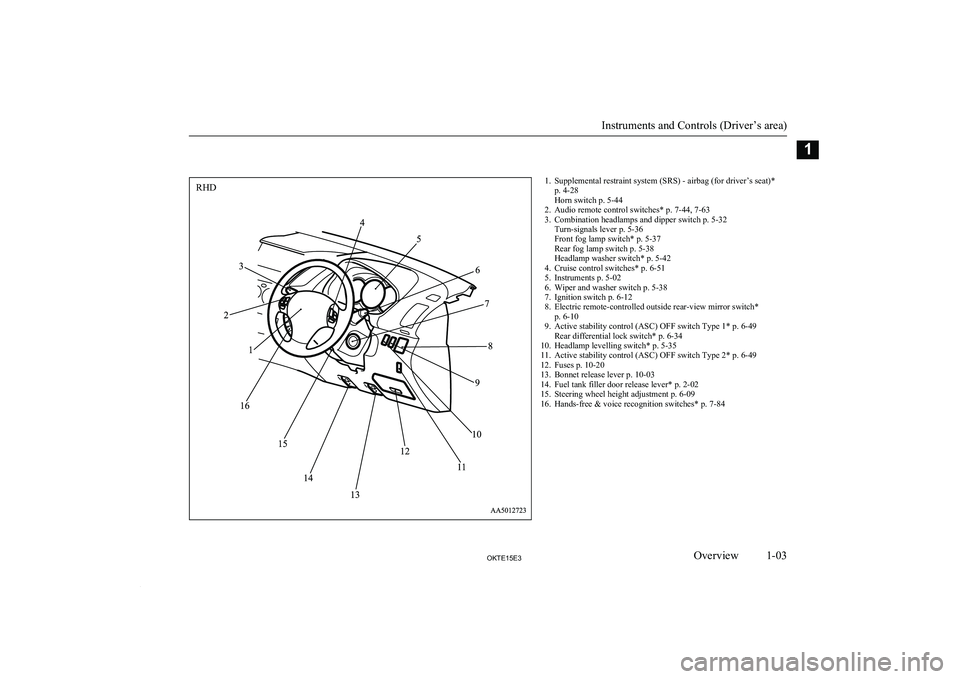

1. Supplemental restraint system (SRS) - airbag (for driver’s seat)*p. 4-28
Horn switch p. 5-44
2. Audio remote control switches* p. 7-44, 7-63
3. Combination headlamps and dipper switch p. 5-32 Turn-signals lever p. 5-36
Front fog lamp switch* p. 5-37
Rear fog lamp switch p. 5-38
Headlamp washer switch* p. 5-42
4. Cruise control switches* p. 6-51
5. Instruments p. 5-02
6. Wiper and washer switch p. 5-38
7. Ignition switch p. 6-12
8. Electric remote-controlled outside rear-view mirror switch* p. 6-10
9. Active stability control (ASC) OFF switch Type 1* p. 6-49 Rear differential lock switch* p. 6-34
10. Headlamp levelling switch* p. 5-35
11. Active stability control (ASC) OFF switch Type 2* p. 6-49
12. Fuses p. 10-20
13. Bonnet release lever p. 10-03
14. Fuel tank filler door release lever* p. 2-02
15. Steering wheel height adjustment p. 6-09
16. Hands-free & voice recognition switches* p. 7-84
Instruments and Controls (Driver’s area)
1-03OKTE15E3Overview1RHD
Page 6 of 418

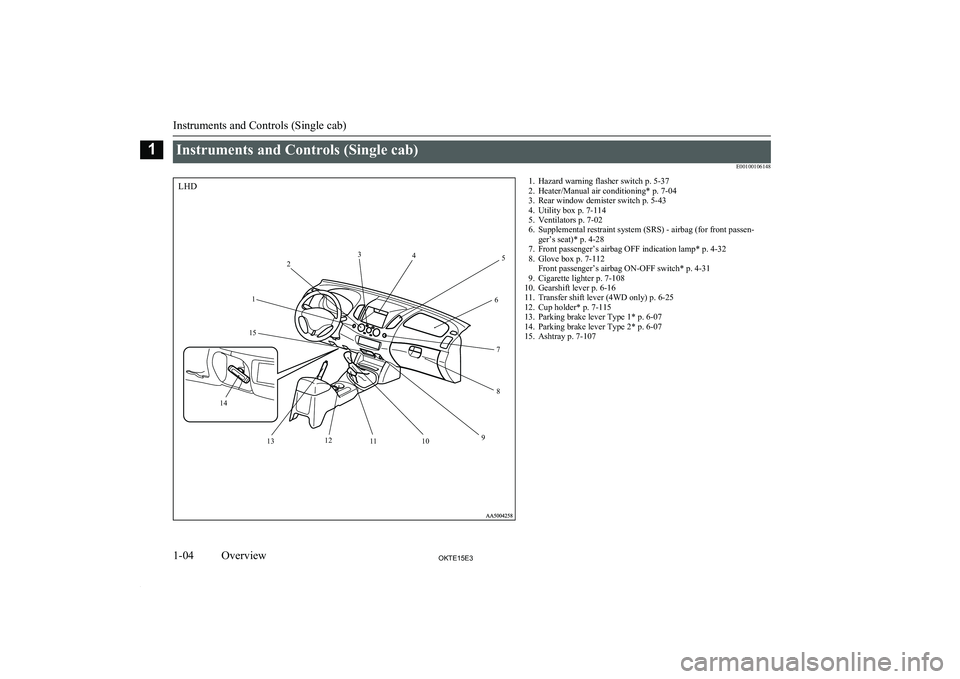

Instruments and Controls (Single cab)E001001061481. Hazard warning flasher switch p. 5-37
2. Heater/Manual air conditioning* p. 7-04
3. Rear window demister switch p. 5-43
4. Utility box p. 7-114
5. Ventilators p. 7-02
6. Supplemental restraint system (SRS) - airbag (for front passen- ger’s seat)* p. 4-28
7. Front passenger’s airbag OFF indication lamp* p. 4-32
8. Glove box p. 7-112 Front passenger’s airbag ON-OFF switch* p. 4-31
9. Cigarette lighter p. 7-108
10. Gearshift lever p. 6-16
11. Transfer shift lever (4WD only) p. 6-25
12. Cup holder* p. 7-115
13. Parking brake lever Type 1* p. 6-07
14. Parking brake lever Type 2* p. 6-07
15. Ashtray p. 7-107
Instruments and Controls (Single cab)
1-04OKTE15E3Overview112
3
4
5
6
78
9
10
11
12
13
14 15
LHD
Page 7 of 418

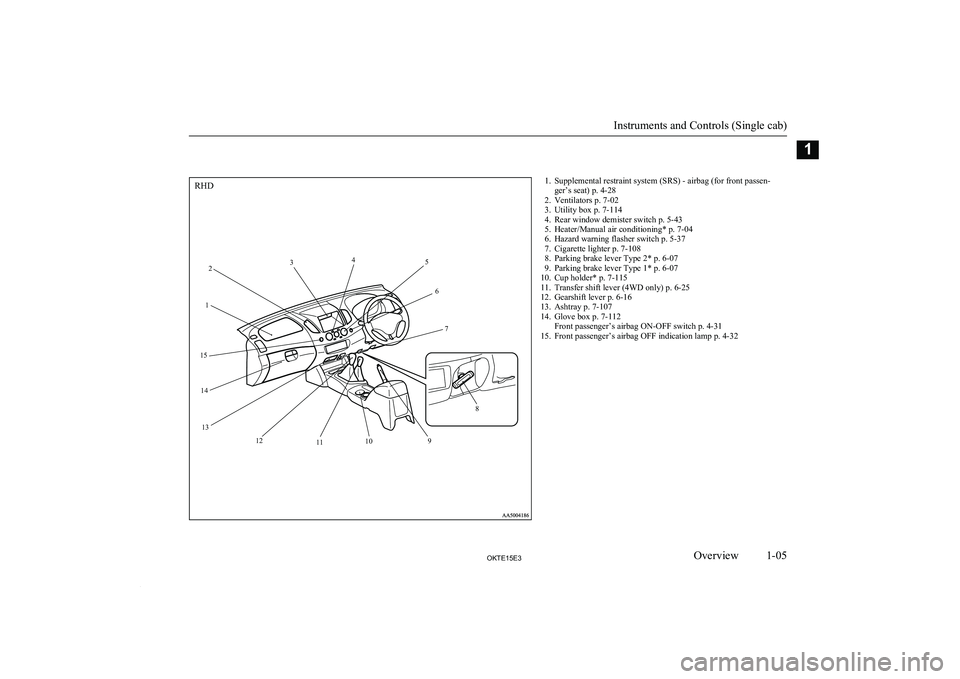

1. Supplemental restraint system (SRS) - airbag (for front passen-ger’s seat) p. 4-28
2. Ventilators p. 7-02
3. Utility box p. 7-114
4. Rear window demister switch p. 5-43
5. Heater/Manual air conditioning* p. 7-04
6. Hazard warning flasher switch p. 5-37
7. Cigarette lighter p. 7-108
8. Parking brake lever Type 2* p. 6-07
9. Parking brake lever Type 1* p. 6-07
10. Cup holder* p. 7-115
11. Transfer shift lever (4WD only) p. 6-25
12. Gearshift lever p. 6-16
13. Ashtray p. 7-107
14. Glove box p. 7-112 Front passenger’s airbag ON-OFF switch p. 4-31
15. Front passenger’s airbag OFF indication lamp p. 4-32
Instruments and Controls (Single cab)
1-05OKTE15E3Overview112
3
4
5
6
7
8
9
10
11
12
13
14
15
RHD
Page 8 of 418

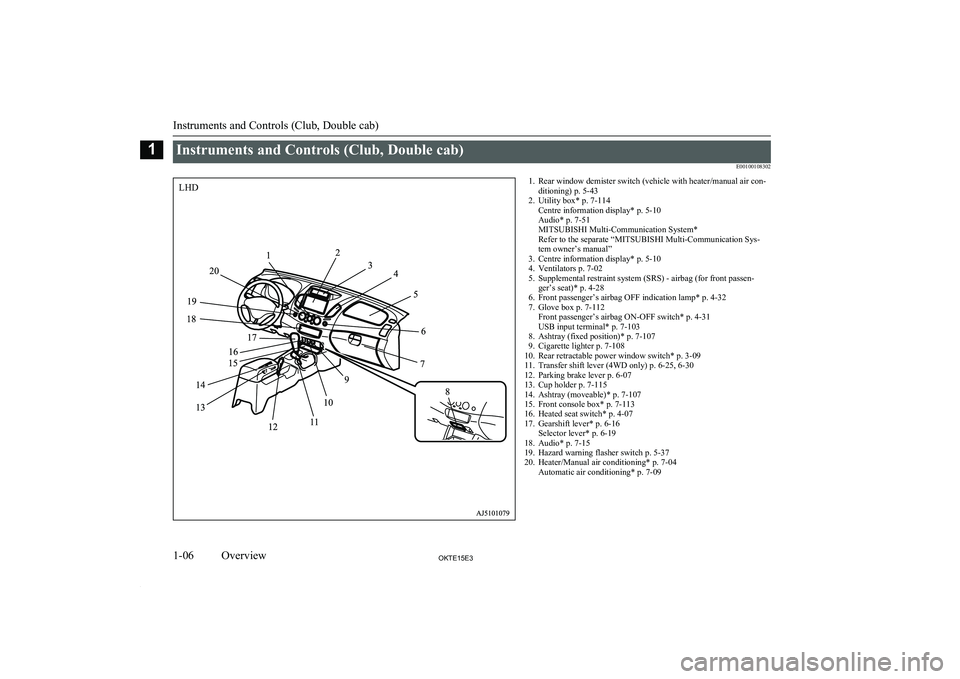

Instruments and Controls (Club, Double cab)E001001083021. Rear window demister switch (vehicle with heater/manual air con-ditioning) p. 5-43
2. Utility box* p. 7-114 Centre information display* p. 5-10
Audio* p. 7-51
MITSUBISHI Multi-Communication System*
Refer to the separate “MITSUBISHI Multi-Communication Sys-
tem owner’s manual”
3. Centre information display* p. 5-10
4. Ventilators p. 7-02
5. Supplemental restraint system (SRS) - airbag (for front passen- ger’s seat)* p. 4-28
6. Front passenger’s airbag OFF indication lamp* p. 4-32
7. Glove box p. 7-112 Front passenger’s airbag ON-OFF switch* p. 4-31
USB input terminal* p. 7-103
8. Ashtray (fixed position)* p. 7-107
9. Cigarette lighter p. 7-108
10. Rear retractable power window switch* p. 3-09
11. Transfer shift lever (4WD only) p. 6-25, 6-30
12. Parking brake lever p. 6-07
13. Cup holder p. 7-115
14. Ashtray (moveable)* p. 7-107
15. Front console box* p. 7-113
16. Heated seat switch* p. 4-07
17. Gearshift lever* p. 6-16 Selector lever* p. 6-19
18. Audio* p. 7-15
19. Hazard warning flasher switch p. 5-37
20. Heater/Manual air conditioning* p. 7-04 Automatic air conditioning* p. 7-09
Instruments and Controls (Club, Double cab)
1-06OKTE15E3Overview1LHD
Page 9 of 418

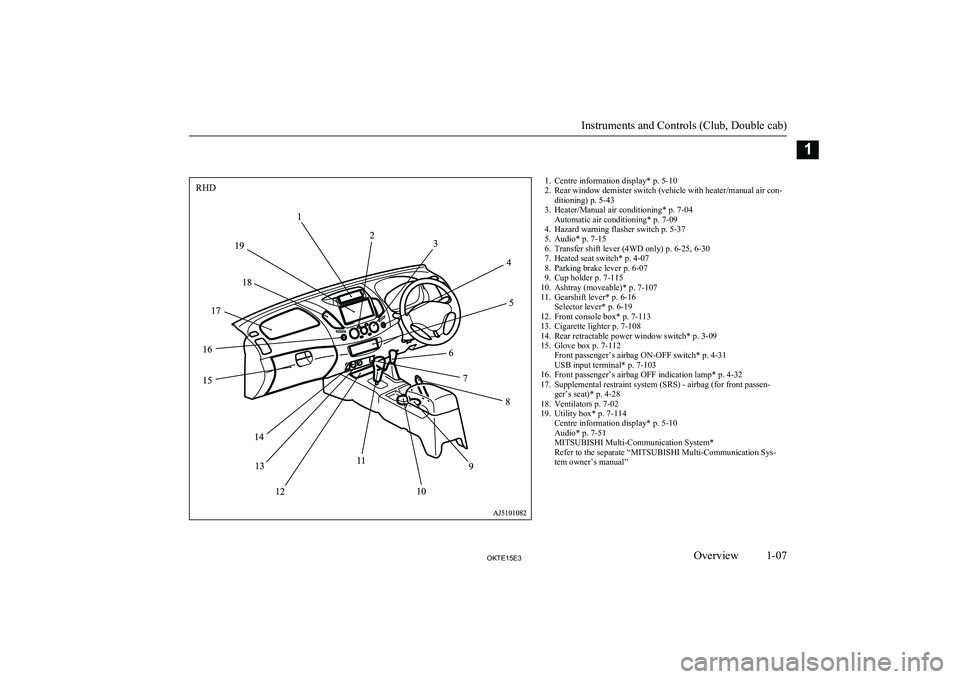

1. Centre information display* p. 5-10
2. Rear window demister switch (vehicle with heater/manual air con- ditioning) p. 5-43
3. Heater/Manual air conditioning* p. 7-04 Automatic air conditioning* p. 7-09
4. Hazard warning flasher switch p. 5-37
5. Audio* p. 7-15
6. Transfer shift lever (4WD only) p. 6-25, 6-30
7. Heated seat switch* p. 4-07
8. Parking brake lever p. 6-07
9. Cup holder p. 7-115
10. Ashtray (moveable)* p. 7-107
11. Gearshift lever* p. 6-16 Selector lever* p. 6-19
12. Front console box* p. 7-113
13. Cigarette lighter p. 7-108
14. Rear retractable power window switch* p. 3-09
15. Glove box p. 7-112 Front passenger’s airbag ON-OFF switch* p. 4-31
USB input terminal* p. 7-103
16. Front passenger’s airbag OFF indication lamp* p. 4-32
17. Supplemental restraint system (SRS) - airbag (for front passen- ger’s seat)* p. 4-28
18. Ventilators p. 7-02
19. Utility box* p. 7-114 Centre information display* p. 5-10
Audio* p. 7-51
MITSUBISHI Multi-Communication System*
Refer to the separate “MITSUBISHI Multi-Communication Sys-
tem owner’s manual”
Instruments and Controls (Club, Double cab)
1-07OKTE15E3Overview1RHD
Page 10 of 418

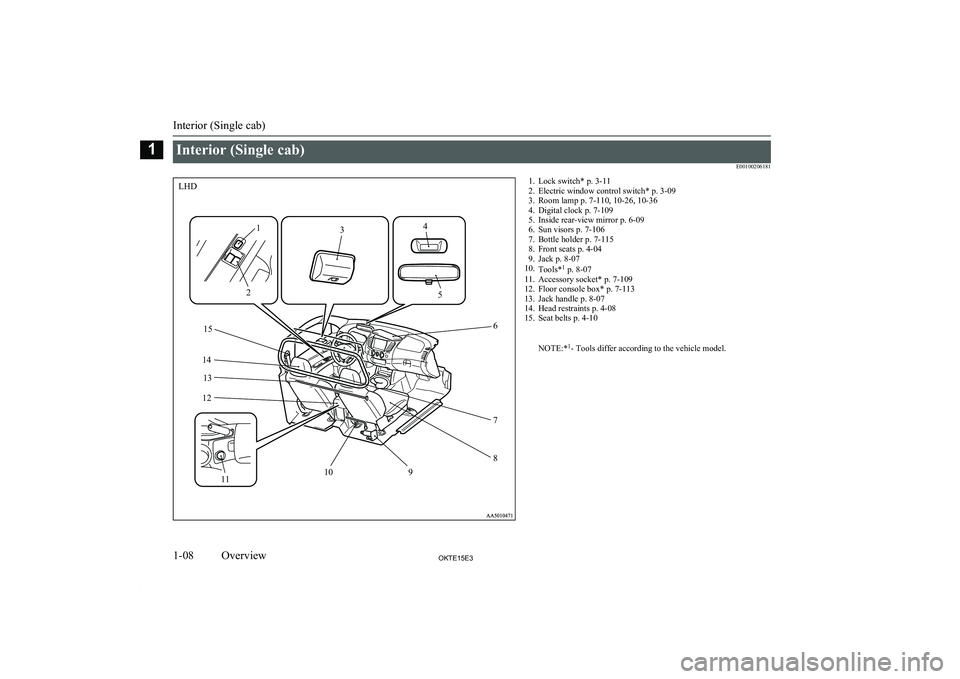

Interior (Single cab)E001002061811. Lock switch* p. 3-11
2. Electric window control switch* p. 3-09
3. Room lamp p. 7-110, 10-26, 10-36
4. Digital clock p. 7-109
5. Inside rear-view mirror p. 6-09
6. Sun visors p. 7-106
7. Bottle holder p. 7-115
8. Front seats p. 4-04
9. Jack p. 8-07
10. Tools* 1
p. 8-07
11. Accessory socket* p. 7-109
12. Floor console box* p. 7-113
13. Jack handle p. 8-07
14. Head restraints p. 4-08
15. Seat belts p. 4-10
NOTE:* 1
- Tools differ according to the vehicle model.
Interior (Single cab)
1-08OKTE15E3Overview1LHD1
2 3
4
5 6
7 8
9
10
11
12
