MITSUBISHI L200 2018 Owner's Manual (in English)

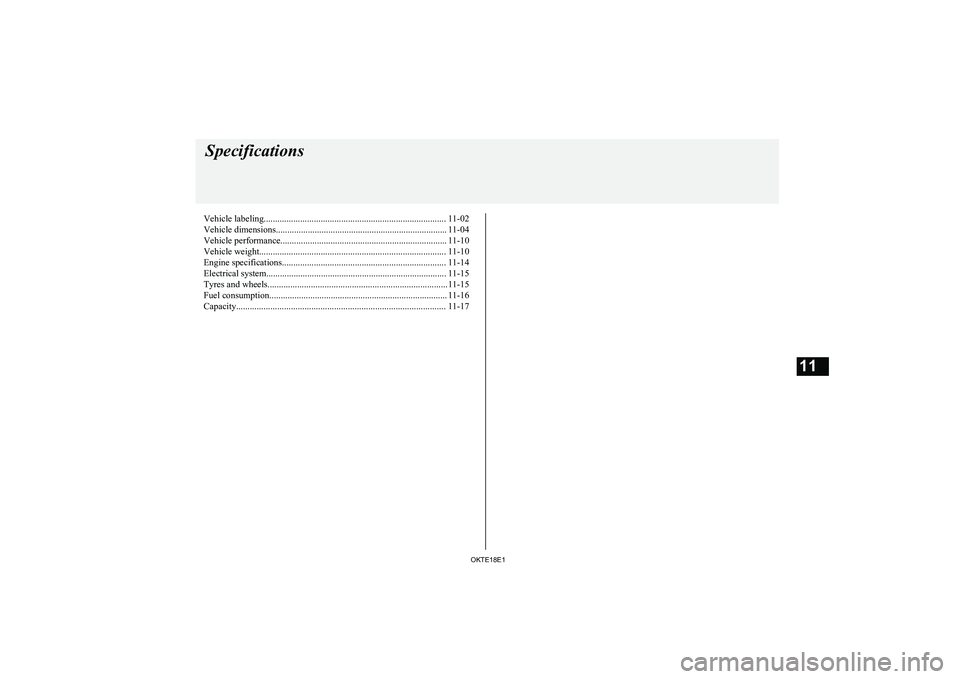

Vehicle labeling................................................................................ 11-02
Vehicle dimensions........................................................................... 11-04
Vehicle performance......................................................................... 11-10 Vehicle weight.................................................................................. 11-10
Engine specifications........................................................................ 11-14
Electrical system............................................................................... 11-15
Tyres and wheels...............................................................................11-15
Fuel consumption.............................................................................. 11-16
Capacity............................................................................................ 11-17Specifications
OKTE18E111

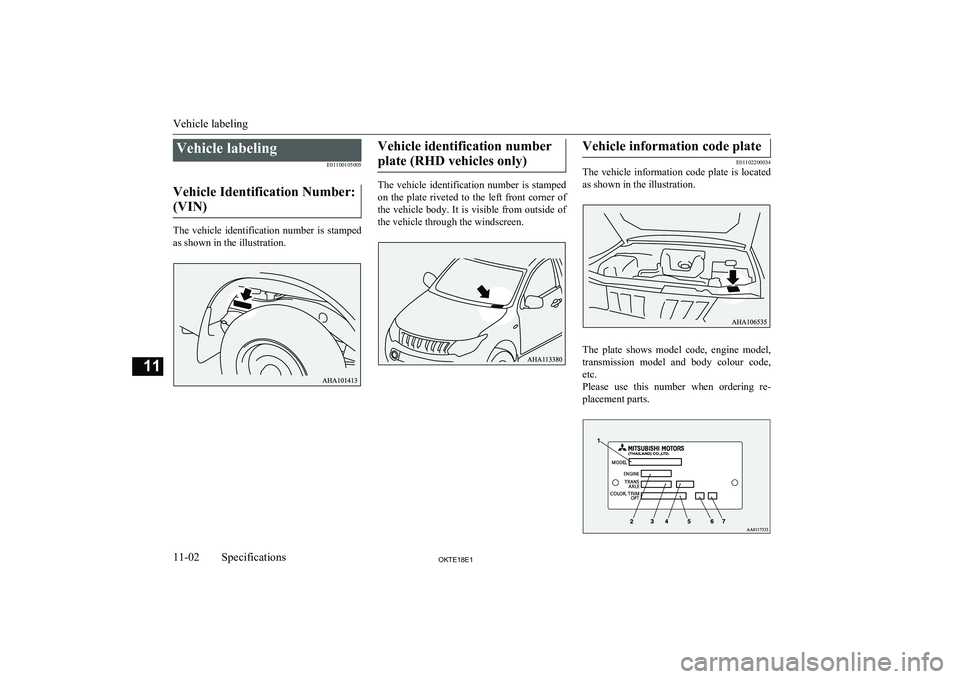

Vehicle labelingE01100105005
Vehicle Identification Number: (VIN)
The vehicle identification number is stamped as shown in the illustration.
Vehicle identification number
plate (RHD vehicles only)
The vehicle identification number is stamped on the plate riveted to the left front corner of the vehicle body. It is visible from outside of
the vehicle through the windscreen.
Vehicle information code plate
E01102200034
The vehicle information code plate is located
as shown in the illustration.
The plate shows model code, engine model,
transmission model and body colour code, etc.
Please use this number when ordering re-
placement parts.
Vehicle labeling
11-02OKTE18E1Specifications11

1- Model code
2- Engine model code
3- Transmission model code
4- Final gear ratio
5- Body colour code
6- Interior code

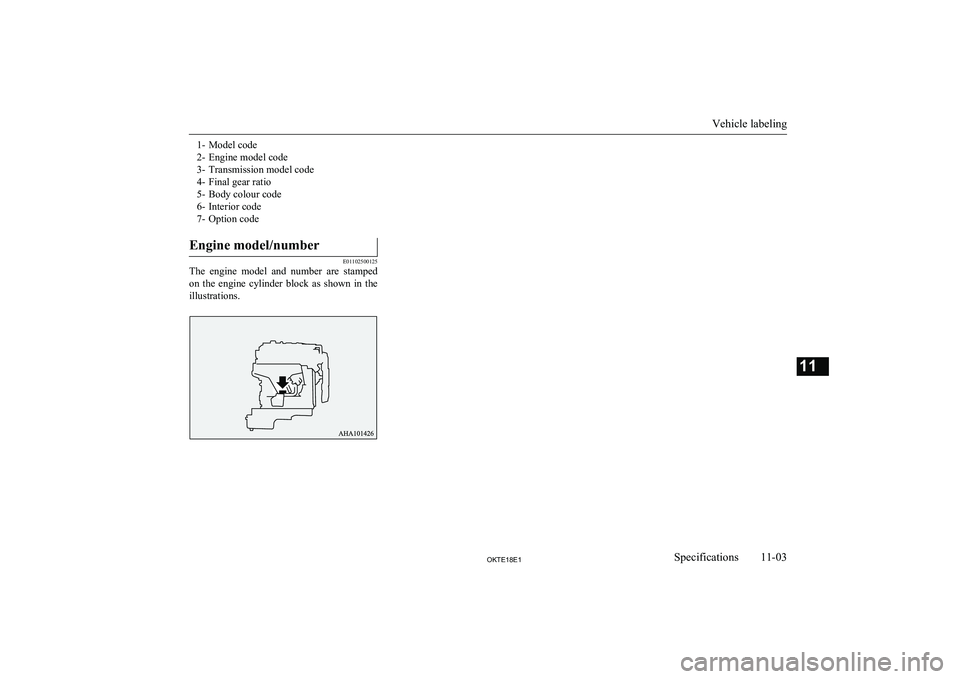

7- Option codeEngine model/number
E01102500125
The engine model and number are stamped on the engine cylinder block as shown in the
illustrations.
Vehicle labeling
11-03OKTE18E1Specifications11

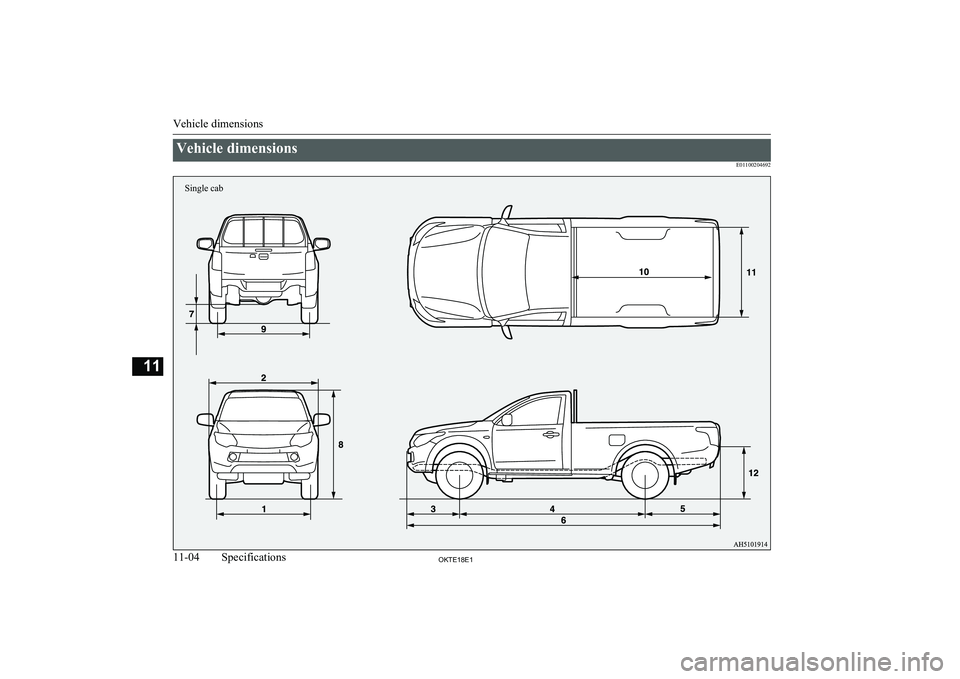

Vehicle dimensionsE01100204692
Vehicle dimensions

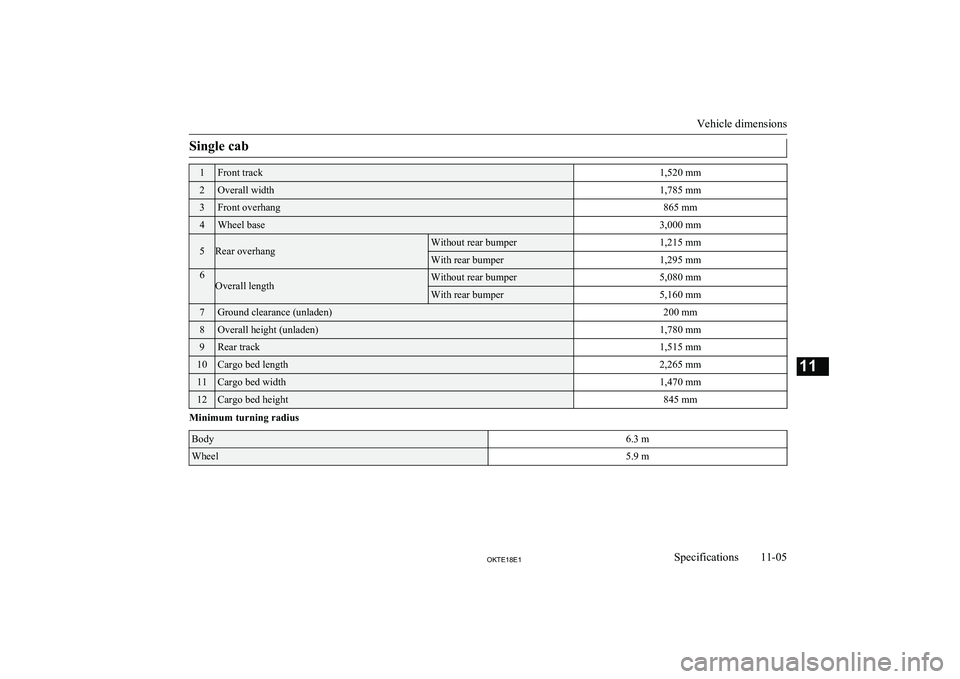

11-04OKTE18E1Specifications11Single cab

Single cab1Front track1,520 mm2Overall width1,785 mm3Front overhang865 mm4Wheel base3,000 mm5Rear overhangWithout rear bumper1,215 mmWith rear bumper1,295 mm6Overall lengthWithout rear bumper5,080 mmWith rear bumper5,160 mm7Ground clearance (unladen)200 mm8Overall height (unladen)1,780 mm9Rear track1,515 mm10Cargo bed length2,265 mm11Cargo bed width1,470 mm12Cargo bed height845 mm
Minimum turning radius
Body6.3 mWheel5.9 m
Vehicle dimensions
11-05OKTE18E1Specifications11

Vehicle dimensions

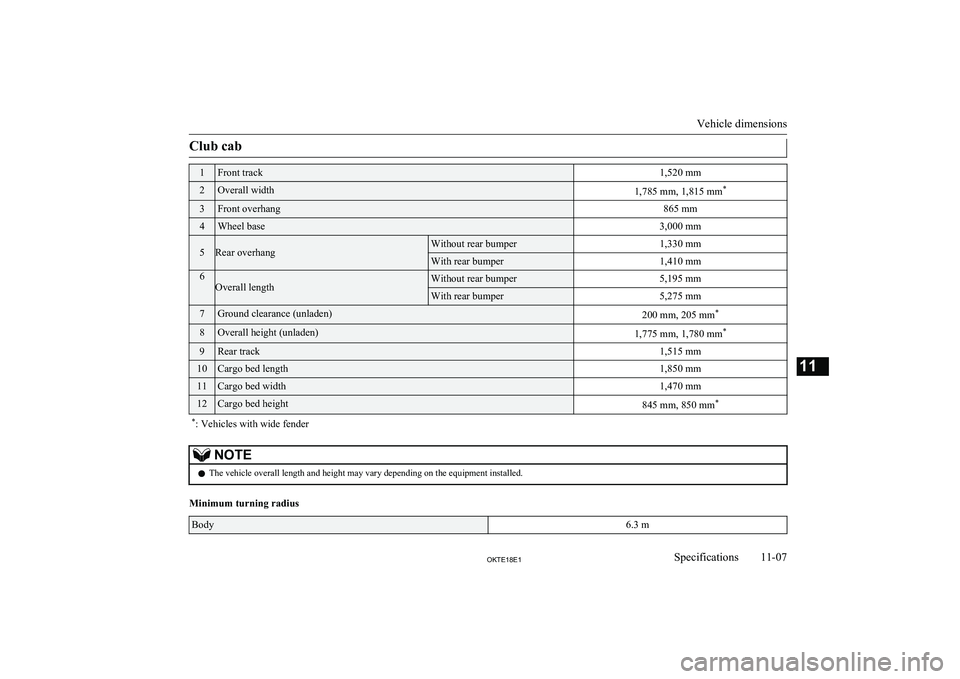

11-06OKTE18E1Specifications11Club cab

Club cab1Front track1,520 mm2Overall width1,785 mm, 1,815 mm*3Front overhang865 mm4Wheel base3,000 mm5Rear overhangWithout rear bumper1,330 mmWith rear bumper1,410 mm6Overall lengthWithout rear bumper5,195 mmWith rear bumper5,275 mm7Ground clearance (unladen)200 mm, 205 mm*8Overall height (unladen)1,775 mm, 1,780 mm *9Rear track1,515 mm10Cargo bed length1,850 mm11Cargo bed width1,470 mm12Cargo bed height845 mm, 850 mm**
: Vehicles with wide fenderNOTEl The vehicle overall length and height may vary depending on the equipment installed.
Minimum turning radius
Body6.3 m
Vehicle dimensions
11-07OKTE18E1Specifications11

Wheel5.9 m
Vehicle dimensions

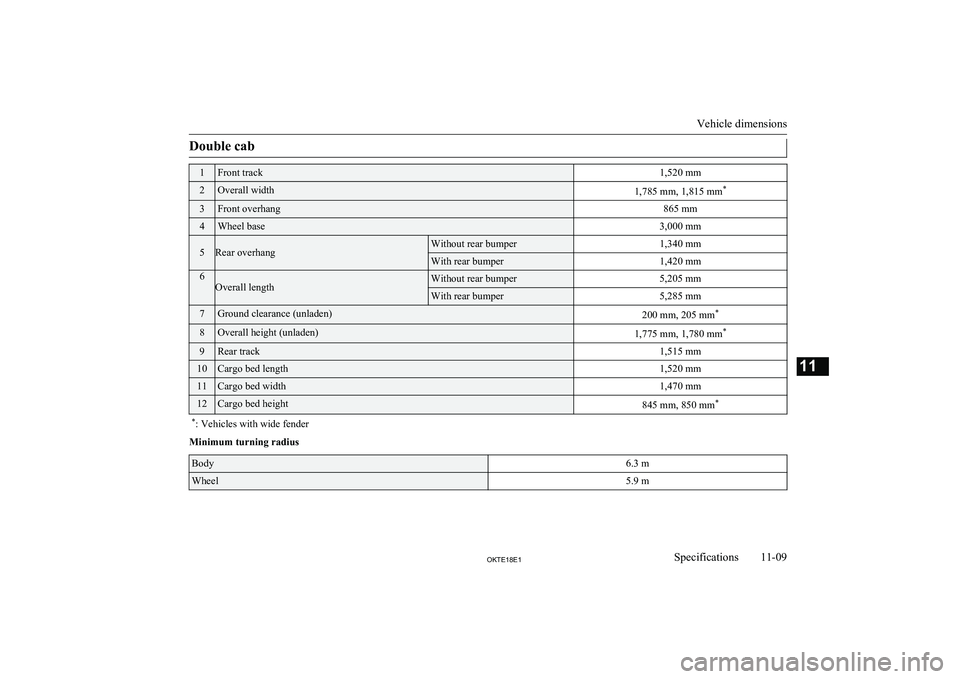

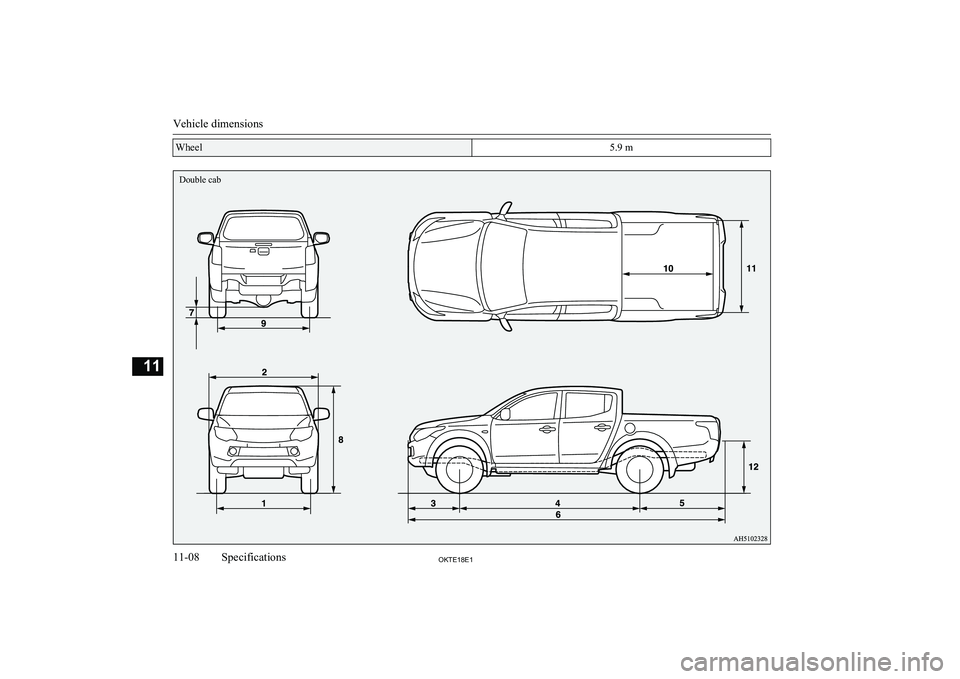

11-08OKTE18E1Specifications11Double cab

Double cab1Front track1,520 mm2Overall width1,785 mm, 1,815 mm*3Front overhang865 mm4Wheel base3,000 mm5Rear overhangWithout rear bumper1,340 mmWith rear bumper1,420 mm6Overall lengthWithout rear bumper5,205 mmWith rear bumper5,285 mm7Ground clearance (unladen)200 mm, 205 mm*8Overall height (unladen)1,775 mm, 1,780 mm *9Rear track1,515 mm10Cargo bed length1,520 mm11Cargo bed width1,470 mm12Cargo bed height845 mm, 850 mm**
: Vehicles with wide fender
Minimum turning radius
Body6.3 mWheel5.9 m

Vehicle dimensions
11-09OKTE18E1Specifications11

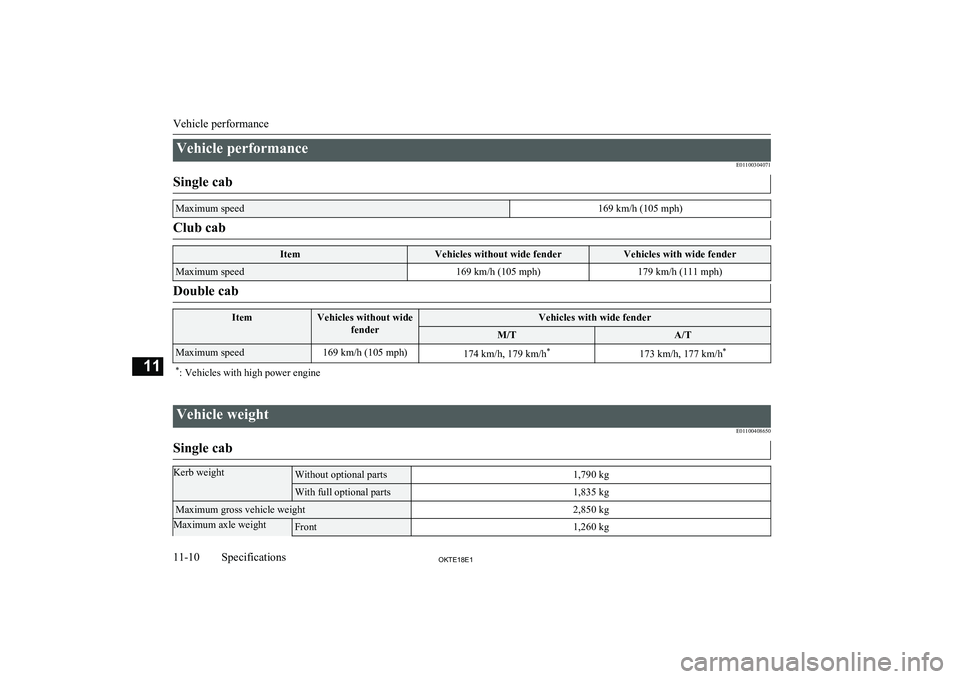

Vehicle performanceE01100304071Single cabMaximum speed169 km/h (105 mph)Club cabItemVehicles without wide fenderVehicles with wide fenderMaximum speed169 km/h (105 mph)179 km/h (111 mph)Double cabItemVehicles without widefenderVehicles with wide fenderM/TA/TMaximum speed169 km/h (105 mph)174 km/h, 179 km/h *173 km/h, 177 km/h**
: Vehicles with high power engine

Vehicle weight
E01100408650Single cabKerb weightWithout optional parts1,790 kgWith full optional parts1,835 kgMaximum gross vehicle weight2,850 kgMaximum axle weightFront1,260 kg
Vehicle performance
11-10OKTE18E1Specifications11
