MITSUBISHI L200 2019 (in English) Owner's Guide

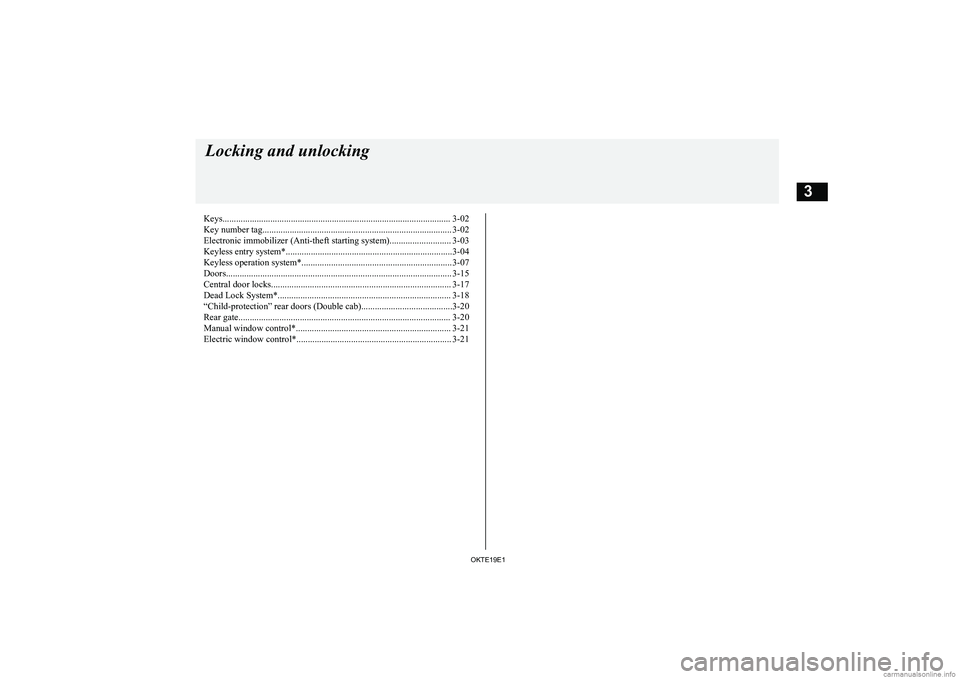

Keys.................................................................................................... 3-02Key number tag................................................................................... 3-02
Electronic immobilizer (Anti-theft starting system)........................... 3-03
Keyless entry system*.........................................................................3-04
Keyless operation system*.................................................................. 3-07
Doors................................................................................................... 3-15
Central door locks............................................................................... 3-17
Dead Lock System*............................................................................ 3-18
“Child-protection” rear doors (Double cab)........................................3-20
Rear gate............................................................................................. 3-20
Manual window control*.................................................................... 3-21
Electric window control*.................................................................... 3-21Lockingandunlocking
2.7((3

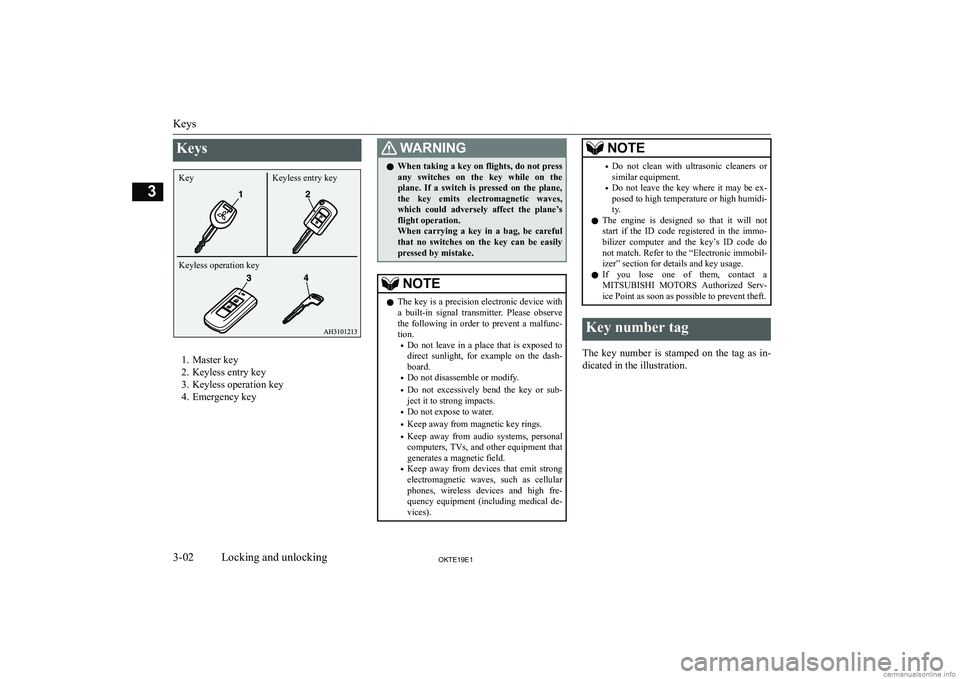

Keys
1. Master key
2. Keyless entry key
3. Keyless operation key
4. Emergency key
:ARN,NGz When taking a key on flights, do not press
any switches on the key while on the plane. If a switch is pressed on the plane,
the key emits electromagnetic waves, which could adversely affect the plane

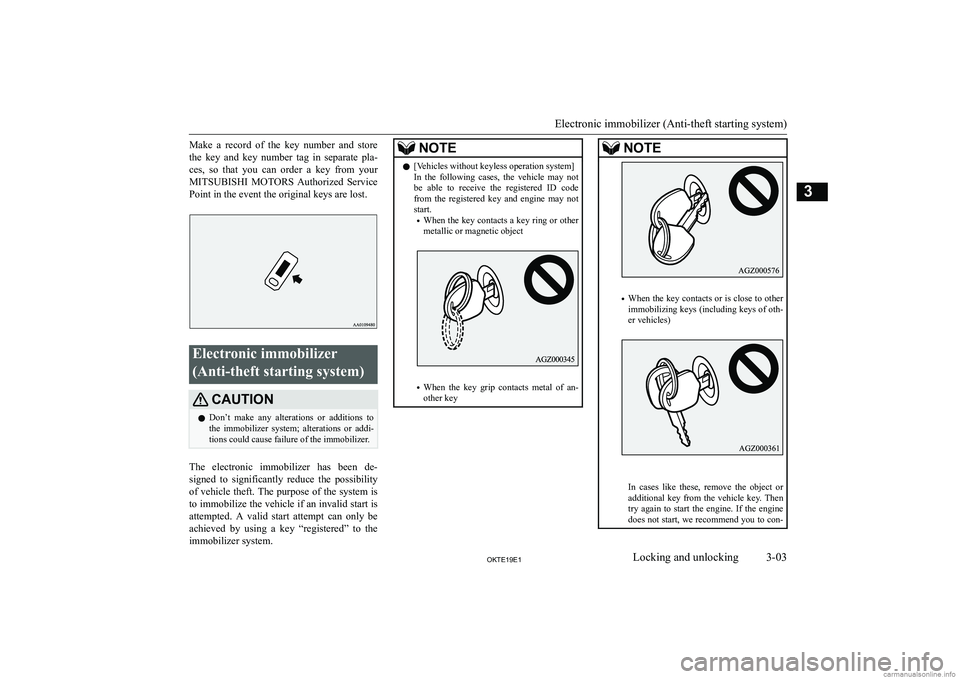

Make a record of the key number and storethe key and key number tag in separate pla-
ces, so that you can order a key from your MITSUBISHI MOTORS Authorized Service
Point in the event the original keys are lost.Electronic immobilizer
(Anti-theft starting system)CAUT,ONz Don’t make any alterations or additions to
the immobilizer system; alterations or addi-tions could cause failure of the immobilizer.
The electronic immobilizer has been de-
signed to significantly reduce the possibility of vehicle theft. The purpose of the system is
to immobilize the vehicle if an invalid start is
attempted. A valid start attempt can only be achieved by using a key “registered” to the immobilizer system.
NOTEz [Vehicles without keyless operation system@
In the following cases, the vehicle may not be able to receive the registered ID code from the registered key and engine may not
start.

NOTEtact a MITSUBISHI MOTORS Author-
ized Service Point.
z [Vehicles equipped with keyless operation
system@
If the engine does not start, we recommend you to contact a MITSUBISHI MOTORS
Authorized Service Point.
z If you lose one of the master keys, the key-
less entry keys or the keyless operation keys,
contact a MITSUBISHI MOTORS Author-
ized Service Point as soon as possible. Refer to “Keys” on page 3-02.
To obtain a key, take your vehicle and all re-
maining keys to a MITSUBISHI MOTORS
Authorized Service Point.
If you need an extra spare key, take your ve- hicle and all the keys to a MITSUBISHI
MOTORS Authorized Service Point. All the
keys have to be re-registered in the immobil- izer computer unit.
For further information, please contact a
MITSUBISHI MOTORS Authorized Serv-

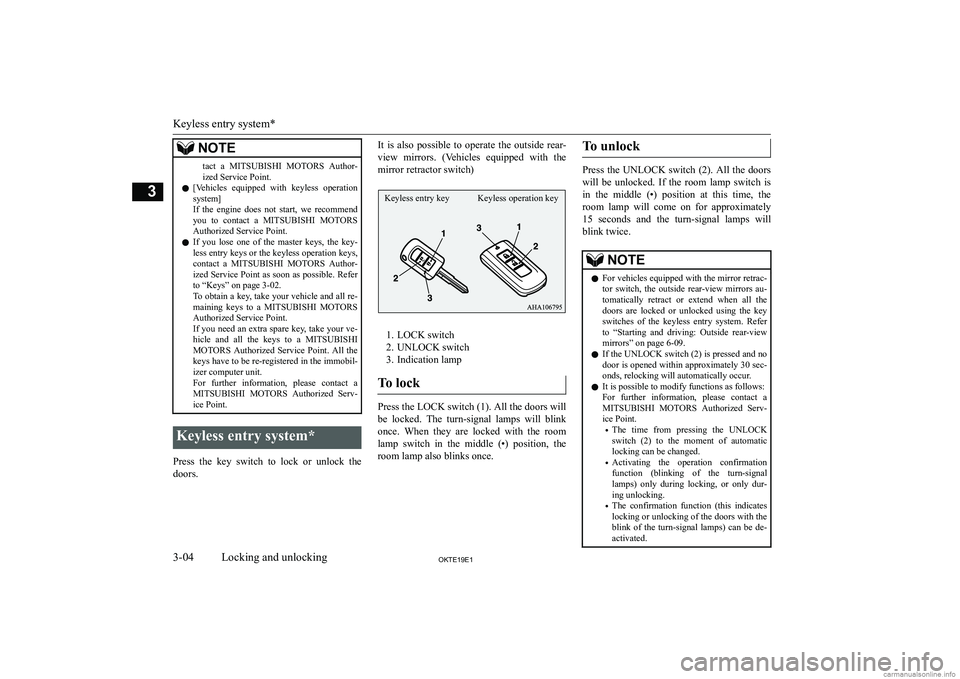

ice Point.Keyless entry system*
Press the key switch to lock or unlock the
doors.
It is also possible to operate the outside rear-
view mirrors. (Vehicles equipped with the mirror retractor switch)
1. LOCK switch
2. UNLOCK switch
3. Indication lamp
To lock
Press the LOCK switch (1). All the doors will
be locked. The turn-signal lamps will blink once. When they are locked with the room
lamp switch in the middle (

NOTE

NOTE

NOTEzBe sure to perform the procedure with the
MITSUBISHI mark facing you. If the
MITSUBISHI mark is not facing you when
you open the key case, the switches may
come out.

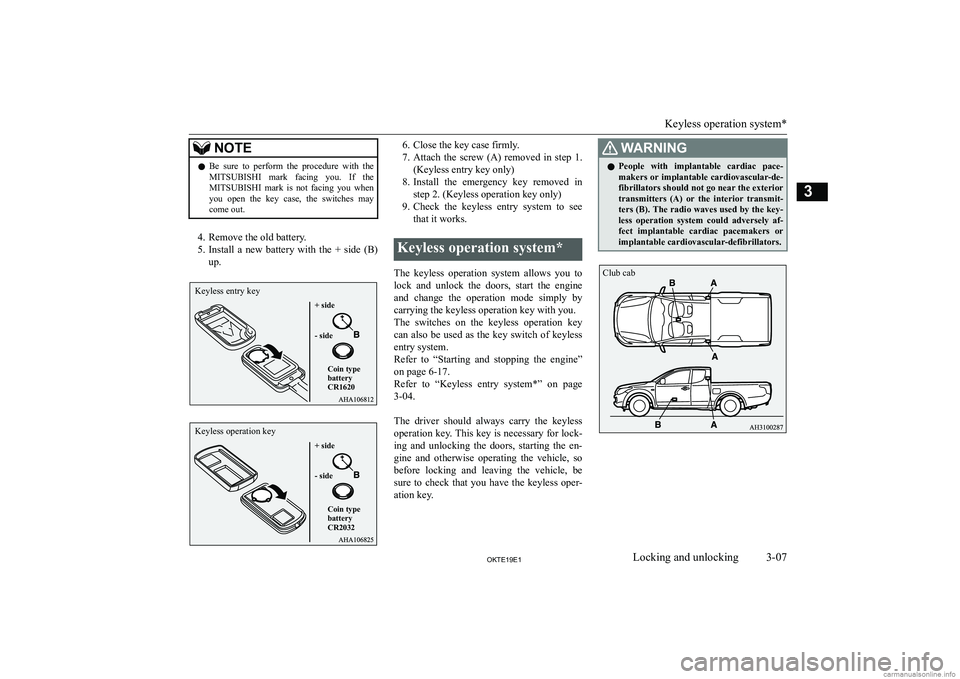

4. Remove the old battery.
5. Install a new battery with the + side (B)
up.
6. Close the key case firmly.
7. Attach the screw (A) removed in step 1.
(Keyless entry key only)
8. Install the emergency key removed in
step 2. (Keyless operation key only)
9. Check the keyless entry system to see
that it works.Keyless operation system*
The keyless operation system allows you tolock and unlock the doors, start the engine
and change the operation mode simply by
carrying the keyless operation key with you. The switches on the keyless operation key can also be used as the key switch of keyless
entry system.
Refer to “Starting and stopping the engine” on page 6-17.
Refer to “Keyless entry system*” on page 3-04.

The driver should always carry the keyless operation key. This key is necessary for lock-
ing and unlocking the doors, starting the en-
gine and otherwise operating the vehicle, so before locking and leaving the vehicle, be
sure to check that you have the keyless oper- ation key.
:ARN,NGz People with implantable cardiac pace-
makers or implantable cardiovascular-de- fibrillators should not go near the exterior
transmitters (A) or the interior transmit-
ters (B). The radio waves used by the key-
less operation system could adversely af- fect implantable cardiac pacemakers orimplantable cardiovascular-defibrillators.
Keyless operation system*
3-072.7((Locking and unlocking3 Keyless entry key+ side - side
Coin type battery CR1620 Keyless operation key+ side - side
Coin type battery CR2032 Club cab

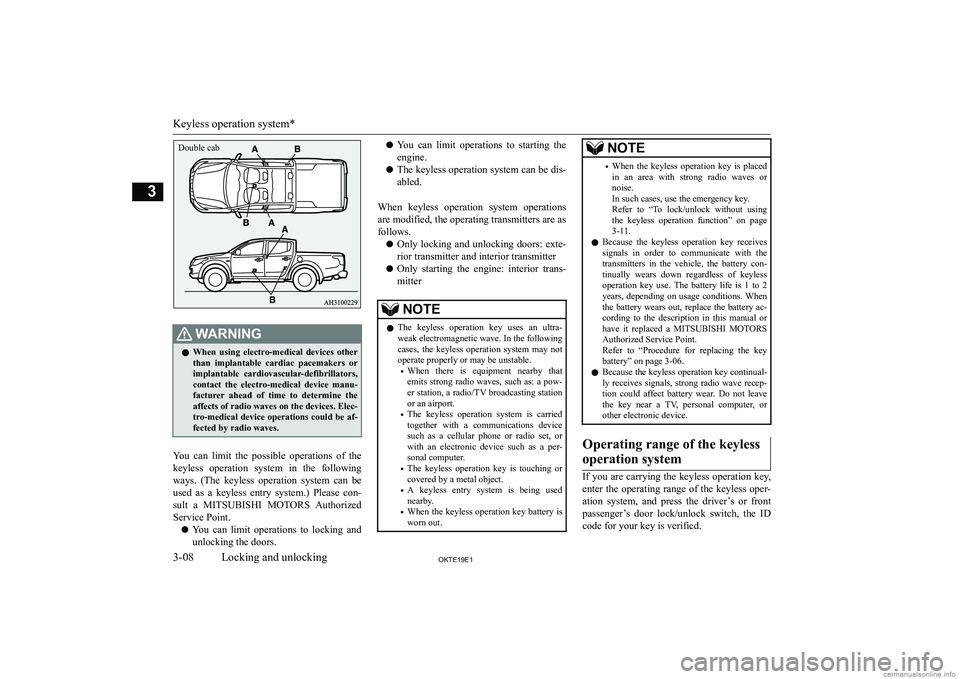

:ARN,NGzWhen using electro-medical devices other
than implantable cardiac pacemakers or implantable cardiovascular-defibrillators,
contact the electro-medical device manu- facturer ahead of time to determine theaffects of radio waves on the devices. Elec-
tro-medical device operations could be af-
fected by radio waves.
You can limit the possible operations of the
keyless operation system in the following
ways. (The keyless operation system can be used as a keyless entry system.) Please con-
sult a MITSUBISHI MOTORS Authorized
Service Point.
z You can limit operations to locking and
unlocking the doors.
z You can limit operations to starting the
engine.
z The keyless operation system can be dis-
abled.
When keyless operation system operations
are modified, the operating transmitters are as
follows.
z Only locking and unlocking doors: exte-
rior transmitter and interior transmitter
z Only starting the engine: interior trans-
mitterNOTEz The keyless operation key uses an ultra-
weak electromagnetic wave. In the following
cases, the keyless operation system may not
operate properly or may be unstable.

You can lock and unlock the doors, start the
engine and change the operation mode only if the ID codes of your keyless operation key
and the vehicle match.NOTEz If the keyless operation key battery is wear-
ing out or there are strong electromagnetic waves or noise present, the operating range
may become smaller and operation may be-

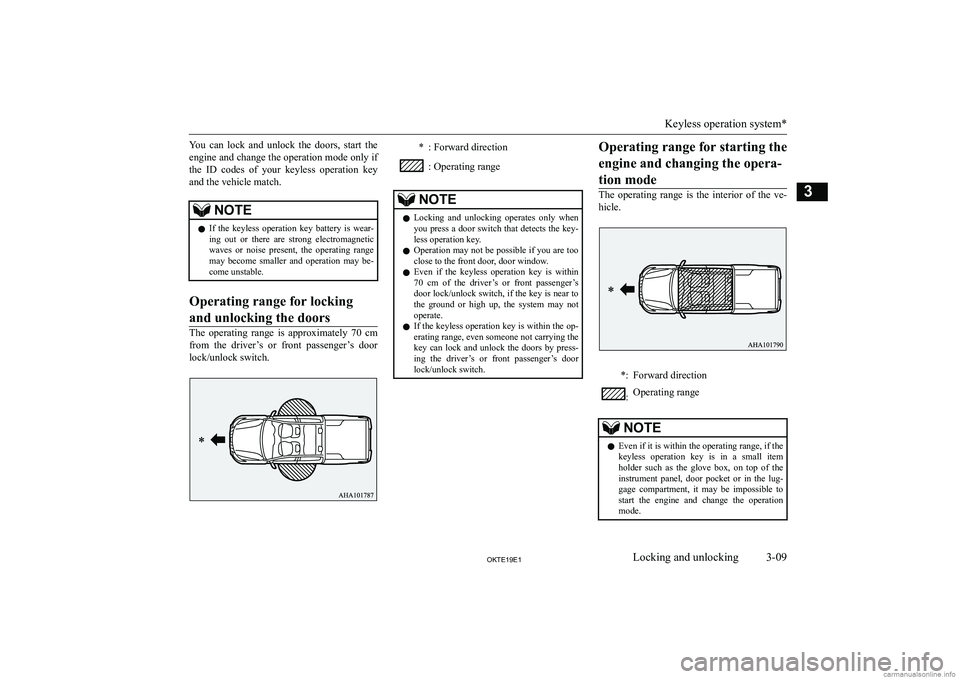

come unstable.Operating range for locking
and unlocking the doors
The operating range is approximately 70 cm from the driver’s or front passenger’s door
lock/unlock switch.
*: Forward direction: Operating rangeNOTEz Locking and unlocking operates only when
you press a door switch that detects the key-
less operation key.
z Operation may not be possible if you are too
close to the front door, door window.
z Even if the keyless operation key is within
70 cm of the driver’s or front passenger’s
door lock/unlock switch, if the key is near to the ground or high up, the system may not operate.
z If the keyless operation key is within the op-
erating range, even someone not carrying the key can lock and unlock the doors by press-ing the driver’s or front passenger’s door
lock/unlock switch.Operating range for starting the
engine and changing the opera-tion mode
The operating range is the interior of the ve- hicle.
*:Forward direction:Operating rangeNOTEz Even if it is within the operating range, if the
keyless operation key is in a small item
holder such as the glove box, on top of the instrument panel, door pocket or in the lug-gage compartment, it may be impossible to
start the engine and change the operation
mode.
Keyless operation system*
3-092.7((Locking and unlocking3

NOTEzIf a keyless operation key is too close to the
door or door window, it may be possible to start the engine or change the operation

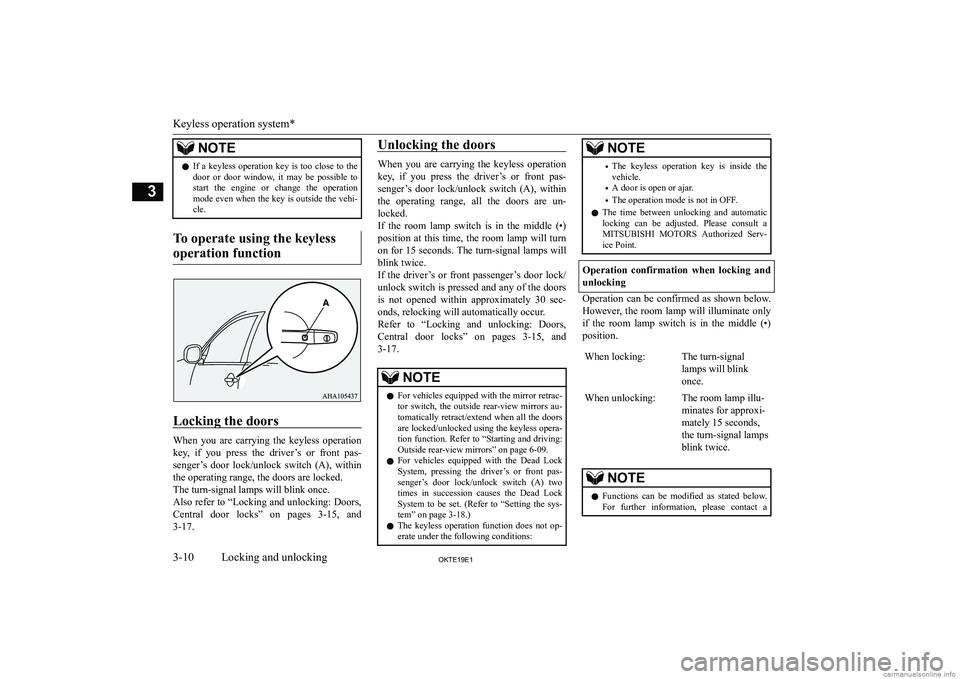

mode even when the key is outside the vehi- cle.To operate using the keyless
operation function
Locking the doors
When you are carrying the keyless operation
key, if you press the driver’s or front pas-
senger’s door lock/unlock switch (A), within the operating range, the doors are locked.
The turn-signal lamps will blink once.
Also refer to “Locking and unlocking: Doors,
Central door locks” on pages 3-15, and
3-17.
Unlocking the doors
When you are carrying the keyless operation
key, if you press the driver’s or front pas-
senger’s door lock/unlock switch (A), within
the operating range, all the doors are un-
locked.
If the room lamp switch is in the middle (
