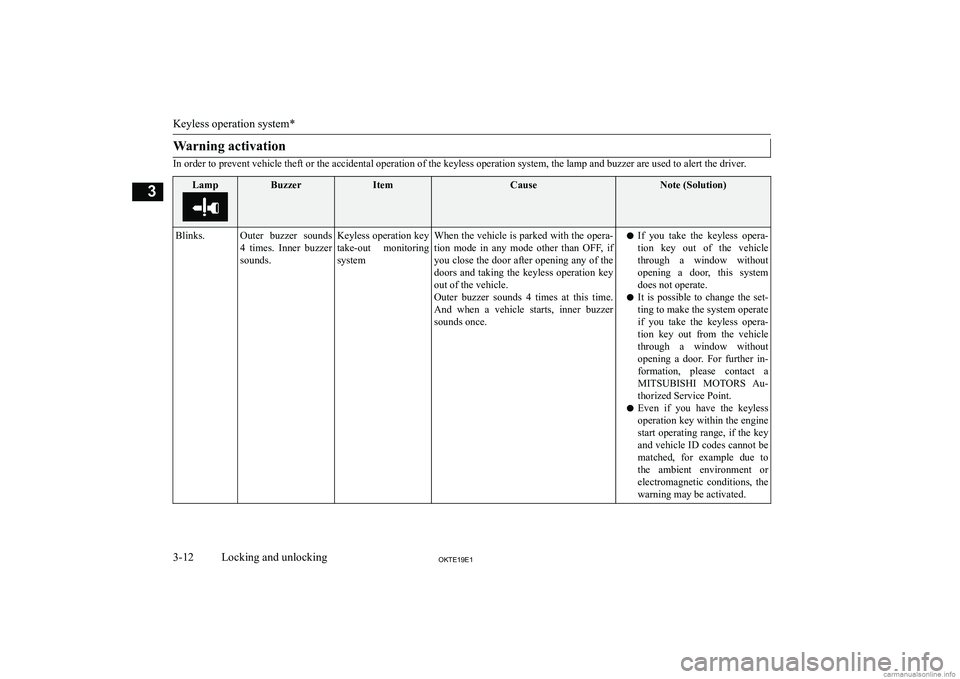

Warning activation
In order to prevent vehicle theft or the accidental operation of the keyless operation system, the lamp and buzzer are used to alert the driver.
LampBuzzerItemCauseNote (Solution)Blinks.Outer buzzer sounds4 times. Inner buzzer
sounds.Keyless operation key
take-out monitoring systemWhen the vehicle is parked with the opera- tion mode in any mode other than OFF, if you close the door after opening any of the
doors and taking the keyless operation key
out of the vehicle.
Outer buzzer sounds 4 times at this time. And when a vehicle starts, inner buzzer
sounds once.z If you take the keyless opera-
tion key out of the vehicle
through a window without opening a door, this system
does not operate.
z It is possible to change the set-
ting to make the system operate if you take the keyless opera-
tion key out from the vehicle through a window without
opening a door. For further in- formation, please contact a
MITSUBISHI MOTORS Au-
thorized Service Point.
z Even if you have the keyless
operation key within the engine start operating range, if the key
and vehicle ID codes cannot be matched, for example due to
the ambient environment or electromagnetic conditions, the
warning may be activated.
Keyless operation system*
3-122.7((Locking and unlocking3

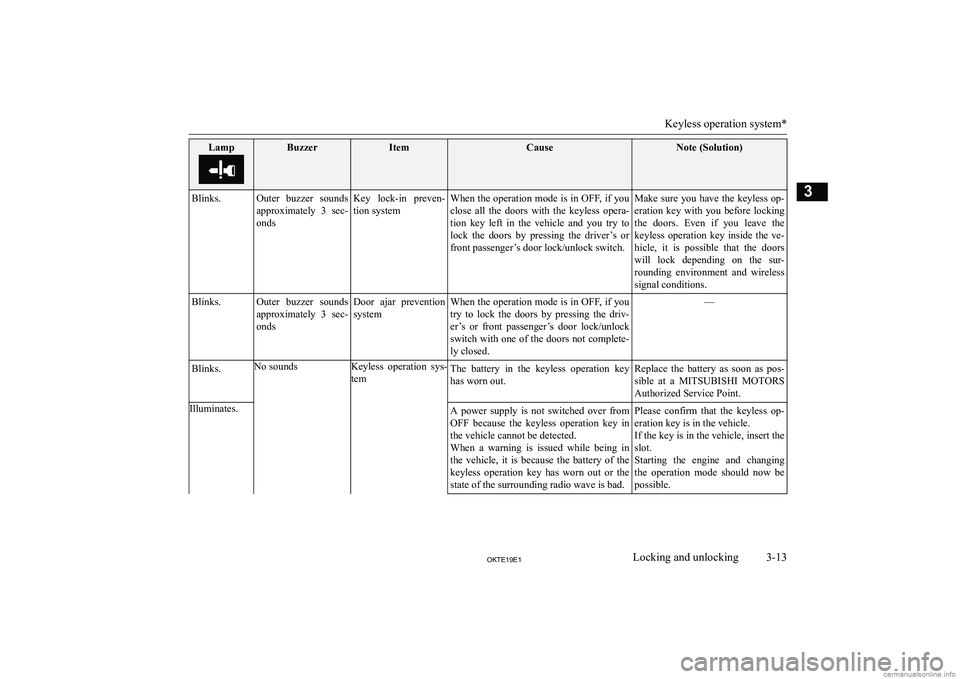

LampBuzzerItemCauseNote (Solution)Blinks.Outer buzzer soundsapproximately 3 sec-ondsKey lock-in preven-
tion systemWhen the operation mode is in OFF, if you close all the doors with the keyless opera-
tion key left in the vehicle and you try to lock the doors by pressing the driver’s or
front passenger’s door lock/unlock switch.Make sure you have the keyless op- eration key with you before locking
the doors. Even if you leave the keyless operation key inside the ve-
hicle, it is possible that the doors
will lock depending on the sur-
rounding environment and wireless signal conditions.Blinks.Outer buzzer soundsapproximately 3 sec-ondsDoor ajar prevention
systemWhen the operation mode is in OFF, if you try to lock the doors by pressing the driv-er’s or front passenger’s door lock/unlock
switch with one of the doors not complete- ly closed.

LampBuzzerItemCauseNote (Solution)There is a fault in the keyless operation sys-tem.If the warning lamp illuminates,please contact a MITSUBISHI
MOTORS Authorized Service
Point.Immediately stop the vehicle in a safe place and contact a
MITSUBISHI MOTORS Authorized
Service Point.Inner buzzer sounds (intermittent sounds)There is a fault in the electrical system.Inner buzzer sounds(continuous sounds).Blinks.Outer buzzer sounds approximately 3 sec-onds. Inner buzzer sounds approximately

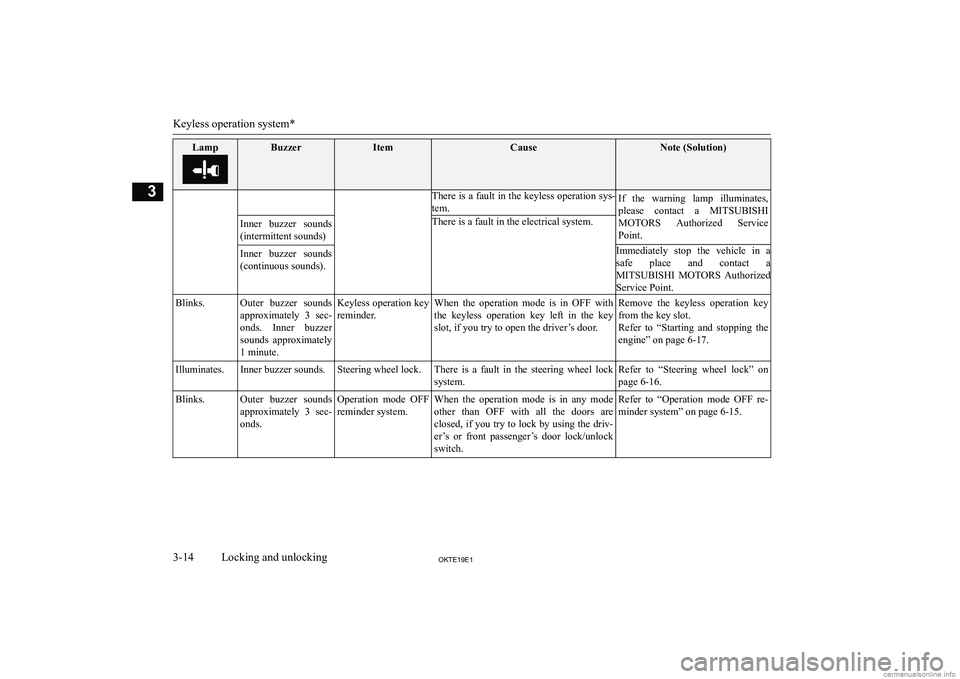

1 minute.Keyless operation key reminder.When the operation mode is in OFF with
the keyless operation key left in the key slot, if you try to open the driver’s door.Remove the keyless operation key
from the key slot.
Refer to “Starting and stopping the engine” on page 6-17.Illuminates.Inner buzzer sounds.Steering wheel lock.There is a fault in the steering wheel lock
system.Refer to “Steering wheel lock” on
page 6-16.Blinks.Outer buzzer sounds approximately 3 sec-onds.Operation mode OFF reminder system.When the operation mode is in any mode
other than OFF with all the doors are closed, if you try to lock by using the driv-
er’s or front passenger’s door lock/unlock switch.Refer to “Operation mode OFF re-
minder system” on page 6-15.
Keyless operation system*
3-142.7((Locking and unlocking3

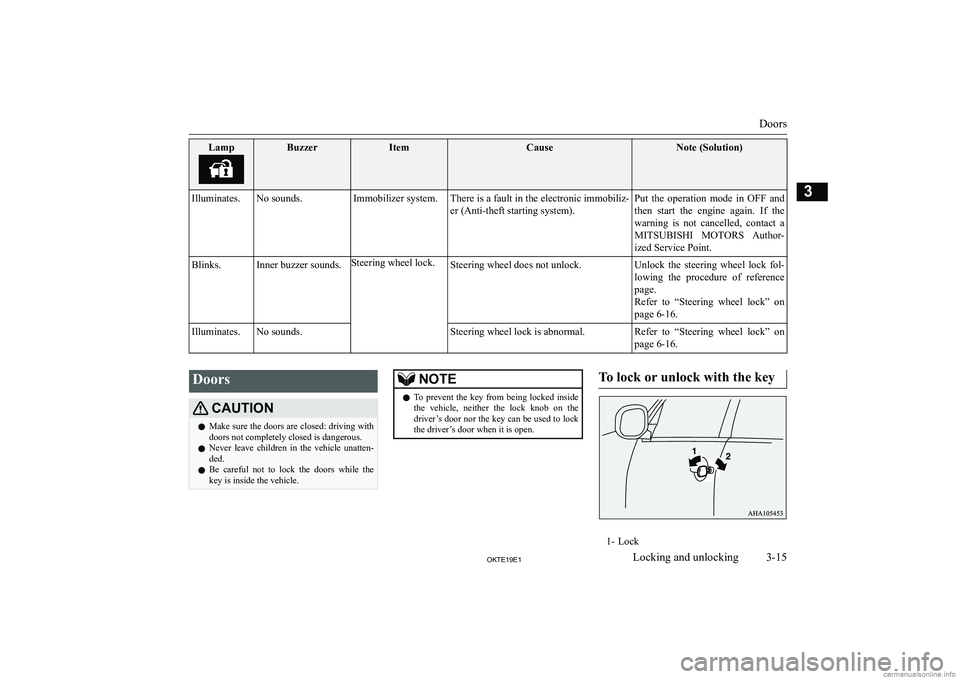

LampBuzzerItemCauseNote (Solution)Illuminates.No sounds.Immobilizer system.There is a fault in the electronic immobiliz-
er (Anti-theft starting system).Put the operation mode in OFF and then start the engine again. If the warning is not cancelled, contact a
MITSUBISHI MOTORS Author-
ized Service Point.Blinks.Inner buzzer sounds.Steering wheel lock.Steering wheel does not unlock.Unlock the steering wheel lock fol-
lowing the procedure of reference page.
Refer to “Steering wheel lock” on
page 6-16.Illuminates.No sounds.Steering wheel lock is abnormal.Refer to “Steering wheel lock” on
page 6-16.

DoorsCAUT,ONz Make sure the doors are closed: driving with
doors not completely closed is dangerous.
z Never leave children in the vehicle unatten-
ded.
z Be careful not to lock the doors while the
key is inside the vehicle.NOTEz To prevent the key from being locked inside
the vehicle, neither the lock knob on the driver’s door nor the key can be used to lock
the driver’s door when it is open.To lock or unlock with the key
1- Lock
Doors
3-152.7((Locking and unlocking3

2- UnlockNOTEzOn vehicles with central door locks, when
locking or unlocking with the key, all doors
will be locked or unlocked.
Refer to “Central door locks” on page 3-17.
z If the vehicle is equipped with the keyless
operation system, the driver’s door can be locked or unlocked with the emergency key.
Refer to “Emergency key” on page 3-11.

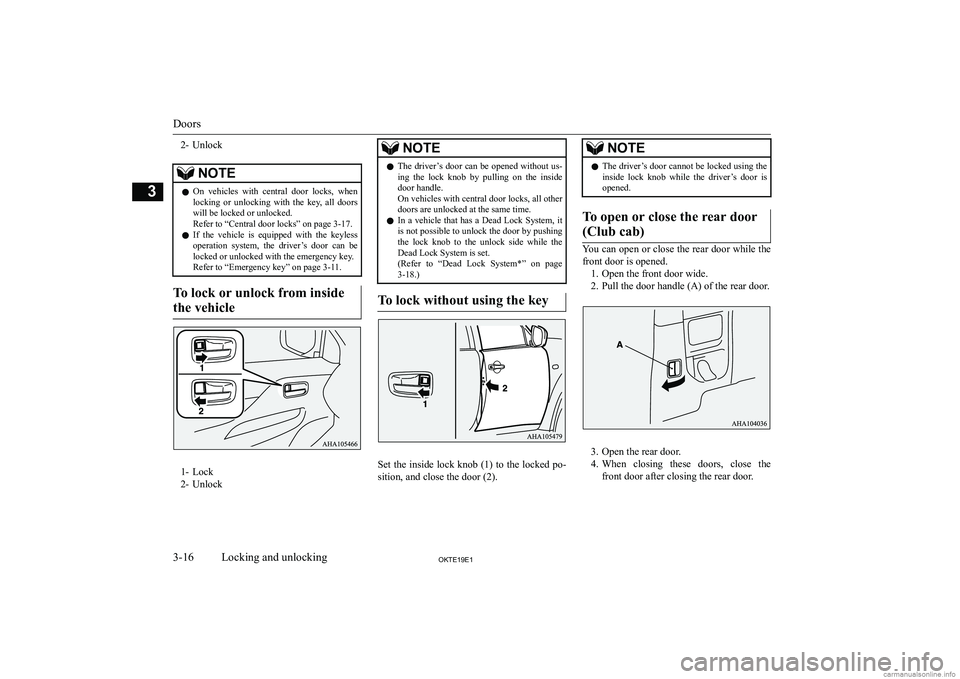

To lock or unlock from inside
the vehicle
1- Lock
2- Unlock
NOTEz The driver’s door can be opened without us-
ing the lock knob by pulling on the inside
door handle.
On vehicles with central door locks, all other doors are unlocked at the same time.
z In a vehicle that has a Dead Lock System, it
is not possible to unlock the door by pushing the lock knob to the unlock side while the Dead Lock System is set.
(Refer to “Dead Lock System*” on page
3-18.)
To lock without using the key
Set the inside lock knob (1) to the locked po-
sition, and close the door (2).
NOTEz The driver’s door cannot be locked using the
inside lock knob while the driver’s door is
opened.To open or close the rear door
(Club cab)
You can open or close the rear door while the
front door is opened. 1. Open the front door wide.
2. Pull the door handle (A) of the rear door.
3. Open the rear door.
4. When closing these doors, close the
front door after closing the rear door.
Doors
3-162.7((Locking and unlocking3

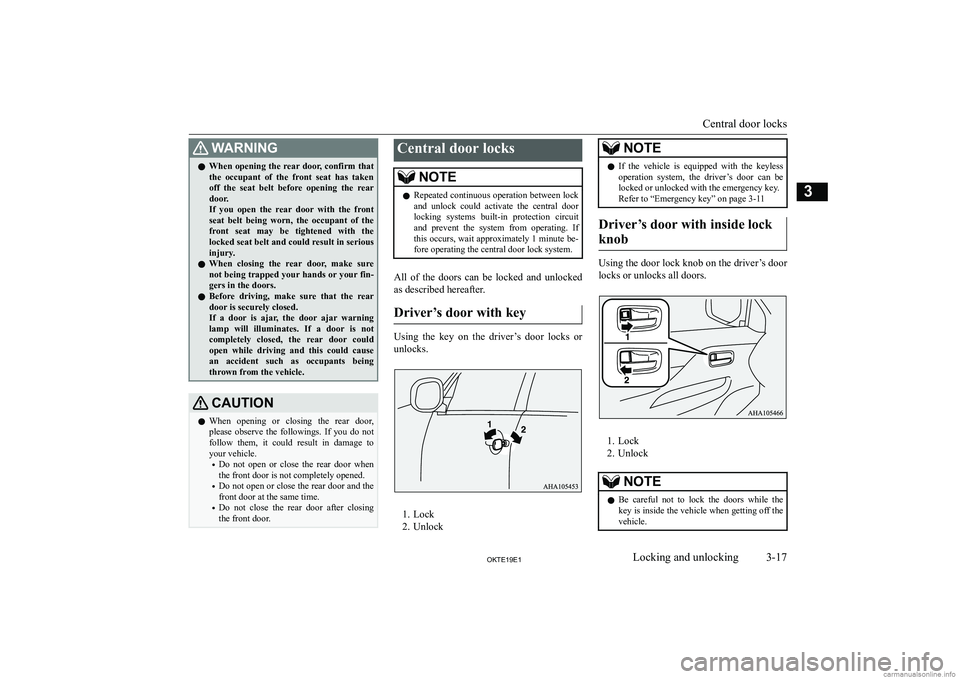

:ARN,NGzWhen opening the rear door, confirm that
the occupant of the front seat has taken off the seat belt before opening the rear
door.
If you open the rear door with the front
seat belt being worn, the occupant of the
front seat may be tightened with the locked seat belt and could result in serious
injury.
z When closing the rear door, make sure
not being trapped your hands or your fin-gers in the doors.
z Before driving, make sure that the rear
door is securely closed.
If a door is ajar, the door ajar warning
lamp will illuminates. If a door is not completely closed, the rear door couldopen while driving and this could cause
an accident such as occupants being thrown from the vehicle.CAUT,ONz When opening or closing the rear door,
please observe the followings. If you do not
follow them, it could result in damage to your vehicle.

Vehicle-speed sensitive auto-matic door lock (with impact-sensitive unlock mechanism)
All of the doors lock automatically when the vehicle speed exceeds approximately15 km/h (9 mph) . In addition, all of the doors
unlock when a strong impact that could be
very dangerous to the occupants is sustained by the collision of the vehicle. This is pre-pared for rescue activities when an unexpec-
ted accident occurs.
:ARN,NGz When the vehicle-speed sensitive automat-
ic door lock/impact-sensitive unlock
mechanism may not operate in the follow- ing conditions, have the vehicle inspected
at a MITSUBISHI MOTORS Authorized
Service Point immediately.

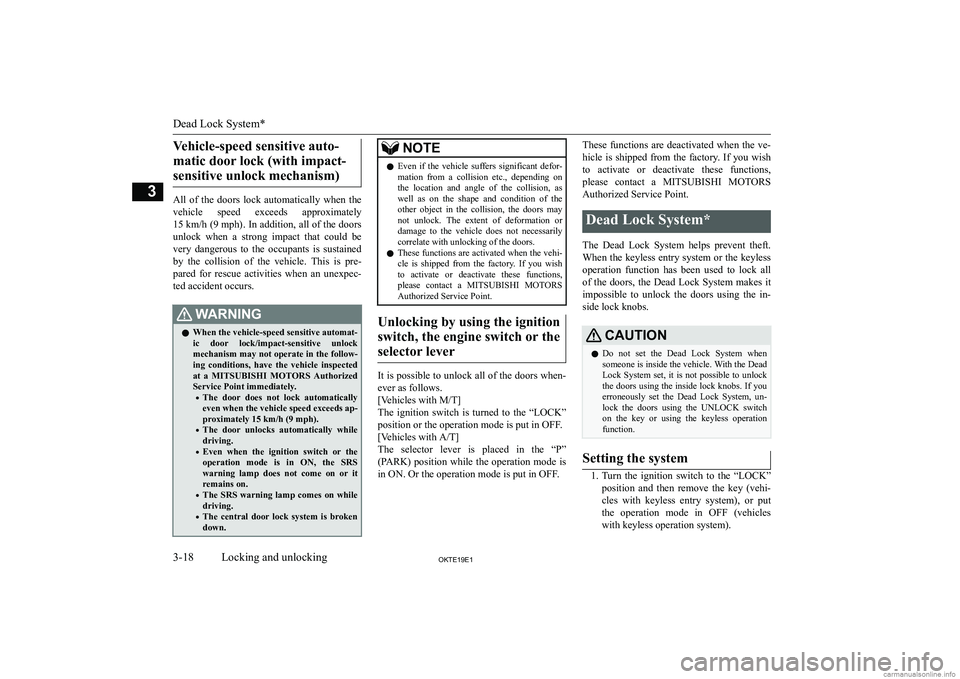

2.Get out of the vehicle. Close all of the
doors.
3. Press the LOCK switch (A) on the key,
the driver’s or front passenger’s door lock/unlock switch (C) to lock all of the
doors. The turn-signal lamps will blink once.
4. Press the switch again within 2 seconds.

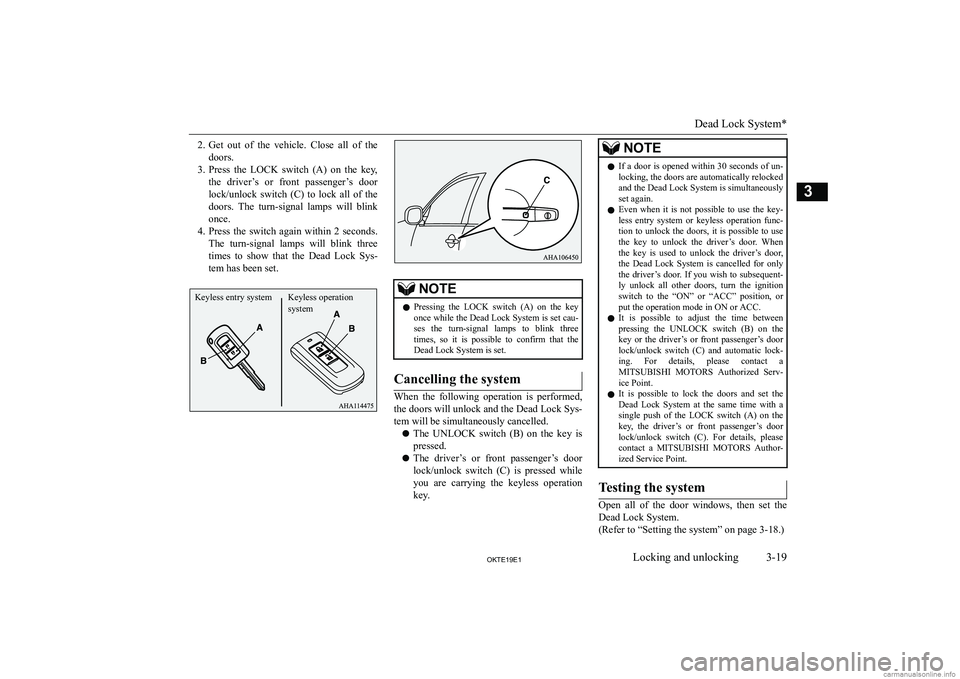

The turn-signal lamps will blink three times to show that the Dead Lock Sys- tem has been set.NOTEz Pressing the LOCK switch (A) on the key
once while the Dead Lock System is set cau-ses the turn-signal lamps to blink three
times, so it is possible to confirm that the Dead Lock System is set.Cancelling the system
When the following operation is performed,
the doors will unlock and the Dead Lock Sys- tem will be simultaneously cancelled.
z The UNLOCK switch (B) on the key is
pressed.
z The driver’s or front passenger’s door
lock/unlock switch (C) is pressed while
you are carrying the keyless operation key.
NOTEz If a door is opened within 30 seconds of un-
locking, the doors are automatically relocked
and the Dead Lock System is simultaneously
set again.
z Even when it is not possible to use the key-
less entry system or keyless operation func-
tion to unlock the doors, it is possible to use the key to unlock the driver’s door. When
the key is used to unlock the driver’s door,
the Dead Lock System is cancelled for only the driver’s door. If you wish to subsequent-
ly unlock all other doors, turn the ignition switch to the “ON” or “ACC” position, orput the operation mode in ON or ACC.
z It is possible to adjust the time between
pressing the UNLOCK switch (B) on the key or the driver’s or front passenger’s door
lock/unlock switch (C) and automatic lock- ing. For details, please contact aMITSUBISHI MOTORS Authorized Serv-
ice Point.
z It is possible to lock the doors and set the
Dead Lock System at the same time with a
single push of the LOCK switch (A) on the key, the driver’s or front passenger’s door
lock/unlock switch (C). For details, please
contact a MITSUBISHI MOTORS Author-
ized Service Point.Testing the system
Open all of the door windows, then set the
Dead Lock System.
(Refer to “Setting the system” on page 3-18.)
Dead Lock System*
3-192.7((Locking and unlocking3Keyless entry system Keyless operation system

After setting the Dead Lock System, reach
into the vehicle through a window and con- firm that you cannot unlock the doors using
the lock knobs.NOTEz If you need advice on how to set the Dead

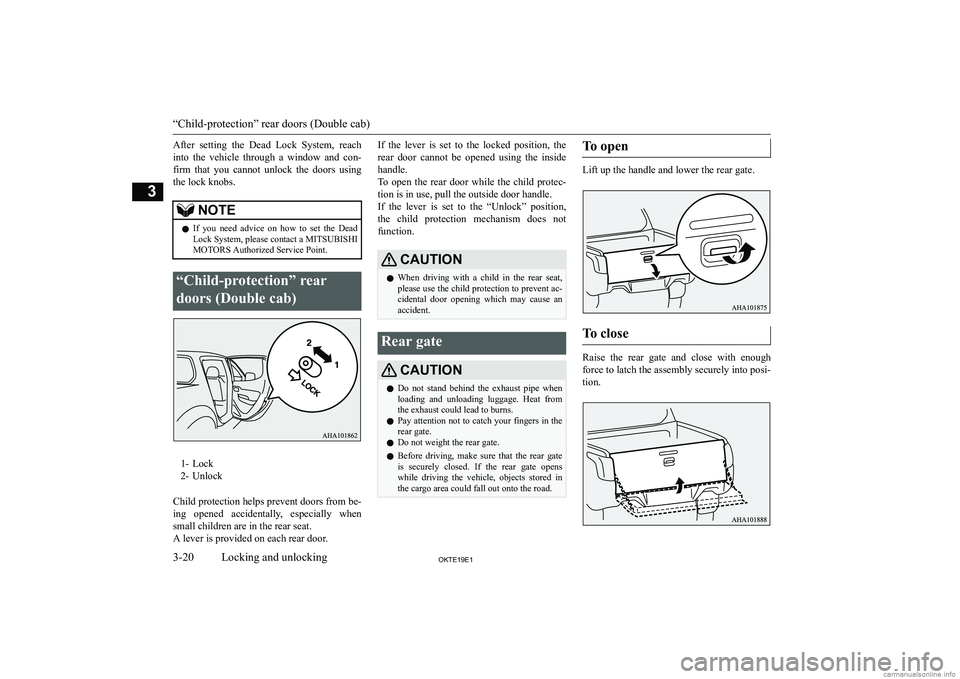

Lock System, please contact a MITSUBISHIMOTORS Authorized Service Point.“Child-protection” rear
doors (Double cab)
1- Lock
2- Unlock
Child protection helps prevent doors from be-
ing opened accidentally, especially when small children are in the rear seat.
A lever is provided on each rear door.
If the lever is set to the locked position, the
rear door cannot be opened using the inside
handle.
To open the rear door while the child protec- tion is in use, pull the outside door handle.
If the lever is set to the “Unlock” position,
the child protection mechanism does not function.CAUT,ONz When driving with a child in the rear seat,
please use the child protection to prevent ac-
cidental door opening which may cause an accident.Rear gateCAUT,ONz Do not stand behind the exhaust pipe when
loading and unloading luggage. Heat fromthe exhaust could lead to burns.
z Pay attention not to catch your fingers in the
rear gate.
z Do not weight the rear gate.
z Before driving, make sure that the rear gate
is securely closed. If the rear gate opens
while driving the vehicle, objects stored in
the cargo area could fall out onto the road.To open
Lift up the handle and lower the rear gate.
To close
Raise the rear gate and close with enough
force to latch the assembly securely into posi-
tion.
