DASH PANEL
CONFIGURATION DIAGRAMS80-34
DASH PANEL (CONTINUED)
AC502057
Y
16
C-105
C-106
C-143
C-107
C-108
A/C wiring
harness
C-109
C-149
C-110
C-144
C-111
C-113
C-115
C-117
Instrument panel
wiring harness
Control wiring
harness
C-118 C-120
C-121C-128
C-129 C-126
C-127C-124
C-125
C-122
C-123
Connector colour
code
B : Black
BR : Brown
G : Green
GR : Grey
L : Blue
None : Milk white
O : Orange
R : Red
V : Violet
Y : Yellow
3
Connector
symbol
-101
thru
-149
C
Antenna
feeder
cable
AB
C-142
C-101(4)Hazard warning lamp switch
C-102(4)Clock
C-103(22-GR)J/C (1)
C-105(13)J/C (5)
C-106(7)Instrument panel wiring harness and A/C
wiring harness combination A/C>
C-107(7)Outside /Inside air selection damper
control motor
C-108(2-R)Air bag module (squib) side>
C-109(4)Resistor <
C-110(2)Blower motor
C-111(12)Front wiring harness (LH) and control
wiring harness combination
C-113(16)Instrument panel wiring harness and front
door wiring harness (LH) combination
C-115(25)Front wiring harness (LH) and instrument
panel wiring harn
ess combination
C-117(11-B*)Instrument panel wiring harness and floor
wiring harness (LH) combination
C-118(6-L)Instrument panel wiring harness and floor
wiring harness (LH) combination
C-120(13)Instrument panel wiring harness and floor
wiring harness (LH) combination
C-121(3)Front wiring harness (LH) and instrument
panel wiring harness combination
C-122(35-GR)Engine-A/T-ECU
C-123(26-Y)Engine-ECU
C-124(26-GR)Engine-A/T-ECU
C-125(16-Y)Engine-ECU
C-126(28-GR)Engine-A/T-ECU
C-127(12-Y)Engine-ECU
C-128(30-GR)Engine-A/T-ECU
C-129(22-Y)Engine-ECU
C-134(33)J/C (6)
C-135(22-L)Instrument panel wiring harness and
control wiring harness combination

90-1
GROUP 90
CIRCUIT DIAGRAMS
CONTENTS
J/B . . . . . . . . . . . . . . . . . . . . . . . . . . .90-4
J/C
J/C . . . . . . . . . . . . . . . . . . . . . . . . . 90-6
J/C . . . . . . . . . . . . . . . . . . . . . . . . . 90-12
CENTRALIZED JUNCTION
POWER DISTRIBUTION SYSTEM
POWER DISTRIBUTION SYSTEM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90-24
POWER DISTRIBUTION SYSTEM
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 90-30
STARTING SYSTEM
STARTING SYSTEM . . . . . . . . . . . . 90-36
STARTING SYSTEM . . . . . . . . . . . . 90-37
IGNITION SYSTEM
IGNITION SYSTEM <4 G1-M/T (LHD)> . . . 90-38
IGNITION SYSTEM <4G1-M/T (RHD)> . . . 90-39
IGNITION SYSTEM <4G1-A/T (LHD)> . . . . 90-40
IGNITION SYSTEM <4G1-A/T (RHD)> . . . 90-41
IGNITION SYSTEM <4G6-M/T (LHD)> . . . 90-42
IGNITION SYSTEM <4G6-M/T (RHD)> . . . 90-43
IGNITION SYSTEM <4G6-A/T (LHD)> . . . . 90-44
CHARGING SYSTEM
CHARGING SYSTEM . . . . . . . . . . . 90-46
CHARGING SYSTEM . . . . . . . . . . . 90-47
ENGINE CONTROL SYSTEM
ENGINE CONTROL SYSTEM
<4G1-M/T (LHD)> . . . . . . . . . . . . . . . . . . . . 90-48
ENGINE CONTROL SYSTEM
<4G1-M/T (RHD)> . . . . . . . . . . . . . . . . . . . . 90-54
ENGINE CONTROL SYSTEM
<4G1-A/T (LHD)> . . . . . . . . . . . . . . . . . . . . 90-60
ENGINE CONTROL SYSTEM
<4G1-A/T (RHD)> . . . . . . . . . . . . . . . . . . . . 90-66
ENGINE CONTROL SYSTEM
<4G6-M/T (LHD)> . . . . . . . . . . . . . . . . . . . . 90-72
ENGINE CONTROL SYSTEM
<4G6-M/T (RHD)> . . . . . . . . . . . . . . . . . . . . 90-78
ENGINE CONTROL SYSTEM
<4G6-A/T (LHD)> . . . . . . . . . . . . . . . . . . . . 90-84
COOLING SYSTEM
COOLING SYSTEM . . . . . . . . . . . . 90-90
COOLING SYSTEM . . . . . . . . . . . . 90-91
INVECS-II 4A/T
INVECS-II 4A/T <4G1 (LHD)> . . . . . . . . . . . 90-92
INVECS-II 4A/T <4G1 (RHD)> . . . . . . . . . . 90-98
INVECS-II 4A/T <4G6 (LHD)> . . . . . . . . . . . 90-104
HEADLAMP
HEADLAMP . . . . . . . . . . . . . . . . . . 90-110
HEADLAMP . . . . . . . . . . . . . . . . . . 90-114
Continued on next page

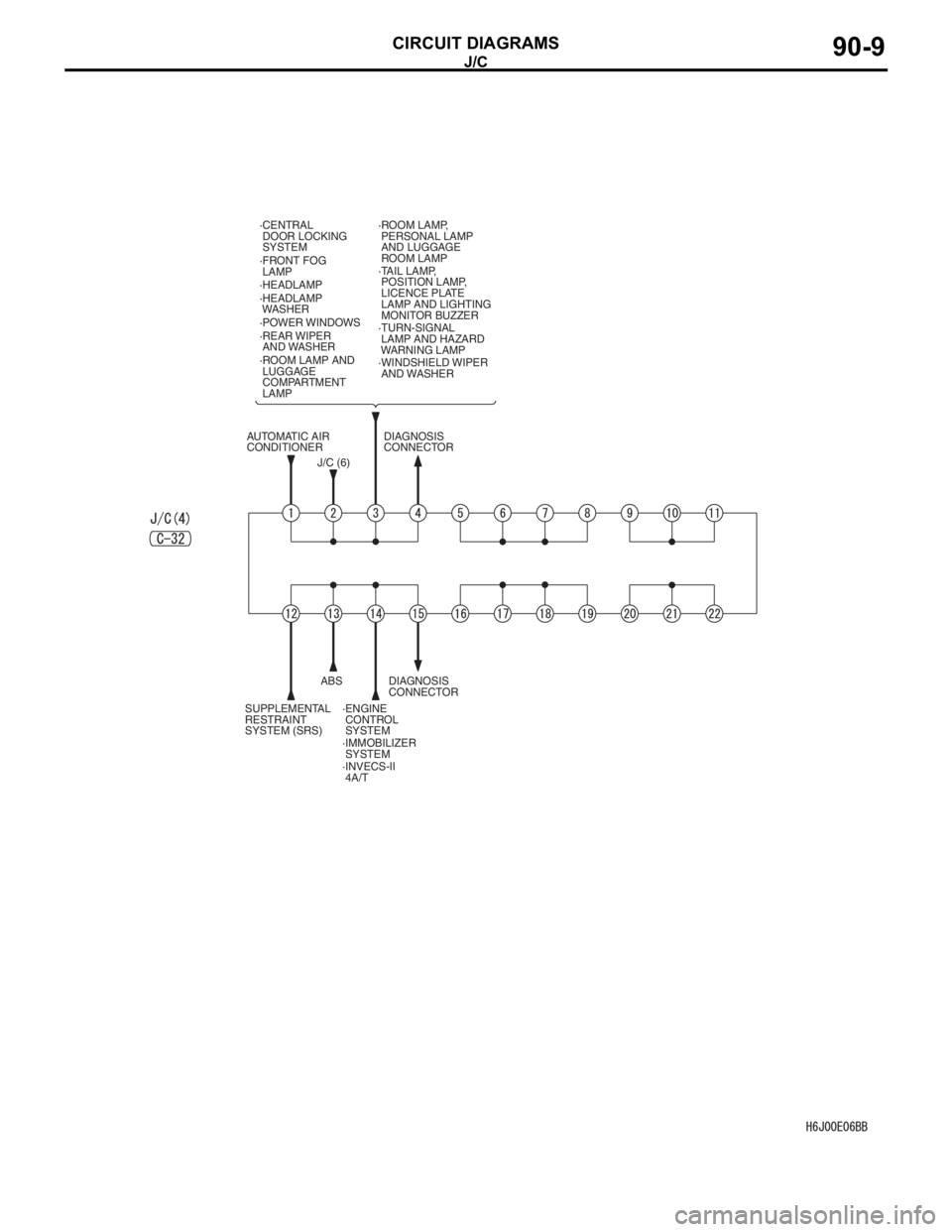

J/C
CIRCUIT DIAGRAMS90-9
·FRONT FOG
LAMP
·TURN-SIGNAL
LAMP AND HAZARD
WARNING LAMP ·HEADLAMP
·HEADLAMP
WASHER ·CENTRAL
DOOR LOCKING
SYSTEM
·POWER WINDOWS
·REAR WIPER
AND WASHER
·ROOM LAMP AND
LUGGAGE
COMPARTMENT
LAMP·ROOM LAMP,
PERSONAL LAMP
AND LUGGAGE
ROOM LAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·WINDSHIELD WIPER
AND WASHER
J/C (6)DIAGNOSIS
CONNECTOR
DIAGNOSIS
CONNECTOR
SUPPLEMENTAL
RESTRAINT
SYSTEM (SRS)ABS
·ENGINE
CONTROL
SYSTEM
·IMMOBILIZER
SYSTEM
·INVECS-II
4A/T AUTOMATIC AIR
CONDITIONER

J/C
CIRCUIT DIAGRAMS90-10
J/C (CONTINUED)
·FRONT FOG
LAMP ·FRONT FOG
LAMP
FRONT FOG
LAMP
·TURN-SIGNAL
LAMP AND HAZARD
WARNING LAMP ·HEADLAMP
WASHER ·ROOM LAMP AND
LUGGAGE
COMPARTMENT
LAMP
·ROOM LAMP,
PERSONAL LAMP
AND LUGGAGE
ROOM LAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·WINDSHIELD WIPER
AND WASHER·WINDSHIELD
WIPER AND
WASHER
WINDSHIELD
WIPER AND
WASHER
DIAGNOSIS
CONNECTOR·METER AND
GAUGE
·METER AND
GAUGE METER AND
GAUGESPARE
CONNECTOR
(FOR AUDIO)
SPARE
CONNECTOR
(FOR FRONT
FOG LAMP)·SPARE
CONNECTOR
(FOR FRONT
FOG LAMP) CLOCK(FUSE )
23
(FUSE )2
RELAY
BOX
·REAR FOG
LAMP
·REAR WIPER AND
WASHER ·ABS
·BRAKE
WARNING LAMP
·CHARGING
SYSTEM
·ENGINE
CONTROL
SYSTEM
·FUEL WARNING
LAMP
·INVECS-II
4A/T
·SUPPLEMENTAL
RESTRAINT
SYSTEM (SRS) ·OIL PRESSURE
WARNING LAMP J/B
(FUSE )
11J/B ACCESSORY
SOCKET
REMOTE
CONTROLLED
MIRROR

J/C
CIRCUIT DIAGRAMS90-11
J/C (4)
ABS
ABS
ENGINE
CONTROL
SYSTEM·ENGINE
CONTROL
SYSTEM
·ENGINE
CONTROL
SYSTEMMETER AND
GAUGE
(FUSE )10
RELAY
BOX
(FUSE )
8
RELAY
BOX INVECS-II
4A/T
IMMOBILIZER
SYSTEM·COOLING
SYSTEM
·METER AND
GAUGE
·IGNITION
SYSTEM ·ENGINE
CONTROL
SYSTEM
·METER AND
GAUGE
·IGNITION
SYSTEM

J/C
CIRCUIT DIAGRAMS90-15
ACCESSORY
SOCKET
·SPARE
CONNECTOR
(FOR FRONT
FOG LAMP)
(FUSE )
11J/B ·WINDSHIELD WIPER
AND WASHER
DIAGNOSIS
CONNECTOR
DIAGNOSIS
CONNECTOR
SUPPLEMENTAL
RESTRAINT
SYSTEM (SRS)ABS
·ENGINE
CONTROL
SYSTEM
·IMMOBILIZER
SYSTEM
·INVECS-II
4A/TFRONT FOG
LAMP REMOTE
CONTROLLED
MIRROR
·ROOM LAMP AND
LUGGAGE
COMPARTMENT
LAMP
·ROOM LAMP,
PERSONAL LAMP
AND LUGGAGE
ROOM LAMP·FRONT FOG
LAMP SPARE
CONNECTOR
(FOR FRONT
FOG LAMP)
J/C (6) ·FRONT FOG LAMP
·TURN-SIGNAL
LAMP AND HAZARD
WARNING LAMP ·HEADLAMP ·CENTRAL
DOOR LOCKING
SYSTEM
·POWER WINDOWS
·REAR WIPER
AND WASHER
·ROOM LAMP AND
LUGGAGE
COMPARTMENT LAMP·ROOM LAMP,
PERSONAL LAMP
AND LUGGAGE
ROOM LAMP
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER ·REAR FOG LAMP
AUTOMATIC AIR
CONDITIONER

J/C
CIRCUIT DIAGRAMS90-17
J/C (4)ABS
ABS
ENGINE
CONTROL
SYSTEM·ENGINE
CONTROL
SYSTEM METER AND
GAUGE·METER AND
GAUGE
·IGNITION
SYSTEM
(FUSE )
10
RELAY
BOX(FUSE )8
RELAY
BOX
INVECS-II
4A/TIMMOBILIZER
SYSTEM·COOLING
SYSTEM ·ENGINE
CONTROL
SYSTEM
·METER AND
GAUGE
·IGNITION
SYSTEM

CENTRALIZED JUNCTION
CIRCUIT DIAGRAMS90-18
CENTRALIZED JUNCTION
M1901000301477
FUSIBLE LINK AND FUSE
ENGINE COMPARTMENT
No.Power supply circuitNameRated
capacity (A)Housing
colourLoad circuit
1Battery/ Alternator
(Fusible link No.26)Fusible
link60YellowFuse No.15, 16, 18, 19, 20 (in junction
block) circuit
250RedFan controller
360YellowABS-ECU
440GreenIgnition switch circuit
530PinkPower window main switch and power
window sub switch
6Fuse15BlueFront fog lamp, front fog lamp
indicator lamp, front fog lamp relay
and spare connector (for front fog
lamp)
710RedHorn relay and horn
820YellowAir cleaner air flow sensor, camshaft
position sensor, emission solenoid
valve (EGR system), emission
solenoid valve (purge control system),
engine-A/T-ECU, engine-ECU, engine
control oxygen sensor, engine control
relay, engine crank angle sensor, fan
control relay, fuel injector, ignition coil
relay, immobilizer-ECU and throttle
body idle speed control servo
910RedA/C compressor
1015BlueABS-ECU, engine-A/T-ECU, high
mount stop lamp and rear combination
lamp
1115BlueAccessory socket
127.5BrownAlternator
1310RedETACS-ECU, front turn signal lamp,
rear combination lamp, side turn
signal lamp and turn signal indicator
lamp
1420YellowA/T control solenoid valve assembly
and engine-A/T-ECU
1515BlueFuel pump
16Front-ECU
(Headlamp relay: HI)10RedHeadlamp (RH)
1710RedHeadlamp (LH) and high beam
indicator lamp
18Front-ECU
(Headlamp relay: LO)10RedHeadlamp (RH)
1910RedHeadlamp (LH), headlamp assembly
and headlamp levelling switch

CENTRALIZED JUNCTION
CIRCUIT DIAGRAMS90-19
20Front-ECU (Tail lamp
relay)Fuse7.5BrownA/C-ECU, ashtray illumination lamp,
cigarette lighter illumination lamp,
combination meter, fog lamp switch,
front turn signal lamp, hazard warning
switch, headlamp assembly (RH),
headlamp levelling switch, heated
seat switch, heater control unit,
licence plate lamp, rear combination
lamp, rheostat, side turn signal lamp
and spare connector (for audio)
217.5BrownCombination meter, headlamp
assembly (LH), licence plate lamp,
position lamp (LH) and rear
combination lamp (LH)
22Battery/ Alternator
(Fusible link No.26)10RedCombination meter, column switch,
ETACS-ECU and front-ECU
23Ignition switch (ACC)10RedClock, ETACS-ECU and spare
connector (for audio)
24−−−−
25Battery/ Alternator
(Fusible link No.26)20YellowHeated seat assembly and heated
seat switch
26AlternatorFusible
link100 <4G1>
120 <4G6>−Battery, fusible link No.1, 2, 3, 4, 5,
fuse No.6, 7, 8, 9, 10, 11, 12, 13, 14,
15, 22 (relay box) and front-ECU
No. Power supply circuit Name Rated
capacity (A)Housing
colourLoad circuit
AC208462
Front of vehicle
(Relay box in engine compartment)
1
6
7 8 9 10 1112 13141524
4 25
2316
1718
1920
2123 225
AO

CENTRALIZED JUNCTION
CIRCUIT DIAGRAMS90-20
PASSENGER COMPARTMENT
AC207745
(Connected directly to battery positive terminal)
Front of vehicle26
AF
No.Power supply circuitNameRated
capacity (A)Housing
colourLoad circuit
1Ignition switch (IG1)Fuse10RedCapacitor and ignition coil
27.5BrownABS warning lamp, brake warning
lamp, charging warning lamp, check
engine warning lamp, column switch,
combination meter, ETACS-ECU, low
fuel warning lamp, oil pressure
warning lamp, SRS air bag warning
lamp, SRS-ECU and vehicle speed
sensor
37.5BrownA/T control relay, combination meter,
engine-A/T-ECU, ETACS-ECU, input
shaft speed sensor, output shaft
speed sensor, rear combination lamp
and SRS-ECU
4−−−
5Ignition switch (IG2)7.5BrownA/C compressor relay, A/C-ECU,
blower relay, rear window defogger
relay, front-ECU, heated seat relay,
heater control unit and outside/inside
air selection damper control motor
6Rear window
defogger relay7.5BrownRemote controlled mirror
7Ignition switch (ACC)20YellowFront-ECU and windshield wiper
motor
8Ignition switch (IG1)7.5BrownEngine-A/T-ECU, engine-ECU, fuel
pump relay (1) and fuel pump relay (2)
9Ignition switch (ACC)15BlueCigarette lighter
10−−−
117.5BrownAccessory socket relay and Remote
controlled mirror
12Ignition switch (IG2)7.5BrownABS-ECU
13Ignition switch (ACC)−−−
1415BlueETACS-ECU and rear wiper motor
