CENTRALIZED JUNCTION
CIRCUIT DIAGRAMS90-22
CENTRALIZED RELAY
NOTE: .
•The triangle mark on the relay housing should face that on the J/B and the relay box.
Connector No.NameConnector No.Name
A-04XFront fog lamp relayB-10XEngine speed detection
connector
A-05XHorn relayB-11X−
A-06X−B-12X−
A-07X−B-13X−
A-08X−B-14XIgnition coil relay
A-09XFan control relayB-15XA/T control relay
A-10XFront-ECUB-16XEngine control relay
A-11XFront-ECUB-17XA/C compressor relay
AC208462
Front of vehicle
A-09XA-04X
A-05XA-06X
A-07XA-08X
11 2
2
33
4
4
(Relay box in engine compartment)
A-11X
A-10X
AP
AC208464AJ
Front of vehicle
B-11X
1 2
3
4
B-12X B-13X B-14X B-15X B-16X B-17X
B-10X
1
2
3
4 1 2
3
4 1 2
3
4

POWER DISTRIBUTION SYSTEM
CIRCUIT DIAGRAMS90-24
POWER DISTRIBUTION SYSTEM
POWER DISTRIBUTION SYSTEM M1901000402002
·CENTRAL DOOR
LOCKING SYSTEM
·CLOCK
·FRONT FOG LAMP
·FUEL WARNING
LAMP
·HEADLAMP
·HEADLAMP
LEVELLING SYSTEM
·INVECS-II 4A/T
·KEY REMINDER
BUZZER
·METER AND GAUGE
·POWER WINDOWS
·REAR FOG LAMP
·REAR WIPER AND
WASHER·ROOM LAMP AND
LUGGAGE COM-
PARTMENT LAMP
·ROOM LAMP,
PERSONAL LAMP
AND LUGGAGE
ROOM LAMP
·SPARE CONNECTOR
(FOR AUDIO)
·TAIL LAMP, POSITION
LAMP, LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·TURN-SIGNAL LAMP
AND HAZARD
WARNING LAMP
·WINDSHIELD WIPER
AND WASHERENGINE
CONTROL
SYSTEM
INVECS-II
4A/TTURN-SIGNAL
LAMP AND
HAZARD
WARNING LAMP
CHARGING
SYSTEMACCESSORY
SOCKET
·ABS
·INVECS-II
4A/T
·STOP LAMP·AUTOMATIC AIR
CONDITIONER
·HEATER
·MANUAL AIR
CONDITIONER
·COOLING
SYSTEM
·ENGINE
CONTROL
SYSTEM
·IGNITION SYSTEM
·IMMOBILIZER
SYSTEM
·INVECS-II 4A/THORN ·AUTOMATIC AIR
CONDITIONER
·COOLING SYSTEM
·MANUAL AIR
CONDITIONERABS
·CENTRAL DOOR
LOCKING SYSTEM
·POWER WINDOWS CHARGING
SYSTEMSTARTING
SYSTEM
BATTERY
RELAY
BOX FUSIBLE
LINK
HEATED
SEAT

POWER DISTRIBUTION SYSTEM
CIRCUIT DIAGRAMS90-26
POWER DISTRIBUTION SYSTEM (CONTINUED)
RELAY BOX
IGNITION
SWITCHRELAY
BOX
·CLOCK
·ROOM LAMP AND LUGGAGE
COMPARTMENT LAMP
·ROOM LAMP
AND LUGGAGE
COMPARTMENT
LAMP·ROOM LAMP, PERSONAL LAMP
AND LUGGAGE ROOM LAMP
·ROOM LAMP,
PERSONAL LAMP
AND LUGGAGE
ROOM LAMP·SPARE CONNECTOR
(FOR AUDIO)
STARTING
SYSTEM
IGNITION
SYSTEM·ENGINE
CONTROL
SYSTEM ·ENGINE CONTROL
SYSTEM
·INVECS-II
4A/T ·INVECS-II 4A/T
·INVECS-II 4A/T·BACK-UP LAMP
·METER AND
GAUGE
·REAR WIPER AND
WASHER
·SUPPLEMENTAL
RESTRAINT SYSTEM
(SRS)
·SUPPLEMENTAL
RESTRAINT
SYSTEM (SRS)·WINDSHIELD
WIPER AND WASHER ·ABS
·BRAKE WARNING
LAMP
·CENTRAL DOOR
LOCKING SYSTEM
·CHARGING
SYSTEM
·ENGINE CONTROL
SYSTEM
·FRONT
FOG LAMP
·FUEL WARNING
LAMP
·HEADLAMP
·HEADLAMP
WASHER
·KEY REMINDER
BUZZER
·METER AND
GAUGE
·OIL PRESSURE
WARNING LAMP
·POWER WINDOWS·REAR FOG LAMP
·REAR WIPER
AND WASHER
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·TURN-SIGNAL LAMP
AND HAZARD
WARNING LAMP
·WINDSHIELD
WIPER AND WASHER
4FUSIBLE
LINK

POWER DISTRIBUTION SYSTEM
CIRCUIT DIAGRAMS90-28
POWER DISTRIBUTION SYSTEM (CONTINUED)
REAR
WINDOW
DEFOGGER
RELAY
REAR FOG
LAMP·AUTOMATIC AIR
CONDITIONER
·HEATER
·MANUAL
AIR CONDITIONER AUTOMATIC AIR
CONDITIONER
(FUSIBLE LINK )1RELAY BOX
REAR WINDOW
DEFOGGER AND
DOOR MIRROR
HEATER ·ABS
·CENTRAL DOOR
LOCKING SYSTEM
·ENGINE CONTROL
SYSTEM
·FRONT FOG LAMP
·HEADLAMP
·HEADLAMP WASHER
·IMMOBILIZER SYSTEM
·INVECS-II 4A/T
·KEY REMINDER BUZZER
·POWER WINDOWS
·REAR FOG LAMP
·REAR WIPER AND
WASHER
·ROOM LAMP
AND LUGGAGE
COMPARTMENT LAMP
·ROOM LAMP,
PERSONAL LAMP AND
LUGGAGE ROOM LAMP
·SUPPLEMENTAL
RESTRAINT SYSTEM (SRS)
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE LAMP
AND LIGHTING
MONITOR BUZZER
·TURN-SIGNAL LAMP AND
HAZARD WARNING LAMP
·WINDSHIELD WIPER
AND WASHER
FUSE 5
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple

POWER DISTRIBUTION SYSTEM
CIRCUIT DIAGRAMS90-30
POWER DISTRIBUTION SYSTEM
M1901000402013
·CENTRAL DOOR
LOCKING SYSTEM
·CLOCK
·FRONT FOG LAMP
·FUEL WARNING
LAMP
·HEADLAMP
·HEADLAMP
LEVELLING SYSTEM
·INVECS-II 4A/T
·KEY REMINDER
BUZZER
·METER AND GAUGE
·POWER WINDOWS
·REAR FOG LAMP
·REAR WIPER AND
WASHER·ROOM LAMP AND
LUGGAGE COM-
PARTMENT LAMP
·ROOM LAMP,
PERSONAL LAMP
AND LUGGAGE
ROOM LAMP
·SPARE CONNECTOR
(FOR AUDIO)
·TAIL LAMP, POSITION
LAMP, LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·TURN-SIGNAL LAMP
AND HAZARD
WARNING LAMP
·WINDSHIELD WIPER
AND WASHERENGINE
CONTROL
SYSTEM
INVECS-II
4A/TTURN-SIGNAL
LAMP AND
HAZARD
WARNING LAMP
CHARGING
SYSTEMACCESSORY
SOCKET
·ABS
·INVECS-II
4A/T
·STOP LAMP·AUTOMATIC AIR
CONDITIONER
·HEATER
·MANUAL AIR
CONDITIONER
·COOLING
SYSTEM
·ENGINE
CONTROL
SYSTEM
·IGNITION SYSTEM
·IMMOBILIZER
SYSTEM
·INVECS-II 4A/THORN ·AUTOMATIC AIR
CONDITIONER
·COOLING
SYSTEM
·MANUAL AIR
CONDITIONERABS
POWER
WINDOWS STARTING
SYSTEM
BATTERY
RELAY
BOX FUSIBLE
LINK
RELAY
BOX
CHARGING
SYSTEM

POWER DISTRIBUTION SYSTEM
CIRCUIT DIAGRAMS90-32
POWER DISTRIBUTION SYSTEM (CONTINUED)
IGNITION
SWITCHRELAY
BOX
·CLOCK
·ROOM LAMP AND LUGGAGE
COMPARTMENT LAMP
·ROOM LAMP, PERSONAL LAMP
AND LUGGAGE ROOM LAMP
·SPARE CONNECTOR
(FOR AUDIO)
STARTING
SYSTEM
IGNITION
SYSTEM·ENGINE
CONTROL
SYSTEM ·ENGINE CONTROL
SYSTEM
·INVECS-II
4A/T ·INVECS-II 4A/T
·INVECS-II 4A/T·BACK-UP LAMP
·METER AND
GAUGE
·REAR WIPER AND
WASHER
·SUPPLEMENTAL
RESTRAINT SYSTEM
(SRS) ·SUPPLEMENTAL
RESTRAINT
SYSTEM (SRS)
·WINDSHIELD
WIPER AND WASHER ·ABS
·BRAKE WARNING
LAMP
·CENTRAL DOOR
LOCKING SYSTEM
·ENGINE CONTROL
SYSTEM
·FRONT
FOG LAMP
·FUEL WARNING
LAMP
·HEADLAMP
·KEY REMINDER
BUZZER
·METER AND
GAUGE·OIL PRESSURE
WARNING LAMP
·POWER WINDOWS
·REAR FOG LAMP
·REAR WIPER
AND WASHER
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE
LAMP AND LIGHTING
MONITOR BUZZER
·WINDSHIELD
WIPER AND WASHER
RELAY BOX
4FUSIBLE
LINK

POWER DISTRIBUTION SYSTEM
CIRCUIT DIAGRAMS90-34
POWER DISTRIBUTION SYSTEM (CONTINUED)
REAR
WINDOW
DEFOGGER
RELAY
REAR FOG
LAMP·AUTOMATIC AIR
CONDITIONER
·HEATER
·MANUAL
AIR CONDITIONER
(FUSIBLE LINK )1RELAY BOX
REAR WINDOW
DEFOGGER AND
DOOR MIRROR
HEATER ·ABS
·CENTRAL DOOR
LOCKING SYSTEM
·ENGINE CONTROL
SYSTEM
·FRONT FOG LAMP
·HEADLAMP
·HEADLAMP WASHER
·IMMOBILIZER SYSTEM
·INVECS-II 4A/T
·KEY REMINDER BUZZER
·POWER WINDOWS
·REAR FOG LAMP
·REAR WIPER AND
WASHER
·ROOM LAMP
AND LUGGAGE
COMPARTMENT LAMP
·ROOM LAMP,
PERSONAL LAMP AND
LUGGAGE ROOM LAMP
·SUPPLEMENTAL
RESTRAINT SYSTEM (SRS)
·TAIL LAMP,
POSITION LAMP,
LICENCE PLATE LAMP
AND LIGHTING
MONITOR BUZZER
·TURN-SIGNAL LAMP AND
HAZARD WARNING LAMP
·WINDSHIELD WIPER
AND WASHER
FUSE 5
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple
AUTOMATIC AIR
CONDITIONER

STARTING SYSTEM
CIRCUIT DIAGRAMS90-36
STARTING SYSTEM

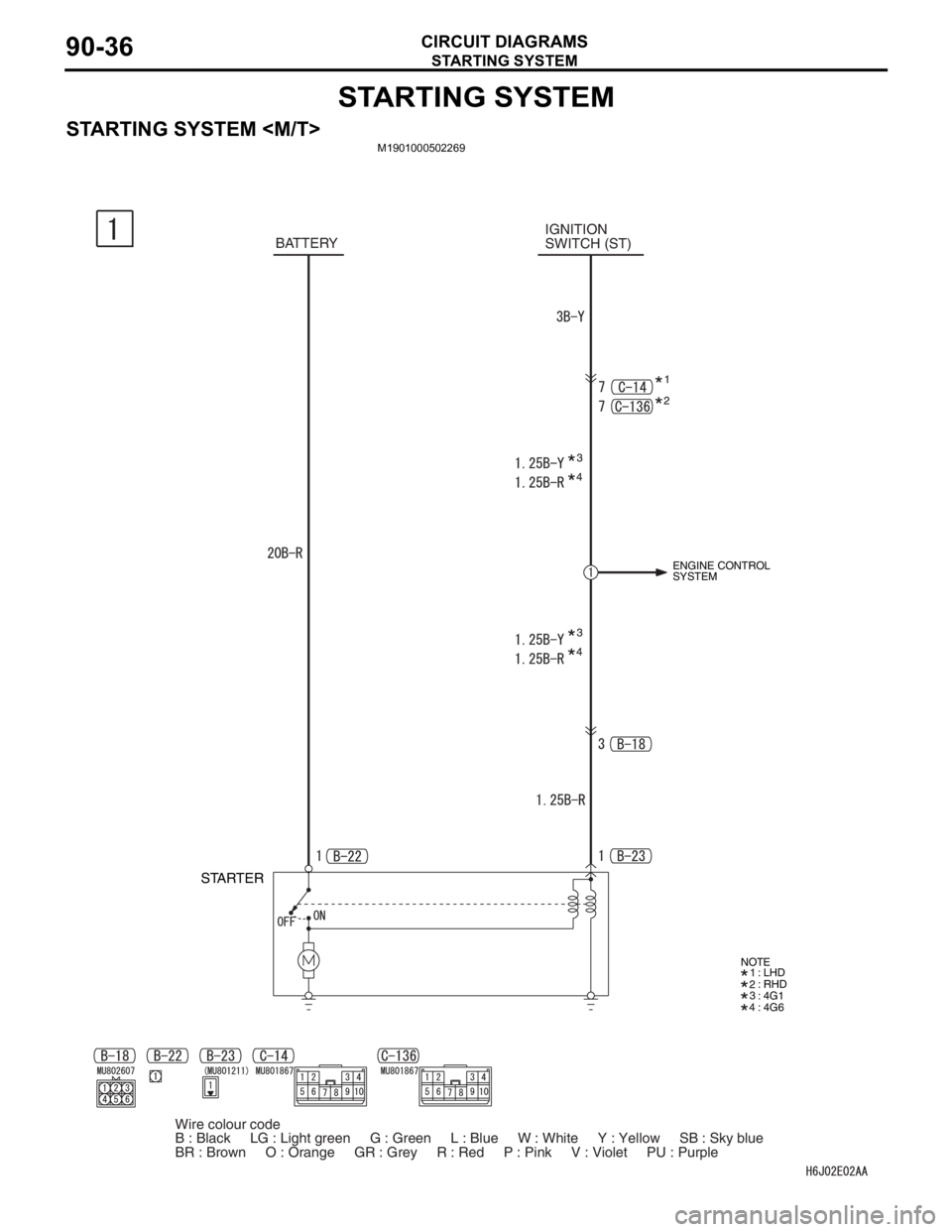

STARTING SYSTEM M1901000502269
IGNITION
SWITCH (ST)
STARTER
ENGINE CONTROL
SYSTEM
NOTE
: LHD
: RHD
: 4G1
: 4G6
BATTERY
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : Purple

STARTING SYSTEM
CIRCUIT DIAGRAMS90-37
STARTING SYSTEM

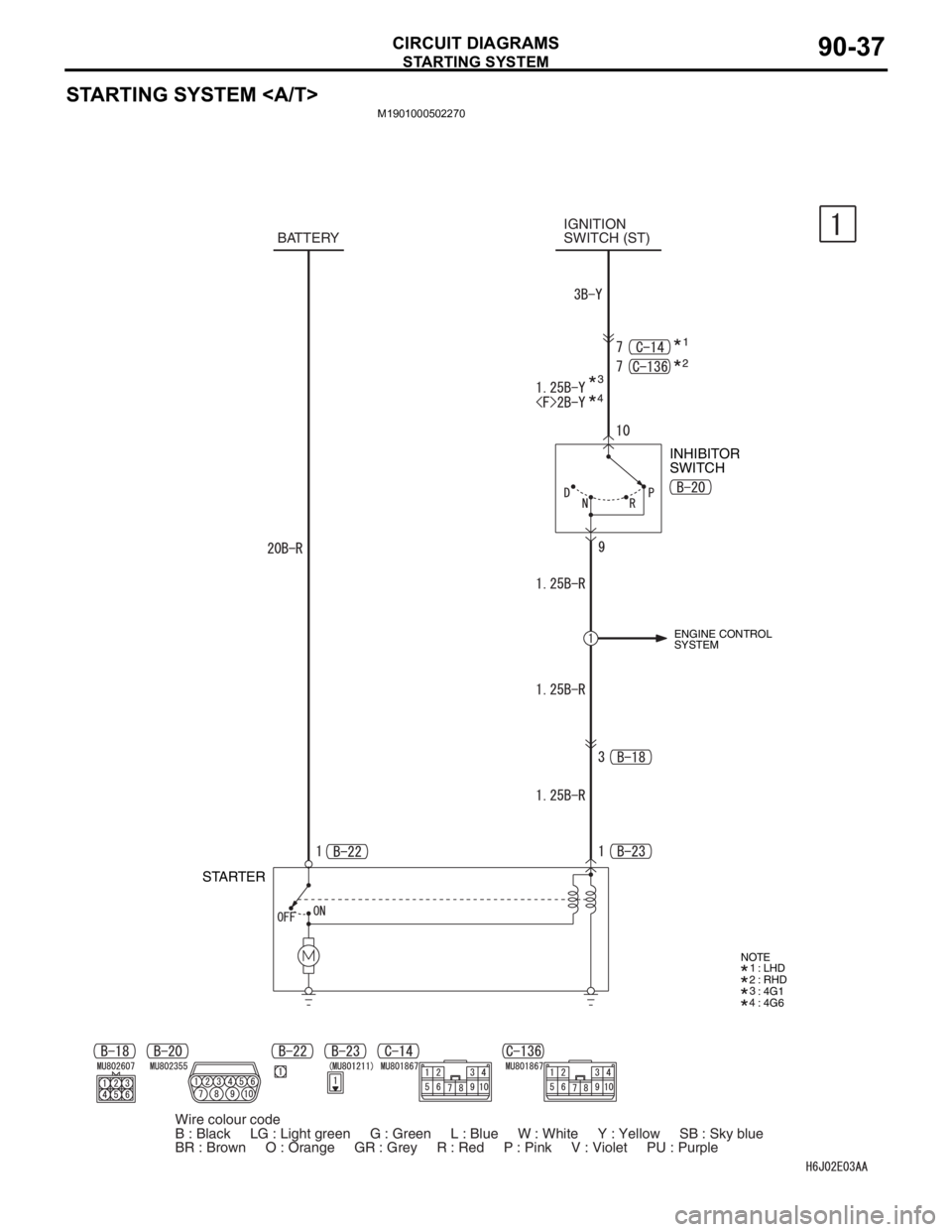

M1901000502270
NOTE
: LHD
: RHD
: 4G1
: 4G6
Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Grey R : Red P : Pink V : Violet PU : PurpleBATTERYIGNITION
SWITCH (ST)
INHIBITOR
SWITCH
STARTER
ENGINE CONTROL
SYSTEM

IGNITION SYSTEM
CIRCUIT DIAGRAMS90-38
IGNITION SYSTEM
IGNITION SYSTEM <4G1-M/T (LHD)>M1901000603065
IGNITION
SWITCH (IG1)
IGNITION
COIL (1)IGNITION
COIL (2)
SPARK PLUG
ENGINE-ECU
ENGINE SPEED
DETECTION
CONNECTOR
INPUT SIGNAL
·ATMOSPHERIC
PRESSURE SENSOR
·CAMSHAFT
POSITION SENSOR
·ENGINE CRANK
ANGLE SENSOR·WATER TEMPERATURE
SENSOR UNIT ·ENGINE CONTROL
DETONATION SENSOR·FUEL PRESSURE SENSOR
·IGNITION SWITCH (ST)
·INTAKE AIR TEMPERATURE
SENSOR
·ENGINE CONTROL
OXYGEN SENSOR·VEHICLE SPEED SENSOR ·THROTTLE BODY
THROTTLE SENSOR
