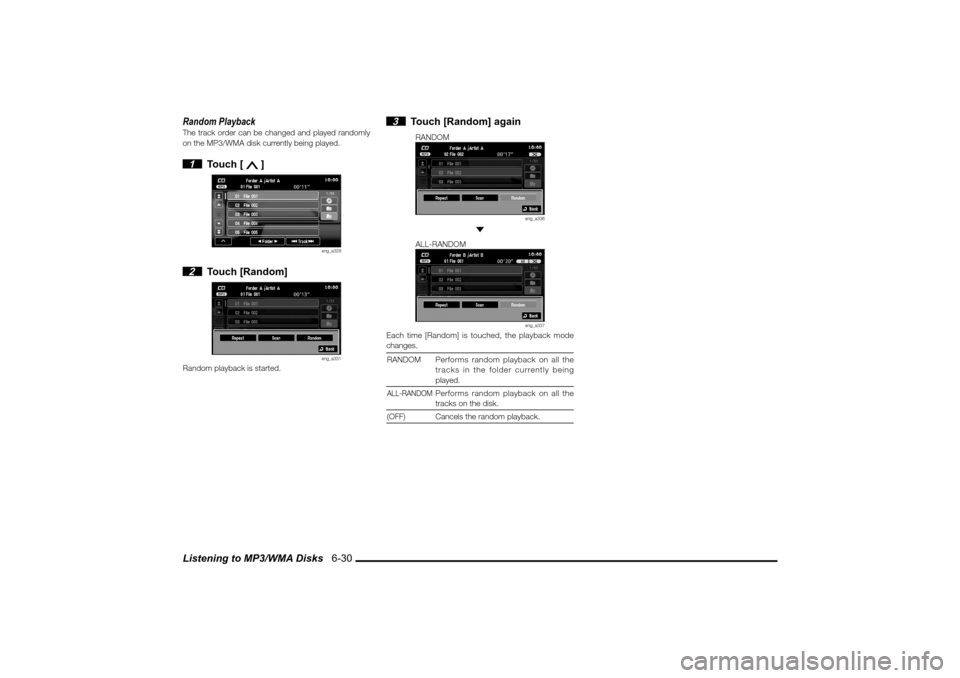

Listening to MP3/WMA Disks 6-30Random PlaybackThe track order can be changed and played randomly
on the MP3/WMA disk currently being played. 1 Touch [
]
eng_a328
2 Touch [Random]
eng_a331
Random playback is started.
3 Touch [Random] again
RANDOM
eng_a336

ALL-RANDOM
eng_a337
Each time [Random] is touched, the playback mode
changes.
RANDOMPerforms random playback on all the
tracks in the folder currently being
played.ALL-RANDOM
Performs random playback on all the
tracks on the disk.
(OFF) Cancels the random playback.









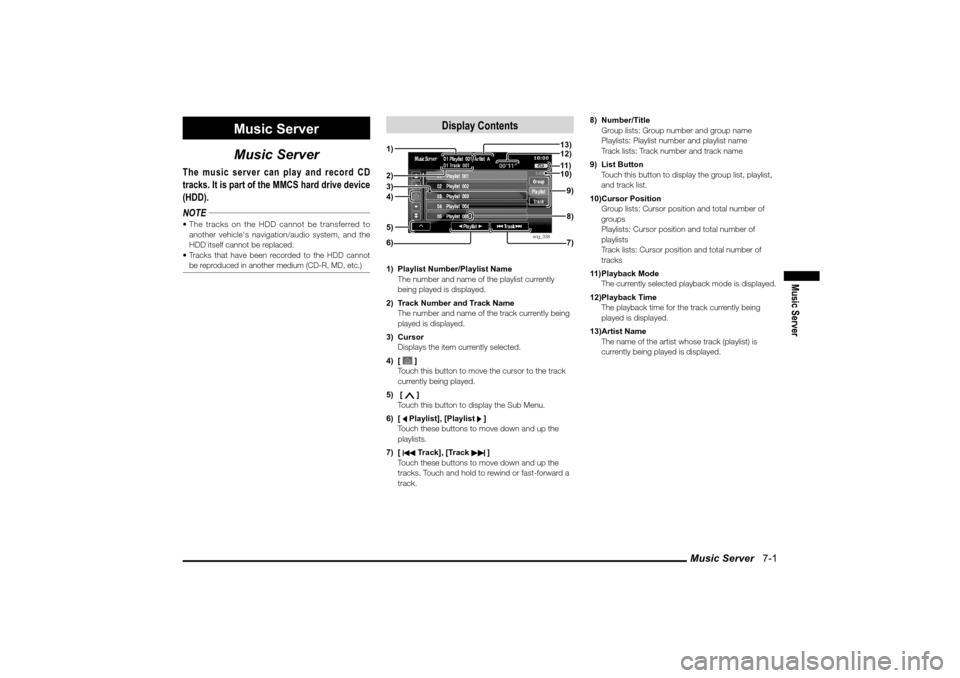

Music Server 7-1
Music Server
Music Server
Music Server
The music server can play and record CD
tracks. It is part of the MMCS hard drive device
(HDD).
NOTE The tracks on the HDD cannot be transferred to
another vehicle's navigation/audio system, and the
HDD itself cannot be replaced.
 Tracks that have been recorded to the HDD cannot
be reproduced in another medium (CD-R, MD, etc.)
Display Contents
eng_338
1) Playlist Number/Playlist Name
The number and name of the playlist currently
being played is displayed.
2) Track Number and Track Name
The number and name of the track currently being
played is displayed.
3) Cursor
Displays the item currently selected.
4) [
]
Touch this button to move the cursor to the track
currently being played.
5) [ ]
Touch this button to display the Sub Menu.
6) [ Playlist], [Playlist ]
Touch these buttons to move down and up the
playlists.
7) [ Track], [Track
]
Touch these buttons to move down and up the
tracks. Touch and hold to rewind or fast-forward a
track.8) Number/Title
Group lists: Group number and group name
Playlists: Playlist number and playlist name
Track lists: Track number and track name
9) List Button
Touch this button to display the group list, playlist,
and track list.
10) Cursor Position
Group lists: Cursor position and total number of
groups
Playlists: Cursor position and total number of
playlists
Track lists: Cursor position and total number of
tracks
11) Playback Mode
The currently selected playback mode is displayed.
12) Playback Time
The playback time for the track currently being
played is displayed.
13) Artist Name
The name of the artist whose track (playlist) is
currently being played is displayed.
4) 2)1)3)
6) 7)8) 9) 10) 11 ) 13)
12)5)





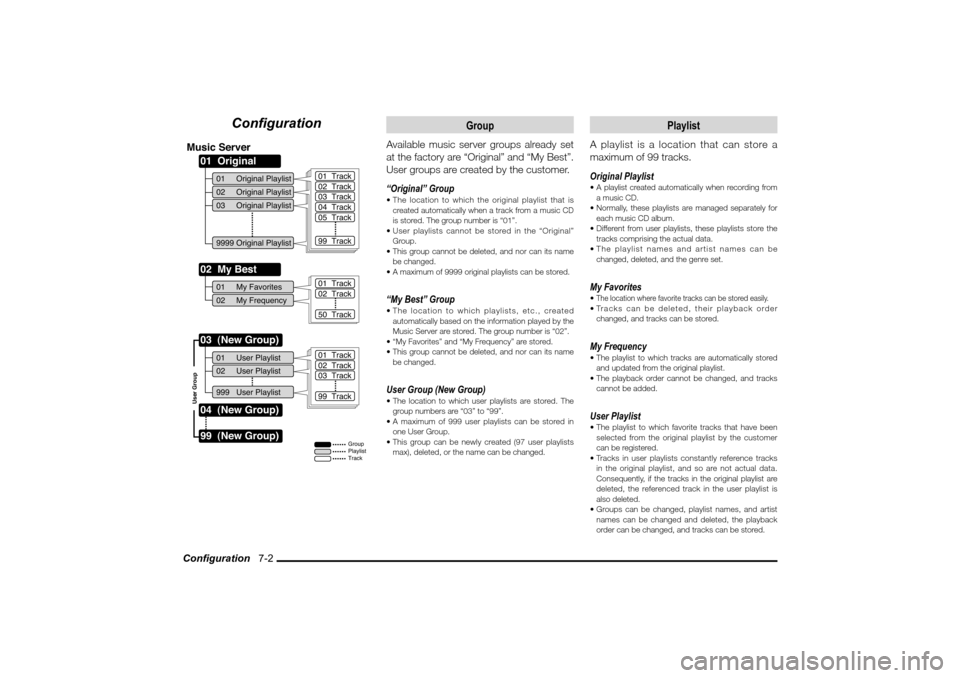

Confi guration 7-2
Confi guration
01 Original Music Server02 My Best03 (New Group)99 (New Group)
01 Original Playlist
Group
02 Original Playlist01 My Favorites02 My Frequency 03 Original Playlist01 User Playlist
02 User Playlist
999 User Playlist9999 Original Playlist
01 Track02 Track03 Track04 Track05 Track99 Track01 Track02 Track03 Track99 Track01 Track02 Track50 Track
Playlist
Track
04 (New Group)User Group
Group
Available music server groups already set
at the factory are “Original” and “My Best”.
User groups are created by the customer.
“Original” Group The location to which the original playlist that is
created automatically when a track from a music CD
is stored. The group number is “01”.
 User playlists cannot be stored in the “Original”
Group.
 This group cannot be deleted, and nor can its name
be changed.
 A maximum of 9999 original playlists can be stored.“My Best” Group The location to which playlists, etc., created
automatically based on the information played by the
Music Server are stored. The group number is “02”.
 “My Favorites” and “My Frequency” are stored.
 This group cannot be deleted, and nor can its name
be changed.User Group (New Group) The location to which user playlists are stored. The
group numbers are “03” to “99”.
 A maximum of 999 user playlists can be stored in
one User Group.
 This group can be newly created (97 user playlists
max), deleted, or the name can be changed.
Playlist
A playlist is a location that can store a
maximum of 99 tracks.
Original Playlist A playlist created automatically when recording from
a music CD.
 Normally, these playlists are managed separately for
each music CD album.
 Different from user playlists, these playlists store the
tracks comprising the actual data.
 The playlist names and artist names can be
changed, deleted, and the genre set.My Favorites The location where favorite tracks can be stored easily. Tracks can be deleted, their playback order
changed, and tracks can be stored.My Frequency The playlist to which tracks are automatically stored
and updated from the original playlist.
 The playback order cannot be changed, and tracks
cannot be added.User Playlist  The playlist to which favorite tracks that have been
selected from the original playlist by the customer
can be registered.
 Tracks in user playlists constantly reference tracks
in the original playlist, and so are not actual data.
Consequently, if the tracks in the original playlist are
deleted, the referenced track in the user playlist is
also deleted.
 Groups can be changed, playlist names, and artist
names can be changed and deleted, the playback
order can be changed, and tracks can be stored.





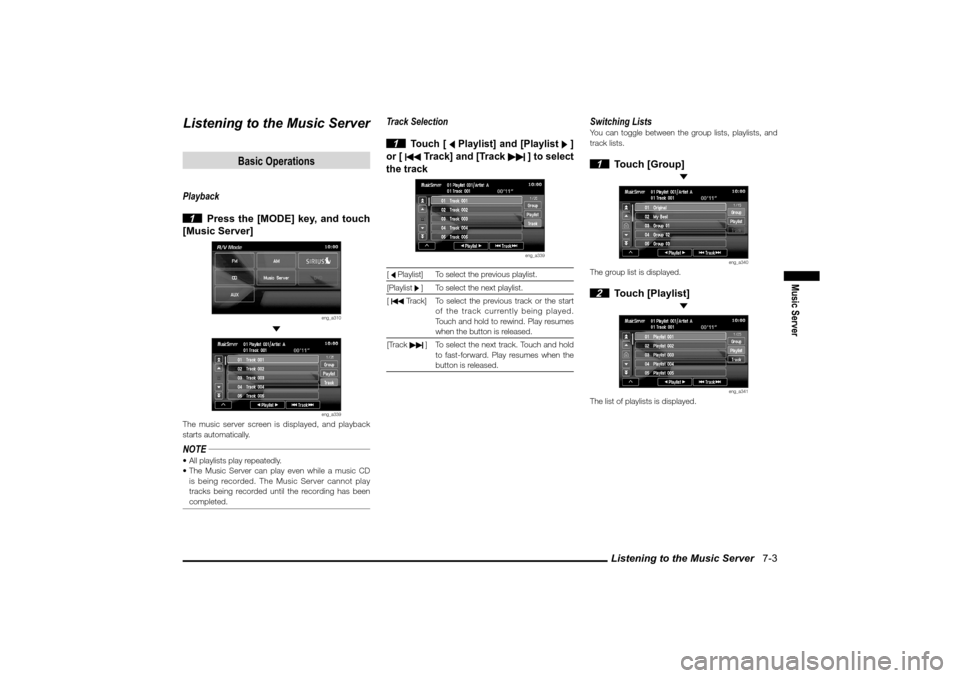

Listening to the Music Server 7-3
Music Server
Listening to the Music Server
Basic Operations
Playback
1 Press the [MODE] key, and touch
[Music Server]
eng_a310

eng_a339
The music server screen is displayed, and playback
starts automatically.NOTE All playlists play repeatedly.
 The Music Server can play even while a music CD
is being recorded. The Music Server cannot play
tracks being recorded until the recording has been
completed.
Track Selection
1
Touch [
Playlist] and [Playlist ]
or [
Track] and [Track
] to select
the trackeng_a339
[ Playlist] To select the previous playlist.
[Playlist ] To select the next playlist.
[
Track] To select the previous track or the start
of the track currently being played.
Touch and hold to rewind. Play resumes
when the button is released.
[Track
] To select the next track. Touch and hold
to fast-forward. Play resumes when the
button is released.
Switching ListsYou can toggle between the group lists, playlists, and
track lists. 1 Touch [Group]

eng_a340
The group list is displayed. 2 Touch [Playlist]

eng_a341
The list of playlists is displayed.





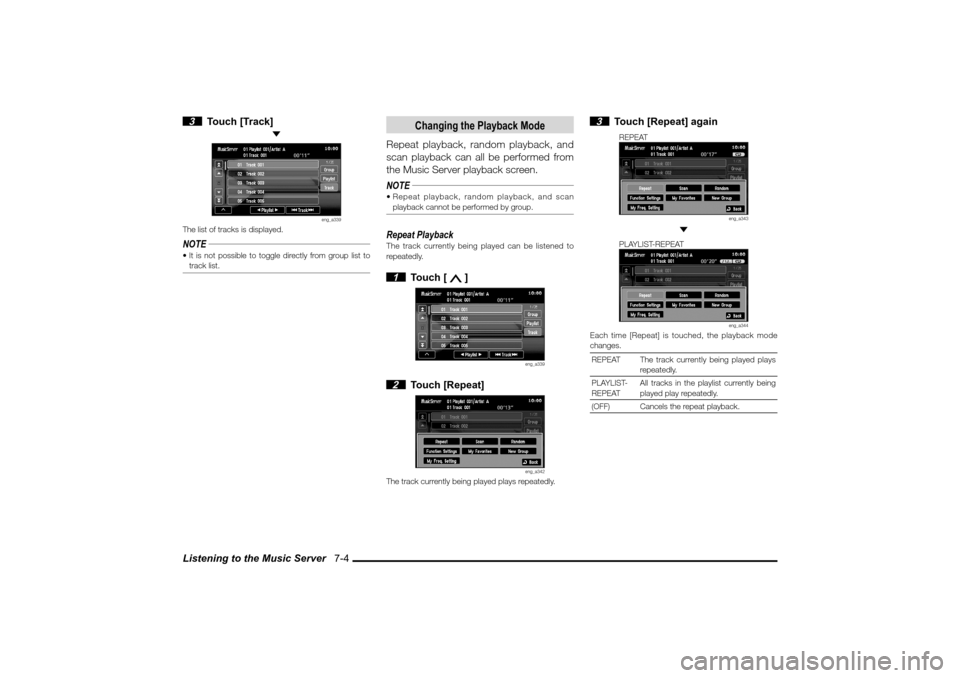

Listening to the Music Server 7-4 3 Touch [Track]

eng_a339
The list of tracks is displayed.NOTE It is not possible to toggle directly from group list to
track list.
Changing the Playback Mode
Repeat playback, random playback, and
scan playback can all be performed from
the Music Server playback screen.
NOTE Repeat playback, random playback, and scan
playback cannot be performed by group.Repeat PlaybackThe track currently being played can be listened to
repeatedly. 1 Touch [
]
eng_a339
2 Touch [Repeat]
eng_a342
The track currently being played plays repeatedly.
3 Touch [Repeat] again
REPEAT
eng_a343

PLAYLIST-REPEAT
eng_a344
Each time [Repeat] is touched, the playback mode
changes.
REPEAT The track currently being played plays
repeatedly.
PLAYLIST-
REPEATAll tracks in the playlist currently being
played play repeatedly.
(OFF) Cancels the repeat playback.








Listening to the Music Server 7-5
Music Server

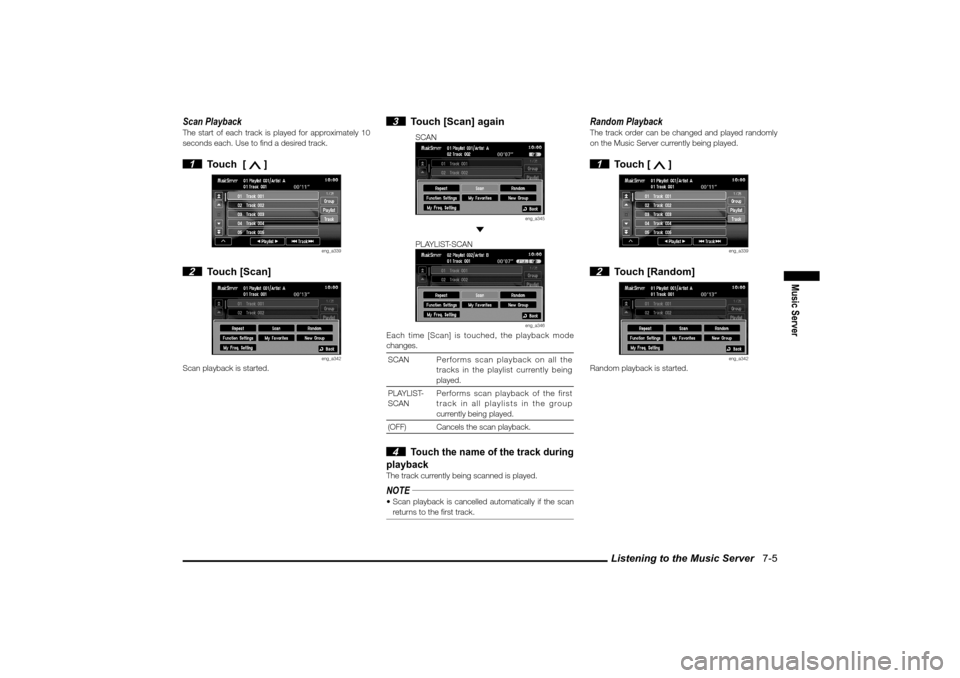

Scan PlaybackThe start of each track is played for approximately 10
seconds each. Use to nd a desired track. 1 Touch [
]
eng_a339
2 Touch [Scan]
eng_a342
Scan playback is started.
3 Touch [Scan] again
SCAN
eng_a345

PLAYLIST-SCAN
eng_a346
Each time [Scan] is touched, the playback mode
changes.
SCAN Performs scan playback on all the
tracks in the playlist currently being
played.
PLAYLIST-
SCANPerforms scan playback of the first
track in all playlists in the group
currently being played.
(OFF) Cancels the scan playback. 4
Touch the name of the track during
playback
The track currently being scanned is played.NOTE Scan playback is cancelled automatically if the scan
returns to the rst track.
Random PlaybackThe track order can be changed and played randomly
on the Music Server currently being played. 1 Touch [
]
eng_a339
2 Touch [Random]
eng_a342
Random playback is started.





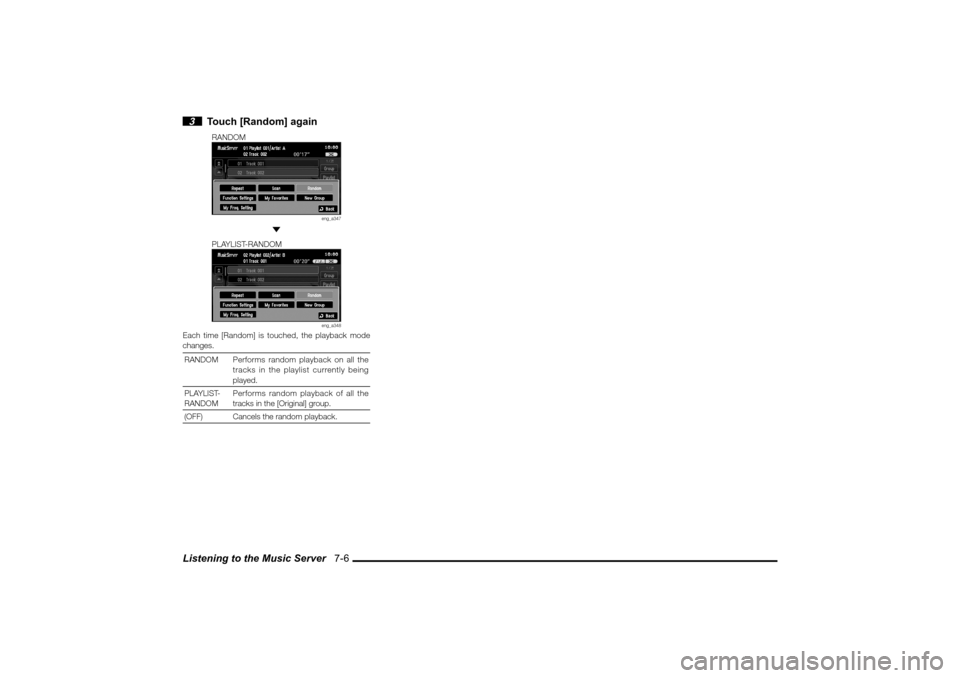

Listening to the Music Server 7-6 3 Touch [Random] again
RANDOM
eng_a347

PLAYLIST-RANDOM
eng_a348
Each time [Random] is touched, the playback mode
changes.
RANDOMPerforms random playback on all the
tracks in the playlist currently being
played.
PLAYLIST-
RANDOMPerforms random playback of all the
tracks in the [Original] group.
(OFF) Cancels the random playback.





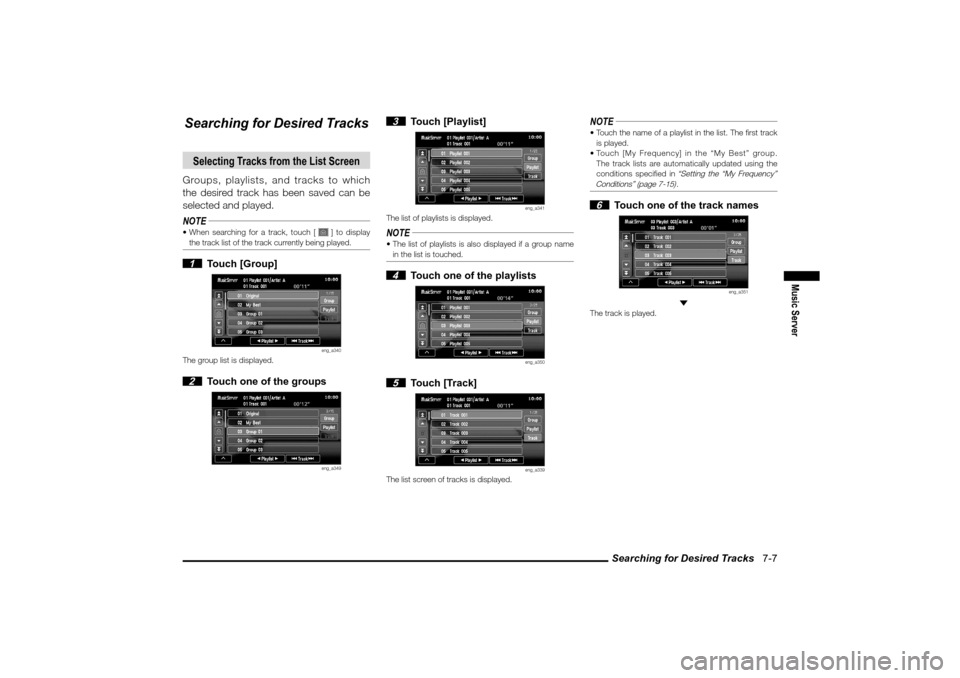

Searching for Desired Tracks 7-7
Music Server
Searching for Desired TracksSelecting Tracks from the List ScreenGroups, playlists, and tracks to which
the desired track has been saved can be
selected and played.
NOTE When searching for a track, touch [

] to display
the track list of the track currently being played.
1 Touch [Group]
eng_a340
The group list is displayed. 2 Touch one of the groups
eng_a349
3 Touch [Playlist]
eng_a341
The list of playlists is displayed.NOTE The list of playlists is also displayed if a group name
in the list is touched. 4 Touch one of the playlists
eng_a350
5 Touch [Track]
eng_a339
The list screen of tracks is displayed.
NOTE Touch the name of a playlist in the list. The rst track
is played.
 Touch [My Frequency] in the “My Best” group.
The track lists are automatically updated using the
conditions speci ed in
“Setting the “My Frequency”
Conditions” (page 7-15).
6 Touch one of the track names
eng_a351

The track is played.





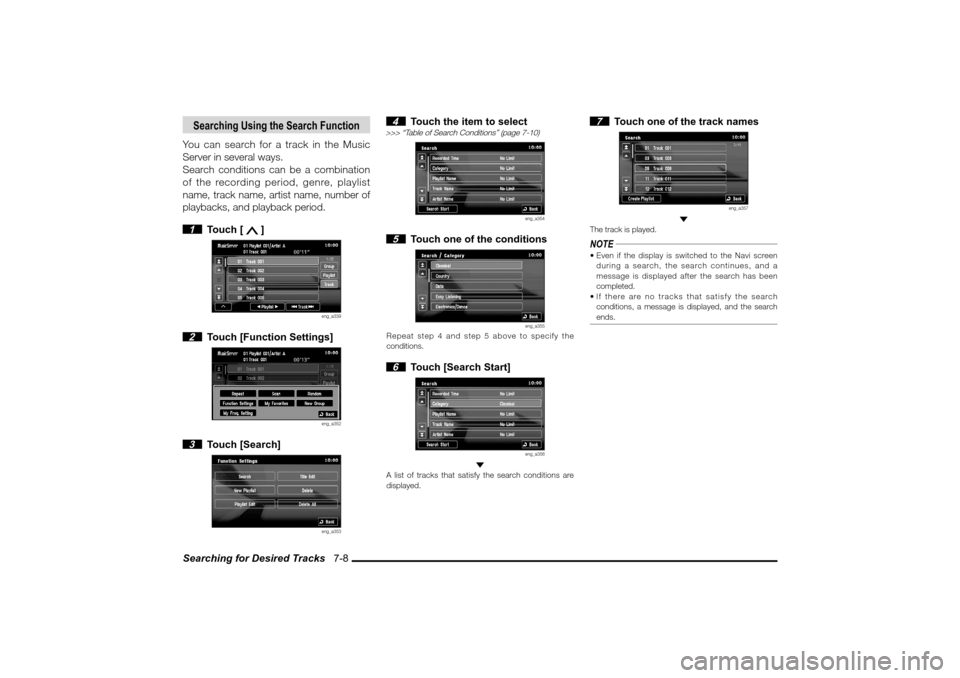

Searching for Desired Tracks 7-8Searching Using the Search FunctionYou can search for a track in the Music
Server in several ways.
Search conditions can be a combination
of the recording period, genre, playlist
name, track name, artist name, number of
playbacks, and playback period.
1 Touch [
]
eng_a339
2 Touch [Function Settings]
eng_a352
3 Touch [Search]
eng_a353
4 Touch the item to select
>>> “Table of Search Conditions” (page 7-10)
eng_a354
5 Touch one of the conditions
eng_a355
Repeat step 4 and step 5 above to specify the
conditions. 6 Touch [Search Start]
eng_a356

A list of tracks that satisfy the search conditions are
displayed.
7 Touch one of the track names
eng_a357

The track is played.NOTE Even if the display is switched to the Navi screen
during a search, the search continues, and a
message is displayed after the search has been
completed.
 If there are no tracks that satisfy the search
conditions, a message is displayed, and the search
ends.









Searching for Desired Tracks 7-9
Music Server

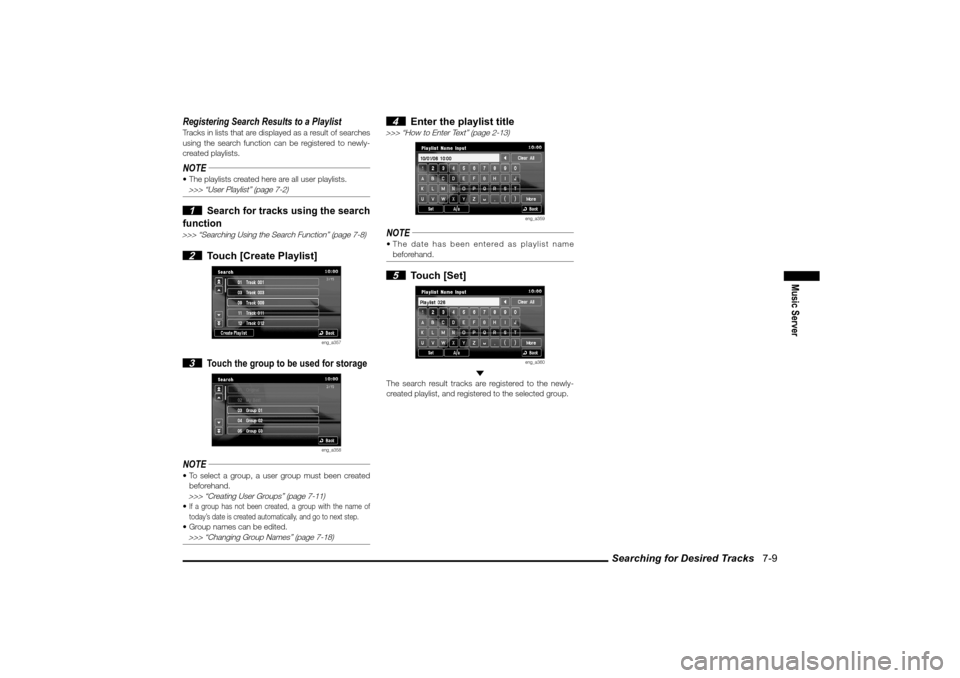

Registering Search Results to a PlaylistTracks in lists that are displayed as a result of searches
using the search function can be registered to newly-
created playlists.NOTE The playlists created here are all user playlists. >>> “User Playlist” (page 7-2) 1
Search for tracks using the search
function
>>> “Searching Using the Search Function” (page 7-8) 2 Touch [Create Playlist]
eng_a357
3
Touch the group to be used for storage
eng_a358
NOTE To select a group, a user group must been created
beforehand.
>>> “Creating User Groups” (page 7-11) If a group has not been created, a group with the name of
today’s date is created automatically, and go to next step. Group names can be edited.
>>> “Changing Group Names” (page 7-18)
4 Enter the playlist title
>>> “How to Enter Text” (page 2-13)
eng_a359
NOTE The date has been entered as playlist name
beforehand. 5 Touch [Set]
eng_a360

The search result tracks are registered to the newly-
created playlist, and registered to the selected group.
