Audio Functions 6-1
Audio
Audio

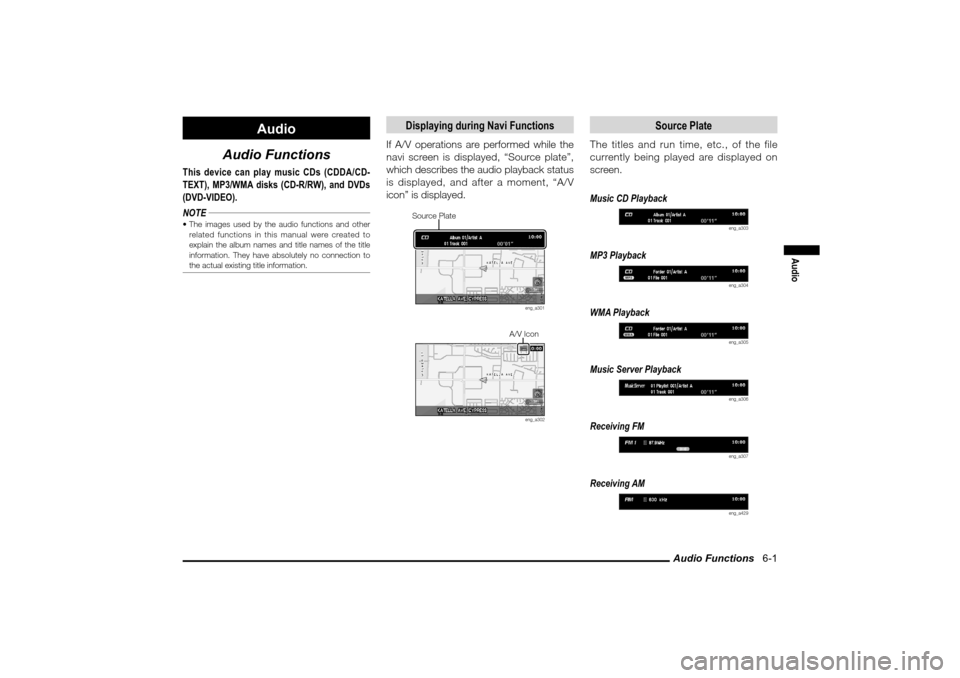

Audio Functions
This device can play music CDs (CDDA/CD-
TEXT), MP3/WMA disks (CD-R/RW), and DVDs
(DVD-VIDEO).
NOTE The images used by the audio functions and other
related functions in this manual were created to
explain the album names and title names of the title
information. They have absolutely no connection to
the actual existing title information.
Displaying during Navi Functions
If A/V operations are performed while the
navi screen is displayed, “Source plate”,
which describes the audio playback status
is displayed, and after a moment, “A/V
icon” is displayed.
Source Plate
eng_a301
A/V Icon
eng_a302
Source Plate
The titles and run time, etc., of the file
currently being played are displayed on
screen.
Music CD Playback
eng_a303
MP3 Playback
eng_a304
WMA Playback
eng_a305
Music Server Playback
eng_a306
Receiving FM
eng_a307
Receiving AM
eng_a429









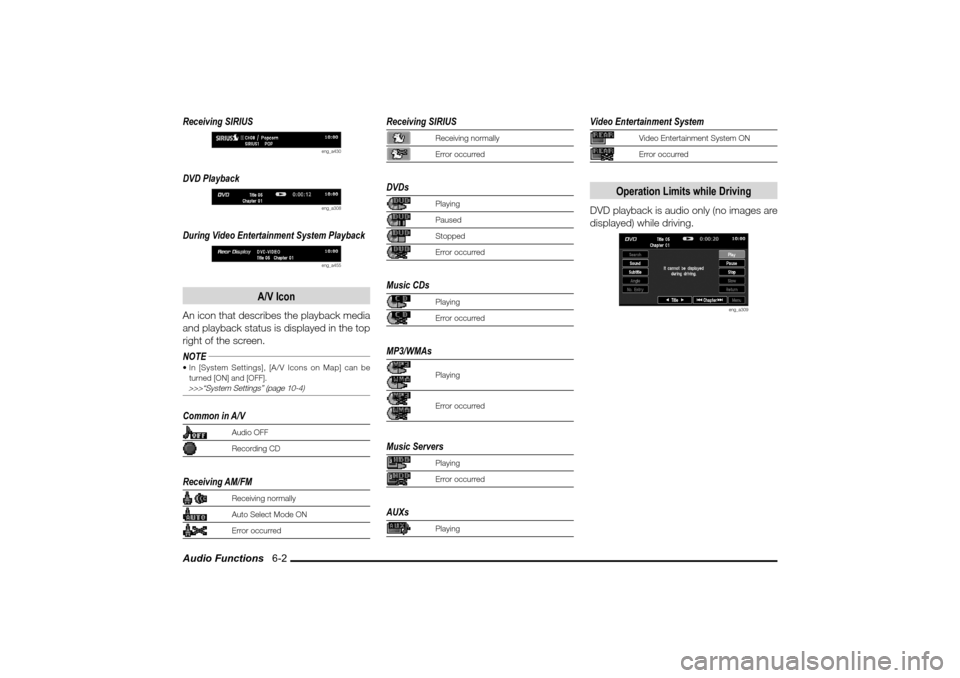

Audio Functions 6-2Receiving SIRIUS
eng_a430
DVD Playback
eng_a308
During Video Entertainment System Playback
eng_a455
A/V Icon
An icon that describes the playback media
and playback status is displayed in the top
right of the screen.
NOTE In [System Settings], [A/V Icons on Map] can be
turned [ON] and [OFF].
>>>“System Settings” (page 10-4)Common in A/V
Audio OFFRecording CD
Receiving AM/FM
Receiving normallyAuto Select Mode ONError occurred
Receiving SIRIUS
Receiving normallyError occurred
DVDs
PlayingPausedStoppedError occurred
Music CDs
PlayingError occurred
MP3/WMAs
PlayingError occurred
Music Servers
PlayingError occurred
AUXs
Playing
Video Entertainment System
Video Entertainment System ONError occurred
Operation Limits while Driving
DVD playback is audio only (no images are
displayed) while driving.
eng_a309









Audio Functions 6-3
Audio

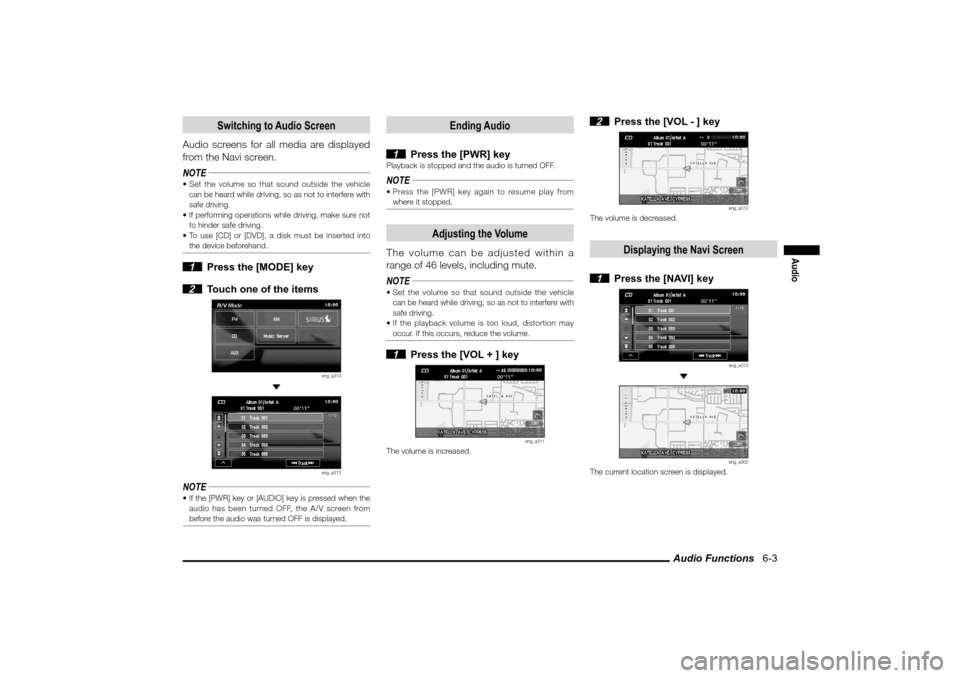

Switching to Audio Screen
Audio screens for all media are displayed
from the Navi screen.
NOTE Set the volume so that sound outside the vehicle
can be heard while driving, so as not to interfere with
safe driving.
 If performing operations while driving, make sure not
to hinder safe driving.
 To use [CD] or [DVD], a disk must be inserted into
the device beforehand. 1 Press the [MODE] key
2 Touch one of the items
eng_a310

eng_a313
NOTE If the [PWR] key or [AUDIO] key is pressed when the
audio has been turned OFF, the A/V screen from
before the audio was turned OFF is displayed.
Ending Audio
1 Press the [PWR] key
Playback is stopped and the audio is turned OFF.NOTE Press the [PWR] key again to resume play from
where it stopped.
Adjusting the Volume
The volume can be adjusted within a
range of 46 levels, including mute.
NOTE Set the volume so that sound outside the vehicle
can be heard while driving, so as not to interfere with
safe driving.
 If the playback volume is too loud, distortion may
occur. If this occurs, reduce the volume. 1 Press the [VOL + ] key
eng_a311
The volume is increased.
2 Press the [VOL - ] key
eng_a312
The volume is decreased.
Displaying the Navi Screen
1 Press the [NAVI] key
eng_a313

eng_a302
The current location screen is displayed.









Disk Handling 6-4

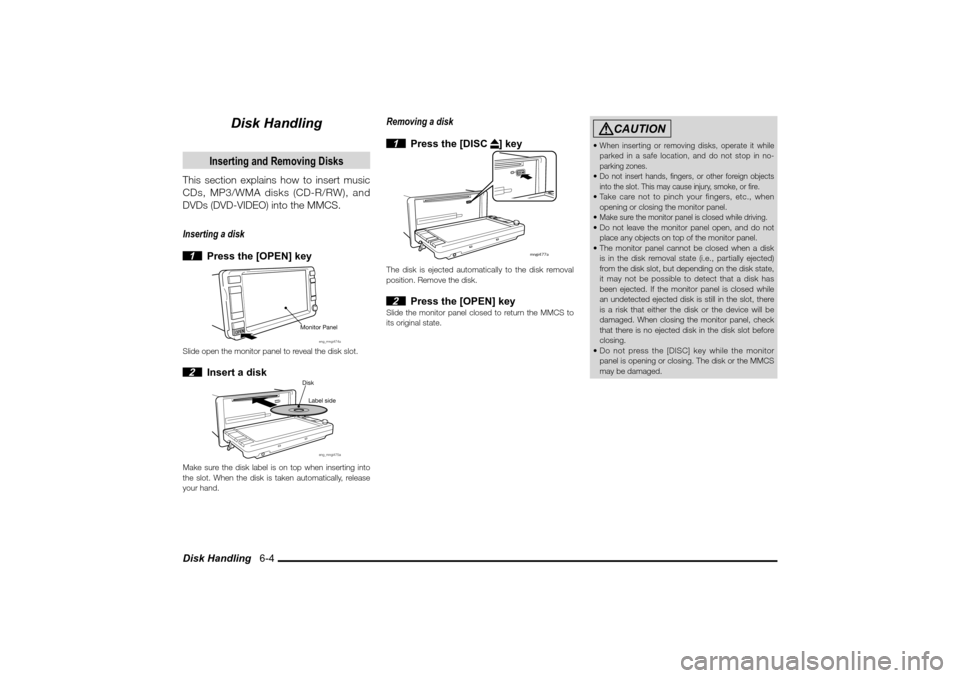

Disk Handling
Inserting and Removing Disks
This section explains how to insert music
CDs, MP3/WMA disks (CD-R/RW), and
DVDs (DVD-VIDEO) into the MMCS.
Inserting a disk
1 Press the [OPEN] key
Monitor Panel
eng_mngi474a
Slide open the monitor panel to reveal the disk slot. 2 Insert a disk
eng_mngi475a
Disk
Label side
Make sure the disk label is on top when inserting into
the slot. When the disk is taken automatically, release
your hand.
Removing a disk
1 Press the [DISC
] key
NOHJB
%
*4
$
The disk is ejected automatically to the disk removal
position. Remove the disk. 2 Press the [OPEN] key
Slide the monitor panel closed to return the MMCS to
its original state.
CAUTION
 When inserting or removing disks, operate it while
parked in a safe location, and do not stop in no-
parking zones. Do not insert hands, ngers, or other foreign objects
into the slot. This may cause injury, smoke, or re. Take care not to pinch your fingers, etc., when
opening or closing the monitor panel.
 Make sure the monitor panel is closed while driving. Do not leave the monitor panel open, and do not
place any objects on top of the monitor panel.
 The monitor panel cannot be closed when a disk
is in the disk removal state (i.e., partially ejected)
from the disk slot, but depending on the disk state,
it may not be possible to detect that a disk has
been ejected. If the monitor panel is closed while
an undetected ejected disk is still in the slot, there
is a risk that either the disk or the device will be
damaged. When closing the monitor panel, check
that there is no ejected disk in the disk slot before
closing.
 Do not press the [DISC] key while the monitor
panel is opening or closing. The disk or the MMCS
may be damaged.









Disk Handling 6-5
Audio

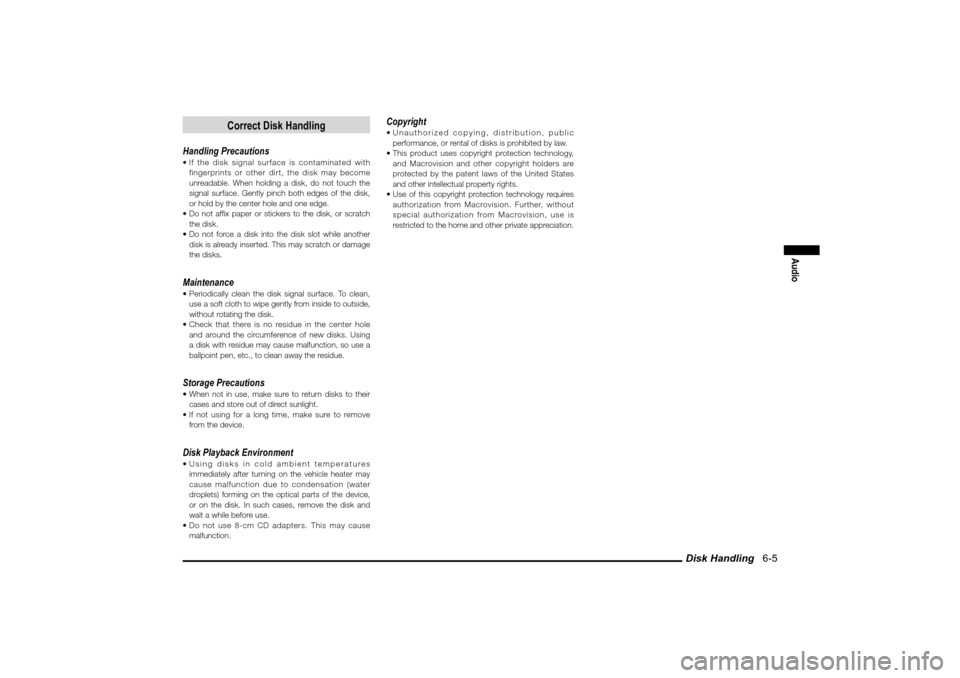

Correct Disk Handling
Handling Precautions If the disk signal surface is contaminated with
fingerprints or other dirt, the disk may become
unreadable. When holding a disk, do not touch the
signal surface. Gently pinch both edges of the disk,
or hold by the center hole and one edge.
 Do not af x paper or stickers to the disk, or scratch
the disk.
 Do not force a disk into the disk slot while another
disk is already inserted. This may scratch or damage
the disks.Maintenance Periodically clean the disk signal surface. To clean,
use a soft cloth to wipe gently from inside to outside,
without rotating the disk.
 Check that there is no residue in the center hole
and around the circumference of new disks. Using
a disk with residue may cause malfunction, so use a
ballpoint pen, etc., to clean away the residue.Storage Precautions When not in use, make sure to return disks to their
cases and store out of direct sunlight.
 If not using for a long time, make sure to remove
from the device.Disk Playback Environment Using disks in cold ambient temperatures
immediately after turning on the vehicle heater may
cause malfunction due to condensation (water
droplets) forming on the optical parts of the device,
or on the disk. In such cases, remove the disk and
wait a while before use.
 Do not use 8-cm CD adapters. This may cause
malfunction.
Copyright Unauthorized copying, distribution, public
performance, or rental of disks is prohibited by law.
 This product uses copyright protection technology,
and Macrovision and other copyright holders are
protected by the patent laws of the United States
and other intellectual property rights.
 Use of this copyright protection technology requires
authorization from Macrovision. Further, without
special authorization from Macrovision, use is
restricted to the home and other private appreciation.









Types of Playable Disks 6-6

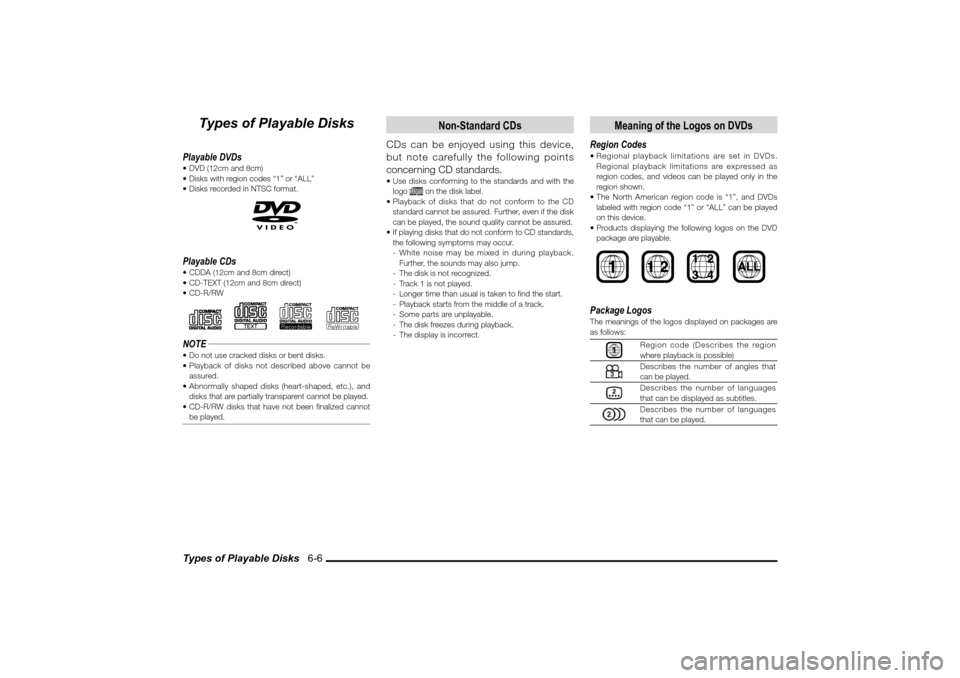

Types of Playable Disks
Playable DVDs DVD (12cm and 8cm)
 Disks with region codes “1” or “ALL”
 Disks recorded in NTSC format.Playable CDs CDDA (12cm and 8cm direct)
 CD-TEXT (12cm and 8cm direct)
 CD-R/RW



NOTE Do not use cracked disks or bent disks.
 Playback of disks not described above cannot be
assured.
 Abnormally shaped disks (heart-shaped, etc.), and
disks that are partially transparent cannot be played.
 CD-R/RW disks that have not been nalized cannot
be played.
Non-Standard CDs
CDs can be enjoyed using this device,
but note carefully the following points
concerning CD standards. Use disks conforming to the standards and with the
logo
on the disk label.
 Playback of disks that do not conform to the CD
standard cannot be assured. Further, even if the disk
can be played, the sound quality cannot be assured.
 If playing disks that do not conform to CD standards,
the following symptoms may occur.
- White noise may be mixed in during playback.
Further, the sounds may also jump.
- The disk is not recognized.
- Track 1 is not played.
- Longer time than usual is taken to nd the start.
- Playback starts from the middle of a track.
- Some parts are unplayable.
- The disk freezes during playback.
- The display is incorrect.
Meaning of the Logos on DVDs
Region Codes Regional playback limitations are set in DVDs.
Regional playback limitations are expressed as
region codes, and videos can be played only in the
region shown.
 The North American region code is “1”, and DVDs
labeled with region code “1” or “ALL” can be played
on this device.
 Products displaying the following logos on the DVD
package are playable.

1
2


Package LogosThe meanings of the logos displayed on packages are
as follows:
Region code (Describes the region
where playback is possible)Describes the number of angles that
can be played.Describes the number of languages
that can be displayed as subtitles.Describes the number of languages
that can be played.









Types of Playable Disks 6-7
Audio
MP3/WMA Files
Files in MP3/WMA format written to CD-
ROM and CD-R/RW disks can be played
on this device. The files and media that
can be used are limited, so before writing
les in MP3/WMA format to disk, read the
following carefully. Further, also make sure
to read thoroughly the user manuals to
ensure the correct use of your CD-R/RW
drives and recoding software. Data such
as title information, etc., is stored in the
MP3/WMA le, and can be displayed.
NOTE Distribution of disks or files written (i.e., copied)
from music CDs to others, and uploading to internet
servers, etc., is illegal whether paid or free of charge,
so do not do so.
 Do not add “.mp3/.wma” extensions to files other
than MP3/WMA files. Playing disks to which these
files have been written causes misidentification for
playback, so intense white noise occurs that may
damage the speakers.
 Depending on the recorder and the recording
software used to write to the disk, correct playback
may not be possible. In this case, refer to the user
manuals for the devices and software used.
 Depending on the PC OS type, version, software,
and settings, it may not be possible to add
extensions. In this case,(if it is an MP3/WMA file)
add the “.mp3/.wma” extension to the end of the le
before writing to disk.
 Disks with a mixture of les in MP3 format and WMA
format can be played.
 Where the disk is a mixture of audio tracks and les
in MP3/WMA format, only the files in MP3/WMA
format are played.
Folder Configurations
Up to eight levels of folder can be identi ed.
Tracks can be managed by creating levels
such as genreartistalbumtrack (MP3/WMA
le).
MP3s
MP3 is an abbreviation of “MPEG-
1AudioLayer3”. MPEG is an abbreviation
of “Motion Pictures Experts Group”, and
is the video compression standard used
for video CDs, etc. MP3 is an audio
compression format included in the MPEG
audio standards, and enables files with
a small amount of data to be created
with high quality audio by processing
inaudible sounds that have been buried
in loud noise, as well as sounds in ranges
inaudible to the human ear. The data
on a music CD can be compressed to
approximately 1/10th of its original size
with almost no loss of sound quality, so
it is possible to write approximately the
contents of 10 music CDs to one CD-R/
RW.








Types of Playable Disks 6-8 Playable MP3 File StandardsThe speci cations for playable MP3 les are as follows:
Item Details
Standards MPEG1 AUDIO LAYER3
MPEG2 AUDIO LAYER3
Sampling
frequency
[Hz]MPEG1 32k/44.1k/48k
MPEG2 16k/22.05k/24k
Bit rate [kbps] MPEG1 32/40/48/56/64/80/96/112
/128/160/192/224/256/32
0
MPEG2 32/40/48/56/64/80/96/112
/128/144/160
VBR
(Variable Bit Rate)Compatible
Multi-session Compatible
Channel modeStereo, joint stereo, dual
channel, and monaural
Max. number of levels 8 (including the root
directory)
Max. number of folders 255 folders
Max. number of les400 files (Total number
on disk. Does not include
other than MP3 or WMA
les.)
ID3Tag Ver.1.0 and Ver.1.1
* MP3 les written using standards other than those
described above may not be playable correctly, and
the file names and folder names, etc., may not be
displayed correctly.
WMA
WMA is an abbreviation for Windows
Media Audio and is an audio compression
format from Microsoft Corporation. This
format compresses data using a higher
compression ratio than MP3.* Microsoft and Windows Media are registered
trademarks of Microsoft Corporation in America and
other countries.NOTE WMA supports copyright protection functions (DRM),
so WMA les that are protected by copyright cannot
be played on this audio system.
Playable WMA File StandardsThe specifications for playable WMA files are as
follows:
Item Details
Standards W i ndows Media Audio
Version 7.0
Sampling frequency [Hz] 16k/22.05k/32k/44.1k/48k
Bit rate [kbps] 32/40/48/64/80/96/128/16
0/192
VBR
(Variable Bit Rate)Compatible
Multi-session Compatible
Channel mode Stereo and monaural
Max. number of levels 8 (including the root
directory)
Max. number of folders 255 folders
Max. number of les 400 files
(Total number on
disk. Does not include other
than MP3 or WMA les.)
WMA Tag T i tles, artist names, and
album names
* WMA les written using standards other than those
described above may not be playable correctly, and
the file names and folder names, etc., may not be
displayed correctly.









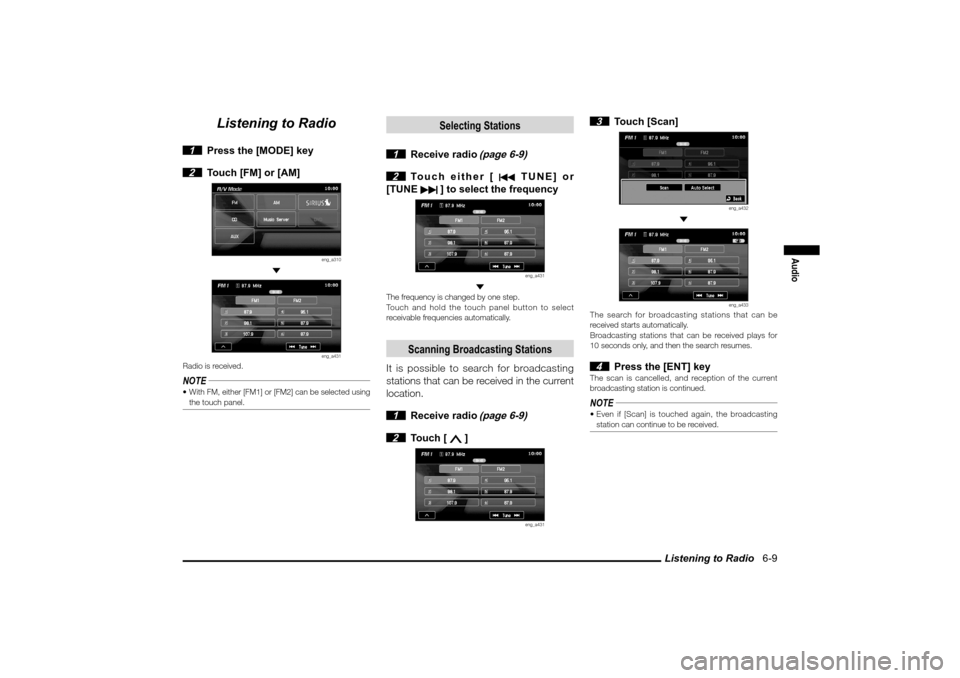

Listening to Radio 6-9
Audio
Listening to Radio
1 Press the [MODE] key
2 Touch [FM] or [AM]
eng_a310

eng_a431
Radio is received.NOTE With FM, either [FM1] or [FM2] can be selected using
the touch panel.
Selecting Stations
1 Receive radio
(page 6-9)
2
Touch either [
TUNE] or
[TUNE
] to select the frequency
eng_a431

The frequency is changed by one step.
Touch and hold the touch panel button to select
receivable frequencies automatically.
Scanning Broadcasting Stations
It is possible to search for broadcasting
stations that can be received in the current
location.
1 Receive radio
(page 6-9)
2 Touch [
]
eng_a431
3 Touch [Scan]
eng_a432

eng_a433
The search for broadcasting stations that can be
received starts automatically.
Broadcasting stations that can be received plays for
10 seconds only, and then the search resumes. 4 Press the [ENT] key
The scan is cancelled, and reception of the current
broadcasting station is continued.NOTE Even if [Scan] is touched again, the broadcasting
station can continue to be received.
