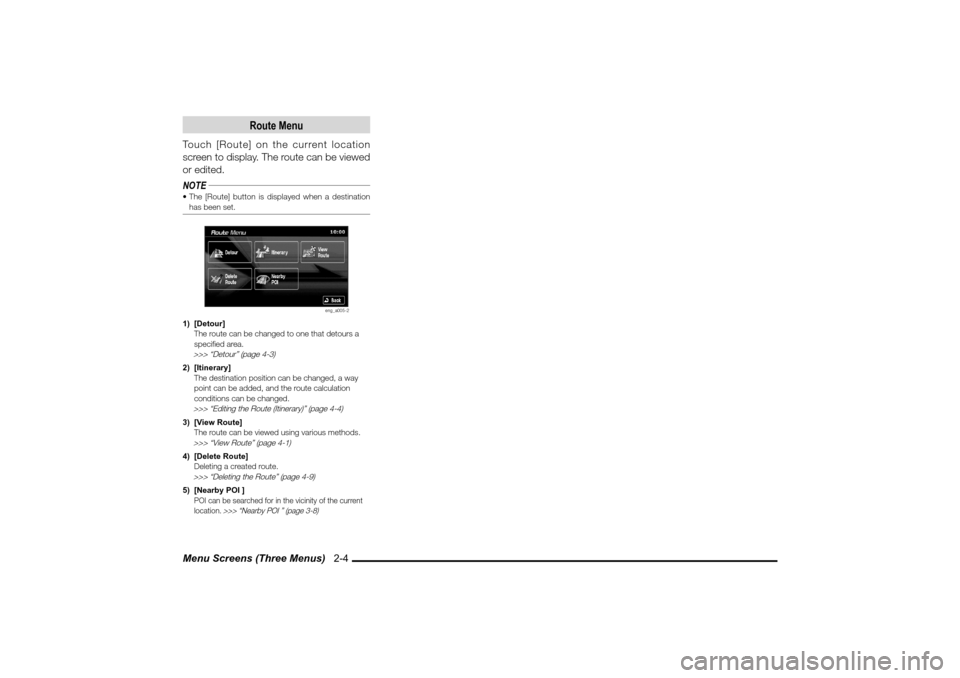

Menu Screens (Three Menus) 2-4
Route Menu
Touch [Route] on the current location
screen to display. The route can be viewed
or edited.
NOTE The [Route] button is displayed when a destination
has been set.
eng_a005-2
1) [Detour]
The route can be changed to one that detours a
speci ed area.
>>> “Detour” (page 4-3)2) [Itinerary]
The destination position can be changed, a way
point can be added, and the route calculation
conditions can be changed.
>>> “Editing the Route (Itinerary)” (page 4-4)3) [View Route]
The route can be viewed using various methods. >>> “View Route” (page 4-1)4) [Delete Route]
Deleting a created route.
>>> “Deleting the Route” (page 4-9)5) [Nearby POI ] POI can be searched for in the vicinity of the current
location.
>>> “Nearby POI
” (page 3-8)









Map Screen 2-5
Basic Operation

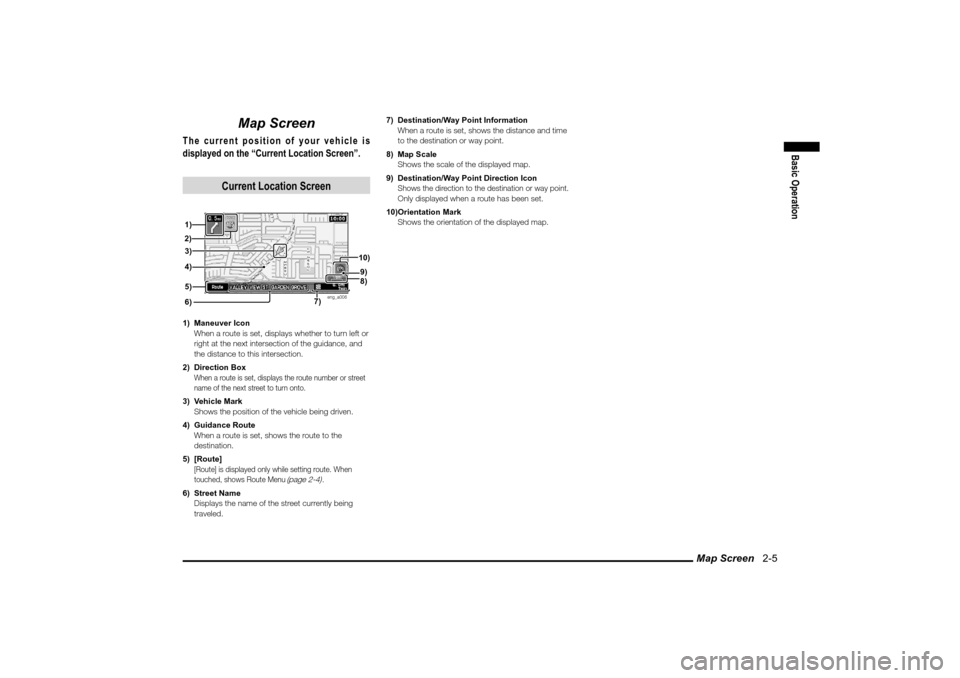

Map Screen
The current position of your vehicle is
displayed on the “Current Location Screen”.
Current Location Screen
eng_a006
1) Maneuver Icon
When a route is set, displays whether to turn left or
right at the next intersection of the guidance, and
the distance to this intersection.
2) Direction Box
When a route is set, displays the route number or street
name of the next street to turn onto.3) Vehicle Mark
Shows the position of the vehicle being driven.
4) Guidance Route
When a route is set, shows the route to the
destination.
5) [Route]
[Route] is displayed only while setting route. When
touched, shows Route Menu
(page 2-4)
.
6) Street Name
Displays the name of the street currently being
traveled.7) Destination/Way Point Information
When a route is set, shows the distance and time
to the destination or way point.
8) Map Scale
Shows the scale of the displayed map.
9) Destination/Way Point Direction Icon

Shows the direction to the destination or way point. Only displayed when a route has been set.
10) Orientation Mark
Shows the orientation of the displayed map.
1)
10) 2)
9)
8)
7)
6) 3)
4)
5)









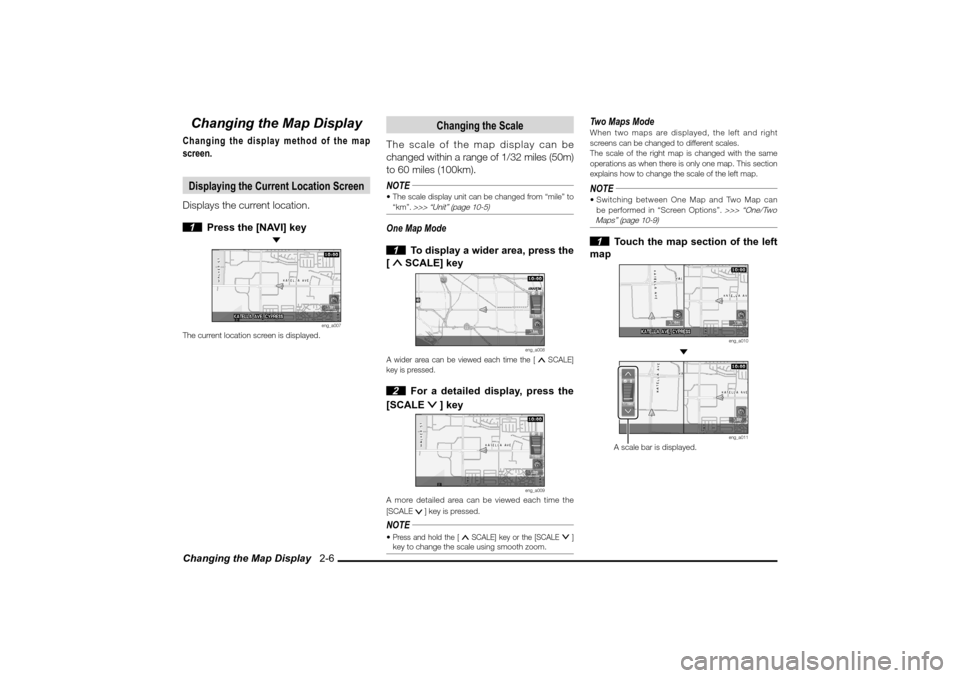

Changing the Map Display 2-6Changing the Map DisplayChanging the display method of the map
screen.Displaying the Current Location ScreenDisplays the current location.
1 Press the [NAVI] key

eng_a007
The current location screen is displayed.
Changing the Scale
The scale of the map display can be
changed within a range of 1/32 miles (50m)
to 60 miles (100km).
NOTE The scale display unit can be changed from “mile” to
“km”.
>>> “Unit” (page 10-5)
One Map Mode
1 To display a wider area, press the
[ SCALE] key
eng_a008
A wider area can be viewed each time the [ SCALE]
key is pressed. 2 For a detailed display, press the
[SCALE
] key
eng_a009
A more detailed area can be viewed each time the
[SCALE ] key is pressed.NOTE Press and hold the [ SCALE] key or the [SCALE ] key to change the scale using smooth zoom.
Two Maps ModeWhen two maps are displayed, the left and right
screens can be changed to different scales.
The scale of the right map is changed with the same
operations as when there is only one map. This section
explains how to change the scale of the left map.NOTE Switching between One Map and Two Map can
be performed in “Screen Options”.
>>> “One/Two
Maps” (page 10-9)
1 Touch the map section of the left
map
eng_a010

eng_a011
A scale bar is displayed.









Changing the Map Display 2-7
Basic Operation
2 Touch [
] to display a wide area
eng_a012
A wider area can be viewed each time [

] is touched.
3 Touch [
] to display a detailed
area
eng_a013
A more detailed area can be viewed each time [ ] is
touched.NOTE Perform these operations while the scale bar is being
displayed.
 Touch and hold [ ] or [ ] to change the scale using
smooth zoom.

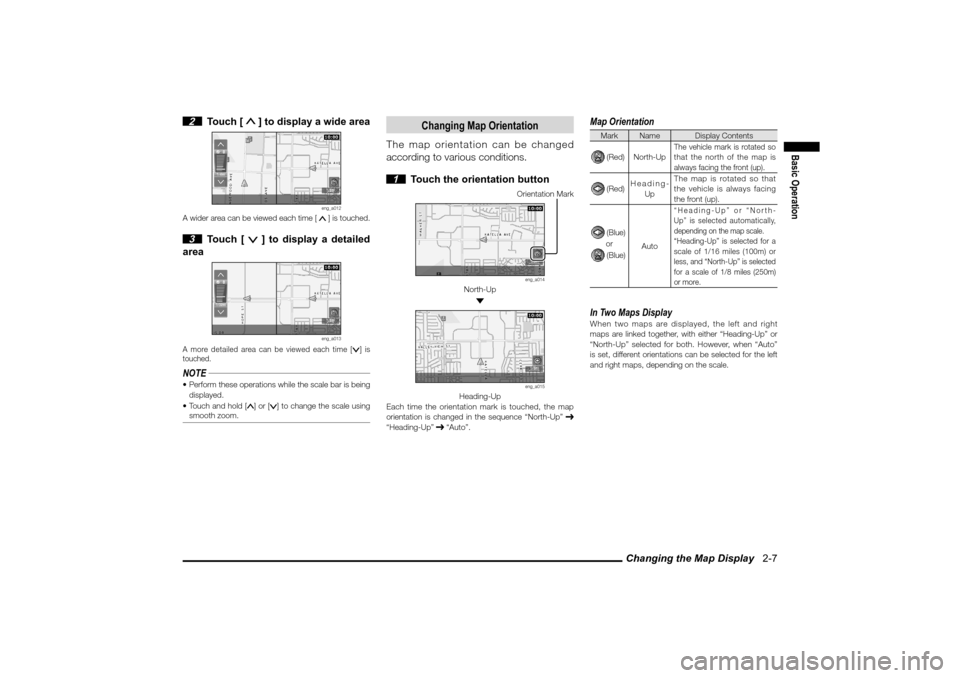

Changing Map Orientation
The map orientation can be changed
according to various conditions.
1 Touch the orientation button
Orientation Markeng_a014
North-Up

eng_a015
Heading-Up
Each time the orientation mark is touched, the map
orientation is changed in the sequence “North-Up”
“Heading-Up” “Auto”.
Map OrientationMark Name Display Contents (Red) North-Up
The vehicle mark is rotated so
that the north of the map is
always facing the front (up).
(Red)Heading-
UpThe map is rotated so that
the vehicle is always facing
the front (up). (Blue)or (Blue)
Auto
“Heading-Up” or “North-
Up” is selected automatically,
depending on the map scale.“Heading-Up” is selected for a
scale of 1/16 miles (100m) or
less, and “North-Up” is selected
for a scale of 1/8 miles (250m)
or more.
In Two Maps DisplayWhen two maps are displayed, the left and right
maps are linked together, with either “Heading-Up” or
“North-Up” selected for both. However, when “Auto”
is set, different orientations can be selected for the left
and right maps, depending on the scale.









Scrolling the Map 2-8
Scrolling the Map
The map can be scrolled to search for a
location to view.
1 Move the joystick in the direction
to be viewed
eng_a007

eng_a019
The map is scrolled.NOTE When Two Map is set, during scrolling One Map
display is shown at the scale selected for the right-
side screen.
 During scrolling, the scale can be changed by
pressing [SCALE] key.
Destination Setting for Scrolled PositionThe position reached with the map scroll
can be set as the destination.
1 Scroll the map and place the
cursor on the desired location, and
press the [ENT] key
eng_a023

The scroll menu screen is displayed. 2 Touch [Set as Dest.]
>>> Continued at “Destination Setting” (page 3-12)NOTE If there are several
POIs in the scroll,
a list is displayed,
and the POIs to be
registered can be
selected.
eng_a127
 Touch [Address Book] to store the cursor position. >>> “From the Scroll Menu” (page 5-1) Touch [Nearby POI
] to search for POI (Points of
Interest) in the vicinity of the cursor position.
>>> “From the Scroll Menu” (page 3-9)
Viewing the car location
The positional relationship between the
current location and the position reached
with the map scroll can be viewed.
1
Scroll the map and place the cursor
on the desired location, and press the
[ENT] key
eng_a023

The scroll menu screen is displayed.









Scrolling the Map 2-9
Basic Operation

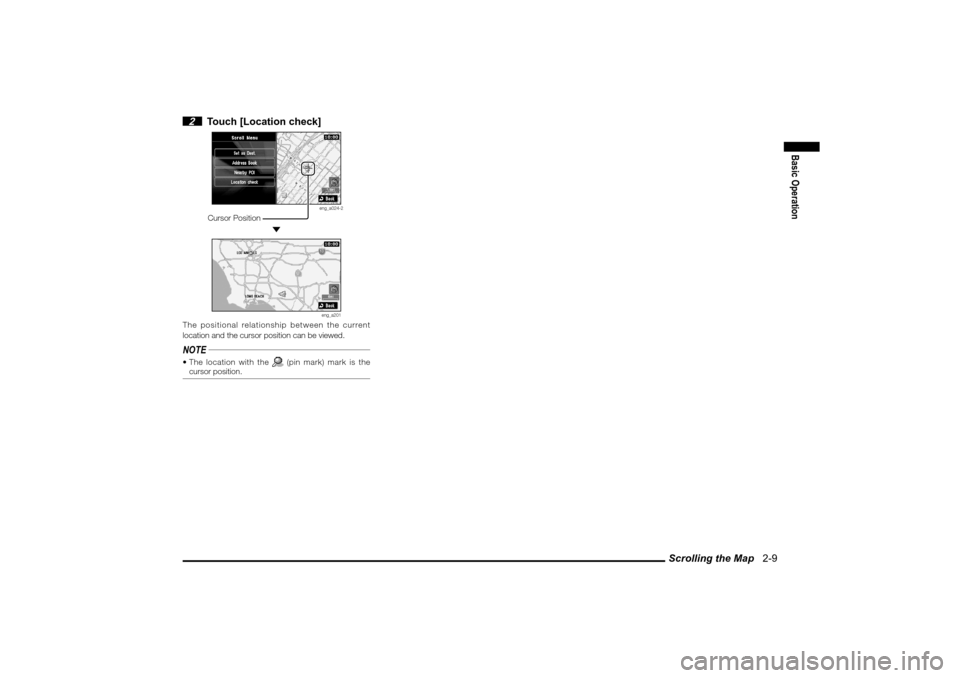

2 Touch [Location check]
eng_a024-2
Cursor Position

eng_a201
The positional relationship between the current
location and the cursor position can be viewed.NOTE The location with the
(pin mark) mark is the
cursor position.









Intersection Guidance 2-10

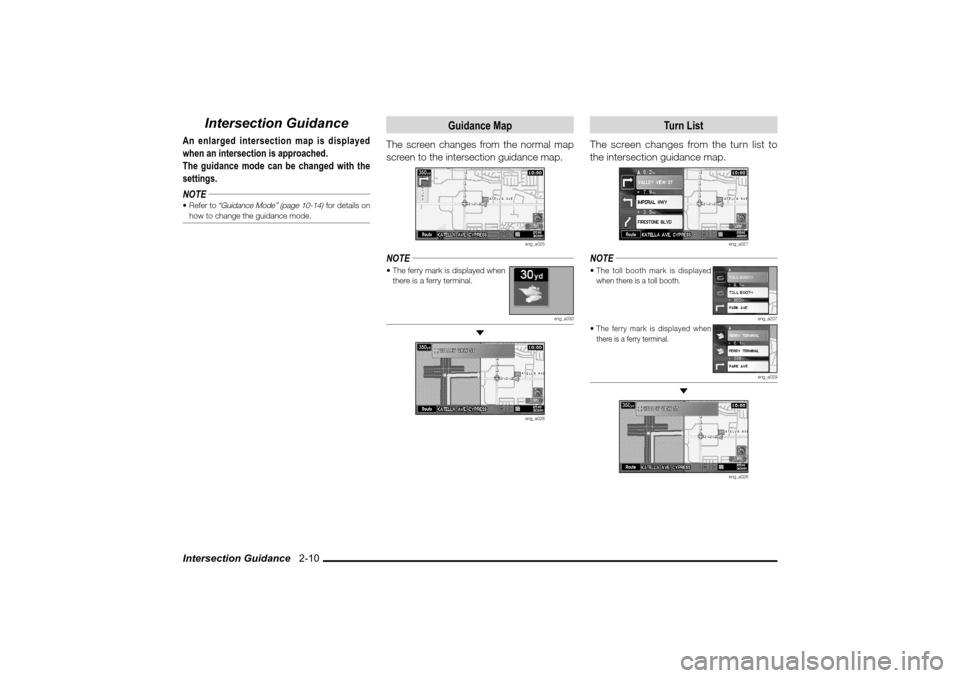

Intersection Guidance
An enlarged intersection map is displayed
when an intersection is approached.
The guidance mode can be changed with the
settings.
NOTE Refer to
“Guidance Mode” (page 10-14)
for details on
how to change the guidance mode.
Guidance Map
The screen changes from the normal map
screen to the intersection guidance map.
eng_a025
NOTE The ferry mark is displayed when
there is a ferry terminal.
eng_a030

eng_a026
Turn List
The screen changes from the turn list to
the intersection guidance map.
eng_a027
NOTE The toll booth mark is displayed
when there is a toll booth.
eng_a207
 The ferry mark is displayed when
there is a ferry terminal.
eng_a029

eng_a026









Intersection Guidance 2-11
Basic Operation

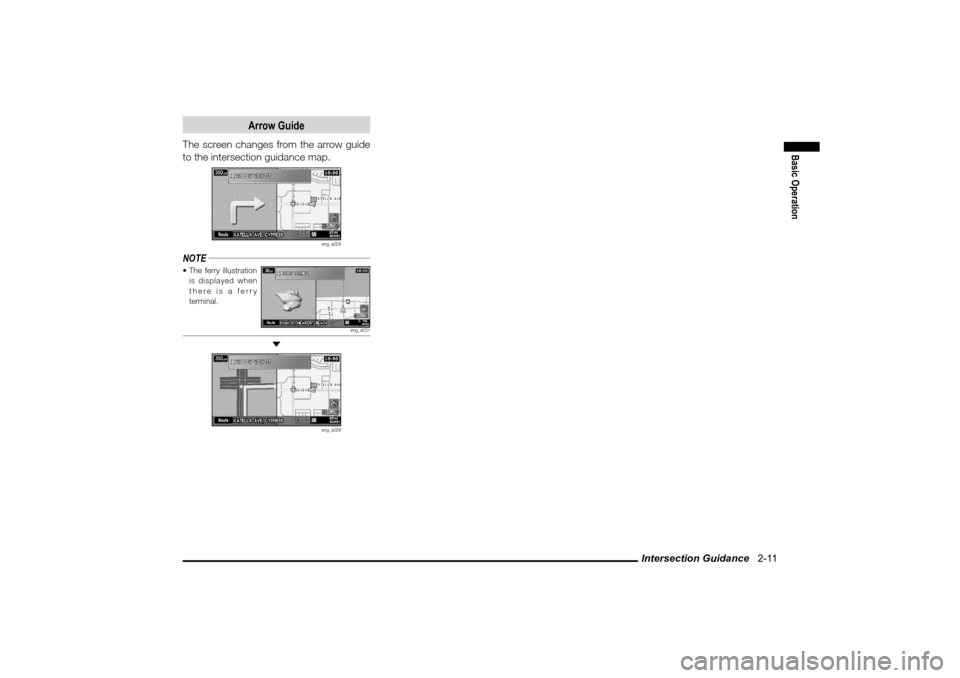

Arrow Guide
The screen changes from the arrow guide
to the intersection guidance map.
eng_a028
NOTE The ferry illustration
is displayed when
there is a ferry
terminal.
eng_a031

eng_a026









Listening to the Voice Guide 2-12Listening to the Voice GuideThe voice guide provides information
regarding the distance to the next intersection
on the route and the direction you should turn.
The voice guide comes on automatically
when approaching in intersection, but can
be activated at any time by the following
operation:
1 Touch the [Maneuver icon]
Maneuver Icon
eng_a032

eng_a033
The intersection guidance map is displayed, and voice
guidance is performed.NOTE The voice guidance volume and male or female voice
selection can be changed.
>>> “Other Settings” (page 10-5)









How to Enter Text 2-13
Basic Operation

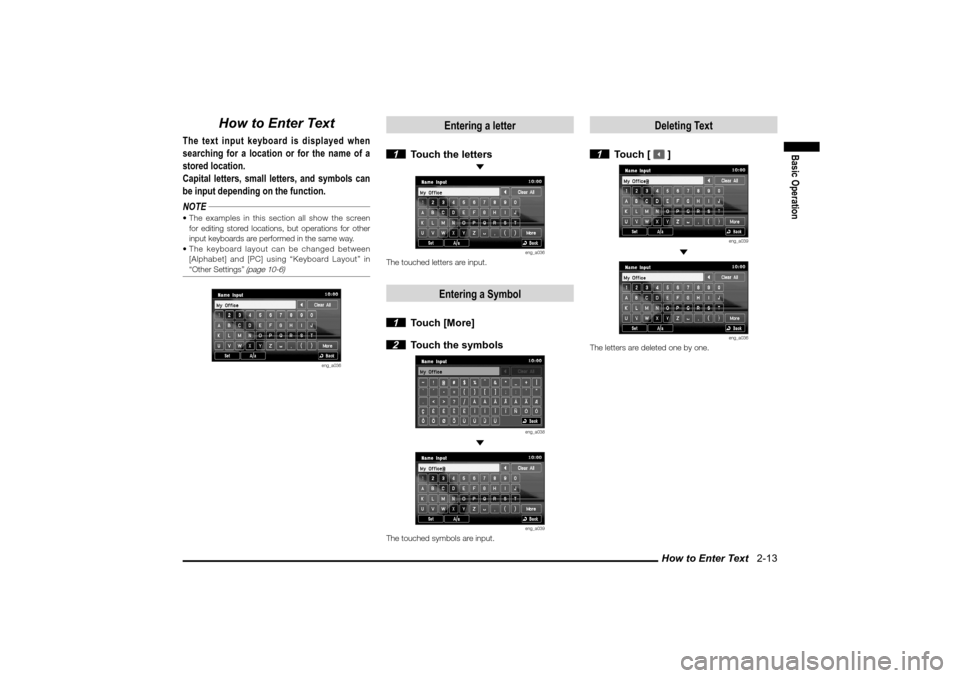

How to Enter Text
The text input keyboard is displayed when
searching for a location or for the name of a
stored location.
Capital letters, small letters, and symbols can
be input depending on the function.
NOTE The examples in this section all show the screen
for editing stored locations, but operations for other
input keyboards are performed in the same way.
 The keyboard layout can be changed between
[Alphabet] and [PC] using “Keyboard Layout” in
“Other Settings”
(page 10-6)
eng_a036
Entering a letter
1 Touch the letters

eng_a036
The touched letters are input.
Entering a Symbol
1 Touch [More]
2 Touch the symbols
eng_a038

eng_a039
The touched symbols are input.
Deleting Text
1 Touch [
]
eng_a039

eng_a036
The letters are deleted one by one.
