check engine MITSUBISHI LANCER 2010 8.G Owner's Manual

Features and controls
3-135
3
NOTE
After your vehicle is driven a short distance after starting
the engine, you will hear the sound coming from the
engine compartment. These are the normal sounds the
anti-lock braking system makes when performing a self-
check. It does not indicate a malfunction.

The anti-lock braking system can be used after the vehicle
has reached a speed over approximately 6 mph (10 km/h).
It stops working when the vehicle slows below approxi-
mately 3 mph (5 km/h).
Anti-lock braking system warning light / display
N00531600573
Warning light
Warning display type 1
Warning display type 2
If there is a malfunction in the system, the anti-lock braking
system warning light will come on and the warning display
will appear on the information screen in the multi-information
display.
Under normal conditions, the anti-lock braking system warning
light only comes on when the ignition switch is turned to the
“ON” position and goes off a few seconds later.
CAUTION
!
The anti-lock braking system cannot prevent acci-
dents. It is your responsibility to take safety precau-
tions and to drive carefully.
To prevent failure of the anti-lock braking system,
be sure all four wheels and tires are the same size
and the same type.
Never install a limited slip differential as the ABS
may not function normally.
Please consult an authorized Mitsubishi Motors
dealer.
BK0102103US.book 135 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-136 Features and controls
3
If the warning light / display comes on while driv-
ing
N00531700503
If only the anti-lock braking system warning light / dis-
play comes on
Avoid hard braking and high-speed driving. Stop the vehi-
cle in a safe place.
Test the system by restarting the engine and driving at a
speed of about 12 mph (20 km/h) or higher.
If the warning light / display then remain off during driv-
ing, there is no problem.
However, if the warning light / display do not disappear,
or if they come on again when the vehicle is driven, have
the vehicle checked by an authorized Mitsubishi Motors
dealer or repair facility of your choice as soon as possible.
CAUTION
!
Any of the following warning light/display behavior
indicates that the anti-lock braking system is not
functioning and only the standard brake system is
working. (The standard brake system will still work
properly.) If this happens, take your vehicle to an
authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible.
• When the ignition switch is in the “ON” position,
the warning light does not come on or it remains
on and does not go off
• The warning light comes on while driving
• The warning display appears while driving
BK0102103US.book 136 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-139
3
NOTE
An operation noise may be emitted from the engine com-
partment in the following situations. The sound is associ-
ated with checking the operations of the ASC. At this
time, you may feel a shock from the brake pedal if you
depress it. These do not indicate a malfunction.
• When the ignition switch is set to the “ON” position.
• When the vehicle is driven for a while after the engine is
turned on.

When the ASC is activated, you may feel a vibration in
the vehicle body or hear a whining sound from the engine
compartment.
This indicates that the system is operating normally. It
does not indicate a malfunction.

When the anti-lock braking system warning light is illu-
minated, the ASC is not active.
Traction control function
N00559200034
On slippery surfaces, the traction control function prevents the
drive wheels from spinning excessive, thus helping the vehicle
to start moving from a stopped condition. It also provides suffi-
cient driving force and steering performance as the vehicle
turns while pressing the acceleration pedal.Skid control function
N00559300035
The skid control function is designed to help the driver main-
tain control of the vehicle on slippery roads or during rapid
steering maneuvers. It works by controlling the engine output
and the brake on each wheel.NOTE
The skid control function operates at speeds of about 9
mph (15 km/h) or higher.
CAUTION
!
When driving a vehicle on a snowy or icy road, be
sure to install snow tires and drive the vehicle at
moderate speeds.
BK0102103US.book 139 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-142 Features and controls
3
ASC warning display
N00559500138
Indicator (if so equipped)
Warning display type 1
Warning display type 2
If an abnormal condition occurs in the system while driving,
the warning display will be displayed at the same time.
To w i n g
N00546300015
CAUTION
!
The system may be malfunctioning.
Park your vehicle in a safe place and stop the engine.
Restart the engine again and check whether the
warning display and the display go out. If the
warning display goes out, there is no abnormal con-
dition. If the warning display does not go out or
appears frequently, it is not necessary to stop the
vehicle immediately, but you should have your vehi-
cle inspected by an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as
possible.
CAUTION
!
When towing the vehicle with only the front wheels
or only the rear wheels raised off the ground, do not
place the ignition switch in the “ON” position. Plac-
ing the ignition switch in the “ON” position could
cause the ASC to operate, resulting in an accident.
Note that the correct towing method depends on the
transmission type and the vehicle’s drive configura-
tion.
For details, refer to “Towing” on page 6-22.
BK0102103US.book 142 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-153
3
The tire pressure monitoring system warning
light / display
N00532700223
When the ignition switch is turned to the “ON” position, the
tire pressure monitoring system warning light normally illumi-
nates and goes off a few seconds later.
If one or more of the vehicle tires (except for the spare tire) is
significantly under-inflated, however, the warning light will
remain illuminated while the ignition switch is in the “ON”
position.
Refer to “If the warning light illuminates while driving” on
page 3-155 and take the necessary measures.NOTE
In addition, the warning display is displayed on the infor-
mation screen in the multi-information display.
Type 1
Type 2
CAUTION
!
The tire pressure monitoring system warning light
does not illuminate when the ignition switch is
turned to the “ON” position, it means that the tire
pressure monitoring system is not working properly.
Have the system inspected by an authorized
Mitsubishi Motors dealer.
In such situations, a malfunctioning of the system
may be preventing the monitoring of the tire pres-
sure. Avoid sudden braking, sharp turning and
high-speed driving.
If a malfunction is detected in the tire pressure mon-
itoring system, the tire pressure monitoring system
warning light will blink for approximately 1 minute
and then remain continuously illuminated. The
warning light will issue further warnings each time
the engine is restarted as long as the malfunction
exists.
Check to see whether the warning light goes off after
few minutes driving.
If it then goes off during driving, there is no prob-
lem.
However, if the warning light does not go off, or if it
blinks again when the engine is restarted, have the
vehicle inspected by an authorized Mitsubishi
Motors dealer.
In such situations, a malfunctioning of the system
may be preventing the monitoring of the tire pres-
sure. For safety reasons, when the warning light
appears while driving, avoid sudden braking, sharp
turning and high-speed driving.
BK0102103US.book 153 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-197
3 Indicator light, warning light, and information screen display list
N00557700035
Indicator and warning light list
N00557800111
Type 1Type A Type B1- Turn signal indicator/hazard warning light → P.3-211
2- High beam indicator → P.3-211
3- Position indicator → P.3-211
4- Front fog light indicator (if so equipped) → P.3-211
5- Seat belt reminder/warning light → P.2-18
6- Anti-lock braking system warning light (if so equipped)
→ P.3-135
7- Charging system warning light → P.3-213
8- Brake warning light → P.3-211
9- Cruise control indicator (if so equipped) → P.3-14410- Supplemental Restraint System (SRS) warning light
→ P.2-43
11- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P.3-212
12- Tire pressure monitoring system warning light → P.3-153
13- Information screen display list → P.3-199
BK0102103US.book 197 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-198 Features and controls
3
Type 2Type A Type B1- Position indicator → P.3-211
2- High beam indicator → P.3-211
3- Charging system warning light → P.3-213
4- Turn signal indicator/hazard warning light → P.3-211
5- Front fog light indicator → P.3-211
6- Anti-lock braking system warning light → P.3-135
7- Tire pressure monitoring system warning light → P.3-153
8- Brake warning light → P.3-211
9- Cruise control indicator → P.3-144
10- Seat belt reminder/warning light → P.2-18
11- Supplemental Restraint System (SRS) warning light
→ P.2-4312- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P.3-212
13- Active Stability Control (ASC) indicator → P.3-141
14- Information screen display list → P.3-199
BK0102103US.book 198 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-205
3

One of the doors or the trunk lid is
not completely closed.
The open door or open trunk lid is
displayed.
Close the door or trunk lid.
Refer to “Door ajar warning display
(With ignition switch in the “OFF”
position)” on page 3-169.

The engine is overheated.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Engine overheating” on
page 6-5.

The continuously variable transmis-
sion (CVT) fluid or the Twin Clutch
SST fluid temperature is increased.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Continuously variable
transmission (CVT)” on page 3-93.
Refer to “Twin Clutch SST” on
page 3-105.

The seat belt is not fastened when
the ignition switch is in the “ON”
position.
Fasten your seat belt properly. Refer
to “Driver’s seat belt
reminder/warning light and display”
on page 2-18.

There is a fault in the fuel system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.

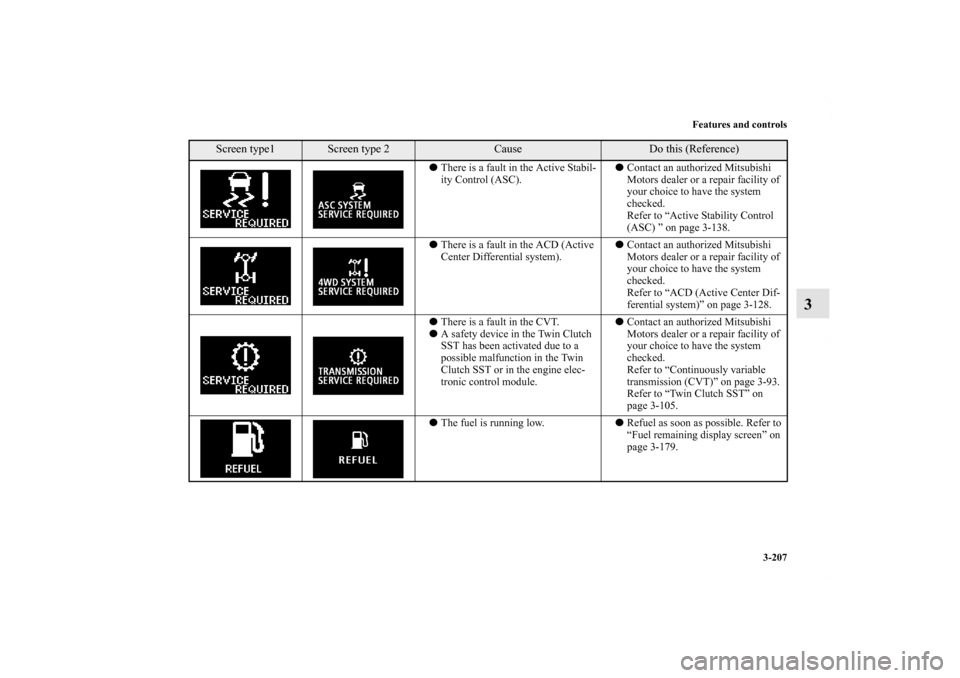

Screen type1
Screen type 2
Cause
Do this (Reference)
BK0102103US.book 205 ページ ２００９年１０月２６日　月曜日　午後１時３８分

3-206 Features and controls
3

The vehicle is being driven with the
parking brake still applied.
Release the parking brake. Refer to
“Brake warning display” on page 3-
214.

There is a fault in the engine oil cir-
culation system.
Park your vehicle in a safe place as
soon as possible and contact an
authorized Mitsubishi Motors dealer
or a repair facility of your choice to
have the system checked.
Refer to “Oil pressure warning dis-
play” on page 3-216.

There is a fault in the charging sys-
tem.
Park your vehicle in a safe place as
soon as possible and contact an
authorized Mitsubishi Motors dealer
or a repair facility of your choice for
assistance.
Refer to “Charging system warning
display” on page 3-215.

There is a fault in the SRS airbag or
the seat belt pre-tensioner system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “SRS warning light/dis-
play” on page 2-43.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0102103US.book 206 ページ ２００９年１０月２６日　月曜日　午後１時３８分

Features and controls
3-207
3

There is a fault in the Active Stabil-
ity Control (ASC).
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Active Stability Control
(ASC) ” on page 3-138.

There is a fault in the ACD (Active
Center Differential system).
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “ACD (Active Center Dif-
ferential system)” on page 3-128.

There is a fault in the CVT.

A safety device in the Twin Clutch
SST has been activated due to a
possible malfunction in the Twin
Clutch SST or in the engine elec-
tronic control module.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “Continuously variable
transmission (CVT)” on page 3-93.
Refer to “Twin Clutch SST” on
page 3-105.

The fuel is running low.
Refuel as soon as possible. Refer to
“Fuel remaining display screen” on
page 3-179.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0102103US.book 207 ページ ２００９年１０月２６日　月曜日　午後１時３８分
