Seat and restraint systems
2-19
2

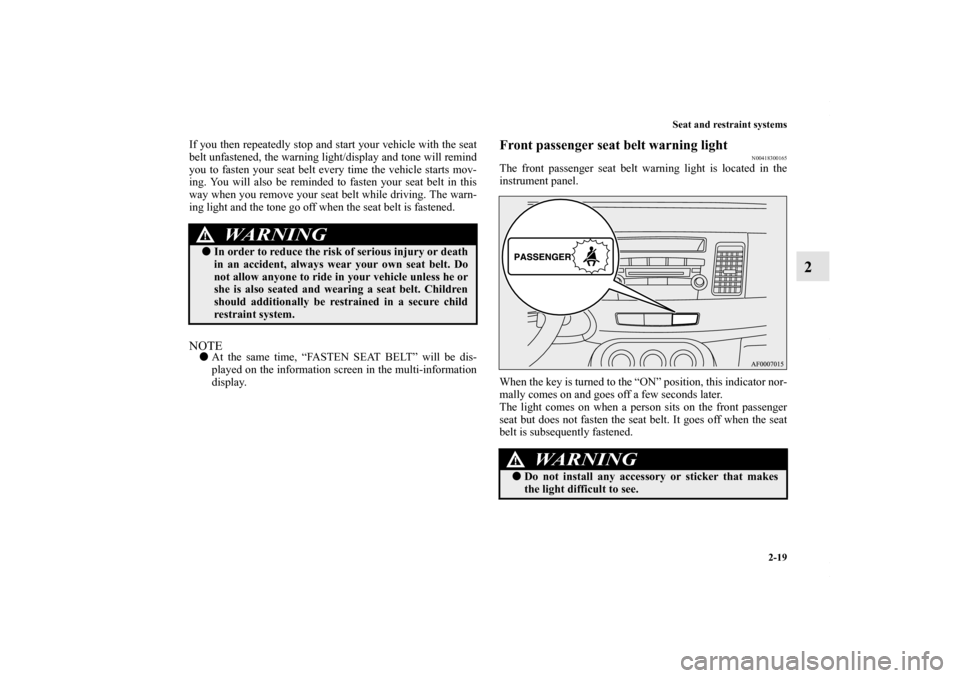

If you then repeatedly stop and start your vehicle with the seat
belt unfastened, the warning light/display and tone will remind
you to fasten your seat belt every time the vehicle starts mov-
ing. You will also be reminded to fasten your seat belt in this
way when you remove your seat belt while driving. The warn-
ing light and the tone go off when the seat belt is fastened.NOTEAt the same time, “FASTEN SEAT BELT” will be dis-
played on the information screen in the multi-information
display.
Front passenger seat belt warning light
N00418300165
The front passenger seat belt warning light is located in the
instrument panel.
When the key is turned to the “ON” position, this indicator nor-
mally comes on and goes off a few seconds later.
The light comes on when a person sits on the front passenger
seat but does not fasten the seat belt. It goes off when the seat
belt is subsequently fastened.
WARNING
!In order to reduce the risk of serious injury or death
in an accident, always wear your own seat belt. Do
not allow anyone to ride in your vehicle unless he or
she is also seated and wearing a seat belt. Children
should additionally be restrained in a secure child
restraint system.
WARNING
!Do not install any accessory or sticker that makes
the light difficult to see.
BK0102103US.book 19 ページ 2009年10月26日 月曜日 午後1時38分
Page 92 of 670
3
Features and controls

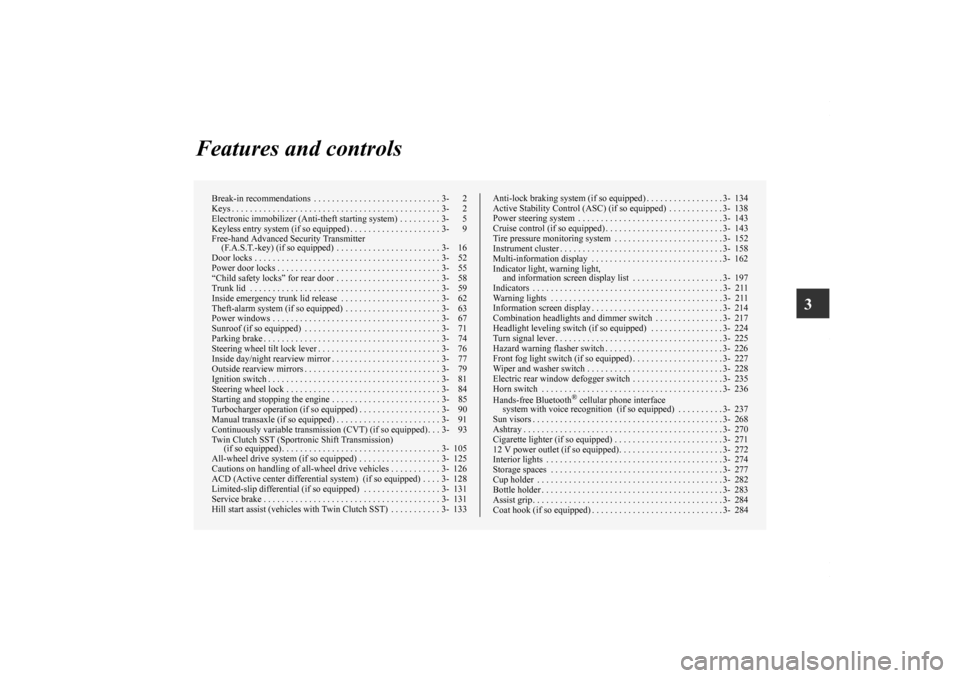

Break-in recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . 3- 5
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 9
Free-hand Advanced Security Transmitter
(F.A.S.T.-key) (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 16
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 52
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 55
“Child safety locks” for rear door . . . . . . . . . . . . . . . . . . . . . . . 3- 58
Trunk lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 59
Inside emergency trunk lid release . . . . . . . . . . . . . . . . . . . . . . 3- 62
Theft-alarm system (if so equipped) . . . . . . . . . . . . . . . . . . . . . 3- 63
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 67
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 71
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 74
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 76
Inside day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 3- 77
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 79
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 81
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 84
Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . 3- 85
Turbocharger operation (if so equipped) . . . . . . . . . . . . . . . . . . 3- 90
Manual transaxle (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 91
Continuously variable transmission (CVT) (if so equipped). . . 3- 93
Twin Clutch SST (Sportronic Shift Transmission)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 105
All-wheel drive system (if so equipped) . . . . . . . . . . . . . . . . . . 3- 125
Cautions on handling of all-wheel drive vehicles . . . . . . . . . . . 3- 126
ACD (Active center differential system) (if so equipped) . . . . 3- 128
Limited-slip differential (if so equipped) . . . . . . . . . . . . . . . . . 3- 131
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 131
Hill start assist (vehicles with Twin Clutch SST) . . . . . . . . . . . 3- 133Anti-lock braking system (if so equipped) . . . . . . . . . . . . . . . . . 3- 134
Active Stability Control (ASC) (if so equipped) . . . . . . . . . . . . 3- 138
Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 143
Cruise control (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 143
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . 3- 152
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 158
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 162
Indicator light, warning light,
and information screen display list . . . . . . . . . . . . . . . . . . . . 3- 197
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 211
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 211
Information screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 214
Combination headlights and dimmer switch . . . . . . . . . . . . . . . 3- 217
Headlight leveling switch (if so equipped) . . . . . . . . . . . . . . . . 3- 224
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 225
Hazard warning flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 226
Front fog light switch (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 227
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 228
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . 3- 235
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 236
Hands-free Bluetooth
® cellular phone interface
system with voice recognition (if so equipped) . . . . . . . . . . 3- 237
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 268
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 270
Cigarette lighter (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . 3- 271
12 V power outlet (if so equipped). . . . . . . . . . . . . . . . . . . . . . . 3- 272
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 274
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 277
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 282
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 283
Assist grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 284
Coat hook (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 284
BK0102103US.book 1 ページ 2009年10月26日 月曜日 午後1時38分
Page 117 of 670
3-26 Features and controls
3

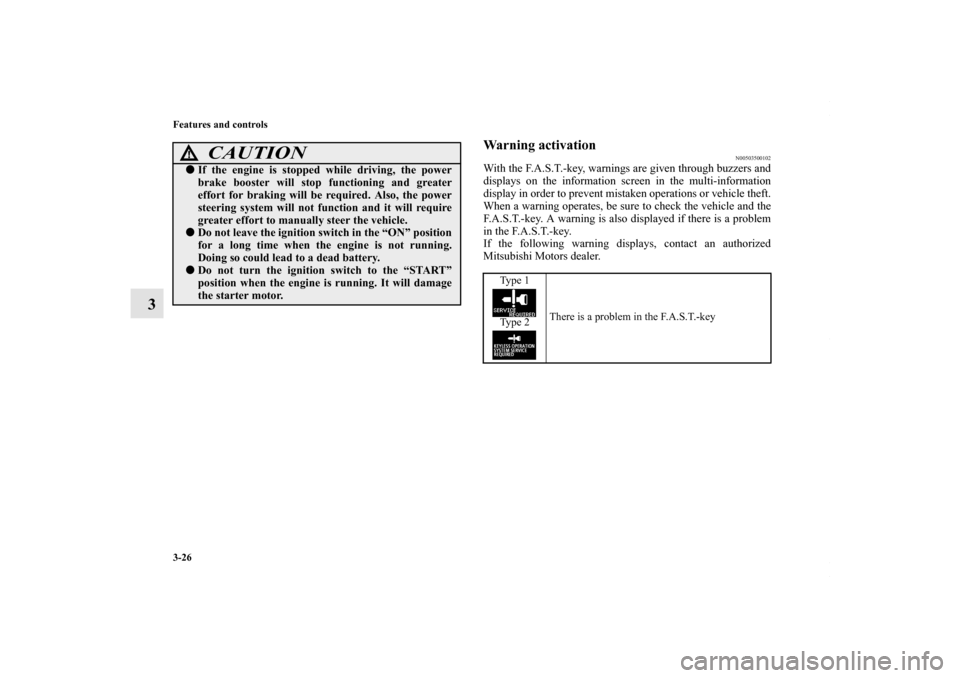

Warning activation
N00503500102
With the F.A.S.T.-key, warnings are given through buzzers and
displays on the information screen in the multi-information
display in order to prevent mistaken operations or vehicle theft.
When a warning operates, be sure to check the vehicle and the
F.A.S.T.-key. A warning is also displayed if there is a problem
in the F.A.S.T.-key.
If the following warning displays, contact an authorized
Mitsubishi Motors dealer.
CAUTION
!If the engine is stopped while driving, the power
brake booster will stop functioning and greater
effort for braking will be required. Also, the power
steering system will not function and it will require
greater effort to manually steer the vehicle.Do not leave the ignition switch in the “ON” position
for a long time when the engine is not running.
Doing so could lead to a dead battery.Do not turn the ignition switch to the “START”
position when the engine is running. It will damage
the starter motor.
Type 1
Type 2There is a problem in the F.A.S.T.-key
BK0102103US.book 26 ページ 2009年10月26日 月曜日 午後1時38分
Page 128 of 670
Features and controls
3-37
3

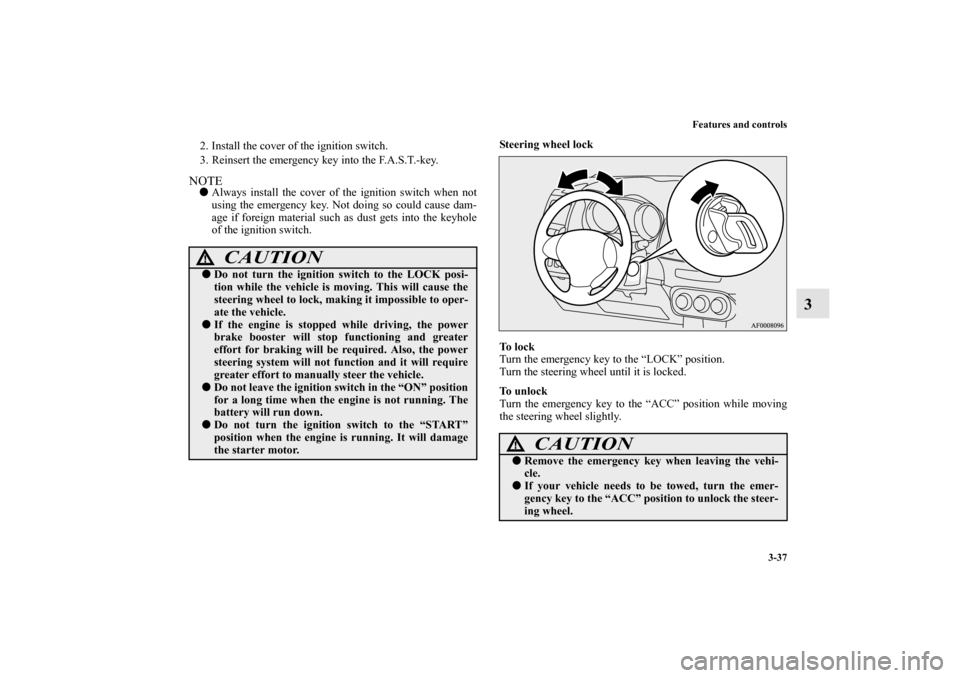

2. Install the cover of the ignition switch.
3. Reinsert the emergency key into the F.A.S.T.-key.NOTEAlways install the cover of the ignition switch when not
using the emergency key. Not doing so could cause dam-
age if foreign material such as dust gets into the keyhole
of the ignition switch.Steering wheel lock
To l o c k
Turn the emergency key to the “LOCK” position.
Turn the steering wheel until it is locked.
To u n l o c k
Turn the emergency key to the “ACC” position while moving
the steering wheel slightly.
CAUTION
!Do not turn the ignition switch to the LOCK posi-
tion while the vehicle is moving. This will cause the
steering wheel to lock, making it impossible to oper-
ate the vehicle. If the engine is stopped while driving, the power
brake booster will stop functioning and greater
effort for braking will be required. Also, the power
steering system will not function and it will require
greater effort to manually steer the vehicle.Do not leave the ignition switch in the “ON” position
for a long time when the engine is not running. The
battery will run down.Do not turn the ignition switch to the “START”
position when the engine is running. It will damage
the starter motor.
CAUTION
!Remove the emergency key when leaving the vehi-
cle.If your vehicle needs to be towed, turn the emer-
gency key to the “ACC” position to unlock the steer-
ing wheel.
BK0102103US.book 37 ページ 2009年10月26日 月曜日 午後1時38分
Page 154 of 670
Features and controls
3-63
3

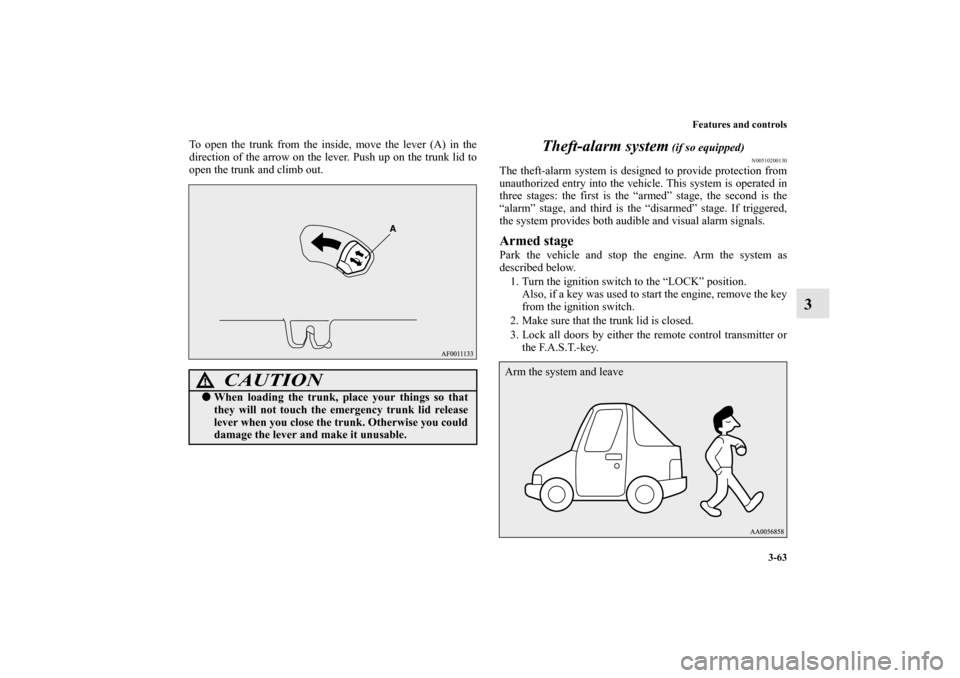

To open the trunk from the inside, move the lever (A) in the
direction of the arrow on the lever. Push up on the trunk lid to
open the trunk and climb out.
Theft-alarm system
(if so equipped)
N00510200130
The theft-alarm system is designed to provide protection from
unauthorized entry into the vehicle. This system is operated in
three stages: the first is the “armed” stage, the second is the
“alarm” stage, and third is the “disarmed” stage. If triggered,
the system provides both audible and visual alarm signals.Armed stagePark the vehicle and stop the engine. Arm the system as
described below.
1. Turn the ignition switch to the “LOCK” position.
Also, if a key was used to start the engine, remove the key
from the ignition switch.
2. Make sure that the trunk lid is closed.
3. Lock all doors by either the remote control transmitter or
the F.A.S.T.-key.
CAUTION
!When loading the trunk, place your things so that
they will not touch the emergency trunk lid release
lever when you close the trunk. Otherwise you could
damage the lever and make it unusable.
Arm the system and leave
BK0102103US.book 63 ページ 2009年10月26日 月曜日 午後1時38分
Page 175 of 670
3-84 Features and controls

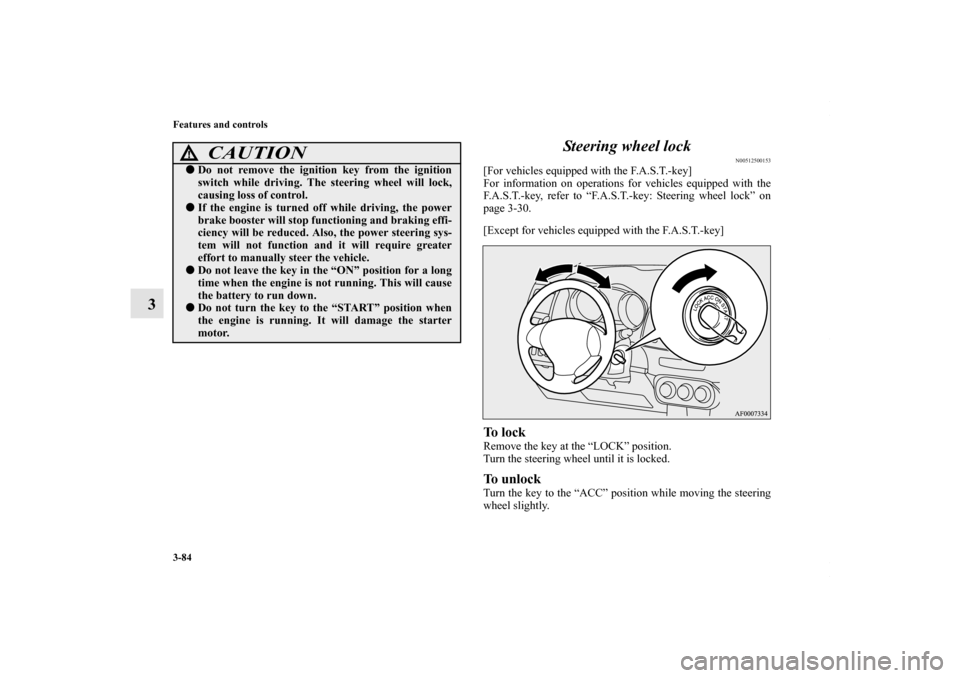

3Steering wheel lock
N00512500153
[For vehicles equipped with the F.A.S.T.-key]
For information on operations for vehicles equipped with the
F.A.S.T.-key, refer to “F.A.S.T.-key: Steering wheel lock” on
page 3-30.
[Except for vehicles equipped with the F.A.S.T.-key]To l o c kRemove the key at the “LOCK” position.
Turn the steering wheel until it is locked.To unlockTurn the key to the “ACC” position while moving the steering
wheel slightly.
CAUTION
!Do not remove the ignition key from the ignition
switch while driving. The steering wheel will lock,
causing loss of control.If the engine is turned off while driving, the power
brake booster will stop functioning and braking effi-
ciency will be reduced. Also, the power steering sys-
tem will not function and it will require greater
effort to manually steer the vehicle.Do not leave the key in the “ON” position for a long
time when the engine is not running. This will cause
the battery to run down.Do not turn the key to the “START” position when
the engine is running. It will damage the starter
motor.
BK0102103US.book 84 ページ 2009年10月26日 月曜日 午後1時38分
Page 176 of 670
Features and controls
3-85
3

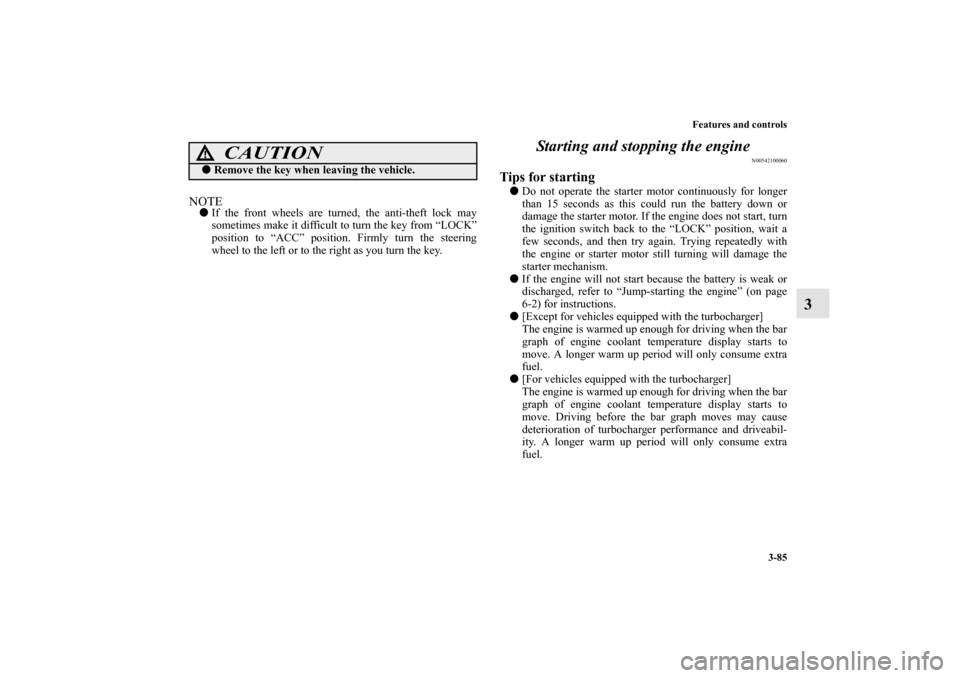

NOTEIf the front wheels are turned, the anti-theft lock may
sometimes make it difficult to turn the key from “LOCK”
position to “ACC” position. Firmly turn the steering
wheel to the left or to the right as you turn the key.
Starting and stopping the engine
N00542100060
Tips for starting Do not operate the starter motor continuously for longer
than 15 seconds as this could run the battery down or
damage the starter motor. If the engine does not start, turn
the ignition switch back to the “LOCK” position, wait a
few seconds, and then try again. Trying repeatedly with
the engine or starter motor still turning will damage the
starter mechanism.
If the engine will not start because the battery is weak or
discharged, refer to “Jump-starting the engine” (on page
6-2) for instructions.
[Except for vehicles equipped with the turbocharger]
The engine is warmed up enough for driving when the bar
graph of engine coolant temperature display starts to
move. A longer warm up period will only consume extra
fuel.
[For vehicles equipped with the turbocharger]
The engine is warmed up enough for driving when the bar
graph of engine coolant temperature display starts to
move. Driving before the bar graph moves may cause
deterioration of turbocharger performance and driveabil-
ity. A longer warm up period will only consume extra
fuel.
CAUTION
!Remove the key when leaving the vehicle.
BK0102103US.book 85 ページ 2009年10月26日 月曜日 午後1時38分
Page 179 of 670
3-88 Features and controls
3

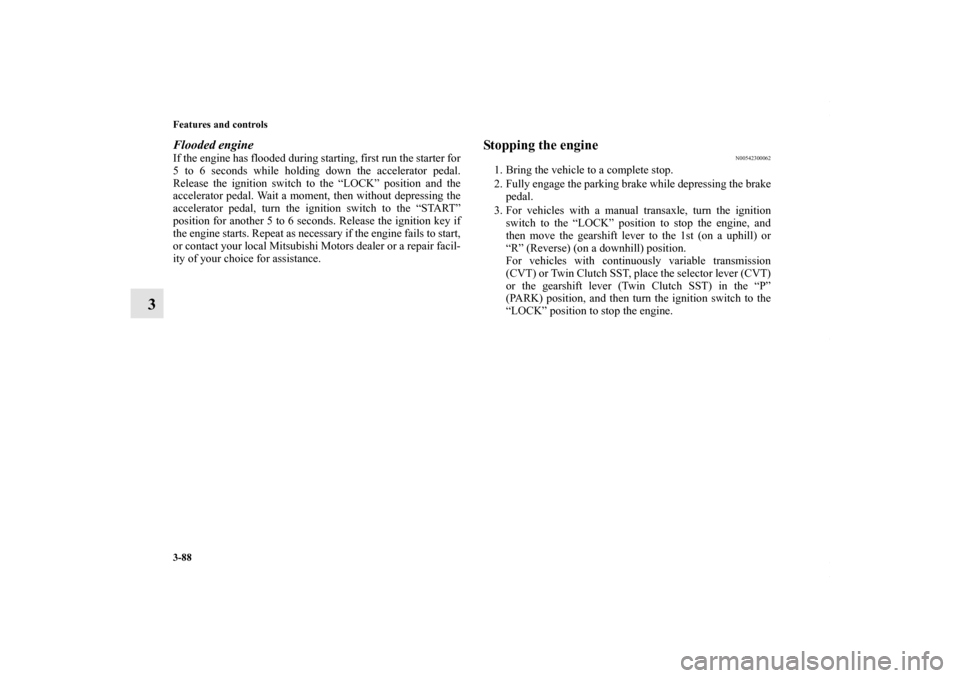

Flooded engineIf the engine has flooded during starting, first run the starter for
5 to 6 seconds while holding down the accelerator pedal.
Release the ignition switch to the “LOCK” position and the
accelerator pedal. Wait a moment, then without depressing the
accelerator pedal, turn the ignition switch to the “START”
position for another 5 to 6 seconds. Release the ignition key if
the engine starts. Repeat as necessary if the engine fails to start,
or contact your local Mitsubishi Motors dealer or a repair facil-
ity of your choice for assistance.
Stopping the engine
N00542300062
1. Bring the vehicle to a complete stop.
2. Fully engage the parking brake while depressing the brake
pedal.
3. For vehicles with a manual transaxle, turn the ignition
switch to the “LOCK” position to stop the engine, and
then move the gearshift lever to the 1st (on a uphill) or
“R” (Reverse) (on a downhill) position.
For vehicles with continuously variable transmission
(CVT) or Twin Clutch SST, place the selector lever (CVT)
or the gearshift lever (Twin Clutch SST) in the “P”
(PARK) position, and then turn the ignition switch to the
“LOCK” position to stop the engine.
BK0102103US.book 88 ページ 2009年10月26日 月曜日 午後1時38分
Page 180 of 670
Features and controls
3-89
3

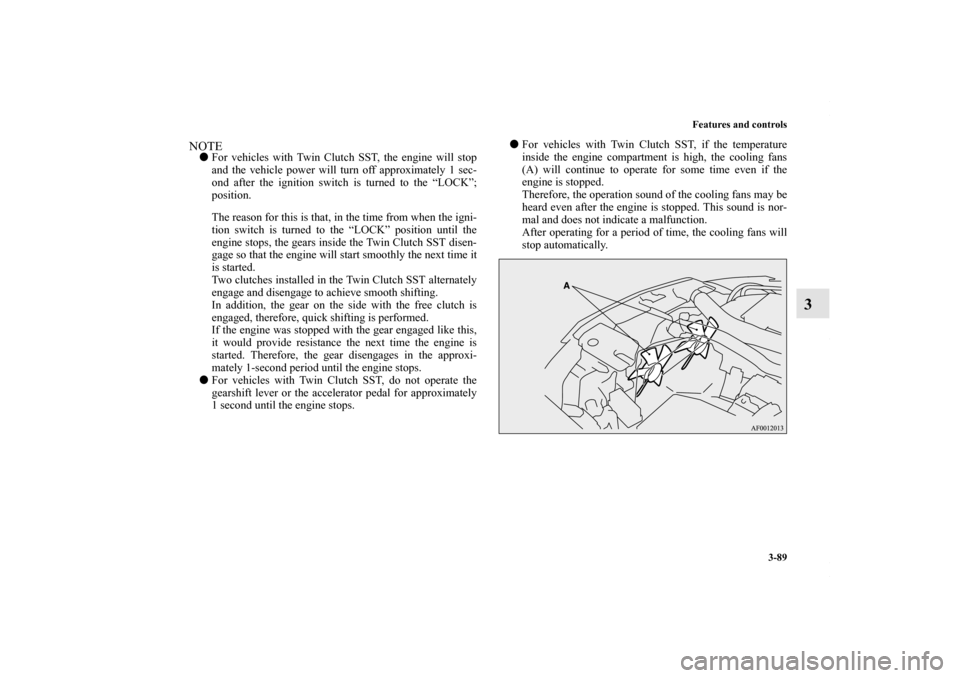

NOTEFor vehicles with Twin Clutch SST, the engine will stop
and the vehicle power will turn off approximately 1 sec-
ond after the ignition switch is turned to the “LOCK”;
position.
The reason for this is that, in the time from when the igni-
tion switch is turned to the “LOCK” position until the
engine stops, the gears inside the Twin Clutch SST disen-
gage so that the engine will start smoothly the next time it
is started.
Two clutches installed in the Twin Clutch SST alternately
engage and disengage to achieve smooth shifting.
In addition, the gear on the side with the free clutch is
engaged, therefore, quick shifting is performed.
If the engine was stopped with the gear engaged like this,
it would provide resistance the next time the engine is
started. Therefore, the gear disengages in the approxi-
mately 1-second period until the engine stops.
For vehicles with Twin Clutch SST, do not operate the
gearshift lever or the accelerator pedal for approximately
1 second until the engine stops.For vehicles with Twin Clutch SST, if the temperature
inside the engine compartment is high, the cooling fans
(A) will continue to operate for some time even if the
engine is stopped.
Therefore, the operation sound of the cooling fans may be
heard even after the engine is stopped. This sound is nor-
mal and does not indicate a malfunction.
After operating for a period of time, the cooling fans will
stop automatically.
BK0102103US.book 89 ページ 2009年10月26日 月曜日 午後1時38分
Page 181 of 670
3-90 Features and controls

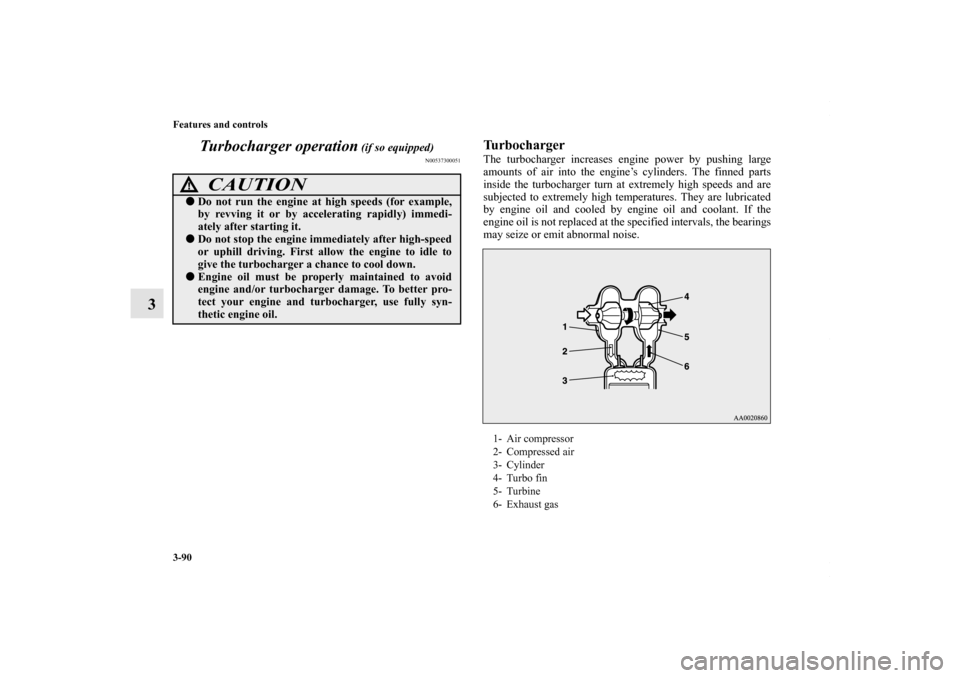

3Turbocharger operation
(if so equipped)
N00537300051
TurbochargerThe turbocharger increases engine power by pushing large
amounts of air into the engine’s cylinders. The finned parts
inside the turbocharger turn at extremely high speeds and are
subjected to extremely high temperatures. They are lubricated
by engine oil and cooled by engine oil and coolant. If the
engine oil is not replaced at the specified intervals, the bearings
may seize or emit abnormal noise.
CAUTION
!Do not run the engine at high speeds (for example,
by revving it or by accelerating rapidly) immedi-
ately after starting it.Do not stop the engine immediately after high-speed
or uphill driving. First allow the engine to idle to
give the turbocharger a chance to cool down.Engine oil must be properly maintained to avoid
engine and/or turbocharger damage. To better pro-
tect your engine and turbocharger, use fully syn-
thetic engine oil.
1- Air compressor
2- Compressed air
3- Cylinder
4- Turbo fin
5- Turbine
6- Exhaust gas
BK0102103US.book 90 ページ 2009年10月26日 月曜日 午後1時38分
