MITSUBISHI LANCER 2013 8.G Owners Manual

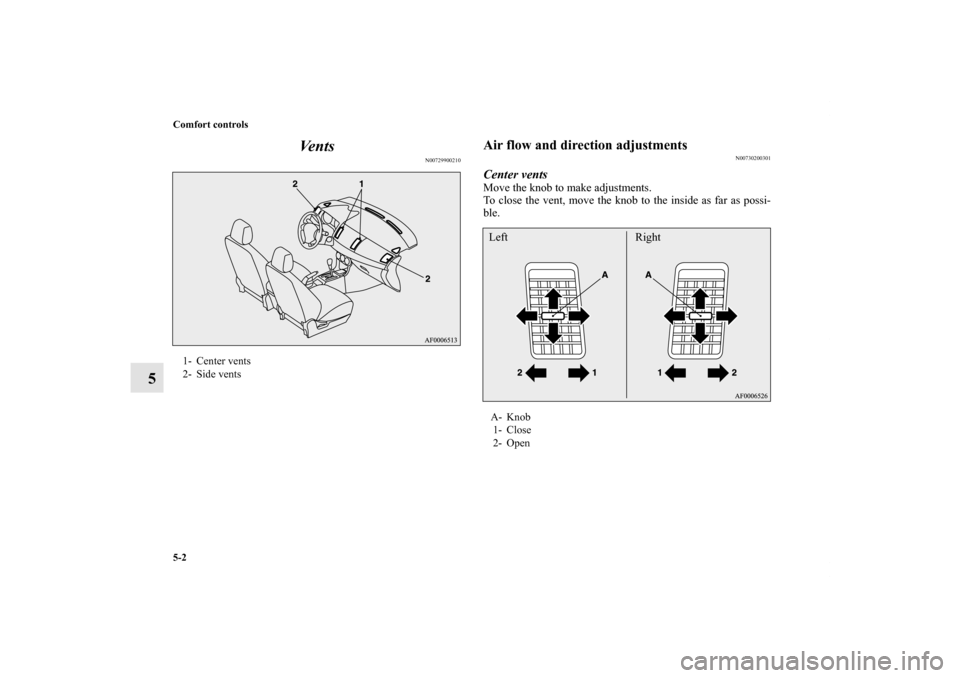

5-2 Comfort controls
5Ve n t s
N00729900210
Air flow and direction adjustments
N00730200301
Center ventsMove the knob to make adjustments.
To close the vent, move the knob to the inside as far as possi-
ble.
1- Center vents
2- Side vents
A- Knob
1- Close
2- OpenLeft Right
BK0150800US.book 2 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Comfort controls
5-3
5

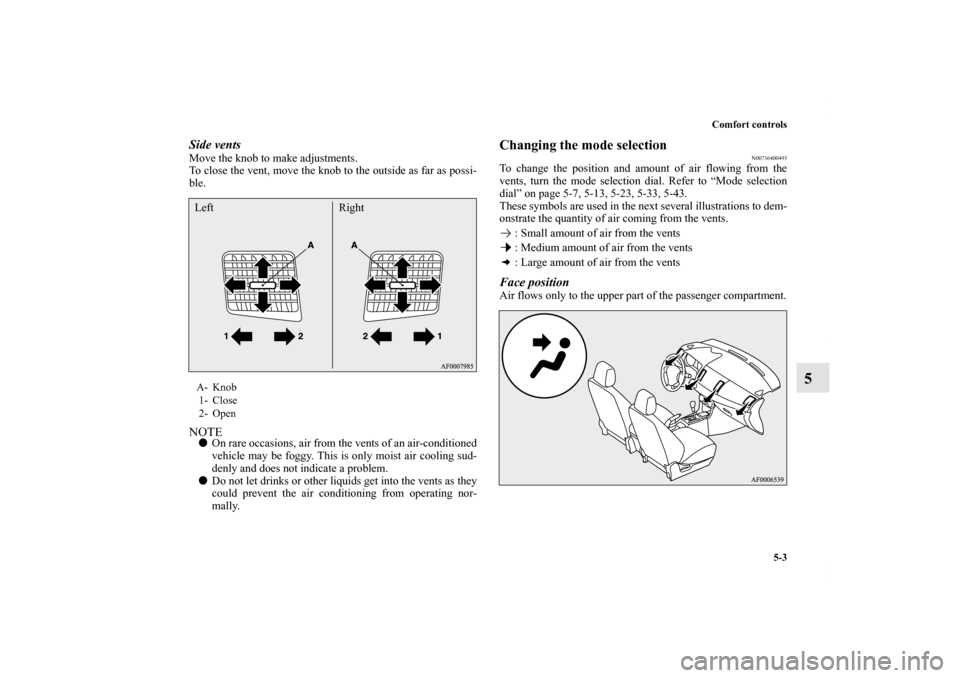

Side ventsMove the knob to make adjustments.
To close the vent, move the knob to the outside as far as possi-
ble.NOTE
On rare occasions, air from the vents of an air-conditioned
vehicle may be foggy. This is only moist air cooling sud-
denly and does not indicate a problem.

Do not let drinks or other liquids get into the vents as they
could prevent the air conditioning from operating nor-
mally.
Changing the mode selection
N00736400493
To change the position and amount of air flowing from the
vents, turn the mode selection dial. Refer to “Mode selection
dial” on page 5-7, 5-13, 5-23, 5-33, 5-43.
These symbols are used in the next several illustrations to dem-
onstrate the quantity of air coming from the vents.
: Small amount of air from the vents
: Medium amount of air from the vents
: Large amount of air from the ventsFace positionAir flows only to the upper part of the passenger compartment.
A- Knob
1- Close
2- OpenLeft Right
BK0150800US.book 3 ページ ２０１２年３月２９日　木曜日　午後２時３８分

5-4 Comfort controls
5

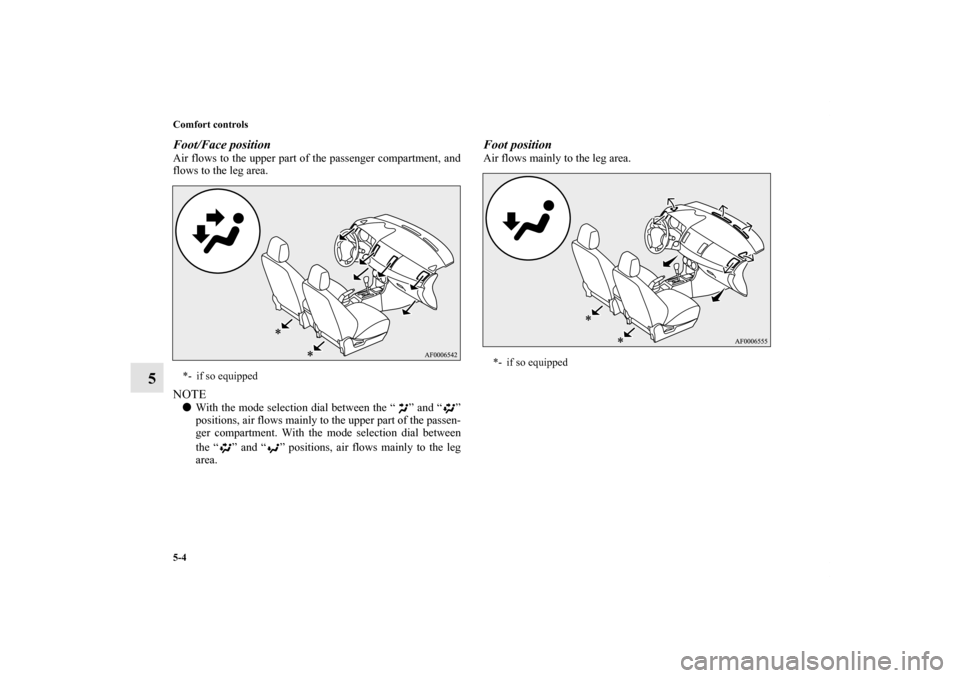

Foot/Face positionAir flows to the upper part of the passenger compartment, and
flows to the leg area.NOTE
With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the upper part of the passen-
ger compartment. With the mode selection dial between
the “ ” and “ ” positions, air flows mainly to the leg
area.
Foot positionAir flows mainly to the leg area.
*- if so equipped
*- if so equipped
BK0150800US.book 4 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Comfort controls
5-5
5

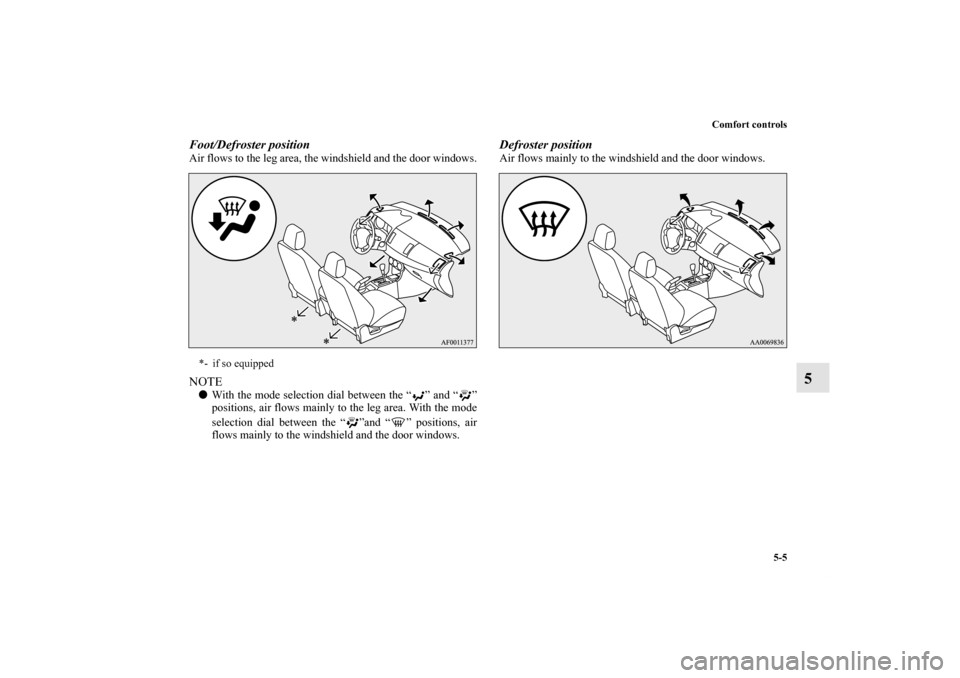

Foot/Defroster positionAir flows to the leg area, the windshield and the door windows.NOTE
With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the leg area. With the mode
selection dial between the “ ”and “ ” positions, air
flows mainly to the windshield and the door windows.
Defroster positionAir flows mainly to the windshield and the door windows.
*- if so equipped
BK0150800US.book 5 ページ ２０１２年３月２９日　木曜日　午後２時３８分

5-6 Comfort controls

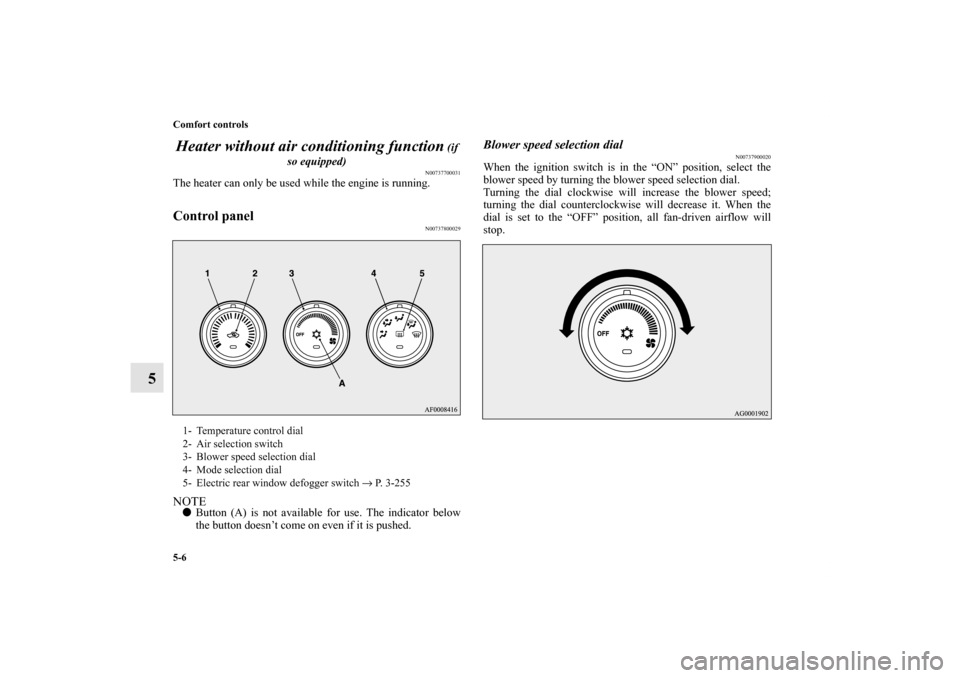

5Heater without air conditioning function
(if
so equipped)
N00737700031
The heater can only be used while the engine is running.Control panel
N00737800029
NOTE
Button (A) is not available for use. The indicator below
the button doesn’t come on even if it is pushed.
Blower speed selection dial
N00737900020
When the ignition switch is in the “ON” position, select the
blower speed by turning the blower speed selection dial.
Turning the dial clockwise will increase the blower speed;
turning the dial counterclockwise will decrease it. When the
dial is set to the “OFF” position, all fan-driven airflow will
stop.
1- Temperature control dial
2- Air selection switch
3- Blower speed selection dial
4- Mode selection dial
5- Electric rear window defogger switch → P. 3 - 2 5 5
BK0150800US.book 6 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Comfort controls
5-7
5

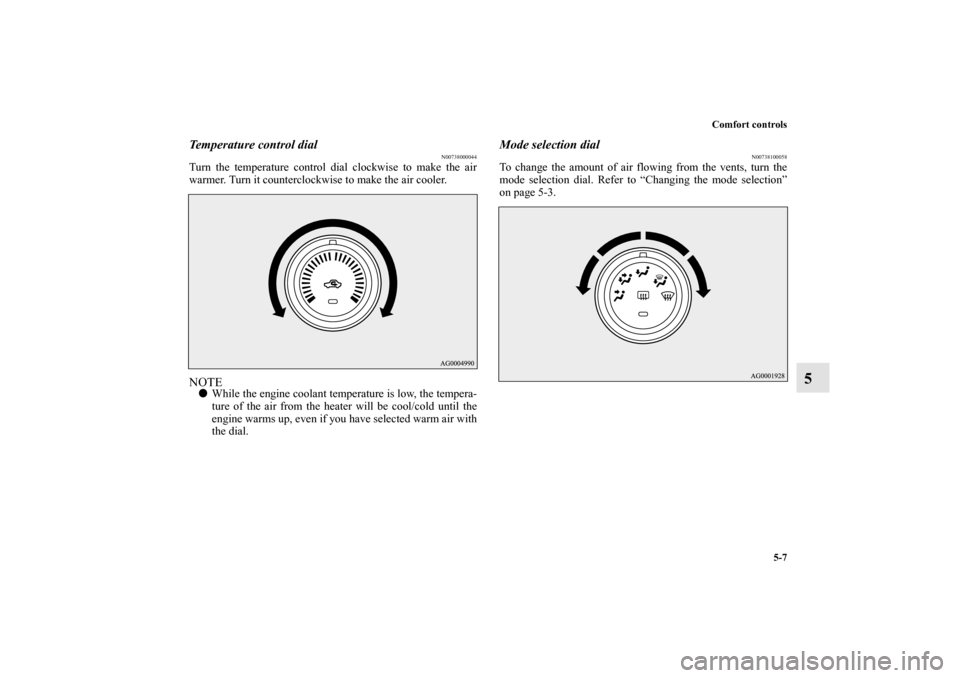

Temperature control dial
N00738000044
Turn the temperature control dial clockwise to make the air
warmer. Turn it counterclockwise to make the air cooler.NOTE
While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial.
Mode selection dial
N00738100058
To change the amount of air flowing from the vents, turn the
mode selection dial. Refer to “Changing the mode selection”
on page 5-3.
BK0150800US.book 7 ページ ２０１２年３月２９日　木曜日　午後２時３８分

5-8 Comfort controls
5

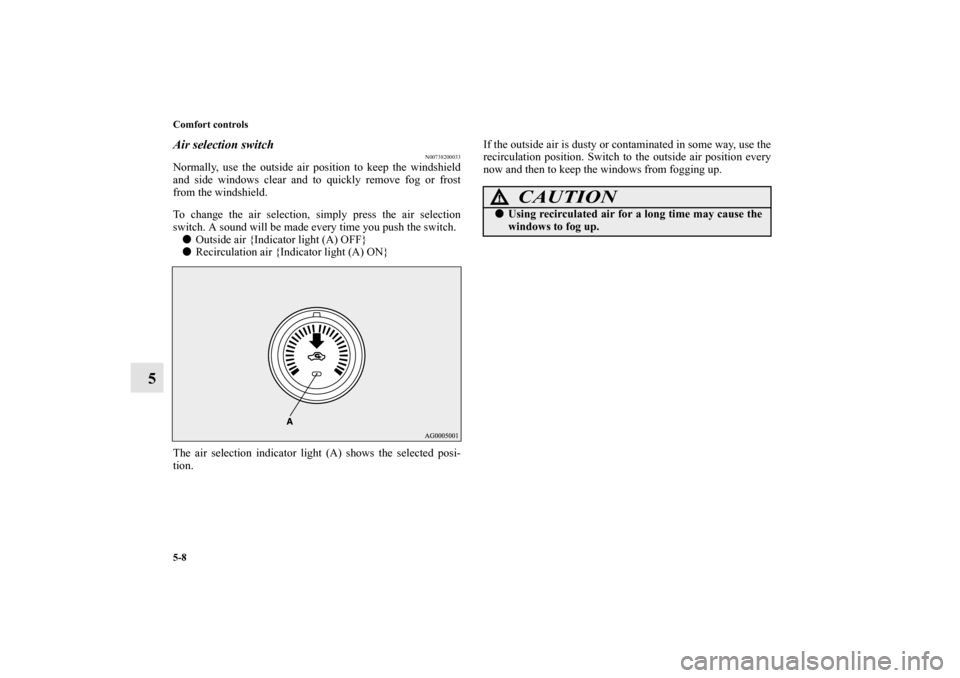

Air selection switch
N00738200033
Normally, use the outside air position to keep the windshield
and side windows clear and to quickly remove fog or frost
from the windshield.
To change the air selection, simply press the air selection
switch. A sound will be made every time you push the switch.

Outside air {Indicator light (A) OFF}

Recirculation air {Indicator light (A) ON}
The air selection indicator light (A) shows the selected posi-
tion.If the outside air is dusty or contaminated in some way, use the
recirculation position. Switch to the outside air position every
now and then to keep the windows from fogging up.
CAUTION
!
Using recirculated air for a long time may cause the
windows to fog up.
BK0150800US.book 8 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Comfort controls
5-9
5

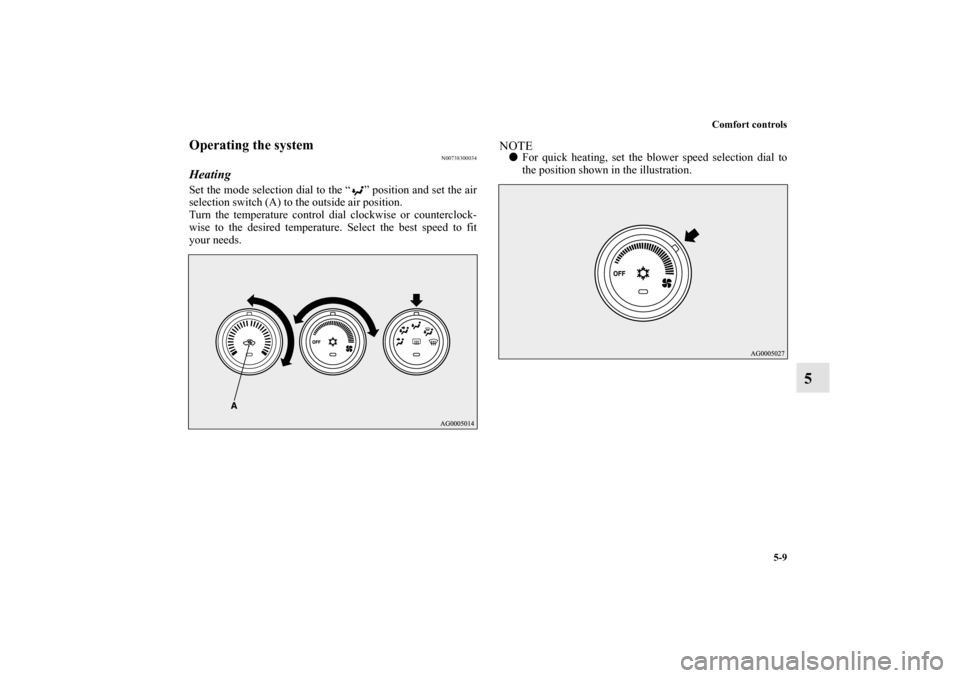

Operating the system
N00738300034
HeatingSet the mode selection dial to the “ ” position and set the air
selection switch (A) to the outside air position.
Turn the temperature control dial clockwise or counterclock-
wise to the desired temperature. Select the best speed to fit
your needs.
NOTE
For quick heating, set the blower speed selection dial to
the position shown in the illustration.
BK0150800US.book 9 ページ ２０１２年３月２９日　木曜日　午後２時３８分

5-10 Comfort controls
5

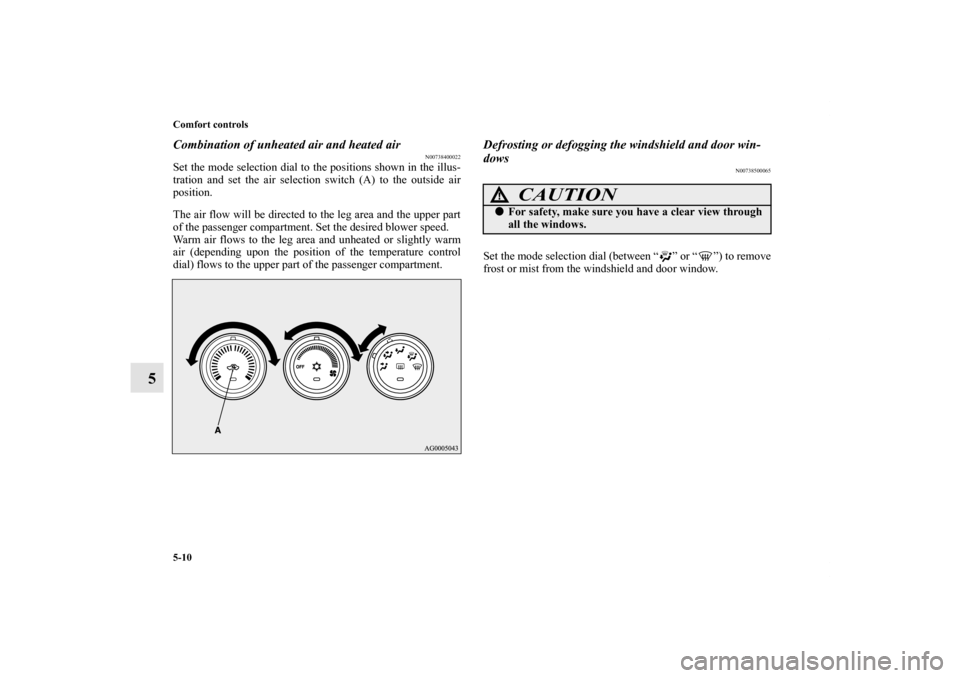

Combination of unheated air and heated air
N00738400022
Set the mode selection dial to the positions shown in the illus-
tration and set the air selection switch (A) to the outside air
position.
The air flow will be directed to the leg area and the upper part
of the passenger compartment. Set the desired blower speed.
Warm air flows to the leg area and unheated or slightly warm
air (depending upon the position of the temperature control
dial) flows to the upper part of the passenger compartment.
Defrosting or defogging the windshield and door win-
dows
N00738500065
Set the mode selection dial (between “ ” or “ ”) to remove
frost or mist from the windshield and door window.
CAUTION
!
For safety, make sure you have a clear view through
all the windows.
BK0150800US.book 10 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Comfort controls
5-11
5

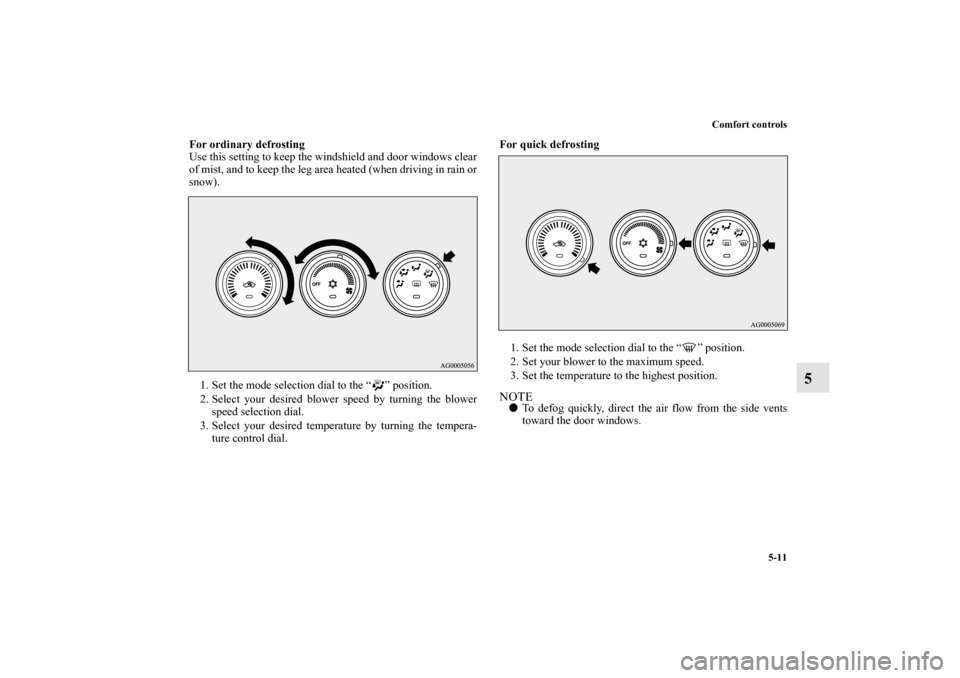

For ordinary defrosting
Use this setting to keep the windshield and door windows clear
of mist, and to keep the leg area heated (when driving in rain or
snow).
1. Set the mode selection dial to the “ ” position.
2. Select your desired blower speed by turning the blower
speed selection dial.
3. Select your desired temperature by turning the tempera-
ture control dial.For quick defrosting

1. Set the mode selection dial to the “ ” position.
2. Set your blower to the maximum speed.
3. Set the temperature to the highest position.
NOTE
To defog quickly, direct the air flow from the side vents
toward the door windows.
