MITSUBISHI LANCER 2013 8.G Owners Manual

5-102 Comfort controls
5
To set all the discs
1. Press the LOAD button (5) for 2 seconds or longer (until
you hear a beep).
2. The autochanger will select the lowest-numbered empty
slot and switch to loading standby mode.
3. When the display shows “LOAD DISC No. (1-6)”, insert
a disc. The autochanger will then automatically select the
next empty slot and enter loading standby mode.
4. Repeat the above-described steps until every slot contains
a disc. Playback will then begin with the disc that you
inserted last.NOTE
If you press the LOAD button (5) again while the
autochanger is in loading standby mode, the loading
standby mode will be canceled.
To eject discsTo eject a single disc
Press the eject button (15) briefly to eject the currently selected
disc.NOTE
If you press the eject button (15) while the display is
showing “LOAD DISC No. (1-6)”, the loading standby
mode will be canceled and the next disc will be ejected.

If you do not remove an ejected disc before 15 seconds
have elapsed, the disc will be reloaded and the eject mode
will be canceled. The reloaded disc will not be played.
BK0150800US.book 102 ページ ２０１２年３月２９日　木曜日　午後２時３８分

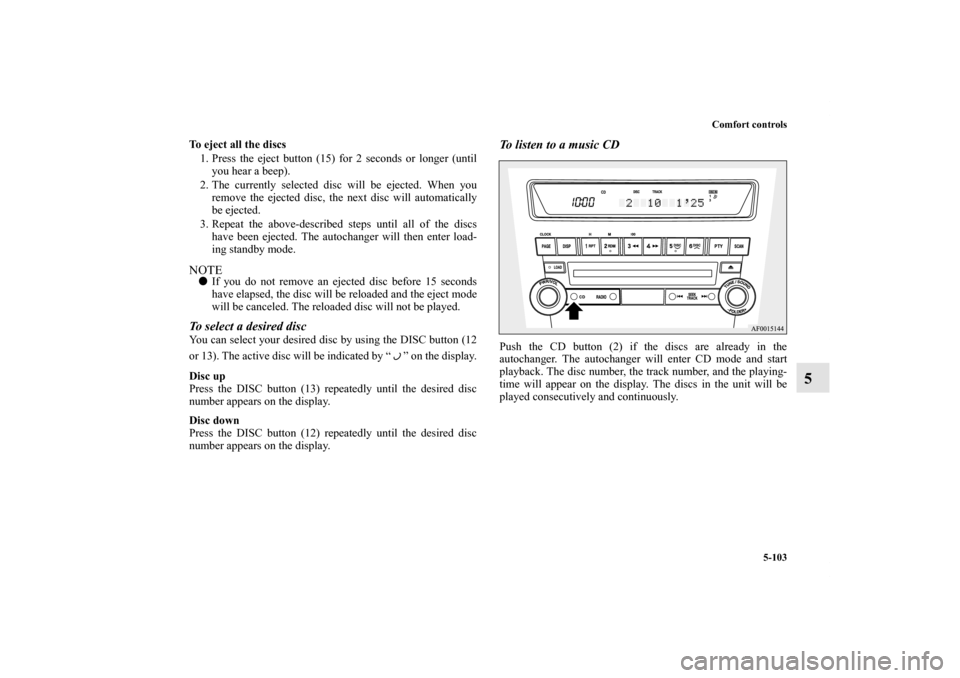

Comfort controls
5-103
5
To eject all the discs
1. Press the eject button (15) for 2 seconds or longer (until
you hear a beep).
2. The currently selected disc will be ejected. When you
remove the ejected disc, the next disc will automatically
be ejected.
3. Repeat the above-described steps until all of the discs
have been ejected. The autochanger will then enter load-
ing standby mode.NOTE
If you do not remove an ejected disc before 15 seconds
have elapsed, the disc will be reloaded and the eject mode
will be canceled. The reloaded disc will not be played.To select a desired discYou can select your desired disc by using the DISC button (12
or 13). The active disc will be indicated by “ ” on the display.
Disc up
Press the DISC button (13) repeatedly until the desired disc
number appears on the display.
Disc down
Press the DISC button (12) repeatedly until the desired disc
number appears on the display.
To listen to a music CDPush the CD button (2) if the discs are already in the
autochanger. The autochanger will enter CD mode and start
playback. The disc number, the track number, and the playing-
time will appear on the display. The discs in the unit will be
played consecutively and continuously.
BK0150800US.book 103 ページ ２０１２年３月２９日　木曜日　午後２時３８分

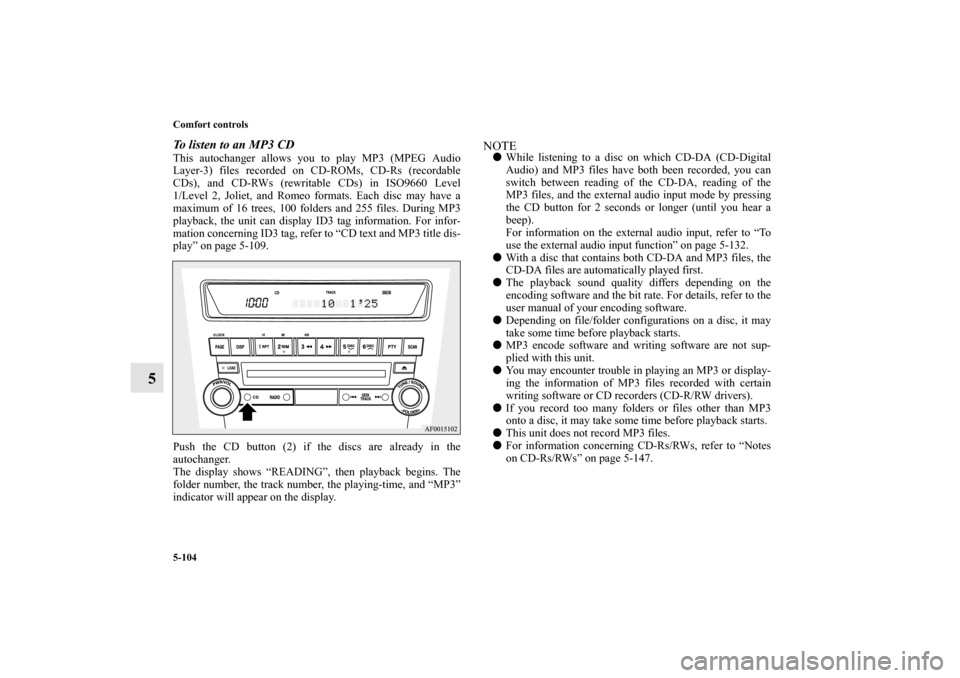

5-104 Comfort controls
5
To listen to an MP3 CDThis autochanger allows you to play MP3 (MPEG Audio
Layer-3) files recorded on CD-ROMs, CD-Rs (recordable
CDs), and CD-RWs (rewritable CDs) in ISO9660 Level
1/Level 2, Joliet, and Romeo formats. Each disc may have a
maximum of 16 trees, 100 folders and 255 files. During MP3
playback, the unit can display ID3 tag information. For infor-
mation concerning ID3 tag, refer to “CD text and MP3 title dis-
play” on page 5-109.
Push the CD button (2) if the discs are already in the
autochanger.
The display shows “READING”, then playback begins. The
folder number, the track number, the playing-time, and “MP3”
indicator will appear on the display.
NOTE
While listening to a disc on which CD-DA (CD-Digital
Audio) and MP3 files have both been recorded, you can
switch between reading of the CD-DA, reading of the
MP3 files, and the external audio input mode by pressing
the CD button for 2 seconds or longer (until you hear a
beep).
For information on the external audio input, refer to “To
use the external audio input function” on page 5-132.

With a disc that contains both CD-DA and MP3 files, the
CD-DA files are automatically played first.

The playback sound quality differs depending on the
encoding software and the bit rate. For details, refer to the
user manual of your encoding software.

Depending on file/folder configurations on a disc, it may
take some time before playback starts.

MP3 encode software and writing software are not sup-
plied with this unit.

You may encounter trouble in playing an MP3 or display-
ing the information of MP3 files recorded with certain
writing software or CD recorders (CD-R/RW drivers).

If you record too many folders or files other than MP3
onto a disc, it may take some time before playback starts.

This unit does not record MP3 files.

For information concerning CD-Rs/RWs, refer to “Notes
on CD-Rs/RWs” on page 5-147.
BK0150800US.book 104 ページ ２０１２年３月２９日　木曜日　午後２時３８分

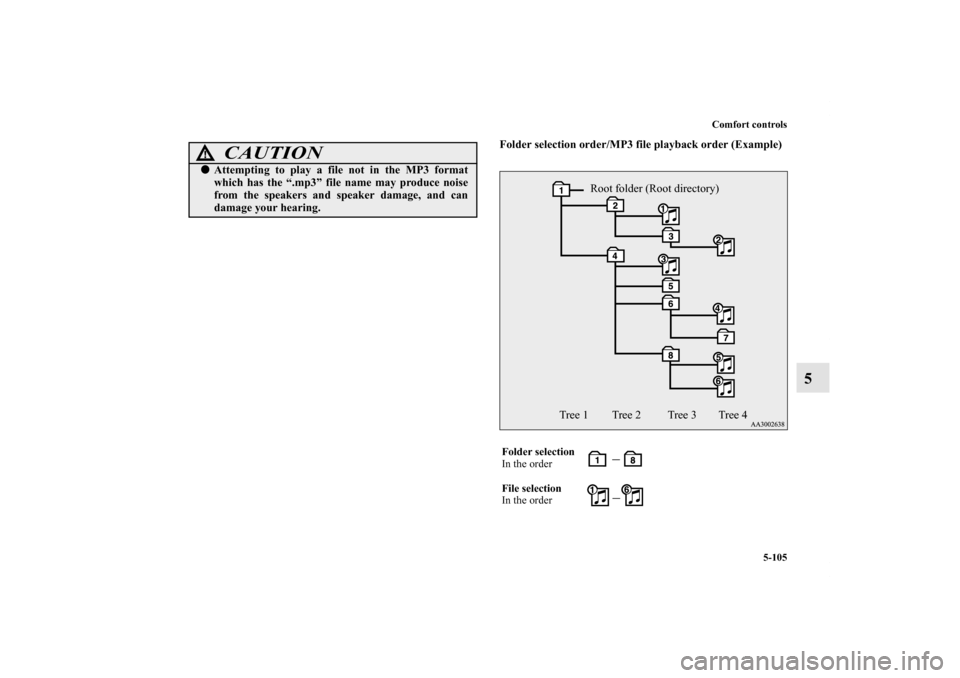

Comfort controls
5-105
5
Folder selection order/MP3 file playback order (Example)
CAUTION
!
Attempting to play a file not in the MP3 format
which has the “.mp3” file name may produce noise
from the speakers and speaker damage, and can
damage your hearing.
Folder selection
In the order
File selection
In the order
Root folder (Root directory)
Tree 1 Tree 2 Tree 3 Tree 4
BK0150800US.book 105 ページ ２０１２年３月２９日　木曜日　午後２時３８分

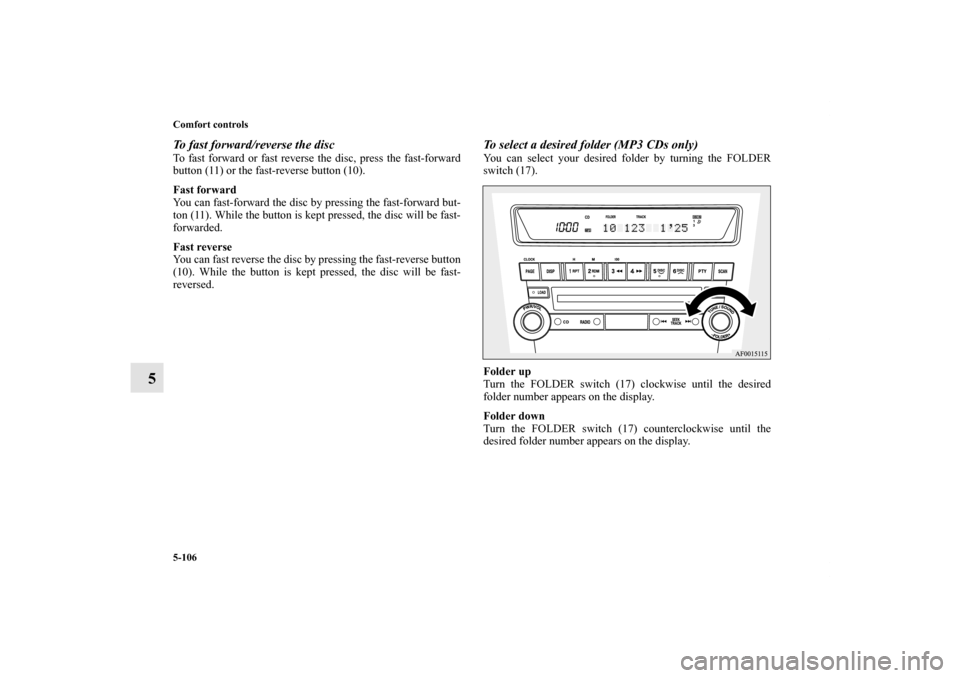

5-106 Comfort controls
5
To fast forward/reverse the discTo fast forward or fast reverse the disc, press the fast-forward
button (11) or the fast-reverse button (10).
Fast forward
You can fast-forward the disc by pressing the fast-forward but-
ton (11). While the button is kept pressed, the disc will be fast-
forwarded.
Fast reverse
You can fast reverse the disc by pressing the fast-reverse button
(10). While the button is kept pressed, the disc will be fast-
reversed.
To select a desired folder (MP3 CDs only)You can select your desired folder by turning the FOLDER
switch (17).
Folder up
Turn the FOLDER switch (17) clockwise until the desired
folder number appears on the display.
Folder down
Turn the FOLDER switch (17) counterclockwise until the
desired folder number appears on the display.
BK0150800US.book 106 ページ ２０１２年３月２９日　木曜日　午後２時３８分

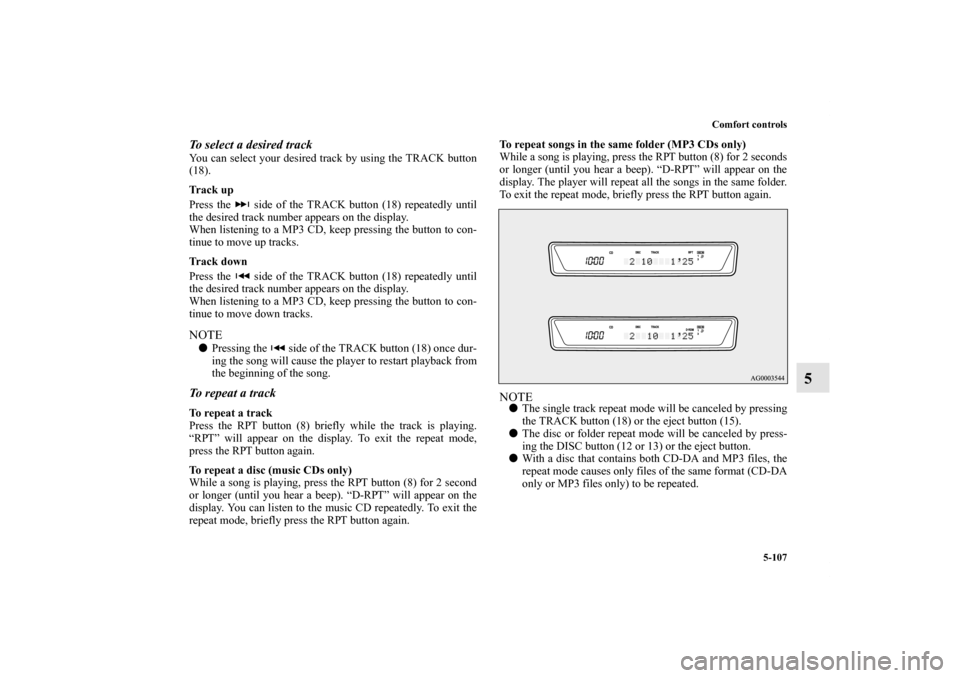

Comfort controls
5-107
5
To select a desired trackYou can select your desired track by using the TRACK button
(18).
Tr a c k u p
Press the side of the TRACK button (18) repeatedly until
the desired track number appears on the display.
When listening to a MP3 CD, keep pressing the button to con-
tinue to move up tracks.
Tr a c k d o w n
Press the side of the TRACK button (18) repeatedly until
the desired track number appears on the display.
When listening to a MP3 CD, keep pressing the button to con-
tinue to move down tracks.NOTE
Pressing the side of the TRACK button (18) once dur-
ing the song will cause the player to restart playback from
the beginning of the song.To repeat a trackTo repeat a track
Press the RPT button (8) briefly while the track is playing.
“RPT” will appear on the display. To exit the repeat mode,
press the RPT button again.
To repeat a disc (music CDs only)
While a song is playing, press the RPT button (8) for 2 second
or longer (until you hear a beep). “D-RPT” will appear on the
display. You can listen to the music CD repeatedly. To exit the
repeat mode, briefly press the RPT button again.To repeat songs in the same folder (MP3 CDs only)
While a song is playing, press the RPT button (8) for 2 seconds
or longer (until you hear a beep). “D-RPT” will appear on the
display. The player will repeat all the songs in the same folder.
To exit the repeat mode, briefly press the RPT button again.
NOTE
The single track repeat mode will be canceled by pressing
the TRACK button (18) or the eject button (15).

The disc or folder repeat mode will be canceled by press-
ing the DISC button (12 or 13) or the eject button.

With a disc that contains both CD-DA and MP3 files, the
repeat mode causes only files of the same format (CD-DA
only or MP3 files only) to be repeated.
BK0150800US.book 107 ページ ２０１２年３月２９日　木曜日　午後２時３８分

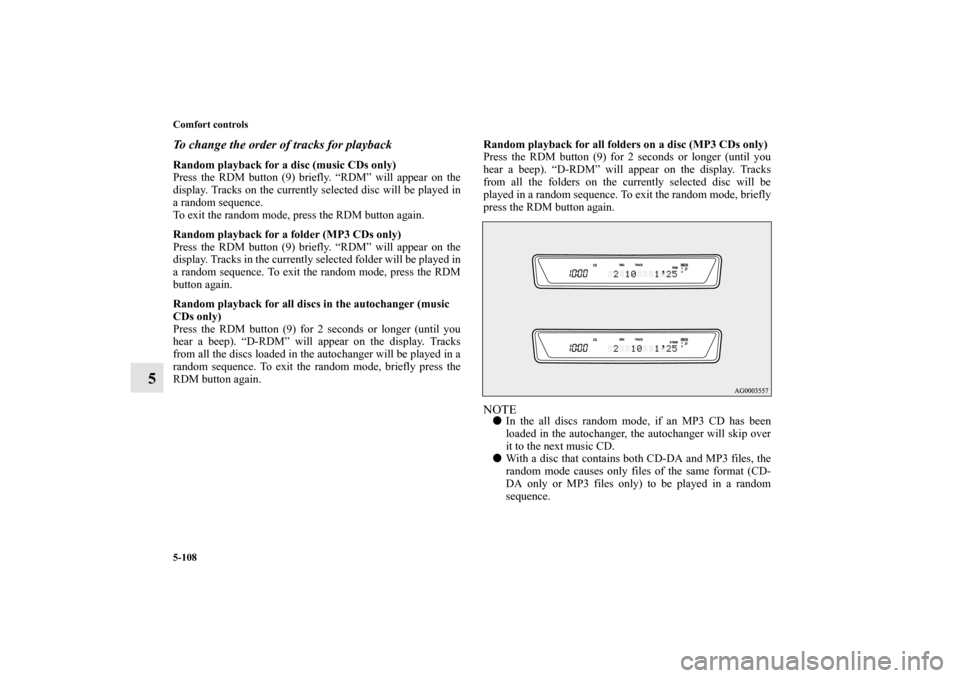

5-108 Comfort controls
5
To change the order of tracks for playbackRandom playback for a disc (music CDs only)
Press the RDM button (9) briefly. “RDM” will appear on the
display. Tracks on the currently selected disc will be played in
a random sequence.
To exit the random mode, press the RDM button again.
Random playback for a folder (MP3 CDs only)
Press the RDM button (9) briefly. “RDM” will appear on the
display. Tracks in the currently selected folder will be played in
a random sequence. To exit the random mode, press the RDM
button again.
Random playback for all discs in the autochanger (music
CDs only)
Press the RDM button (9) for 2 seconds or longer (until you
hear a beep). “D-RDM” will appear on the display. Tracks
from all the discs loaded in the autochanger will be played in a
random sequence. To exit the random mode, briefly press the
RDM button again.Random playback for all folders on a disc (MP3 CDs only)
Press the RDM button (9) for 2 seconds or longer (until you
hear a beep). “D-RDM” will appear on the display. Tracks
from all the folders on the currently selected disc will be
played in a random sequence. To exit the random mode, briefly
press the RDM button again.
NOTE
In the all discs random mode, if an MP3 CD has been
loaded in the autochanger, the autochanger will skip over
it to the next music CD.

With a disc that contains both CD-DA and MP3 files, the
random mode causes only files of the same format (CD-
DA only or MP3 files only) to be played in a random
sequence.
BK0150800US.book 108 ページ ２０１２年３月２９日　木曜日　午後２時３８分

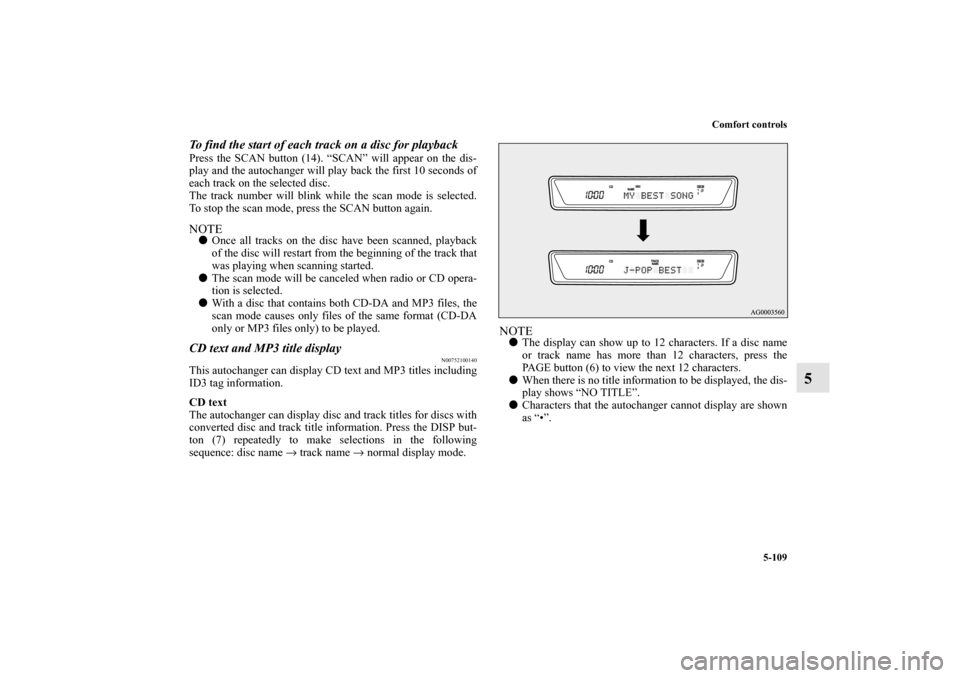

Comfort controls
5-109
5
To find the start of each track on a disc for playbackPress the SCAN button (14). “SCAN” will appear on the dis-
play and the autochanger will play back the first 10 seconds of
each track on the selected disc.
The track number will blink while the scan mode is selected.
To stop the scan mode, press the SCAN button again.NOTE
Once all tracks on the disc have been scanned, playback
of the disc will restart from the beginning of the track that
was playing when scanning started.

The scan mode will be canceled when radio or CD opera-
tion is selected.

With a disc that contains both CD-DA and MP3 files, the
scan mode causes only files of the same format (CD-DA
only or MP3 files only) to be played.CD text and MP3 title display
N00752100140
This autochanger can display CD text and MP3 titles including
ID3 tag information.
CD text
The autochanger can display disc and track titles for discs with
converted disc and track title information. Press the DISP but-
ton (7) repeatedly to make selections in the following
sequence: disc name → track name → normal display mode.
NOTE
The display can show up to 12 characters. If a disc name
or track name has more than 12 characters, press the
PAGE button (6) to view the next 12 characters.

When there is no title information to be displayed, the dis-
play shows “NO TITLE”.

Characters that the autochanger cannot display are shown
as “•”.
BK0150800US.book 109 ページ ２０１２年３月２９日　木曜日　午後２時３８分

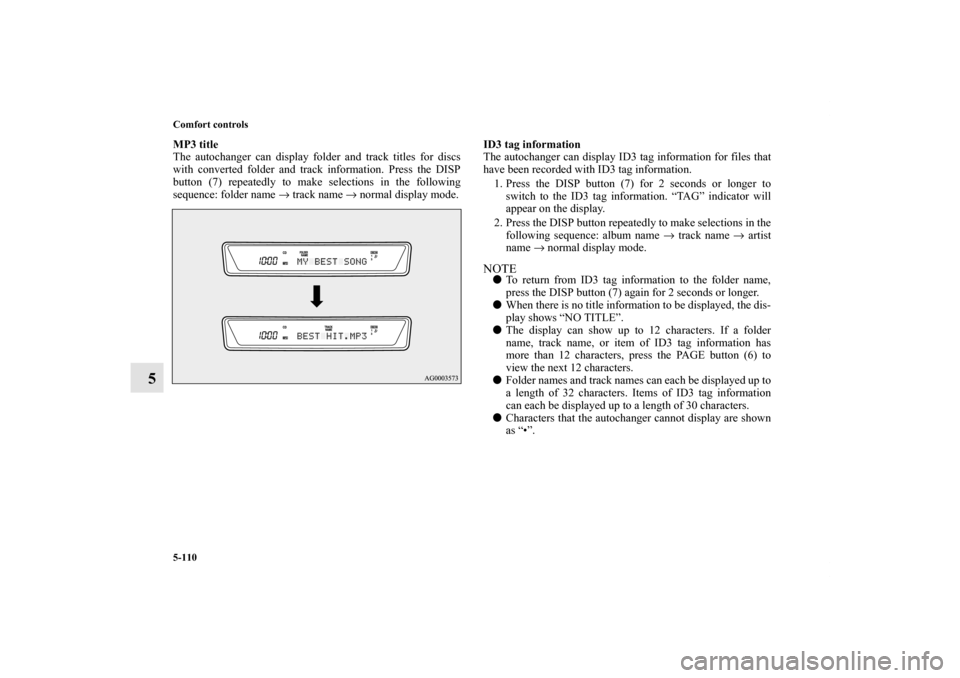

5-110 Comfort controls
5
MP3 title
The autochanger can display folder and track titles for discs
with converted folder and track information. Press the DISP
button (7) repeatedly to make selections in the following
sequence: folder name → track name → normal display mode.ID3 tag information
The autochanger can display ID3 tag information for files that
have been recorded with ID3 tag information.
1. Press the DISP button (7) for 2 seconds or longer to
switch to the ID3 tag information. “TAG” indicator will
appear on the display.
2. Press the DISP button repeatedly to make selections in the
following sequence: album name → track name → artist
name → normal display mode.
NOTE
To return from ID3 tag information to the folder name,
press the DISP button (7) again for 2 seconds or longer.

When there is no title information to be displayed, the dis-
play shows “NO TITLE”.

The display can show up to 12 characters. If a folder
name, track name, or item of ID3 tag information has
more than 12 characters, press the PAGE button (6) to
view the next 12 characters.

Folder names and track names can each be displayed up to
a length of 32 characters. Items of ID3 tag information
can each be displayed up to a length of 30 characters.

Characters that the autochanger cannot display are shown
as “•”.
BK0150800US.book 110 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Comfort controls
5-111

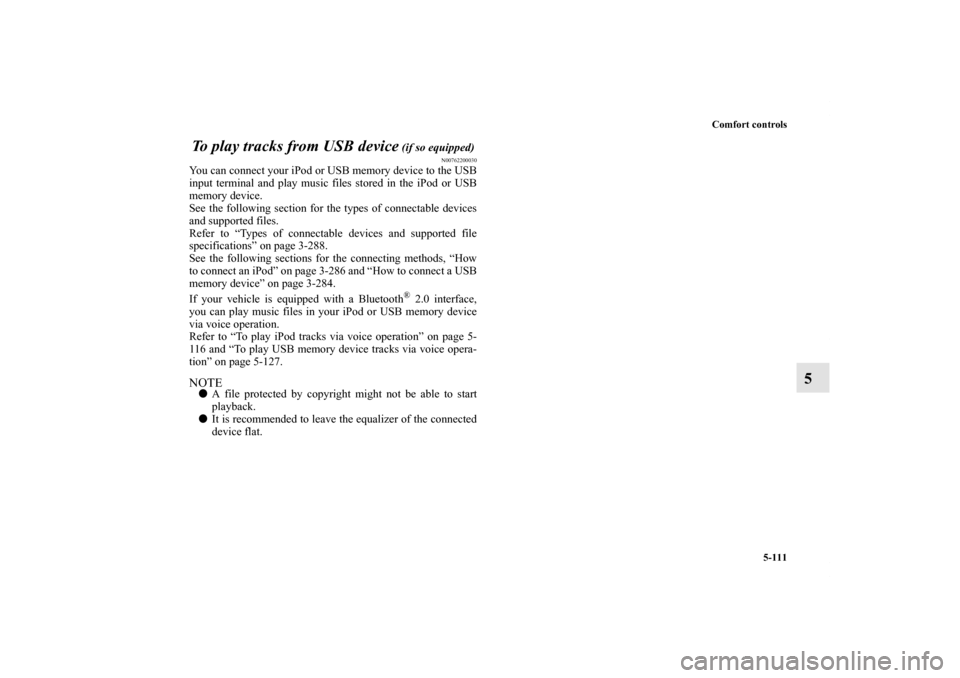

5 To play tracks from USB device
(if so equipped)
N00762200030
You can connect your iPod or USB memory device to the USB
input terminal and play music files stored in the iPod or USB
memory device.
See the following section for the types of connectable devices
and supported files.
Refer to “Types of connectable devices and supported file
specifications” on page 3-288.
See the following sections for the connecting methods, “How
to connect an iPod” on page 3-286 and “How to connect a USB
memory device” on page 3-284.
If your vehicle is equipped with a Bluetooth
® 2.0 interface,
you can play music files in your iPod or USB memory device
via voice operation.
Refer to “To play iPod tracks via voice operation” on page 5-
116 and “To play USB memory device tracks via voice opera-
tion” on page 5-127.
NOTE
A file protected by copyright might not be able to start
playback.

It is recommended to leave the equalizer of the connected
device flat.
BK0150800US.book 111 ページ ２０１２年３月２９日　木曜日　午後２時３８分
