MITSUBISHI LANCER 2014 8.G MMCS Manual

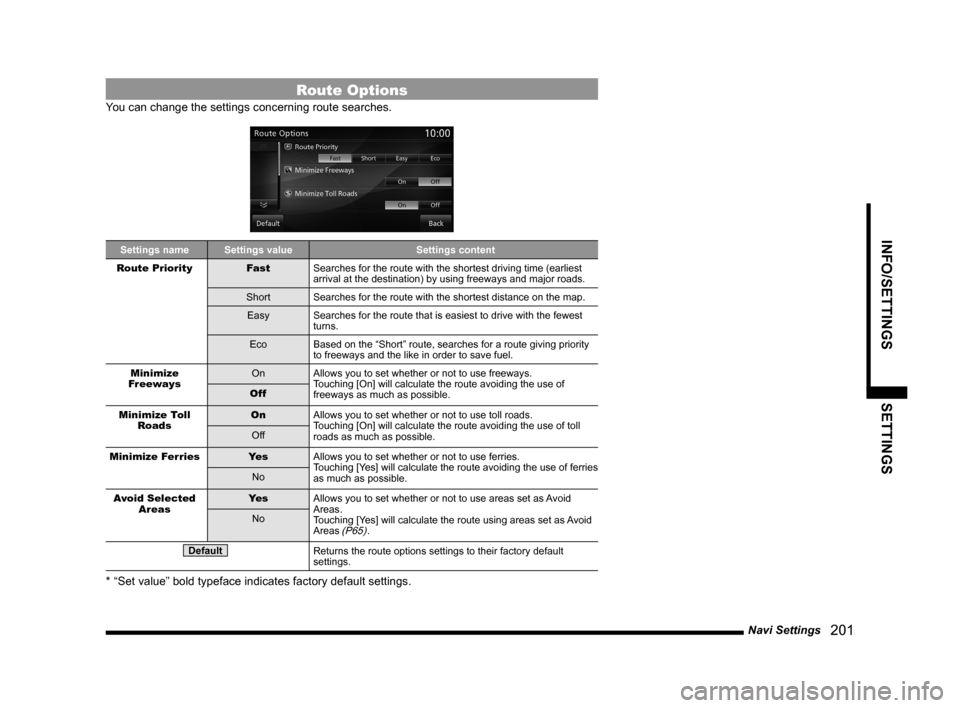

Navi Settings 201
INFO/SETTINGS SETTINGS
Route Options
You can change the settings concerning route searches.
Settings nameSettings value Settings content
Route Priority FastSearches for the route with the shortest driving time (earliest
arrival at the destination) by using freeways and major roads.
Short Searches for the route with the shortest distance on the map.
Easy Searches for the route that is easiest to drive with the fewest
turns.
Eco Based on the “Short” route, searches for a route giving priority
to freeways and the like in order to save fuel.
Minimize
Freeways On
Allows you to set whether or not to use freeways.
Touching [On] will calculate the route avoiding the use of
freeways as much as possible.
Off
Minimize Toll Roads On
Allows you to set whether or not to use toll roads.
Touching [On] will calculate the route avoiding the use of toll
roads as much as possible.
Off
Minimize Ferries Ye sAllows you to set whether or not to use ferries.
Touching [Yes] will calculate the route avoiding the use of ferries
as much as possible.
No
Avoid Selected Areas Ye s
Allows you to set whether or not to use areas set as Avoid
Areas.
Touching [Yes] will calculate the route using areas set as Avoid
Areas
(P65).
No
DefaultReturns the route options settings to their factory default
settings.
*
“Set value” bold typeface indicates factory default settings.

202 Navi Settings
Navi Voice/Others
You can set the settings for the volume and other settings.
Settings name Settings value Settings content
Beep Sound Volume OFF
Allows you to set the operation volume.(The factory default
setting is [2].)
The larger the number, the higher the volume. [Off] mutes the
operation sound.
1~3
Guidance Voice Volume +
Allows you to set the volume for audio guidance etc.(The factory
default setting is [4].)
The larger the number, the higher the volume. [Off] mutes the
operation sound.
-
Speed
Compensated Volume ON
Enables/disables the function for adjusting the volume
automatically according to the vehicle speed.
OFF
Sensor
Calibration Enter
Deletes the speed sensor and gyro sensor automatic learning
information.
→“Sensor Calibration”(P203)

Navi Settings 203
INFO/SETTINGS SETTINGS
Sensor Calibration
The levels for the speed sensor and gyro sensor are raises through autom\
atic learning. When a
tire is replaced, it is necessary to erase the speed learning data and r\
elearn it.
1Press the NAVI MENU key.
This displays the navi menu.
2Touch Navi Voice/Others .
3Touch Enter in “Sensor
Calibration”.
▼
This displays the sensor correction status
screen.
4Touch Erase in “Speed” or
“Gyro”.
5Touch Ye s .
▼
The sensor learning data deletion is complete.
Then, check “Precision of Your Car's Location
and Automatic Correction”(P203) and correct.
CAUTION
• Deleted data cannot be restored. Precision of Your Car's Location and
Automatic Correction
•
When sensor learning data has been
deleted, you can drive at a constant speed
for a while some place with a good view
and make left and right turns at junctions
to speed up the speed and gyro automatic
learning.
• When you drive at a constant speed on a
straight road with good GPS reception, the
automatic speed correction operates and
when you repeatedly turn left and right at
junctions, the gyro automatic correction
operates. The operation of the automatic
speed and gyro learning gradually improves
the precision of your car's location.
ADVICE
• In some cases, you may need to drive
a few hours before the precision of
your car's location stabilizes. Driving
somewhere with a good view, such as a
freeway, makes it easier for the automatic
correction to work.

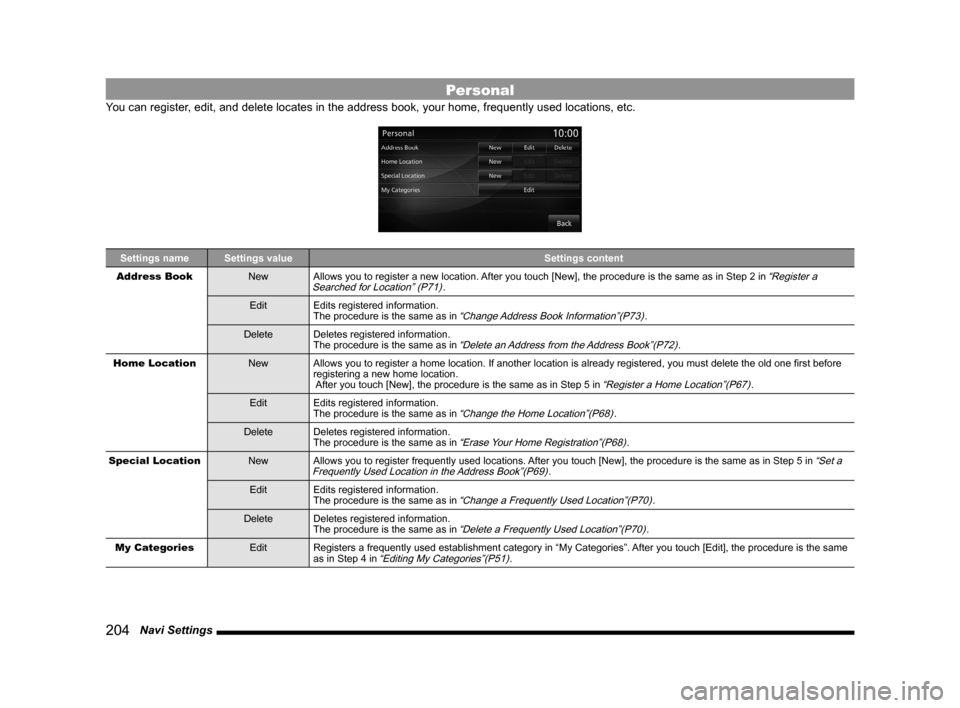

204 Navi Settings
Personal
You can register, edit, and delete locates in the address book, your home, frequently us\
ed locations, etc.
Settings name Settings value Settings content
Address Book NewAllows you to register a new location. After you touch [New], the procedure is the same as in Step 2 in
“Register a
Searched for Location” (P71).
Edit Edits registered information.
The procedure is the same as in
“Change Address Book Information”(P73).
Delete Deletes registered information.
The procedure is the same as in
“Delete an Address from the Address Book”(P72).
Home Location NewAllows you to register a home location. If another location is already registered, you must delete the old one first before
registering a new home location.
After you touch [New], the procedure is the same as in Step 5 in
“Register a Home Location”(P67).
Edit Edits registered information.
The procedure is the same as in
“Change the Home Location”(P68).
Delete Deletes registered information.
The procedure is the same as in
“Erase Your Home Registration”(P68).
Special Location NewAllows you to register frequently used locations. After you touch [New], the procedure is the same as in Step 5 in
“Set a
Frequently Used Location in the Address Book”(P69).
Edit Edits registered information.
The procedure is the same as in
“Change a Frequently Used Location”(P70).
Delete Deletes registered information.
The procedure is the same as in
“Delete a Frequently Used Location”(P70).
My Categories EditRegisters a frequently used establishment category in “My Categories”\
. After you touch [Edit], the procedure is the same
as in Step 4 in
“Editing My Categories”(P51).

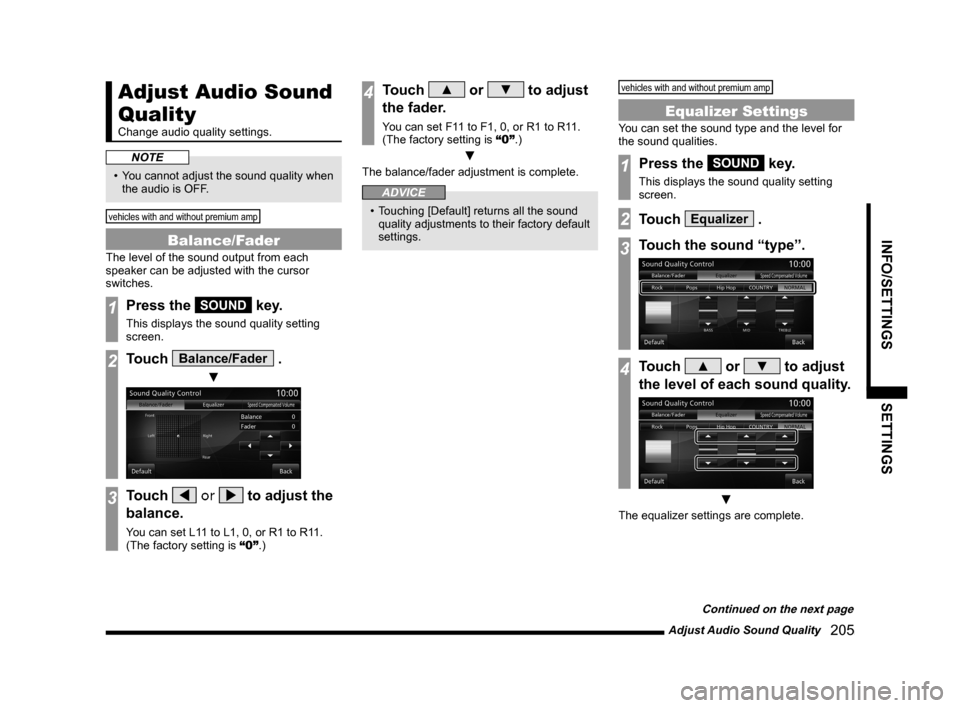

Adjust Audio Sound Quality 205
INFO/SETTINGSSETTINGS
Adjust Audio Sound
Quality
Change audio quality settings.
NOTE
• You cannot adjust the sound quality when
the audio is OFF.
vehicles with and without premium am p
Balance/Fader
The level of the sound output from each
speaker can be adjusted with the cursor
switches.
1Press the SOUND key.
This displays the sound quality setting
screen.
2Touch Balance/Fader .
▼
3Touch or to adjust the
balance.
You can set L11 to L1, 0, or R1 to R11.
(The factory setting is “0”.)
4Touch ▲ or ▼ to adjust
the fader.
You can set F11 to F1, 0, or R1 to R11.
(The factory setting is “0”.)
▼
The balance/fader adjustment is complete.
ADVICE
• Touching [Default] returns all the sound
quality adjustments to their factory default
settings.
vehicles with and without premium am p
Equalizer Settings
You can set the sound type and the level for
the sound qualities.
1Press the SOUND key.
This displays the sound quality setting
screen.
2Touch Equalizer .
3Touch the sound “type”.
4Touch ▲ or ▼ to adjust
the level of each sound quality.
▼
The equalizer settings are complete.
Continued on the next page

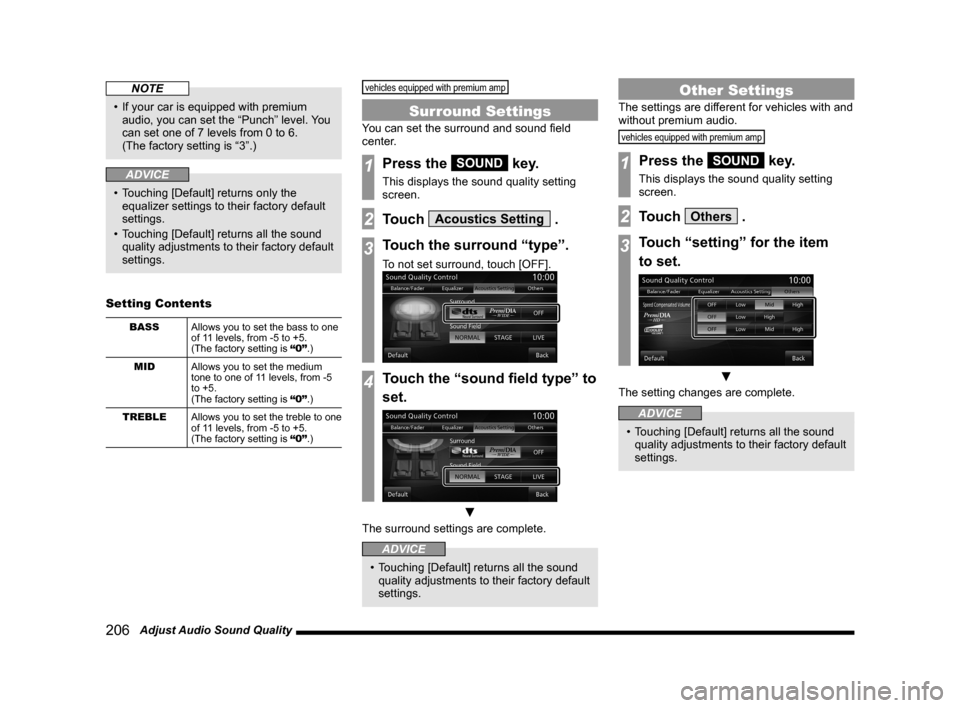

206 Adjust Audio Sound Quality
NOTE
• If your car is equipped with premium
audio, you can set the “Punch” level. You
can set one of 7 levels from 0 to 6.
(The factory setting is “3”.)
ADVICE
• Touching [Default] returns only the
equalizer settings to their factory default
settings.
• Touching [Default] returns all the sound
quality adjustments to their factory default
settings.
Setting Contents
BASS Allows you to set the bass to one
of 11 levels, from -5 to +5.
(The factory setting is “0”.)
MID Allows you to set the medium
tone to one of 11 levels, from -5
to +5.
(The factory setting is “0”.)
TREBLE Allows you to set the treble to one
of 11 levels, from -5 to +5.
(The factory setting is “0”.)
vehicles equipped with premium am p
Surround Settings
You can set the surround and sound field
center.
1Press the SOUND key.
This displays the sound quality setting
screen.
2Touch Acoustics Setting .
3Touch the surround “type”.
To not set surround, touch [OFF].
4Touch the “sound field type” to
set.
▼
The surround settings are complete.
ADVICE
• Touching [Default] returns all the sound
quality adjustments to their factory default
settings.
Other Settings
The settings are different for vehicles with and
without premium audio.
vehicles equipped with premium am p
1Press the SOUND key.
This displays the sound quality setting
screen.
2Touch Others .
3Touch “setting” for the item
to set.
▼
The setting changes are complete.
ADVICE
• Touching [Default] returns all the sound
quality adjustments to their factory default
settings.

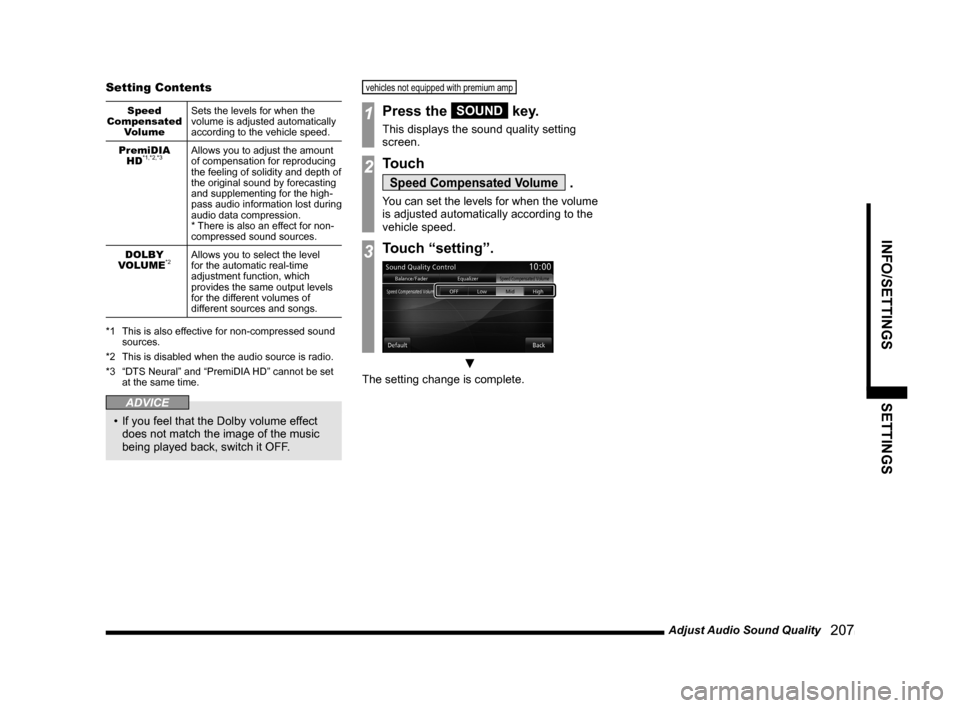

Adjust Audio Sound Quality 207
INFO/SETTINGSSETTINGS
Setting Contents
Speed
Compensated Volume Sets the levels for when the
volume is adjusted automatically
according to the vehicle speed.
PremiDIA HD
*1,*2,*3Allows you to adjust the amount
of compensation for reproducing
the feeling of solidity and depth of
the original sound by forecasting
and supplementing for the high-
pass audio information lost during
audio data compression.
* There is also an effect for non-
compressed sound sources.
DOLBY
VOLUME
*2Allows you to select the level
for the automatic real-time
adjustment function, which
provides the same output levels
for the different volumes of
different sources and songs.
*1 This is also effective for non-compressed sound
sources.
*2 This is disabled when the audio source is radio.
*3 “DTS Neural” and “PremiDIA HD” cannot be set
at the same time.
ADVICE
• If you feel that the Dolby volume effect
does not match the image of the music
being played back, switch it OFF.
vehicles not equipped with premium am p
1Press the SOUND key.
This displays the sound quality setting
screen.
2Touch
Speed Compensated Volume .
You can set the levels for when the volume
is adjusted automatically according to the
vehicle speed.
3Touch “setting”.
▼
The setting change is complete.

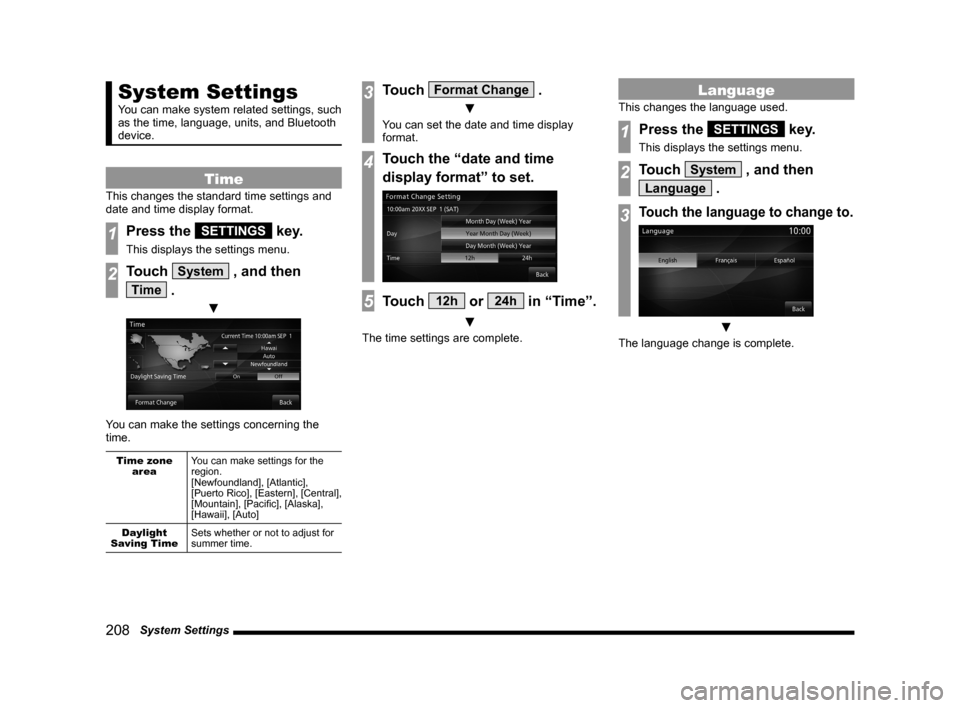

208 System Settings
System Settings
You can make system related settings, such
as the time, language, units, and Bluetooth
device.
Time
This changes the standard time settings and
date and time display format.
1Press the SETTINGS key.
This displays the settings menu.
2Touch System , and then
Time .
▼
You can make the settings concerning the
time.
Time zone
area You can make settings for the
region.
[Newfoundland], [Atlantic],
[Puerto Rico], [Eastern], [Central],
[Mountain], [Pacific], [Alaska],
[Hawaii], [Auto]
Daylight
Saving Time Sets whether or not to adjust for
summer time.
3Touch Format Change .
▼
You can set the date and time display
format.
4Touch the “date and time
display format” to set.
5Touch 12h or 24h in “Time”.
▼
The time settings are complete.
Language
This changes the language used.
1Press the SETTINGS key.
This displays the settings menu.
2Touch System , and then
Language .
3Touch the language to change to.
▼
The language change is complete.

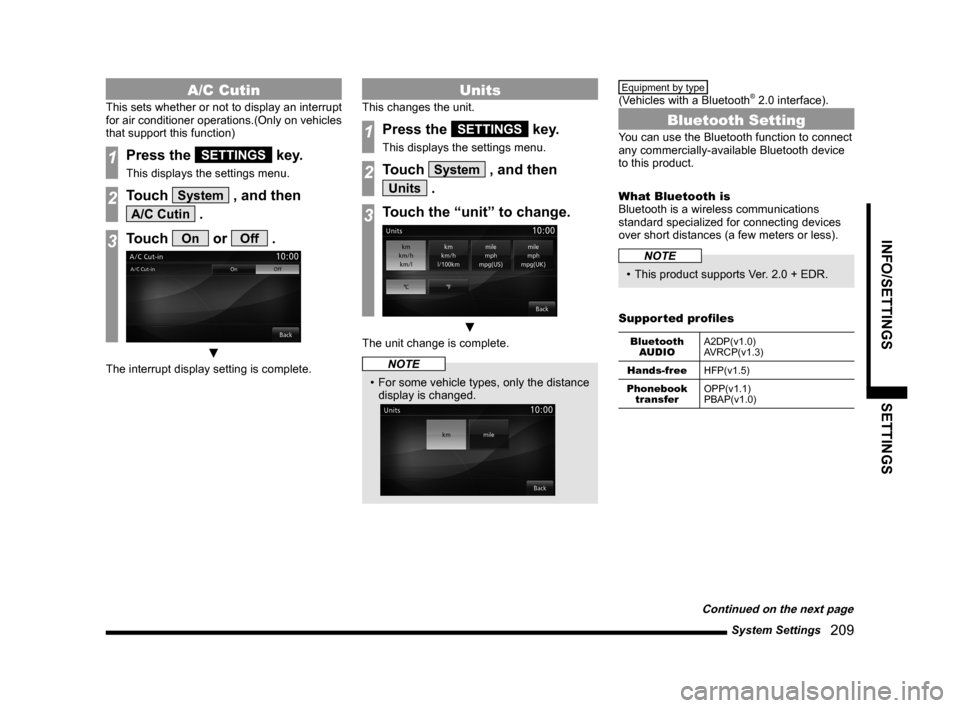

System Settings 209
INFO/SETTINGS SETTINGS
A/C Cutin
This sets whether or not to display an interrupt
for air conditioner operations.(Only on vehicles
that support this function)
1Press the SETTINGS key.
This displays the settings menu.
2Touch System , and then
A/C Cutin .
3Touch On or Off .
▼
The interrupt display setting is complete.
Units
This changes the unit.
1Press the SETTINGS key.
This displays the settings menu.
2Touch System , and then
Units .
3Touch the “unit” to change.
▼
The unit change is complete.
NOTE
• For some vehicle types, only the distance
display is changed.

Equipment by type
(Vehicles with a Bluetooth® 2.0 interface).
Bluetooth Setting
You can use the Bluetooth function to connect
any commercially-available Bluetooth device
to this product.
What Bluetooth is
Bluetooth is a wireless communications
standard specialized for connecting devices
over short distances (a few meters or less).
NOTE
• This product supports Ver. 2.0 + EDR.
Supported profiles
Bluetooth AUDIO A2DP(v1.0)
AVRCP(v1.3)
Hands-free HFP(v1.5)
Phonebook transfer OPP(v1.1)
PBAP(v1.0)
Continued on the next page

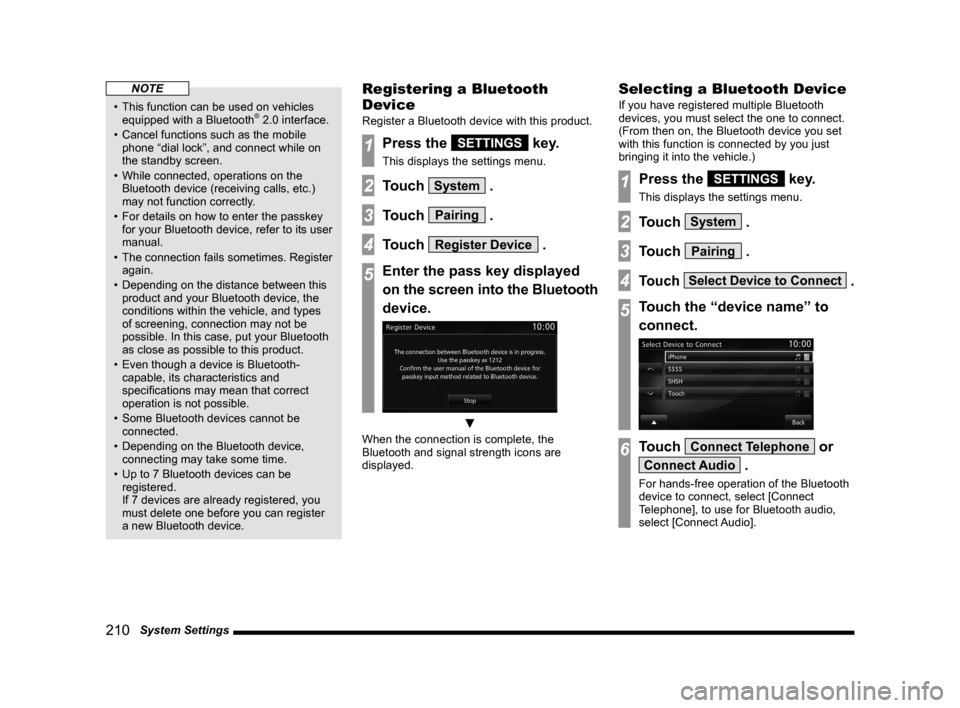

210 System Settings
NOTE
• This function can be used on vehicles
equipped with a Bluetooth® 2.0 interface.
• Cancel functions such as the mobile
phone “dial lock”, and connect while on
the standby screen.
• While connected, operations on the
Bluetooth device (receiving calls, etc.)
may not function correctly.
• For details on how to enter the passkey
for your Bluetooth device, refer to its user
manual.
• The connection fails sometimes. Register
again.
• Depending on the distance between this
product and your Bluetooth device, the
conditions within the vehicle, and types
of screening, connection may not be
possible. In this case, put your Bluetooth
as close as possible to this product.
• Even though a device is Bluetooth-
capable, its characteristics and
specifications may mean that correct
operation is not possible.
• Some Bluetooth devices cannot be
connected.
• Depending on the Bluetooth device,
connecting may take some time.
• Up to 7 Bluetooth devices can be
registered.
If 7 devices are already registered, you
must delete one before you can register
a new Bluetooth device.
Registering a Bluetooth
Device
Register a Bluetooth device with this product.
1Press the SETTINGS key.
This displays the settings menu.
2Touch System .
3Touch Pairing .
4Touch Register Device .
5Enter the pass key displayed
on the screen into the Bluetooth
device.
▼
When the connection is complete, the
Bluetooth and signal strength icons are
displayed.
Selecting a Bluetooth Device
If you have registered multiple Bluetooth
devices, you must select the one to connect.
(From then on, the Bluetooth device you set
with this function is connected by you just
bringing it into the vehicle.)
1Press the SETTINGS key.
This displays the settings menu.
2Touch System .
3Touch Pairing .
4Touch Select Device to Connect .
5Touch the “device name” to
connect.
6Touch Connect Telephone or
Connect Audio .
For hands-free operation of the Bluetooth
device to connect, select [Connect
Telephone], to use for Bluetooth audio,
select [Connect Audio].
