MITSUBISHI LANCER 2015 8.G Owners Manual

Vehicle dimensions 11-4 Specifications
11
N01147500482 N01147600890
GVWR: maximum total weight (load) limit specified for the vehicle GAWR: maximum weight (load) limit sp
ecified for the front or rear axle

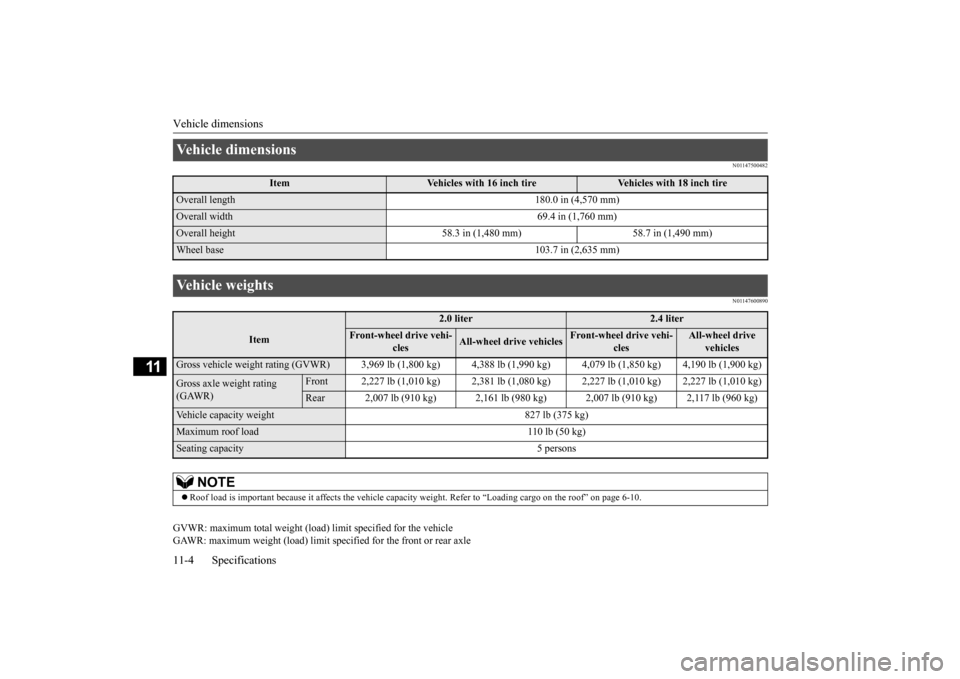

Vehicle dimensions
Item
Vehicles with 16 inch tire
Vehicles with 18 inch tire
Overall length 180.0 in (4,570 mm) Overall width 69.4 in (1,760 mm) Overall height 58.3 in (1,480 mm) 58.7 in (1,490 mm)Wheel base 103.7 in (2,635 mm) Vehicle weights
Item
2.0 liter
2.4 liter
Front-wheel drive vehi-
cles
All-wheel drive vehicles
Front-wheel drive vehi-
cles
All-wheel drive
vehicles
Gross vehicle weight rating (GVWR) 3,969 lb (1,800 kg
) 4,388 lb (1,990 kg) 4,079 lb (
1,850 kg) 4,190 lb (1,900 kg)
Gross axle weight rating (GAWR)
Front 2,227 lb (1,010 kg) 2,381 lb (1,080 kg)
2,227 lb (1,010 kg) 2,227 lb (1,010 kg)
Rear 2,007 lb (910 kg) 2,161 lb (980
kg) 2,007 lb (910 kg) 2,117 lb (960 kg)
Vehicle capacity weight 827 lb (375 kg)Maximum roof load 110 lb (50 kg)Seating capacity 5 persons
NOTE
Roof load is important because it affects the vehicle capacity
weight. Refer to “Loading cargo on the roof” on page 6-10.
BK0210300US.bo
ok 4 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Engine specifications Specifications 11-5
11
Seating capacity: the number of maximum occupants
N01147700439
N01147800182
Battery is a 12 volt type.
N01147901786
Engine specifications
Item
2.0 liter
2.4 liter
Except for vehicles with tur-
bocharger
Vehicles with turbocharger
Engine model 4B11 4B12Engine displacement 121.9 CID (1,998 cm³) 144.0 CID (2,360 cm³)No. of cylinders and cylinder arrange- ment
4 in-line
Bore 3.39 in (86.0 mm) 3.46 in (88.0 mm)Stroke 3.39 in (86.0 mm) 3.82 in (97.0 mm)Compression ratio 10.0 9.0 10.5Thermostat valve opening temperature 189 °F (87 °C) 180 °F (82 °C) 189 °F (87 °C)Spark plugs
NGK DIFR6C11 DILKR7B6 DIFR5C11
Spark plug gap
.040 to .043 in (1.0 to 1.1 mm)
.020 to .023 in (0.5 to 0.6 mm)
.040 to .043 in (1.0 to 1.1 mm)
Firing order 1-3-4-2Battery
75D23L
Tires and wheels Tire
Size
P205/60R16
91H
215/45R18
89W,
P215/45R18
89V
Wheel
Size
16 x 6 1/2J, 16 x 6 1/2JJ
18 x 7J
PC D
4.5 in (114.3 mm)
Off- set
1.81 in (46 mm)
BK0210300US.bo
ok 5 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Refill capacities 11-6 Specifications
11
PCD: Pitch Circle Diameter (installation holes)
N01148002101
NOTE
 Contact an authorized Mitsubishi Motors dealer for details on the combination used on your vehicle.
 These tires satisfy vehicle loading conditions described in this owner’s manual.NOTE

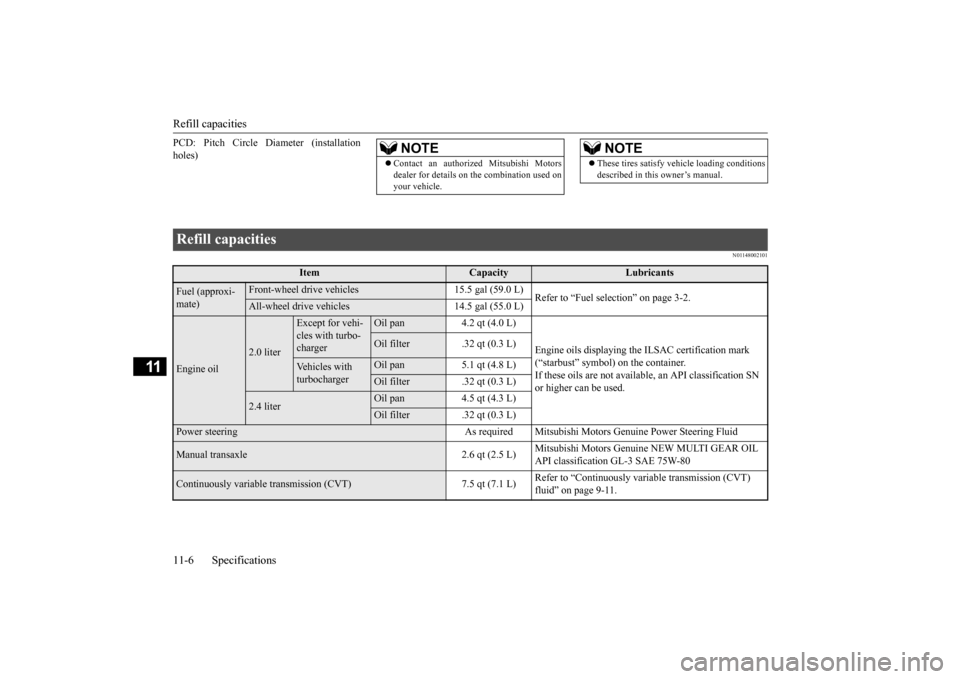

Refill capacities
Item
Capacity
Lubricants
Fuel (approxi- mate)
Front-wheel drive vehicles 15.5 gal (59.0 L)
Refer to “Fuel selection” on page 3-2.
All-wheel drive vehicles 14.5 gal (55.0 L)
Engine oil
2.0 liter
Except for vehi- cles with turbo- charger
Oil pan 4.2 qt (4.0 L)
Engine oils displaying the ILSAC certification mark (“starbust” symbol) on the container.If these oils are not available, an API classification SN or higher can be used.
Oil filter .32 qt (0.3 L)
Vehicles with turbocharger
Oil pan 5.1 qt (4.8 L)Oil filter .32 qt (0.3 L)
2.4 liter
Oil pan 4.5 qt (4.3 L)Oil filter .32 qt (0.3 L)
Power steering As required Mitsubishi Motors Genuine Power Steering Fluid Manual transaxle 2.6 qt (2.5 L)
Mitsubishi Motors Genuine NEW MULTI GEAR OIL API classification GL-3 SAE 75W-80
Continuously variable transmission (CVT) 7.5 qt (7.1 L)
Refer to “Continuously variable transmission (CVT) fluid” on page 9-11.
BK0210300US.bo
ok 6 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Refill capacities
Specifications 11-7
11
Twin Clutch SST
8.0 qt (7.6 L) {includes .53 qt (0.5 L) in oil cooler}
Refer to “Twin Clutch Sportronic shift transmission (Twin Clutch SST) fluid” on page 9-12.
Transfer oil
Except for vehicles with ACD .53 qt (0.5 L)
Mitsubishi Motors Genuine Super Hypoid Gear Oil API classification GL-5 SAE 80
Vehicles with ACD .85 qt (0.8 L) Mitsubishi Motors Genuine LSD gear oil
AWC control fluid
.95 qt (0.9 L) {Includes hydrau-
lic piping}
DIAMOND ATF SP III
Rear differential oil
Except for vehicles with ACD .42 qt (0.4 L)
Mitsubishi Motors Genuine Super Hypoid Gear Oil API classification GL-5 SAE 80
Vehicles with ACD .58 qt (0.55 L) Mits
ubishi Motors Genuine LSD gear oil
Brake/Clutch (if so equipped) As required C
onforming to Brake fluid DOT3 or DOT4
Hood lock release mechanism and safety catch As
required Multipurpose type grease NLGI Grade 2
Engine coolant {Includes .63 qt (0.65 L) in reserve tank}
Manual trans- axle
7.4 qt (7.0 L)
Mitsubishi Motors Genuine Super Long Life Coolant Premium or an equivalent
*
CVT 7.4 qt (7.0 L)Twin Clutch SST
7.9 qt (7.5 L)
Washer fluid 4.3 qt (4.0 L) —
Refer to the “Air conditioning label”
on page 11-2.
HFC-134a
Item
Capacity
Lubricants
BK0210300US.bo
ok 7 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Refill capacities 11-8 Specifications
11
ACD: Active center differential system LSD: Limited slip differential * : similar high quality ethylene glycol based non-silicate, non-amin
e, non-nitrate and non-borate coolant with long life hybrid o
rganic acid tech-
nology
BK0210300US.bo
ok 8 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Alphabetical index
12-1
12
A
Accessory (installation)
.........................
3-6
ACD (Active center differential system) 5-82
ACD control mode display
..............
5-83
ACD control mode switch
...............
5-82
ACD warning display
......................
5-83
Active stability control (ASC)
..............
5-94
ASC OFF display or ASC indicator
..5-95
ASC operation display
....................
5-95
Air cleaner filter
...................
................
9-9
Air conditioning
Automatic air conditioning
.....
7-17
, 7-22
Important air conditioning operating tips
..
7-28 Manual air conditioning
...........
7-7
, 7-12
Air purifier
....................
.....................
7-28
All-wheel driving operation
.................
5-86
Aluminum wheels
...............................
9-52
AM/FM radio
....................
.................
7-29
Antenna
Roof antenna
.........................
7-62
, 7-63
Anti-lock braking system
.....................
5-91
Warning light / display
....................
5-92
Arm rest
........................
.......................
4-6
Assist grip
.....................
...................
5-191
Audio
AM/FM radio
................
.................
7-29
CD player
.....................
.................
7-29
Troubleshooting
.............................
7-60
Automatic air conditioning
..........
7-17
, 7-22
AWC control fluid
...............
...............
9-12
B
Back-up lights
Bulb capacity
..................
...............
9-34
Replacement
...................
...............
9-45
Ball joint, steering linkage seals and drive shaft boots
.....................
..................
9-27
Battery
........................
......................
9-14
Charging system warning light
.......
5-145
Checking battery electrolyte level
....
9-15
Disconnection and connection
.........
9-16
During cold weather
.......................
9-16
Removing and installing the battery uppercover (vehicles with turbocharger)
.9-14
Specification
...................
...............
11-5
Bluetooth 2.0 interface
.......................
5-159
Bottle holder
....................
.................
5-191
Brake
Anti-lock braking system
................
5-91
Braking
.......................
....................
6-5
Fluid
....................
.................
9-13
, 11-6
Hose
.......................
......................
9-27
Parking brake
..................
...............
5-48
Parking brake lever stroke
...............
9-25
Pedal
.......................
......................
5-89
Pedal free play
................
...............
9-25
Power brakes
..................
...............
5-89
Service brake
.................
.................
5-89
Brake assist
...................
.....................
5-90
Break-in recommendations
....................
5-3
Bulb capacity
.....................
.................
9-34
C
California Perchlorate Materials Requirements
.....................
................
3-7
Capacities
.....................
.....................
11-6
Card holder
............................
5-184
, 5-188
Cargo loads
...................
.....................
6-10
Catalytic converter
................
................
9-2
CD player
......................
.....................
7-29
Certification label
...............................
11-3
Charging system warning light
...........
5-145
Chassis number
..................
.................
11-2
Child restraint
....................
.................
4-14
Child safety locks for rear door
............
5-39
Cleaning
Inside of your vehicle
......................
9-48
Outside of your vehicle
...................
9-49
Clutch
Fluid
..................
...................
9-13
, 11-6
Pedal free play
...............
.................
9-24
Coat hooks
....................
...................
5-192
Combination headlights and dimmer switch
.
5-147
BK0210300US.bo
ok 1 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Alphabetical index 12-2
12
Coming home light
...........................
5-151
Consumer information
........................
10-2
Continuously variable transmission (CVT)
....
5-61Fluid
.....................
...............
9-11
, 11-6
Selector lever operation
...................
5-61
Sports mode
..................
.................
5-66
Coolant (engine)
..........................
9-8
, 11-6
Cruise control
....................
.................
5-97
Indicator
...................
.....................
5-98
Cup holder
....................
...................
5-190
D
Daytime running lights
Bulb capacity
................
.................
9-34
Replacement
.................
.................
9-38
Defogger (rear window)
....................
5-158
Defrosting or defogging (windshield, door windows)
...............
7-12
, 7-17
, 7-22
, 7-27
Digital clock
Time setting
..................
.................
7-59
Dimensions
...................
.....................
11-4
Dimmer (high/low beam change)
.......
5-150
Disc brake pads
.................
.................
9-27
Dome light
Bulb capacity
................
.................
9-36
Replacement
.................
.................
9-47
Switch
......................
...................
5-186
Dome light/Reading lights
Bulb capacity
..................
................
9-36
Replacement
...................
................
9-46
Switch
.....................
.....................
5-186
Doors
Lock
.......................
.......................
5-35
Power door locks
............................
5-37
Drive mode indicator
...........................
5-85
Drive mode-selector
............................
5-84
Driving during cold weather
..................
6-4
Driving, alcohol and drugs
....................
6-2
E
Electric rear window defogger switch
..5-158
Electronic immobilizer (Anti-theft starting system)
.....................
................
5-4
, 5-28
Electronically controlled 4WD system
..5-84
Drive mode indicator
.......................
5-85
Drive mode-selector
........................
5-84
Emergency key
...................
................
5-23
Emission-control system maintenance
...
9-25
Engine
Compartment
..................
.................
9-5
Coolant
...................
................
9-8
, 11-6
Hood
.......................
........................
9-3
Oil and oil filter
.......................
9-6
, 11-6
Overheating
....................
.................
8-4
Serial number
.................
................
11-2
Specifications
.................
................
11-5
Engine coolant temperature display
....
5-117
Exhaust system
..................
.................
9-27
F
Filling the fuel tank
...............
................
3-4
Floor console box
.............................
5-189
Floor mat
......................
.......................
6-2
Fluid
..........................
........................
11-6
AWC control fluid
..........................
9-12
Brake fluid
............................
9-13
, 11-6
Clutch fluid
...........................
9-13
, 11-6
Continuously variable transmission (CVT) fluid
....................
...............
9-11
, 11-6
Engine coolant
........................
9-8
, 11-6
Power steering fluid
...............
9-14
, 11-6
Twin Clutch Sportron
ic shift transmission
(Twin Clutch SST) fluid
.......
9-12
, 11-6
Washer fluid
.................
.................
11-6
Fluid capacities and lubricants
.............
11-6
Fog lights
Bulb capacity
................
.................
9-34
Indicator
...................
...................
5-143
Replacement
.........................
9-41
, 9-42
Switch
......................
...................
5-153
Free-hand advanced security transmitter (F.A.S.T.-key)
.................
.................
5-12
Front console boxes
..........................
5-189
Front console tray
.............................
5-189
Front seats
.........................
...................
4-3
BK0210300US.bo
ok 2 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Alphabetical index
12-3
12
Front turn signal lights
Replacement
.................
.................
9-40
Front turn signal, parking and side-marker lightsBulb capacity
................
.................
9-34
Replacement
.........................
9-39
, 9-40
Fuel
Fuel economy
...................
................
6-2
Fuel hoses
.....................
.................
9-26
Modification/alterations to the electrical orfuel systems
...................
................
3-6
Tank capacity
..........................
3-4
, 11-6
Fuel Pump Shut-off System
.................
8-15
Fuel selection
....................
...................
3-2
Fuses
.........................
........................
9-29
Fusible links
..................
.....................
9-28
G
General maintenance
...........................
9-27
General vehicle data
............................
11-4
Genuine parts
....................
...................
3-6
Glove compartment
...........................
5-188
H
Hazard warning flasher switch
...........
5-153
Hazard warning lights
.......................
5-143
Head restraints
...................
...................
4-6
Headlight leveling switch
...................
5-152
Headlights
Bulb capacity
..................
...............
9-34
Dimmer
...................
.....................
5-150
Headlight flasher
...........................
5-150
Leveling switch
.............................
5-152
Replacement
...................
...............
9-36
Switch
.....................
.....................
5-147
Heater without air conditioning function
.7-4
High beam indicator
..........................
5-143
Hill start assist (vehicles with Twin Clutch SST)
.........................
......................
5-90
Hood lock release mechanism and safety catch
.........................
......................
9-28
Horn switch
.....................
.................
5-159
I
If the vehicle breaks down
.....................
8-2
Ignition switch
...........................
5-16
, 5-53
Important facts to know in case of an accident 10-4 Indicators
....................
.....................
5-143
Information screen display
.................
5-145
Inside day/night rearview mirror
..........
5-50
Inside emergency trunk lid release
.......
5-41
Interior lights
...................
.................
5-185
J
Jack
...........................
..........................
8-5
Storage
.........................
...................
8-5
Jump-starting the engine
........................
8-2
K
Key reminder buzzer
...........................
5-36
Keyless entry system
.............................
5-7
Keys
..........................
..........................
5-3
L
Labeling
........................
.....................
11-2
License plate light
Bulb capacity
................
.................
9-34
Replacement
..................
.................
9-45
Limited-slip differential
.......................
5-88
Link System
..................
...................
5-159
Loading information
..............................
6-6
Lubricants
.....................
.....................
11-6
Luggage floor boxes
..........................
5-190
M
Malfunction indicator
........................
5-144
Manual air conditioning
.......................
7-12
Manual transaxle
................
.................
5-59
Oil
.....................
...................
9-11
, 11-6
BK0210300US.bo
ok 3 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Alphabetical index 12-4
12
Shift points (recommended speed)
....
5-60
Mirror
Inside day/night rearview mirror
......
5-50
Outside rearview mirrors
.................
5-52
Modifications to and racing of your vehicle
...
3-5 Multi-information display
..................
5-110
O
Octane requirement
...............
................
3-2
Oil
Engine oil
...............................
9-6
, 11-6
Manual transaxle oil
..............
9-11
, 11-6
Rear axle oil
..................
.................
9-12
Transfer oil
...................
.................
9-12
Operation under adverse driving conditions
...
8-14 Outside rearview mirrors
.....................
5-52
Overheating
......................
...................
8-4
P
Parking
.........................
.......................
6-6
Parking brake
................
.................
5-48
Parking brake lever stroke
...............
9-25
Polishing
.......................
.....................
9-51
Power brakes
.....................
.................
5-89
Power door locks
...............
.................
5-37
Power steering
Fluid
....................
.................
9-14
, 11-6
System
........................
...................
5-96
Power windows
...................
................
5-44
Puncture (Tire changing)
.......................
8-6
R
Radiator cap
....................
....................
9-9
Radio
General information about your radio 7-63
Rain sensor
..................
.....................
5-155
Rear axle oil
....................
...................
9-12
Rear side-marker lights
Bulb capacity
..................
................
9-34
Replacement
...................
................
9-44
Rear turn signal lights
Bulb capacity
..................
................
9-34
Replacement
...................
................
9-44
Rear window defogger switch
............
5-158
Rear-view camera
.............................
5-106
Rearview mirror
Inside
......................
.......................
5-50
Outside
.......................
...................
5-52
Refrigerant (air conditioning)
...............
11-6
Replacement of light bulbs
...................
9-34
Replacing tires and wheels
...................
9-22
Reporting Safety Defects
.....................
10-2
Roof antenna
.............................
7-62
, 7-63
S
Safe driving techniques
.........................
6-4
Seat
...........................
..........................
4-2
Arm rest
.......................
...................
4-6
Front seats
....................
...................
4-3
Heated seats
.....................
................
4-5
Rear seats
.....................
...................
4-5
Seats and restraint systems
................
4-2
Seat belt
........................
.......................
4-8
Adjustable seat belt shoulder anchor
.4-12
Child restraint
...............
.................
4-14
Driver’s seat belt reminder/warning
..4-11
Force limiter
.................
.................
4-14
Front passenger seat belt warning light
.....
4-12Maintenance and inspection
.............
4-21
Pre-tensioner
.................
.................
4-13
Seat belt extender
...........................
4-12
Seat belt instructions
.........................
4-9
Seat belt use during pregnancy
.........
4-13
Service brake
.....................
.................
5-89
Service precautions
...............
................
9-2
Snow tires
.....................
.....................
9-24
Spark plugs
...................
.....................
9-26
Steering
Power steering fluid
...............
9-14
, 11-6
Tilt lock lever
................
.................
5-50
Wheel lock
............................
5-20
, 5-55
Storage spaces
...................
...............
5-187
BK0210300US.bo
ok 4 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Alphabetical index
12-5
12
Sun visors
.....................
...................
5-184
Supplemental Restraint System
............
4-21
How the Supplement Restraint System works
.....................
.....................
4-24
Servicing
..................
.....................
4-36
Warning light/display
......................
4-27
T
Tank capacity
..............................
3-4
, 11-6
Theft-alarm system
System
......................
.....................
5-42
Time Setting
..................
.....................
7-59
Tire pressure monitoring system
.........
5-102
Warning light/display
....................
5-103
Tires
..........................
........................
9-17
How to change a tire
.........................
8-6
Inflation pressure
............................
9-21
Maintenance
..................
.................
9-22
Quality grading
...............................
10-2
Replacing tires and wheels
...............
9-22
Rotation
....................
.....................
9-23
Size (tire and wheel)
.......................
11-5
Snow tires
.....................
.................
9-24
Tire and loading information placard
.6-7
,
11-3 Tire chains
....................
.................
9-24
Tread wear indicators
......................
9-23
Tissue holder
.....................
...............
5-190
Tools
.........................
..........................
8-5
Storage
.........................
...................
8-5
Towing
........................
......................
8-12
Trailer towing
.....................
...............
6-11
Transfer oil
......................
..................
9-12
Trunk area light
Replacement
...................
...............
9-48
Trunk lid
.........................
..................
5-39
Turbocharger operation
.......................
5-59
Turn signal light
Indicators
....................
.................
5-143
Turn signal lights
Bulb capacity
..................
...............
9-34
Lever
......................
.....................
5-152
Replacement
...................
...............
9-40
Twin Clutch SST (Sportronic Shift Transmission)
...................
...............
5-70
Fluid
....................
.................
9-12
, 11-6
Gearshift lever operation
.................
5-70
Gearshift lever position display
........
5-71
Manual shift
....................
...............
5-76
Manual shift display
.......................
5-79
Twin Clutch SST control mode display
....
5-76 Twin Clutch SST control mode switch
.....
5-75 Warning display
.............................
5-72
U
USB input terminal
............................
5-181
How to connect an iPod
.................
5-182
USB input terminal device
How to connect a USB memory
.....
5-181
V
Vanity mirror
.....................
...............
5-184
Vehicle care precautions
......................
9-48
Vehicle dimensions
.............................
11-4
Vehicle labeling
.................
.................
11-2
Vehicle preparation before driving
..........
6-3
Vehicle weights
.................
.................
11-4
Vents
............................
.......................
7-2
W
Warning lights
...................
...............
5-144
Washer
Fluid
..................
...................
9-13
, 11-6
Switch
......................
...................
5-157
Windshield washer
........................
5-157
Waxing
......................
........................
9-51
Weights
........................
.....................
11-4
Welcome light
...................
...............
5-151
Wheel
Covers
......................
.....................
8-11
Specification
.................
.................
11-5
Wiper
Rain sensor
...................
...............
5-155
Windshield
....................
...............
5-154
BK0210300US.bo
ok 5 ページ ２０１４年４月８日　火曜日　午前１０時４６分
