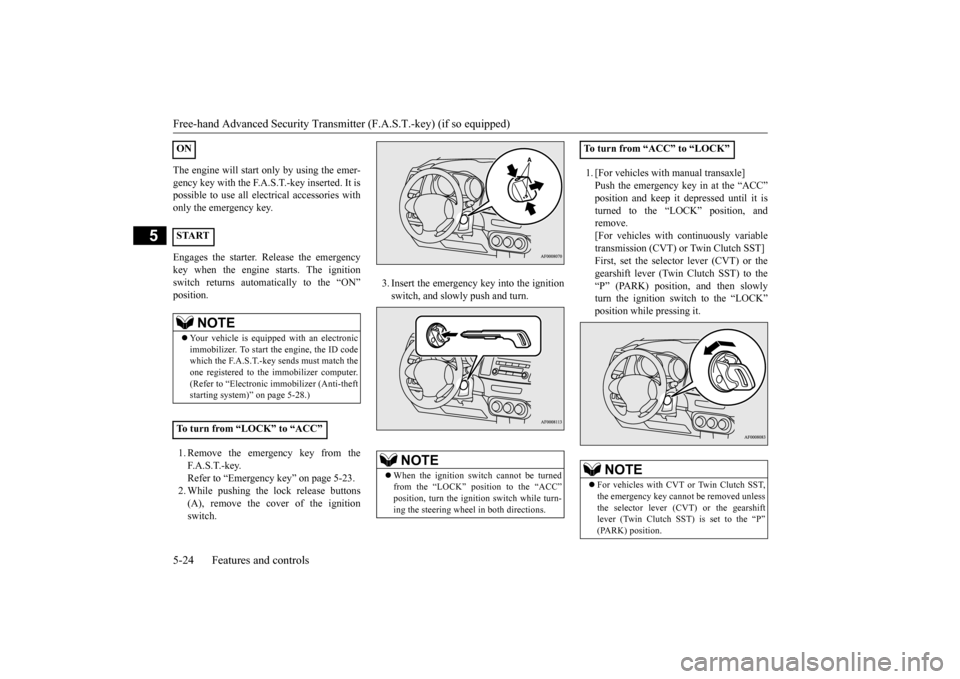

Turn slowly after pressing the ignition switch.
N00513700051
Slowly turn the ignition switch to the “LOCK” position while pressing it. First, set the selector lever (CVT) or the gear- shift lever (Twin Clutch SST) to the “P” (PARK) position, and then slowly turn the ignition switch to the “LOCK” position whilepressing it.
 If the ignition switch is not turned to the “LOCK (PUSH OFF)” position when the engine is not running, the ID code cannot be verified and the engine will not start even if the ignition switch is turned to the “START” ignition switch to the “LOCK (PUSH OFF)” position, and start the engine again.
To turn from “LOCK (PUSH OFF)” to “ACC”

A- Steering wheel locked B- Steering wheel lock released
NOTE
NOTE
 To turn the ignition switch from the “LOCK (PUSH OFF)” position to the “ACC” posi- tion, push the ignition switch again, turn the steering wheel in both directions and then turn the ignition switch.  The ignition switch cannot be turned unless the F.A.S.T.-key is inside the vehicle.Refer to “Operating range for starting the engine” on page 5-14.
To turn from “ACC” to “LOCK”

For vehicles with manual transaxle For vehicles with continuously variable transmission (CVT) or Twin Clutch SST(sportronic shift transmission)
NOTE
 For vehicle with CVT or Twin Clutch SST, the ignition switch cannot be turned to the “LOCK” position unless the selector lever (CVT) or the gearshift lever (Twin ClutchSST) is in the “P” (PARK) position.CAUTION If the engine is stopped while driving, the power brake booster will stop functioningand greater effort for braking will be required. Also, the power steering system will not function and it will require greatereffort to manually steer the vehicle. Do not leave the ignition switch in the “ON” position for a long time when the engine is not running. Doing so could lead to a dead battery. Do not turn the ignition switch to the “START” position when the engine is run-ning. It will damage the starter motor.
BK0210300US.bo
ok 17 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-21
5
 If the engine will not start because the bat- tery is weak or discharged, refer to “Jump-starting the engine” on page 8-2 for instructions. A longer warm up period will only con- sume extra fuel. The engine is warmed up enough for driving when the bar graph ofthe engine coolant temperature display starts to move. Refer to “Interrupt display screen (With ignition
switch in the “ON”
position)” on page 5-119. On vehicles equipped with the Twin Clutch SST, the following may occur after the engine is started, but they do not indi-cate an abnormality. • You may hear operational sounds of the Twin Clutch SST and you may feelvibration in the vehicle body. • If you shift the gearshift lever into the “N” (NEUTRAL) position and depressthe accelerator pedal, increases in the engine speed will be limited.
Your vehicle is equipped with an electroni- cally controlled fuel injection system. This isa system that automatically controls fuel injection. There is no need to depress the accelerator pedal when starting the engine.The starter motor should not be run for more than 15 seconds at a time. To prevent battery drain, wait a few secondsbetween attempts to restart the engine. 1. Make sure all occupants are properly seated with seat belts fastened. 2. Press and hold the brake pedal down withyour right foot. 3. Press and hold the clutch pedal all the way down (manual transaxle).
4. On vehicles with manual transaxle, place the gearshift lever in the “N” (Neutral) position.On vehicles with continuously variabletransmission (CVT) or Twin Clutch SST, make sure the selector lever (CVT) or the gearshift lever (Twin Clutch SST) is in the“P” (PARK) position.

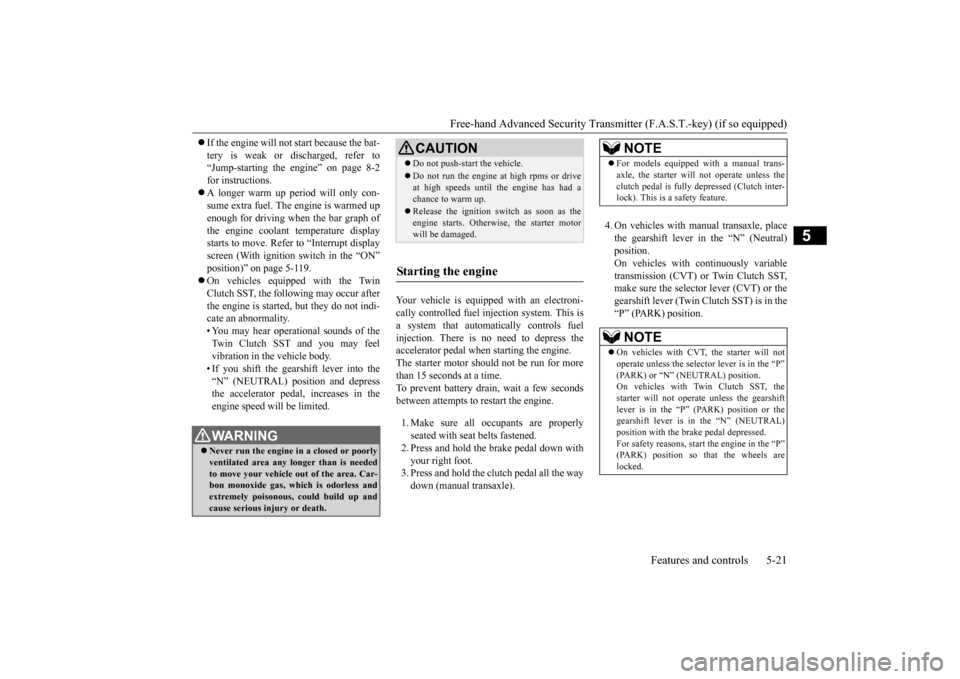

WA R N I N G Never run the engine in a closed or poorly ventilated area any longer than is needed to move your vehicle out of the area. Car- bon monoxide gas, which is odorless andextremely poisonous, could build up and cause serious injury or death.
CAUTION Do not push-start the vehicle.Do not run the engine
at high rpms or drive
at high speeds until the engine has had a chance to warm up. Release the ignition switch as soon as the engine starts. Otherwise, the starter motorwill be damaged.
Starting the engine

NOTE
 For models equipped with a manual trans- axle, the starter will not operate unless the clutch pedal is fully depressed (Clutch inter- lock). This is a safety feature.NOTE
 On vehicles with CVT, the starter will not operate unless the selector lever is in the “P” (PARK) or “N” (NEUTRAL) position.On vehicles with Twin Clutch SST, the starter will not operate unless the gearshift lever is in the “P” (P
ARK) position or the
gearshift lever is in the “N” (NEUTRAL) position with the brake pedal depressed. For safety reasons, start the engine in the “P” (PARK) position so that the wheels are locked.
BK0210300US.bo
ok 21 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-22 Features and controls
5
5. While pushing the ignition switch from “LOCK” (PUSH OFF) to “LOCK” (PUSH ON), set the ignition switch to the “ON” position and confirm that all warn-ing lights and warning displays are oper- ating properly. 6. Without pressing the accelerator pedal,slowly turn the ignition switch to the “START” position to start the engine. Release the ignition switch when theengine starts.
After several attempts, you may experience that the engine still does not start. 1. Make sure that all electric devices, such as lights, air conditioning blower and rear window defogger, are turned off.
2. While depressing the brake pedal on vehi- cles equipped with continuously variable transmission (CVT) or Twin Clutch SST or the clutch pedal on the vehiclesequipped with manual transaxle, press the accelerator pedal halfway and hold it there, then crank the engine. Release theaccelerator pedal, immediately after the engine starts. 3. If the engine still will not start, the enginecould be flooded with too much gasoline.While depressing the brake pedal on vehi- cles equipped with CVT or Twin Clutch SST or the clutch pedal on the vehiclesequipped with manual
transaxle, push the
accelerator pedal all the way down and hold it there, then crank the engine for 5to 6 seconds. Return the ignition switch to the “LOCK” position and release the accelerator pedal. Wait a few seconds, andthen crank the engine again for 5 to 6 sec- onds while depressing the brake pedal or the clutch pedal, but do not push theaccelerator pedal. Release the ignition key if the engine starts.
If the engine fails to
start, repeat these procedures. If theengine still will not start, contact your local Mitsubishi Motors dealer or a repair facility of your choice for assistance.
When the ambient temperature is -4°F (-20°C) or lower on vehicles with CVT, or -22°F (-30°C) or lower on vehicles with Twin Clutch SST, it may not be possible to startfrom a standstill even with the selector lever (CVT) or the gearshift lever (Twin Clutch SST) in the “D” (DRIVE) or “R”(REVERSE) position.This phenomenon occurs because the trans- axle has not warmed up sufficiently; it does not indicate a problem. If this occurs, placethe selector lever (CVT) or the gearshift lever (Twin Clutch SST) in the “P” (PARK) posi- tion and let the engine idle for at least 10 min-utes. The transaxle will warm up, and you will be able to drive normally.Do not leave the vehicle during warm-up operation.
NOTE
 Minor noises may be heard on engine start- up. These will disappear as the engine warms up.
When the engine is hard to start
Startability of continuously variable transmission (CVT) vehicles or Twin Clutch SST vehicles at extremely coldambient temperature
BK0210300US.bo
ok 22 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-24 Features and controls
5
The engine will start only by using the emer- gency key with the F.A.S.T.-key inserted. It is possible to use all electrical accessories with only the emergency key. Engages the starter. Release the emergency key when the engine starts. The ignitionswitch returns automatically to the “ON” position. 1. Remove the emergency key from the F. A . S . T. - k e y. Refer to “Emergency key” on page 5-23. 2. While pushing the lock release buttons(A), remove the cover of the ignition switch.
3. Insert the emergency key into the ignition switch, and slowly push and turn.
1. [For vehicles with manual transaxle] Push the emergency key in at the “ACC”position and keep it
depressed until it is
turned to the “LOCK” position, and remove.[For vehicles with continuously variable transmission (CVT) or Twin Clutch SST] First, set the selector lever (CVT) or thegearshift lever (Twin Clutch SST) to the“P” (PARK) position, and then slowly turn the ignition switch to the “LOCK” position while pressing it.
ON START
NOTE
 Your vehicle is equipped with an electronic immobilizer. To start the engine, the ID codewhich the F.A.S.T.-key sends must match the one registered to the immobilizer computer. (Refer to “Electronic immobilizer (Anti-theftstarting system)” on page 5-28.)
To turn from “LOCK” to “ACC”
NOTE
 When the ignition switch cannot be turned from the “LOCK” position to the “ACC” position, turn the ignition switch while turn-ing the steering wheel in both directions.
To turn from “ACC” to “LOCK”
NOTE
 For vehicles with CVT or Twin Clutch SST, the emergency key cannot be removed unless the selector lever (CVT) or the gearshiftlever (Twin Clutch SST) is set to the “P” (PARK) position.
BK0210300US.bo
ok 24 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-27
5
7. On vehicles with manual transaxle, place the gearshift lever in the “N” (Neutral) position. On vehicles with CVT or Twin ClutchSST, make sure the selector lever (CVT)or the gearshift lever (Twin Clutch SST) is in the “P” (PARK) position.
8. Turn the emergency key with the F.A.S.T.-key to the “ON” position and make certain that all warning lights and warning displays are functioning properlybefore starting the engine. 9. Turn the emergency key with the F.A.S.T.-key to the “START” positionwithout pressing the accelerator pedal. Release the emergency key with the F.A.S.T.-key when the engine starts.
10. Remove the F.A.S.T.-key from the emer-
gency key.
After several attempts, you may experience that the engine still does not start. 1. Make sure that all electric devices, such as lights, air conditioning blower and rearwindow defogger, are turned off. 2. While depressing the brake pedal on vehi- cles equipped with continuously variabletransmission (CVT) or Twin Clutch SST or the clutch pedal on the vehicles equipped with manual transaxle, press theaccelerator pedal halfway and hold it there, then crank the engine. Release the accelerator pedal, immediately after theengine starts.
NOTE
 For models equipped with a manual trans- axle, the starter will
not operate unless the
clutch pedal is fully depressed (Clutch inter- lock). This is a safety feature.NOTE
 On vehicles with continuously variable transmission (CVT) or Twin Clutch SST, the starter will not operate unless the selector lever (CVT) or the gearshift lever (TwinClutch SST) is in the “P” (PARK) position or the selector lever (CVT) or the gearshift lever (Twin Clutch SST) is in the “N” (NEU-TRAL) position with the brake pedal depressed. For safety reasons, start the engine in the “P” (PARK) position so that the wheels are locked.
NOTE
 Minor noises may be heard on engine start- up. These will disappear as the engine warms up. WA R N I N G Make sure to remove the F.A.S.T.-key from the emergency key after the engine is started. If not removed, the F.A.S.T.-key could fall to the floor, which may interfere with pedal operation.Furthermore, the F.A.S.T.-key could pre- vent the driver’s knee airbag from inflat- ing normally or could be propelled tocause serious injury if the airbag inflates.
NOTE
 When using the emergency key to start the engine, first remove the key from the key holder. If the emergency key is attached to a key holder (key ring), it may become impos- sible to insert the keyless operation key intothe emergency key, and it may prevent the engine from being started.
When the engine is hard to start
BK0210300US.bo
ok 27 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-28 Features and controls
5
3. If the engine still will not start, the engine could be flooded with too much gasoline. While depressing the brake pedal on vehi- cles equipped with CVT or Twin ClutchSST or the clutch pedal on the vehicles equipped with manual
transaxle, push the
accelerator pedal all the way down andhold it there, then crank the engine for 5 to 6 seconds. Return the ignition switch to the “LOCK” position and release theaccelerator pedal. Wait a few seconds, andthen crank the engine again for 5 to 6 sec- onds while depressing the brake pedal or the clutch pedal, but do not push theaccelerator pedal. Release the ignition key if the engine starts.
If the engine fails to
start, repeat these procedures. If theengine still will not start, contact your local Mitsubishi Motors dealer or a repair facility of your choice for assistance.
When the ambient temperature is -4 °F -22 °F (-30 °C) or lower on vehicles with Twin Clutch SST, it may not be possible tostart from a standstill even with the selector lever (CVT) or the gearshift lever (Twin
Clutch SST) in the “D” (DRIVE) or “R” (REVERSE) position. This phenomenon occurs because the trans- axle has not warmed up sufficiently; it doesnot indicate a problem. If this occurs, place the selector lever (CVT) or the gearshift lever (Twin Clutch SST) in the “P” (PARK) posi-tion and let the engine idle for at least 10 min- utes. The transaxle will warm up, and you will beable to drive normally.Do not leave the vehicle during warm-up operation.
N00529600101
The electronic immobilizer is designed to sig- nificantly reduce the possibility of vehicletheft. The purpose of the system is to immo- bilize the vehicle if an invalid start is attempted. A valid start attempt can only beachieved (subject to certain conditions) using a F.A.S.T.-Key “registered” to the immobi- lizer system.All of the keys provided with your new vehi- cle have been programmed to the vehicle’s electronics.
N00561000039
Only the F.A.S.T.-keys that have been pro-grammed to the vehicle’s electronics can beused to start the vehicle. If you lose the F.A.S.T.-key, you can order a F.A.S.T.-key from your authorized Mitsubishi Motors dealer by referring to the key number.To prevent vehicle theft, the ID codes for all the F.A.S.T.-keys except the one for the lost F.A.S.T. -key must be programmed again.Take your vehicle and all the remainingF.A.S.T.-keys to your authorized Mitsubishi Motors dealer to have your ID codes pro- grammed again.
N00561100030
To add a F.A.S.T.-key, you must already havetwo registered F.A.S.T.-keys. You need toregister the ID code to the vehicle. Registering the ID code can be done by your authorized Mitsubishi Motors dealer. Or itcan be done by yourself (except for vehicles sold in Canada). For you to register the ID code yourself, fol-low the “Customer F.A.S.T.-key program- ming” procedure below. If you choose to have your authorized Mit-subishi Motors dealer
register the ID code,
Startability of continuously variable transmission (CVT) vehicles or Twin Clutch SST vehicles at extremely coldambient temperature
Electronic immobilizer (Anti- theft starting system)

Replacement F.A.S.T.-key

Additional F.A.S.T.-key

BK0210300US.bo
ok 28 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Power door locks 5-38 Features and controls
5
All of the doors can be locked or unlocked by pressing the power door lock switch on the driver’s or the front passenger’s door.
Turn the key in the driver’s door lock once in the unlocking direction, and the driver’s doorwill be unlocked.
N00517701131
All doors will unlock when the ignitionswitch is turned to the “LOCK” position. All doors will unlock when the selector lever (CVT) or the gearshift lever (Twin Clutch SST) is moved to the “P” (PARK) position with the ignition switch in the “ON” position.

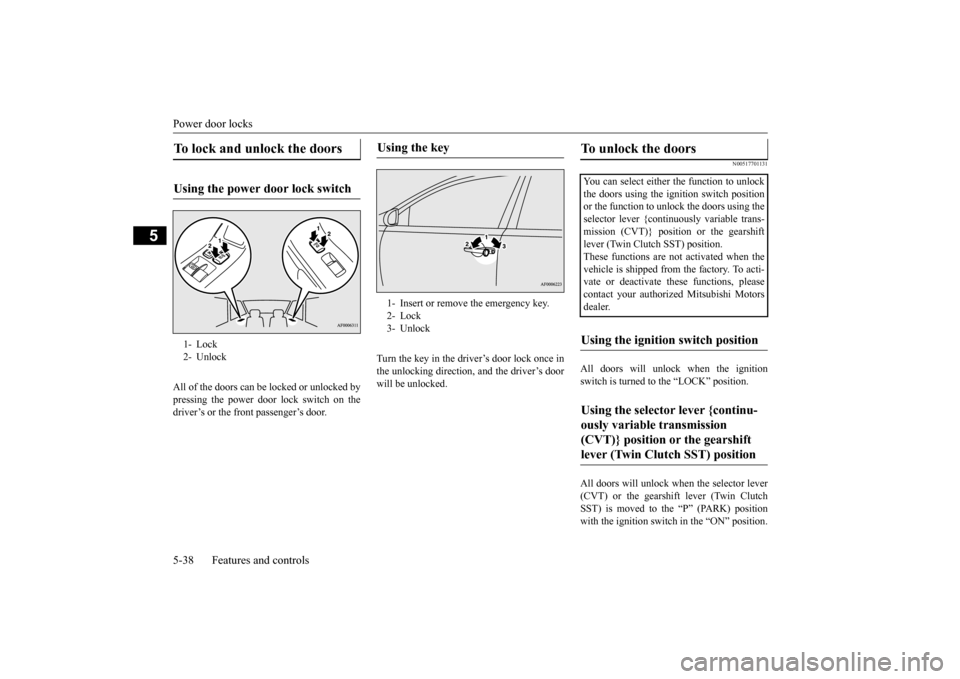

To lock and unlock the doors Using the power door lock switch 1- Lock 2- Unlock
Using the key 1- Insert or remove the emergency key.2- Lock 3- Unlock
To unlock the doors You can select either the function to unlockthe doors using the ignition switch position or the function to unlock the doors using the selector lever {continuously variable trans-mission (CVT)} position or the gearshift lever (Twin Clutch SST) position. These functions are not activated when thevehicle is shipped from the factory. To acti- vate or deactivate these functions, please contact your authorized Mitsubishi Motorsdealer.Using the ignition switch position Using the selector lever {continu- ously variable transmission (CVT)} position or the gearshift lever (Twin Clutch SST) position
BK0210300US.bo
ok 38 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Parking brake 5-48 Features and controls
5
The sunshade can be opened or closed manu- ally while the sunroof is closed. When the sunroof is opened, the sunshade will also open automatically.
N00511400298
To park the vehicle, first bring it to a com-plete stop, fully engage the parking brake,and then move the gearshift lever to 1st (on a uphill) or “R” (Reverse) (on a downhill) posi- tion, for vehicles with a manual transaxle, setthe selector lever {continuously variable transmission (CVT)} or the gearshift lever (Twin Clutch SST) to “P” (PARK) positionfor vehicles with CVT or Twin Clutch SST.
 The safety mechanism is deactivated while the switch (2) is pressed. Therefore be espe- cially careful that fingers are not trapped in the sunroof opening. Do not deliberately trap your hands or head in order to activate the safety mechanism. Personal injury and malfunction of the sun-roof could result.
Sunshade

CAUTION Do not attempt to close the sunshade when the sunroof is opened.CAUTION
 Be careful that hands are not trapped when closing the sunshade.NOTE
 Be sure to tilt down the sunroof before clos- ing the sunshade.  When leaving the vehicle unattended, be sure to close the sunroof and without the ignition key.  Do not try to operate the sunroof if it is fro- zen closed (after snowfall or during extreme cold).  Do not sit on or place heavy luggage on the sunroof or roof opening edge.  Do not apply any force that may cause dam- age to the sunroof.  Release the switch when the sunroof has reached a completely open or completelyclosed position.  If the sunroof does not operate when the sun- roof switch is operated, release the switch and check whether some
thing is trapped by
the sunroof. If nothing is trapped, have thesunroof checked at an authorized Mitsubishi Motors dealer.  Be careful when tilting
up the sunroof if a ski
carrier or a roof carrier is installed. Depend-ing on the model of ski car
rier or roof carrier,
the sunroof may contact the carrier when the sunroof is tilted up.CAUTION
 Be sure to close the sunroof completely when washing the vehicle or when leaving the vehicle.  Do not put any wax on the weatherstrip (black rubber) around the sunroof opening. If it is waxed, the weatherstrip cannot maintain a weatherproof seal with the sunroof.  After washing the vehicle or after rain be sure to wipe off any water that is on the sun-roof before operating it.  Operating the sunroof repeatedly with the engine turned off will run down the battery. Operate the sunroof only while the engine is running.
Parking brake
NOTE
BK0210300US.bo
ok 48 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Ignition switch 5-54 Features and controls
5
Engages the starter. After the engine starts, release the key and it will return automati-cally to the “ON” position.
N00539601097
After about 30 minutes has elapsed with theignition switch in the “ACC” position, the function automatically cuts out the power for the audio system and other electric devicesthat can be operated with that position. When the ignition switch is turned from the “ACC” position, the power is supplied againto those devices.
N00550900184
For vehicles with a manual transaxle, whenremoving the key, push the key in at the“ACC” position and keep it depressed until it is turned to the “LOCK” position, and remove. For vehicles with a continuously variable transmission (CVT) or Twin Clutch SST,when removing the key, first set the selector lever (CVT) or the gearshift lever (Twin
Clutch SST) to the “P” (PARK) position, and then turn the key to the “LOCK” position and remove it.
START
NOTE
 Your vehicle is equipped with an electronic immobilizer. To start the engine, the ID code which the transponder inside the key sendsmust match the one registered to the immobi- lizer computer. (Refer to “Electronic immobilizer” on page5-4.)
ACC power auto-cutout func- tion
NOTE
 It is possible to modify functions as follows:
• The time until the power cuts out can be changed to about 60 minutes. • The ACC power auto-cutout function can be deactivated. For details, consult a Mitsubishi Motors dealer.
To remove the key
NOTE
Manual transaxle
NOTE
 For vehicles with a CVT or Twin Clutch SST, the key cannot be removed unless the selector lever (CVT) or the gearshift lever(Twin Clutch SST) is set to the “P” (PARK) position, which allows the ignition switch to turn to the “LOCK” position.CAUTION Do not remove the ignition key from the ignition switch while dr
iving. The steering
wheel will lock, causing
loss of control.
CVT or Twin Clutch SST
