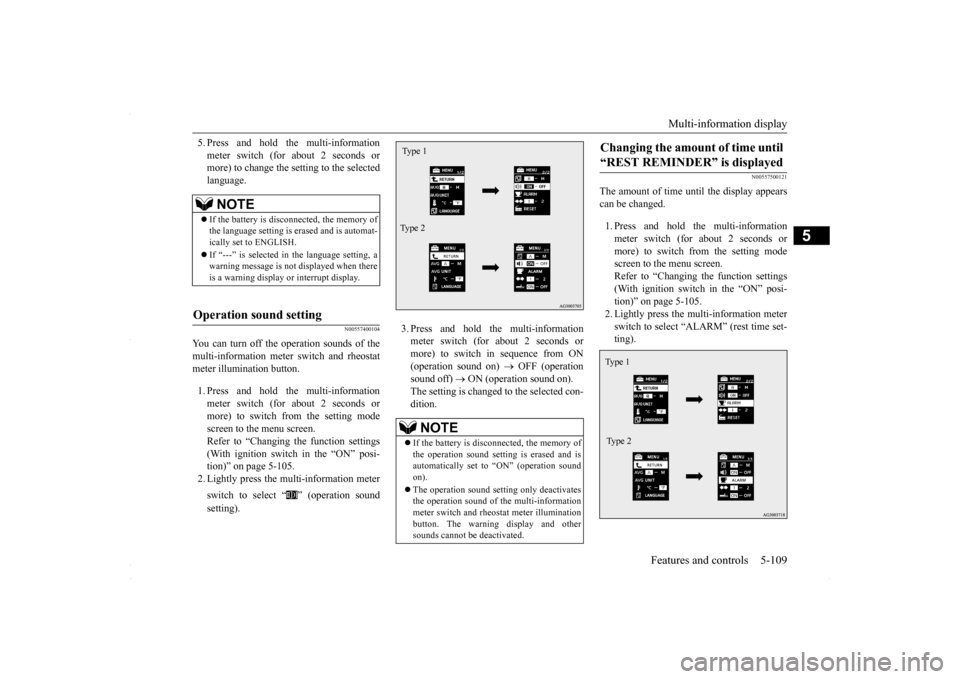

MITSUBISHI LANCER 2016 8.G Owners Manual

Multi-information display
Features and controls 5-109
5
5. Press and hold the multi-information meter switch (for about 2 seconds or more) to change the setting to the selected language.
N00557400104
You can turn off the operation sounds of themulti-information meter switch and rheostat meter illumination button. 1. Press and hold the multi-information meter switch (for about 2 seconds ormore) to switch from the setting mode screen to the menu screen. Refer to “Changing the function settings(With ignition switch in the “ON” posi- tion)” on page 5-105. 2. Lightly press the multi-information meter switch to select “ ” (operation sound setting).
3. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch in sequence from ON(operation sound on)
 OFF (operation
sound off)
 ON (operation sound on).
The setting is changed to the selected con-dition.
N00557500121
The amount of time until the display appears can be changed. 1. Press and hold the multi-information meter switch (for about 2 seconds ormore) to switch from the setting mode screen to the menu screen. Refer to “Changing the function settings(With ignition switch in the “ON” posi-tion)” on page 5-105. 2. Lightly press the multi-information meter switch to select “ALARM” (rest time set-ting).
NOTE
 If the battery is disconnected, the memory of the language setting is erased and is automat- ically set to ENGLISH.  If “---” is selected in the language setting, a warning message is not displayed when there is a warning display or interrupt display.
Operation sound setting
NOTE
 If the battery is disconnected, the memory of the operation sound setting is erased and isautomatically set to “ON” (operation sound on).  The operation sound setting only deactivates the operation sound of the multi-information meter switch and rheostat meter illuminationbutton. The warning display and other sounds cannot be deactivated.Type 1 Type 2
Changing the amount of time until “REST REMINDER” is displayed Ty p e 1 Type 2
BK0230300US.book
109 ページ ２０１５年７月３０日　木曜日　午後８時３８分

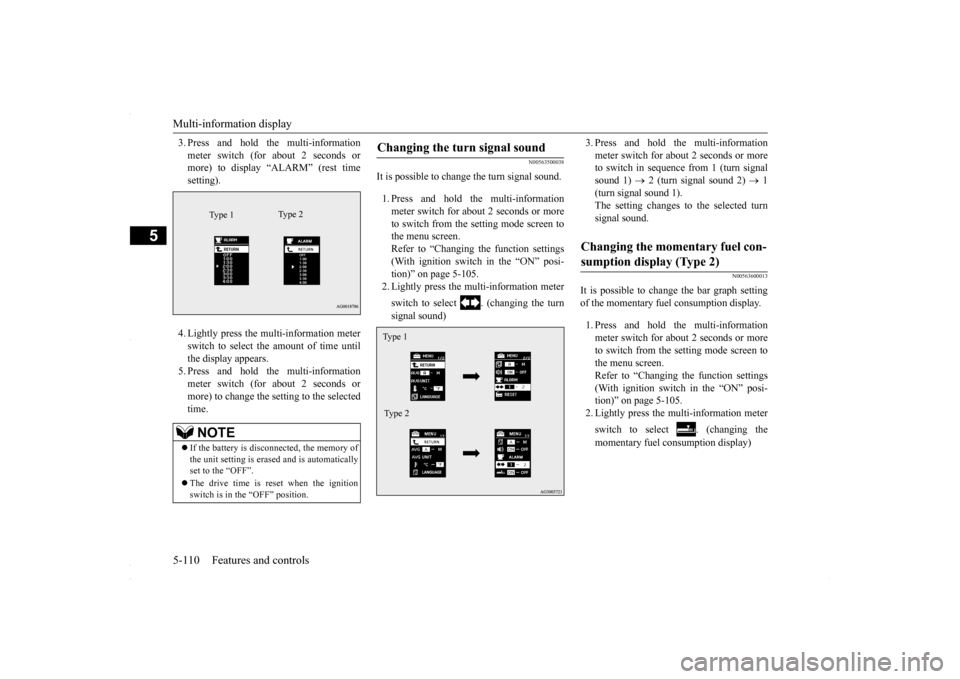

Multi-information display 5-110 Features and controls
5
3. Press and hold the multi-information meter switch (for about 2 seconds or more) to display “ALARM” (rest time setting). 4. Lightly press the multi-information meter switch to select the amount of time untilthe display appears.5. Press and hold the multi-information meter switch (for about 2 seconds or more) to change the setting to the selectedtime.
N00563500038
It is possible to change the turn signal sound. 1. Press and hold the multi-information meter switch for about 2 seconds or moreto switch from the setting mode screen to the menu screen. Refer to “Changing the function settings(With ignition switch in the “ON” posi- tion)” on page 5-105. 2. Lightly press the multi-information meter switch to select . (changing the turn signal sound)
3. Press and hold the multi-information meter switch for about 2 seconds or more to switch in sequence from 1 (turn signal sound 1)
 2 (turn signal sound 2)
 1
(turn signal sound 1). The setting changes to the selected turn signal sound.
N00563600013
It is possible to change the bar graph settingof the momentary fuel consumption display. 1. Press and hold the multi-information meter switch for about 2 seconds or more to switch from the setting mode screen tothe menu screen. Refer to “Changing the function settings (With ignition switch in the “ON” posi-tion)” on page 5-105. 2. Lightly press the multi-information meter switch to select . (changing the momentary fuel consumption display)
NOTE
 If the battery is disconnected, the memory of the unit setting is erased and is automatically set to the “OFF”.  The drive time is reset when the ignition switch is in the “OFF” position.
Type 1
Ty p e 2
Changing the turn signal sound Type 1 Type 2
Changing the momentary fuel con- sumption display (Type 2)
BK0230300US.book
110 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Multi-information display

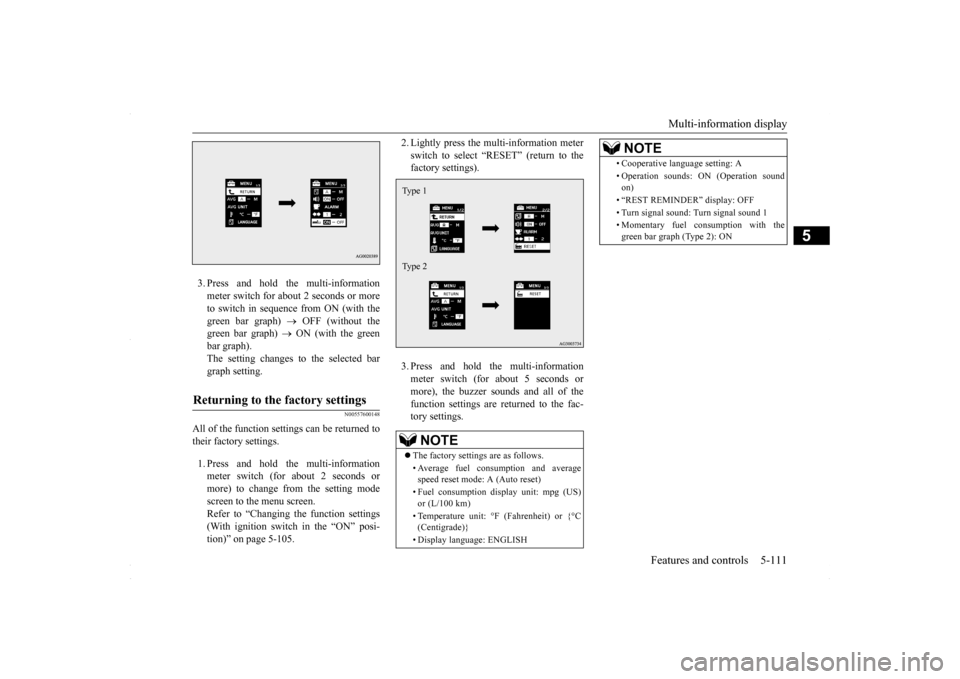

Features and controls 5-111
5
3. Press and hold the multi-information meter switch for about 2 seconds or more to switch in sequence from ON (with thegreen bar graph)
 OFF (without the
green bar graph)
 ON (with the green
bar graph).The setting changes to the selected bar graph setting.
N00557600148
All of the function settings can be returned to their factory settings. 1. Press and hold the multi-information meter switch (for about 2 seconds or more) to change from the setting modescreen to the menu screen. Refer to “Changing the function settings (With ignition switch in the “ON” posi-tion)” on page 5-105.
2. Lightly press the multi-information meter switch to select “RESET” (return to the factory settings). 3. Press and hold the multi-information meter switch (for about 5 seconds or more), the buzzer sounds and all of thefunction settings are returned to the fac- tory settings.
Returning to the factory settings
NOTE
 The factory settings are as follows. • Average fuel consumption and average speed reset mode: A (Auto reset) • Fuel consumption display unit: mpg (US) or (L/100 km) • Temperature unit: °F (Fahrenheit) or {°C (Centigrade)} • Display language: ENGLISHType 1 Type 2
• Cooperative language setting: A• Operation sounds: ON (Operation sound on) • “REST REMINDER” display: OFF • Turn signal sound: Turn signal sound 1• Momentary fuel consumption with the green bar graph (Type 2): ONNOTE
BK0230300US.book
111 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Indicator light, warning light, an
d information screen display list
5-112 Features and controls
5
N00557700035 N00557801323
Indicator light, warning light, and information screen display list Indicator and warning light list Type A Type B1- Position indicator
P.5-123
2- High beam indicator
P.5-123
3- Charging system warning light
 P.5-125
4- Turn signal indicator/hazard warning
light
P.5-123
5- Front fog light indicator (if so
equipped)
P.5-123
6- Anti-lock braking system warning light
 P.5-74
7- Tire pressure monitoring system warn-
ing light
P.5-84
8- Brake warning light
P.5-124
9- Cruise control indicator (if so
equipped)
P.5-81
10- Seat belt reminder/warning light
 P.4-10
11- Supplemental Restraint System (SRS)
warning light  P.4-26
12- ECO mode indicator (if so equipped)
 P.5-102
13- Engine malfunction indicator (“SER-
VICE ENGINE SOON” or “Check engine light”)
P.5-124
14- Active stability
control (ASC) OFF
indicator (if so equipped)
P. 5 - 7 8
15- Active stability control (ASC) indicator
(if so equipped)
P. 5 - 7 8
16- Information screen display list
 P.5-113
BK0230300US.book
112 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Indicator light, warning light, an

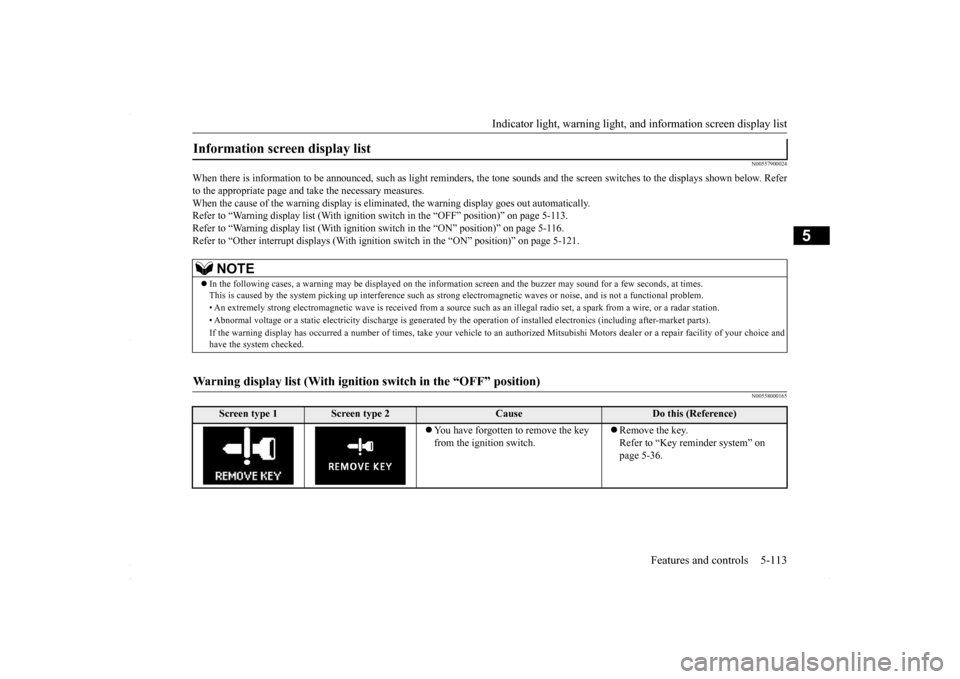

d information screen display list Features and controls 5-113
5
N00557900024
When there is information to be announced,
such as light reminders, the tone sounds and
the screen switches to the displays sho
wn below. Refer
to the appropriate page and take the necessary measures.When the cause of the warning display is eliminated, the warning display goes out automatically. Refer to “Warning display list (With ignition switch in the “OFF” position)” on page 5-113. Refer to “Warning display list (With ignition switch in the “ON” position)” on page 5-116.Refer to “Other interrupt displays (With igni
tion switch in the “ON” position)” on page 5-121.
N00558000165
Information screen display list
NOTE
In the following cases, a warning may be displayed on the informa
tion screen and the buzzer may sound for a few seconds, at tim
es.
This is caused by the system picking up interference such as stro
ng electromagnetic waves or nois
e, and is not a functional pro
blem.
• An extremely strong electromagnetic wave is received from a source
such as an illegal radio set,
a spark from a wire, or a rad
ar station.
• Abnormal voltage or a static electricity discharge is generate
d by the operation of installed electronics (including after-mar
ket parts).
If the warning display has occurred a number of times, take your ve
hicle to an authorized Mitsubishi Motors dealer or a repair
facility of your choice and
have the system checked.
Warning display list (With ignition switch in the “OFF” position)
Screen type 1
Screen type 2
Cause
Do this (Reference)
 You have forgotten to remove the key from the ignition switch.
 Remove the key. Refer to “Key reminder system” on page 5-36.
BK0230300US.book
113 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Indicator light, warning light, an
d information screen display list

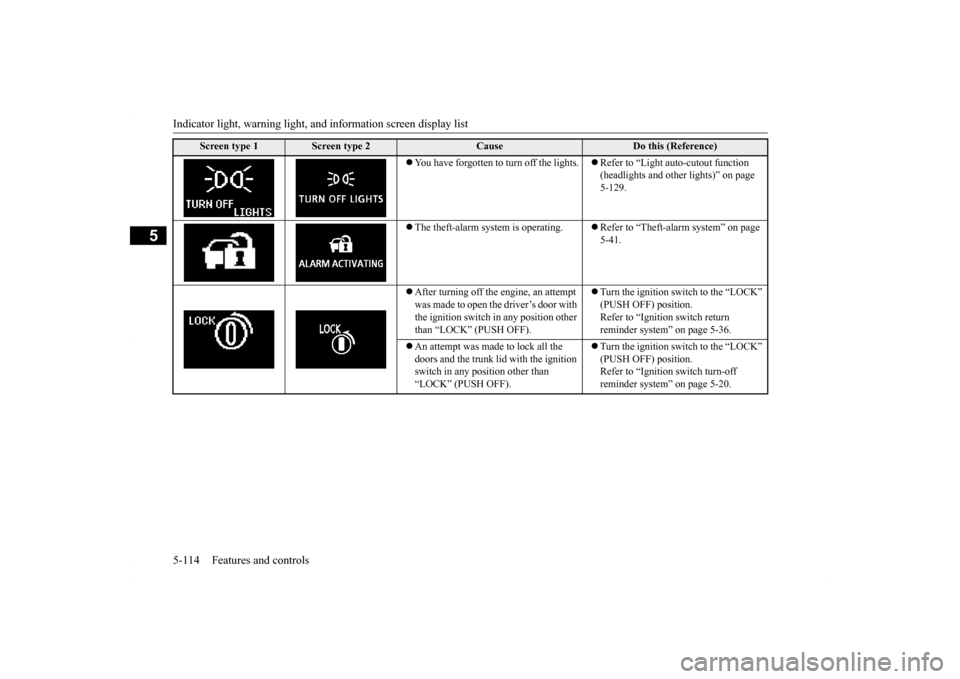

5-114 Features and controls
5
 You have forgotten to turn off the lights.
Refer to “Light auto-cutout function (headlights and other lights)” on page 5-129.
 The theft-alarm system is operating.
Refer to “Theft-alarm system” on page 5-41.
 After turning off the engine, an attempt was made to open the driver’s door with the ignition switch in any position other than “LOCK” (PUSH OFF).
 Turn the ignition switch to the “LOCK” (PUSH OFF) position. Refer to “Ignition switch return reminder system” on page 5-36.
 An attempt was made to lock all the doors and the trunk li
d with the ignition
switch in any position other than “LOCK” (PUSH OFF).
 Turn the ignition switch to the “LOCK” (PUSH OFF) position.Refer to “Ignition switch turn-off reminder system” on page 5-20.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0230300US.book
114 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Indicator light, warning light, an
d information screen display list Features and controls 5-115
5

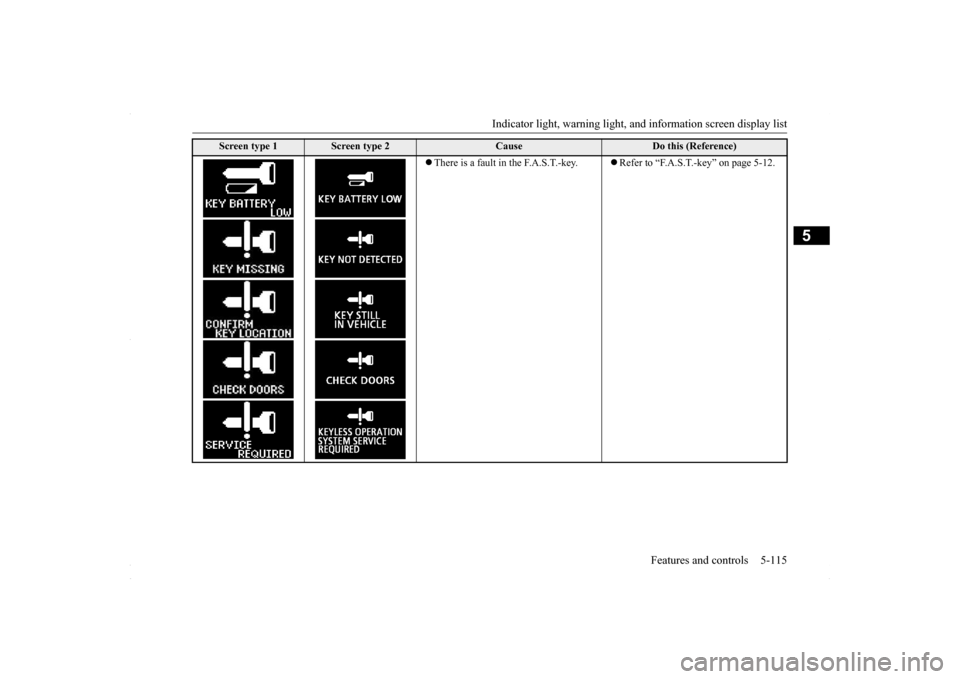

 There is a fault in the F.A.S.T.-key.
Refer to “F.A.S.T.-key” on page 5-12.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0230300US.book
115 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Indicator light, warning light, an
d information screen display list

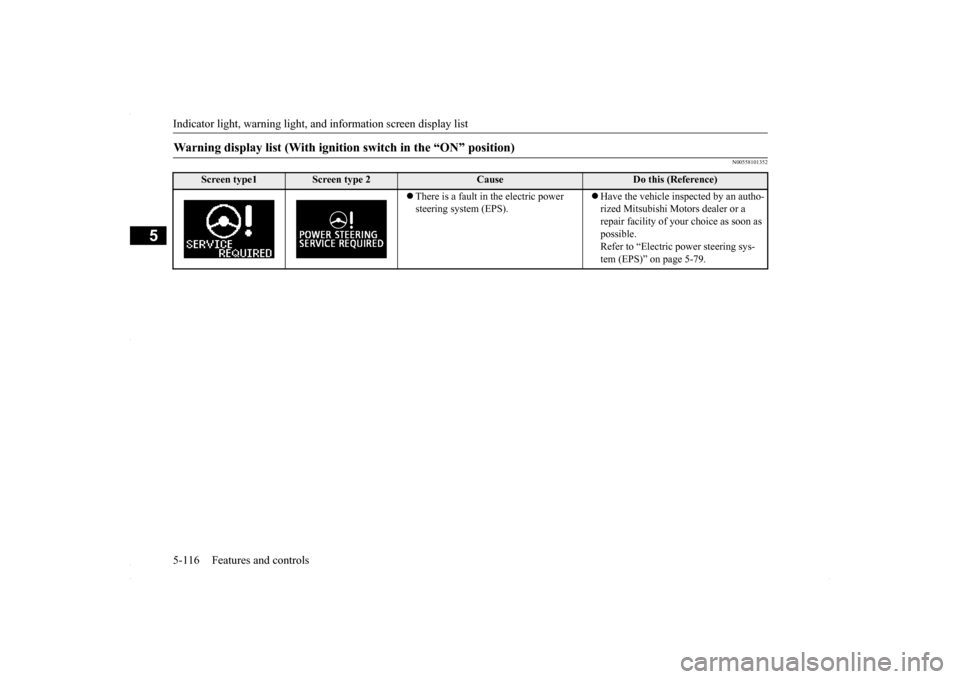

5-116 Features and controls
5
N00558101352
Warning display list (With ignition switch in the “ON” position)
Screen type1
Screen type 2
Cause
Do this (Reference)
 There is a fault in the electric power steering system (EPS).
 Have the vehicle inspected by an autho- rized Mitsubishi Motors dealer or a repair facility of your choice as soon as possible. Refer to “Electric power steering sys- tem (EPS)” on page 5-79.
BK0230300US.book
116 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Indicator light, warning light, an

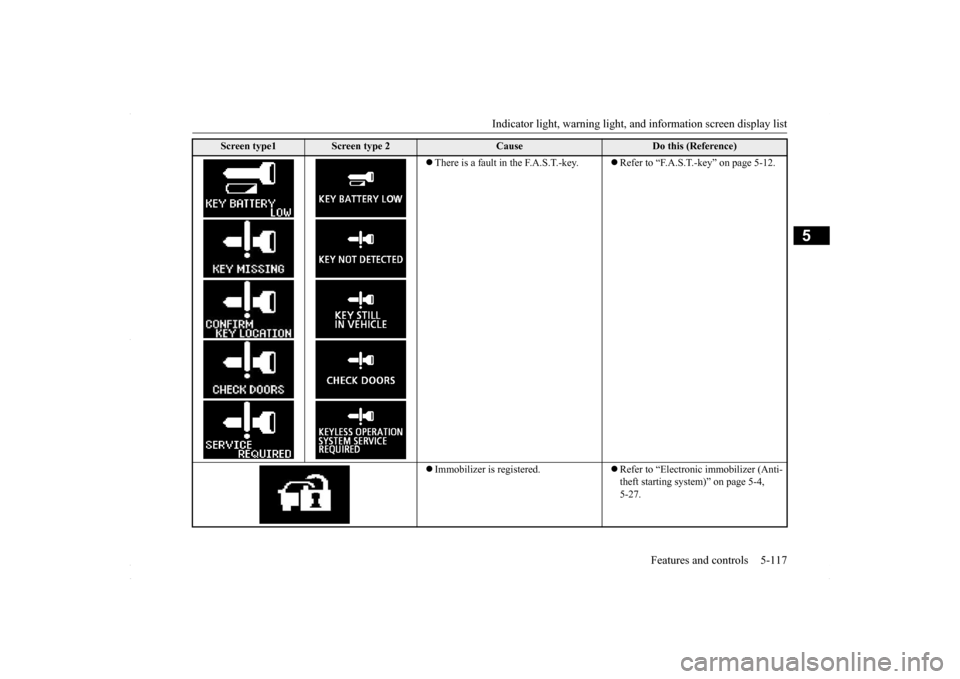

d information screen display list Features and controls 5-117
5
 There is a fault in the F.A.S.T.-key.
Refer to “F.A.S.T.-key” on page 5-12.
 Immobilizer is registered.
Refer to “Electronic immobilizer (Anti- theft starting system)” on page 5-4, 5-27.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0230300US.book
117 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Indicator light, warning light, an
d information screen display list

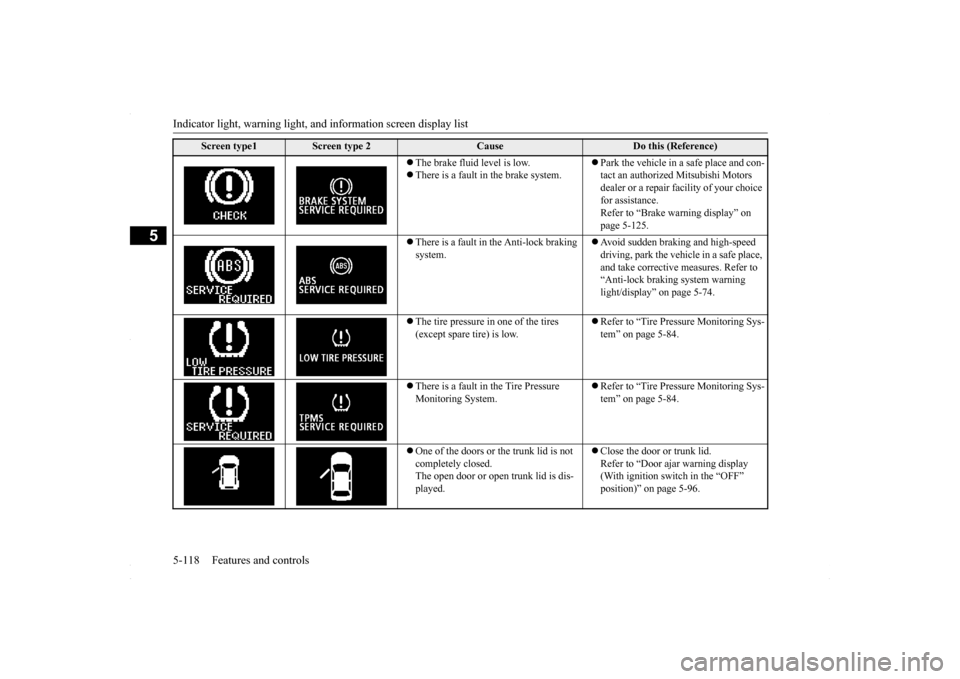

5-118 Features and controls
5
 The brake fluid level is low.  There is a fault in the brake system.
 Park the vehicle in a safe place and con- tact an authorized Mitsubishi Motors dealer or a repair facility of your choice for assistance. Refer to “Brake warning display” on page 5-125.
 There is a fault in the Anti-lock braking system.
 Avoid sudden braking and high-speed driving, park the vehicle in a safe place, and take corrective measures. Refer to “Anti-lock braking system warning light/display” on page 5-74.
 The tire pressure in one of the tires (except spare tire) is low.
 Refer to “Tire Pressure Monitoring Sys- tem” on page 5-84.
 There is a fault in the Tire Pressure Monitoring System.
 Refer to “Tire Pressure Monitoring Sys- tem” on page 5-84.
 One of the doors or the trunk lid is not completely closed. The open door or open trunk lid is dis- played.
 Close the door or trunk lid. Refer to “Door ajar warning display (With ignition switch in the “OFF” position)” on page 5-96.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0230300US.book
118 ページ ２０１５年７月３０日　木曜日　午後８時３８分
