Indicator light, warning light, an
d information screen display list Features and controls 5-119
5
 The engine hood is open.
Close the engine hood. Refer to “Engine hood” on page 9-3.
 The engine is overheated.
Park the vehicle in a safe place and take corrective measures.Refer to “Engine overheating” on page 8-4.
 The continuously variable transmission (CVT) fluid temperature is increased.
 Park the vehicle in a safe place and take corrective measures.Refer to “Continuously variable trans- mission (CVT)” on page 5-59.
 The seat belt is not fastened when the ignition switch is in the “ON” position.
 Fasten your seat belt properly. Refer to “Driver’s seat belt reminder/warning light and display” on page 4-10.
 There is a fault in the fuel system.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.
 The vehicle is being driven with the parking brake still applied.
 Release the parking brake. Refer to “Brake warning display” on page 5-125.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0230300US.book
119 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Indicator light, warning light, an
d information screen display list
5-120 Features and controls
5
 There is a fault in the engine oil circula- tion system.
 Park your vehicle in a safe place as soon as possible and contact an autho- rized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked. Refer to “Oil pressure warning display” on page 5-126.
 There is a fault in the charging system.
Park your vehicle in a safe place as soon as possible and contact an autho- rized Mitsubishi Motors dealer or a repair facility of your choice for assis- tance. Refer to “Charging system warning dis-play” on page 5-126.
 There is a fault in the SRS airbag or the seat belt pre-tensioner system.
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked, immediately. Refer to “SRS warning light/display” on page 4-26.
 There is a fault in the Active Stability Control (ASC).
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked. Refer to “Active Stability Control (ASC)” on page 5-76.
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0230300US.book
120 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Indicator light, warning light, an
d information screen display list Features and controls 5-121
5
N00558200239

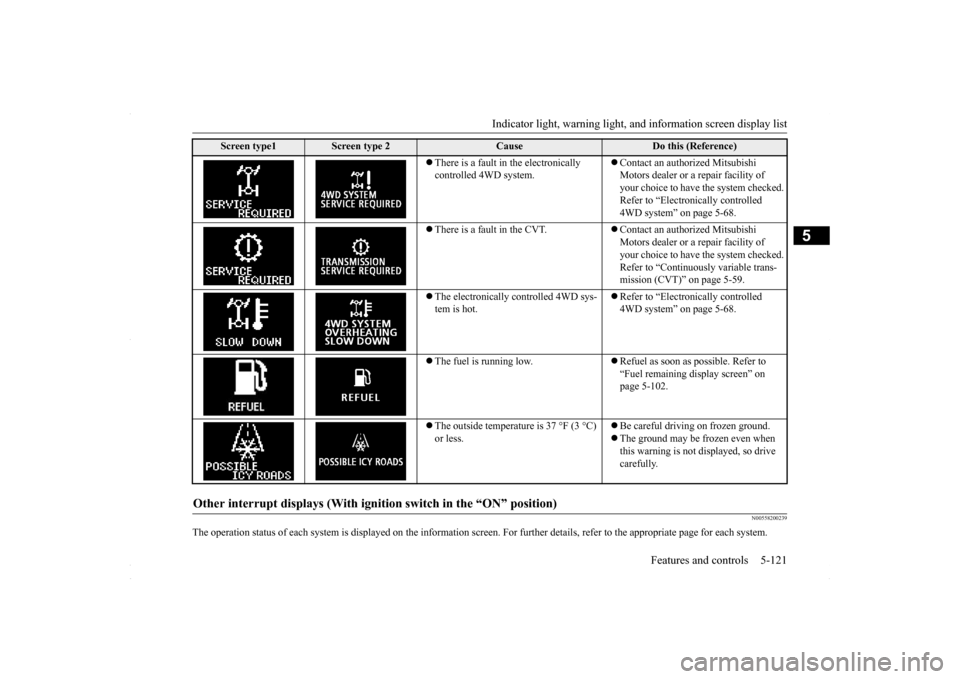

The operation status of each system is displayed on the information screen. For further details, refer to the appropriate page
for each system.
 There is a fault in the electronically controlled 4WD system.
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked.Refer to “Electronically controlled 4WD system” on page 5-68.
 There is a fault in the CVT.
Contact an authorized Mitsubishi Motors dealer or a repair facility of your choice to have the system checked. Refer to “Continuously variable trans- mission (CVT)” on page 5-59.
 The electronically controlled 4WD sys- tem is hot.
 Refer to “Electronically controlled 4WD system” on page 5-68.
 The fuel is running low.
Refuel as soon as possible. Refer to “Fuel remaining display screen” on page 5-102.
 The outside temperature is 37 °F (3 °C)
 Be careful driving on frozen ground.  The ground may be frozen even when this warning is not displayed, so drive carefully.
Other interrupt displays (With igniti
on switch in the “ON” position)
Screen type1
Screen type 2
Cause
Do this (Reference)
BK0230300US.book
121 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Indicator light, warning light, an
d information screen display list
5-122 Features and controls
5

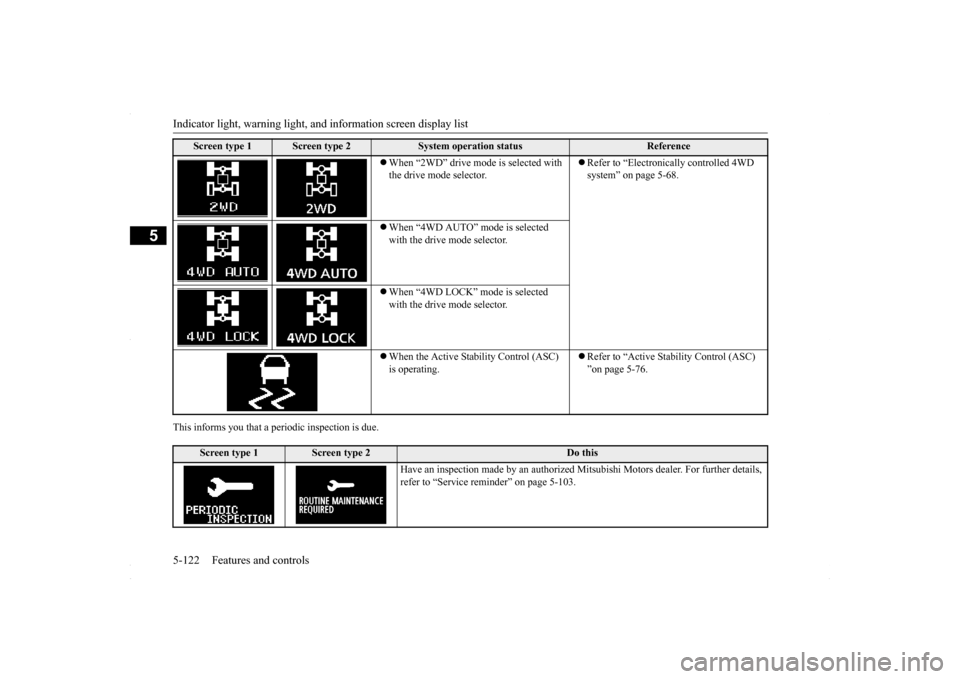

This informs you that a periodic inspection is due.
Screen type 1
Screen type 2
System operation status
Reference
 When “2WD” drive mode is selected with the drive mode selector.
 Refer to “Electronically controlled 4WD system” on page 5-68.
 When “4WD AUTO” mode is selected with the drive mode selector.  When “4WD LOCK” mode is selected with the drive mode selector.  When the Active Stability Control (ASC) is operating.
 Refer to “Active Stability Control (ASC) ”on page 5-76.
Screen type 1
Screen type 2
Do this
Have an inspection made by an authorized M
itsubishi Motors dealer. For further details,
refer to “Service reminder” on page 5-103.
BK0230300US.book
122 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Indicators
Features and controls 5-123
5
The rest time can be set.
N00519900127 N00520000216
The arrows will flash in
time with the corre-
sponding exterior turn signals when the turnsignal lever is used. Both arrows will flas
h when the hazard warn-
ing flasher switch is pressed.
N00520100086
A blue light comes on when the headlightsare on high beam.
N00520200205
This indicator comes on while the front fog lights are on.
N00551300026
This indicator light illuminates while theposition lights are on.
Screen type 1
Screen type 2
Do this
Park the vehicle in a safe place, turn off the engine, and take a rest. Use this display as rough guide for taking rests during a long drive. The interval from the start of your trip un
til this message is displayed can be set.
Refer to “Changing the function settings (With
ignition switch in the “ON” position)” on
page 5-105. The display and buzzer alert the driver when the set time is reached. If you continue to drive without having a rest, the buzzer sounds
about every 5 minutes to encourage you to
take a rest.  In the following cases, the time driven is re
set and the display returns to the previous
display screen. After this, when the set time
is reached again, the display and buzzer
encourage you to take a rest. • The buzzer sounds 3 times.• The ignition switch is turned to the “OFF” position. • The multi-information meter switch is
held (for about 2 seconds or more).
Indicators Turn signal indicators/Hazard warning lights
NOTE
 If the indicator flashes faster than usual or if the indicator stays on without flashing, checkfor a malfunctioning turn signal light bulb or turn signal connection.
High beam indicator
Front fog light indicator
(if so
equipped)Position indicator
