MITSUBISHI LANCER 2016 8.G Owners Manual

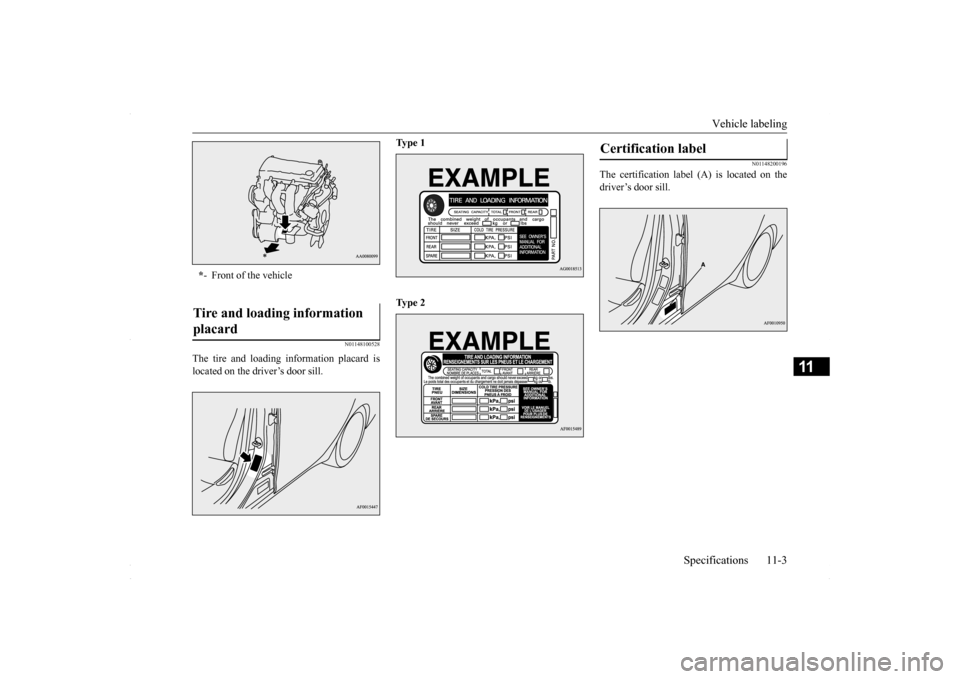

Vehicle labeling
Specifications 11-3
11
N01148100528
The tire and loading information placard is located on the driver’s door sill.
Ty p e 1 Ty p e 2
N01148200196
The certification label (A) is located on the driver’s door sill.
* - Front of the vehicleTire and loading information placard
Certification label
BK0230300US.bo
ok 3 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Vehicle dimensions 11-4 Specifications
11
N01147501607 N01147601956
GVWR: maximum total weight (load) limit specified for the vehicle GAWR: maximum weight (load) limit sp
ecified for the front or rear axle
Seating capacity: the number of maximum occupantsVehicle dimensions
Item
Vehicles with 16 inch tire
Vehicles with 18 inch tire
Overall length 182.1 in (4,625 mm) Overall width 69.4 in (1,760 mm) Overall height 58.3 in (1,480 mm) 58.7 in (1,490 mm)Wheel base 103.7 in (2,635 mm) Vehicle weights
Item
2.0 liter
2.4 liter
Front-wheel drive vehicles
All-wheel drive vehicles
Gross vehicle weight rating (GVWR) 3,969 lb
(1,800 kg) 4,079 lb (1,850
kg) 4,190 lb (1,900 kg)
Gross axle weight rating (GAWR)
Front 2,227 lb (1,010 kg) 2,227 lb
(1,010 kg) 2,227 lb (1,010 kg)
Rear 2,007 lb (910 kg) 2,007 lb (910 kg) 2,117 lb (960 kg)
Vehicle capacity weight 827 lb (375 kg)Maximum roof load 110 lb (50 kg)Seating capacity 5 persons
NOTE
Roof load is important because it affects the vehicle capacity
weight. Refer to “Loading cargo on the roof” on page 6-10.
BK0230300US.bo
ok 4 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Engine specifications Specifications 11-5
11
N01147701540
N01147800182
Battery is a 12 volt type.
N01147901799
PCD: Pitch Circle Diameter (installation holes)
Engine specifications
Item
2.0 liter
2.4 liter
Engine model 4B11 4B12Engine displacement 121.9 CID (1,998 cm³) 144.0 CID (2,360 cm³)No. of cylinders and cylinder arrangement 4 in-lineBore 3.39 in (86.0 mm) 3.46 in (88.0 mm)Stroke 3.39 in (86.0 mm) 3.82 in (97.0 mm)Compression ratio 10.0 10.5Thermostat valve opening temperature 189 °F (87 °C) 189 °F (87 °C)Spark plugs
NGK DIFR6C11 DIFR5C11
Spark plug gap .040 to .043 in (1.0 to
1.1 mm) .040 to .043 in (1.0 to 1.1 mm)
Firing order 1-3-4-2Battery
75D23L
Tires and wheels Tire
Size
P205/60R16
91H
P215/45R18
89V
Wheel
Size
16 x 6 1/2J, 16 x 6 1/2JJ
18 x 7J
PC D
4.5 in (114.3 mm)
Off- set
1.81 in (46 mm)
NOTE
 Contact an authorized Mitsubishi Motors dealer for details on the combination used on your vehicle.  These tires satisfy vehicle loading conditions described in this owner’s manual.
BK0230300US.bo
ok 5 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Refill capacities 11-6 Specifications
11
N01148002172
Refill capacities
Item
Capacity
Lubricants
Fuel (approxi- mate)
Front-wheel drive vehicles 15.5 gal (59.0 L)
Refer to “Fuel selection” on page 3-2.
All-wheel drive vehicles 14.5 gal (55.0 L)
Engine oil
2.0 liter
Oil pan 4.2 qt (4.0 L)
Engine oils displaying the ILSAC certification mark (“starbust” symbol) on the container.If these oils are not available, an API classification SN or higher can be used.
Oil filter .32 qt (0.3 L)
2.4 liter
Oil pan 4.5 qt (4.3 L)Oil filter .32 qt (0.3 L)
Power steering As required Mitsubishi Motors Genuine Power Steering Fluid Manual transaxle 2.6 qt (2.5 L)
Mitsubishi Motors Genuine NEW MULTI GEAR OIL API classification GL-3 SAE 75W-80
Continuously variable transmission (CVT) 7.3 qt (6.9 L)
Refer to “Continuously variable transmission (CVT) fluid” on page 9-10.
Transfer oil .53 qt (0.5 L)
Mitsubishi Motors Genuine
Super Hypoid Gear Oil API
classification GL-5 SAE 80
Rear differential oil .42 qt (0.4 L)
Mitsubishi Motors Genuine
Super Hypoid Gear Oil API
classification GL-5 SAE 80
Brake/Clutch (if so equipped) As required C
onforming to Brake fluid DOT3 or DOT4
Hood lock release mechanism and safety catch As
required Multipurpose type grease NLGI Grade 2
Engine coolant {Includes .63 qt (0.65 L) in reserve tank}
Manual trans- axle
7.4 qt (7.0 L)
Mitsubishi Motors Genuine Super Long Life Coolant Premium or an equivalent
*
CVT 7.4 qt (7.0 L)
Washer fluid 4.3 qt (4.0 L) — BK0230300US.bo
ok 6 ページ ２０１５年７月３０日　木曜日　午後８時３８分

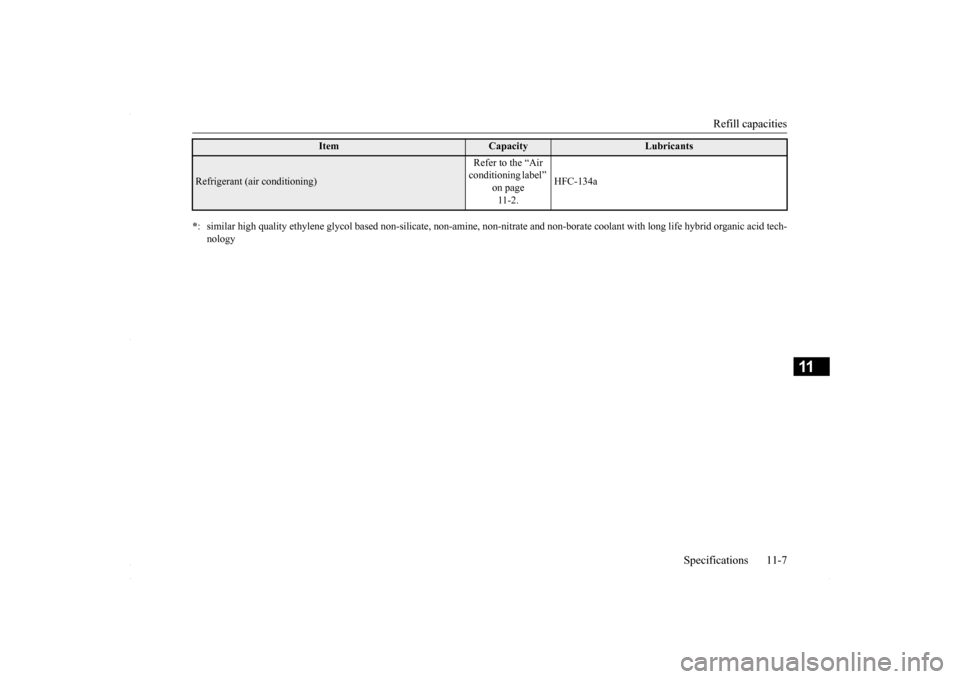

Refill capacities
Specifications 11-7
11
Refrigerant (air conditioning)
Refer to the “Air conditioning label”
on page 11-2.
HFC-134a
* : similar high quality ethylene glycol base
d non-silicate, non-amine, non-nitrate a
nd non-borate coolant with long life hybrid o
rganic acid tech-
nology
Item
Capacity
Lubricants
BK0230300US.bo
ok 7 ページ ２０１５年７月３０日　木曜日　午後８時３８分

BK0230300US.bo
ok 8 ページ ２０１５年７月３０日　木曜日　午後８時３８分

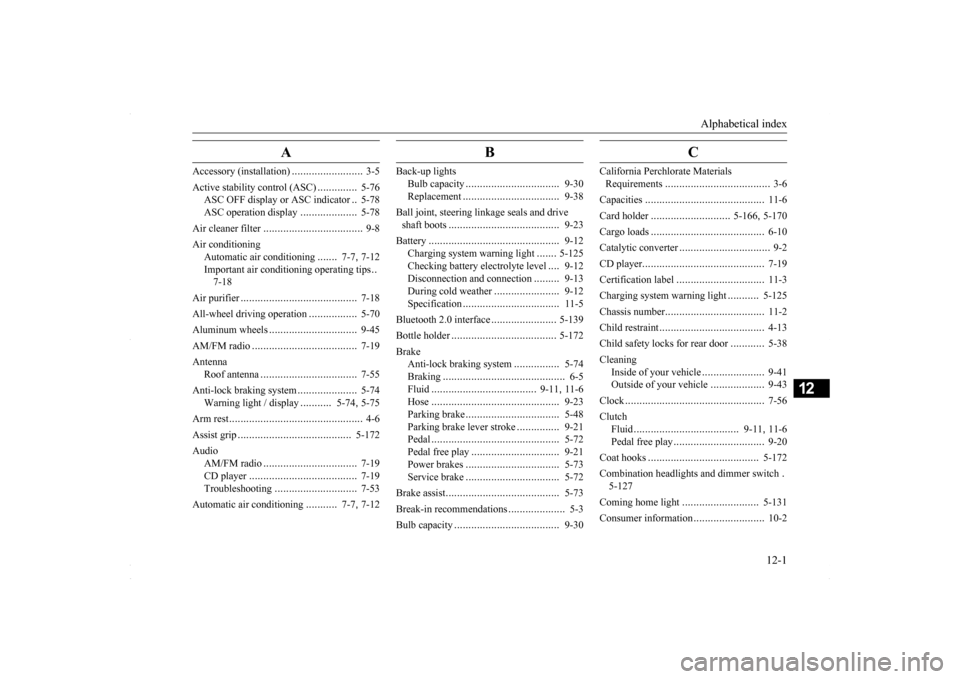

Alphabetical index
12-1
12
A
Accessory (installation)
.........................
3-5
Active stability control (ASC)
..............
5-76
ASC OFF display or ASC indicator
..5-78
ASC operation display
....................
5-78
Air cleaner filter
...................
................
9-8
Air conditioning
Automatic air conditioning
.......
7-7
, 7-12
Important air conditioning operating tips
..
7-18
Air purifier
....................
.....................
7-18
All-wheel driving operation
.................
5-70
Aluminum wheels
...............................
9-45
AM/FM radio
....................
.................
7-19
Antenna
Roof antenna
.................
.................
7-55
Anti-lock braking system
.....................
5-74
Warning light / display
...........
5-74
, 5-75
Arm rest
........................
.......................
4-6
Assist grip
.....................
...................
5-172
Audio
AM/FM radio
................
.................
7-19
CD player
.....................
.................
7-19
Troubleshooting
.............................
7-53
Automatic air conditioning
...........
7-7
, 7-12
B
Back-up lights
Bulb capacity
..................
...............
9-30
Replacement
...................
...............
9-38
Ball joint, steering linkage seals and drive shaft boots
.....................
..................
9-23
Battery
........................
......................
9-12
Charging system warning light
.......
5-125
Checking battery electrolyte level
....
9-12
Disconnection and connection
.........
9-13
During cold weather
.......................
9-12
Specification
...................
...............
11-5
Bluetooth 2.0 interface
.......................
5-139
Bottle holder
....................
.................
5-172
Brake
Anti-lock braking system
................
5-74
Braking
.......................
....................
6-5
Fluid
....................
.................
9-11
, 11-6
Hose
.......................
......................
9-23
Parking brake
..................
...............
5-48
Parking brake lever stroke
...............
9-21
Pedal
.......................
......................
5-72
Pedal free play
................
...............
9-21
Power brakes
..................
...............
5-73
Service brake
..................
...............
5-72
Brake assist
......................
..................
5-73
Break-in recommendations
....................
5-3
Bulb capacity
...................
..................
9-30
C
California Perchlorate Materials Requirements
.....................
................
3-6
Capacities
.....................
.....................
11-6
Card holder
............................
5-166
, 5-170
Cargo loads
...................
.....................
6-10
Catalytic converter
................
................
9-2
CD player
......................
.....................
7-19
Certification label
...............................
11-3
Charging system warning light
...........
5-125
Chassis number
..................
.................
11-2
Child restraint
....................
.................
4-13
Child safety locks for rear door
............
5-38
Cleaning
Inside of your vehicle
......................
9-41
Outside of your vehicle
...................
9-43
Clock
.........................
........................
7-56
Clutch
Fluid
..................
...................
9-11
, 11-6
Pedal free play
...............
.................
9-20
Coat hooks
....................
...................
5-172
Combination headlights and dimmer switch
.
5-127 Coming home light
...........................
5-131
Consumer information
.........................
10-2
BK0230300US.bo
ok 1 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Alphabetical index 12-2
12
Continuously variable transmission (CVT)
....
5-59 Fluid
.....................
...............
9-10
, 11-6
Selector lever operation
...................
5-59
Sports mode
..................
.................
5-64
Coolant (engine)
..........................
9-7
, 11-6
Cruise control
....................
.................
5-80
Cup holder
....................
...................
5-171
D
Daytime running lights
Bulb capacity
................
.................
9-30
Defogger (rear window)
....................
5-138
Defrosting or defogging (windshield, door windows)
.................
...............
7-12
, 7-17
Digital clock
Time setting
..................
.................
7-51
Dimensions
...................
.....................
11-4
Dimmer (high/low beam change)
.......
5-130
Disc brake pads
.................
.................
9-23
Dome light
Bulb capacity
................
.................
9-32
Replacement
.................
.................
9-40
Switch
......................
...................
5-168
Dome light/Reading lights
Bulb capacity
................
.................
9-32
Replacement
.................
.................
9-39
Switch
......................
...................
5-167
Doors
Lock
.......................
.......................
5-34
Power door locks
............................
5-37
Drive mode indicator
...........................
5-69
Drive mode-selector
............................
5-68
Driving during cold weather
..................
6-4
Driving, alcohol and drugs
....................
6-2
E
Electric rear window defogger switch
..5-138
Electronic immobilizer (Anti-theft starting system)
.....................
................
5-4
, 5-27
Electronically controlled 4WD system
..5-68
Drive mode indicator
.......................
5-69
Drive mode-selector
........................
5-68
Emergency key
...................
................
5-22
Emission-control system maintenance
...
9-22
Engine
Compartment
..................
.................
9-5
Coolant
...................
................
9-7
, 11-6
Hood
.......................
........................
9-3
Oil and oil filter
.......................
9-5
, 11-6
Overheating
....................
.................
8-4
Serial number
.................
................
11-2
Specifications
.................
................
11-5
Engine coolant temperature display
.......
5-99
Exhaust system
...................
................
9-23
F
Filling the fuel tank
...............
................
3-3
Floor console box
.............................
5-170
Floor mat
......................
.......................
6-2
Fluid
..........................
........................
11-6
Brake fluid
............................
9-11
, 11-6
Clutch fluid
...........................
9-11
, 11-6
Continuously variable transmission (CVT) fluid
....................
...............
9-10
, 11-6
Engine coolant
........................
9-7
, 11-6
Power steering fluid
...............
9-12
, 11-6
Twin Clutch Sportron
ic shift transmission
(Twin Clutch SST) fluid
................
11-6
Washer fluid
.................
.................
11-6
Fluid capacities and lubricants
.............
11-6
Fog lights
Bulb capacity
................
.................
9-30
Indicator
...................
...................
5-123
Switch
......................
...................
5-134
Free-hand advanced security transmitter (F.A.S.T.-key)
.................
.................
5-12
Front fog lights
Replacement
.................
.................
9-36
Front seats
.........................
...................
4-3
Front turn signal lights
Replacement
.................
.................
9-35
Front turn signal, parking and side-marker lights
BK0230300US.bo
ok 2 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Alphabetical index
12-3
12
Bulb capacity
................
.................
9-30
Replacement
.................
.................
9-34
Fuel
Fuel economy
...................
................
6-2
Fuel hoses
.....................
.................
9-22
Modification/alterations to the electrical or fuel systems
...................
................
3-6
Tank capacity
..........................
3-4
, 11-6
Fuel Pump Shut-off System
.................
8-15
Fuel selection
....................
...................
3-2
Fuses
.........................
........................
9-25
Fusible links
..................
.....................
9-24
G
General maintenance
...........................
9-23
General vehicle data
............................
11-4
Genuine parts
....................
...................
3-6
Glove compartment
...........................
5-169
H
Hazard warning flasher switch
...........
5-133
Hazard warning lights
.......................
5-123
Head restraints
...................
...................
4-6
Headlight leveling switch
..................
5-132
Headlights
Bulb capacity
................
.................
9-30
Dimmer
....................
...................
5-130
Headlight flasher
...........................
5-131
Leveling switch
.............................
5-132
Replacement
...................
...............
9-32
Switch
.....................
.....................
5-127
Heater without air conditioning function
.7-4
High beam indicator
..........................
5-123
Hood lock release mechanism and safety catch
.........................
......................
9-24
Horn switch
.....................
.................
5-139
I
If the vehicle breaks down
.....................
8-2
Ignition switch
...........................
5-16
, 5-52
Important facts to know in case of an accident 10-4 Indicators
....................
.....................
5-123
Information screen display
.................
5-125
Inside day/night rearview mirror
..........
5-50
Inside emergency trunk lid release
.......
5-40
Interior lights
...................
.................
5-167
J
Jack
............................
........................
8-5
Storage
........................
....................
8-5
Jump-starting the engine
.......................
8-2
K
Key reminder buzzer
...........................
5-36
Keyless entry system
.............................
5-7
Keys
..........................
..........................
5-3
L
Labeling
........................
.....................
11-2
License plate light
Bulb capacity
................
.................
9-30
Replacement
..................
.................
9-39
Link System
..................
...................
5-139
Loading information
..............................
6-6
Lubricants
.....................
.....................
11-6
M
Malfunction indicator
........................
5-124
Manual transaxle
................
.................
5-57
Oil
.....................
.....................
9-9
, 11-6
Shift points (recommended speed)
....
5-57
Mirror
Inside day/night rearview mirror
......
5-50
Outside rearview mirrors
.................
5-51
Modifications to and racing of your vehicle
..
3-5 Multi-information display
....................
5-91
BK0230300US.bo
ok 3 ページ ２０１５年７月３０日　木曜日　午後８時３８分

Alphabetical index 12-4
12
O
Octane requirement
...............
................
3-2
Oil
Engine oil
...............................
9-5
, 11-6
Manual transaxle oil
................
9-9
, 11-6
Rear axle oil
..................
.................
9-10
Transfer oil
...................
.................
9-10
Operation under adverse driving conditions
...
8-14 Outside rearview mirrors
.....................
5-51
Overheating
......................
...................
8-4
P
Parking
.........................
.......................
6-5
Parking brake
................
.................
5-48
Parking brake lever stroke
...............
9-21
Polishing
.......................
.....................
9-44
Power brakes
.....................
.................
5-73
Power door locks
...............
.................
5-37
Power steering
Fluid
.....................
...............
9-12
, 11-6
System
.....................
.....................
5-79
Power windows
.................
.................
5-43
Puncture (Tire changing)
.......................
8-6
R
Radiator cap
......................
...................
9-8
Radio
General information about your radio 7-57
Rain sensor
..................
.....................
5-135
Rear axle oil
....................
...................
9-10
Rear side-marker lights
Bulb capacity
..................
................
9-30
Replacement
...................
................
9-37
Rear turn signal lights
Bulb capacity
..................
................
9-30
Replacement
...................
................
9-37
Rear window defogger switch
............
5-138
Rear-view camera
...............
................
5-88
Rearview mirror
Inside
......................
.......................
5-50
Outside
.......................
...................
5-51
Refrigerant (air conditioning)
...............
11-6
Replacement of light bulbs
...................
9-29
Replacing tires and wheels
...................
9-18
Reporting Safety Defects
.....................
10-2
Roof antenna
...................
...................
7-55
S
Safe driving techniques
.........................
6-4
Seat
............................
........................
4-2
Arm rest
......................
....................
4-6
Front seats
...................
....................
4-3
Heated seats
....................
.................
4-4
Rear seats
....................
....................
4-5
Seats and restraint systems
................
4-2
Seat belt
........................
.......................
4-8
Adjustable seat belt shoulder anchor
.4-11
Child restraint
...............
.................
4-13
Driver’s seat belt reminder/warning
..4-10
Force limiter
.................
.................
4-13
Front passenger seat belt warning light
.....
4-11 Maintenance and inspection
.............
4-20
Pre-tensioner
.................
.................
4-12
Seat belt extender
...........................
4-12
Seat belt instructions
.........................
4-8
Seat belt use during pregnancy
.........
4-12
Service brake
.....................
.................
5-72
Service precautions
...............
................
9-2
Snow tires
.....................
.....................
9-20
Spark plugs
...................
.....................
9-22
Steering
Power steering fluid
...............
9-12
, 11-6
Tilt lock lever
................
.................
5-49
Wheel lock
............................
5-20
, 5-54
Storage spaces
...................
...............
5-169
Sun visors
.....................
...................
5-166
Supplemental Restraint System
............
4-20
How the Supplement Restraint System works
.....................
.....................
4-23
Servicing
..................
.....................
4-35
Warning light/display
......................
4-26
BK0230300US.bo
ok 4 ページ ２０１５年７月３０日　木曜日　午後８時３８分
