engine MITSUBISHI LANCER EVOLUTION 2010 10.G Owners Manual

Features and controls
3-203
3
Light auto-cutout function (headlights and other
lights)
N00532600440


With the combination headlights and dimmer switch in
the “ ” or “ ” position, if the key is turned to the
“LOCK” or “ACC” position or removed from the ignition
switch and the driver’s door is opened, the lights automat-
ically turn off.
[When using a key to start the engine]
 If the driver’s door is opened after the key is removed
from the ignition switch, a high-pitched constant tone
will sound to remind you to turn off the lights.
 If the driver’s door is opened with the key in the ignition
switch, a low-pitched beep will sound to remind you to
remove the key.
[When using the F.A.S.T.-key to start the engine]
 If the ignition switch is turned to the “LOCK” position
and the driver’s door is opened, a high-pitched constant
buzzer will sound to remind you to turn off the lights.
 If the ignition switch is turned to any position other than
“LOCK” and the driver’s door is opened, a low-pitched
constant buzzer will sound to remind you to return the
ignition switch.


With the combination headlights and dimmer switch in
the “ ” or “ ” position, if the key is turned to the
“LOCK” or “ACC” position or removed from the ignition
switch and the driver’s door is not opened, the lights auto-
matically turn off after about 3 minutes.
NOTE

The light auto-cutout function can be deactivated.
See your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For further details, refer to the separate
owner’s manual.
When you want to keep the lights on:If the combination headlights and dimmer switch is turned to
the “ ” or “ ” position again after the engine is turned off,
the about 3-minute auto-cutout function described above will
not work. The lights (the parking lights, tail lights and license
plate lights) will stay on and will not turn off automatically.NOTE

When the engine is started using the key, if the driver’s
door is opened and the key is removed, the headlight
reminder buzzer intermittently emits a high-pitched
sound. If the key is still in the ignition switch the key
reminder buzzer intermittently emits a low-pitched sound.
The buzzer stops when the driver’s door is closed. (A
warning is also displayed in the multi-information dis-
play.)


When the engine is started using the F.A.S.T.-key, if the
driver’s door is opened and the ignition switch is in the
“LOCK” position, the headlight reminder buzzer intermit-
tently emits a high-pitched sound. If the ignition switch is
in any position other than “LOCK”, the ignition switch on
reminder buzzer intermittently emits a low-pitched sound.
The buzzer stops when the driver’s door is closed. (A
warning is also displayed in the multi-information dis-
play.)
BK0105501US.book 203 ページ ２００９年８月１０日　月曜日　午前１０時３２分

3-204 Features and controls
3
Headlight reminder buzzer
N00549800183
[When using a key to start the engine]
If the driver’s door is opened with the key in the “LOCK” or
“ACC” position or removed from the ignition switch while the
lights are on, the tone will sound to remind you to turn off the
lights.
[When using the F.A.S.T.-key to start the engine]
If the driver’s door is opened with the ignition switch in the
“LOCK” or “ACC” position, or if the ignition switch is moved
to the “LOCK” position while the lights are on, the tone will
sound to remind you to turn off the lights.
In either case, the lights will turn off automatically and so will
the tone.
Or you can turn the light switch to the “OFF” position to stop
the tone.
Dimmer (high/low beam change)
N00549900142
To change the headlights from high beam to low beam and vice
versa, pull the turn signal lever to (1). Switch the headlights to
low beam as a courtesy whenever there are oncoming vehicles,
or when there is traffic moving ahead of you. An illuminated
blue light in the instrument cluster indicates when the head-
lights are on high beam.
BK0105501US.book 204 ページ ２００９年８月１０日　月曜日　午前１０時３２分

3-206 Features and controls
3
NOTE

While the welcome light function is operating, perform
one of the following operations to cancel the function.
 Push the LOCK button (B) on the remote control trans-
mitter.
 Turn the combination headlights and dimmer switch to
the “ ” or “ ” position.
 Turn the ignition switch to the “ON” position.


It is possible to modify functions as follows:
 The headlights can be set to come on in the low beam
setting instead of the front side-marker and parking
lights.
 The welcome light function can be deactivated.
For details, consult a Mitsubishi Motors dealer.
Coming home light
N00547300041
This function turns on the headlights in the low beam setting
for about 30 seconds after the ignition switch is turned to the
“LOCK” position.
1. Turn the combination headlights and dimmer switch to the
“OFF” or “AUTO” position (for vehicles equipped with
the automatic light control).
2. Turn the ignition switch to the “LOCK” position. Also, if
a key was used to start the engine, remove the key from
the ignition switch.
3. Within 60 seconds of turning the ignition switch to the
“LOCK” position, pull the turn signal lever toward you.
BK0105501US.book 206 ページ ２００９年８月１０日　月曜日　午前１０時３２分

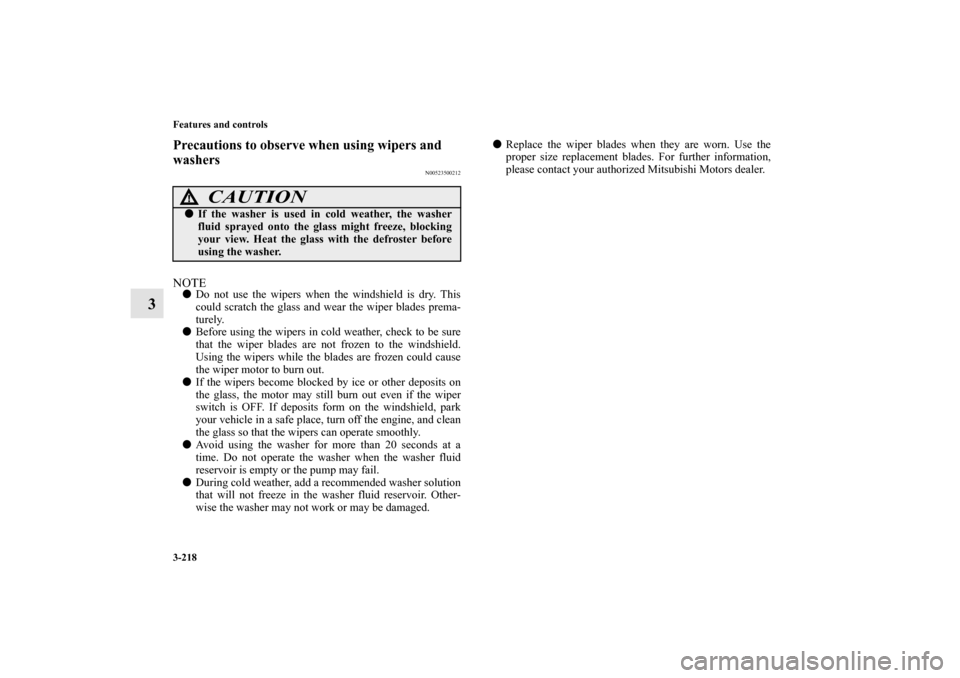

3-218 Features and controls
3
Precautions to observe when using wipers and
washers
N00523500212
NOTE

Do not use the wipers when the windshield is dry. This
could scratch the glass and wear the wiper blades prema-
turely.


Before using the wipers in cold weather, check to be sure
that the wiper blades are not frozen to the windshield.
Using the wipers while the blades are frozen could cause
the wiper motor to burn out.


If the wipers become blocked by ice or other deposits on
the glass, the motor may still burn out even if the wiper
switch is OFF. If deposits form on the windshield, park
your vehicle in a safe place, turn off the engine, and clean
the glass so that the wipers can operate smoothly.


Avoid using the washer for more than 20 seconds at a
time. Do not operate the washer when the washer fluid
reservoir is empty or the pump may fail.


During cold weather, add a recommended washer solution
that will not freeze in the washer fluid reservoir. Other-
wise the washer may not work or may be damaged.


Replace the wiper blades when they are worn. Use the
proper size replacement blades. For further information,
please contact your authorized Mitsubishi Motors dealer.
CAUTION
!

If the washer is used in cold weather, the washer
fluid sprayed onto the glass might freeze, blocking
your view. Heat the glass with the defroster before
using the washer.
BK0105501US.book 218 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-219
3 Electric rear window defogger switch
N00523700360
The rear window defogger can be used when the engine is run-
ning.
The indicator light (A) will come on when you press the elec-
tric rear window defogger switch. Electric current will flow
through the heating wires on the rear window to help clear
away moisture or frost.
After about 20 minutes of operation, the system will shut off
automatically.
To switch the defogger OFF before 20 minutes have passed,
press the switch again. The indicator light will go out and the
defogger will turn off.
If you need the defogger for more than 20 minutes, press the
switch again. This will add 20 more minutes.
NOTE

If your vehicle is equipped with heated mirrors, mist can
also be removed from the outside rearview mirrors when
the rear window defogger switch is pressed. (Refer to
“Heated mirror” on page 3-80.)
CAUTION
!

The rear window defogger is not designed to melt
snow. Remove any snow manually before using the
rear window defogger.


Use the rear window defogger only after the engine
has started and is running. Be sure to turn the
defogger switch off immediately after the window is
clear to save on battery power.


Do not place stickers, tape, or other items that are
attached with adhesive over the grid wires on the
rear window.


When cleaning the inside rear window, use a soft
cloth and wipe lightly over the grid wires.
BK0105501US.book 219 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-257
3 12 V power outlet
(if so equipped)
N00525000471
To use a “plug-in” type accessory, pull out the plug located in
front of the floor console box, then insert the plug in the socket.
The accessory can be operated when the ignition switch is in
the “ON” or “ACC” position.
CAUTION
!

Do not touch the heating element or lighter housing.
Hold the lighter by the knob only.


Do not allow children to use or play with the ciga-
rette lighter because they could be burned.


The cigarette lighter should pop back out about 30
seconds after pushing it in. If it does not pop out by
itself, pull it out and have it fixed at an authorized
Mitsubishi Motors dealer or a repair facility of your
choice. Leaving the cigarette lighter pushed in for a
long time could cause a fire.


Do not leave the cigarette lighter pushed in. Do not
use a cigarette lighter from another vehicle in this
socket. If you do, the lighter may overheat and cause
a fire.


It is recommended that only the lighter be inserted
in this socket. Using “plug-in” type accessories may
damage the socket and loosen the lighter.


When the cigarette lighter socket is used as a power
source for electronic equipment, be sure that the
equipment runs at 12 V and at 120 W or less.


Be aware that using electronic equipment with the
engine not running may run the battery down.
Ty p e 1
BK0105501US.book 257 ページ ２００９年８月１０日　月曜日　午前１０時３２分

3-258 Features and controls
3Interior lights
N00525300429
CAUTION
!

Be aware that using electronic equipment with the
engine off may run the battery down.


When the 12 V power outlet is not in use, be sure
that the plug is installed. This will prevent the 12 V
power outlet from becoming dirty and possibly
short-circuiting.


Be sure to use a “plug-in” type accessory operating
at 12 V and 120 W or less.
Ty p e 2
1- Dome light (Rear) (if so equipped) → P.3-260
2- Dome light (Front)/Reading lights → P.3-259
BK0105501US.book 258 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-259
3
Dome light (Front)/Reading lights
N00525800017
Dome light (Front)The dome light can be turned on by sliding the dome light
switch.1- (DOOR)
The dome light comes on when any door is opened. After all
doors are closed, the dome light will stay on for approxi-
mately 30 seconds and then go off.
However, the light goes off immediately if:

The door is closed while the ignition switch is in the
“ON” position.

The driver’s door is closed after all the other doors are
closed while the lock knob of the driver’s door is in the
lock position.

The door is closed and the power door lock switch is
used to lock the doors.

The keyless entry system remote control transmitter is
used to lock the doors.

In vehicles equipped with the F.A.S.T.-key, the doors
are locked using the F.A.S.T.-key.NOTE
When the engine is started using the key while the
doors are closed, if you remove the key, the dome light
will illuminate for approximately 30 seconds then go
off.

When the engine is started using the F.A.S.T.-key while
the doors are closed, if the ignition switch is moved to
the “LOCK” position, the dome light will illuminate
for approximately 30 seconds and then go off.

The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
2- (OFF)
The dome light goes off.
BK0105501US.book 259 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-261
3
1- (OFF)
The dome light turns off.
2- (
)
The dome light comes on when any door is opened. After all
doors are closed, the dome light will stay on for approxi-
mately 30 seconds and then go off. However, the light goes
off immediately if:

The door is closed while the ignition switch is in the
“ON” position.

The driver’s door is closed after all the other doors are
closed while the lock knob of the driver’s door is in the
lock position.

The door is closed and the power door lock switch is
used to lock the doors.

The keyless entry system remote control transmitter is
used to lock the doors.

In vehicles equipped with the F.A.S.T.-key, the doors
are locked using the F.A.S.T.-key.
NOTE
When the engine is started using the key while the
doors are closed, if you remove the key, the dome light
will illuminate for approximately 30 seconds then go
off.

When the engine is started using the F.A.S.T.-key while
the doors are closed, if the ignition switch is moved to
the “LOCK” position, the dome light will illuminate for
approximately 30 seconds and then go off.

The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
3- (ON)
The dome light comes on.
BK0105501US.book 261 ページ ２００９年８月１０日　月曜日　午前１０時３２分

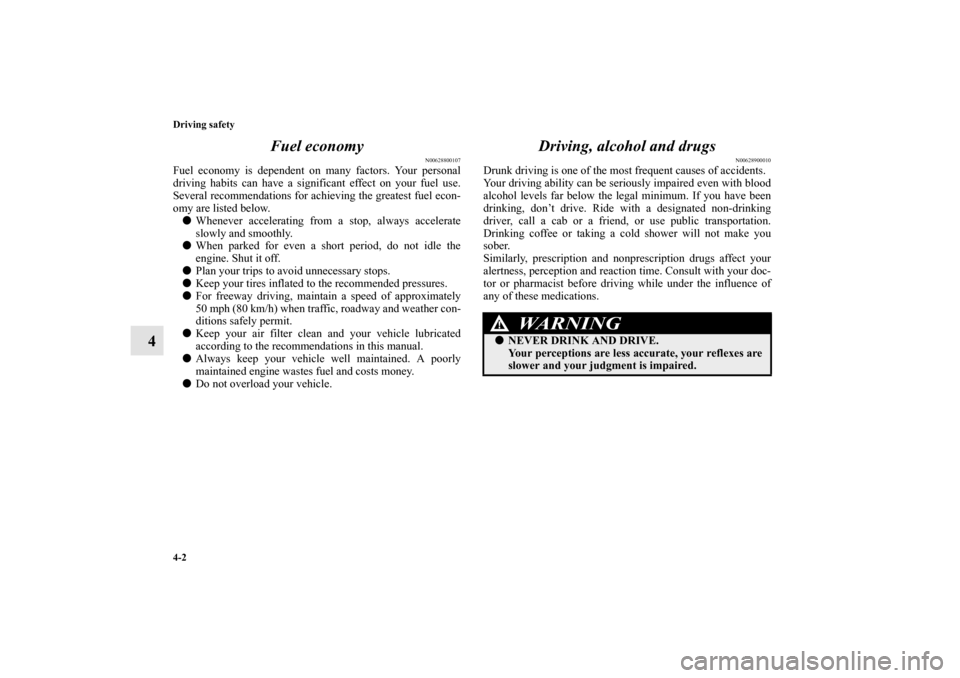

4-2 Driving safety
4Fuel economy
N00628800107
Fuel economy is dependent on many factors. Your personal
driving habits can have a significant effect on your fuel use.
Several recommendations for achieving the greatest fuel econ-
omy are listed below.

Whenever accelerating from a stop, always accelerate
slowly and smoothly.


When parked for even a short period, do not idle the
engine. Shut it off.


Plan your trips to avoid unnecessary stops.


Keep your tires inflated to the recommended pressures.


For freeway driving, maintain a speed of approximately
50 mph (80 km/h) when traffic, roadway and weather con-
ditions safely permit.


Keep your air filter clean and your vehicle lubricated
according to the recommendations in this manual.


Always keep your vehicle well maintained. A poorly
maintained engine wastes fuel and costs money.


Do not overload your vehicle.
Driving, alcohol and drugs
N00628900010
Drunk driving is one of the most frequent causes of accidents.
Your driving ability can be seriously impaired even with blood
alcohol levels far below the legal minimum. If you have been
drinking, don’t drive. Ride with a designated non-drinking
driver, call a cab or a friend, or use public transportation.
Drinking coffee or taking a cold shower will not make you
sober.
Similarly, prescription and nonprescription drugs affect your
alertness, perception and reaction time. Consult with your doc-
tor or pharmacist before driving while under the influence of
any of these medications.
WA R N I N G
!

NEVER DRINK AND DRIVE.
Your perceptions are less accurate, your reflexes are
slower and your judgment is impaired.
BK0105501US.book 2 ページ ２００９年８月１０日　月曜日　午前１０時３２分
