Page 398 of 594
Comfort controls
5-29
5

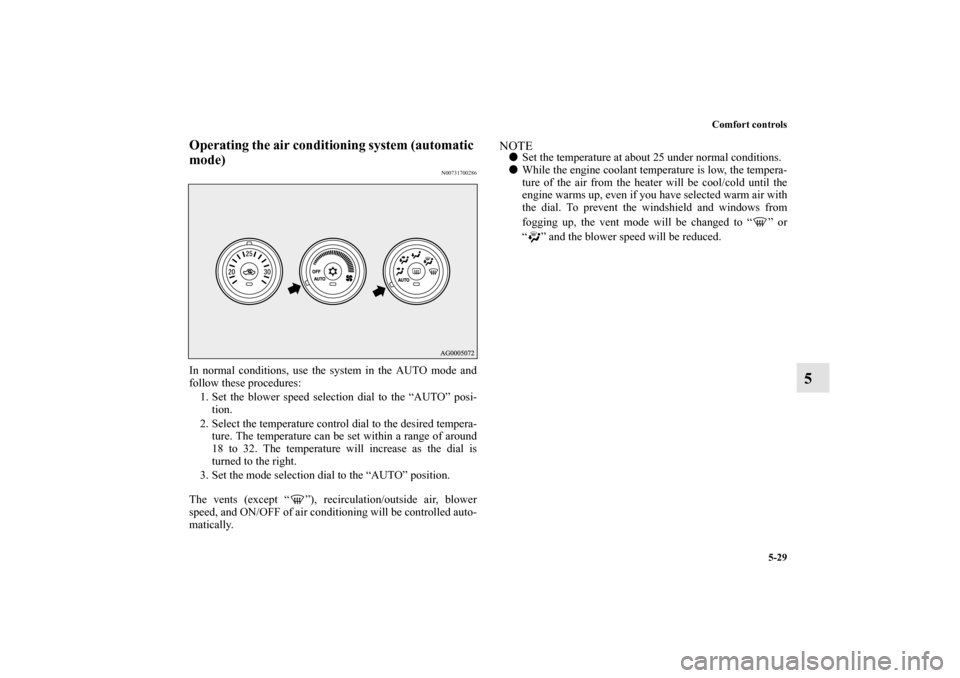

Operating the air conditioning system (automatic
mode)
N00731700286
In normal conditions, use the system in the AUTO mode and
follow these procedures:
1. Set the blower speed selection dial to the “AUTO” posi-
tion.
2. Select the temperature control dial to the desired tempera-
ture. The temperature can be set within a range of around
18 to 32. The temperature will increase as the dial is
turned to the right.
3. Set the mode selection dial to the “AUTO” position.
The vents (except “ ”), recirculation/outside air, blower
speed, and ON/OFF of air conditioning will be controlled auto-
matically.
NOTE
Set the temperature at about 25 under normal conditions.
While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial. To prevent the windshield and windows from
fogging up, the vent mode will be changed to “ ” or
“ ” and the blower speed will be reduced.
BK0105501US.book 29 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 402 of 594
Comfort controls
5-33

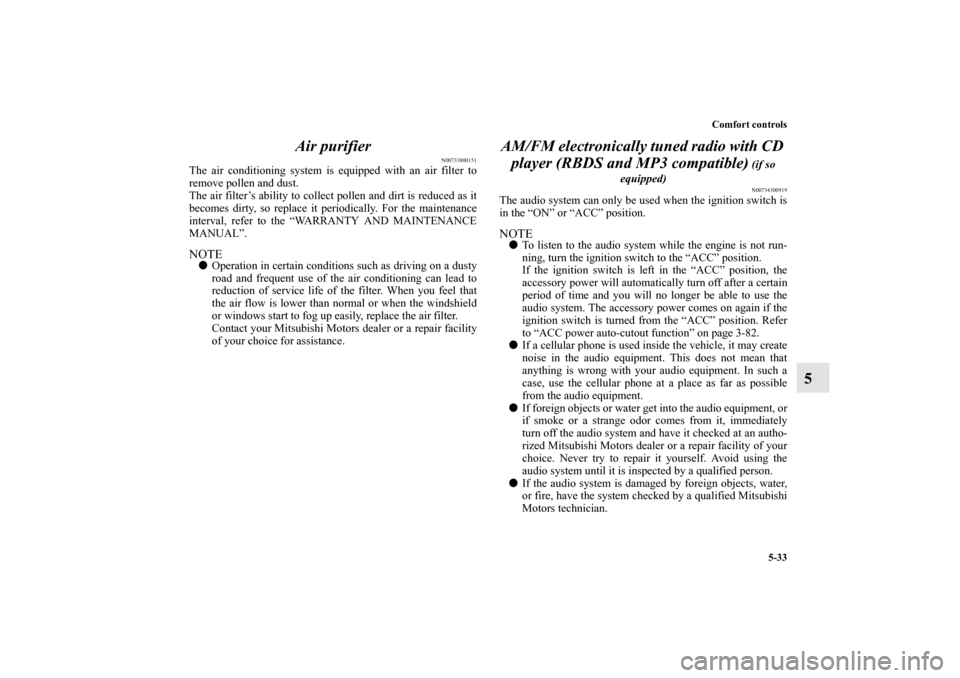

5 Air purifier
N00733800151
The air conditioning system is equipped with an air filter to
remove pollen and dust.
The air filter’s ability to collect pollen and dirt is reduced as it
becomes dirty, so replace it periodically. For the maintenance
interval, refer to the “WARRANTY AND MAINTENANCE
MANUAL”.NOTE
Operation in certain conditions such as driving on a dusty
road and frequent use of the air conditioning can lead to
reduction of service life of the filter. When you feel that
the air flow is lower than normal or when the windshield
or windows start to fog up easily, replace the air filter.
Contact your Mitsubishi Motors dealer or a repair facility
of your choice for assistance.
AM/FM electronically tuned radio with CD
player (RBDS and MP3 compatible)
(if so
equipped)N00734300919
The audio system can only be used when the ignition switch is
in the “ON” or “ACC” position.NOTE
To listen to the audio system while the engine is not run-
ning, turn the ignition switch to the “ACC” position.
If the ignition switch is left in the “ACC” position, the
accessory power will automatically turn off after a certain
period of time and you will no longer be able to use the
audio system. The accessory power comes on again if the
ignition switch is turned from the “ACC” position. Refer
to “ACC power auto-cutout function” on page 3-82.
If a cellular phone is used inside the vehicle, it may create
noise in the audio equipment. This does not mean that
anything is wrong with your audio equipment. In such a
case, use the cellular phone at a place as far as possible
from the audio equipment.
If foreign objects or water get into the audio equipment, or
if smoke or a strange odor comes from it, immediately
turn off the audio system and have it checked at an autho-
rized Mitsubishi Motors dealer or a repair facility of your
choice. Never try to repair it yourself. Avoid using the
audio system until it is inspected by a qualified person.
If the audio system is damaged by foreign objects, water,
or fire, have the system checked by a qualified Mitsubishi
Motors technician.
BK0105501US.book 33 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 421 of 594
5-52 Comfort controls
5

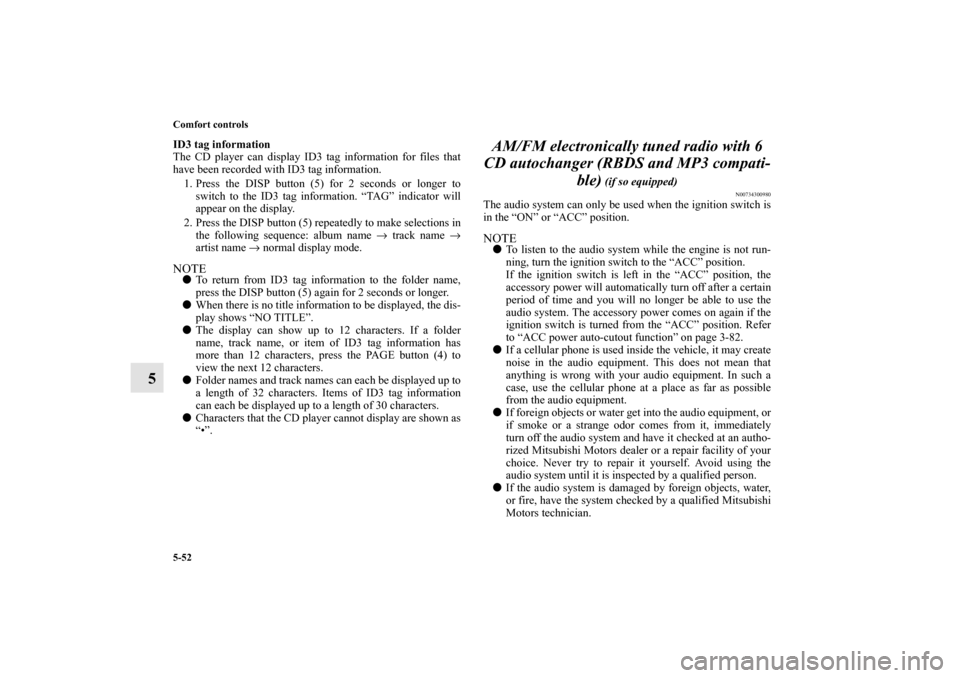

ID3 tag information
The CD player can display ID3 tag information for files that
have been recorded with ID3 tag information.
1. Press the DISP button (5) for 2 seconds or longer to
switch to the ID3 tag information. “TAG” indicator will
appear on the display.
2. Press the DISP button (5) repeatedly to make selections in
the following sequence: album name → track name →
artist name → normal display mode.NOTE
To return from ID3 tag information to the folder name,
press the DISP button (5) again for 2 seconds or longer.
When there is no title information to be displayed, the dis-
play shows “NO TITLE”.
The display can show up to 12 characters. If a folder
name, track name, or item of ID3 tag information has
more than 12 characters, press the PAGE button (4) to
view the next 12 characters.
Folder names and track names can each be displayed up to
a length of 32 characters. Items of ID3 tag information
can each be displayed up to a length of 30 characters.
Characters that the CD player cannot display are shown as
“”.
AM/FM electronically tuned radio with 6
CD autochanger (RBDS and MP3 compati-
ble)
(if so equipped)
N00734300980
The audio system can only be used when the ignition switch is
in the “ON” or “ACC” position.NOTE
To listen to the audio system while the engine is not run-
ning, turn the ignition switch to the “ACC” position.
If the ignition switch is left in the “ACC” position, the
accessory power will automatically turn off after a certain
period of time and you will no longer be able to use the
audio system. The accessory power comes on again if the
ignition switch is turned from the “ACC” position. Refer
to “ACC power auto-cutout function” on page 3-82.
If a cellular phone is used inside the vehicle, it may create
noise in the audio equipment. This does not mean that
anything is wrong with your audio equipment. In such a
case, use the cellular phone at a place as far as possible
from the audio equipment.
If foreign objects or water get into the audio equipment, or
if smoke or a strange odor comes from it, immediately
turn off the audio system and have it checked at an autho-
rized Mitsubishi Motors dealer or a repair facility of your
choice. Never try to repair it yourself. Avoid using the
audio system until it is inspected by a qualified person.
If the audio system is damaged by foreign objects, water,
or fire, have the system checked by a qualified Mitsubishi
Motors technician.
BK0105501US.book 52 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 468 of 594

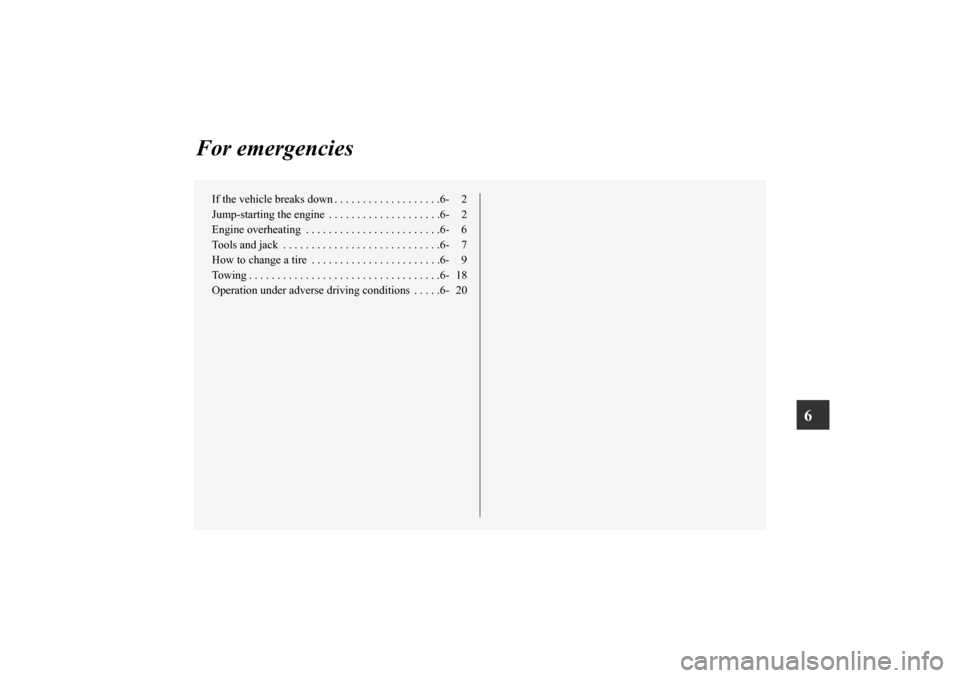

6
For emergencies
If the vehicle breaks down . . . . . . . . . . . . . . . . . . .6- 2
Jump-starting the engine . . . . . . . . . . . . . . . . . . . .6- 2
Engine overheating . . . . . . . . . . . . . . . . . . . . . . . .6- 6
Tools and jack . . . . . . . . . . . . . . . . . . . . . . . . . . . .6- 7
How to change a tire . . . . . . . . . . . . . . . . . . . . . . .6- 9
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6- 18
Operation under adverse driving conditions . . . . .6- 20
BK0105501US.book 1 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 469 of 594
6-2 For emergencies

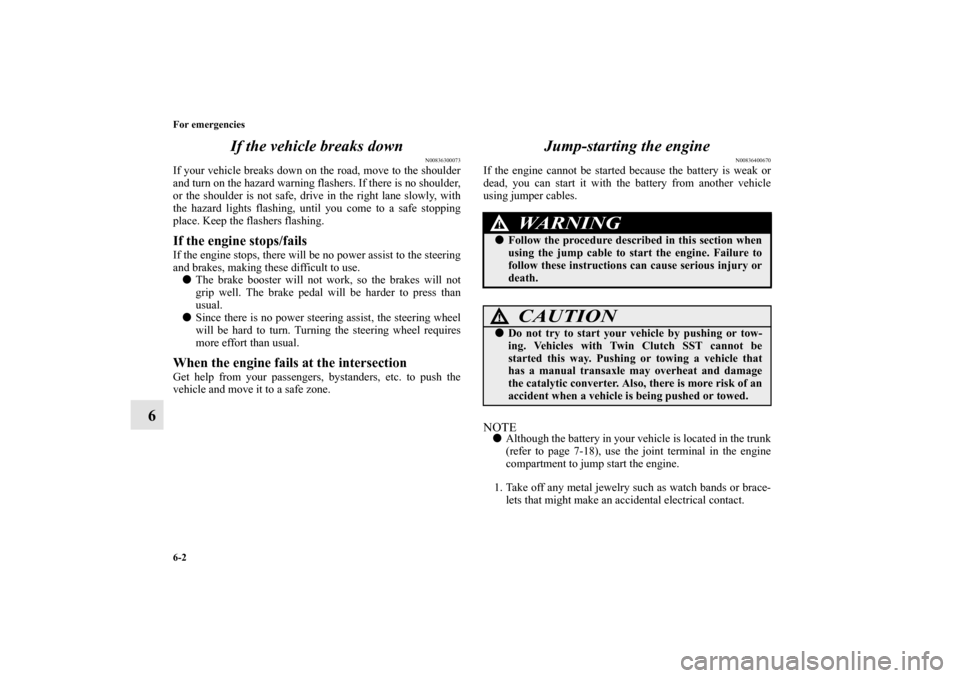

6If the vehicle breaks down
N00836300073
If your vehicle breaks down on the road, move to the shoulder
and turn on the hazard warning flashers. If there is no shoulder,
or the shoulder is not safe, drive in the right lane slowly, with
the hazard lights flashing, until you come to a safe stopping
place. Keep the flashers flashing. If the engine stops/fails If the engine stops, there will be no power assist to the steering
and brakes, making these difficult to use.
The brake booster will not work, so the brakes will not
grip well. The brake pedal will be harder to press than
usual.
Since there is no power steering assist, the steering wheel
will be hard to turn. Turning the steering wheel requires
more effort than usual.
When the engine fails at the intersection Get help from your passengers, bystanders, etc. to push the
vehicle and move it to a safe zone.
Jump-starting the engine
N00836400670
If the engine cannot be started because the battery is weak or
dead, you can start it with the battery from another vehicle
using jumper cables. NOTE
Although the battery in your vehicle is located in the trunk
(refer to page 7-18), use the joint terminal in the engine
compartment to jump start the engine.
1. Take off any metal jewelry such as watch bands or brace-
lets that might make an accidental electrical contact.
WA R N I N G
!
Follow the procedure described in this section when
using the jump cable to start the engine. Failure to
follow these instructions can cause serious injury or
death.CAUTION
!
Do not try to start your vehicle by pushing or tow-
ing. Vehicles with Twin Clutch SST cannot be
started this way. Pushing or towing a vehicle that
has a manual transaxle may overheat and damage
the catalytic converter. Also, there is more risk of an
accident when a vehicle is being pushed or towed.
BK0105501US.book 2 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 471 of 594
6-4 For emergencies
6

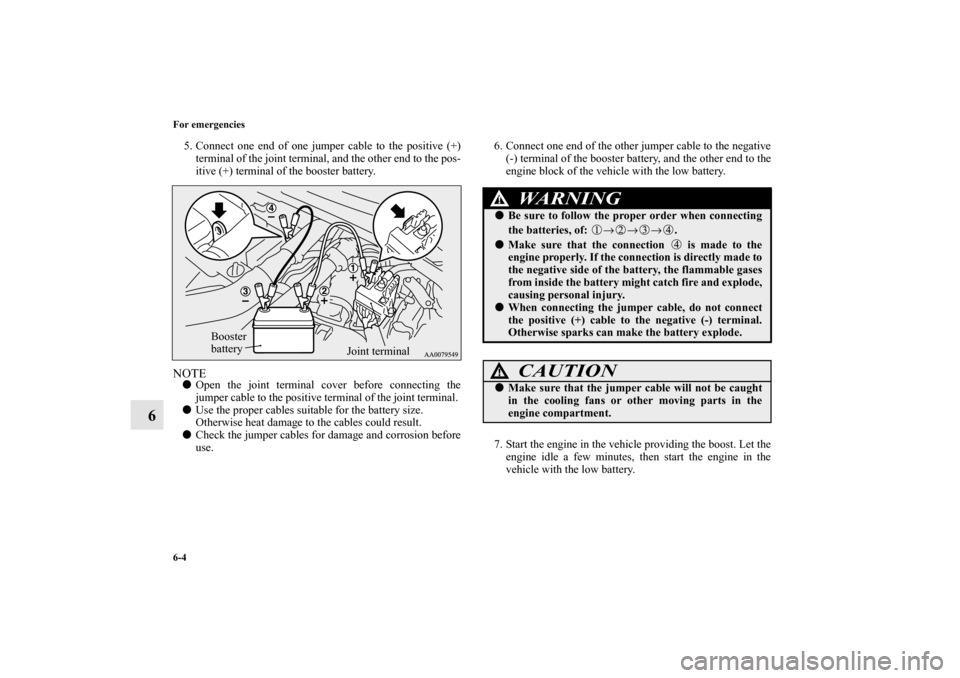

5. Connect one end of one jumper cable to the positive (+)
terminal of the joint terminal, and the other end to the pos-
itive (+) terminal of the booster battery.NOTE
Open the joint terminal cover before connecting the
jumper cable to the positive terminal of the joint terminal.
Use the proper cables suitable for the battery size.
Otherwise heat damage to the cables could result.
Check the jumper cables for damage and corrosion before
use.6. Connect one end of the other jumper cable to the negative
(-) terminal of the booster battery, and the other end to the
engine block of the vehicle with the low battery.
7. Start the engine in the vehicle providing the boost. Let the
engine idle a few minutes, then start the engine in the
vehicle with the low battery.
Booster
battery
Joint terminal
WA R N I N G
!
Be sure to follow the proper order when connecting
the batteries, of: →→→.
Make sure that the connection is made to the
engine properly. If the connection is directly made to
the negative side of the battery, the flammable gases
from inside the battery might catch fire and explode,
causing personal injury.
When connecting the jumper cable, do not connect
the positive (+) cable to the negative (-) terminal.
Otherwise sparks can make the battery explode.CAUTION
!
Make sure that the jumper cable will not be caught
in the cooling fans or other moving parts in the
engine compartment.
BK0105501US.book 4 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 472 of 594
For emergencies
6-5
6

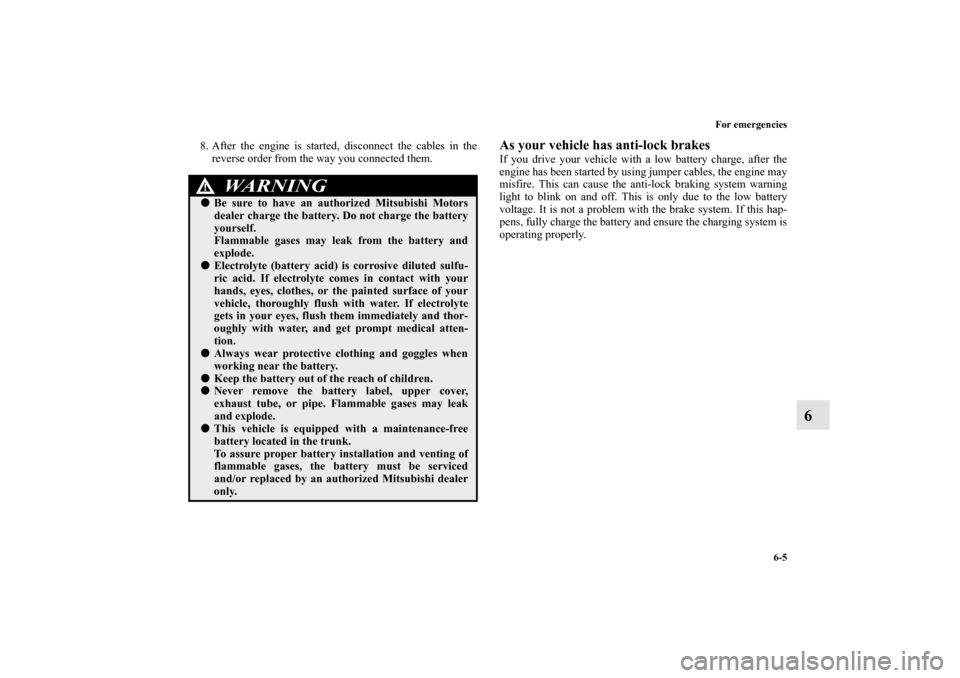

8. After the engine is started, disconnect the cables in the
reverse order from the way you connected them.
As your vehicle has anti-lock brakesIf you drive your vehicle with a low battery charge, after the
engine has been started by using jumper cables, the engine may
misfire. This can cause the anti-lock braking system warning
light to blink on and off. This is only due to the low battery
voltage. It is not a problem with the brake system. If this hap-
pens, fully charge the battery and ensure the charging system is
operating properly.
WA R N I N G
!
Be sure to have an authorized Mitsubishi Motors
dealer charge the battery. Do not charge the battery
yourself.
Flammable gases may leak from the battery and
explode.
Electrolyte (battery acid) is corrosive diluted sulfu-
ric acid. If electrolyte comes in contact with your
hands, eyes, clothes, or the painted surface of your
vehicle, thoroughly flush with water. If electrolyte
gets in your eyes, flush them immediately and thor-
oughly with water, and get prompt medical atten-
tion.
Always wear protective clothing and goggles when
working near the battery.
Keep the battery out of the reach of children.
Never remove the battery label, upper cover,
exhaust tube, or pipe. Flammable gases may leak
and explode.
This vehicle is equipped with a maintenance-free
battery located in the trunk.
To assure proper battery installation and venting of
flammable gases, the battery must be serviced
and/or replaced by an authorized Mitsubishi dealer
only.
BK0105501US.book 5 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 473 of 594
6-6 For emergencies

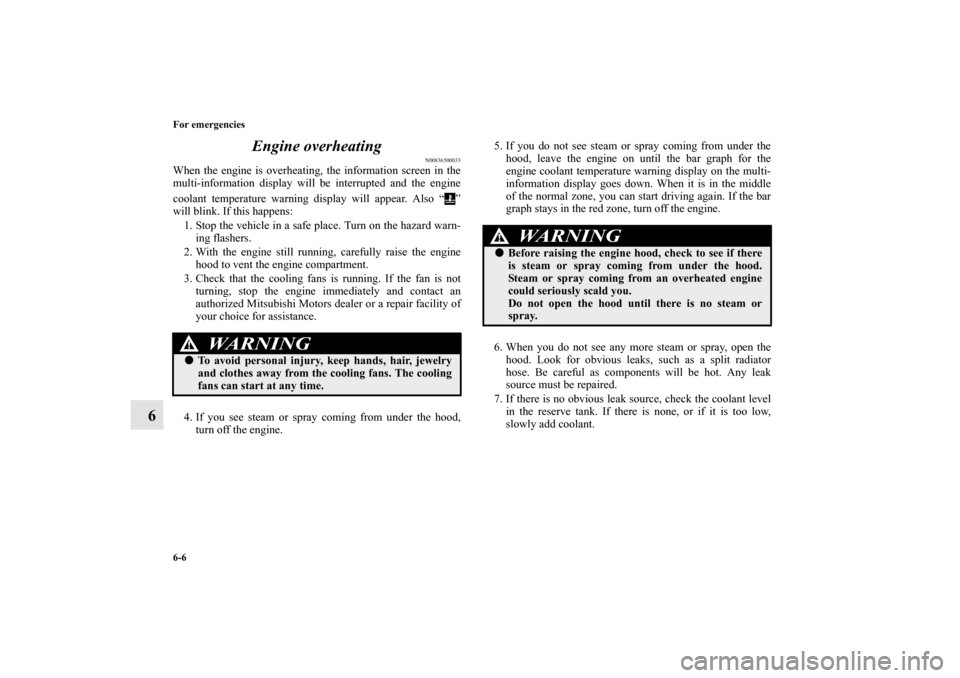

6Engine overheating
N00836500033
When the engine is overheating, the information screen in the
multi-information display will be interrupted and the engine
coolant temperature warning display will appear. Also “ ”
will blink. If this happens:
1. Stop the vehicle in a safe place. Turn on the hazard warn-
ing flashers.
2. With the engine still running, carefully raise the engine
hood to vent the engine compartment.
3. Check that the cooling fans is running. If the fan is not
turning, stop the engine immediately and contact an
authorized Mitsubishi Motors dealer or a repair facility of
your choice for assistance.
4. If you see steam or spray coming from under the hood,
turn off the engine.5. If you do not see steam or spray coming from under the
hood, leave the engine on until the bar graph for the
engine coolant temperature warning display on the multi-
information display goes down. When it is in the middle
of the normal zone, you can start driving again. If the bar
graph stays in the red zone, turn off the engine.
6. When you do not see any more steam or spray, open the
hood. Look for obvious leaks, such as a split radiator
hose. Be careful as components will be hot. Any leak
source must be repaired.
7. If there is no obvious leak source, check the coolant level
in the reserve tank. If there is none, or if it is too low,
slowly add coolant.
WA R N I N G
!
To avoid personal injury, keep hands, hair, jewelry
and clothes away from the cooling fans. The cooling
fans can start at any time.
WA R N I N G
!
Before raising the engine hood, check to see if there
is steam or spray coming from under the hood.
Steam or spray coming from an overheated engine
could seriously scald you.
Do not open the hood until there is no steam or
spray.
BK0105501US.book 6 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 474 of 594
For emergencies
6-7
6
8. If the reserve tank needs coolant, you will probably also
need to add coolant to the radiator. Do not loosen or
remove the radiator cap until the engine has cooled down.
9. Start the engine, and slowly add coolant, up to the bottom
of the filler neck. Use plain water if you have to (and
replace it with the right coolant as soon as possible).
10. Replace the radiator cap and tighten it fully. Check the
engine coolant temperature display on the multi-informa-
tion display. You can start driving again when the bar
graph for the engine coolant temperature display returns
to the normal zone.
11. Have your vehicle checked by your authorized Mitsubishi
Motors dealer or a repair facility of your choice.
Tools and jack
N00836600311
StorageThe tools and jack are stowed in the trunk.
WA R N I N G
!
Removing the radiator cap could scald you with
escaping hot water or steam. When checking the
radiator level, cover the cap with a cloth before try-
ing to remove it. Turn it slowly counterclockwise,
without pressing down, to the first notch. The pres-
sure in the system will then be let out. When the
pressure is COMPLETELY LET OUT, press down
and keep turning the cap counterclockwise until it
will come off.
1- Tools
2- Jack
BK0105501US.book 7 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 481 of 594

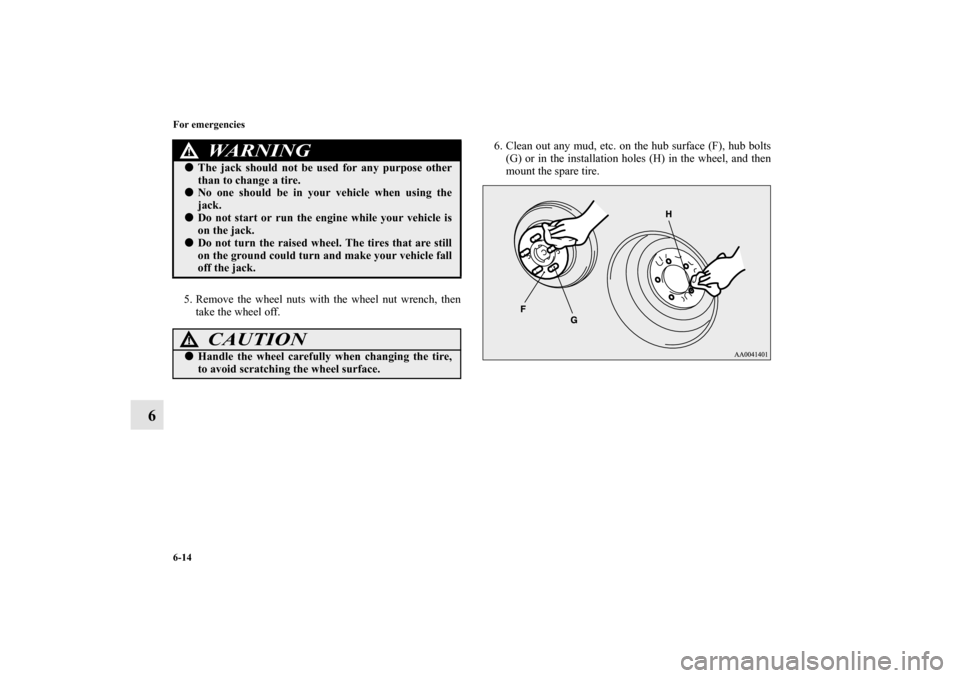

6-14 For emergencies
6
5. Remove the wheel nuts with the wheel nut wrench, then
take the wheel off. 6. Clean out any mud, etc. on the hub surface (F), hub bolts
(G) or in the installation holes (H) in the wheel, and then
mount the spare tire.
The jack should not be used for any purpose other
than to change a tire.
No one should be in your vehicle when using the
jack.
Do not start or run the engine while your vehicle is
on the jack.
Do not turn the raised wheel. The tires that are still
on the ground could turn and make your vehicle fall
off the jack. CAUTION
!
Handle the wheel carefully when changing the tire,
to avoid scratching the wheel surface.WA R N I N G
!
BK0105501US.book 14 ページ ２００９年８月１０日 月曜日 午前１０時３２分
