Page 487 of 594

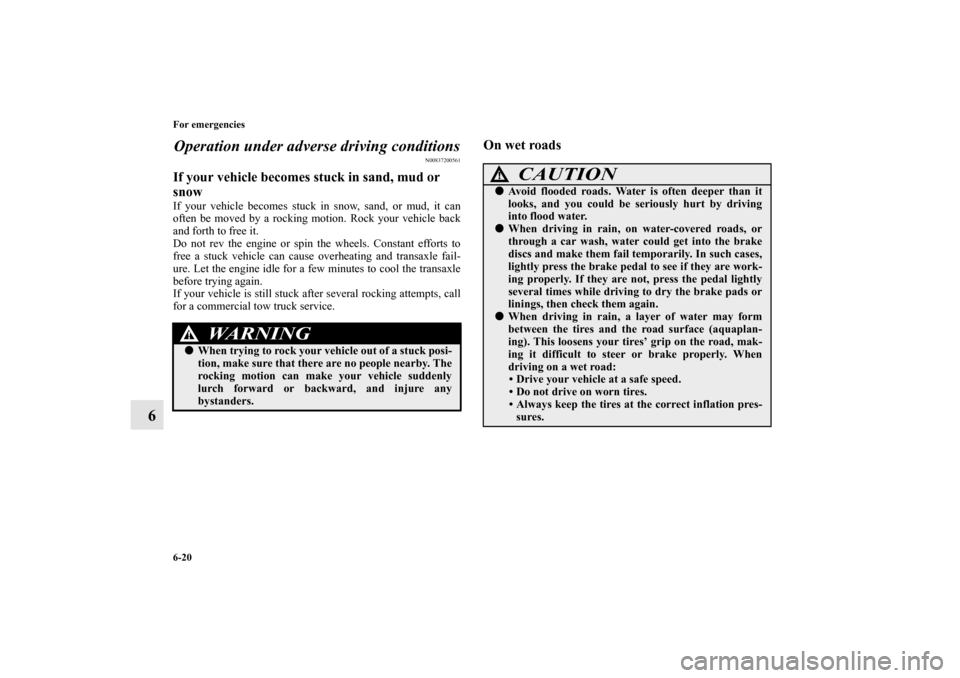

6-20 For emergencies
6Operation under adverse driving conditions
N00837200561
If your vehicle becomes stuck in sand, mud or
snow If your vehicle becomes stuck in snow, sand, or mud, it can
often be moved by a rocking motion. Rock your vehicle back
and forth to free it.
Do not rev the engine or spin the wheels. Constant efforts to
free a stuck vehicle can cause overheating and transaxle fail-
ure. Let the engine idle for a few minutes to cool the transaxle
before trying again.
If your vehicle is still stuck after several rocking attempts, call
for a commercial tow truck service.
On wet roads
WA R N I N G
!
When trying to rock your vehicle out of a stuck posi-
tion, make sure that there are no people nearby. The
rocking motion can make your vehicle suddenly
lurch forward or backward, and injure any
bystanders.
CAUTION
!
Avoid flooded roads. Water is often deeper than it
looks, and you could be seriously hurt by driving
into flood water.
When driving in rain, on water-covered roads, or
through a car wash, water could get into the brake
discs and make them fail temporarily. In such cases,
lightly press the brake pedal to see if they are work-
ing properly. If they are not, press the pedal lightly
several times while driving to dry the brake pads or
linings, then check them again.
When driving in rain, a layer of water may form
between the tires and the road surface (aquaplan-
ing). This loosens your tires’ grip on the road, mak-
ing it difficult to steer or brake properly. When
driving on a wet road: Drive your vehicle at a safe speed.
Do not drive on worn tires.
Always keep the tires at the correct inflation pres-
sures.
BK0105501US.book 20 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 490 of 594

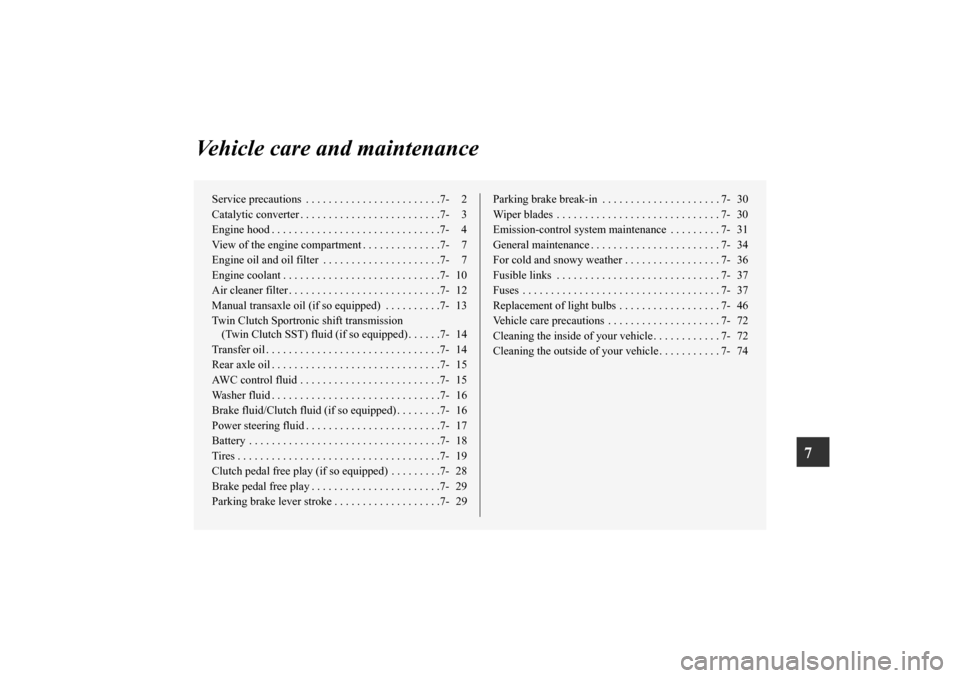

7
Vehicle care and maintenance
Service precautions . . . . . . . . . . . . . . . . . . . . . . . .7- 2
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . .7- 3
Engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 4
View of the engine compartment . . . . . . . . . . . . . .7- 7
Engine oil and oil filter . . . . . . . . . . . . . . . . . . . . .7- 7
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 10
Air cleaner filter . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 12
Manual transaxle oil (if so equipped) . . . . . . . . . .7- 13
Twin Clutch Sportronic shift transmission
(Twin Clutch SST) fluid (if so equipped) . . . . . .7- 14
Transfer oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 14
Rear axle oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 15
AWC control fluid . . . . . . . . . . . . . . . . . . . . . . . . .7- 15
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 16
Brake fluid/Clutch fluid (if so equipped) . . . . . . . .7- 16
Power steering fluid . . . . . . . . . . . . . . . . . . . . . . . .7- 17
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 18
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 19
Clutch pedal free play (if so equipped) . . . . . . . . .7- 28
Brake pedal free play . . . . . . . . . . . . . . . . . . . . . . .7- 29
Parking brake lever stroke . . . . . . . . . . . . . . . . . . .7- 29Parking brake break-in . . . . . . . . . . . . . . . . . . . . . 7- 30
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 30
Emission-control system maintenance . . . . . . . . . 7- 31
General maintenance . . . . . . . . . . . . . . . . . . . . . . . 7- 34
For cold and snowy weather . . . . . . . . . . . . . . . . . 7- 36
Fusible links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 37
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 37
Replacement of light bulbs . . . . . . . . . . . . . . . . . . 7- 46
Vehicle care precautions . . . . . . . . . . . . . . . . . . . . 7- 72
Cleaning the inside of your vehicle . . . . . . . . . . . . 7- 72
Cleaning the outside of your vehicle . . . . . . . . . . . 7- 74
BK0105501US.book 1 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 491 of 594

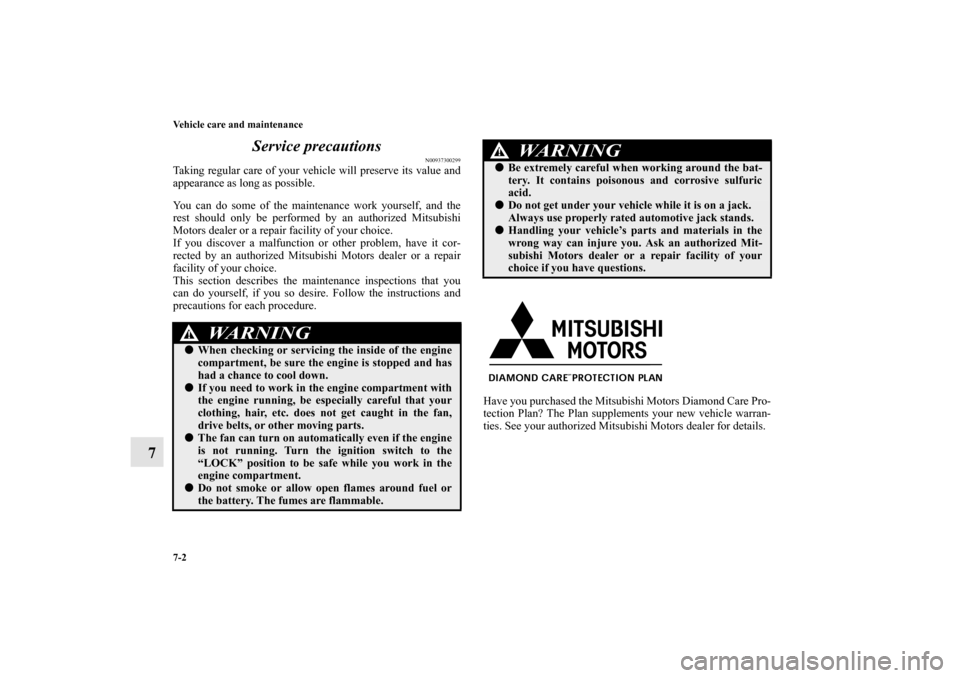

7-2 Vehicle care and maintenance
7Service precautions
N00937300299
Taking regular care of your vehicle will preserve its value and
appearance as long as possible.
You can do some of the maintenance work yourself, and the
rest should only be performed by an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
If you discover a malfunction or other problem, have it cor-
rected by an authorized Mitsubishi Motors dealer or a repair
facility of your choice.
This section describes the maintenance inspections that you
can do yourself, if you so desire. Follow the instructions and
precautions for each procedure.
Have you purchased the Mitsubishi Motors Diamond Care Pro-
tection Plan? The Plan supplements your new vehicle warran-
ties. See your authorized Mitsubishi Motors dealer for details.
WA R N I N G
!
When checking or servicing the inside of the engine
compartment, be sure the engine is stopped and has
had a chance to cool down.
If you need to work in the engine compartment with
the engine running, be especially careful that your
clothing, hair, etc. does not get caught in the fan,
drive belts, or other moving parts.
The fan can turn on automatically even if the engine
is not running. Turn the ignition switch to the
“LOCK” position to be safe while you work in the
engine compartment.
Do not smoke or allow open flames around fuel or
the battery. The fumes are flammable.
Be extremely careful when working around the bat-
tery. It contains poisonous and corrosive sulfuric
acid.
Do not get under your vehicle while it is on a jack.
Always use properly rated automotive jack stands.
Handling your vehicle’s parts and materials in the
wrong way can injure you. Ask an authorized Mit-
subishi Motors dealer or a repair facility of your
choice if you have questions. WA R N I N G
!
BK0105501US.book 2 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 492 of 594
Vehicle care and maintenance
7-3

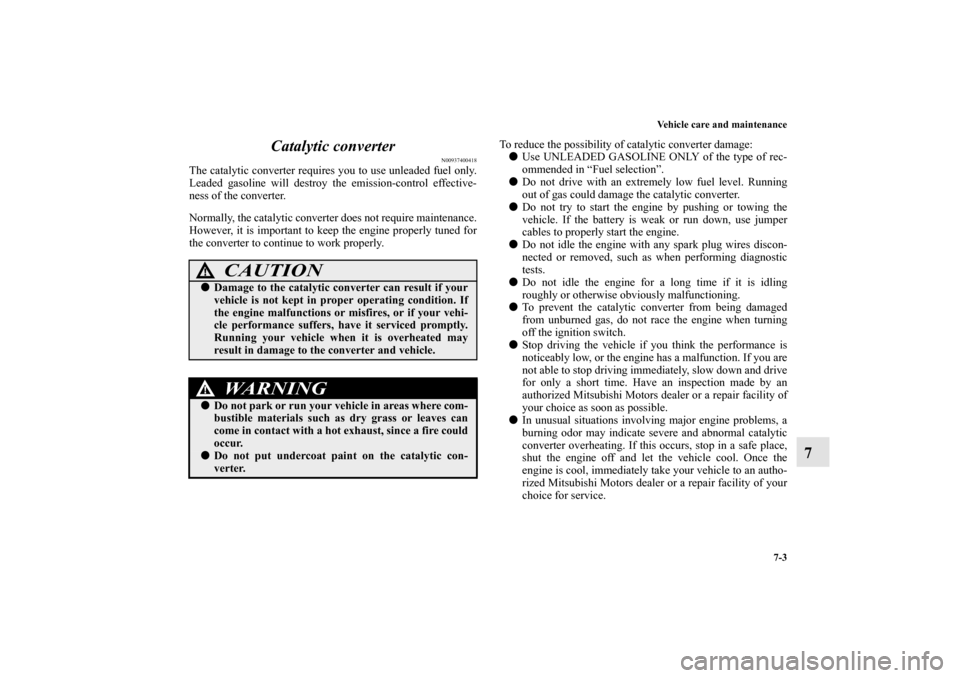

7 Catalytic converter
N00937400418
The catalytic converter requires you to use unleaded fuel only.
Leaded gasoline will destroy the emission-control effective-
ness of the converter.
Normally, the catalytic converter does not require maintenance.
However, it is important to keep the engine properly tuned for
the converter to continue to work properly. To reduce the possibility of catalytic converter damage:
Use UNLEADED GASOLINE ONLY of the type of rec-
ommended in “Fuel selection”.
Do not drive with an extremely low fuel level. Running
out of gas could damage the catalytic converter.
Do not try to start the engine by pushing or towing the
vehicle. If the battery is weak or run down, use jumper
cables to properly start the engine.
Do not idle the engine with any spark plug wires discon-
nected or removed, such as when performing diagnostic
tests.
Do not idle the engine for a long time if it is idling
roughly or otherwise obviously malfunctioning.
To prevent the catalytic converter from being damaged
from unburned gas, do not race the engine when turning
off the ignition switch.
Stop driving the vehicle if you think the performance is
noticeably low, or the engine has a malfunction. If you are
not able to stop driving immediately, slow down and drive
for only a short time. Have an inspection made by an
authorized Mitsubishi Motors dealer or a repair facility of
your choice as soon as possible.
In unusual situations involving major engine problems, a
burning odor may indicate severe and abnormal catalytic
converter overheating. If this occurs, stop in a safe place,
shut the engine off and let the vehicle cool. Once the
engine is cool, immediately take your vehicle to an autho-
rized Mitsubishi Motors dealer or a repair facility of your
choice for service.
CAUTION
!
Damage to the catalytic converter can result if your
vehicle is not kept in proper operating condition. If
the engine malfunctions or misfires, or if your vehi-
cle performance suffers, have it serviced promptly.
Running your vehicle when it is overheated may
result in damage to the converter and vehicle.WA R N I N G
!
Do not park or run your vehicle in areas where com-
bustible materials such as dry grass or leaves can
come in contact with a hot exhaust, since a fire could
occur.
Do not put undercoat paint on the catalytic con-
verter.
BK0105501US.book 3 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 493 of 594
7-4 Vehicle care and maintenance

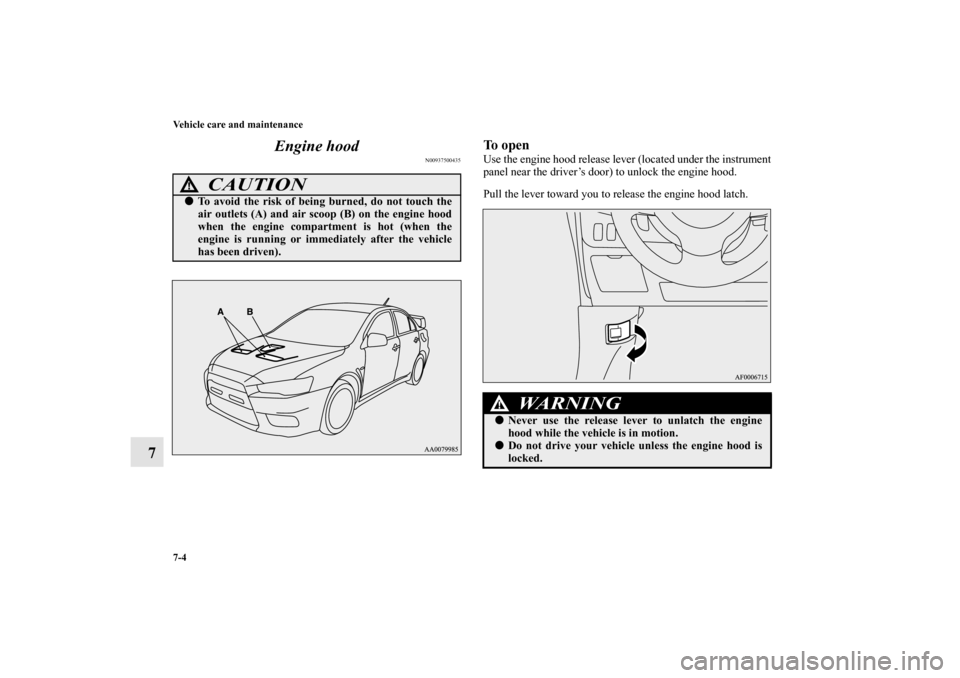

7Engine hood
N00937500435
To openUse the engine hood release lever (located under the instrument
panel near the driver’s door) to unlock the engine hood.
Pull the lever toward you to release the engine hood latch.
CAUTION
!
To avoid the risk of being burned, do not touch the
air outlets (A) and air scoop (B) on the engine hood
when the engine compartment is hot (when the
engine is running or immediately after the vehicle
has been driven).
WA R N I N G
!
Never use the release lever to unlatch the engine
hood while the vehicle is in motion.
Do not drive your vehicle unless the engine hood is
locked.
BK0105501US.book 4 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 494 of 594
Vehicle care and maintenance
7-5
7

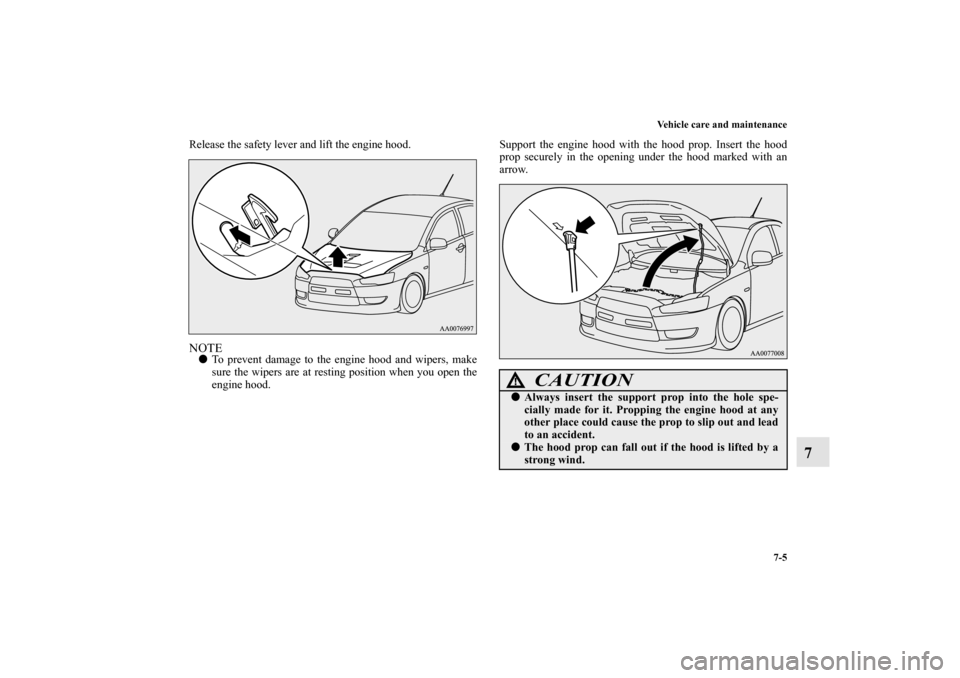

Release the safety lever and lift the engine hood. NOTE
To prevent damage to the engine hood and wipers, make
sure the wipers are at resting position when you open the
engine hood. Support the engine hood with the hood prop. Insert the hood
prop securely in the opening under the hood marked with an
arrow.
CAUTION
!
Always insert the support prop into the hole spe-
cially made for it. Propping the engine hood at any
other place could cause the prop to slip out and lead
to an accident.
The hood prop can fall out if the hood is lifted by a
strong wind.
BK0105501US.book 5 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 495 of 594
7-6 Vehicle care and maintenance
7
To closeUnlatch the prop from the engine hood and put it back in its
retainer.
Slowly lower the engine hood about 12 inches (30 cm), then let
it drop from its own weight. NOTE
If this does not close the engine hood properly, drop it
again from a slightly higher position.
Do not push down strongly on the engine hood. Depend-
ing on how strongly or where you push down, you could
create a dent in the vehicle body.
CAUTION
!
Be careful not to trap your hands or fingers when
closing the engine hood.
Make sure the engine hood is firmly closed before
driving.
BK0105501US.book 6 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 496 of 594
Vehicle care and maintenance
7-7

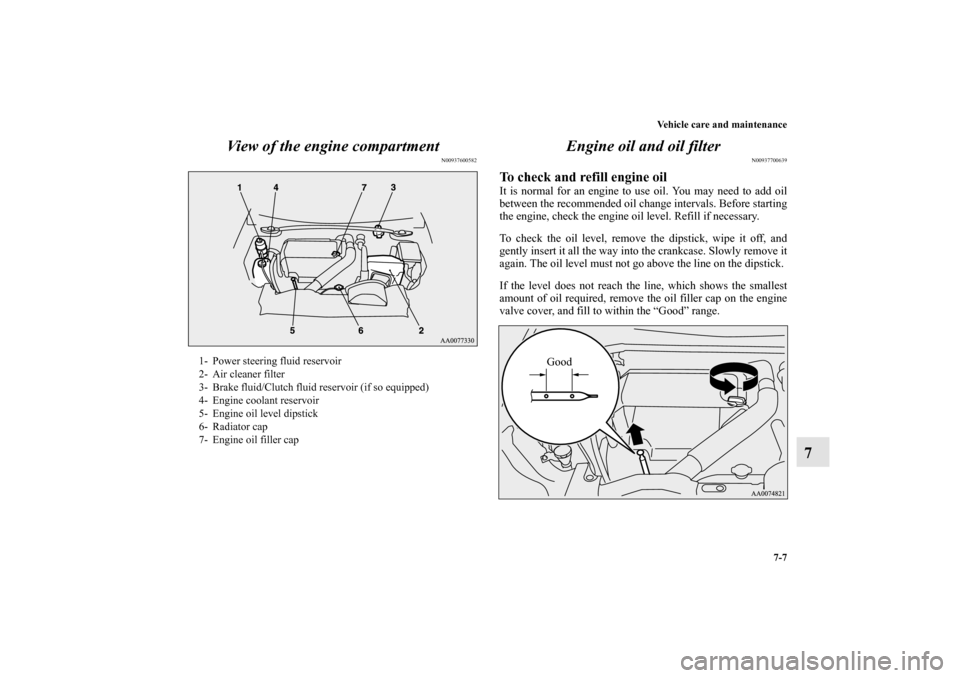

7 View of the engine compartment
N00937600582
Engine oil and oil filter
N00937700639
To check and refill engine oil It is normal for an engine to use oil. You may need to add oil
between the recommended oil change intervals. Before starting
the engine, check the engine oil level. Refill if necessary.
To check the oil level, remove the dipstick, wipe it off, and
gently insert it all the way into the crankcase. Slowly remove it
again. The oil level must not go above the line on the dipstick.
If the level does not reach the line, which shows the smallest
amount of oil required, remove the oil filler cap on the engine
valve cover, and fill to within the “Good” range.
1- Power steering fluid reservoir
2- Air cleaner filter
3- Brake fluid/Clutch fluid reservoir (if so equipped)
4- Engine coolant reservoir
5- Engine oil level dipstick
6- Radiator cap
7- Engine oil filler cap
Good
BK0105501US.book 7 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 497 of 594

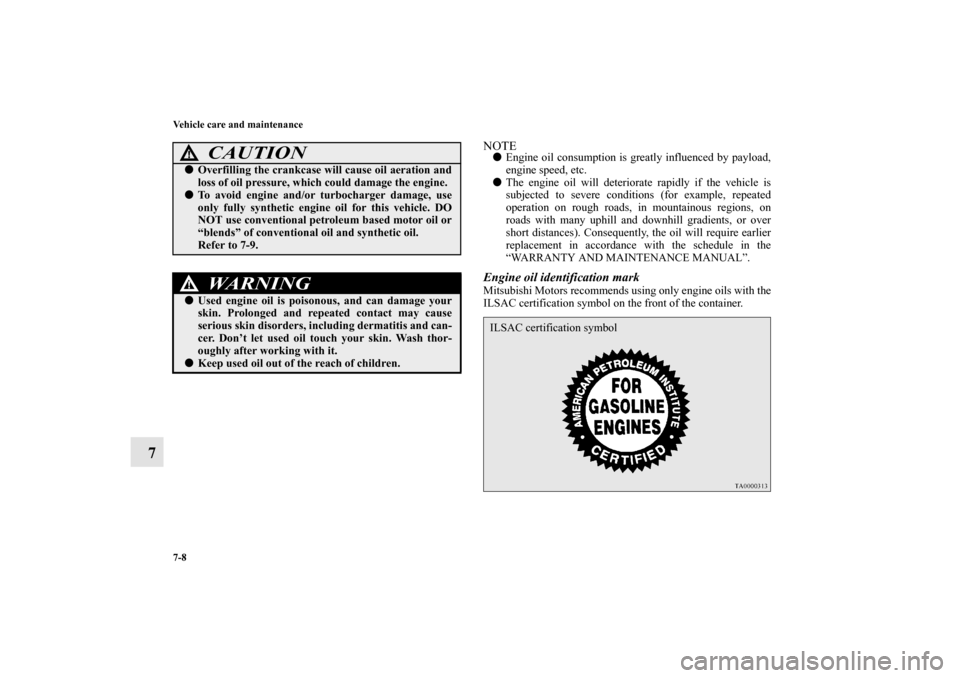

7-8 Vehicle care and maintenance
7
NOTE
Engine oil consumption is greatly influenced by payload,
engine speed, etc.
The engine oil will deteriorate rapidly if the vehicle is
subjected to severe conditions (for example, repeated
operation on rough roads, in mountainous regions, on
roads with many uphill and downhill gradients, or over
short distances). Consequently, the oil will require earlier
replacement in accordance with the schedule in the
“WARRANTY AND MAINTENANCE MANUAL”.
Engine oil identification markMitsubishi Motors recommends using only engine oils with the
ILSAC certification symbol on the front of the container.
CAUTION
!
Overfilling the crankcase will cause oil aeration and
loss of oil pressure, which could damage the engine.
To avoid engine and/or turbocharger damage, use
only fully synthetic engine oil for this vehicle. DO
NOT use conventional petroleum based motor oil or
“blends” of conventional oil and synthetic oil.
Refer to 7-9.WA R N I N G
!
Used engine oil is poisonous, and can damage your
skin. Prolonged and repeated contact may cause
serious skin disorders, including dermatitis and can-
cer. Don’t let used oil touch your skin. Wash thor-
oughly after working with it.
Keep used oil out of the reach of children.
ILSAC certification symbol
BK0105501US.book 8 ページ ２００９年８月１０日 月曜日 午前１０時３２分
Page 498 of 594

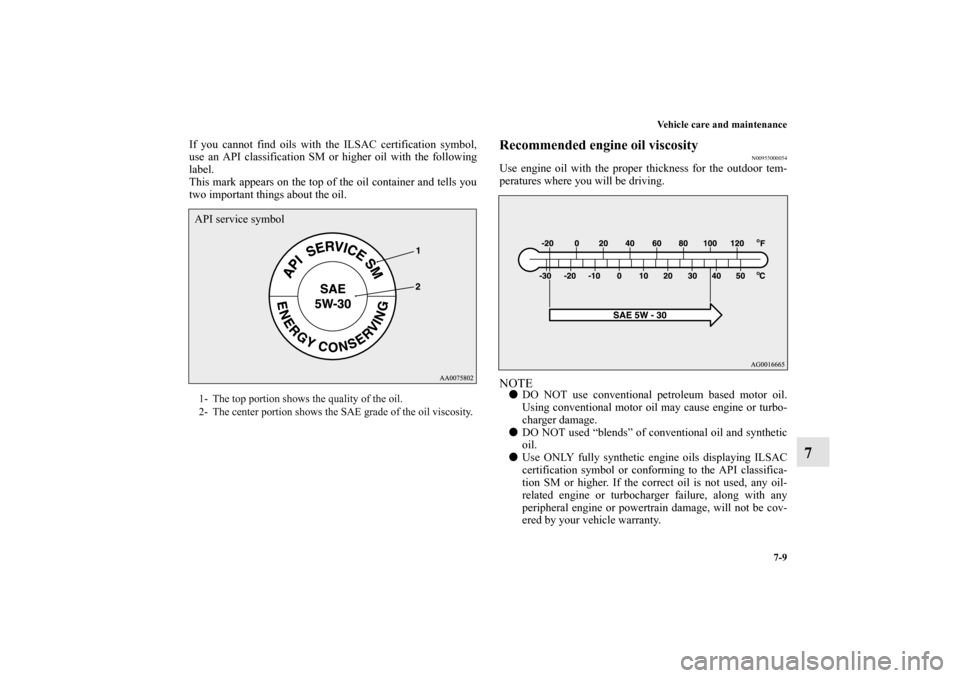

Vehicle care and maintenance
7-9
7
If you cannot find oils with the ILSAC certification symbol,
use an API classification SM or higher oil with the following
label.
This mark appears on the top of the oil container and tells you
two important things about the oil.
Recommended engine oil viscosity
N00955000054
Use engine oil with the proper thickness for the outdoor tem-
peratures where you will be driving.NOTE
DO NOT use conventional petroleum based motor oil.
Using conventional motor oil may cause engine or turbo-
charger damage.
DO NOT used “blends” of conventional oil and synthetic
oil.
Use ONLY fully synthetic engine oils displaying ILSAC
certification symbol or conforming to the API classifica-
tion SM or higher. If the correct oil is not used, any oil-
related engine or turbocharger failure, along with any
peripheral engine or powertrain damage, will not be cov-
ered by your vehicle warranty.
1- The top portion shows the quality of the oil.
2- The center portion shows the SAE grade of the oil viscosity.API service symbol
BK0105501US.book 9 ページ ２００９年８月１０日 月曜日 午前１０時３２分
